  1. CEM 512 Value Engineering LAPTOP SELECTION Using Value Engineering By Mazen A. Al-Juaid August 13, 2005

  2. Job Plan • Information Phase • Speculation Phase • Evaluation Phase • Development Phase • Implementation Phase

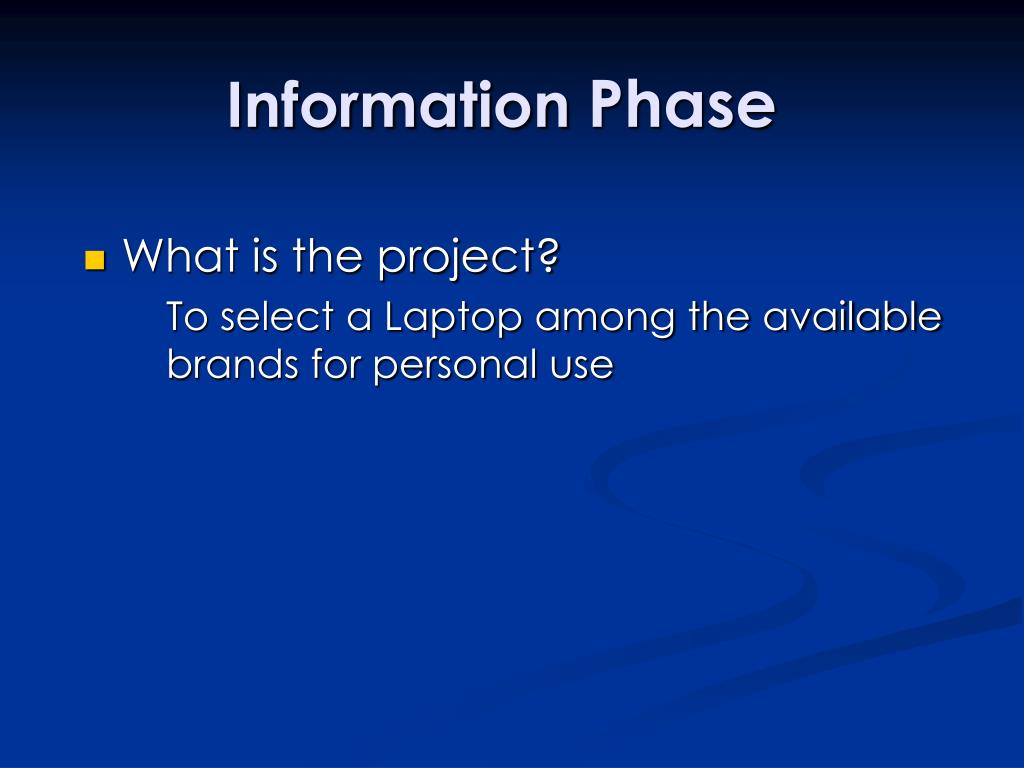

  3. Information Phase • What is the project? To select a Laptop among the available brands for personal use

  4. Information Phase Consultation records: • Jarir bookstore • Compu me

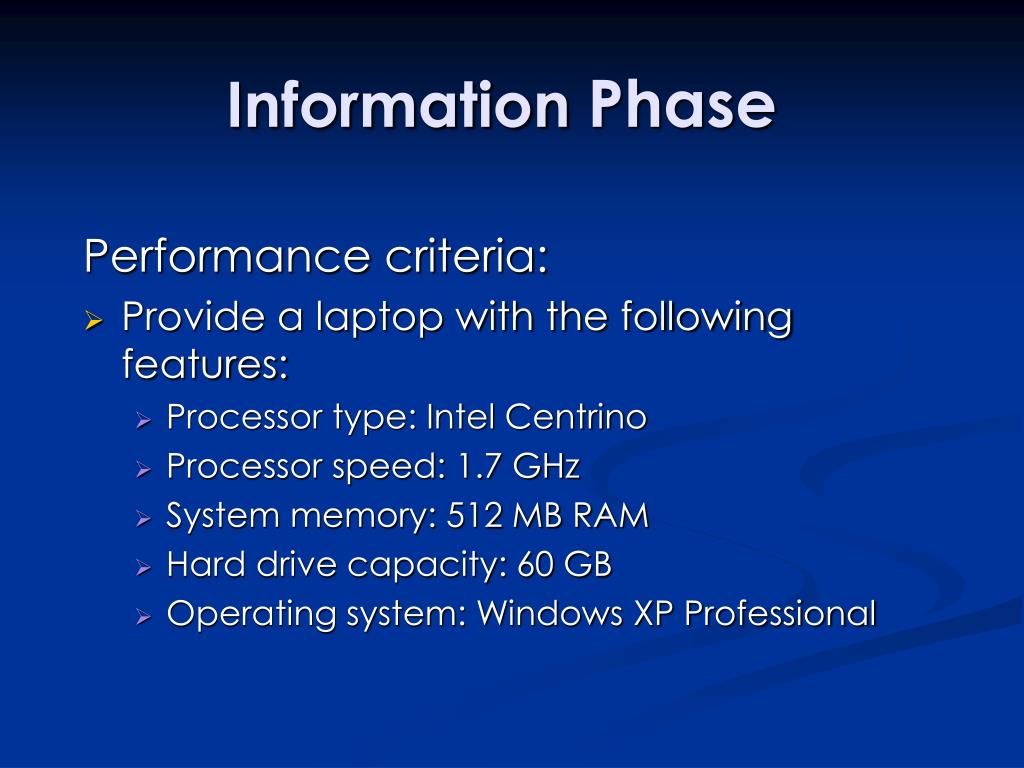

  5. Information Phase Performance criteria: • Provide a laptop with the following features: • Processor type: Intel Centrino • Processor speed: 1.7 GHz • System memory: 512 MB RAM • Hard drive capacity: 60 GB • Operating system: Windows XP Professional

  6. Information Phase • What is the function? Verb Noun process personal data Why Function How To make any job easier Process personal data Purchase a laptop

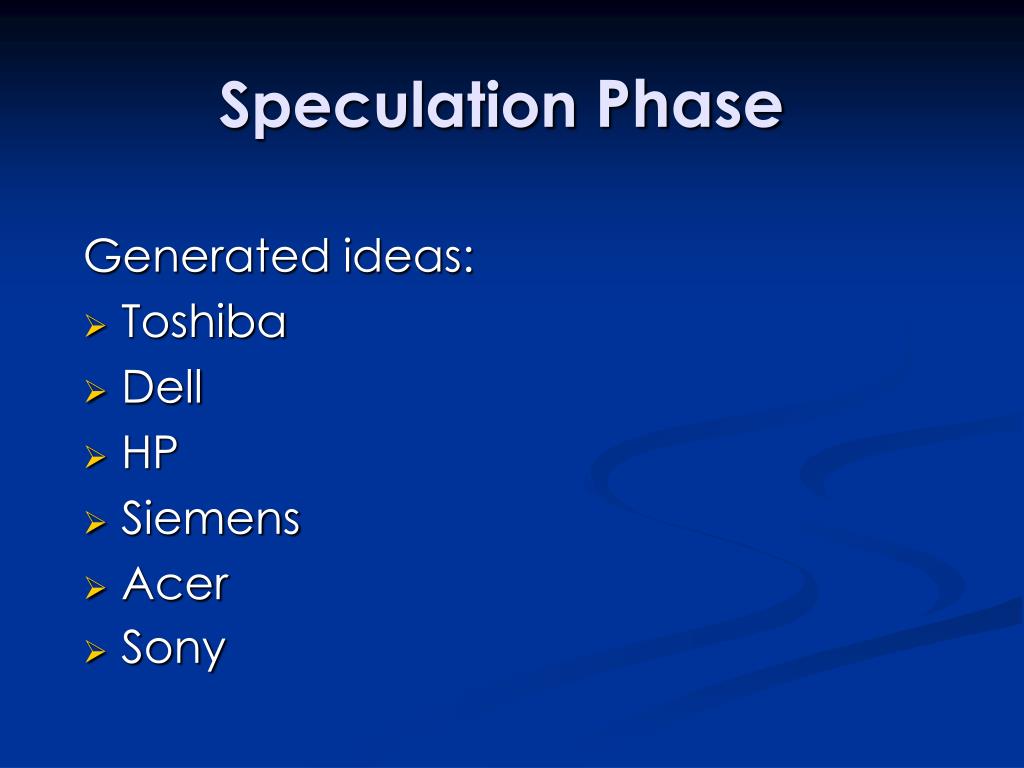

  7. Speculation Phase Generated ideas: • Toshiba • Dell • HP • Siemens • Acer • Sony

  8. Evaluation Phase

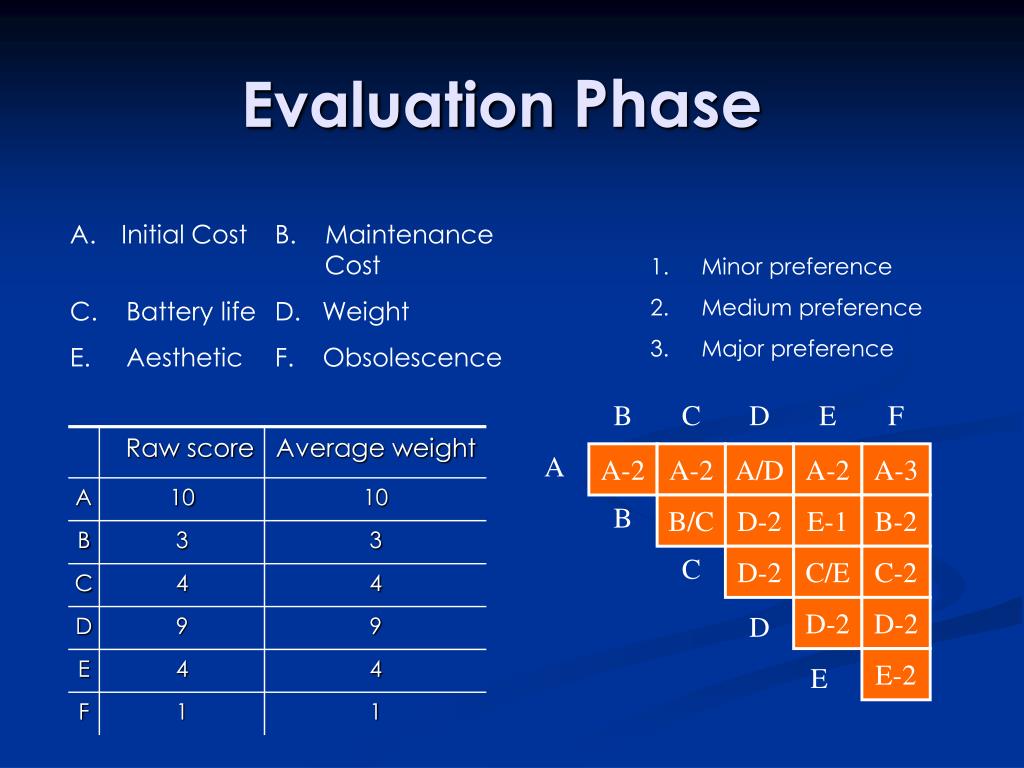

  9. Evaluation Phase A. Initial Cost B. Maintenance Cost C. Battery life D. Weight E. Aesthetic F. Obsolescence • Minor preference • Medium preference • Major preference B C D E F A A-2 A-2 A/D A-2 A-3 B B/C D-2 E-1 B-2 C D-2 C/E C-2 D-2 D-2 D E-2 E

  10. Evaluation Phase Obsolescence Aesthetic Weight Battery life Maintenance Cost Initial Cost 10 3 4 9 4 1 Total Weight Ranking • Toshiba • Dell • HP • Siemens • Acer • Sony 2 5 4 1 2 5 73 6 • Toshiba • Dell • HP • Siemens • Acer • Sony 3 3 1 3 4 4 90 4 3 4 2 2 4 3 87 5 5 1 5 4 2 2 119 1 4 3 4 4 3 1 114 2 3 1 2 4 5 5 3 100 3

  11. Development Phase • Siemens: • Processor type: Intel Centrino • Processor speed: 1.7 GHz • System memory: 512 MB RAM • Hard drive capacity: 60 GB • Drives included: DVD-Dual • Screen: 15.1” LCD XGA color • Modem speed: 56 Kbps • wireless communications: wireless LAN 802.11b/g • Operating system: Windows XP Professional • Warranty: 3 Years

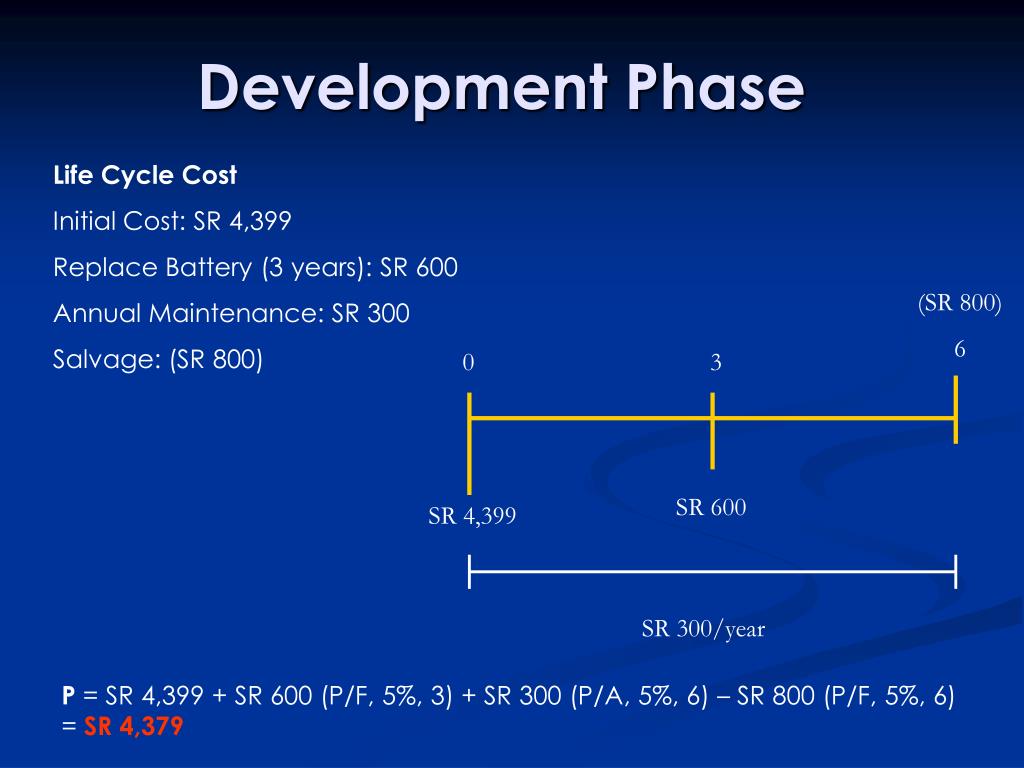

  12. Development Phase Life Cycle Cost Initial Cost: SR 4,399 Replace Battery (3 years): SR 600 Annual Maintenance: SR 300 Salvage: (SR 800) (SR 800) 6 0 3 SR 600 SR 4,399 SR 300/year P = SR 4,399 + SR 600 (P/F, 5%, 3) + SR 300 (P/A, 5%, 6) – SR 800 (P/F, 5%, 6) = SR 4,379

  13. Implementation Phase The decision was made to buy the Siemens laptop

  14. Q & A
