Lecture outline

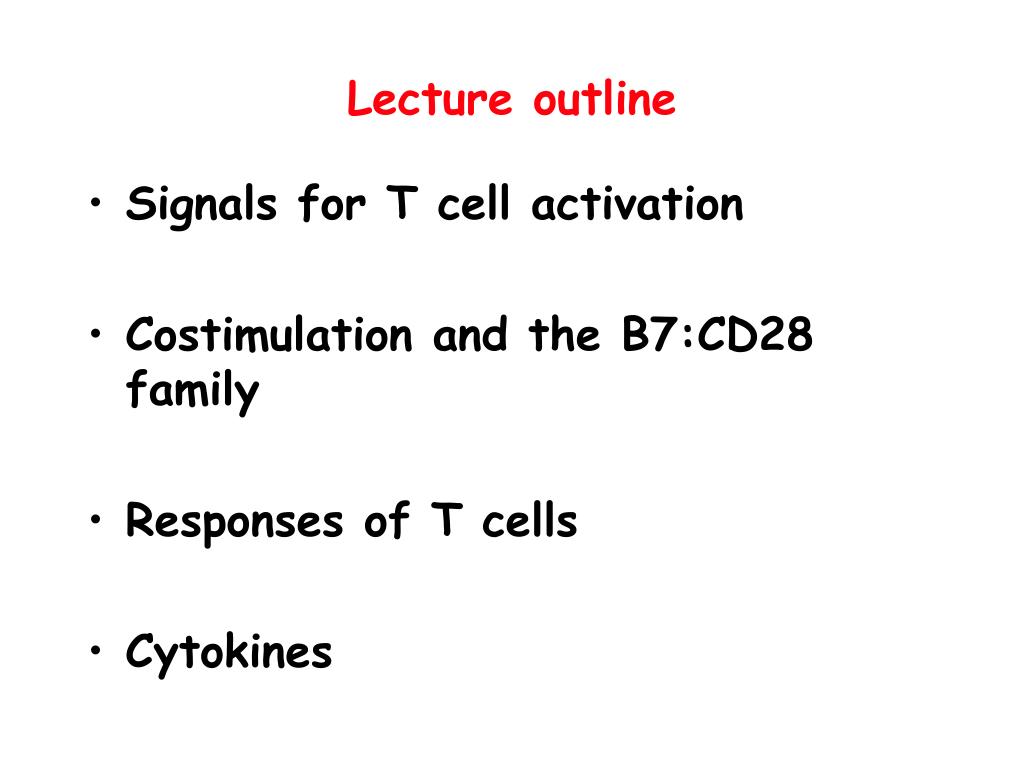

Lecture outline

  • Signals for T cell activation

  • Costimulation and the B7:CD28 family

  • Responses of T cells

  • Cytokines


Lecture outline

The life history of T lymphocytes

c

Abbas, Lichtman and Pillai. Cellular and Molecular Immunology, 7th edition, 2011

Elsevier


Lecture outline

Principles of lymphocyte activation

  • Lymphocytes are normally in a resting state in lymphoid organs and circulation

  • Rapid response to antigen (activation) --> proliferation, change to functionally active effector cells (differentiation)

  • Migration to tissues, where they perform their function of eliminating infections

  • Multiple possible steps for therapeutic targeting


Lecture outline

Steps in the activation of T lymphocytes


Lecture outline

Recognition of antigen by the TCR

The TCR of CD4+ and CD8+

T cells recognizes MHC-bound peptide + portions of the MHC.

Other T cells (gd T cells, NKT cells) recognize non-peptide antigens; these are small cell populations whose function is unclear.


Lecture outline

Antigen recognition by T cells

  • Each T cell sees a (self) MHC molecule and a bound peptide

    • Dual recognition determines specificity and MHC restriction

  • Multiple ligands on APCs and receptors on T cells, in addition to the TCR, participate in orchestrating responses to antigens

  • Signaling: clustering of receptors --> activation of kinases (often via “adaptor proteins”) --> activation of transcription factors


Lecture outline

Receptor-ligand pairs involved in

T cell activation

Different molecules involved in T cell responses to

antigen serve distinct functions, seen even in this partial listing.

Drugs that block these ligand-receptor pairs have been developed

to treat immune-mediated inflammatory diseases, graft rejection.


Lecture outline

Molecules involved in T cell activation

  • Signal transduction

    • CD4 and CD8 co-receptors recognize MHC molecules (class II or class I) at the same time as the TCR sees the peptide-MHC; CD4 and CD8 provide necessary activating signals for T cells

    • CD28 is a receptor for “costimulators” expressed on APCs


Lecture outline

Molecules involved in T cell activation

  • Signal transduction

    • CD4 and CD8 co-receptors recognize MHC molecules (class II or class I) at the same time as the TCR sees the peptide-MHC; CD4 and CD8 provide necessary activating signals for T cells

    • CD28 is a receptor for “costimulators” expressed on APCs

  • Strengthen adhesion with antigen-presenting cells

    • Integrins function as adhesion molecules

    • Affinity of integrins is increased by chemokines produced during inflammation, and by antigen recognition by TCRs

  • Control routes of T cell migration

    • Selectins and integrins control migration of naïve T cells through lymph nodes and of effector and memory T cells to sites of infection

  • Therapeutic targets


Lecture outline

Formation of the immunological synapse

Signaling molecules orient to one region of the cell within seconds of antigen recognition


Lecture outline

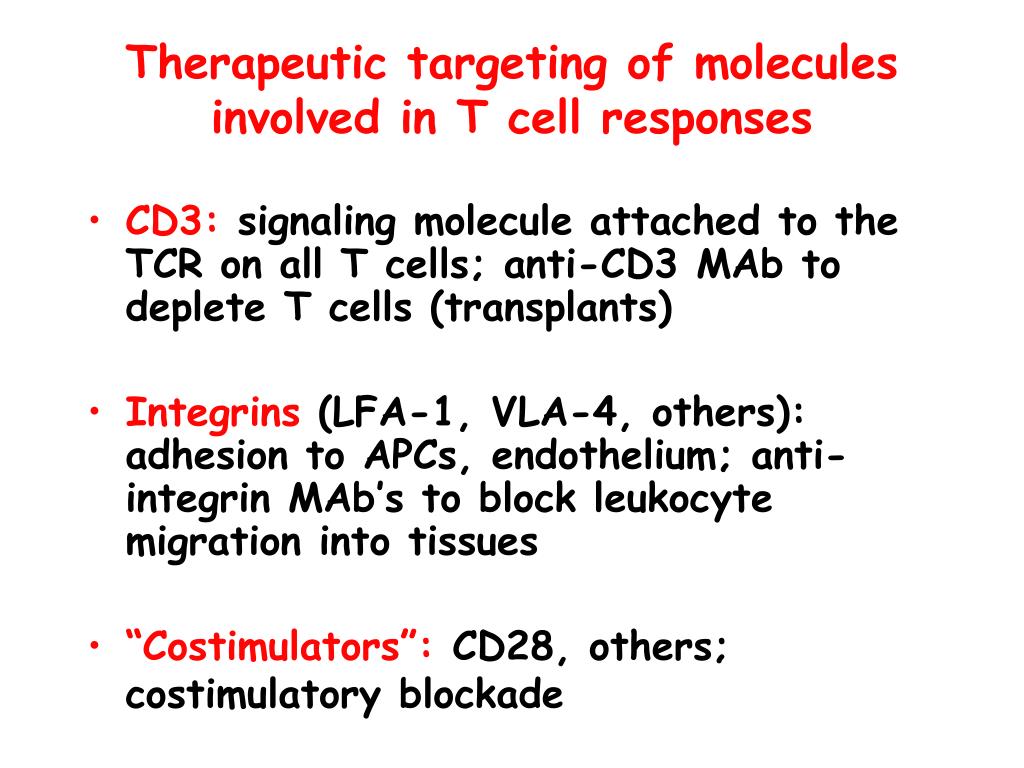

Therapeutic targeting of molecules involved in T cell responses

  • CD3: signaling molecule attached to the TCR on all T cells; anti-CD3 MAb to deplete T cells (transplants)

  • Integrins (LFA-1, VLA-4, others): adhesion to APCs, endothelium; anti-integrinMAb’s to block leukocyte migration into tissues

  • “Costimulators”: CD28, others; costimulatory blockade


Lecture outline

The two-signal requirement for lymphocyte activation

Costimulation: signal(s)

in addition to antigen that are needed to initiate adaptive immune

responses

Best defined for CD4+ T

cells

Multiple pairs of ligands

on APCs and receptors

on T cells may serve this

function; best defined

are the B7-CD28 families of proteins

c

Abbas, Lichtman and Pillai. Cellular and Molecular Immunology, 7th edition, 2011

Elsevier


Lecture outline

Two signal requirement for T cell activation

  • Naïve lymphocytes need two signals to initiate their responses

  • Signal 1: antigen recognition

    • Ensures that the response is antigen-specific

  • Signal 2: costimulators induced on APCs during infection (or upon recognition of necrotic cells)

    • Ensures that the immune system responds best to microbes (or dangerous insults, such as tumors) and not to harmless antigens

    • Adjuvants stimulate expression of costimulators


Lecture outline

Role of costimulation in T cell activation


Lecture outline

The B7: CD28 family

Different members

of the B7-CD28

families serve

different roles in

stimulating and suppressing

immune responses.


Lecture outline

Major functions of selected B7-CD28 family members

  • B7-CD28: initiation of immune responses

  • ICOS-ICOS-L: role in B cell activation in germinal centers

  • B7-CTLA-4: inhibits early T cell responses in lymphoid organs

  • PD-1:PD-L1,2: inhibits effector T cell responses in peripheral tissues


Lecture outline

APC

The opposing functions of CD28 and CTLA-4

B7

CD28

B7-CD28

interaction

Naïve

T cell

TCR

Proliferation,

differentiation

CTLA-4

B7-CTLA-4

interaction

Functional

inactivation

Inhibitory pathways function normally to prevent

responses to self antigens: demonstrated by the

finding that blocking or eliminating these inhibitors

(CTLA-4, PD-1) causes autoimmune disease


Lecture outline

Blocking CTLA-4 promotes tumor rejection

Tumor recognition by T cells leads to engagement of CTLA-4 on the T cells and inhibition of immune responses. Blocking CTLA-4 increases anti-tumor response and leads to tumor rejection.


Lecture outline

Inhibitory role of PD-1 in a chronic infection

Virus-specific

T cell response

Residual virus

In a chronic viral infection in mice, recognition of virus by specific T cells leads to PD-1 engagement, inhibition of T cell responses, and persistence of the virus. Blocking the PD-1 pathway releases the inhibition, enhances the T cell response, and leads to viral clearance.


Lecture outline

Inhibitory receptors

  • Prevent reactions against self antigens

  • Mediate immunosuppression in chronic infections (HCV, HIV)

  • Limit responses to tumors

  • Similar roles are established for both CTLA-4 and PD-1


Lecture outline

The balance between activation and inhibition

  • How does a T cell choose to use CD28 to be activated or CTLA-4 to shut down?


Lecture outline

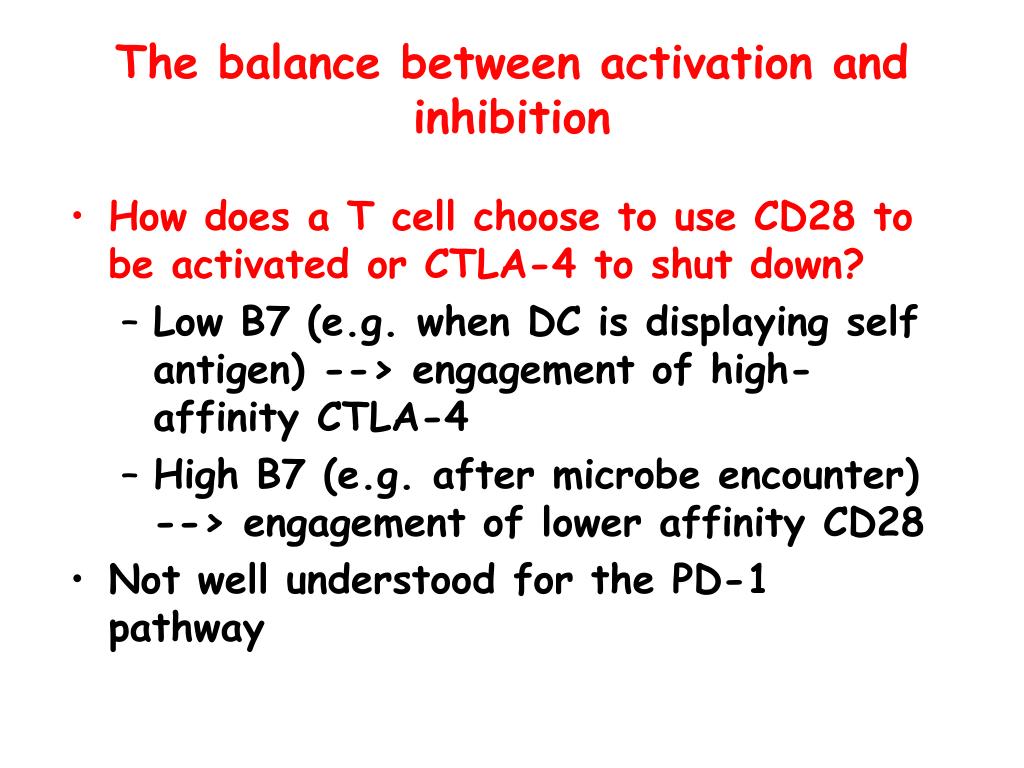

The balance between activation and inhibition

  • How does a T cell choose to use CD28 to be activated or CTLA-4 to shut down?

    • Low B7 (e.g. when DC is displaying self antigen) --> engagement of high-affinity CTLA-4

    • High B7 (e.g. after microbe encounter) --> engagement of lower affinity CD28

  • Not well understood for the PD-1 pathway


Lecture outline

Therapeutics based on the B7:CD28/CTLA-4 family

1. Costimulatory blockade

CTLA-4.Ig is used for diseases caused by ….?


Lecture outline

Therapeutics based on the B7:CD28/CTLA-4 family

1. Costimulatory blockade

CTLA-4.Ig is used for diseases caused by excessive

T cell activation -- rheumatoid arthritis, graft rejection; not yet approved for IBD, psoriasis


Lecture outline

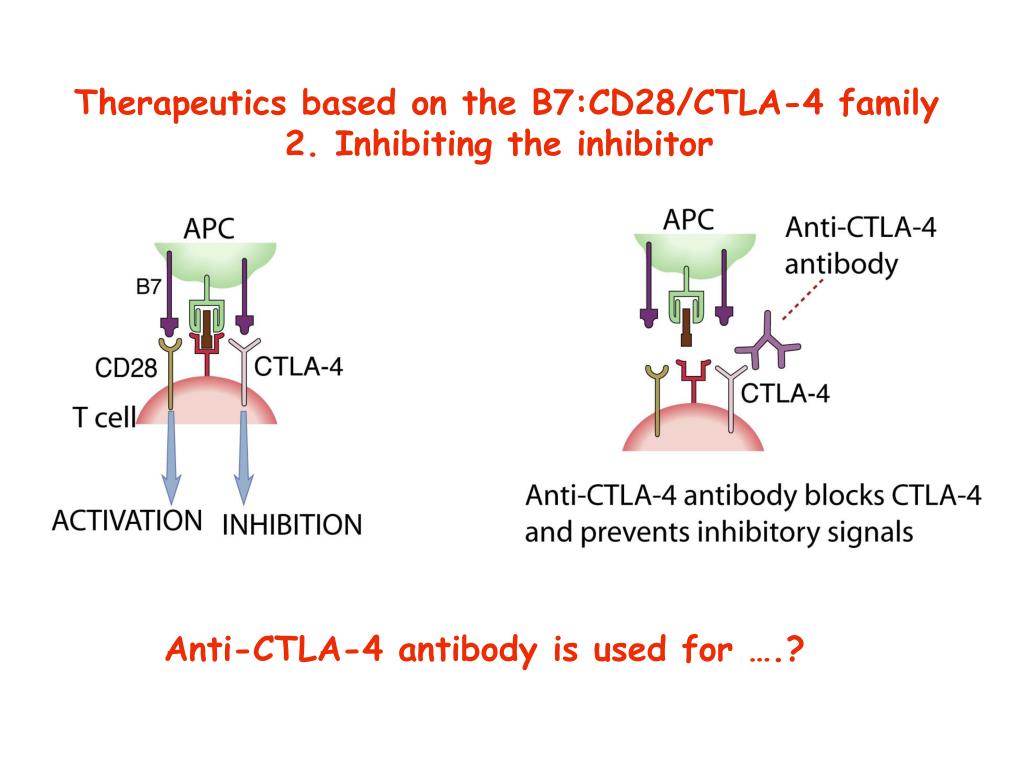

Therapeutics based on the B7:CD28/CTLA-4 family

2. Inhibiting the inhibitor

Anti-CTLA-4 antibody is used for ….?


Lecture outline

Therapeutics based on the B7:CD28/CTLA-4 family

2. Inhibiting the inhibitor

Anti-CTLA-4 antibody is approved for tumor

immunotherapy (enhancing immune responses against tumors)

Even more impressive early clinical trial results with anti-PD-1 in cancer patients


Lecture outline

Costimulation

  • Required for initiating T cell responses

    • Many proteins on APCs and their receptors on T cells shown to “costimulate” (function with antigen to activate T cells); most important costimulators are B7:CD28

  • Ensures that T cells respond to microbes (the inducers of costimulators) and not to harmless antigens

    • Source of costimulation in responses to tumors and transplants: products of dead cells?

  • Therapeutic targets


Lecture outline

Clonal

expansion

106

Contraction

(homeostasis)

# of microbe-specific T cells

CD8 cells

104

Memory

CD4 cells

102

7

14

200

Infection

Days after infection

T cell expansion and contraction (decline)

Many aspects of T cell responses and functions are mediated

by cytokines: initial activation -- IL-2; maintenance of memory cells -- IL-7; effector functions -- various


Lecture outline

Cytokines

  • Secreted proteins that mediate immune and inflammatory reactions, and communications among leukocytes and other cells

  • Produced transiently in response to extrinsic stimuli

  • Bind to high-affinity receptors on target cells

  • Actions are most often autocrine and paracrine, rarely endocrine

  • Cytokines are pleiotropic (one cytokine has multiple actions) and redundant (different cytokines have similar actions)


Lecture outline

Role of IL-2 and IL-2 receptors in T cell proliferation

Production of IL-2 and expression of high-affinity IL-2 receptors

are both dependent on antigen recognition + costimulation


Lecture outline

Clonal expansion (proliferation) of T cells

  • Stimulated mainly by autocrine IL-2

    • T cell stimulation by antigen + costimulators induces secretion of IL-2 and expression of high-affinity IL-2 receptors

    • Therefore, antigen-stimulated T cells are the ones that expand preferentially in any immune response, keeping pace with replicating microbes


Clonal expansion proliferation of t cells

Clonal expansion (proliferation) of T cells

  • Stimulated mainly by autocrine IL-2

    • T cell stimulation by antigen + costimulators induces secretion of IL-2 and expression of high-affinity IL-2 receptors

    • Therefore, antigen-stimulated T cells are the ones that expand preferentially in any immune response, keeping pace with replicating microbes

  • CD8+ T cells may expand >50,000-fold within a week after an acute viral infection with minimal expansion of cells not specific for the virus (up to 10% of all CD8+ T cells in the blood may be specific for the pathogen)

  • Some of the progeny of the expanded clone differentiate into effector and memory cells; the majority die by apoptosis


Lecture outline

Naïve T cells differentiate into functional effector cells

Effector T cells

CD4+ helper

T cells

Show naïve CD8 also?

Cytokine

secretion

+ antigen

Differentiation

+ antigen

APC

Naïve T cell:

Can recognize antigen but incapable of any functions

Cell

killing

CD8+ CTLs


Memory t cells

Memory T cells

  • Long-lived, functionally silent

    • More numerous than naïve cells specific for the antigen; respond more rapidly than do naïve cells -- explains why secondary response is “better” than primary response

  • Develop from antigen-stimulated T cells

  • May consist of multiple subsets

    • Some migrate to lymphoid organs (like naïve T cells), and proliferate and differentiate rapidly in response to antigen challenge (repeat infection)

    • Others migrate to peripheral sites of infection, and rapidly perform effector functions upon encountering the antigen


Lecture outline

The life history of T lymphocytes

Precursors mature in the thymus

Naïve CD4+ and CD8+ T cells enter the circulation

Naïve T cells circulate through lymph nodes

and find antigens

Clonal expansion;

differentiation into effector and memory cells

Effector T cells migrate to sites of infection

Eradication of infection
