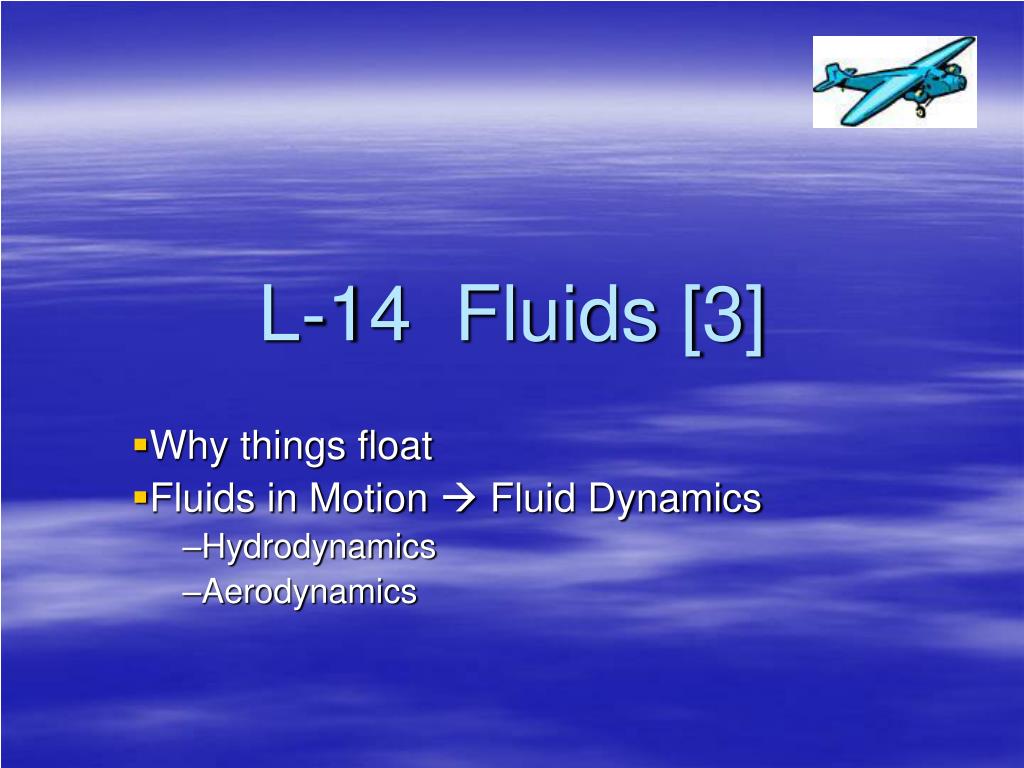

L-14 Fluids [3]

Why things float

Fluids in Motion  Fluid Dynamics

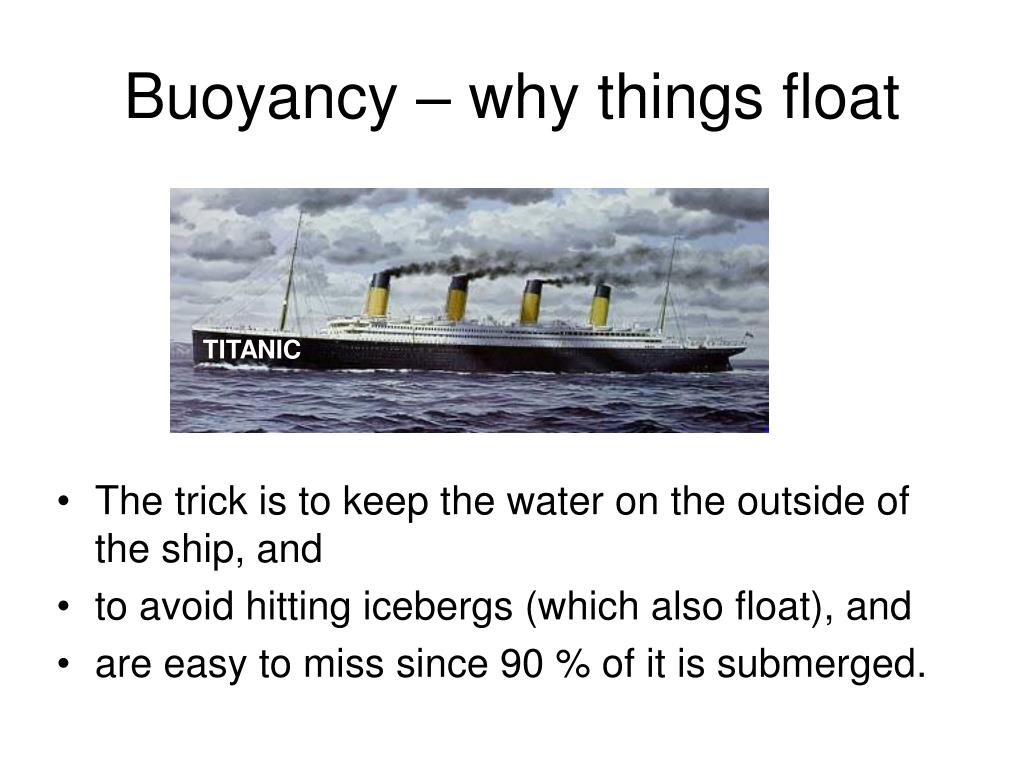

Buoyancy why things float

Buoyancy – why things float


  • The trick is to keep the water on the outside of the ship, and

  • to avoid hitting icebergs (which also float), and

  • are easy to miss since 90 % of it is submerged.

Buoyant force

Buoyant Force

Pressure increases with depth

submerged object

that has a mass

density ρO

The density of the

water is ρW


F = P  A




Archimedes principle

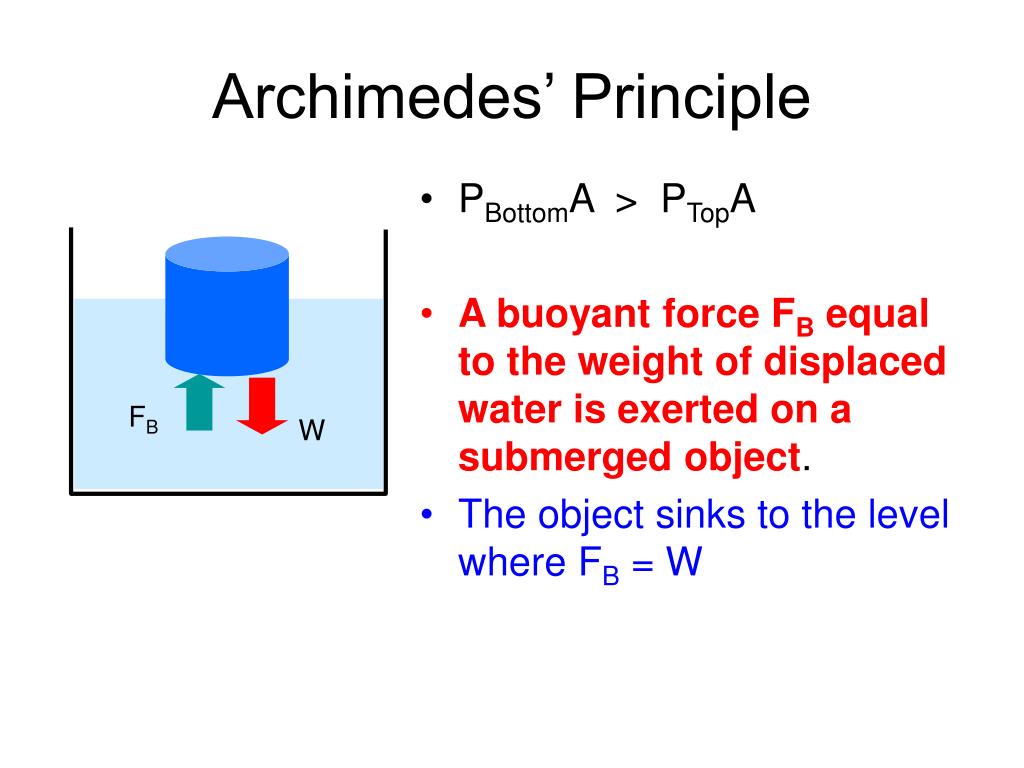

Archimedes’ Principle

  • PBottomA > PTopA

  • A buoyant force FB equal to the weight of displaced water is exerted on a submerged object.

  • The object sinks to the level where FB = W



Archimedes principle1

Archimedes principle

The buoyant force on an object in

a fluid equals the weight of the

fluid which it displaces.

  • this works for objects in water

  • helium balloons (density of He = 0.18 kg/m3, about 7 times less dense than air)

  • hot air balloons  the density of

  • hot air is lower than the density of cool

  • air so the weight of the cool air that is

  • displaced is higher than the weight

  • of the balloon

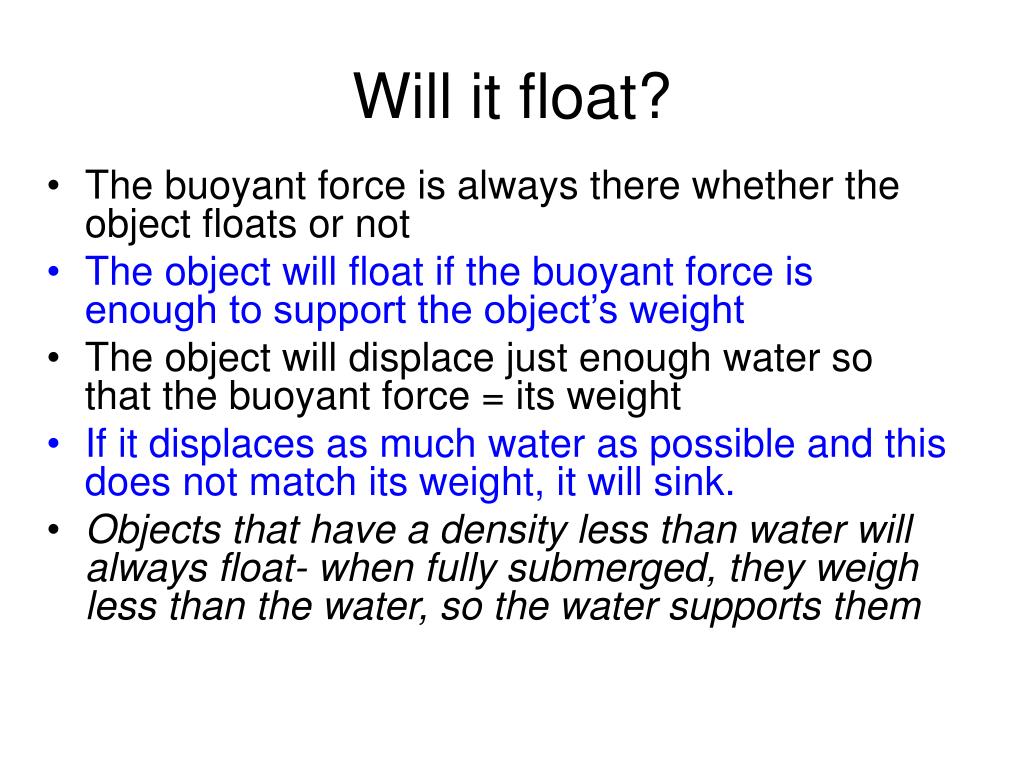

Will it float

Will it float?

  • The buoyant force is always there whether the object floats or not

  • The object will float if the buoyant force is enough to support the object’s weight

  • The object will displace just enough water so that the buoyant force = its weight

  • If it displaces as much water as possible and this does not match its weight, it will sink.

  • Objects that have a density less than water will always float- when fully submerged, they weigh less than the water, so the water supports them

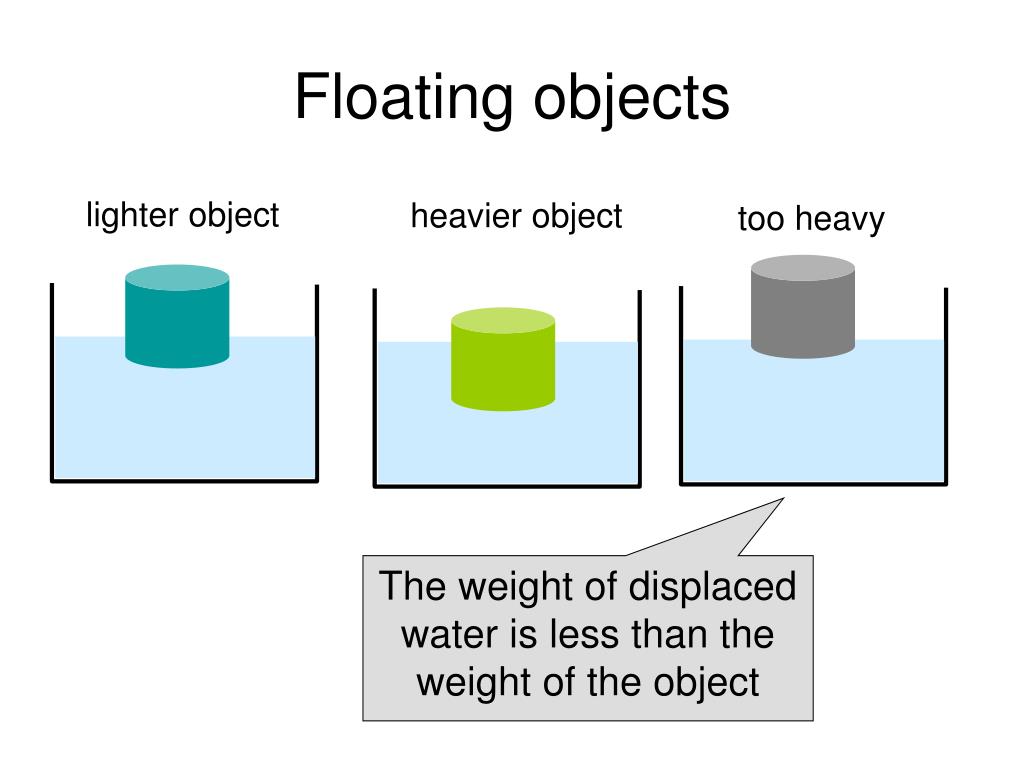

Floating objects

Floating objects

lighter object

heavier object

too heavy

The weight of displaced

water is less than the

weight of the object

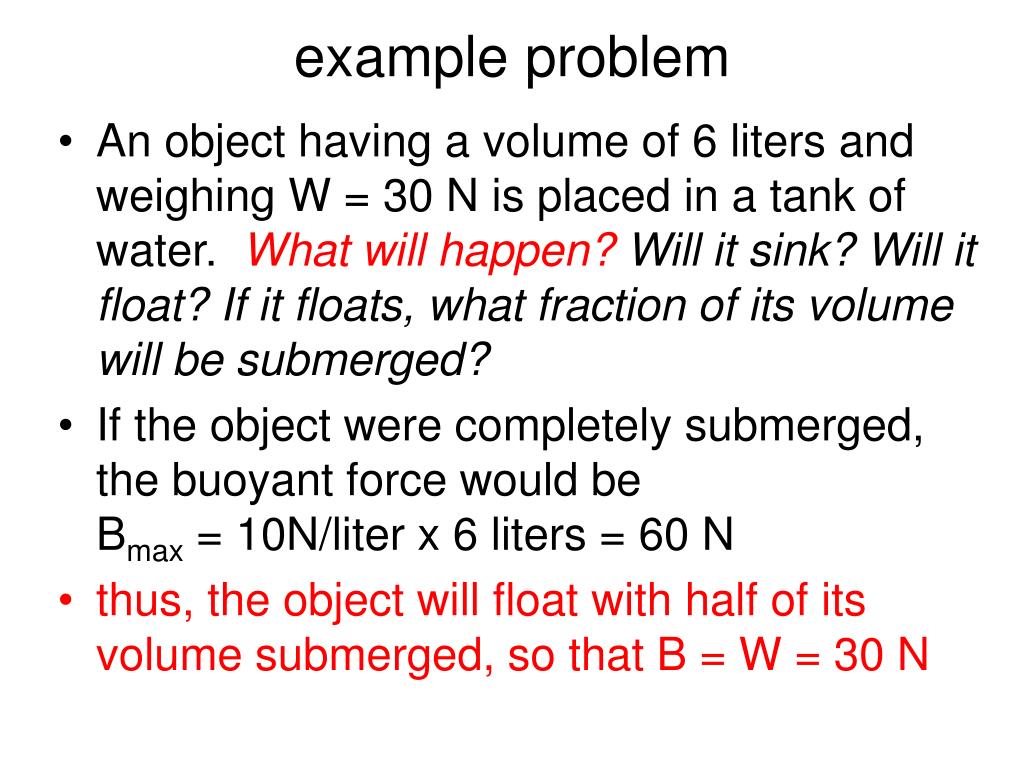

Example problem

example problem

  • An object having a volume of 6 liters and weighing W = 30 N is placed in a tank of water. What will happen? Will it sink? Will it float? If it floats, what fraction of its volume will be submerged?

  • If the object were completely submerged, the buoyant force would beBmax = 10N/liter x 6 liters = 60 N

  • thus, the object will float with half of its volume submerged, so that B = W = 30 N

Oil tankers

Oil Tankers





Floating in a cup of water

Floating in a cup of water

Only a thin layer of

water around the hull

is needed for the ship

to float!

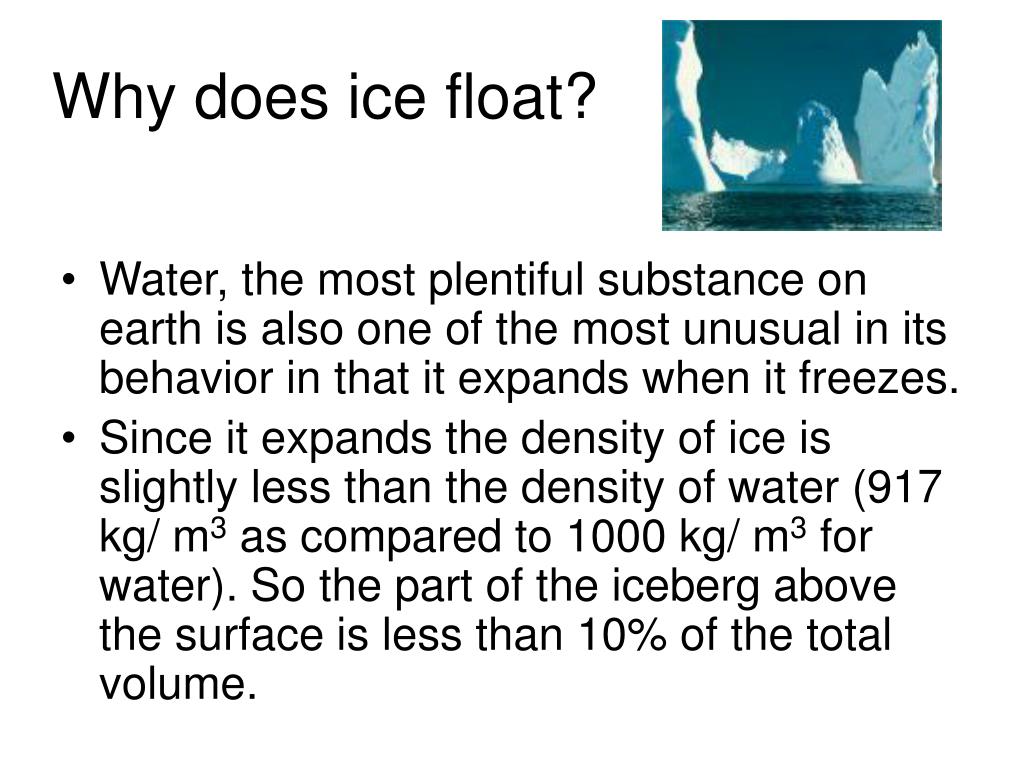

Why does ice float

Why does ice float?

Water, the most plentiful substance on earth is also one of the most unusual in its behavior in that it expands when it freezes.

Since it expands the density of ice is slightly less than the density of water (917 kg/ m3 as compared to 1000 kg/ m3 for water). So the part of the iceberg above the surface is less than 10% of the total volume.

Place your bets

Place your bets!

  • When the ice cube melts will:

  • the water spill out, or

  • the water level stay the same, or

  • the level go down ????????

ice cube

Answer: The level stays the same.

Ice is less dense than water, so that

the volume occupied by the ice is

exactly big enough to hold the

volume of melted water that was

not submerged!

Fluid flow

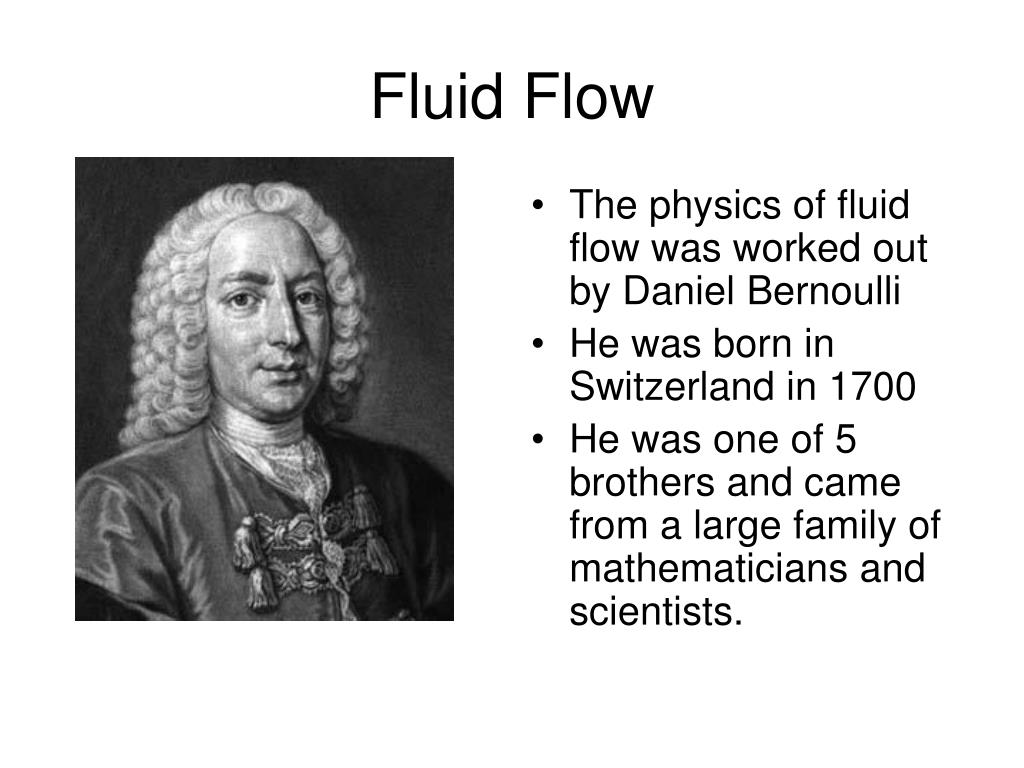

Fluid Flow

  • The physics of fluid flow was worked out by Daniel Bernoulli

  • He was born in Switzerland in 1700

  • He was one of 5 brothers and came from a large family of mathematicians and scientists.

L 14 fluids 3

fluid flow example – leaky cup

Pressure increases

with depth, so the

speed of water leaking

from the bottom hole is

larger than that from the

higher ones.

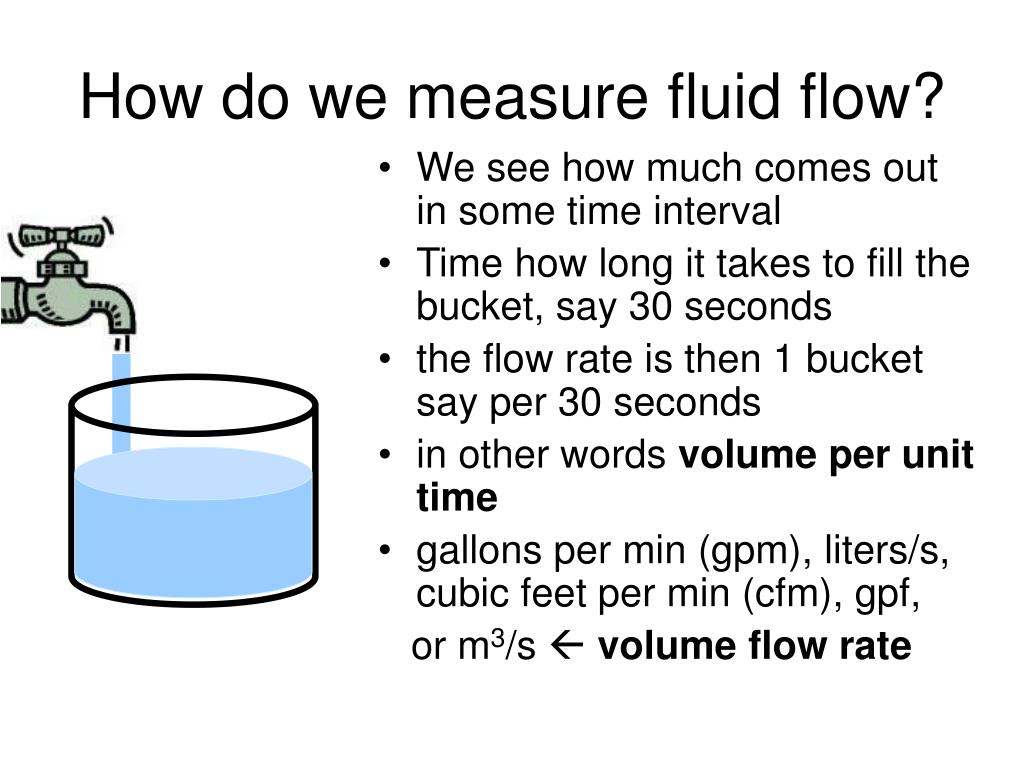

How do we measure fluid flow

How do we measure fluid flow?

  • We see how much comes out in some time interval

  • Time how long it takes to fill the bucket, say 30 seconds

  • the flow rate is then 1 bucket say per 30 seconds

  • in other words volume per unit time

  • gallons per min (gpm), liters/s, cubic feet per min (cfm), gpf,

    or m3/s  volume flow rate

Volume flow rate

Volume flow rate

  • If the water comes out of a tube of cross sectional area A with a flow speed u the volume flow rate is

  • volume flow rate = u  A (m/s m2)

  • To measure u just see how long it takes to fill a gallon jug from a hose and measure the diameter of the hose.


Mass flow rate

Mass flow rate

  • We could also measure how much mass comes out per unit time – kg/s for example

  • if you are using a fluid of density  coming out of a hose of cross sectional area A with speed v the mass flow rate is

  • mass flow rate =   u  A

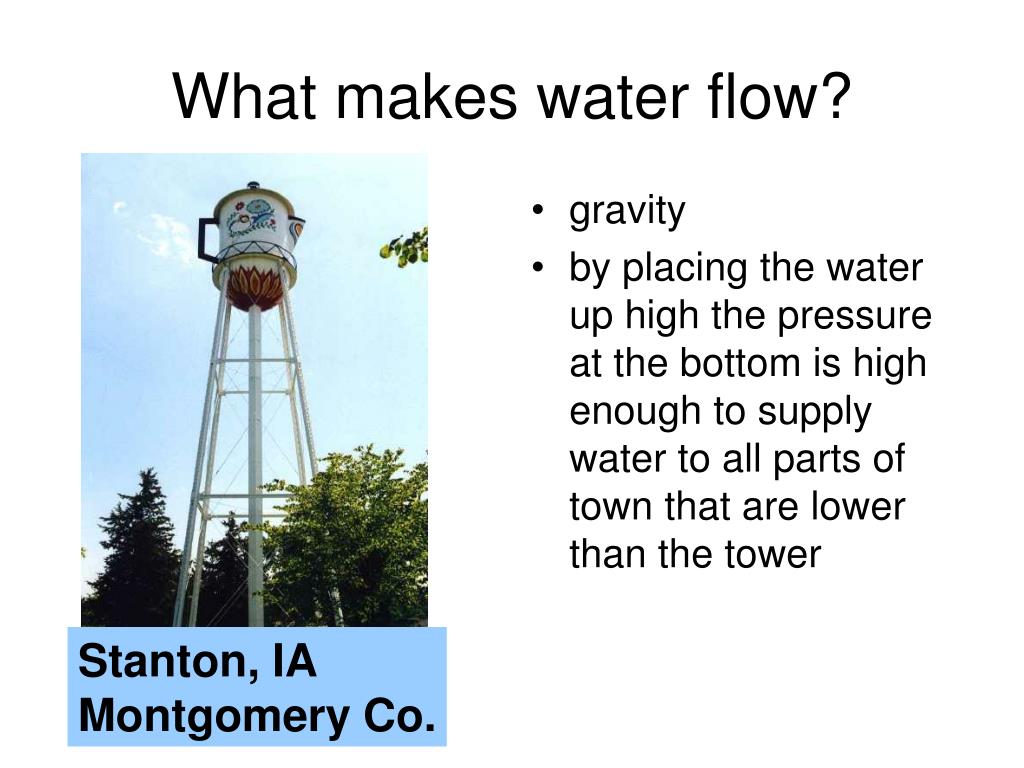

What makes water flow

What makes water flow?

  • gravity

  • by placing the water up high the pressure at the bottom is high enough to supply water to all parts of town that are lower than the tower

Stanton, IA

Montgomery Co.

Pressure differences

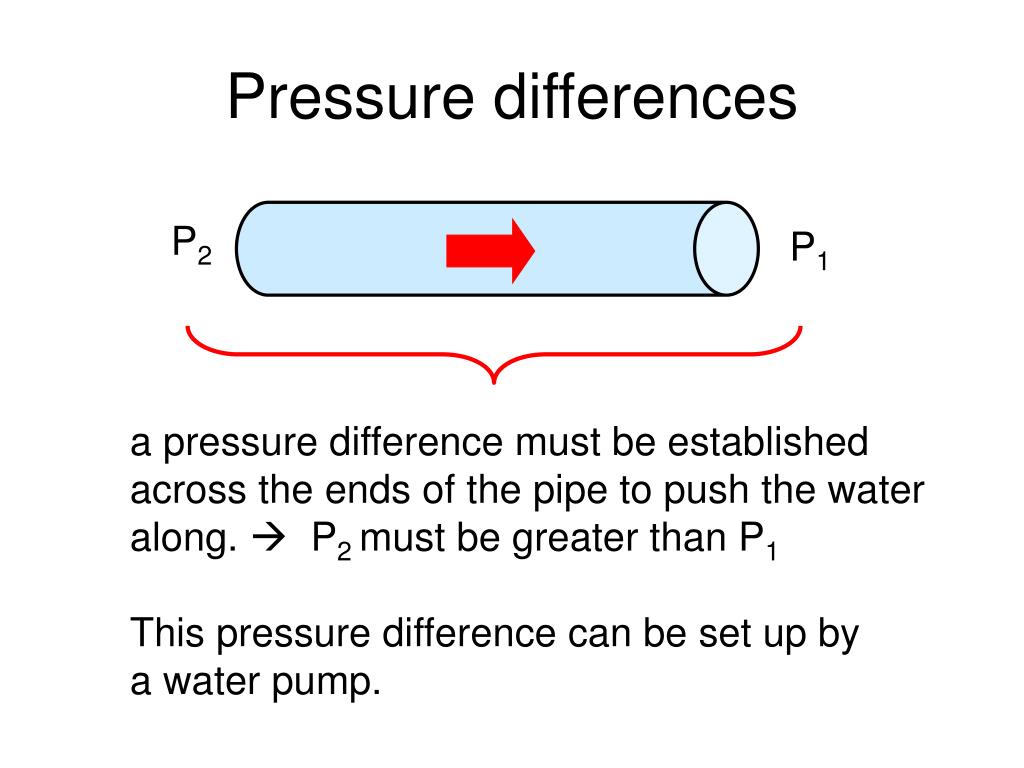

Pressure differences



a pressure difference must be established

across the ends of the pipe to push the water

along.  P2 must be greater than P1

This pressure difference can be set up by

a water pump.

Water does not disappear

v2, A2

v1, A1

Water does not disappear!

  • If water goes in one end of a pipe it must come out the other end (if there are no leaks of course. Sounds obvious, but it has a number of interesting consequences!

This applies to pipes that have constrictions also.

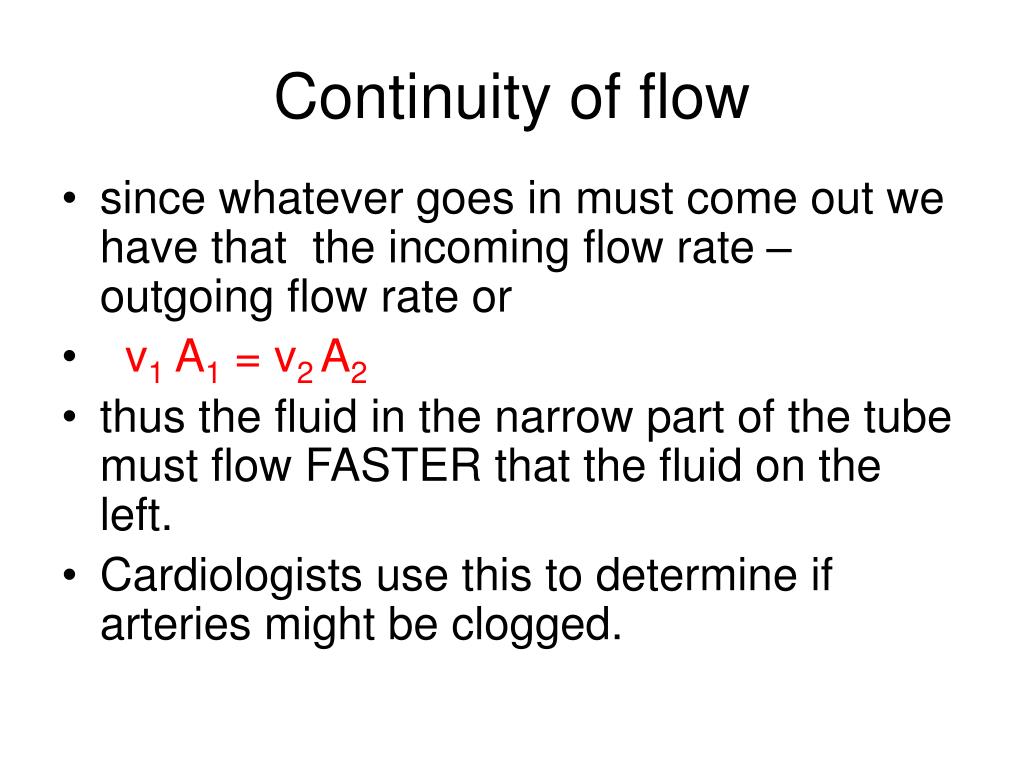

Continuity of flow

Continuity of flow

  • since whatever goes in must come out we have that the incoming flow rate – outgoing flow rate or

  • v1 A1 = v2 A2

  • thus the fluid in the narrow part of the tube must flow FASTER that the fluid on the left.

  • Cardiologists use this to determine if arteries might be clogged.

Other examples the nozzle effect

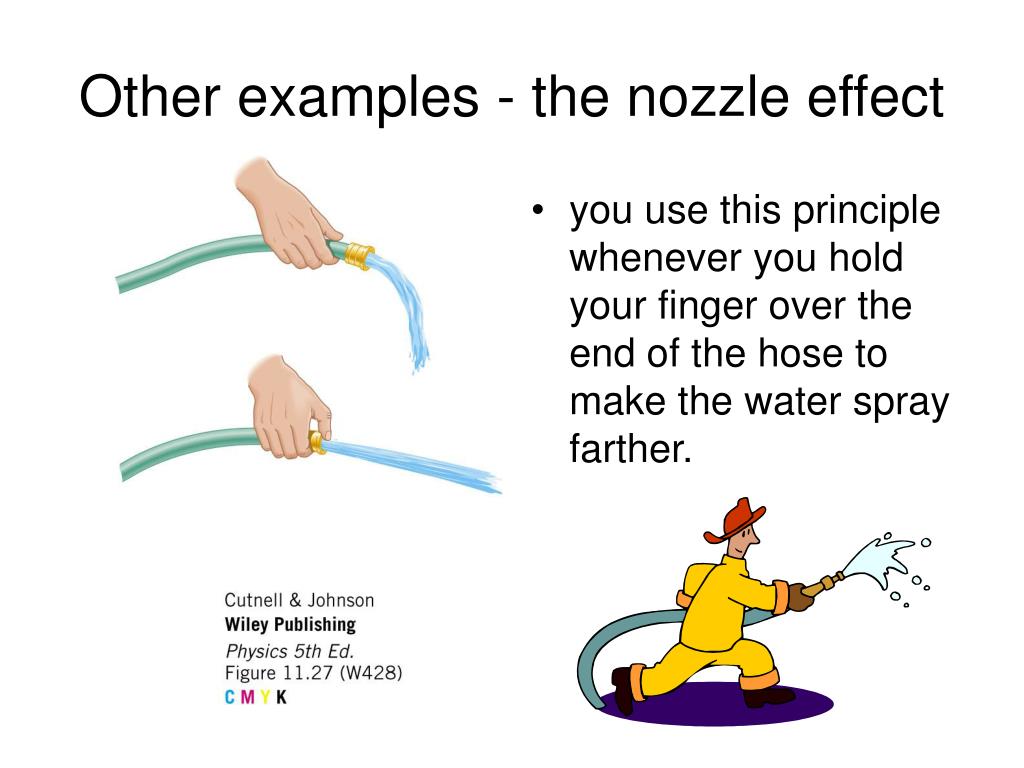

Other examples - the nozzle effect

  • you use this principle whenever you hold your finger over the end of the hose to make the water spray farther.

An amazing thing about moving fluids

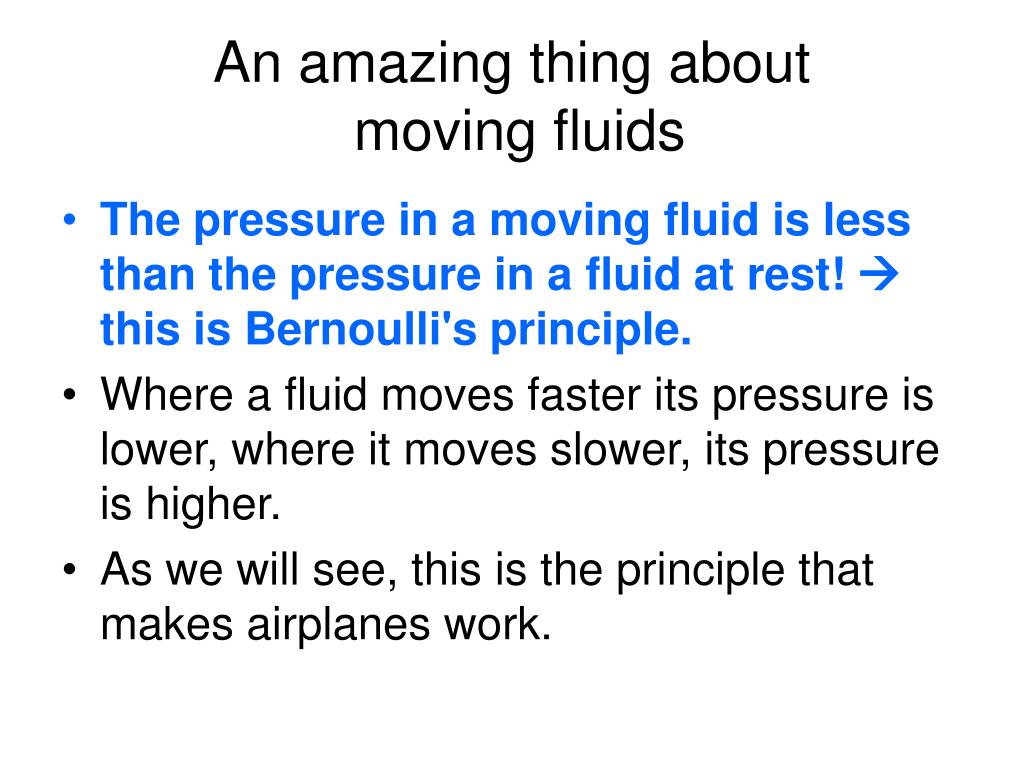

An amazing thing about moving fluids

  • The pressure in a moving fluid is less than the pressure in a fluid at rest!  this is Bernoulli's principle.

  • Where a fluid moves faster its pressure is lower, where it moves slower, its pressure is higher.

  • As we will see, this is the principle that makes airplanes work.

The venturi meter

The Venturi Meter

L 14 fluids 3


Bernoulli applies

to household

plumbing too!


air vent

When the wind is

really blowing, watch

the water level in the

toilet go up and down


Prairie dogs know how to use bernoulli s principle

Prairie dogs know how to useBernoulli's principle



  • fine droplets of liquid (not atoms) are sprayed from this device using the Bernoulli effect

End here


Hot air balloon

Hot air balloon

  • The ideal gas law tells is that when a gas is heated, its density goes down

  • so the air density inside the balloon is less than the density of cold air on the outside.

  • The cold air exerts an upward buoyant force on the balloon.
