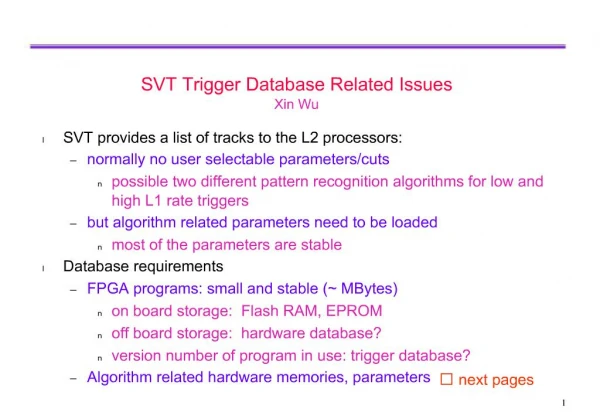

    1. TriggerDB meeting, Jan. 20, 2000 1 SVT Trigger Database Related Issues Xin Wu SVT provides a list of tracks to the L2 processors: normally no user selectable parameters/cuts possible two different pattern recognition algorithms for low and high L1 rate triggers but algorithm related parameters need to be loaded most of the parameters are stable Database requirements FPGA programs: small and stable (~ MBytes) on board storage: Flash RAM, EPROM off board storage: hardware database? version number of program in use: trigger database? Algorithm related hardware memories, parameters ? next pages

    2. TriggerDB meeting, Jan. 20, 2000 2 Algorithm Related Hardware Memories and Parameters Affect trigger performance (efficiency and fake rate) some need to be modified when beam conditions change no experience yet, to be seen! should be accessible also by offline (Trigsim++) Therefore belong to the Trigger Database (actual files or pointers) Hardware memories on SVT boards 36 Hit Finders: PEDRAM, CRAM 12 Hit Buffers : SSMAP, AMMAP 12 AM Sequencers (12): SSMAP, ?Seq_RAM 24 AM Boards: AM_patterns 12 Track Fitters: SS_MAP, MAKE_ADDR, P0RAM, COERAM, CHI2_RAM

    3. TriggerDB meeting, Jan. 20, 2000 3 Hit Finder Hardware Memories and Parameters PED_RAM: pedestals and thresholds ALTERA chip internal SRAM channel pedestal: 7-bit, 1K?10 streams/board ? 360 KB total chip threshold and cluster charge cut: 3Byte/chip ? 8.4 KB total max # of clusters: 1 Byte/stream ? 360 Bytes total # of chips: 1 Byte/stream ? 360 Bytes total CRAM: look-up table for cluster finding Static RAM 6 bits, 32K ?10 streams, same for all boards ? 320 KB total Stream number to barrel/layer map ALTERA chip internal SRAM 6 bits, 10 Byte/board ? 360 Bytes total

    4. TriggerDB meeting, Jan. 20, 2000 4 HB/AMS/AMB Hardware Memories and Parameters SSMAP (hb): hit to super-strip look-up table DRAM, 15-bit, 128K/board ? 3 MB total AMMAP (hb): road to Super-Strip list look-up table DRAM, 16-bit, 1 M/board ? 24 MB total SSMAP (ams): same as SSMAP of hb ?Seq_RAM (ams): microsequencer RAM DRAM, 24-bit, 128k/board, same for all boards ? 512 KB total maxRoad and empty layer register (ams): register, 12-bit, same for all boards ? 2 B total AM_patterns (amb): AM patterns AM chips: 128 chips/board, 128 patterns/chip 12-bit, 6 /pattern ? 192 KB/board ? 4.5 MB total

    5. TriggerDB meeting, Jan. 20, 2000 5 Track Fitter Hardware Memories and Parameters SS_MAP: edge positions of super-strips in a road DRAM, 24-bit, 32K/board ? 1.125 MB total MAKE_ADDR: map to appropriate fitting parameters DRAM, 13-bit, 16K/board ? 384 KB total P0RAM(intercept memory): track parameters at the edge position Flash Ram, 14-bit, 6M/board ? 144 MB total COERAM (coefficient memory): coefficients of multiplication ALTERA chip internal SRAM, 67-bit, 900/board ? 95 KB total CHI2_RAM (?2 memory): look-up table to calculate the square of ? ALTERA chip internal SRAM 10-bit, 64/board, same for all boards ? 128 Bytes total don’t need to be in the Trigger Database

    6. TriggerDB meeting, Jan. 20, 2000 6 Track Fitter Hardware Memories and Parameters (Cont.) MaxTrack register: maximum number of track candidates and minimum SVX hits per track 8-bit, same for all boards ? 1 Bytes total Shift control registers: control shifting distance after multiplications 15-bit, 6/board, same for all boards ? 12 Bytes total ? cuts registers: cut on fitted ?1, ?2, ?3 17-bit, 1/board, same for all boards ? 3 Byte total

    7. TriggerDB meeting, Jan. 20, 2000 7 Summary Need large disk space to store hardware memory files P0RAM (144 MB), AMMAP(24MB), AM_pattern(4.5MB), SSMAP(3MB) ? ~ 200MB No frequent change necessary, if beam stable! but version numbers should be recorded for each run for offline use Amount of down loading at run start-up is less Hit Finder and Track Fitter have Flash RAMs and Static RAMs need to down load: AMMAP(24MB), AM_pattern(4.5MB), SSMAP(3MB), ... ? ~ 40MB If could happen that we need a SVT alignment run before each physics run ? different set of map for alignment run if Flash RAM’s can be added to crate CPU’s, down loading will be faster The details of the SVT database related issues will be discussed at a workshop in Pisa next week ? WE WILL BE BACK!
