Module 6b creating controlled vocabularies

Module 6b: Creating Controlled Vocabularies

IMT530: Organization of Information Resources

Winter 2007

Michael Crandall


Steps in constructing cvs

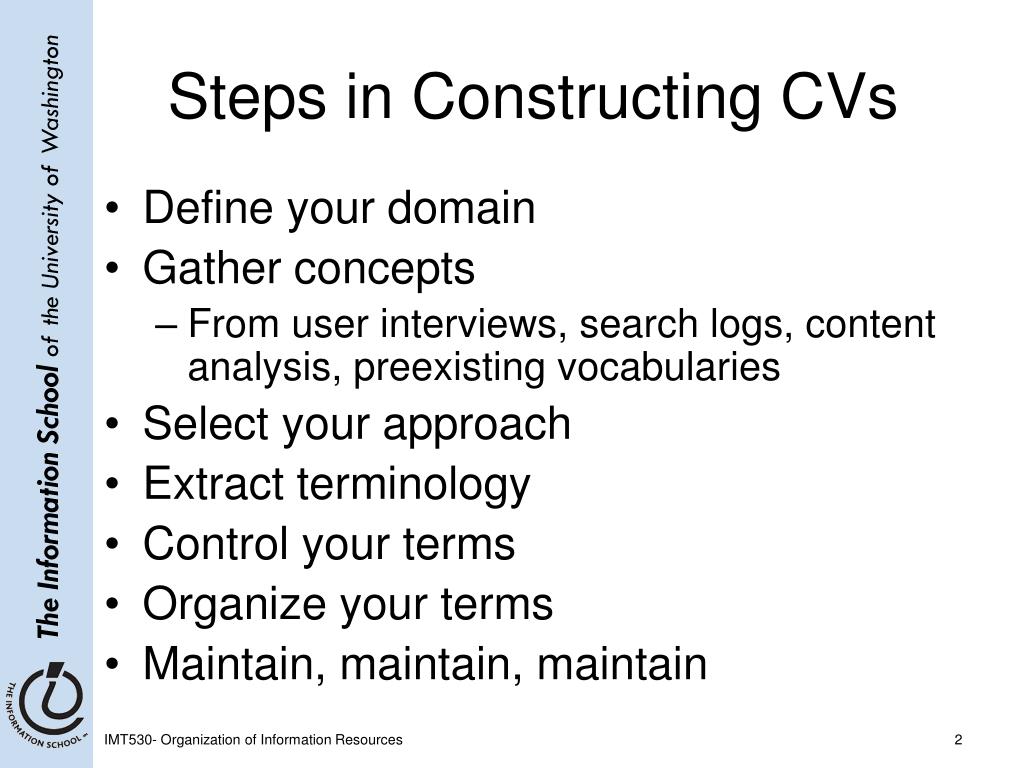

Steps in Constructing CVs

  • Define your domain

  • Gather concepts

    • From user interviews, search logs, content analysis, preexisting vocabularies

  • Select your approach

  • Extract terminology

  • Control your terms

  • Organize your terms

  • Maintain, maintain, maintain

IMT530- Organization of Information Resources


Elements of building cvs

Elements of Building CVs

  • Select your approach

    • Pre- or post-coordinated (sixteenth century lute music or sixteenth century and lutes and music)

    • Open or closed (indexers can add terms or not)

    • Enumeration vs. synthesis (facets)

  • Extract terms

    • Warrant (from users or domain or both)

  • Control terms

    • Specificity (cats or Siamese cats?)

    • Control of homographs (qualifications)

    • Term consistency and word form (plurals, etc.)

    • Multiword/phrase sequence and form (inverted, normal form?)

    • Term definitions (scope notes)

    • Syntax (citation order)

    • Semantic factoring

  • Organize terms

    • Semantic relationships

IMT530- Organization of Information Resources


Different approaches

Different Approaches


Pre and post coordination

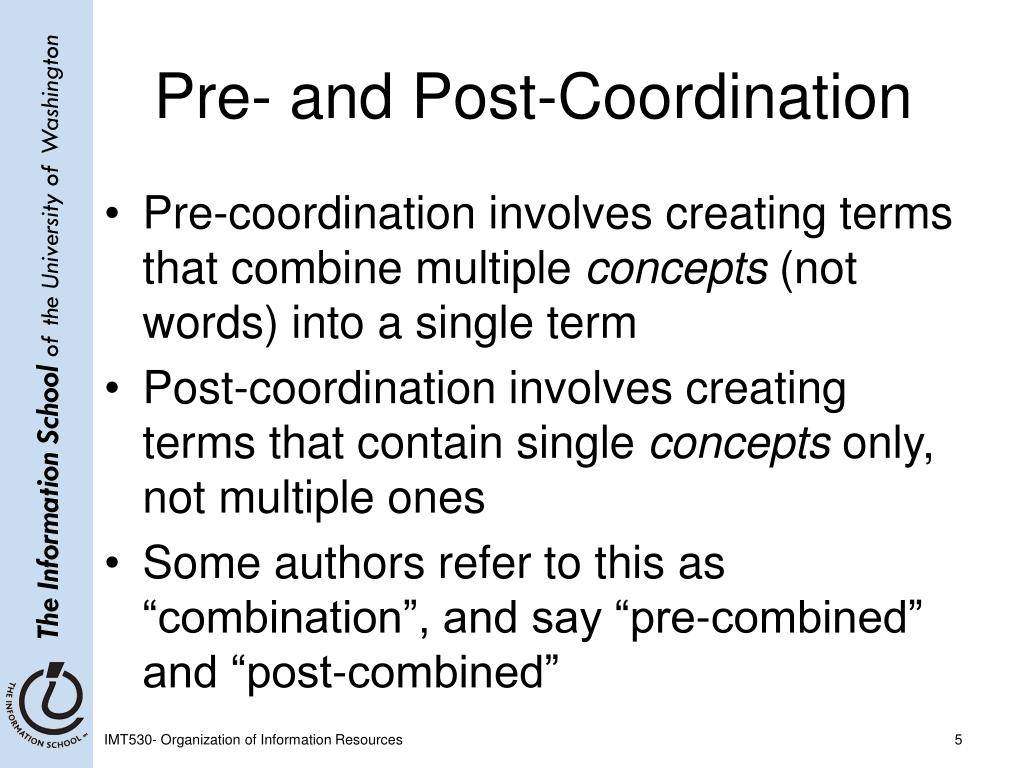

Pre- and Post-Coordination

  • Pre-coordination involves creating terms that combine multiple concepts (not words) into a single term

  • Post-coordination involves creating terms that contain single concepts only, not multiple ones

  • Some authors refer to this as “combination”, and say “pre-combined” and “post-combined”

IMT530- Organization of Information Resources

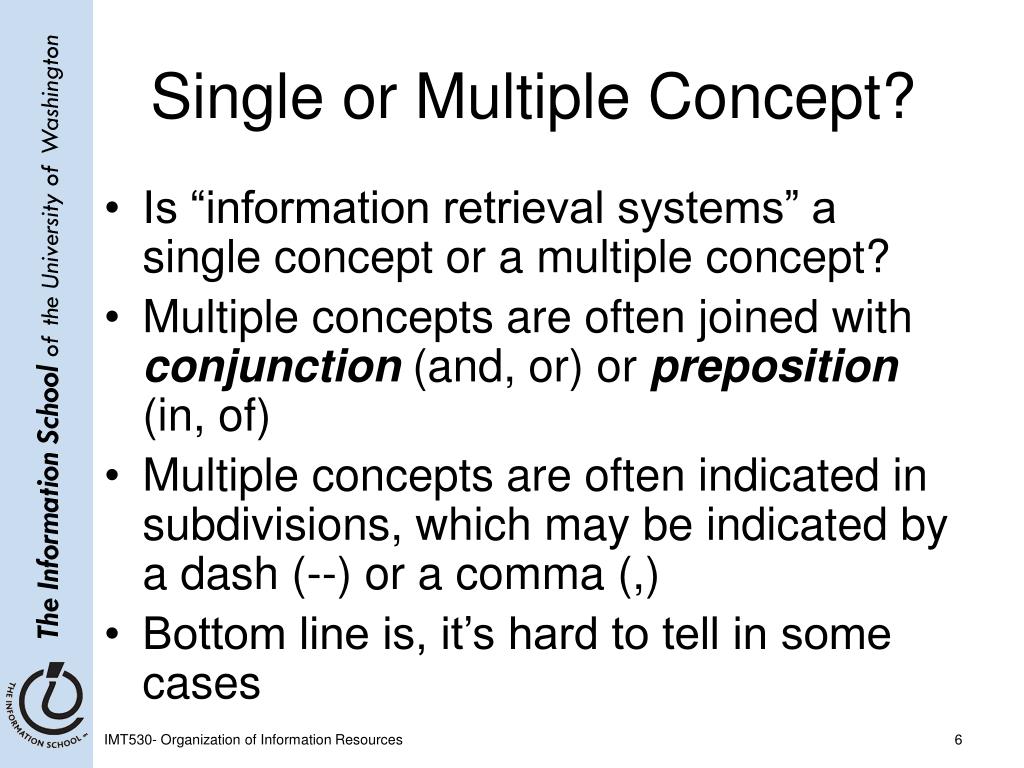

Single or multiple concept

Single or Multiple Concept?

  • Is “information retrieval systems” a single concept or a multiple concept?

  • Multiple concepts are often joined with conjunction (and, or) or preposition (in, of)

  • Multiple concepts are often indicated in subdivisions, which may be indicated by a dash (--) or a comma (,)

  • Bottom line is, it’s hard to tell in some cases

IMT530- Organization of Information Resources


Examples

Examples

Post-Coordinated Terms

Animal nutrition

Effects

Salt

Pre-Coordinated Term

Effects of salt on animal nutrition

IMT530- Organization of Information Resources


More examples

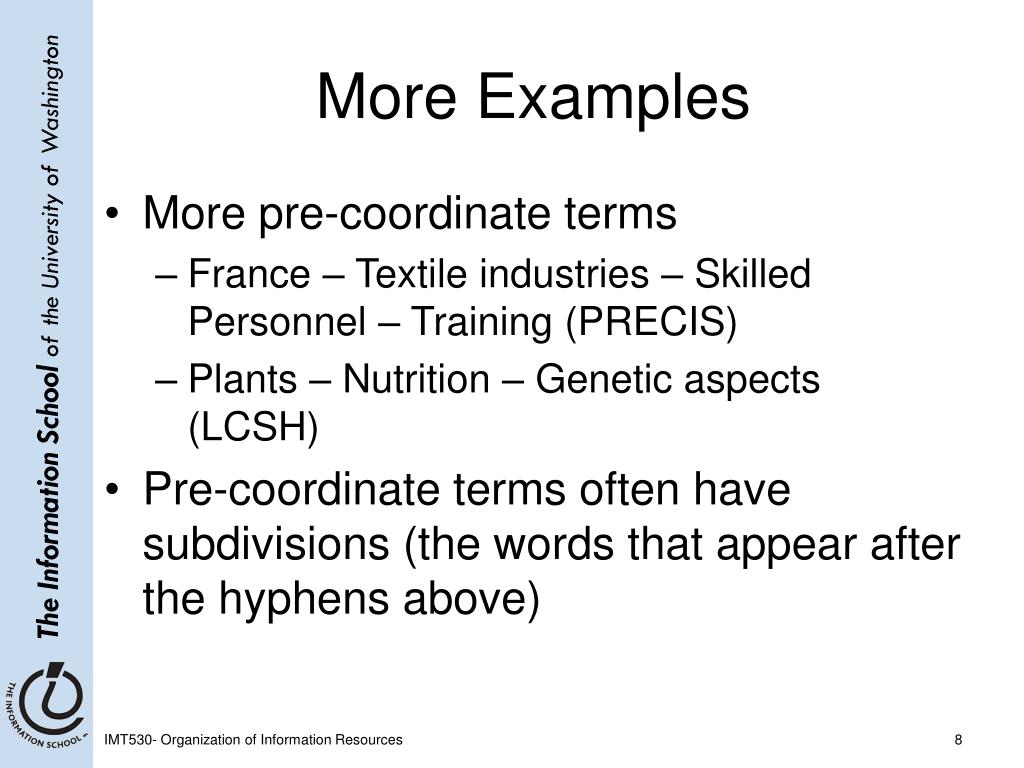

More Examples

  • More pre-coordinate terms

    • France – Textile industries – Skilled Personnel – Training (PRECIS)

    • Plants – Nutrition – Genetic aspects (LCSH)

  • Pre-coordinate terms often have subdivisions (the words that appear after the hyphens above)

IMT530- Organization of Information Resources


Advantages of pre coordination

Advantages of Pre-Coordination

  • All of the concepts that may apply to indexing a single document may appear in a single term

  • Multiple concepts have the context and meaning embedded in syntactic order and constructions

    • they may make more sense

    • they are more precise

    • different syntax means that concepts with different meanings can be represented using the same simple concepts, e.g.:

      Art by childrenMusic industry

      Art for childrenMusic for industry

      Art about childrenIndustrial uses of music

      Children and artMusic about industry

      Children in art

IMT530- Organization of Information Resources


Advantages of pre coordination1

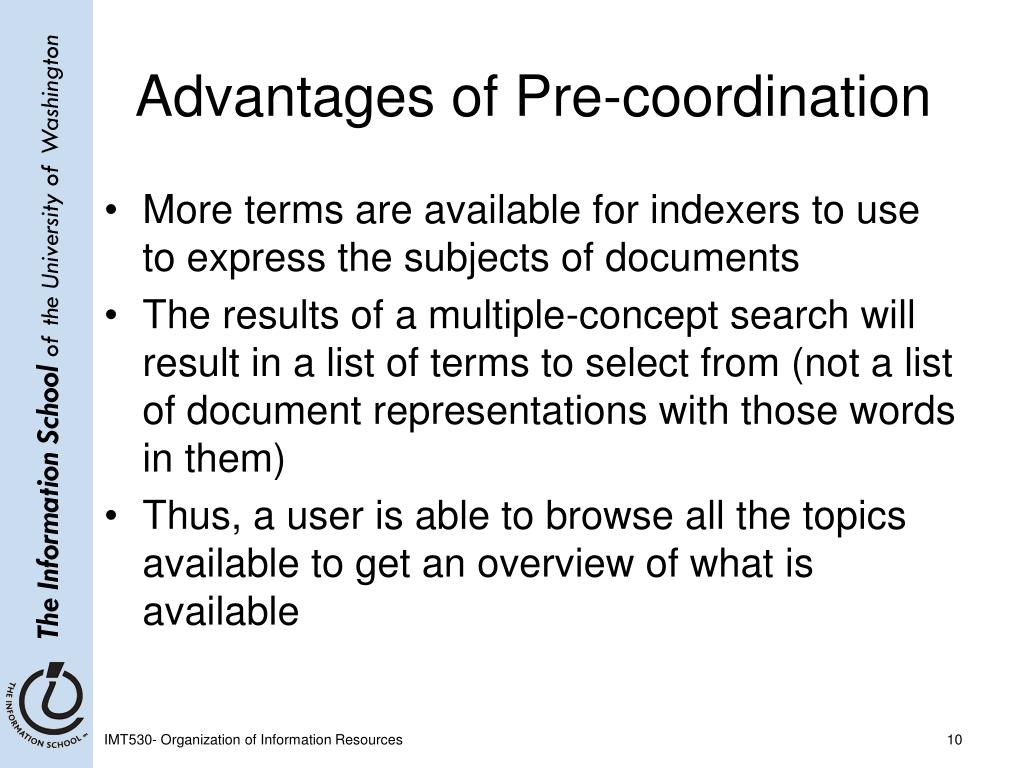

Advantages of Pre-coordination

  • More terms are available for indexers to use to express the subjects of documents

  • The results of a multiple-concept search will result in a list of terms to select from (not a list of document representations with those words in them)

  • Thus, a user is able to browse all the topics available to get an overview of what is available

IMT530- Organization of Information Resources


Sample display

Sample Display

  • Accidents -- 29 Related LC SubjectsAccidents

  • Accidents Aeronautics Military United States

  • Accidents Aeronautics Statistics Periodicals

  • Accidents Aerosols

  • Accidents Agricultural Laborers United States

  • Accidents Agriculture

  • Accidents Agriculture Abstracts

  • Accidents Agriculture Bibliography

  • Accidents Agriculture Research United States

IMT530- Organization of Information Resources


Disadvantages of pre coordination

Disadvantages of Pre-Coordination

  • Must create more terms, more costly to create

  • Often, complex rules for combination are needed to create pre-coordinated terms. Result  cost of the CV is increased, training for CV designers is longer and more difficult, and the possibility of error increased

  • Makes for a long term list

IMT530- Organization of Information Resources

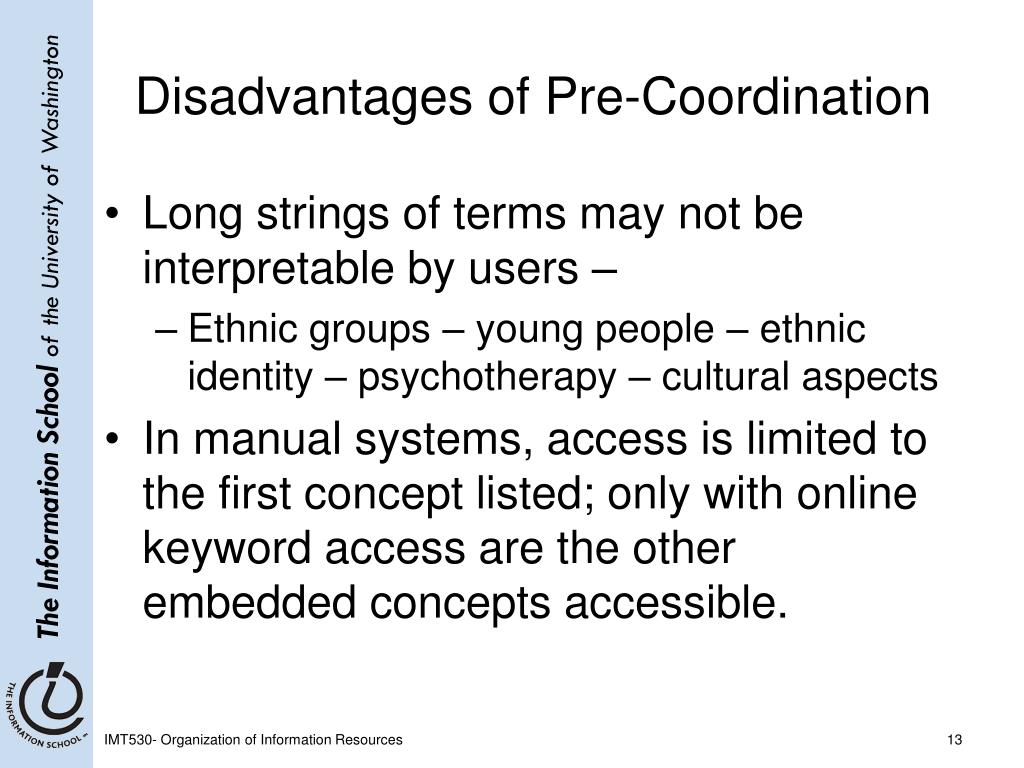

Disadvantages of pre coordination1

Disadvantages of Pre-Coordination

  • Long strings of terms may not be interpretable by users –

    • Ethnic groups – young people – ethnic identity – psychotherapy – cultural aspects

  • In manual systems, access is limited to the first concept listed; only with online keyword access are the other embedded concepts accessible.

IMT530- Organization of Information Resources


Advantages of post coordination

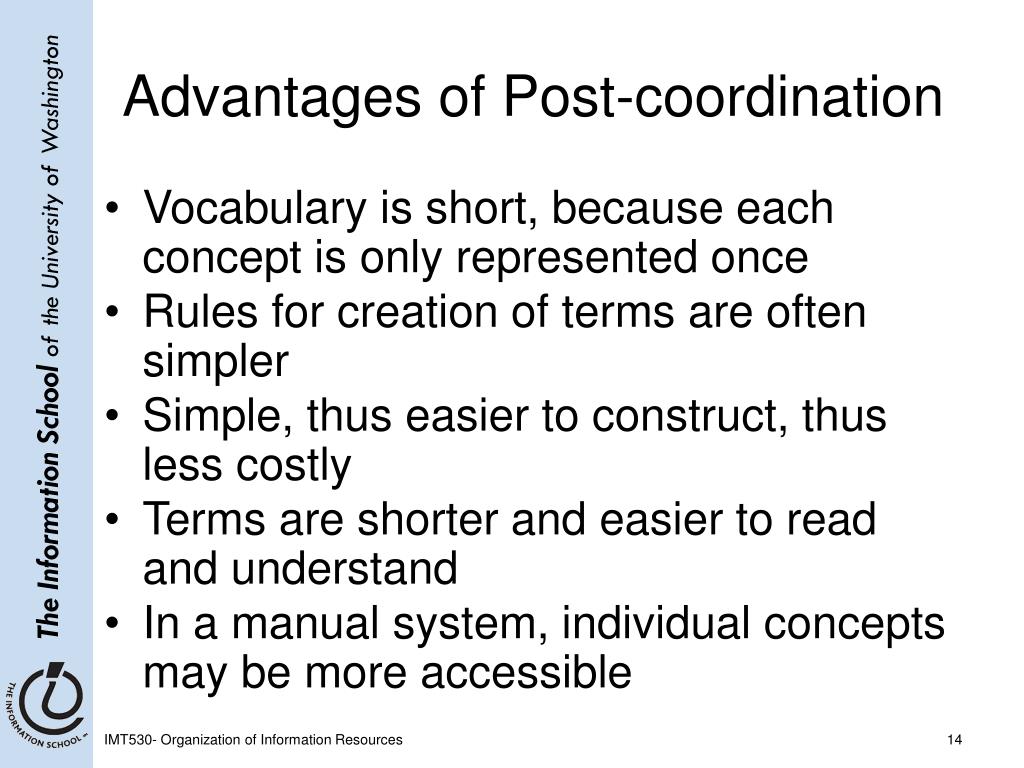

Advantages of Post-coordination

  • Vocabulary is short, because each concept is only represented once

  • Rules for creation of terms are often simpler

  • Simple, thus easier to construct, thus less costly

  • Terms are shorter and easier to read and understand

  • In a manual system, individual concepts may be more accessible

IMT530- Organization of Information Resources


Disadvantages of post coordination

Disadvantages of Post-coordination

  • Does not allow for subtle distinctions in meaning

    • Art and children vs. children in art vs. art by children

    • Music in industry vs. industry in music vs. music industry

  • May have to assign a lot of headings for a single document, thus relying on searching mechanisms to put them together

IMT530- Organization of Information Resources


Disadvantages of post coordination1

Disadvantages of Post-Coordination

  • A multiple-concept search frequently results in a list of document representations with those words in them; these results are not grouped according to similarity, but are often listed in a random order.

  • The results list of document representations does not give the user an overview of the subject area covered by the words entered in the search

IMT530- Organization of Information Resources


Sample display1

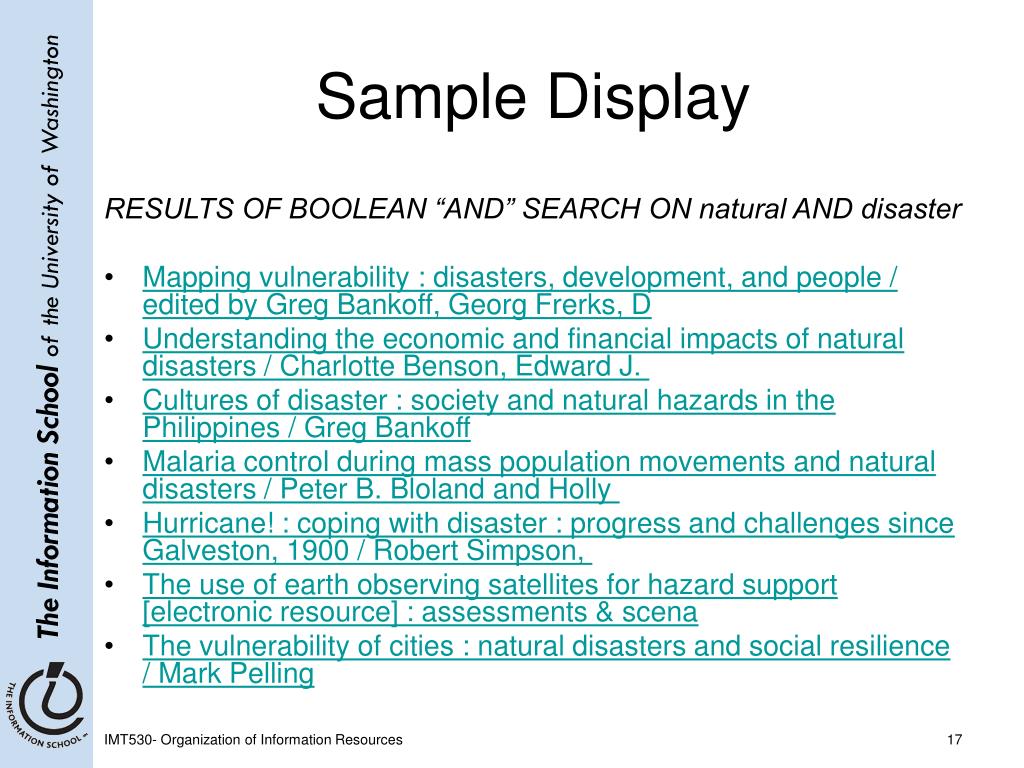

Sample Display

RESULTS OF BOOLEAN “AND” SEARCH ON natural AND disaster

  • Mapping vulnerability : disasters, development, and people / edited by Greg Bankoff, Georg Frerks, D

  • Understanding the economic and financial impacts of natural disasters / Charlotte Benson, Edward J.

  • Cultures of disaster : society and natural hazards in the Philippines / Greg Bankoff

  • Malaria control during mass population movements and natural disasters / Peter B. Bloland and Holly

  • Hurricane! : coping with disaster : progress and challenges since Galveston, 1900 / Robert Simpson,

  • The use of earth observing satellites for hazard support [electronic resource] : assessments & scena

  • The vulnerability of cities : natural disasters and social resilience / Mark Pelling

IMT530- Organization of Information Resources


Open and closed controlled vocabularies

Open and Closed Controlled Vocabularies

  • An open vocabulary isone in which an indexer may add a term at any time if they need it- pretty rare in traditional indexing (but common in folksonomies)

  • A closed vocabulary isone in which an indexer may not add a term at any time. Term additions are controlled by the creators of the CV, not by indexers

IMT530- Organization of Information Resources

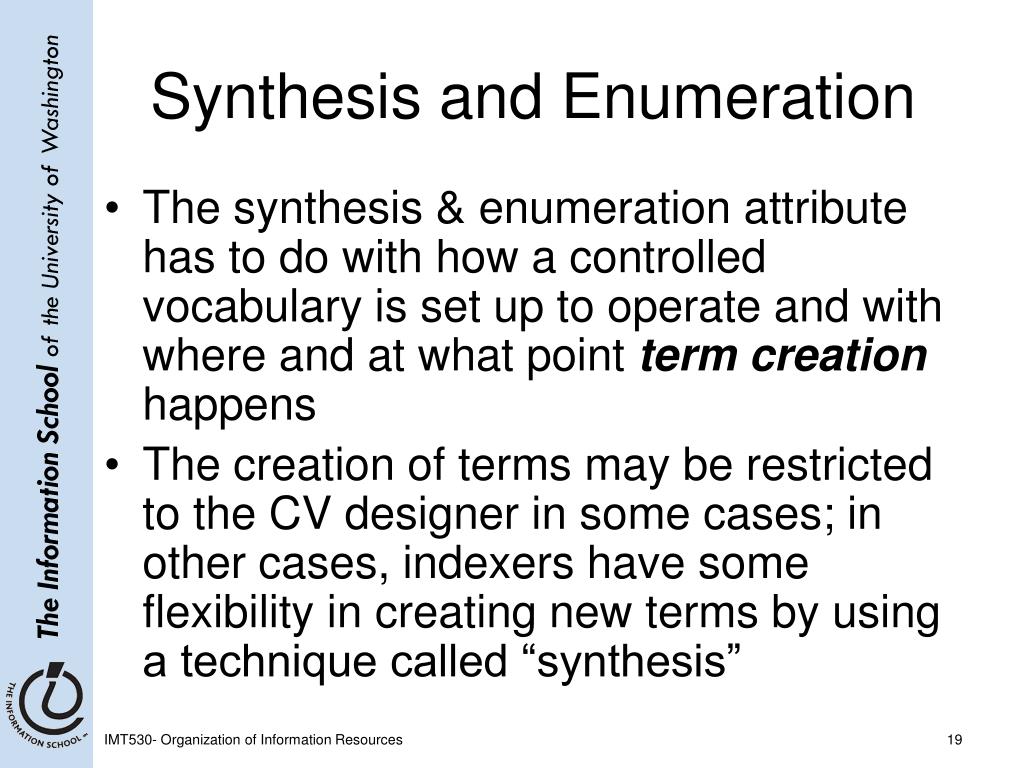

Synthesis and enumeration

Synthesis and Enumeration

  • The synthesis & enumeration attribute has to do with how a controlled vocabulary is set up to operate and with where and at what point term creation happens

  • The creation of terms may be restricted to the CV designer in some cases; in other cases, indexers have some flexibility in creating new terms by using a technique called “synthesis”

IMT530- Organization of Information Resources

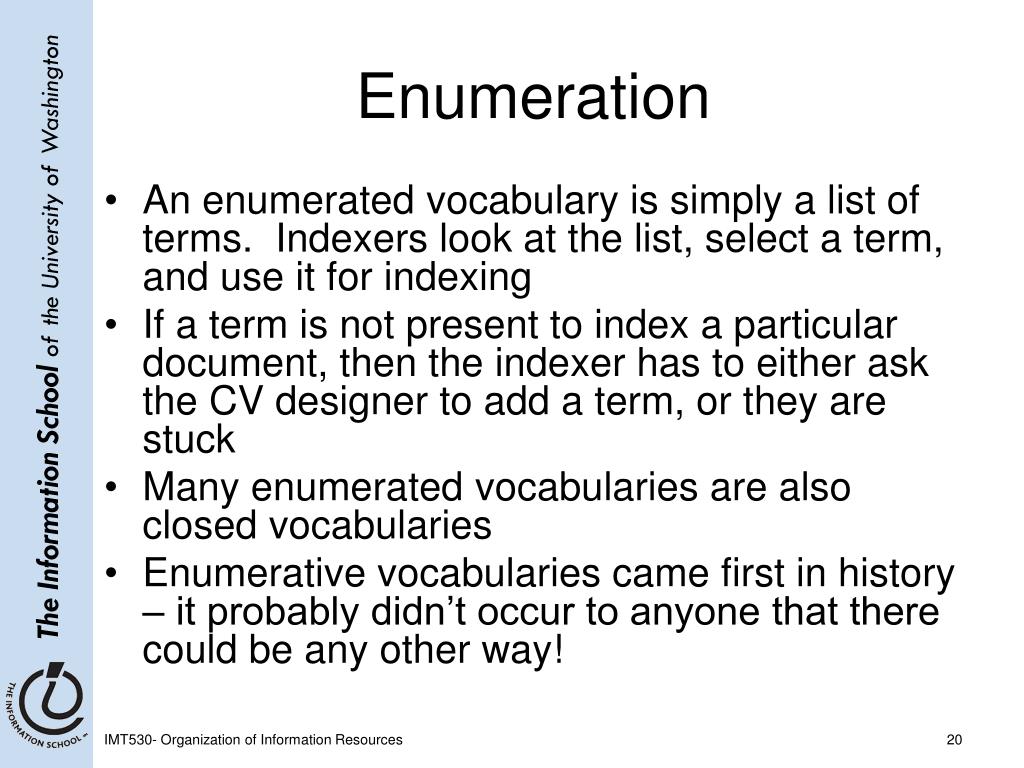

Enumeration

Enumeration

  • An enumerated vocabulary is simply a list of terms. Indexers look at the list, select a term, and use it for indexing

  • If a term is not present to index a particular document, then the indexer has to either ask the CV designer to add a term, or they are stuck

  • Many enumerated vocabularies are also closed vocabularies

  • Enumerative vocabularies came first in history – it probably didn’t occur to anyone that there could be any other way!

IMT530- Organization of Information Resources


Example of enumeration

Example of Enumeration

  • Sample list of enumerated terms:

    • bowls

    • plastic bowls

    • wood bowls

    • wood chairs

    • steel chairs

    • wood bookshelves

    • steel bookshelves

  • Note that if an indexer had a document on “steel bowls”, that term is not available. The indexer using this vocabulary would have to either assign “bowls” (not specific), or would have to ask the CV designer to add the term “steel bowls”

IMT530- Organization of Information Resources


Advantages of enumeration

Advantages of Enumeration

  • Enumerated vocabularies are often easy to use because there are fewer rules for indexers (just look up your term, write it down, and move on!)

  • All possible terms appear in the vocabulary, so it is easy to search and display all possible terms

IMT530- Organization of Information Resources

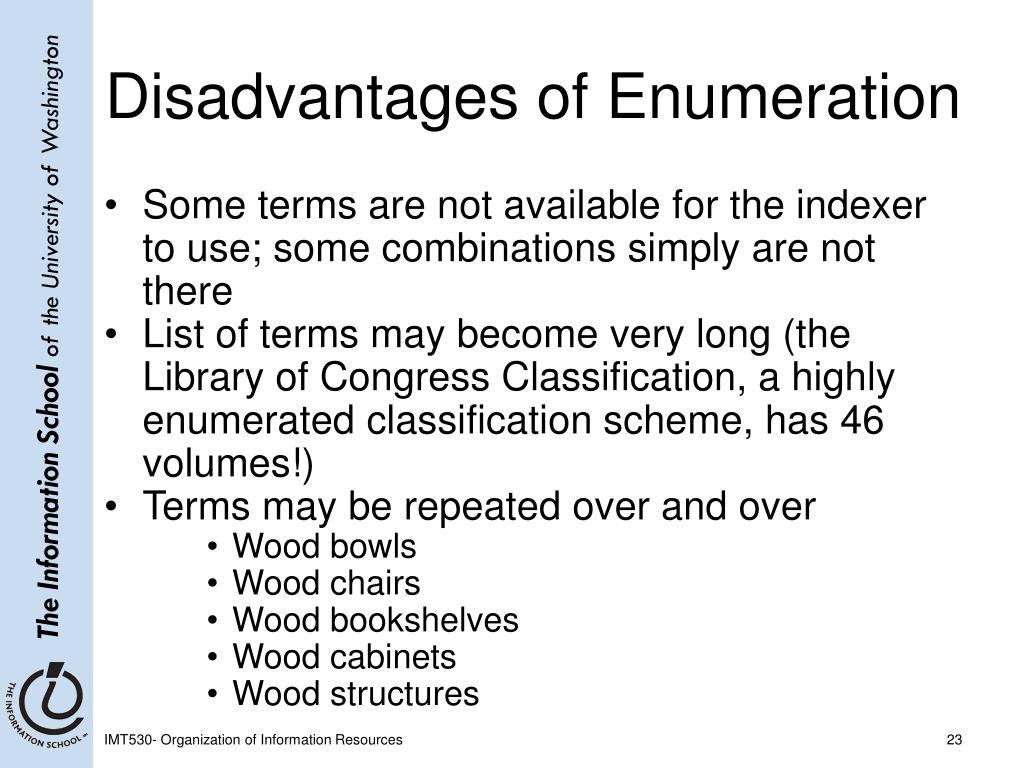

Disadvantages of enumeration

Disadvantages of Enumeration

  • Some terms are not available for the indexer to use; some combinations simply are not there

  • List of terms may become very long (the Library of Congress Classification, a highly enumerated classification scheme, has 46 volumes!)

  • Terms may be repeated over and over

    • Wood bowls

    • Wood chairs

    • Wood bookshelves

    • Wood cabinets

    • Wood structures

IMT530- Organization of Information Resources


Synthesis

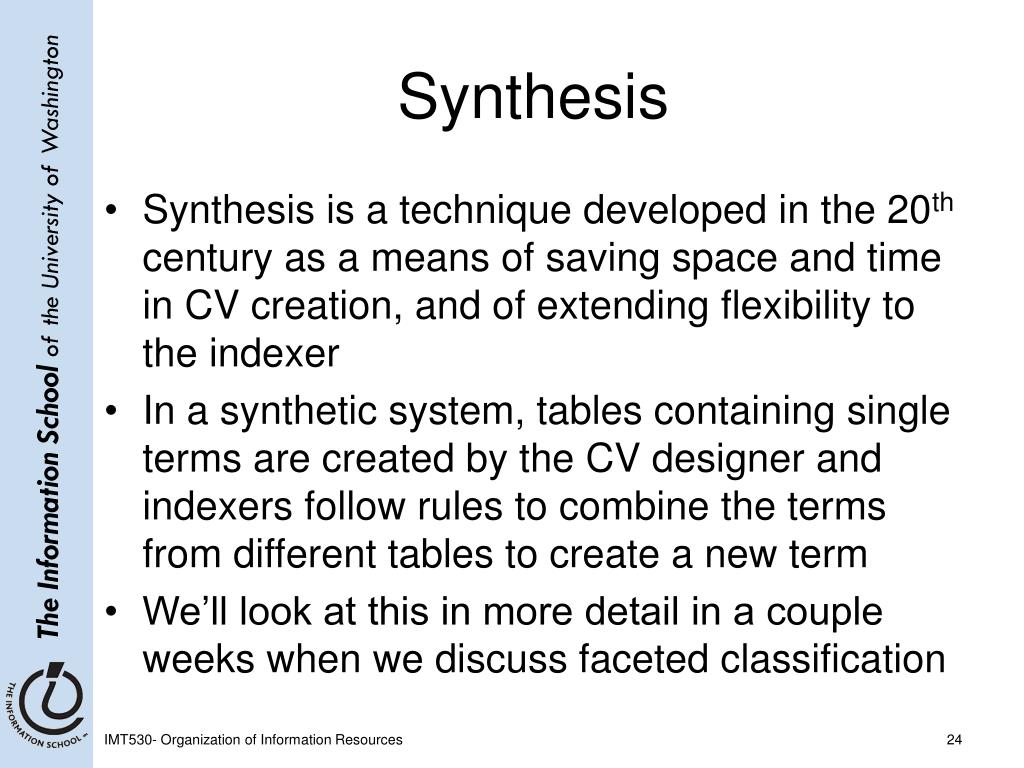

Synthesis

  • Synthesis is a technique developed in the 20th century as a means of saving space and time in CV creation, and of extending flexibility to the indexer

  • In a synthetic system, tables containing single terms are created by the CV designer and indexers follow rules to combine the terms from different tables to create a new term

  • We’ll look at this in more detail in a couple weeks when we discuss faceted classification

IMT530- Organization of Information Resources

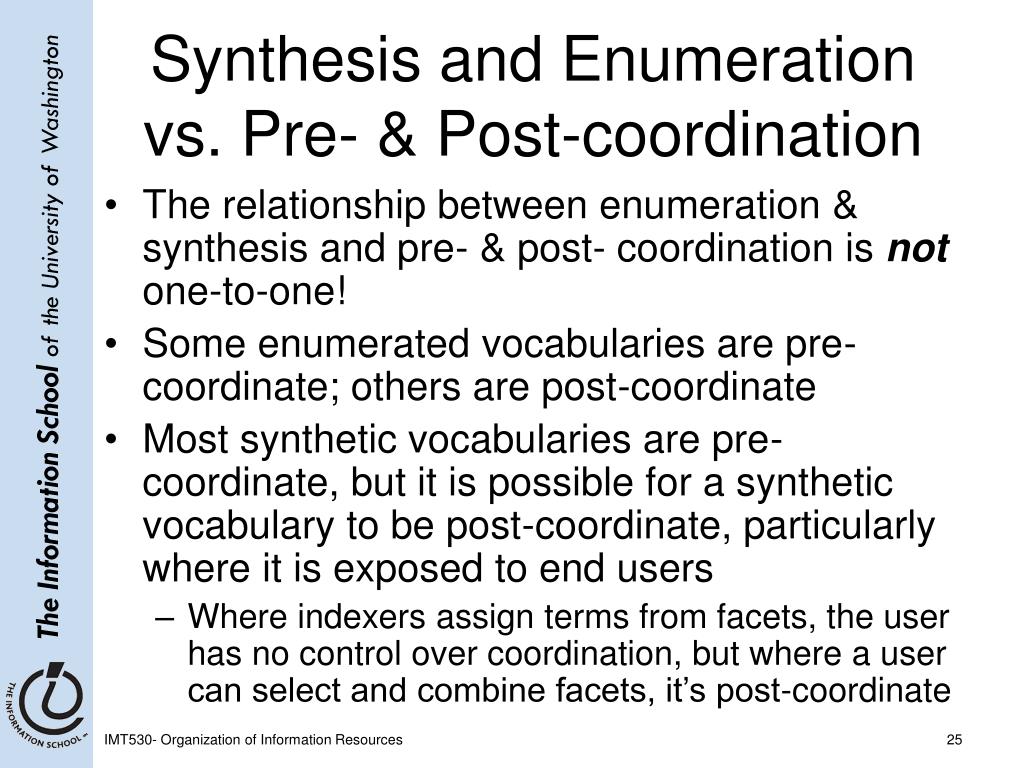

Synthesis and enumeration vs pre post coordination

Synthesis and Enumeration vs. Pre- & Post-coordination

  • The relationship between enumeration & synthesis and pre- & post- coordination is not one-to-one!

  • Some enumerated vocabularies are pre-coordinate; others are post-coordinate

  • Most synthetic vocabularies are pre-coordinate, but it is possible for a synthetic vocabulary to be post-coordinate, particularly where it is exposed to end users

    • Where indexers assign terms from facets, the user has no control over coordination, but where a user can select and combine facets, it’s post-coordinate

IMT530- Organization of Information Resources


Synthesis and enumeration vs open and closed vocabularies

Synthesis and Enumeration vs. Open and Closed Vocabularies

  • All synthetic systems are open to a limited extent because indexers may combine simple terms to create new longer terms - but are closed if indexers may not add new terms to tables

  • Synthetic systems are completely open if an indexer is allowed to add terms to the tables, add new tables, and add new rules for term synthesis

IMT530- Organization of Information Resources


Term control and semantic relationships

Term Control and Semantic Relationships

  • Next week

IMT530- Organization of Information Resources

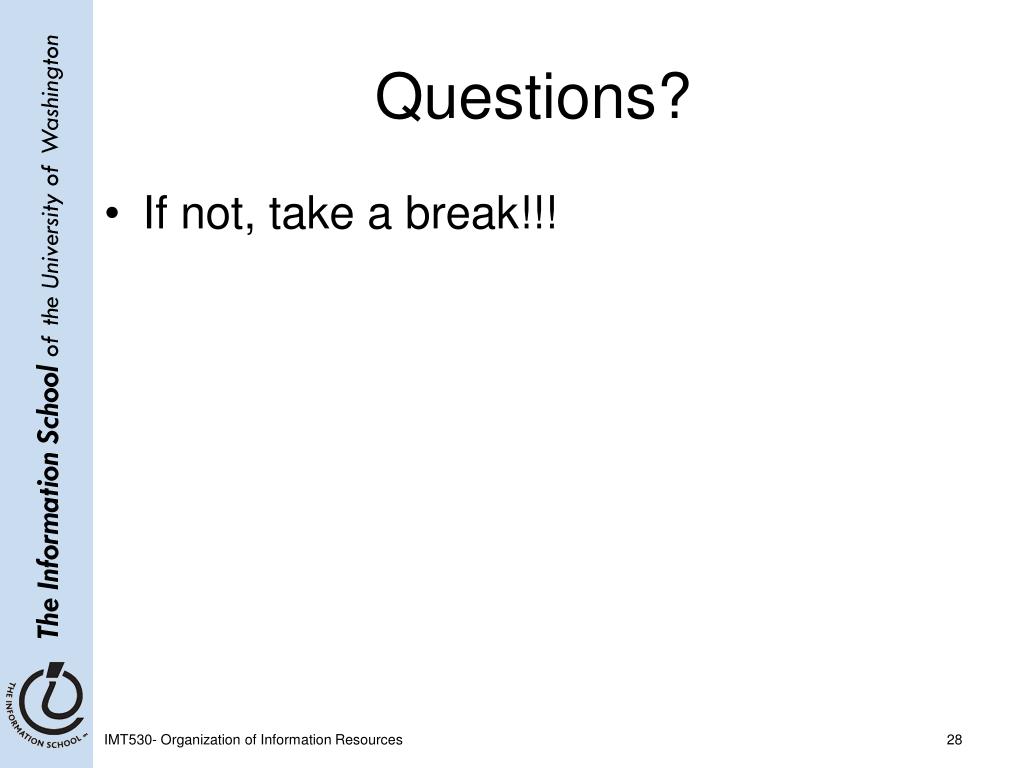

Questions

Questions?

  • If not, take a break!!!

IMT530- Organization of Information Resources


Exercise 6b

Exercise 6b

  • Today we are starting a three week exercise in building controlled vocabularies

  • The first step is extracting concepts from a defined domain

  • Form your groups and work through the two parts of exercise 6b

  • Turn in your concept lists, but keep a copy to use in next week’s exercises

IMT530- Organization of Information Resources


Lots to digest

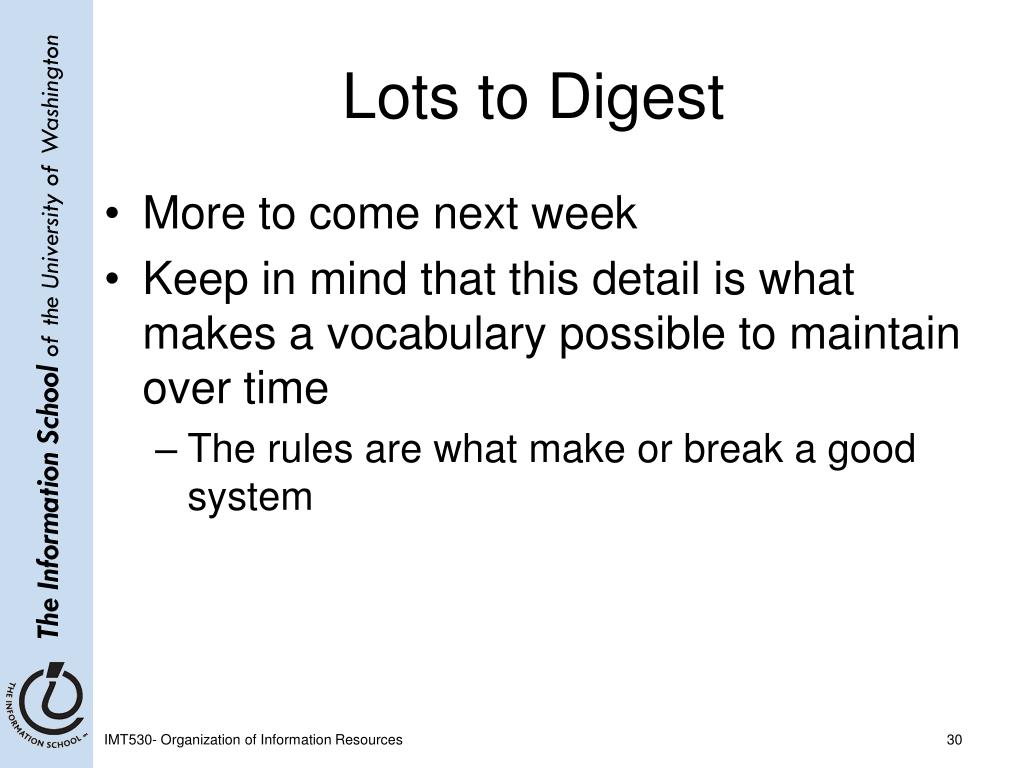

Lots to Digest

  • More to come next week

  • Keep in mind that this detail is what makes a vocabulary possible to maintain over time

    • The rules are what make or break a good system

IMT530- Organization of Information Resources
