  1. Chapter 3 Describing Distributions Numerically

  2. Describing the Distribution • Center • Median • Mean • Spread • Range • Interquartile Range • Standard Deviation

  3. Median • Literally = middle number (data value) • n (number of observations) is odd • Order the data from smallest to largest • Median is the middle number on the list • (n+1)/2 number from the smallest value • Ex: If n=11, median is the (11+1)/2 = 6th number from the smallest value • Ex: If n=37, median is the (37+1)/2 = 19th number from the smallest value

  4. High Temperatures for Des Moines, Iowa taken from the first 13 days of August 2005. 71 76 81 81 85 86 90 90 91 93 93 96 96 Remember to order the values, if they aren’t already in order! 13 observations (13+1)/2 = 7th observation from the bottom Median = 90 Example – August Temps

  5. Median • n is even • Order the data from smallest to largest • Median is the average of the two middle numbers • (n+1)/2 will be halfway between these two numbers • Ex: If n=10, (10+1)/2 = 5.5, median is average of 5th and 6th numbers from smallest value

  6. 10 observations • (10 + 1)/2 = 5.5, average of 5th and 6th observations from bottom • Median = 5 Example – Yankees • Scores of last 10 games2 3 3 5 5 5 6 7 7 10 • Remember to order the values if they aren’t already in order!

  7. Mean • Ordinary average • Add up all observations • Divide by the number of observations • Formula • n observations • y1, y2, y3, …, yn are the values

  8. Mean ( )

  9. Example – Vikings (as of 1/9) • Find the mean of the (17 values) 13 14 16 18 20 22 23 27 27 28 28 31 31 31 34 35 38

  10. Example – Colts as of (1/9) • Find the mean of the scores (17 values)14 20 23 24 24 24 31 31 34 35 35 41 41 45 49 49 51

  11. Mean vs. Median • Median = middle number • Mean = value where histogram balances • Mean and Median similar when • Data are symmetric • Mean and median different when • Data are skewed • There are outliers

  12. Mean vs. Median • Mean influenced by unusually high or unusually low values • Example: Income in a small town of 6 people $25,000 $27,000 $29,000 $35,000 $37,000 $38,000 **The mean income is $31,830 **The median income is $32,000

  13. Mean vs. Median • Bill Gates moves to town $25,000 $27,000 $29,000 $35,000 $37,000 $38,000 $40,000,000 **The mean income is $5,741,571 **The median income is $35,000 • Mean is pulled by the outlier • Median is not • Mean is not a good center of these data

  14. Mean vs. Median • Skewness pulls the mean in the direction of the tail • Skewed to the right = mean > median • Skewed to the left = mean < median • Outliers pull the mean in their direction • Large outlier = mean > median • Small outlier = mean < median

  15. Weighted Mean • Used when values are not equally represented. • Weighted mean =

  16. Example (weighted mean) A recent survey of new diet cola reported the following percentages of people who liked the taste. Find the weighted mean of the percentages.

  17. Example (cont.) x1 = .40 x2 = .30 x3 = .50 w1 = 1000 w2 = 3000 w3 = 800 Use formula: {.40(1000) + .30(3000) + .50(800)} / {1000+3000+800} = 1700/4800 = 0.354 = 35.4%

  18. Spread • Range is a very basic measure of spread (Max – Min). • It is highly affected by outliers • Makes spread appear larger than reality • Ex. The annual numbers of deaths from tornadoes in the U.S. from 1990 to 2000:53 39 39 33 69 30 25 67 130 94 40 • Range with outlier: 130 – 25 = 105 • Range without outlier: 94 – 25 = 69

  19. Spread • Interquartile Range (IQR) • First Quartile (Q1) • 25th Percentile • Third Quartile (Q3) • 75th Percentile • IQR = Q3 – Q1 • Center (Middle) 50% of the values

  20. Finding Quartiles • Order the data • Split into two halves at the median • When n is odd, include the median in both halves • When n is even, do not include the median in either half • Q1 = median of the lower half • Q3 = median of the upper half

  21. Top 15 Populations US Cities 2004 * Populations were all divided by 10,000.

  22. Example – Top City Populations • Order the values (14 values) 74 78 78 90 90 121 124 126 142 147 201 286 385 810 Lower Half = 74 78 78 90 90 121 124 Q1 = Median of lower half = 90 • Upper Half = 126 142 147 201 286 385 810 • Q3 = Median of upper half = 201 • IQR = Q3 – Q1 = 201 - 90 = 111

  23. August High Temps (8/1–8/13) • Order the values (13 values) 71 76 81 81 85 86 90 90 91 93 93 96 96 • Lower Half = 71 76 81 81 85 86 • Q1 = Median of lower half = 81 • Upper Half = 90 90 91 93 93 96 96 • Q3 = Median of upper half = 93 • IQR = Q3 – Q1 = 93 - 81 = 12

  24. August High Temps (8/14–8/25) • Order the values (12 values) 76 77 77 79 81 83 84 85 86 88 91 93 • Lower Half = 76 77 77 79 81 83 • Q1 = Median of lower half = 78 • Upper Half = 84 85 86 88 91 93 • Q3 = Median of upper half = 87 • IQR = Q3 – Q1 = 87-78 = 9

  25. Five Number Summary • Minimum • Q1 • Median • Q3 • Maximum

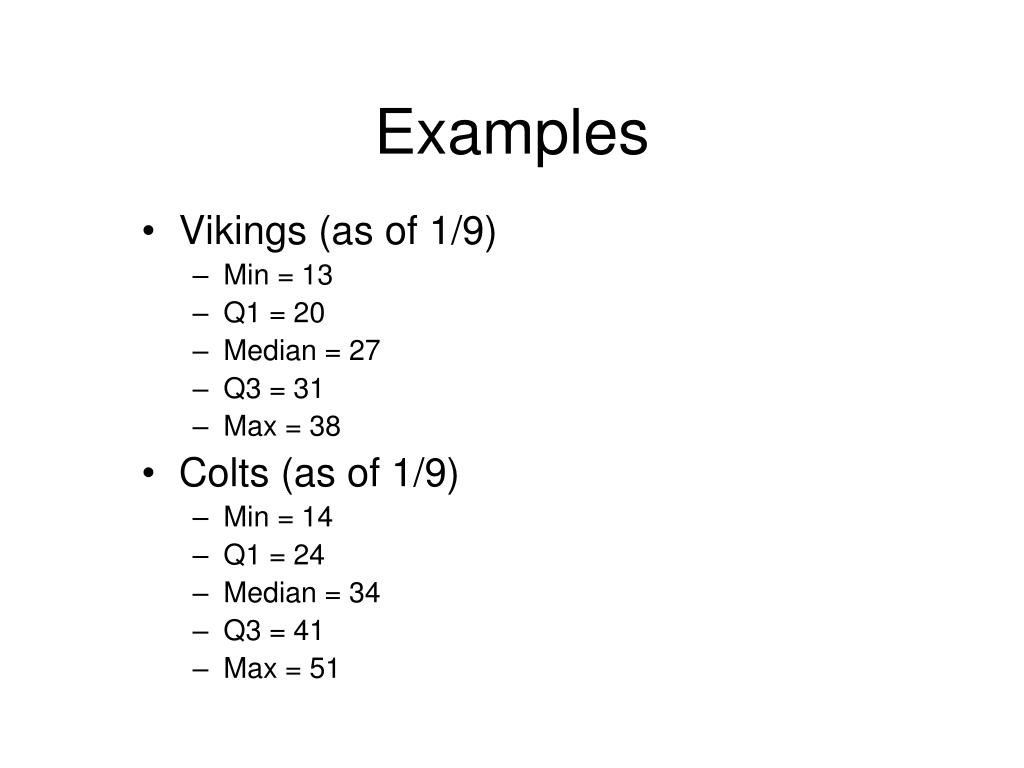

  26. Examples • Vikings (as of 1/9) • Min = 13 • Q1 = 20 • Median = 27 • Q3 = 31 • Max = 38 • Colts (as of 1/9) • Min = 14 • Q1 = 24 • Median = 34 • Q3 = 41 • Max = 51

  27. Graph of Five Number Summary • Boxplot • Box between Q1 and Q3 • Line in the box marks the median • Lines extend out to minimum and maximum • Best used for comparisons • Use this simpler method

  28. Example – Vikings & Colts • Boxplot of Vikings scores • Box from 20 to 31 • Line in box 27 • Lines extend out from box from 14 and 38 • Boxplot of Colts scores • Box from 24 to 41 • Line in box at 34 • Lines extend out from box to 14 and 51

  29. Side by Side Boxplots of Vikings Scores and Colts Scores

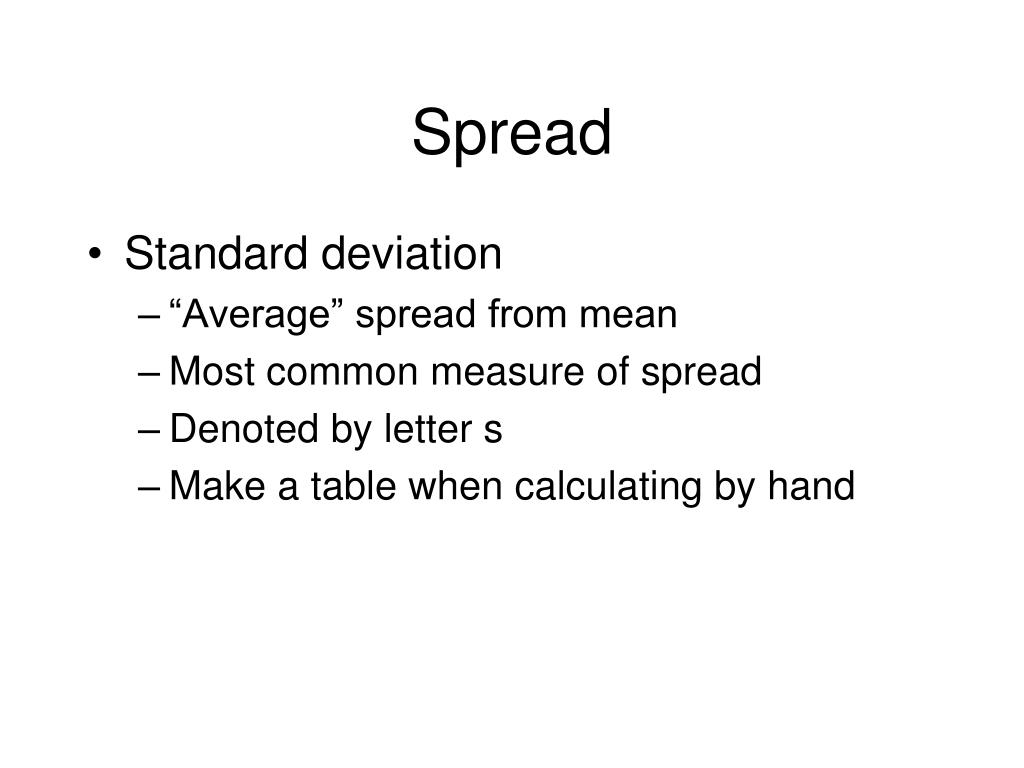

  30. Spread • Standard deviation • “Average” spread from mean • Most common measure of spread • Denoted by letter s • Make a table when calculating by hand

  31. Standard Deviation

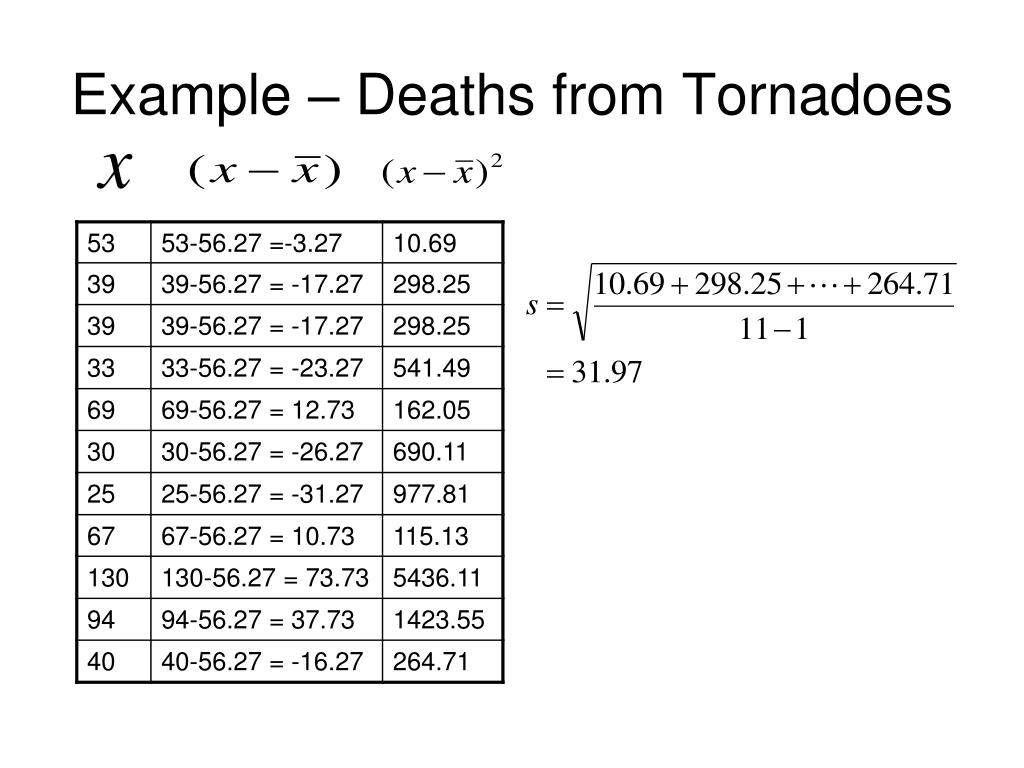

  32. Example – Deaths from Tornadoes

  33. Example - Vikings • Find the standard deviation of the scores of Vikings games given the following statistic:

  34. Properties of s • s = 0 only when all observations are equal; otherwise, s > 0 • s has the same units as the data • s is not resistant • Skewness and outliers affect s, just like mean • Tornado Example: • s with outlier: 31.97 • s without outlier: 21.70

  35. Which summaries should you use with different distributions? • The appropriate measures of center and spread when your distribution is symmetric are: • Mean • Standard deviation • The appropriate measures of center and spread when your distribution is skewed are: • Median • IQR

  36. Comparing Variance • When comparing the variance for two sets of numbers find the coefficient of variation: • Formula = Cvar = = • Then compare the percentages.

  37. Standardizing (first look) • I got a 85 on my English test and you got a 36 on your Spanish test. Who did better? • How can we compare things that come from different scales? • Standardizing • Use z formula (called z-score)

  38. Standardizing Z=standardized score X = raw score X-bar = mean of raw scores S = sample standard deviation • So what does this mean for our test scores?

  39. Standardizing • I got a 85 on my English test and you got a 35 on your Spanish test. Who did better? • Now I need to give you more information. • The English class’s tests had a mean of 83 and a standard deviation of 3. • The Spanish tests had a mean of 30 and a standard deviation of 2.

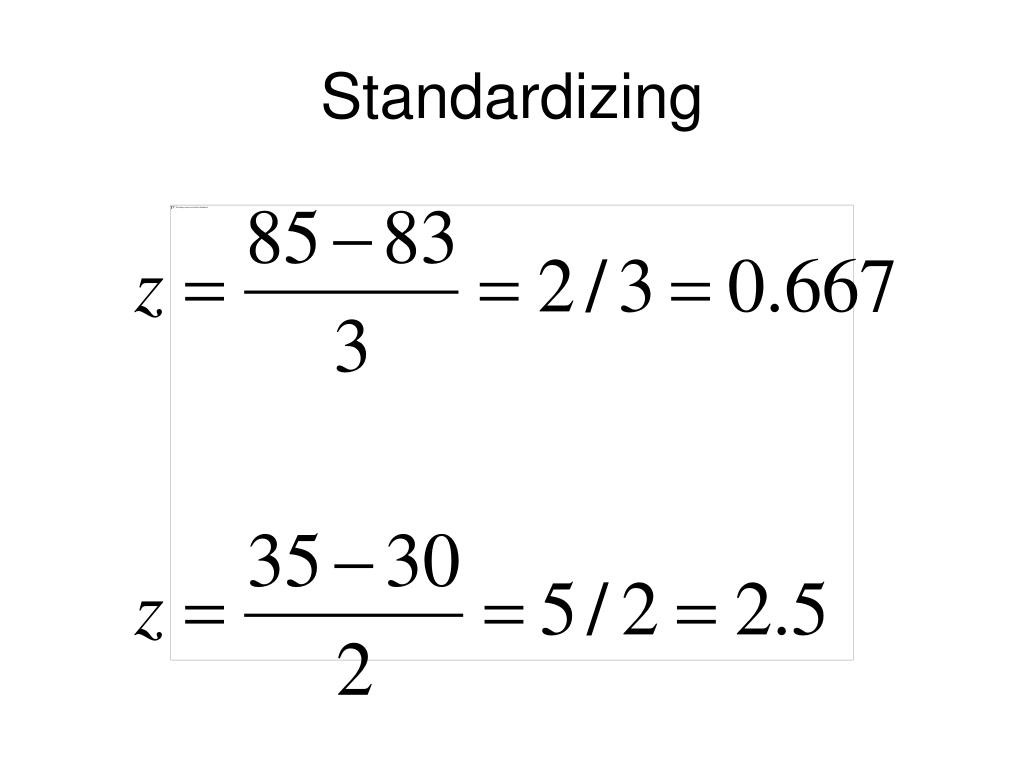

  40. Standardizing

  41. Comparing Standardized Scores • I scored .667 standard deviations above the mean on my English test where you scored 2.5 standard deviations above the mean on your Spanish test. • Comparatively you scored better on your exam.
