  1. TIR Seminar Example of a TIR Transport with Partial Loading and Unloading

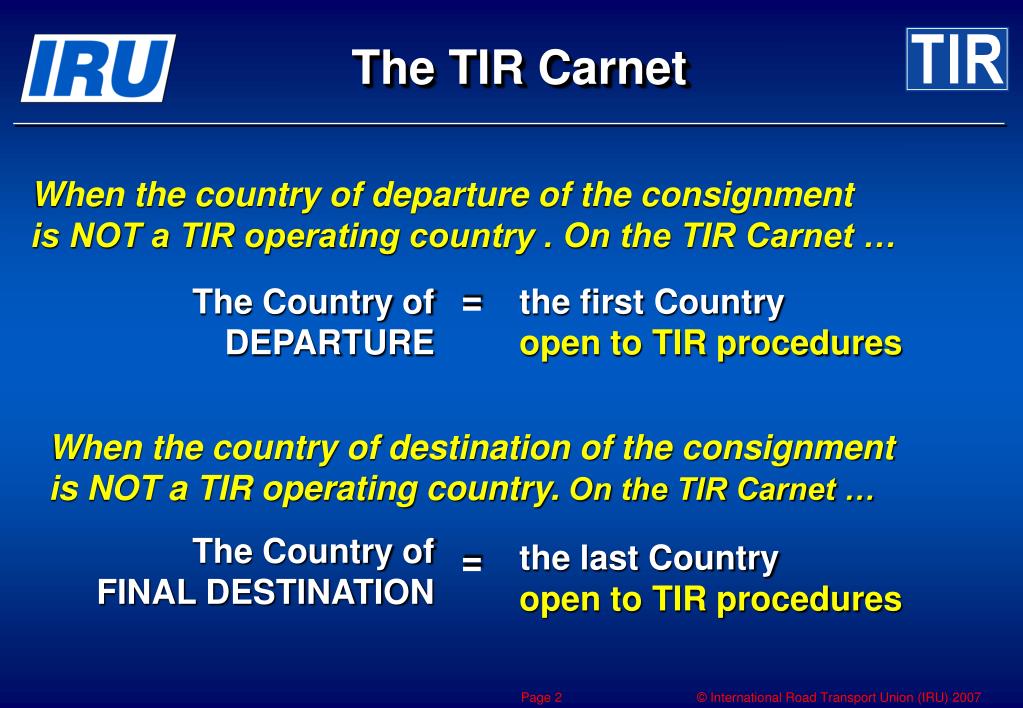

  2. The TIR Carnet When the country of departure of the consignment is NOT a TIR operating country . On the TIR Carnet … = The Country of DEPARTURE the first Countryopen to TIR procedures When the country of destination of the consignment is NOT a TIR operating country. On the TIR Carnet … The Country of FINAL DESTINATION the last Countryopen to TIR procedures =

  3. The TIR Carnet The number of Customs offices of … Departure + Destination = maximum of FOUR • No reloading is permitted (All Customs offices of departure to be before the first Customs of destination) • TIR Holder should clearly fill in the TIR Carnet so that Customs can easily add /cross out from the goods manifest the loaded / unloaded goods • The goods should be loaded so that the first consignment can be unloaded without unloading the other consignments.

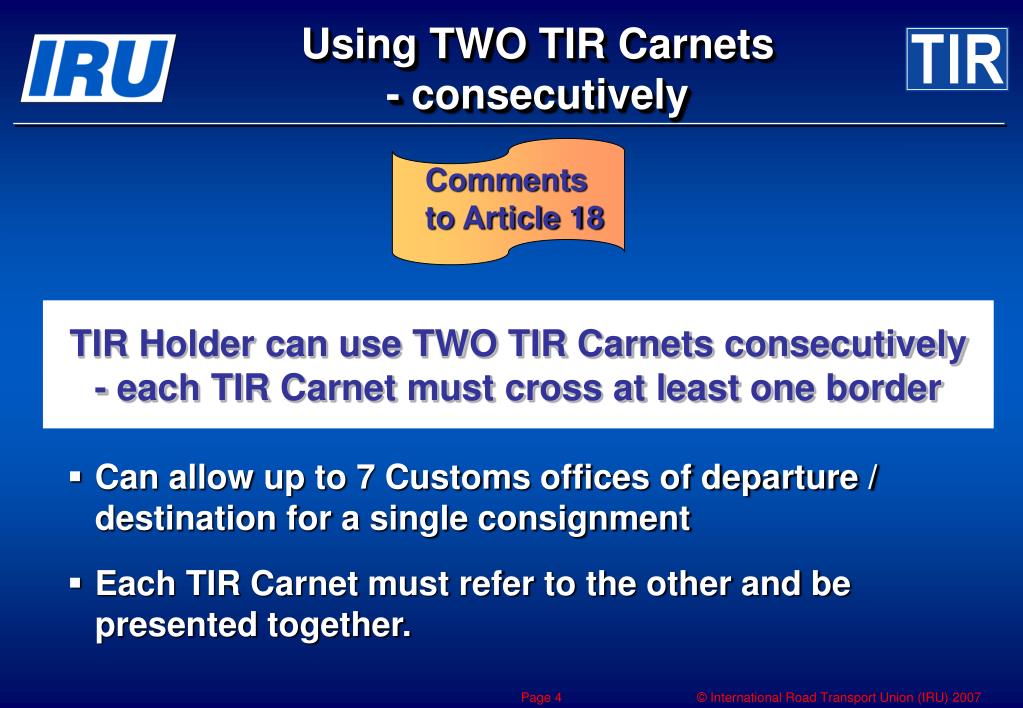

  4. Comments to Article 18 Using TWO TIR Carnets- consecutively TIR Holder can use TWO TIR Carnets consecutively - each TIR Carnet must cross at least one border • Can allow up to 7 Customs offices of departure / destination for a single consignment • Each TIR Carnet must refer to the other and be presented together.

  5. Using TWO TIR Carnets- consecutively FINAL Customs office of destination 1st TIR Carnet FIRST Customs office of departure2nd TIR Carnet = 1stTIR Carnet is finally terminated at a Customs office (destination or exit).On 1st TIR Carnet: country of destination = this countryOn 1stTIR Carnet: customs of destination =this office 2ndTIR Carnet has only ONE Customs of departure, which is this Customs office,

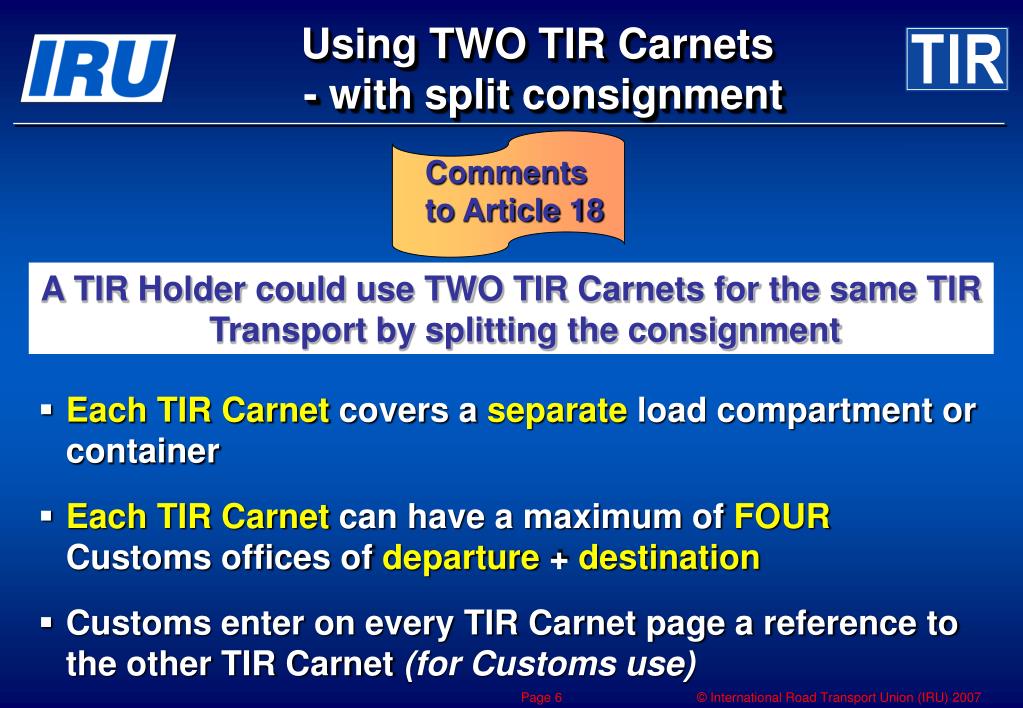

  6. Comments to Article 18 Using TWO TIR Carnets - with split consignment A TIR Holder could use TWO TIR Carnets for the same TIR Transport by splitting the consignment • Each TIR Carnet covers a separate load compartment or container • Each TIR Carnet can have a maximum of FOUR Customs offices of departure + destination • Customs enter on every TIR Carnet page a reference to the other TIR Carnet (for Customs use)

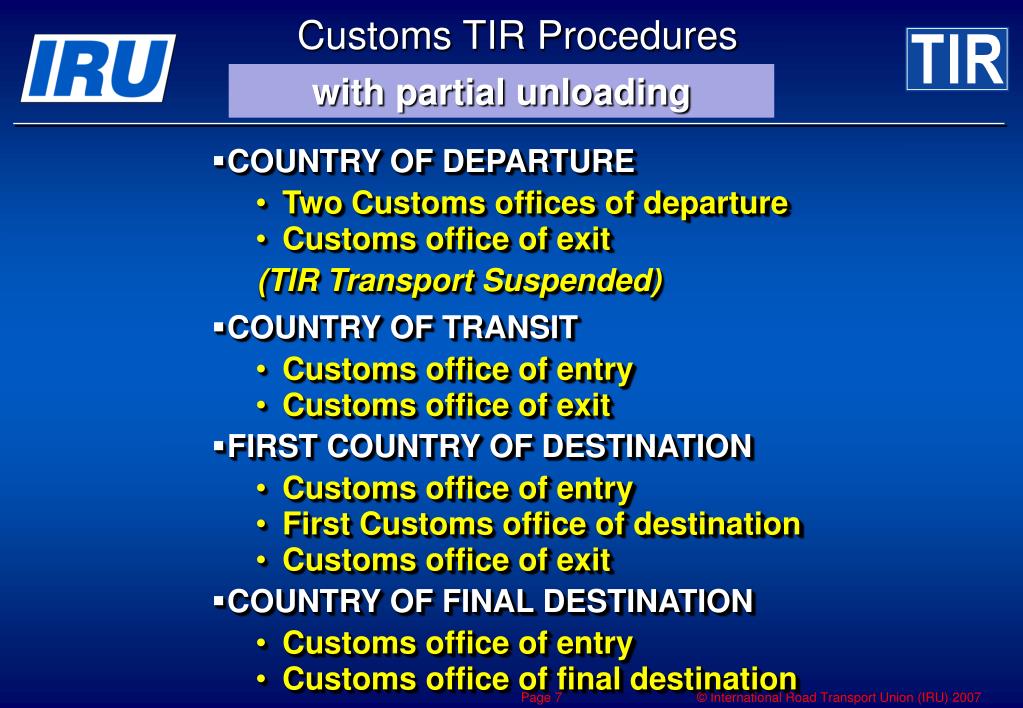

  7. Customs TIR Procedures with partial unloading • COUNTRY OF DEPARTURE • Two Customs offices of departure • Customs office of exit (TIR Transport Suspended) • COUNTRY OF TRANSIT • Customs office of entry • Customs office of exit • FIRST COUNTRY OF DESTINATION • Customs office of entry • First Customs office of destination • Customs office of exit • COUNTRY OF FINAL DESTINATION • Customs office of entry • Customs office of final destination

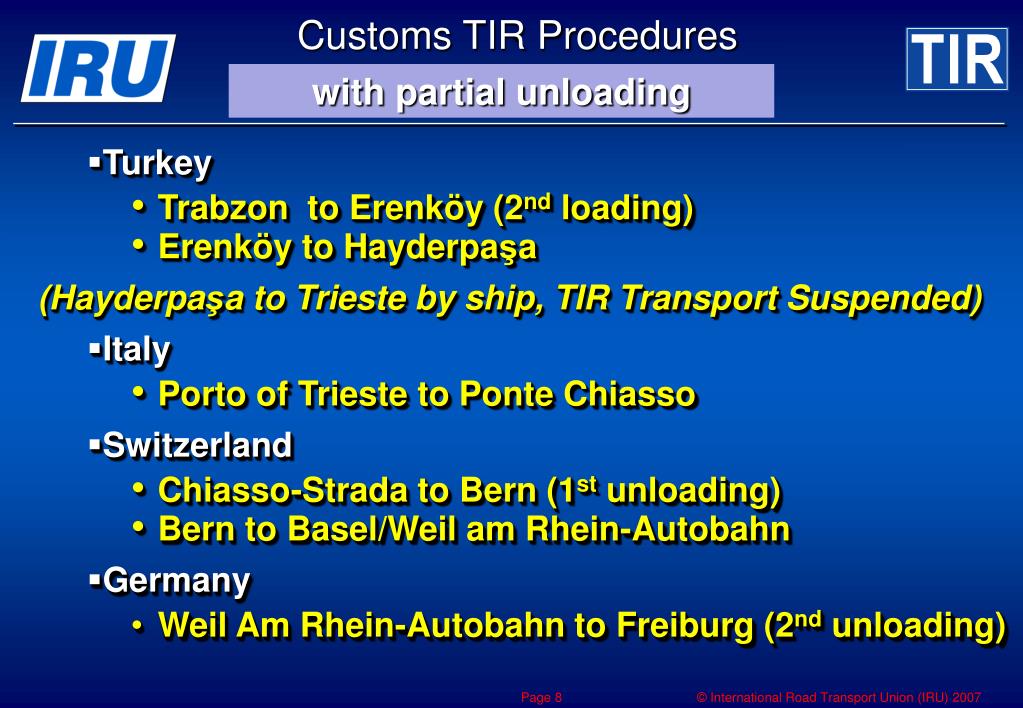

  8. Customs TIR Procedures with partial unloading • Turkey • Trabzon to Erenköy (2nd loading) • Erenköy to Hayderpaşa (Hayderpaşa to Trieste by ship, TIR Transport Suspended) • Italy • Porto of Trieste to Ponte Chiasso • Switzerland • Chiasso-Strada to Bern (1st unloading) • Bern to Basel/Weil am Rhein-Autobahn • Germany • Weil Am Rhein-Autobahn to Freiburg (2nd unloading)

  9. Customs TIR Procedures 1st Customs Office of Departure – Trabzon • Verify the validity & correct completion of the TIR Carnet • Verify that goods match description on … - TIR Carnet - attached documents (CMR, etc.) • Examine vehicle & check certificate of approval If all is OK • Fix seals to the vehicle • Accept TIR consignment …

  10. First Customs Office of Departureaccepts the TIR consignment Customs enter seal #- sign & stamp boxes 16 and 17 On each & every voucher On entire TIR Carnet

  11. Customs TIR Procedures Trabzon - open 1st TIR operation • Fill in & stamp on voucher 1 (page 1)- boxes 18-23- counterfoil 1 • Fill in & stamp on voucher 2 (page 2)- boxes 18-23 • Remove & file voucher 1 • Record details in Customs register.

  12. Outward Transit Trabzon Erenköy Customs TIR Procedures • TIR consignment is transported to Erenköy • TIR Carnet is presented to Customs • Erenköy terminate the 1st TIR operation • More goods are waiting to be loaded

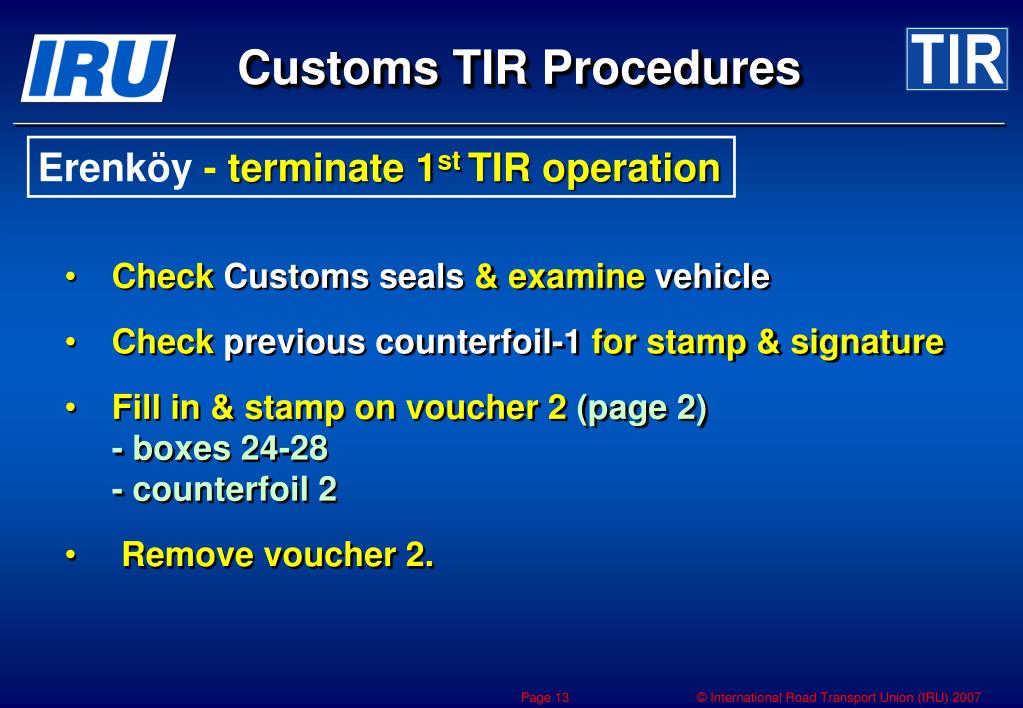

  13. Customs TIR Procedures Erenköy - terminate 1st TIR operation • Check Customsseals & examine vehicle • Check previous counterfoil-1 for stamp & signature • Fill in & stamp on voucher 2 (page 2)- boxes 24-28- counterfoil 2 • Remove voucher 2.

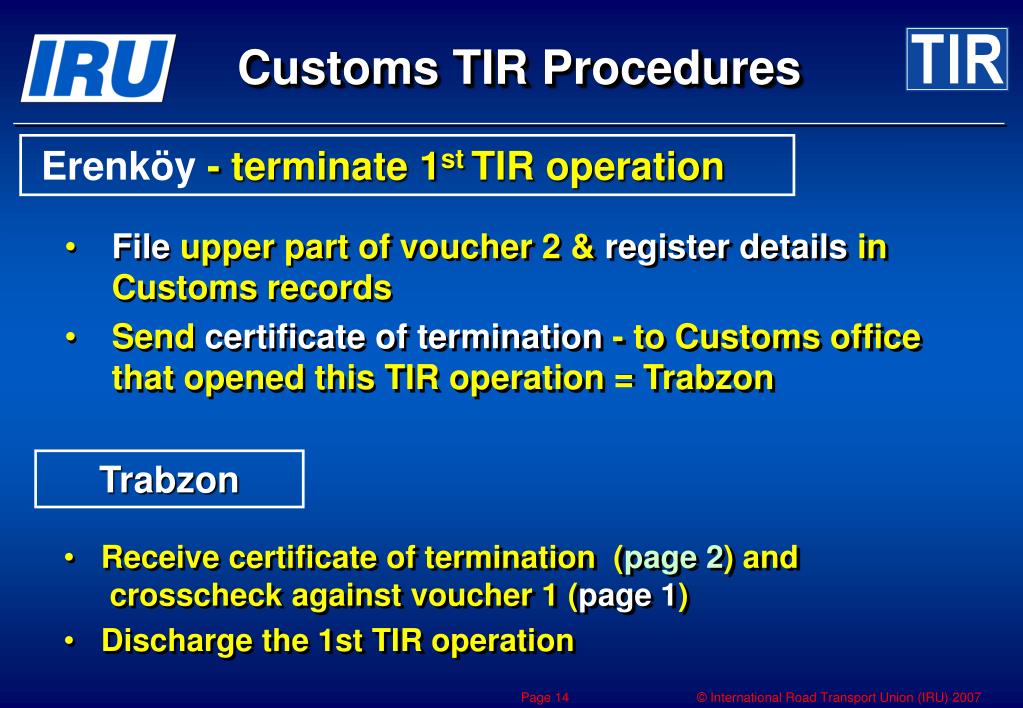

  14. Customs TIR Procedures Erenköy- terminate 1st TIR operation • File upper part of voucher 2 & register details in Customs records • Send certificate of termination - to Customs office that opened this TIR operation = Trabzon Trabzon • Receive certificate of termination (page 2) and crosscheck against voucher 1 (page 1) • Discharge the 1st TIR operation

  15. Customs TIR Procedures Erenköy is 2nd Customs Office of Departure • Break the seal and open the load compartment • Verify that new goods match description on … - TIR Carnet - attached documents (CMR, etc.) If all is OK • Fix new seals to the vehicle • Accept new consignment.

  16. First Customs Office of Departureaccepts the TIR consignment Customs enter seal #- sign & stamp boxes 16 and 17 On each & every voucher On entire TIR Carnet

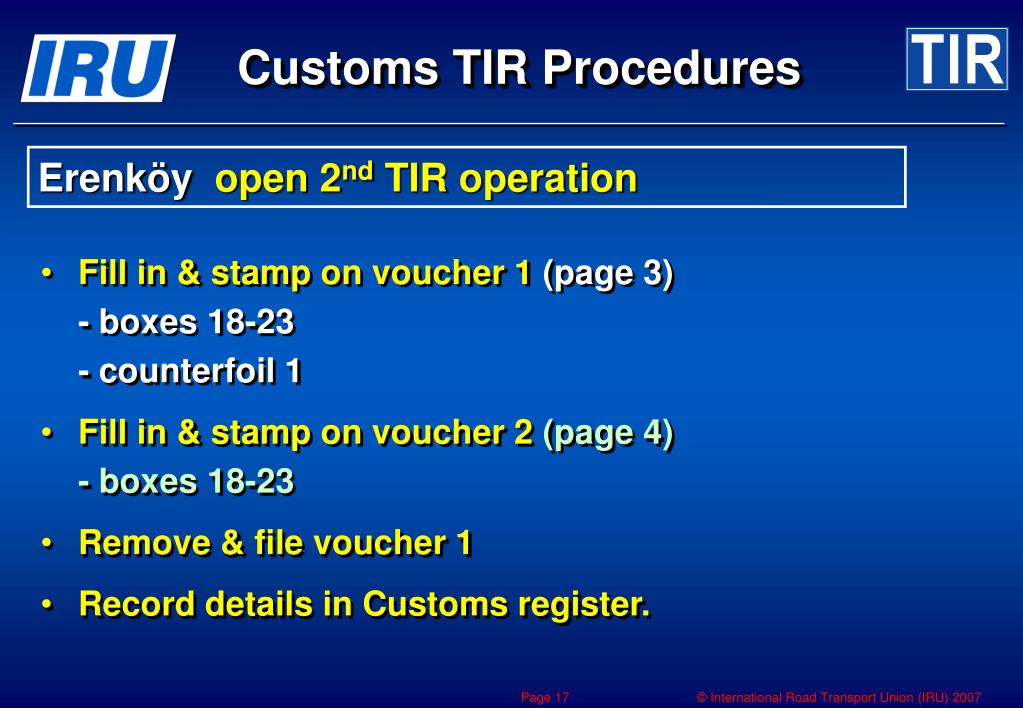

  17. Customs TIR Procedures Erenköy open 2nd TIR operation • Fill in & stamp on voucher 1 (page 3)- boxes 18-23- counterfoil 1 • Fill in & stamp on voucher 2 (page 4)- boxes 18-23 • Remove & file voucher 1 • Record details in Customs register.

  18. Outward Transit Erenköy Haydarpaşa Customs TIR Procedures • TIR consignment is transported to Customs office of exit at border crossing point • TIR Carnet is presented to Customs office • TIR operation is terminated.

  19. Customs TIR Procedures Haydarpaşa - terminate 2nd TIR operation • Check Customsseals & examine vehicle • Check previous counterfoil-1 for stamp & signature • Fill in & stamp on voucher 2 (page 4)- boxes 24-28- counterfoil 2 • Remove voucher 2.

  20. Customs TIR Procedures Haydarpaşa - terminate 2nd TIR operation • File upper part of voucher 2 & register details in Customs records • Send certificate of termination to customs office that opened this TIR operation = Erenköy Erenköy • Receive certificate of termination (page 4) & crosscheck against voucher 1 (page 3) • Discharge the 2nd TIR operation

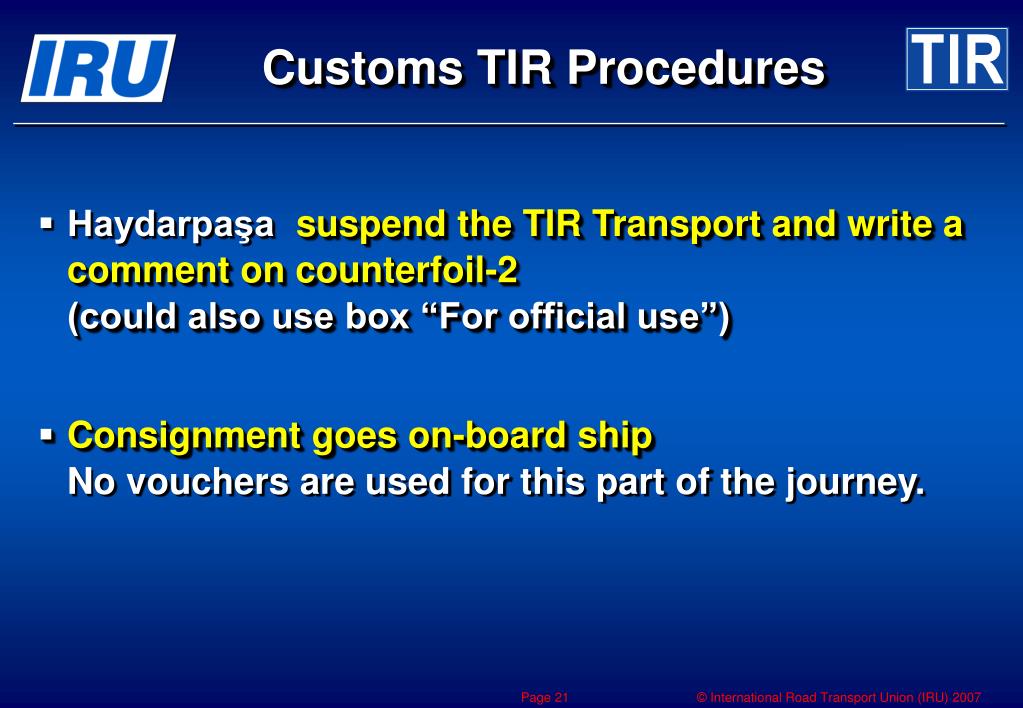

  21. Customs TIR Procedures • Haydarpaşasuspend the TIR Transport and write a comment on counterfoil-2 (could also use box “For official use”) • Consignment goes on-board shipNo vouchers are used for this part of the journey.

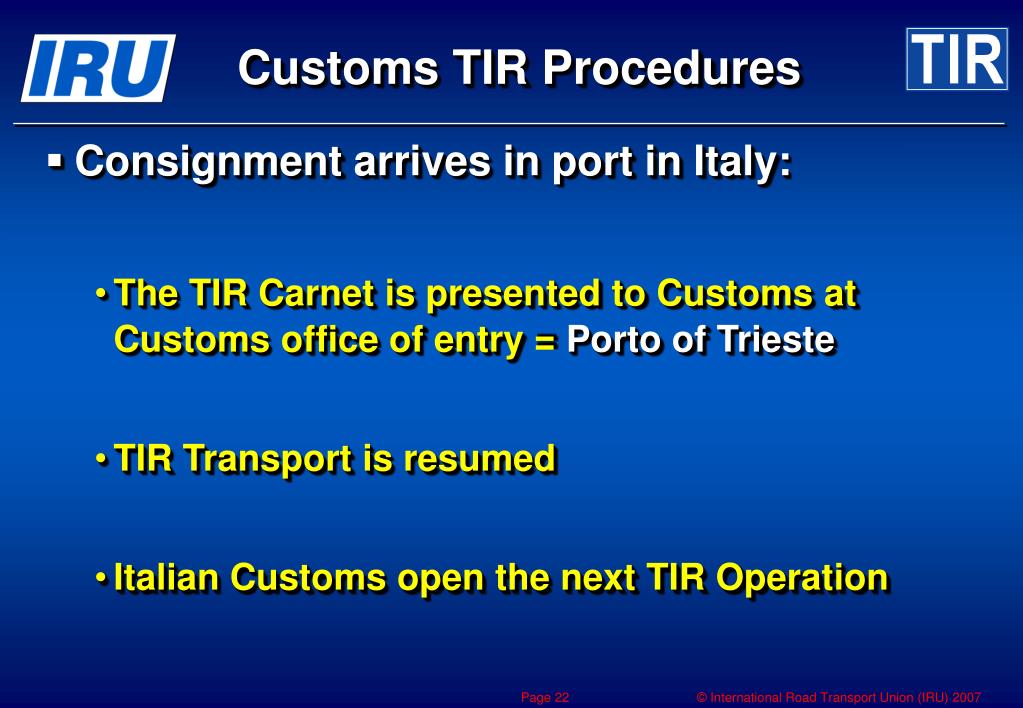

  22. Customs TIR Procedures • Consignment arrives in port in Italy: • The TIR Carnet is presented to Customs at Customs office of entry = Porto of Trieste • TIR Transport is resumed • Italian Customs open the next TIR Operation

  23. Customs TIR Procedures Porto of Trieste – open 3rd TIR operation • Check Customs seal & examine vehicle • Check previous counterfoil-2(page 4) • Fill in & stamp on voucher 1 (page 5)- boxes 18-23- counterfoil 1 • Fill in & stamp on voucher 2 (page 6)- boxes 18-23 • Remove & file voucher 1 • Record details in Customs register.

  24. Transit through Italy Porto of Trieste Ponte Chiasso Customs TIR Procedures • TIR consignment is transported to Italian Customs office of exit • TIR Carnet is presented to Customs office • TIR operation is terminated.

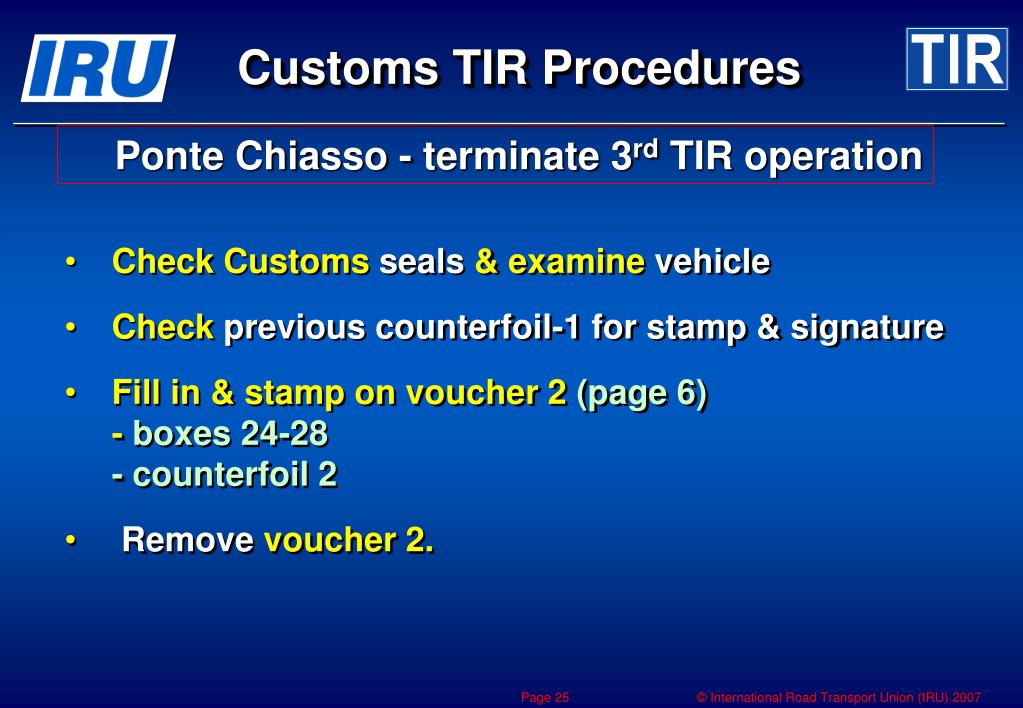

  25. Customs TIR Procedures Ponte Chiasso - terminate 3rd TIR operation • Check Customs seals & examine vehicle • Check previous counterfoil-1 for stamp & signature • Fill in & stamp on voucher 2 (page 6)- boxes 24-28- counterfoil 2 • Remove voucher 2.

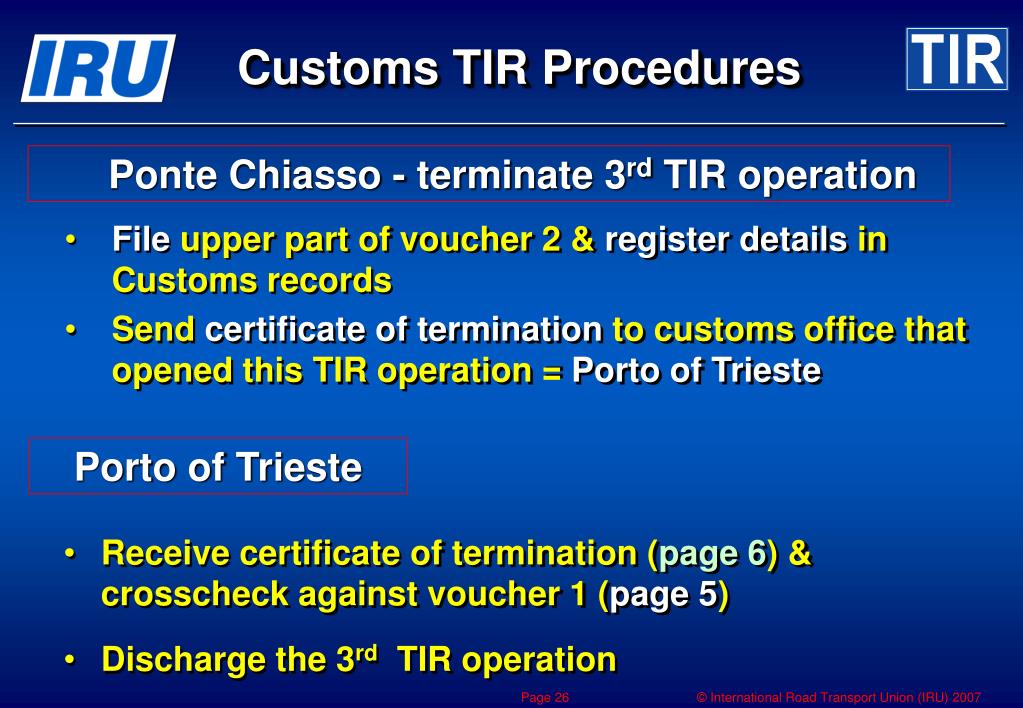

  26. Customs TIR Procedures Ponte Chiasso - terminate 3rd TIR operation • File upper part of voucher 2 & register details in Customs records • Send certificate of termination to customs office that opened this TIR operation = Porto of Trieste Porto of Trieste • Receive certificate of termination (page 6) & crosscheck against voucher 1 (page 5) • Discharge the 3rd TIR operation

  27. TIR Transport crosses the IT/CH border Ponte Chiasso Chiasso-Strada Customs TIR Procedures TIR Transport crosses the IT/CH border

  28. Customs TIR Procedures Chiasso Strada – open 4th TIR operation • Check Customs seals & examine vehicle • Check previous counterfoil-2 (page 6) • Fill in & stamp on voucher 1 (page 7)- boxes 18-23- counterfoil 1 • Fill in & stamp on voucher 2 (page 8)- boxes 18-23 • Remove & file voucher 1 • Record details in Customs register.

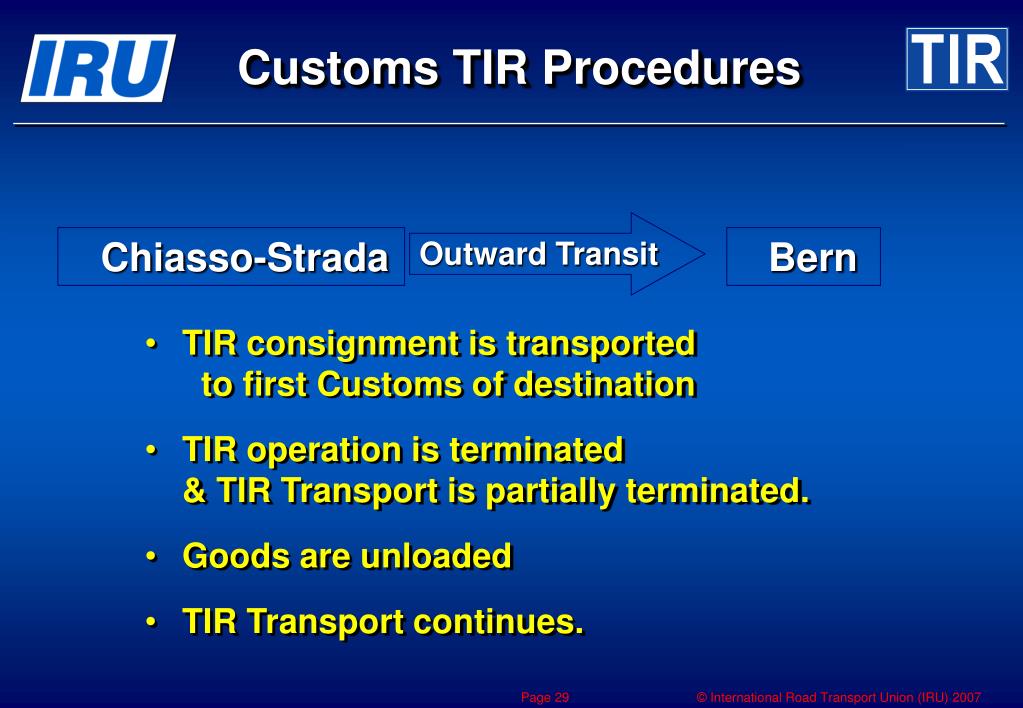

  29. Outward Transit Chiasso-Strada Bern Customs TIR Procedures • TIR consignment is transported to first Customs of destination • TIR operation is terminated& TIR Transport is partially terminated. • Goods are unloaded • TIR Transport continues.

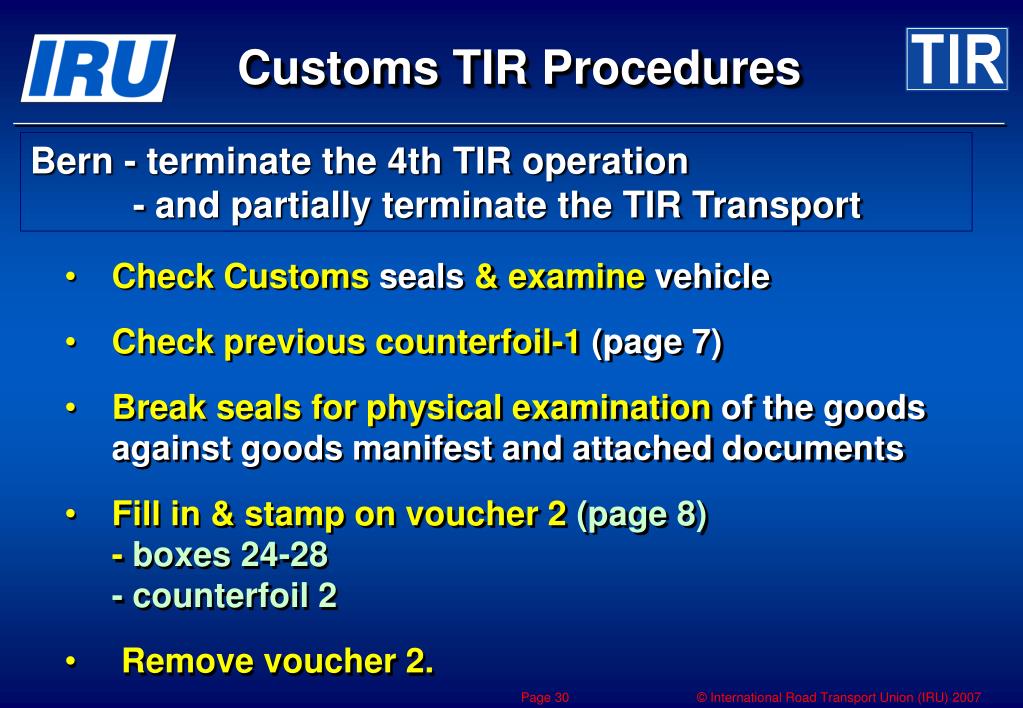

  30. Customs TIR Procedures Bern - terminate the 4th TIR operation - and partially terminate the TIR Transport • Check Customs seals & examine vehicle • Check previous counterfoil-1 (page 7) • Break seals for physical examination of the goods against goods manifest and attached documents • Fill in & stamp on voucher 2 (page 8)- boxes 24-28- counterfoil 2 • Remove voucher 2.

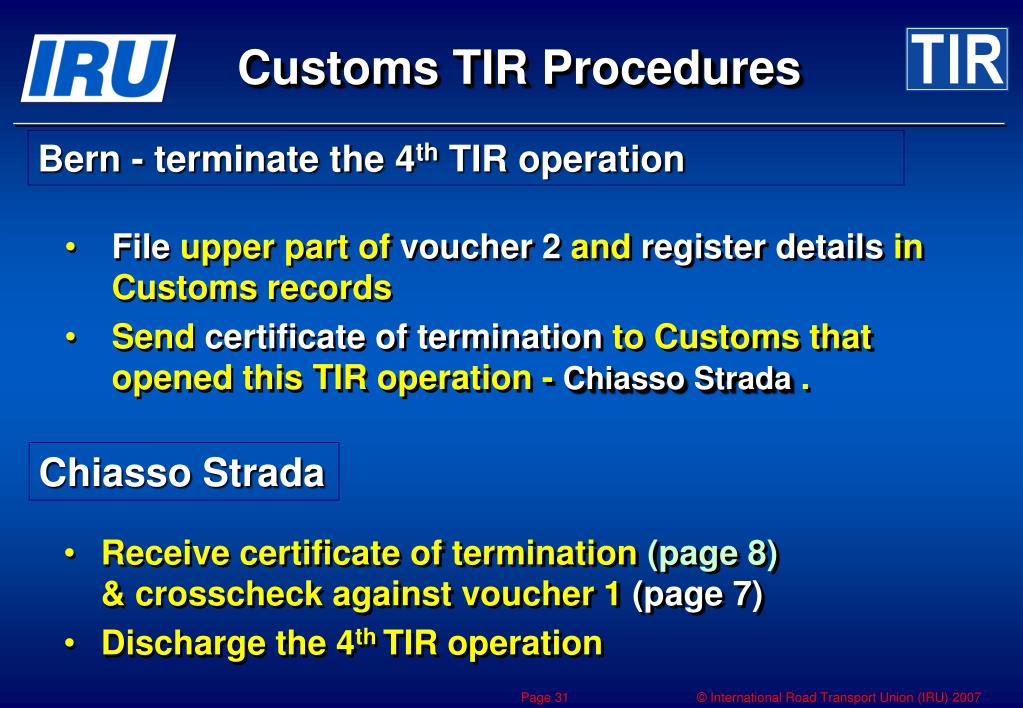

  31. Customs TIR Procedures Bern - terminate the 4th TIR operation • File upper part of voucher 2 and register details in Customs records • Send certificate of termination to Customs that opened this TIR operation - Chiasso Strada. Chiasso Strada • Receive certificate of termination (page 8)& crosscheck against voucher 1 (page 7) • Discharge the 4th TIR operation

  32. Customs TIR Procedures Bern - partially terminate the TIR Transport • Confirm partial termination through SafeTIR • IRU sorts information overnight and, before 09h.00 GMT, Customs may view it through CUTE-Wise • Unloaded goods are placed in subsequent Customsregime.

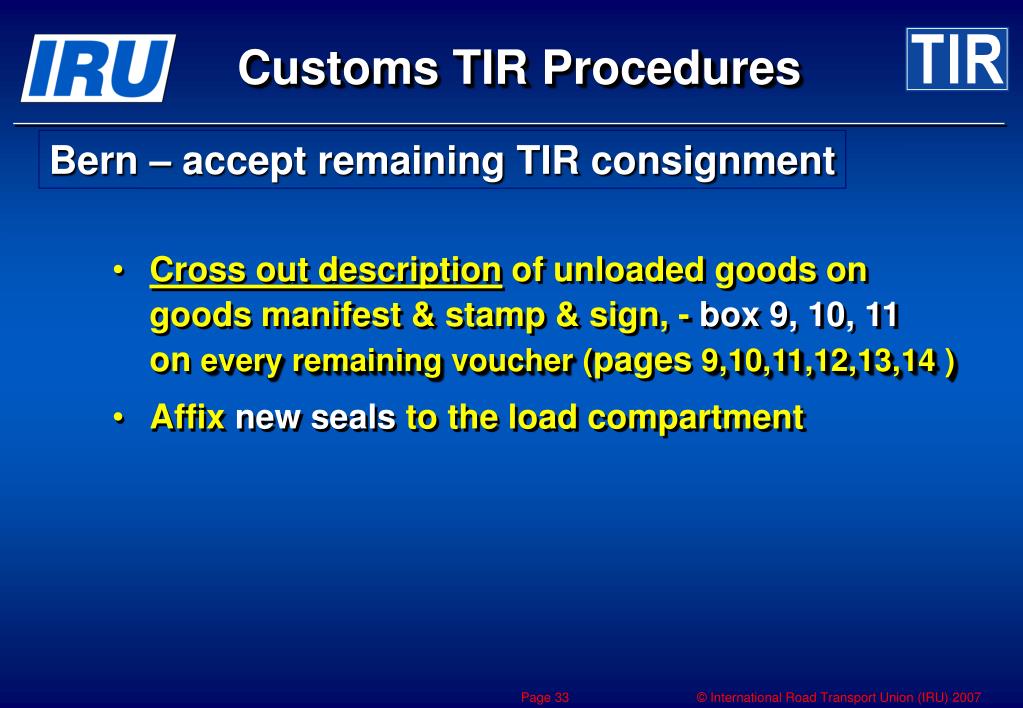

  33. Customs TIR Procedures Bern – accept remaining TIR consignment • Cross out description of unloaded goods on goods manifest & stamp & sign, - box 9, 10, 11on every remaining voucher(pages 9,10,11,12,13,14 ) • Affix new seals to the load compartment

  34. First Customs Office of Departureaccepts the TIR consignment Customs cross-outexisting seal #, enter new seal #,then sign & stamp boxes 16 & 17 On each & every remaining voucher On entire TIR Carnet

  35. Customs TIR Procedures Bern – open the 5th TIR operation • Fill in & stamp on voucher 1 (page 9)- boxes 18-23- counterfoil 1 • Fill in & stamp on voucher 2(page 10)- boxes 18-23 • Remove & file voucher 1 • Record details in Customs register.

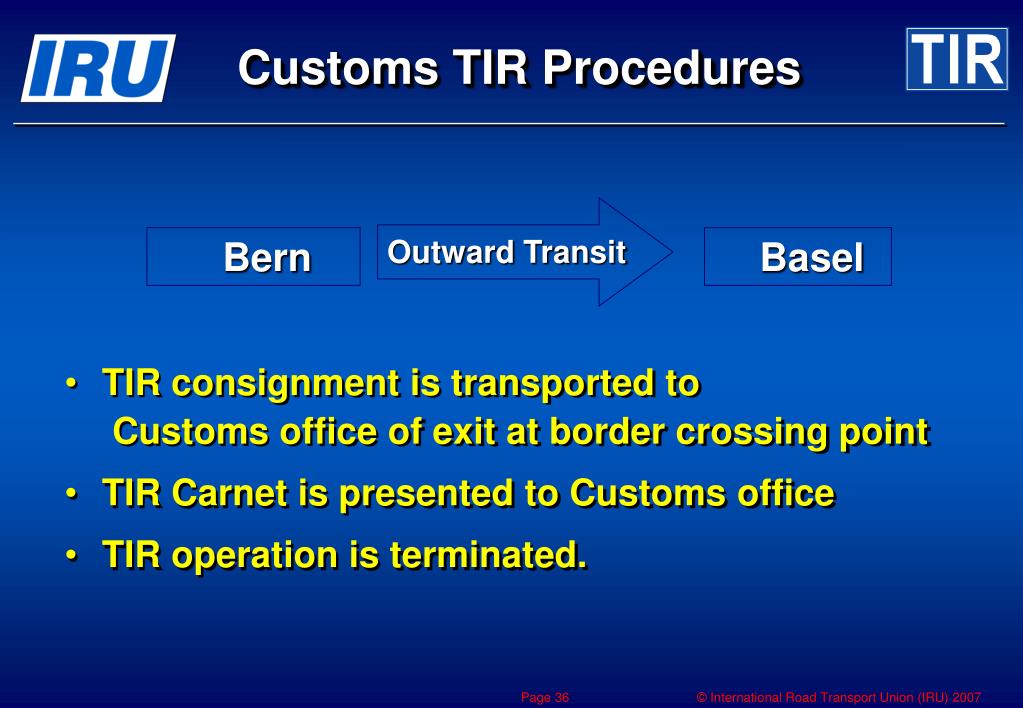

  36. Outward Transit Bern Basel Customs TIR Procedures • TIR consignment is transported to Customs office of exit at border crossing point • TIR Carnet is presented to Customs office • TIR operation is terminated.

  37. Customs TIR Procedures Basel - terminate 5th TIR operation • Check Customs seals & examine vehicle • Check previous counterfoil-1 (page 9) • Fill in & stamp on voucher 2 (page 10) • boxes 24-28 • counterfoil 2 • Remove voucher 2.

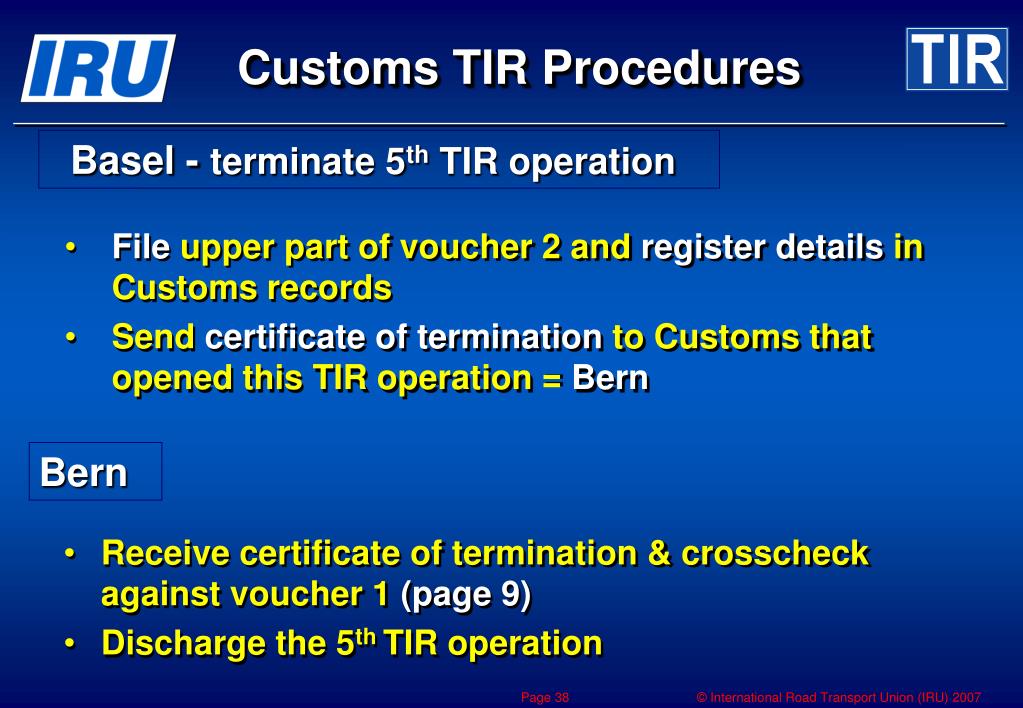

  38. Customs TIR Procedures Basel - terminate 5th TIR operation • File upper part of voucher 2 and register details in Customs records • Send certificate of termination to Customs that opened this TIR operation = Bern Bern • Receive certificate of termination & crosscheck against voucher 1 (page 9) • Discharge the 5th TIR operation

  39. TIR Transport crosses the CH/DE border Basel Weil am Rhein/ Ab Customs TIR Procedures

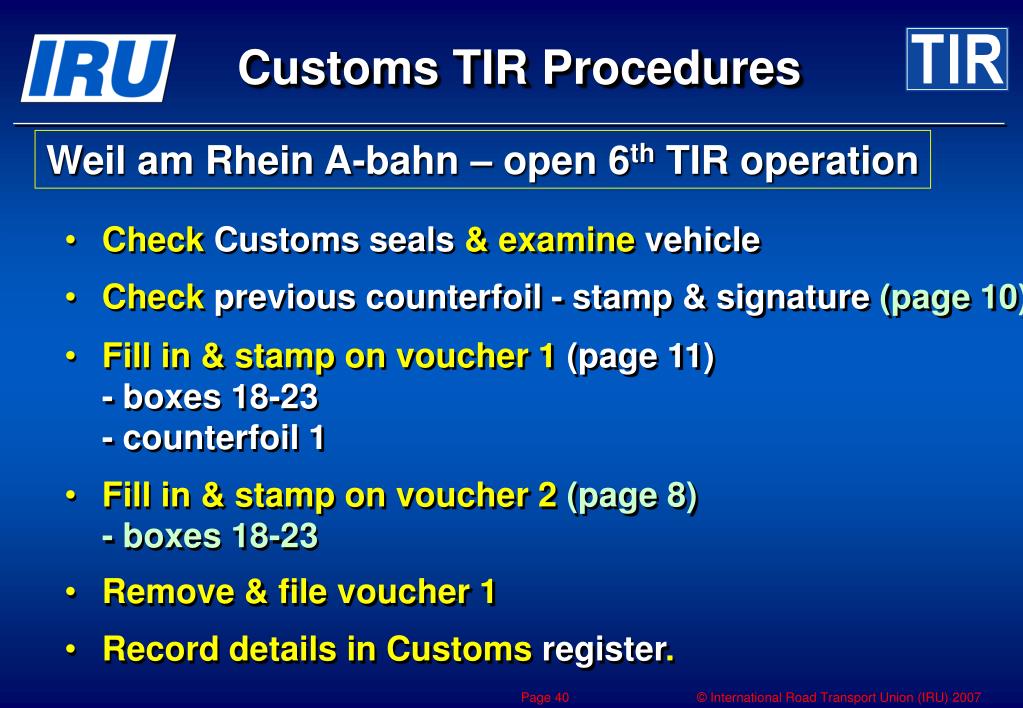

  40. Customs TIR Procedures Weil am Rhein A-bahn – open 6th TIR operation • Check Customs seals & examine vehicle • Check previous counterfoil - stamp & signature(page 10) • Fill in & stamp on voucher 1 (page 11)- boxes 18-23- counterfoil 1 • Fill in & stamp on voucher 2 (page 8)- boxes 18-23 • Remove & file voucher 1 • Record details in Customs register.

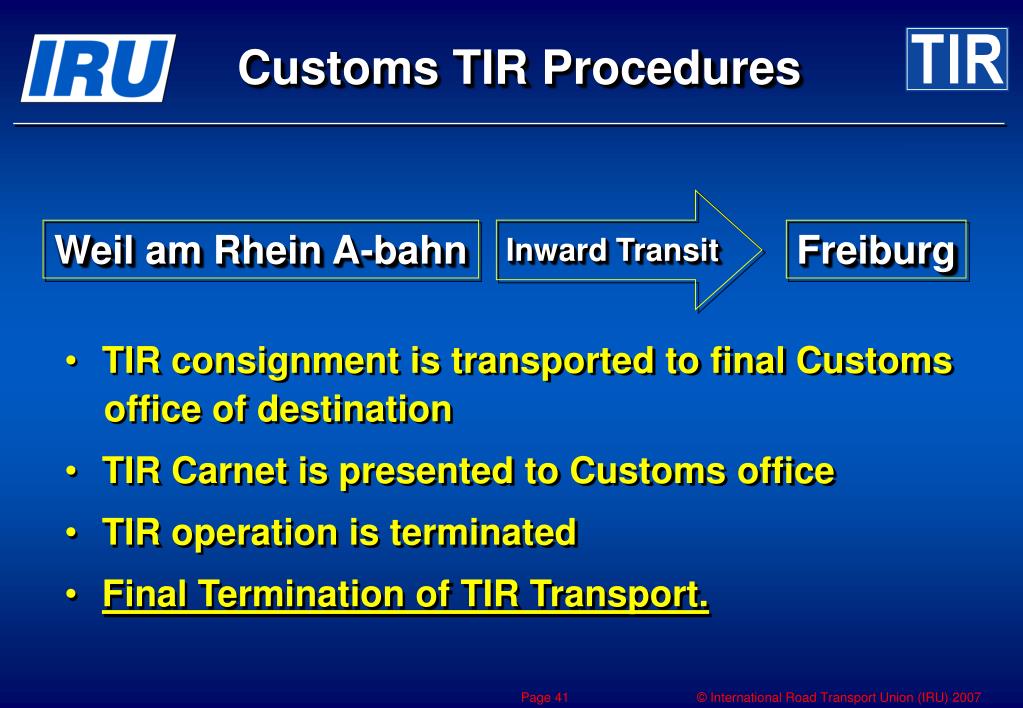

  41. Inward Transit Weil am Rhein A-bahn Freiburg Customs TIR Procedures • TIR consignment is transported to final Customs office of destination • TIR Carnet is presented to Customs office • TIR operation is terminated • Final Termination of TIR Transport.

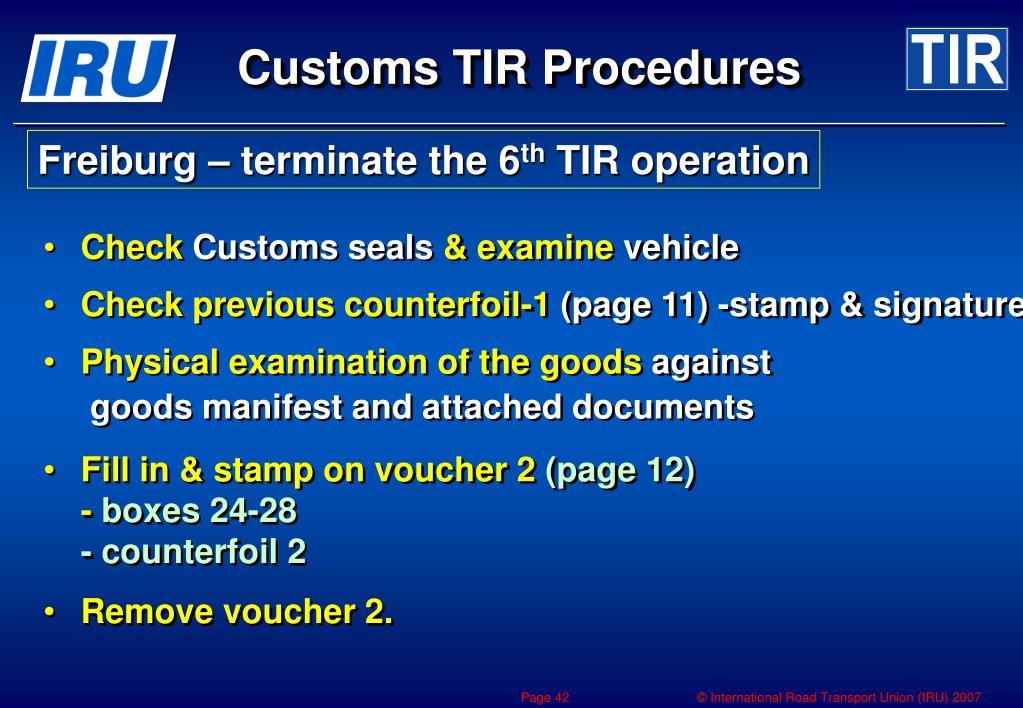

  42. Customs TIR Procedures Freiburg – terminate the 6th TIR operation • Check Customs seals & examine vehicle • Check previous counterfoil-1 (page 11) -stamp & signature • Physical examination of the goods against goods manifest and attached documents • Fill in & stamp on voucher 2 (page 12)- boxes 24-28- counterfoil 2 • Remove voucher 2.

  43. Customs TIR Procedures Freiburg – terminate the 6th TIR operation • File upper part of voucher 2 and register details in Customs records • Send certificate of termination to Customs that opened this TIR operation = Weil am Rhein A-bahn Weil am Rhein A-bahn • Receive certificate of termination (page 12) & crosscheck against voucher 1 (page 11) • Discharge the 6th TIR operation

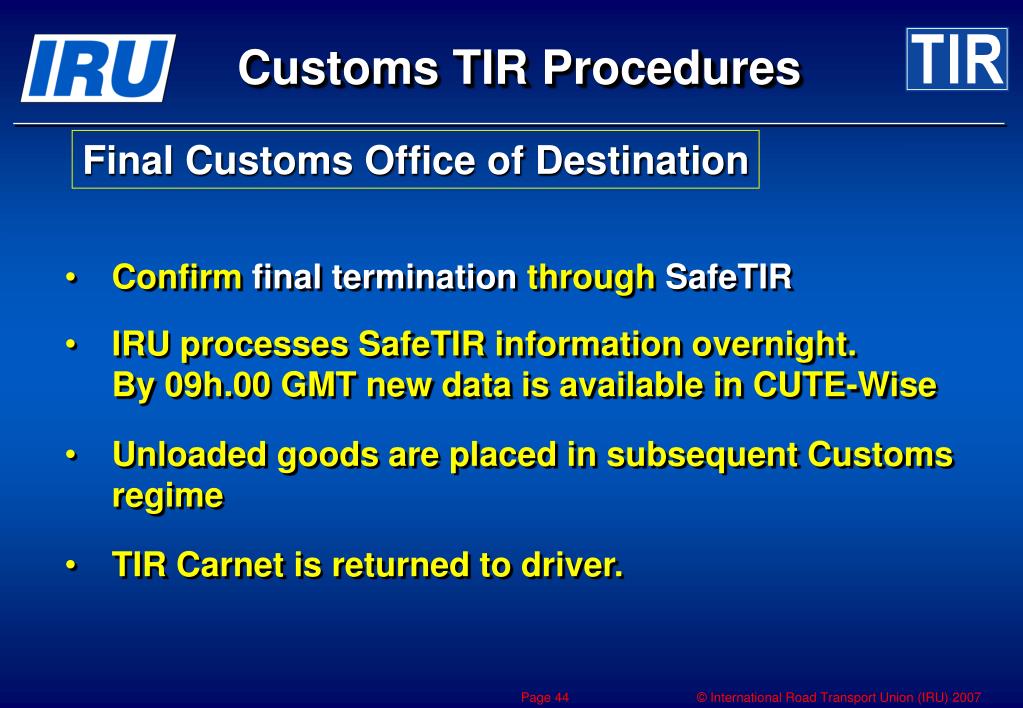

  44. Customs TIR Procedures Final Customs Office of Destination • Confirm final termination through SafeTIR • IRU processes SafeTIR information overnight. By 09h.00 GMT new data is available in CUTE-Wise • Unloaded goods are placed in subsequent Customsregime • TIR Carnet is returned to driver.

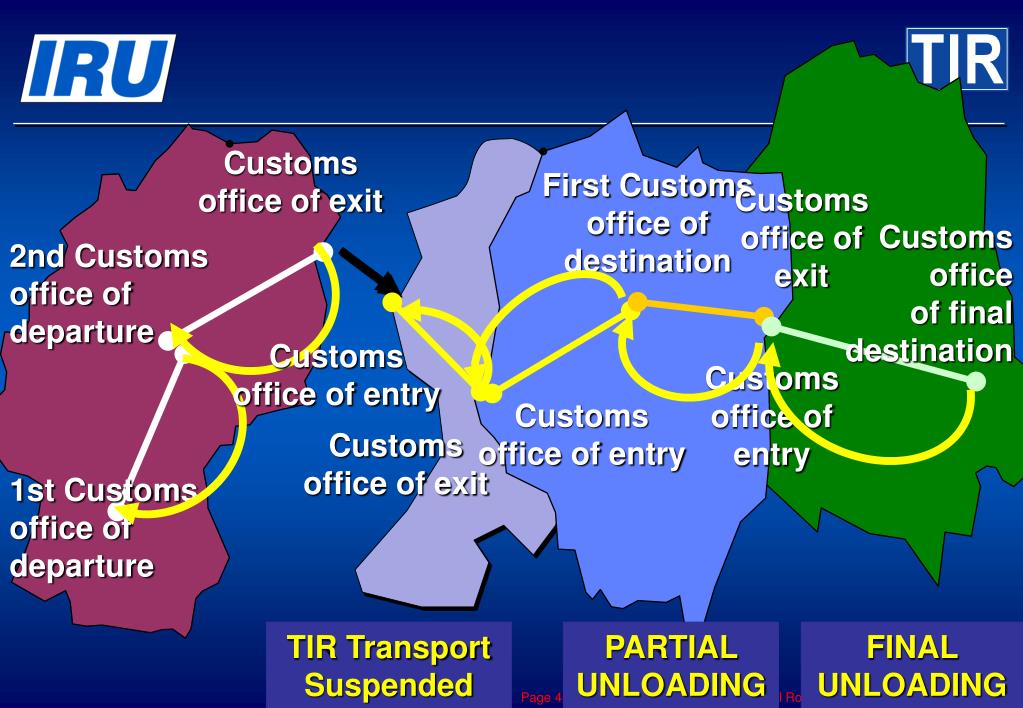

  45. Customs office of exit First Customs office of destination Customs office of exit Customsofficeof final destination 2nd Customs office of departure Customs office of entry Customs office of entry Customs office of entry Customs office of exit 1st Customs office of departure TIR TransportSuspended PARTIAL UNLOADING FINAL UNLOADING

  46. www.iru.org
