  1. Engr 25 HW-02 Prob 1.30Solution Bruce Mayer, PE Licensed Electrical & Mechanical EngineerBMayer@ChabotCollege.edu

  2. Last of The Hand-Soln

  3. .m File Script

  4. .m File OutPut Rmin = 18.6100 Lmin = 28.3714 Cmin = 5.1575e+003 Rlo = 14.8880 Clo = 5.2867e+003 Rhi = 22.3320 Chi = 5.2433e+003

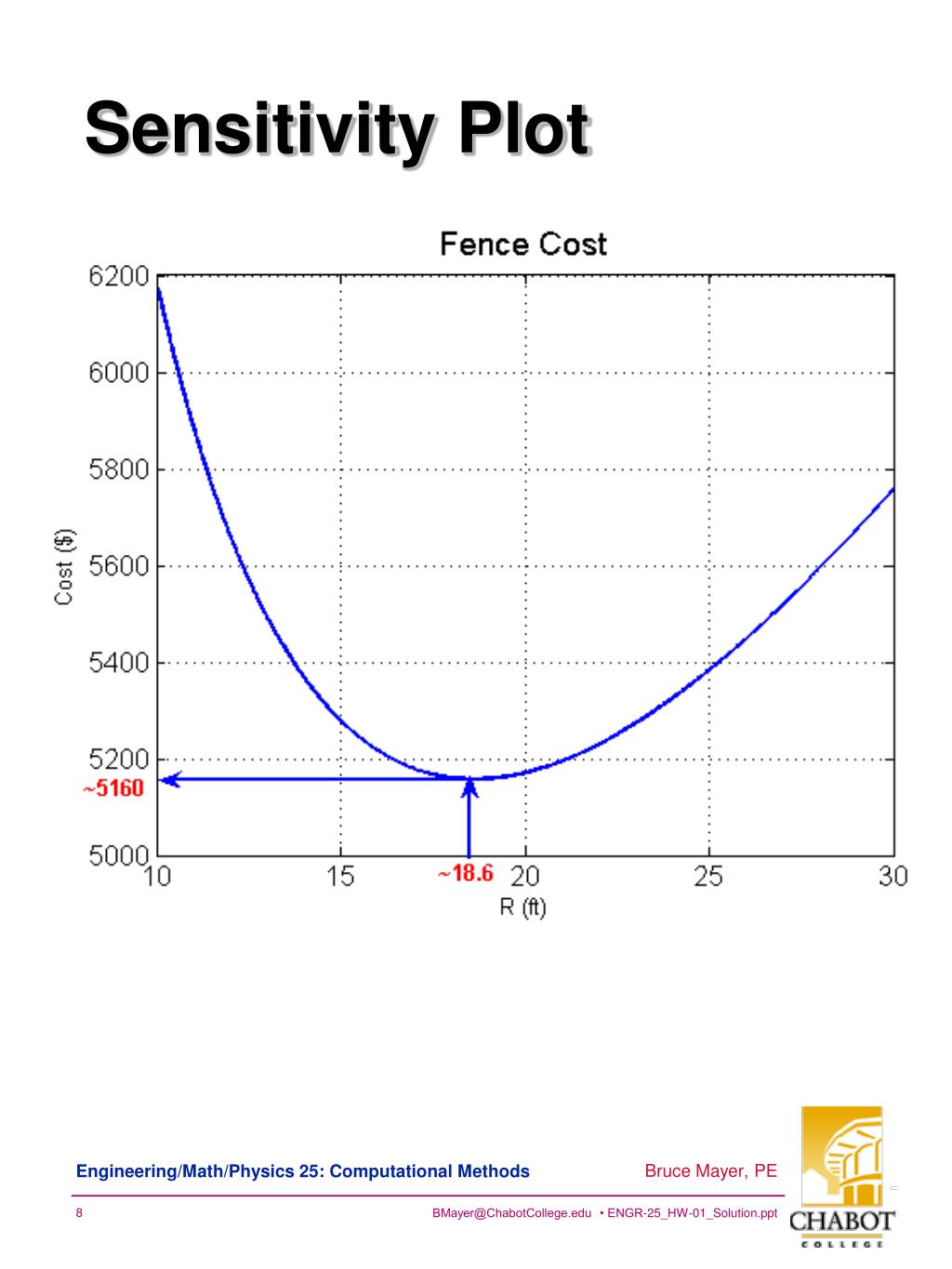

  5. Sensitivity Plot

  6. Comments • The ±20% Rmin values Yield Costs that are only slightly Higher Than the Rmin Values • +2.5% forRlo • +1.7% forRhi • Thus The Cost isNOT very SensitiveAbout the Minimum-R Point Rlo = 14.8880 Clo = 5.2867e+003 Rhi = 22.3320 Chi = 5.2433e+003
