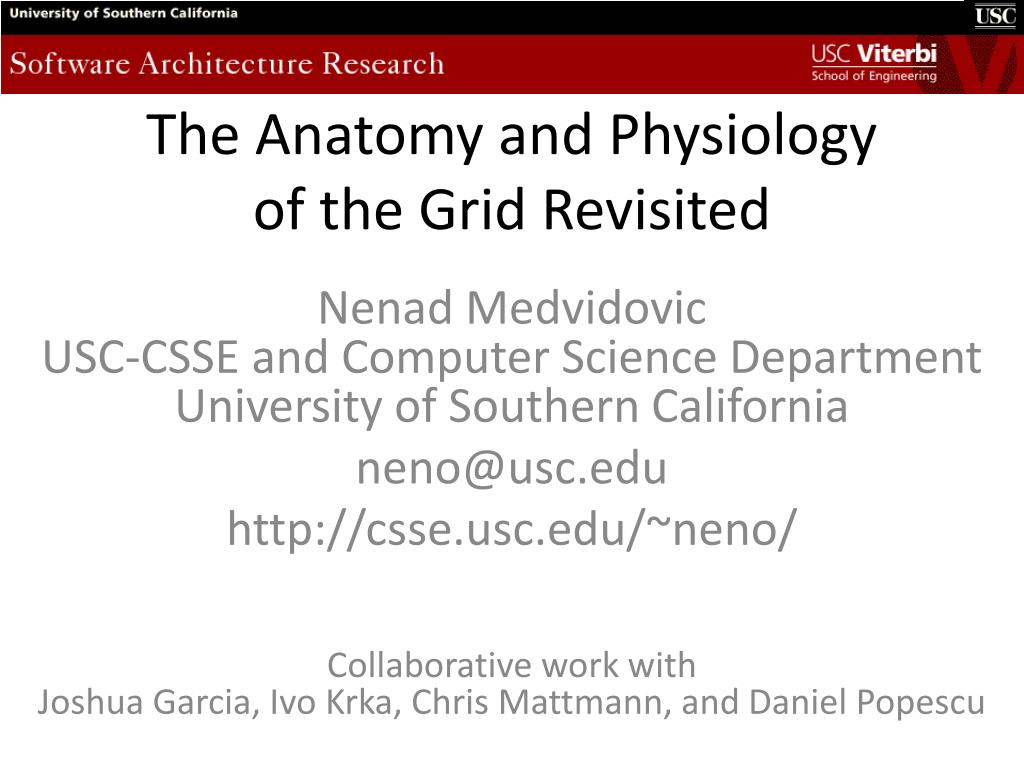

The Anatomy and Physiologyof the Grid Revisited

Nenad MedvidovicUSC-CSSE and Computer Science DepartmentUniversity of Southern California

[email protected]

http://csse.usc.edu/~neno/

Collaborative work with Joshua Garcia, IvoKrka, Chris Mattmann, and Daniel Popescu


What is the grid

What is the grid?

  • A distributed systems technology that enables the sharing of resources across organizations scalably, efficiently, reliably, and securely

  • Analogous to the electric grid


Why study the grid

Why Study the Grid?

  • A highly successful technology

  • Deficiencies in the existing guidance for building grids

    • More to come

  • Grids are not easy to build

    • See CERN’s Large Hadron Collider

  • Their architecture was published very early

    • “anatomy” and “physiology”

  • Yet “What is (not) a grid?” is still a subject of debate


The architectural perspective

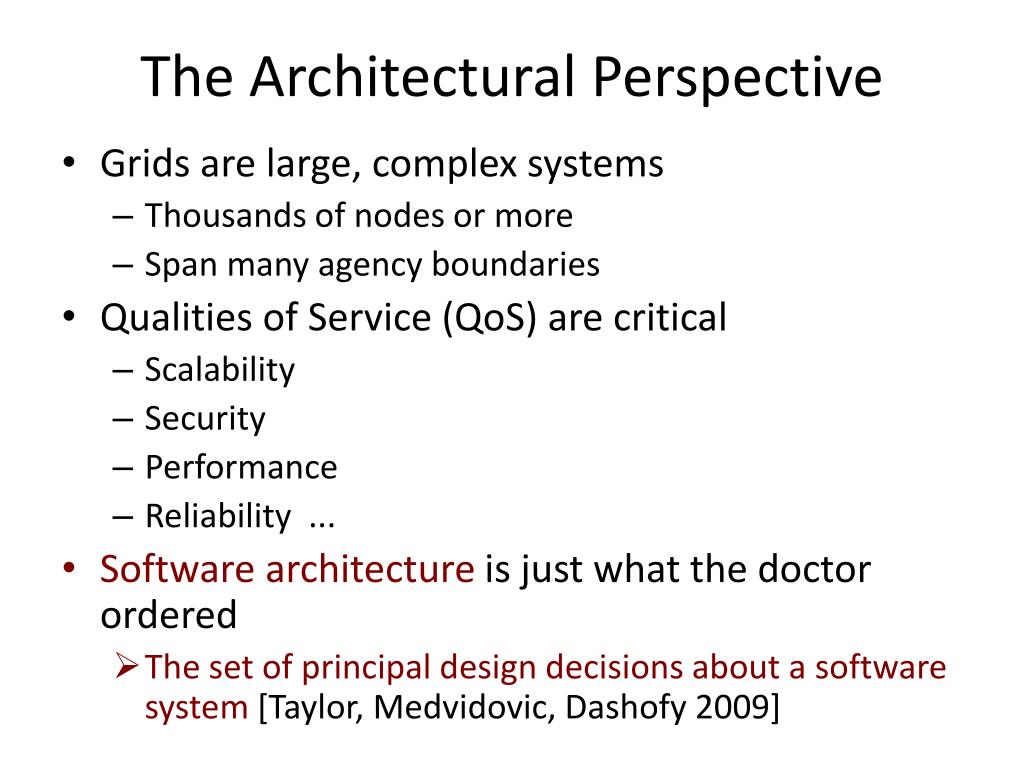

The Architectural Perspective

  • Grids are large, complex systems

    • Thousands of nodes or more

    • Span many agency boundaries

  • Qualities of Service (QoS) are critical

    • Scalability

    • Security

    • Performance

    • Reliability ...

  • Software architecture is just what the doctor ordered

    • The set of principal design decisions about a software system [Taylor, Medvidovic, Dashofy 2009]


So what did we set out to do

So, What Did We Set out to Do?

  • Study grid’s reference requirements and architecture

  • Study the architectures of existing grid technologies

  • Compare the two

    • Knowing that there will likely be very few straightforward answers

  • Suggest how to fix any discrepancies

    • Knowing that there will likely be very few straightforward answers


Architectural recovery approach

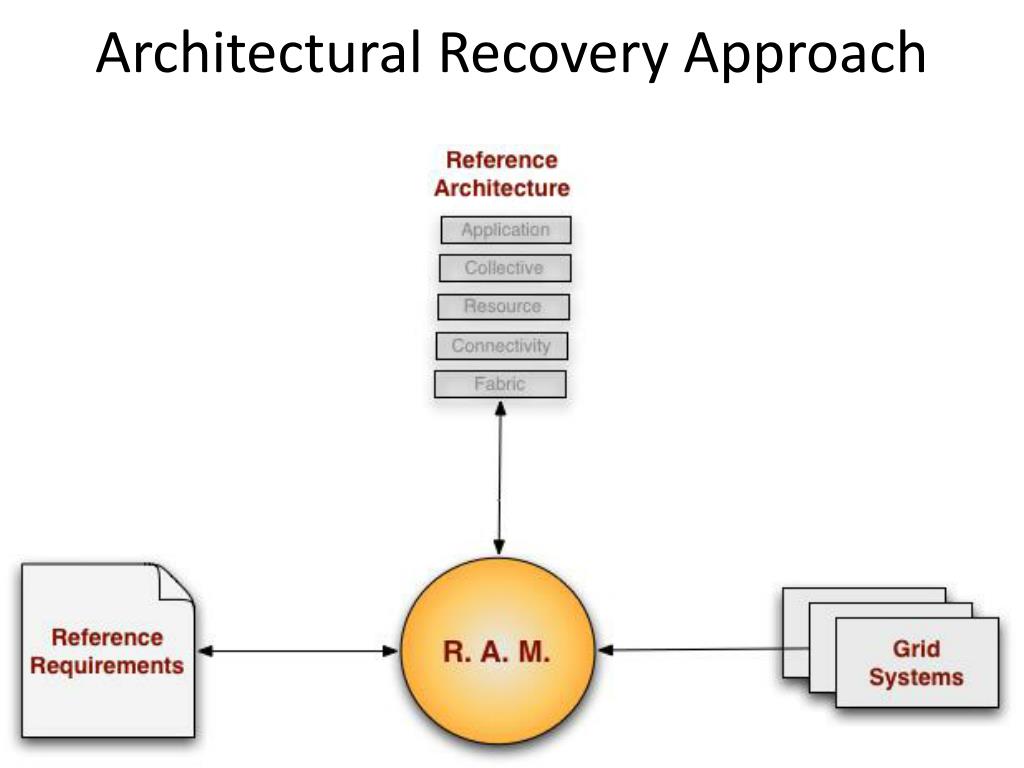

Architectural Recovery Approach


Original grid reference architecture

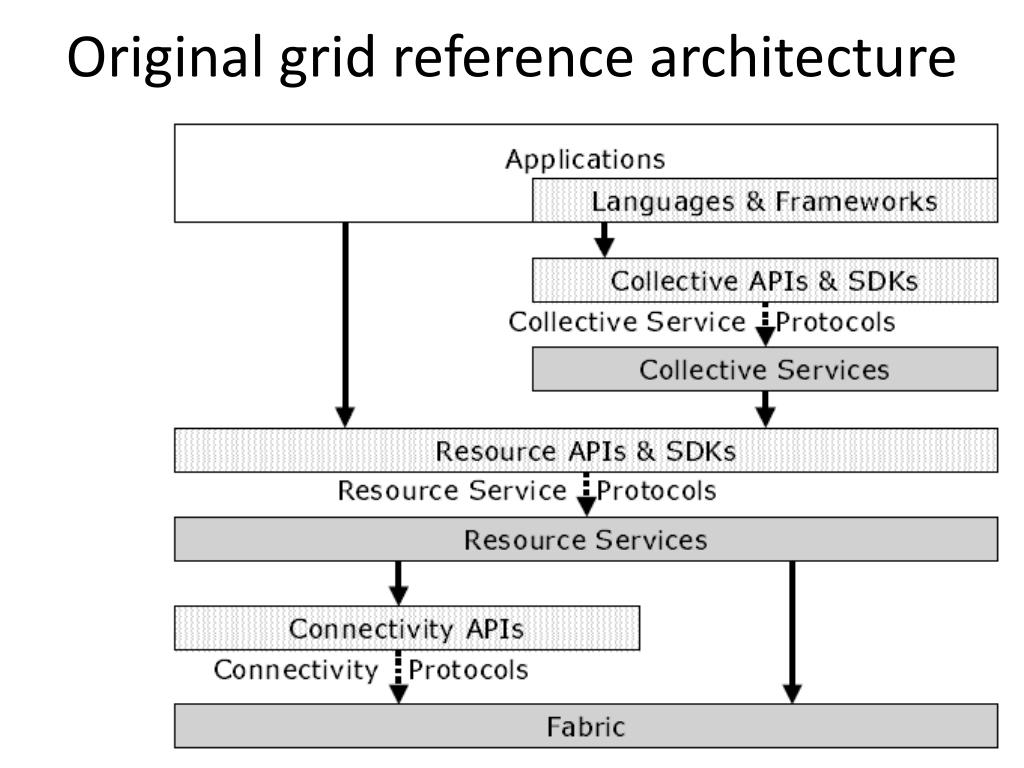

Original grid reference architecture


Some reference requirements

Some Reference Requirements


Studied grid technologies

Studied Grid Technologies


Architecture recovery technique focus

Architecture Recovery Technique- Focus -

  • Establish idealized architecture and candidate architectural style(s)

  • Identify data and processing components

    • Groups implementation modules according to a set of rules

  • Map identified data and processing components onto an idealized architecture

  • Examine

    • Source code

    • Documentation

    • Runtime behavior

    • Tie to requirements satisfied by component


Rules of focus

Rules of Focus

  • Group based on isolated classes

  • Group based on generalization

  • Group based on aggregation

  • Group based on composition

  • Group based on two-way association

  • Identify domain classes

  • Merge classes with a single originating domain class association into domain class

  • Group classes along a domain class circular dependency path

  • Group classes along a path with a start node and end node thatreference a domain class

  • Group classes along paths with the same end node, and whose start node references the same domain class


Some refinements to the rules

Some Refinements to the Rules

  • Domain class rules

    • Class with large majority of outgoing calls

  • Exclusion rules

    • Class with large majority of incoming calls

    • Utility classes

    • Heavily passed data-structures

    • Benchmarking and test classes

  • Additional groupings

    • By exception

    • By interface

    • By package if idealized architecture matches first-class component


Focus rules for distributed systems

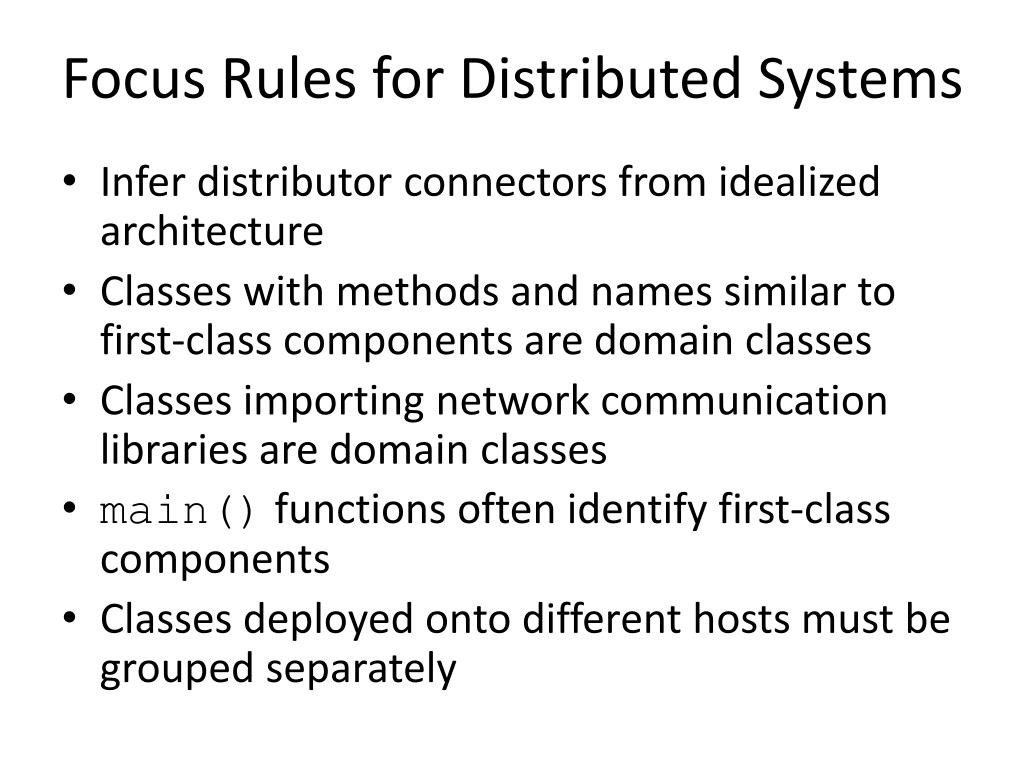

Focus Rules for Distributed Systems

  • Infer distributor connectors from idealized architecture

  • Classes with methods and names similar to first-class components are domain classes

  • Classes importing network communication libraries are domain classes

  • main() functions often identify first-class components

  • Classes deployed onto different hosts must be grouped separately


Discovered discrepancies

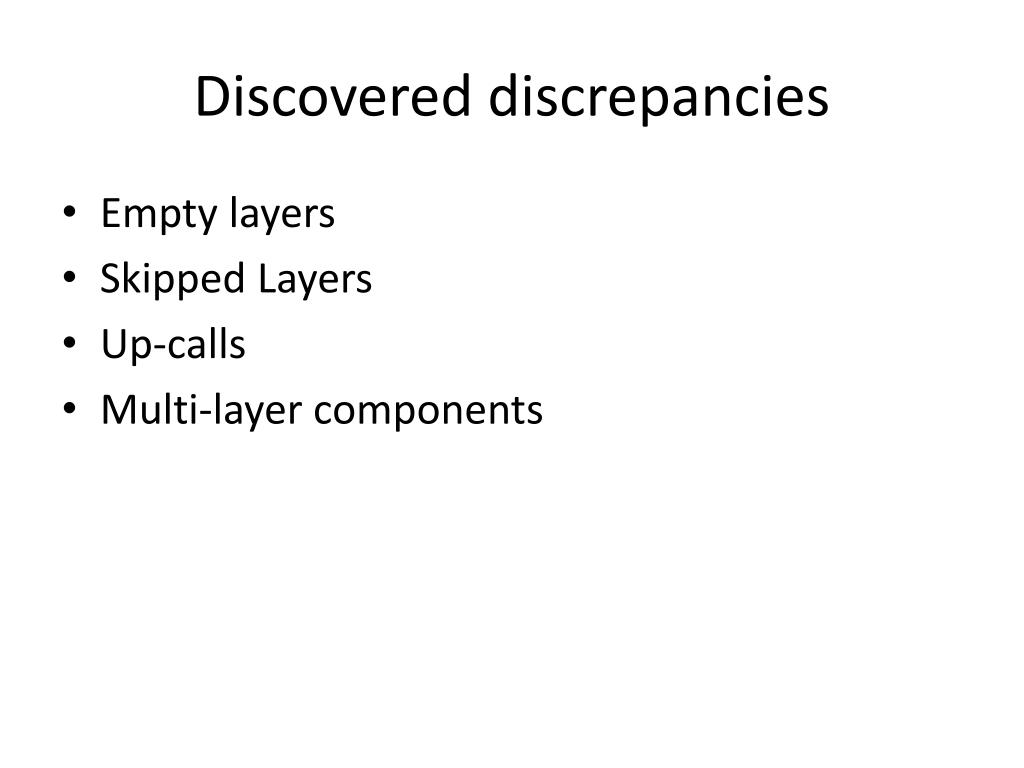

Discovered discrepancies

  • Empty layers

  • Skipped Layers

  • Up-calls

  • Multi-layer components


Empty layers wings

Empty Layers- Wings -


Skipped layers pegasus

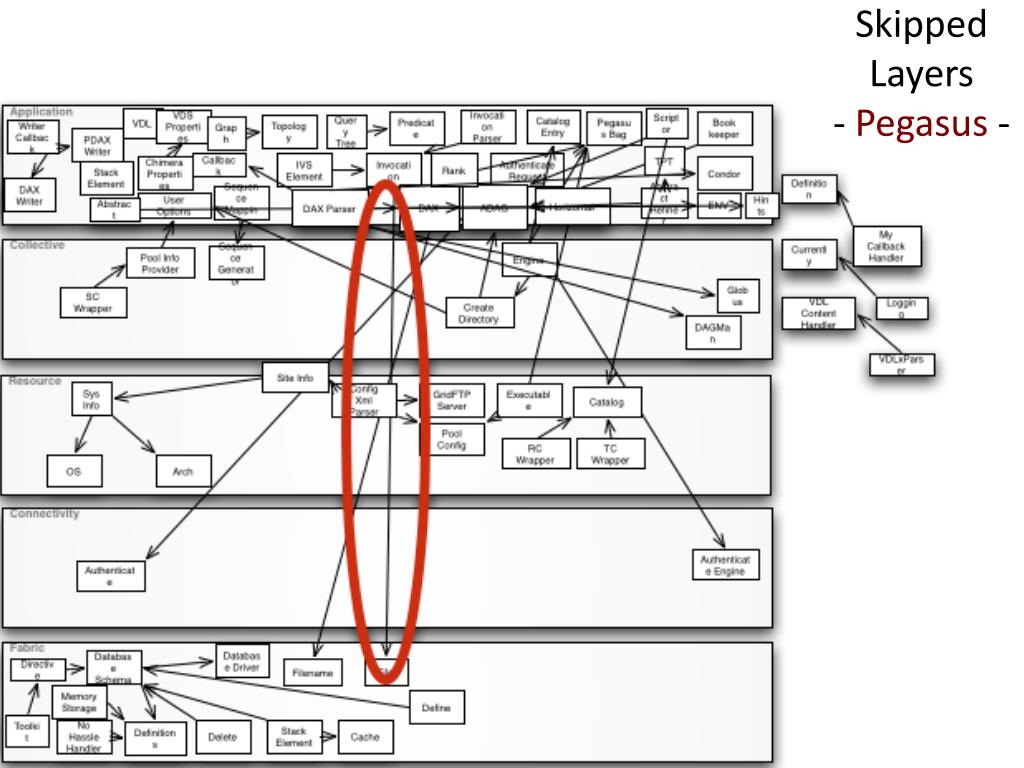

Skipped Layers - Pegasus -


Upcalls hadoop

Upcalls- Hadoop-


Multi layer components irods

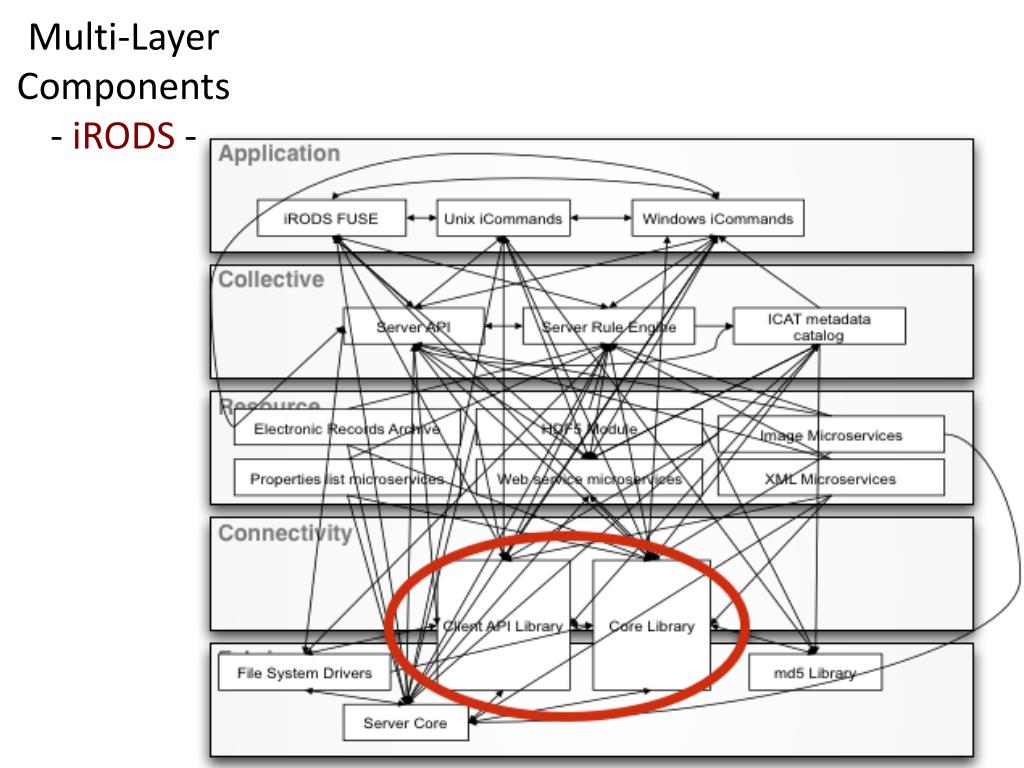

Multi-Layer Components- iRODS-


What about globus

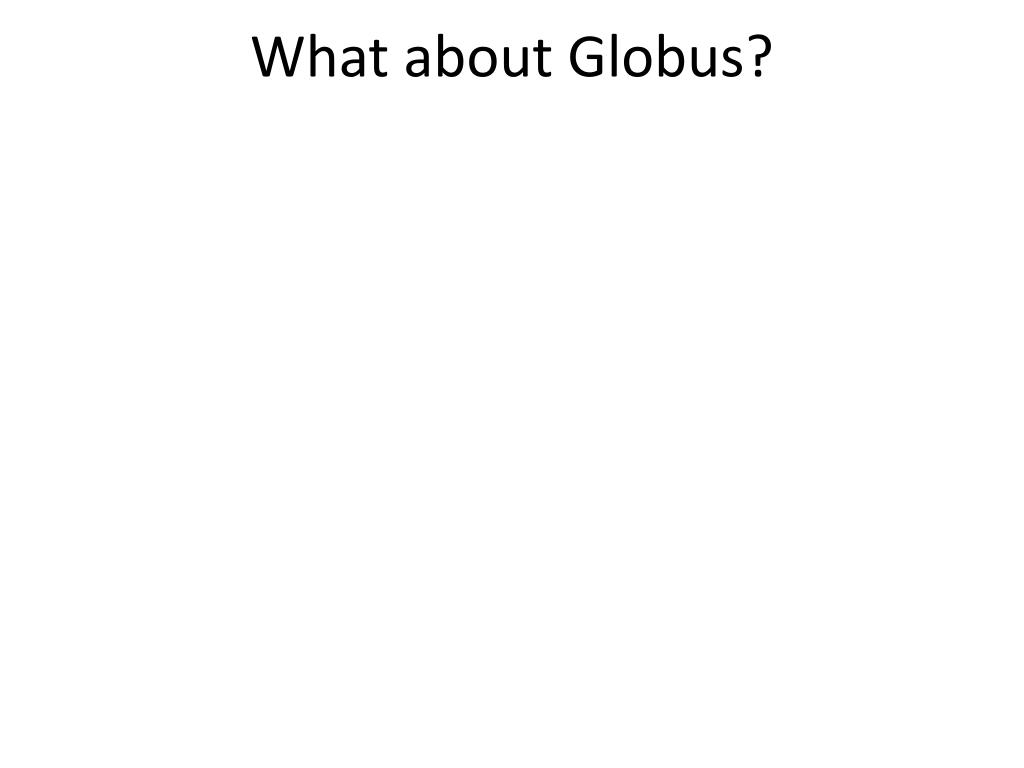

What about Globus?


What about globus1

Two layer boundary AND

Upcall

upcall

Couldn’t determine right “layer”

upcall

Two layer boundary AND

Upcall

upcall

Two layer boundary AND

Upcall

What about Globus?


Discrepancies found

Discrepancies Found


Revised grid architecture

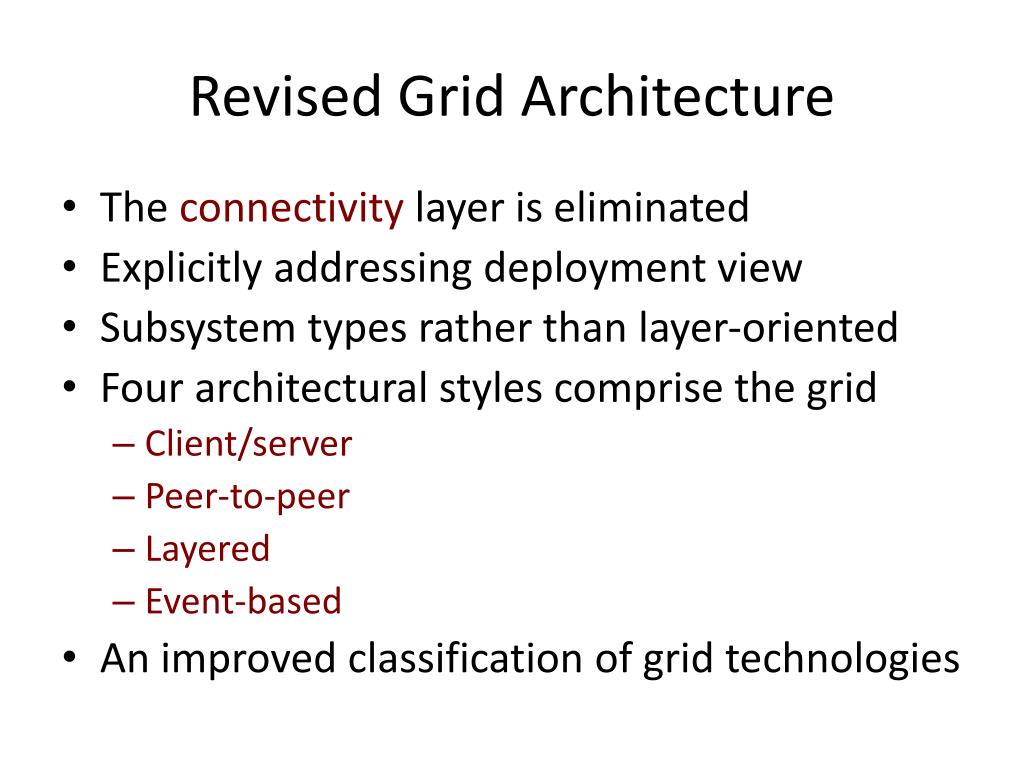

Revised Grid Architecture

  • The connectivity layer is eliminated

  • Explicitly addressing deployment view

  • Subsystem types rather than layer-oriented

  • Four architectural styles comprise the grid

    • Client/server

    • Peer-to-peer

    • Layered

    • Event-based

  • An improved classification of grid technologies


Revised grid reference architecture

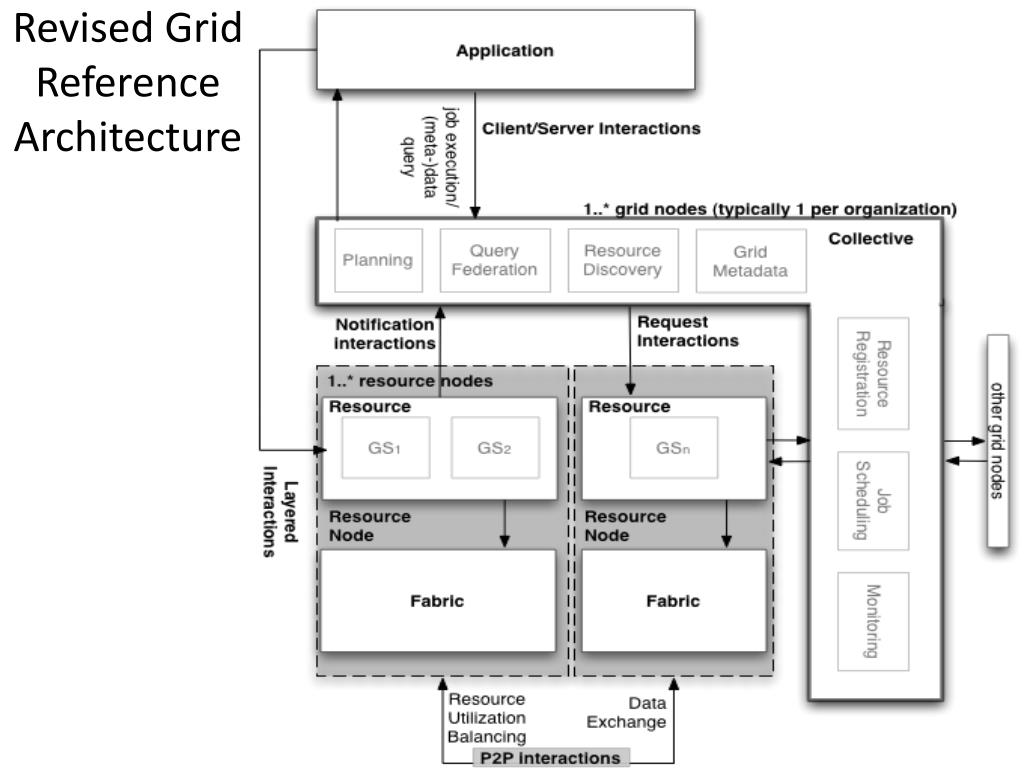

Revised Grid Reference Architecture


Grid styles c s

Grid Styles – C/S

  • Applicationcomponents are clients to Collectivecomponents

    • e.g., application components query for resource component locations from collective components

  • Applicationcomponents are clients to Resourcecomponents

    • e.g., direct job submission from application components to resource components

  • Resourcecomponents can act as clients to Collectivecomponents

    • e.g., resource components may obtain locations of other resource components through collective components


Grid styles p2p

Grid Styles – p2p

  • Resource componentsare peers

    • e.g., Grid Datafarm Filesystem Daemon (gfsd) instance makes requests for file data from other gfsds

  • Collective components are peers

    • e.g., iRODS agents communicate with each other to exchange data to create replicas


Grid styles event based

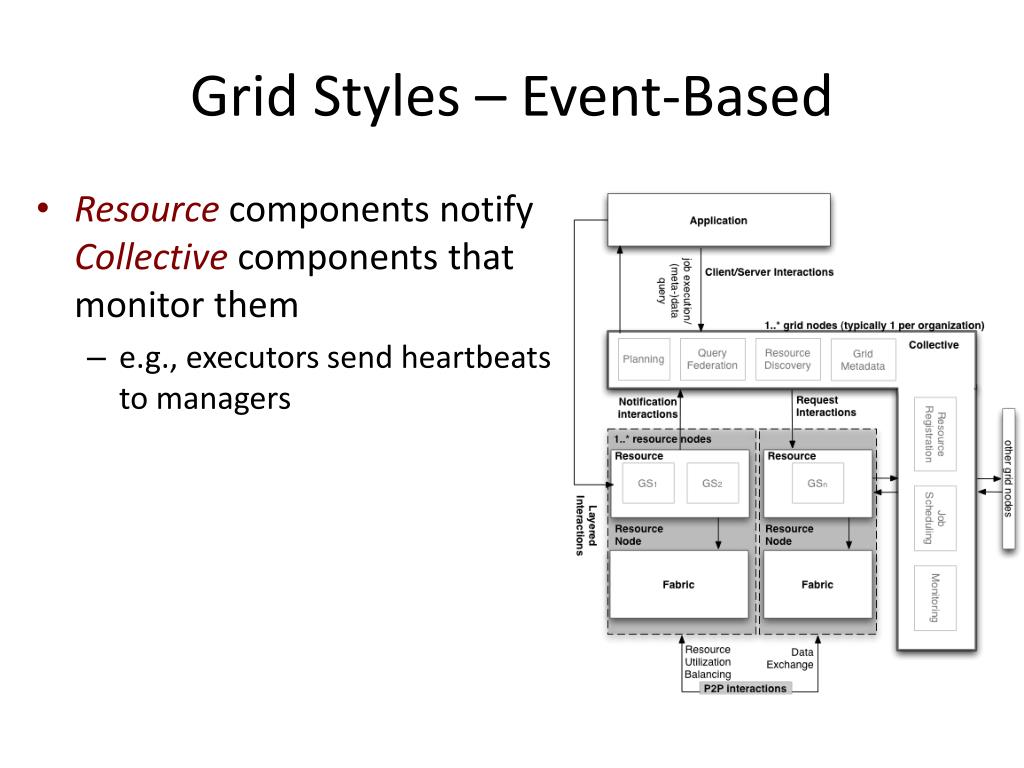

Grid Styles – Event-Based

  • Resource components notify Collective components that monitor them

    • e.g., executors send heartbeats to managers


Grid architectural styles layered

Grid Architectural Styles – Layered

  • Collective or Resource components request services from Fabric components

    • e.g., iRODS agent accesses a DBMS with metadata


Grid technology classification

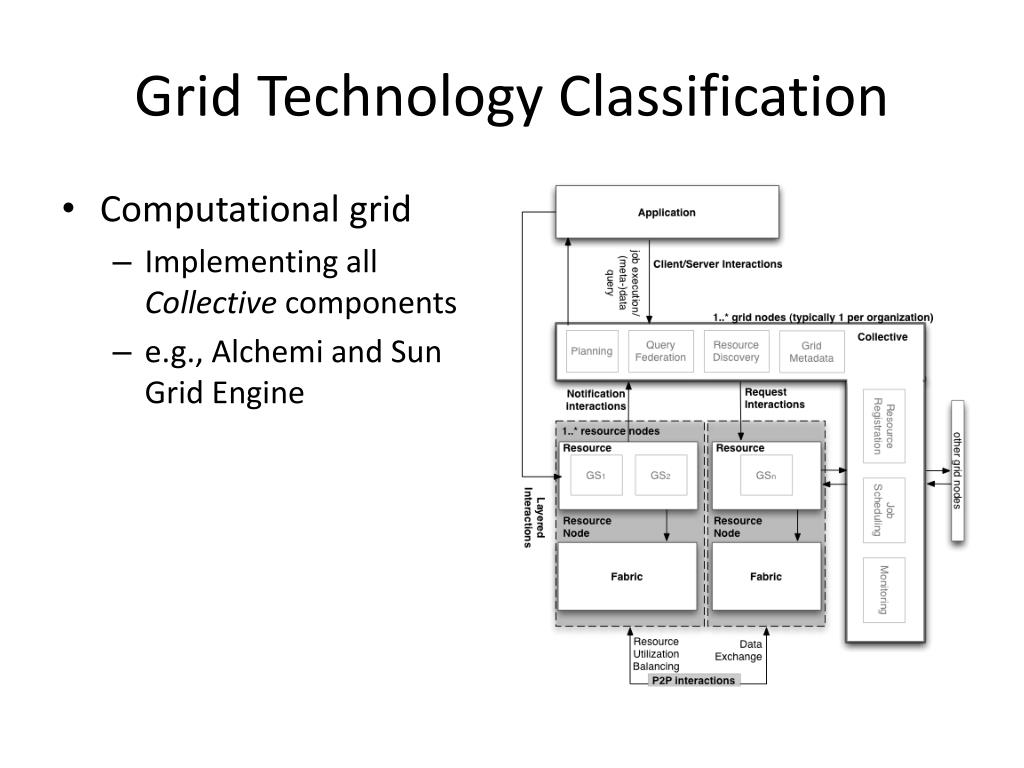

Grid Technology Classification

  • Computational grid

    • Implementing all Collective components

    • e.g., Alchemi and Sun Grid Engine


Grid technology classification1

Grid Technology Classification

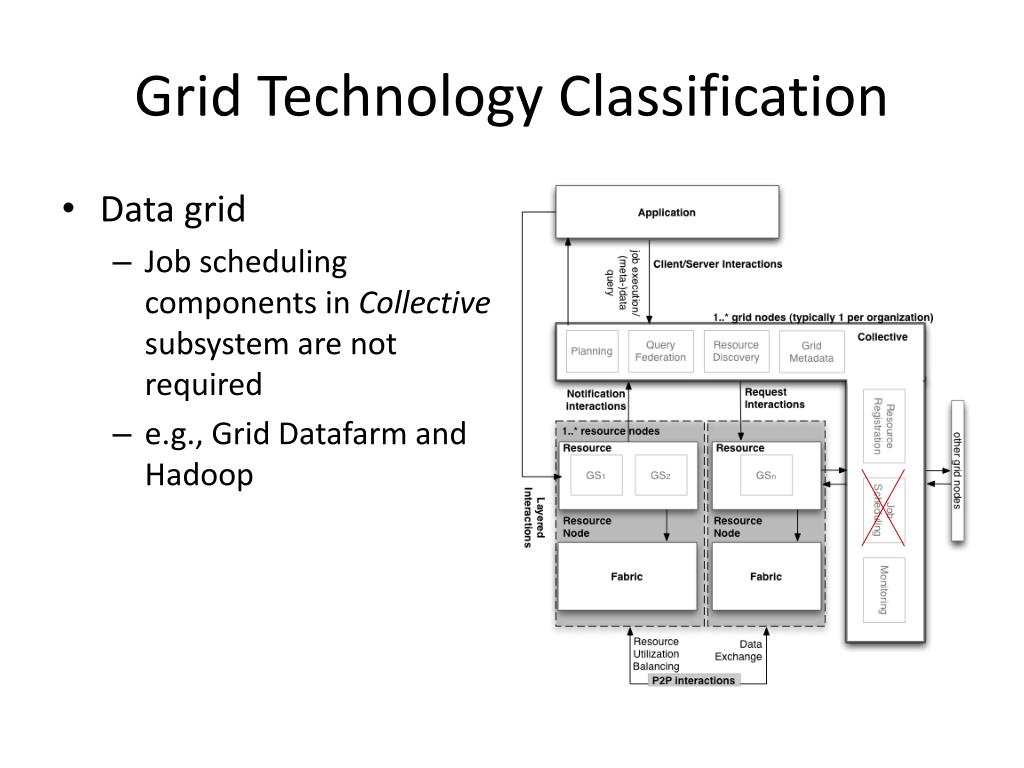

  • Data grid

    • Job scheduling components in Collective subsystem are not required

    • e.g., Grid Datafarm and Hadoop


Grid technology classification2

Grid Technology Classification

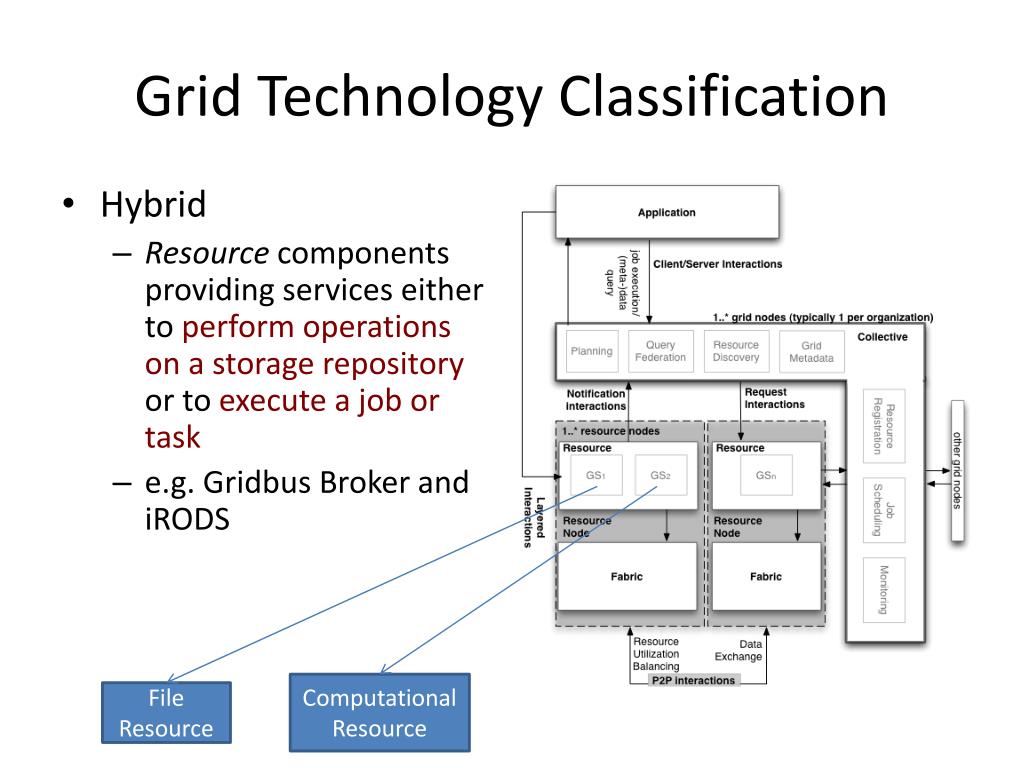

  • Hybrid

    • Resource components providing services either to perform operations on a storage repository or to execute a job or task

    • e.g. Gridbus Broker and iRODS

Computational Resource

File Resource


Correcting violations in the reference architecture

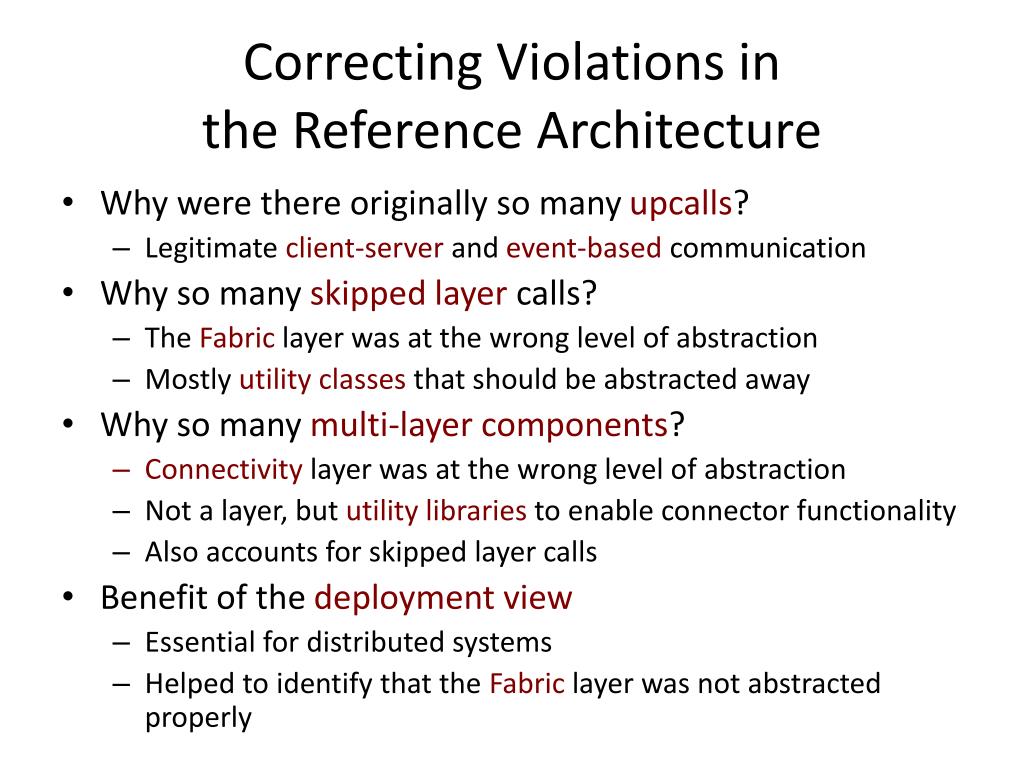

Correcting Violations in the Reference Architecture

  • Why were there originally so many upcalls?

    • Legitimate client-server and event-based communication

  • Why so many skipped layer calls?

    • The Fabric layer was at the wrong level of abstraction

    • Mostly utility classes that should be abstracted away

  • Why so many multi-layer components?

    • Connectivity layer was at the wrong level of abstraction

    • Not a layer, but utility libraries to enable connector functionality

    • Also accounts for skipped layer calls

  • Benefit of the deployment view

    • Essential for distributed systems

    • Helped to identify that the Fabric layer was not abstracted properly


Where are we currently

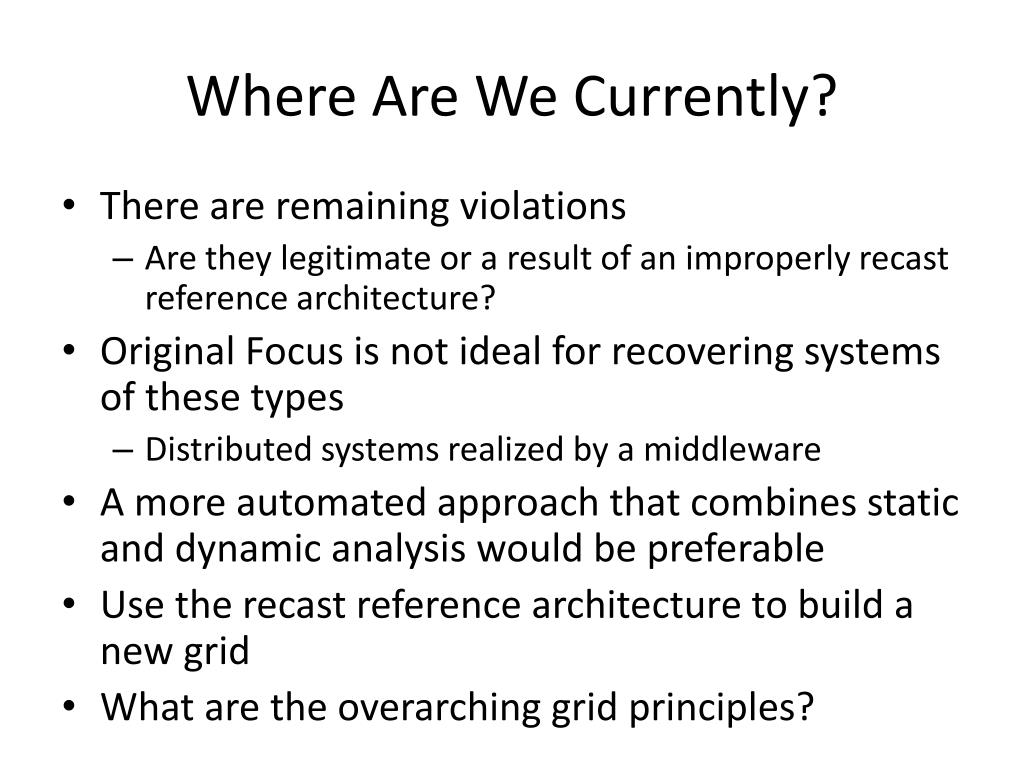

Where Are We Currently?

  • There are remaining violations

    • Are they legitimate or a result of an improperly recast reference architecture?

  • Original Focus is not ideal for recovering systems of these types

    • Distributed systems realized by a middleware

  • A more automated approach that combines static and dynamic analysis would be preferable

  • Use the recast reference architecture to build a new grid

  • What are the overarching grid principles?


Evolving grid principles

Evolving Grid Principles

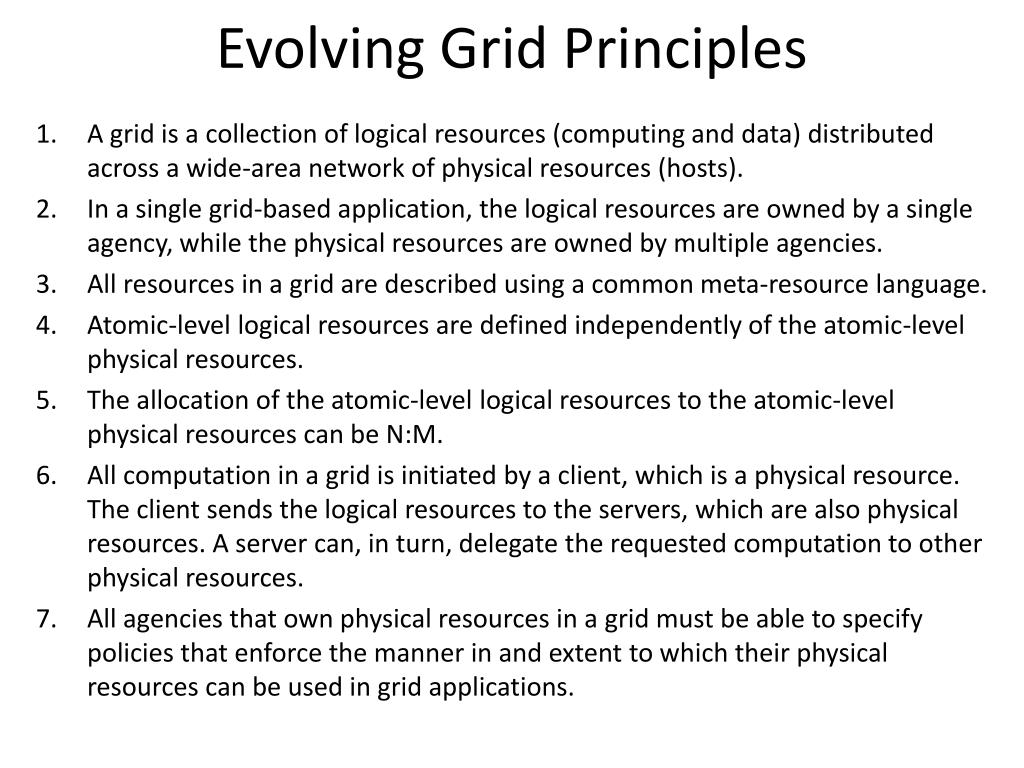

  • A grid is a collection of logical resources (computing and data) distributed across a wide-area network of physical resources (hosts).

  • In a single grid-based application, the logical resources are owned by a single agency, while the physical resources are owned by multiple agencies.

  • All resources in a grid are described using a common meta-resource language.

  • Atomic-level logical resources are defined independently of the atomic-level physical resources.

  • The allocation of the atomic-level logical resources to the atomic-level physical resources can be N:M.

  • All computation in a grid is initiated by a client, which is a physical resource. The client sends the logical resources to the servers, which are also physical resources. A server can, in turn, delegate the requested computation to other physical resources.

  • All agencies that own physical resources in a grid must be able to specify policies that enforce the manner in and extent to which their physical resources can be used in grid applications.
