  1. ITSF LINE MAINTENANCE BUSINESS SOLUTION PRESENTATION

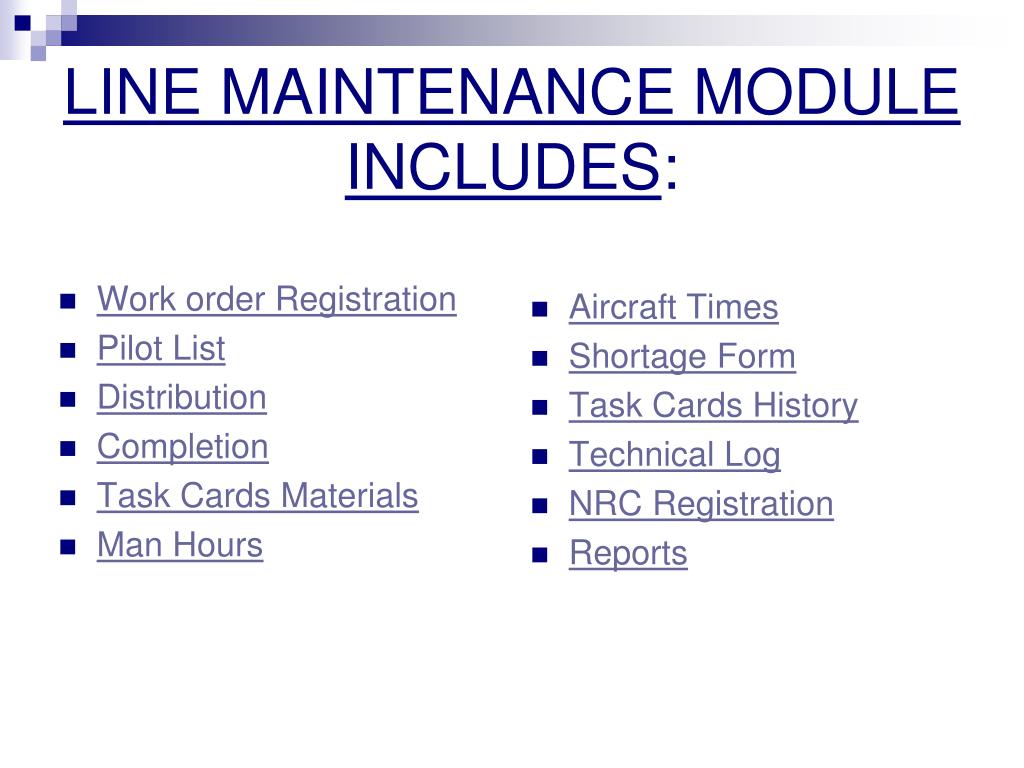

  2. Work order Registration Pilot List Distribution Completion Task Cards Materials Man Hours Aircraft Times Shortage Form Task Cards History Technical Log NRC Registration Reports LINE MAINTENANCE MODULE INCLUDES:

  3. WORK ORDER REGISTRATION

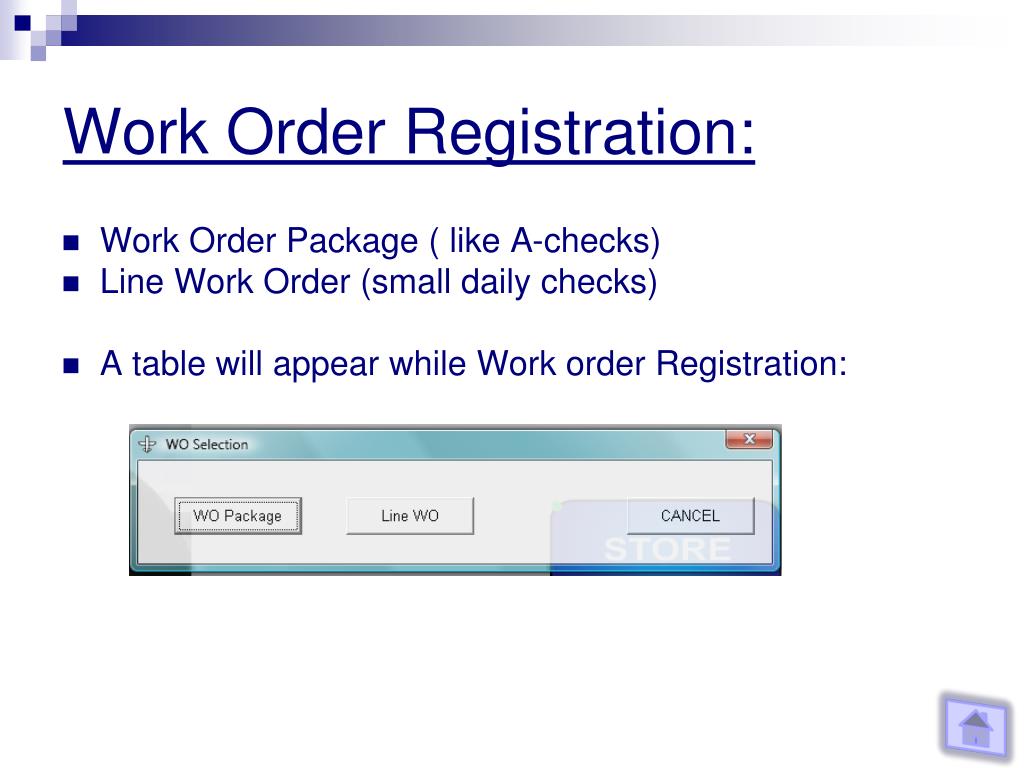

  4. Work Order Registration: • Work Order Package ( like A-checks) • Line Work Order (small daily checks) • A table will appear while Work order Registration:

  5. Work Order Package Registration

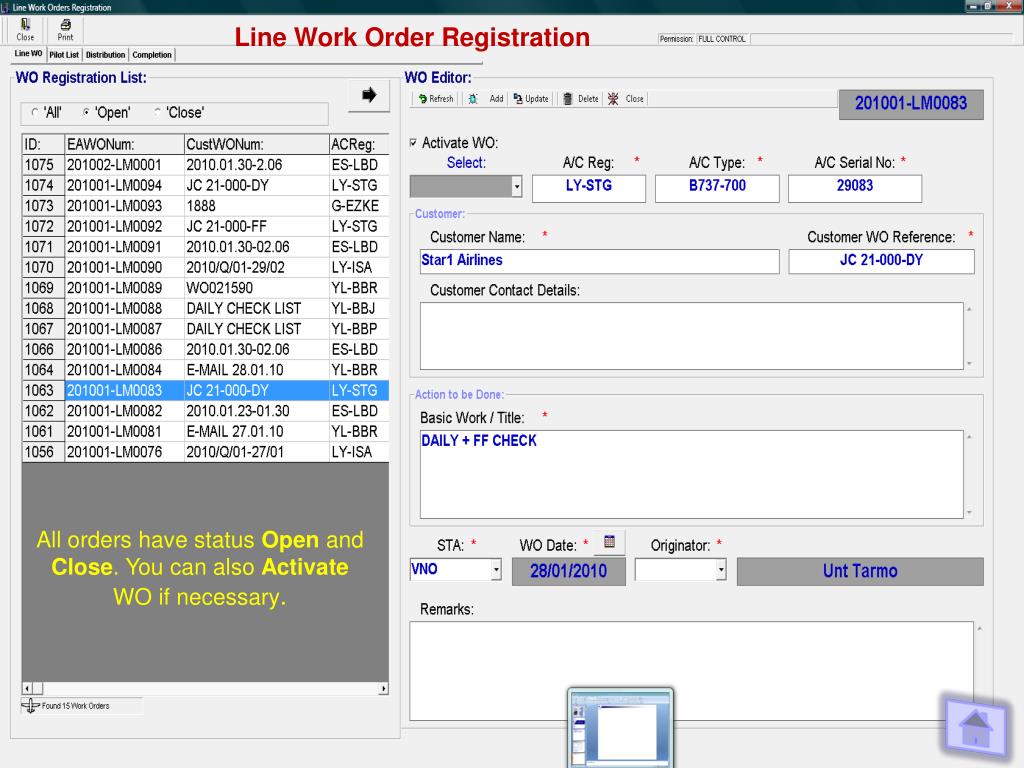

  6. Line Work Order Registration All orders have status Open and Close. You can also Activate WO if necessary.

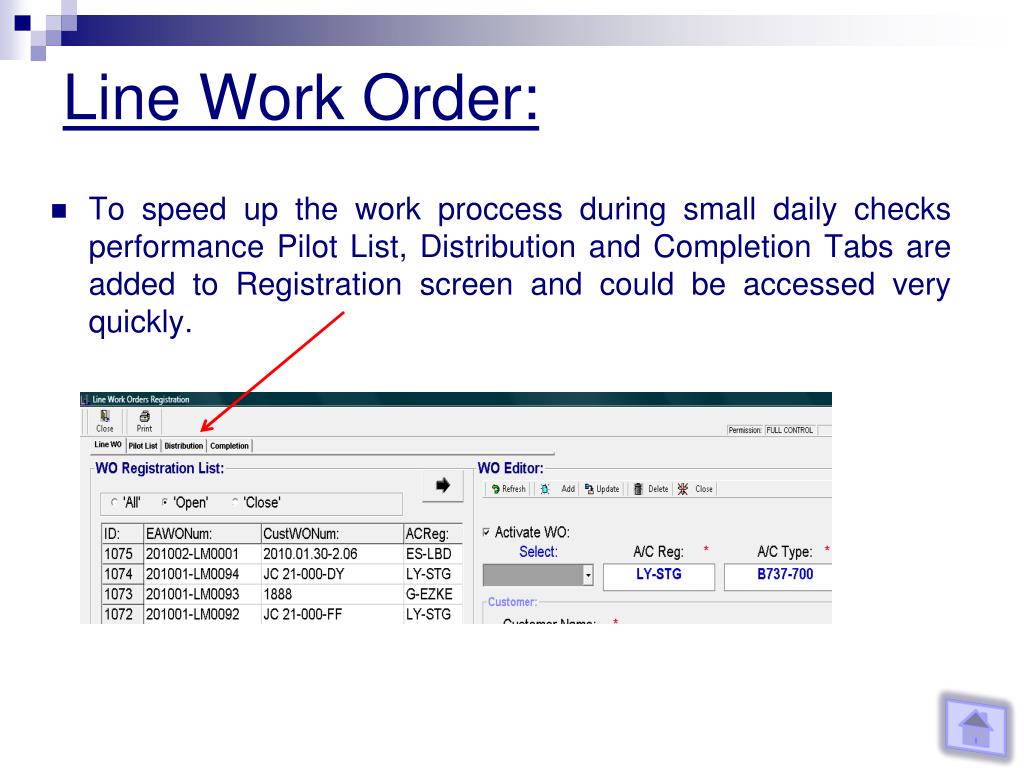

  7. Line Work Order: • To speed up the work proccess during small daily checks performance Pilot List, Distribution and Completion Tabs are added to Registration screen and could be accessed very quickly.

  8. Any Work order can be printed.

  9. PILOT LIST

  10. Pilot List Pilot List is for filling the specific Work Order with Task Cards to be performed. Task Cards on the right side of the screen are sourced from Task Cards Sub-Module and could be constantly checked, added or updated.

  11. DISTRIBUTION

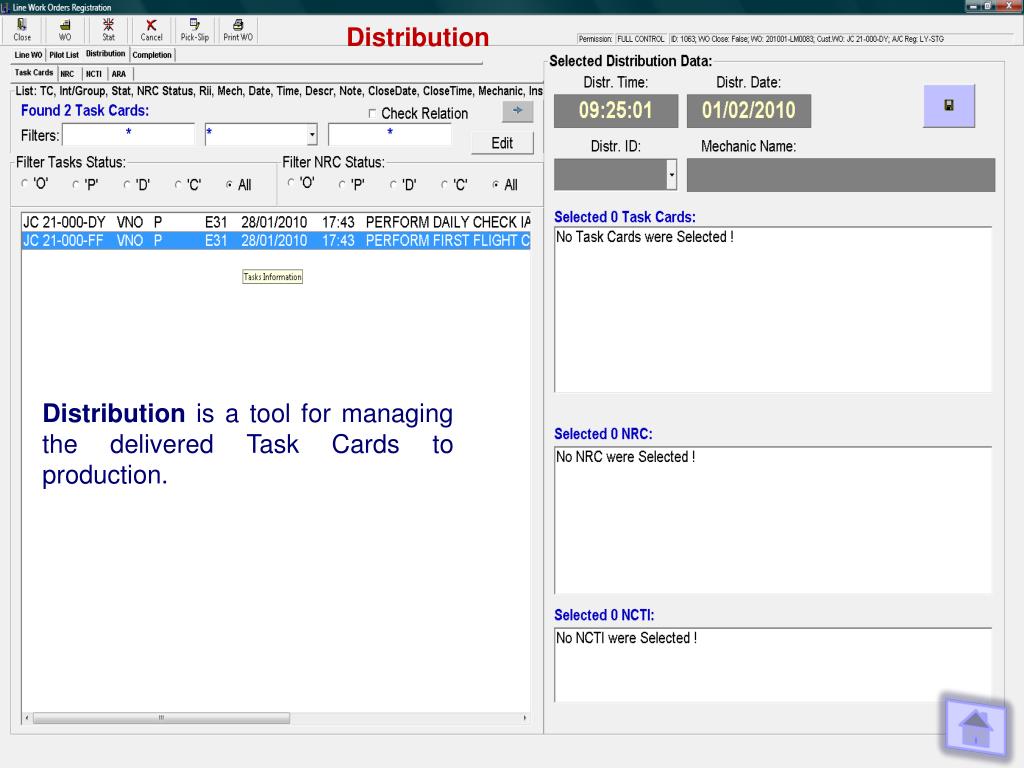

  12. Distribution Distribution is a tool for managing the delivered Task Cards to production.

  13. COMPLETION

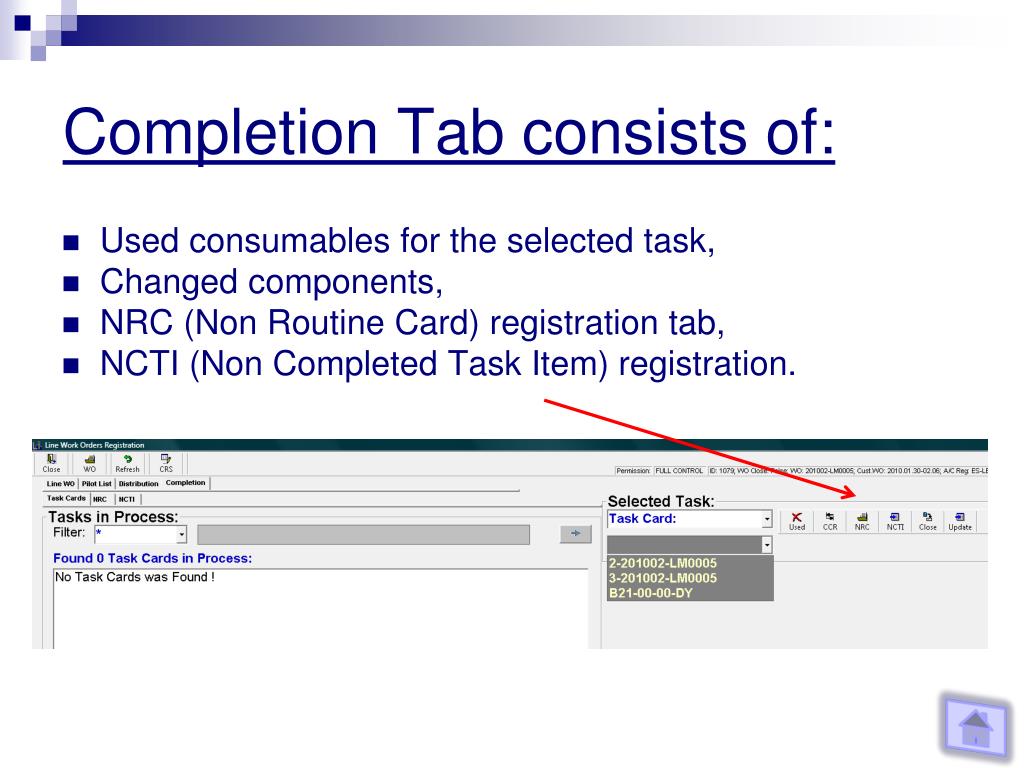

  14. Completion Tab consists of: • Used consumables for the selected task, • Changed components, • NRC (Non Routine Card) registration tab, • NCTI (Non Completed Task Item) registration.

  15. Completion (Used consumables) Completion tool is created for registration of used materials for certain completed tasks. When this Module is combined with Stores Module the materials are selected according to Stores availability & reservation. If Line Maintenance Module is used on its own mechanics need to type in all used materials.

  16. Completion (Used components)

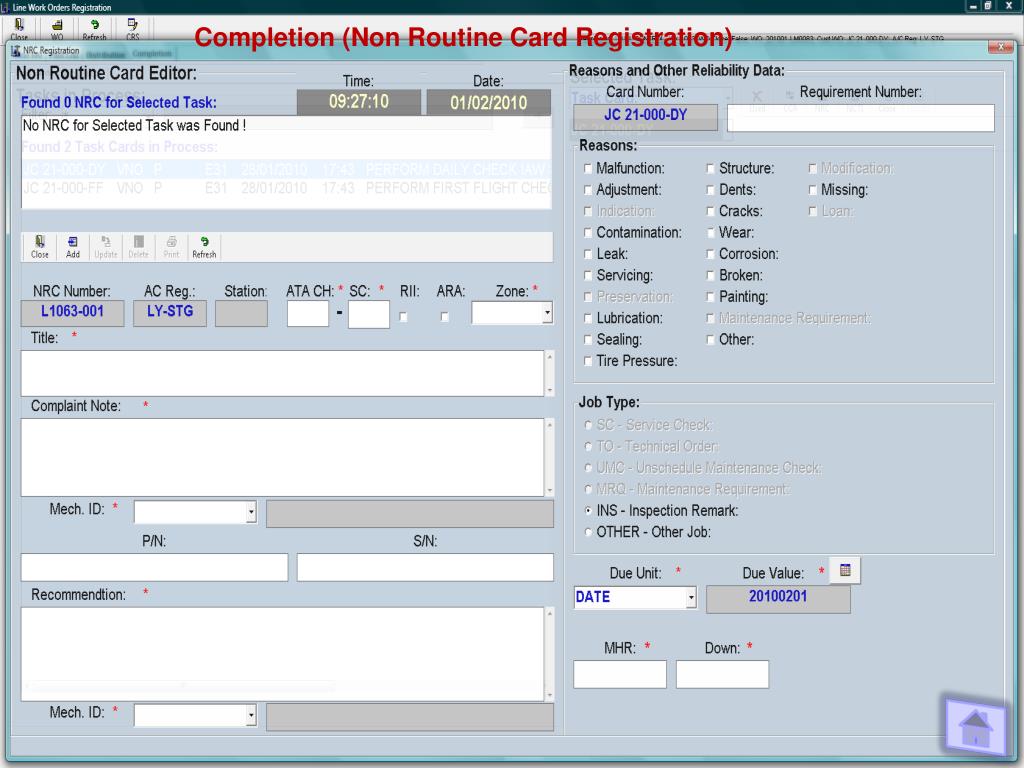

  17. Completion (Non Routine Card Registration)

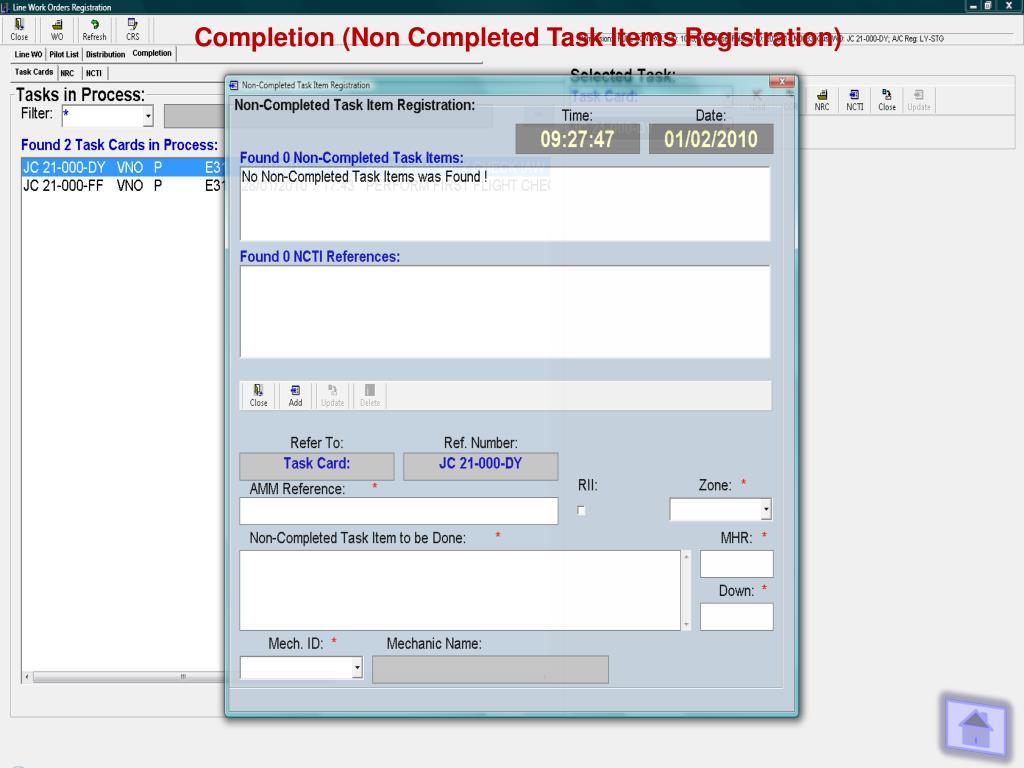

  18. Completion (Non Completed Task Items Registration)

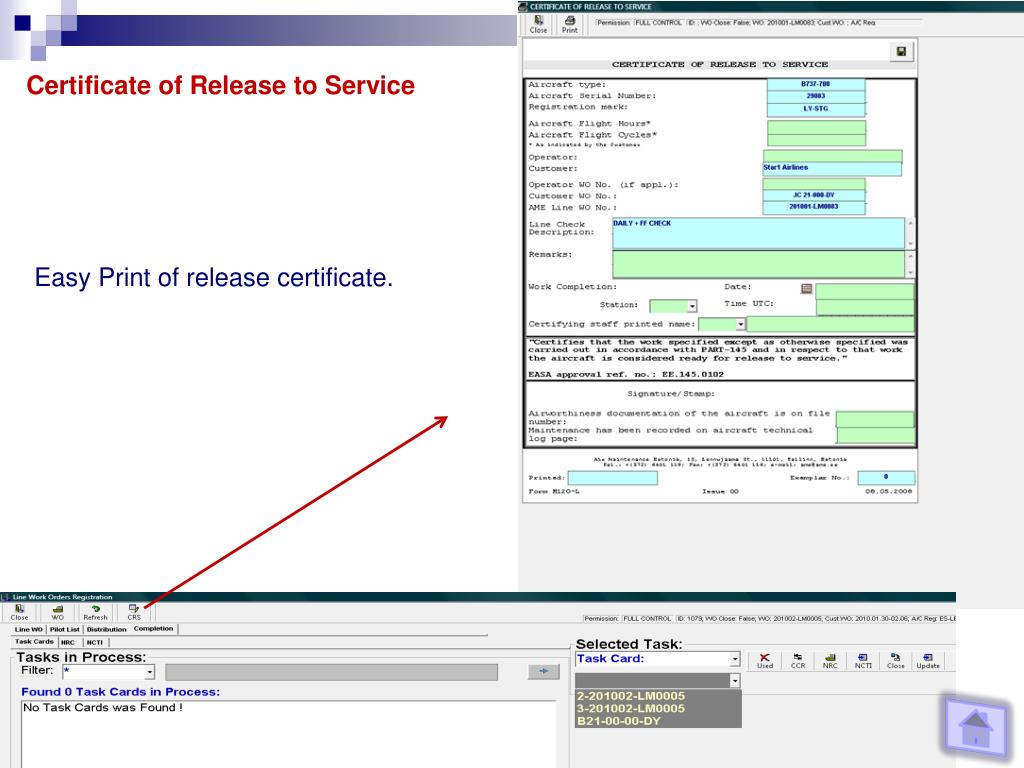

  19. Certificate of Release to Service Easy Print of release certificate.

  20. AIRCRAFT TIMES REGISTRATION

  21. Aircraft Times Registration Quick access to managing hours and cycles of the whole fleet.

  22. TECHNICAL LOG

  23. Form for Technical Log Registration

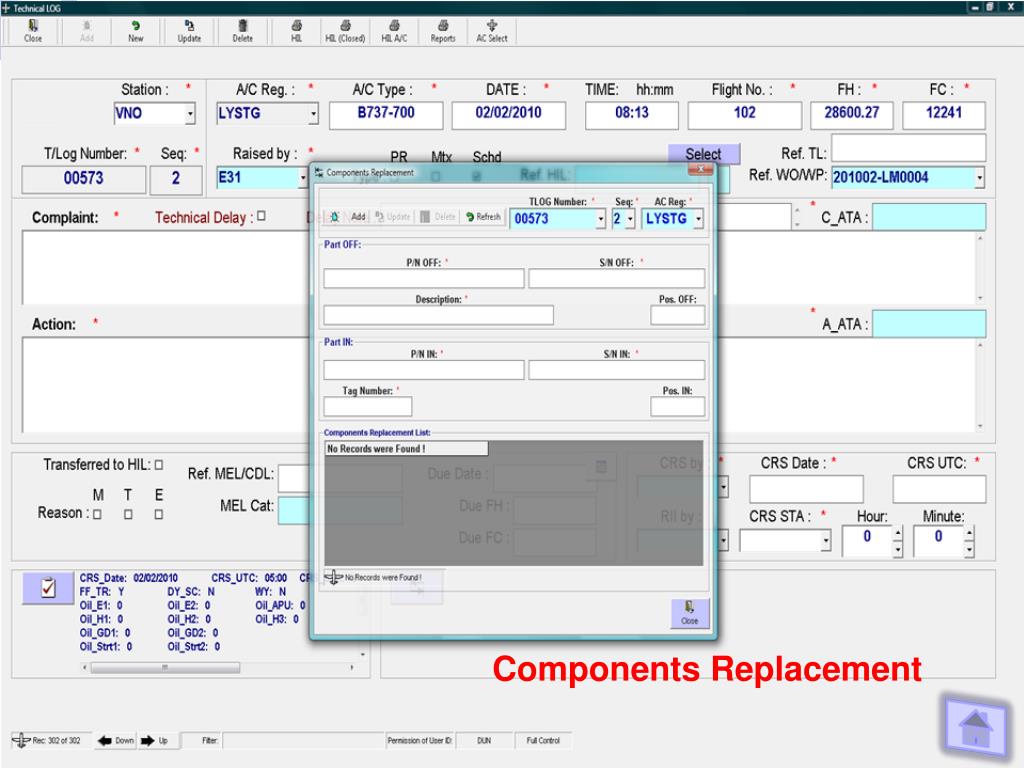

  24. Components Replacement

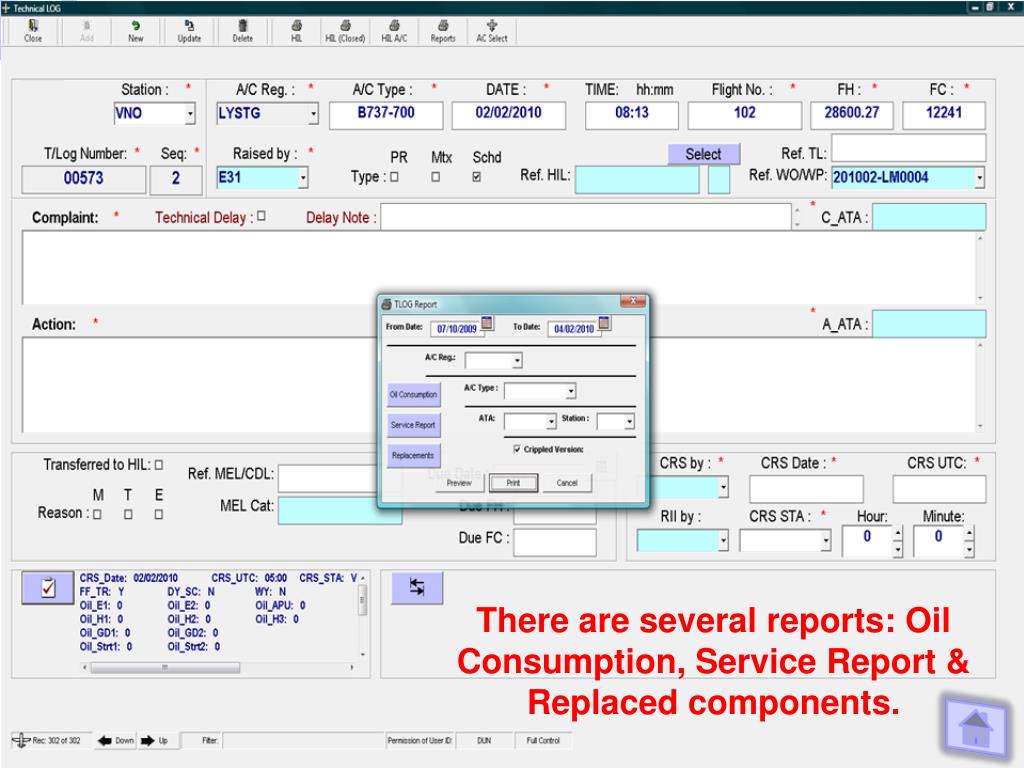

  25. There are several reports: Oil Consumption, Service Report & Replaced components.

  26. Non Routine Cards

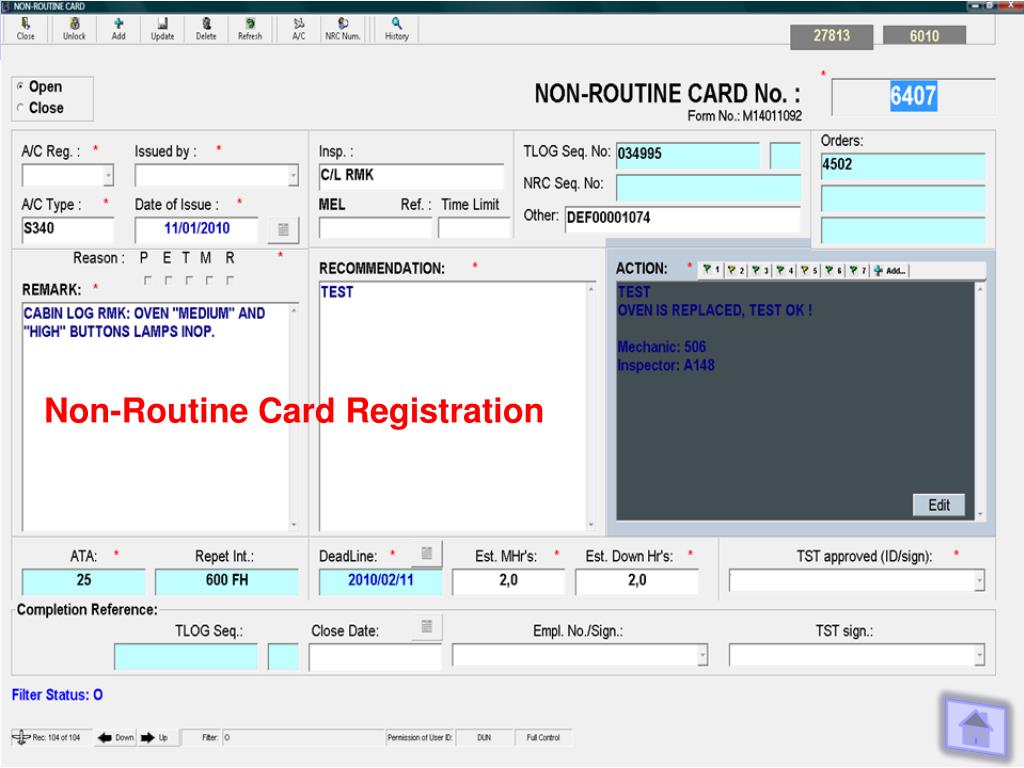

  27. Non-Routine Card Registration

  28. MATERIALS SHORTAGE FORM

  29. Shortage Form Shortage Form Tool is used for ordering by production required materials that are not in stock and need to be purchased. Purchasing Department see all information the same time it is inserted and could quickly react on production needs.

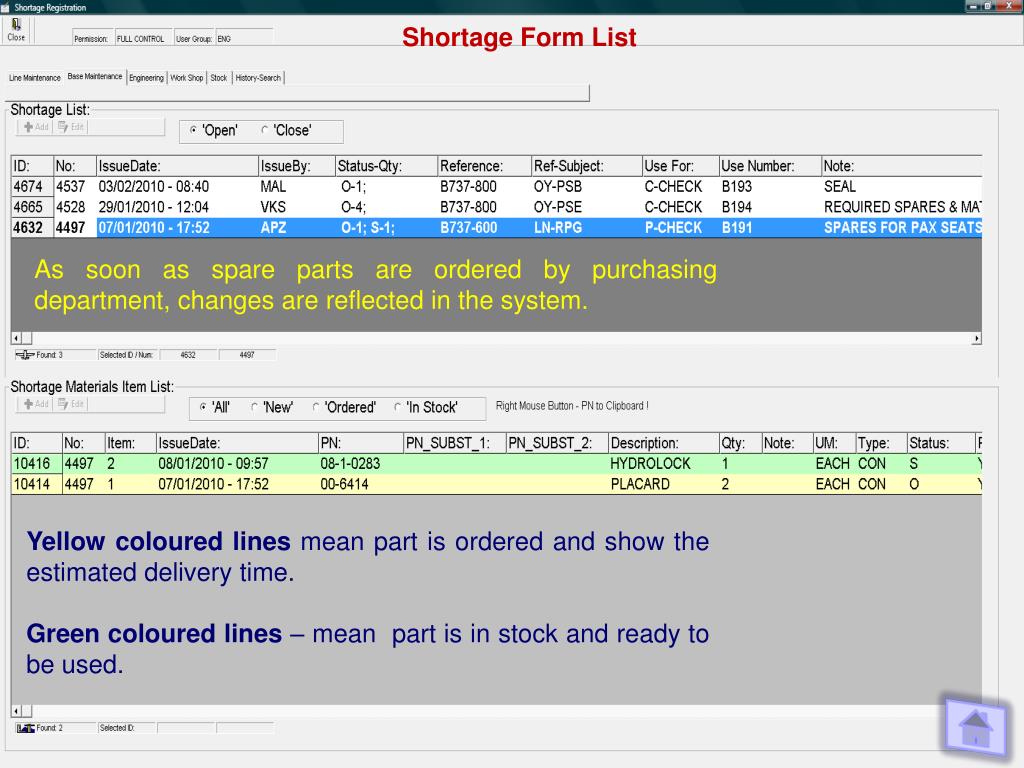

  30. Shortage Form List As soon as spare parts are ordered by purchasing department, changes are reflected in the system. Yellow coloured lines mean part is ordered and show the estimated delivery time. Green coloured lines – mean part is in stock and ready to be used.

  31. REPORTS

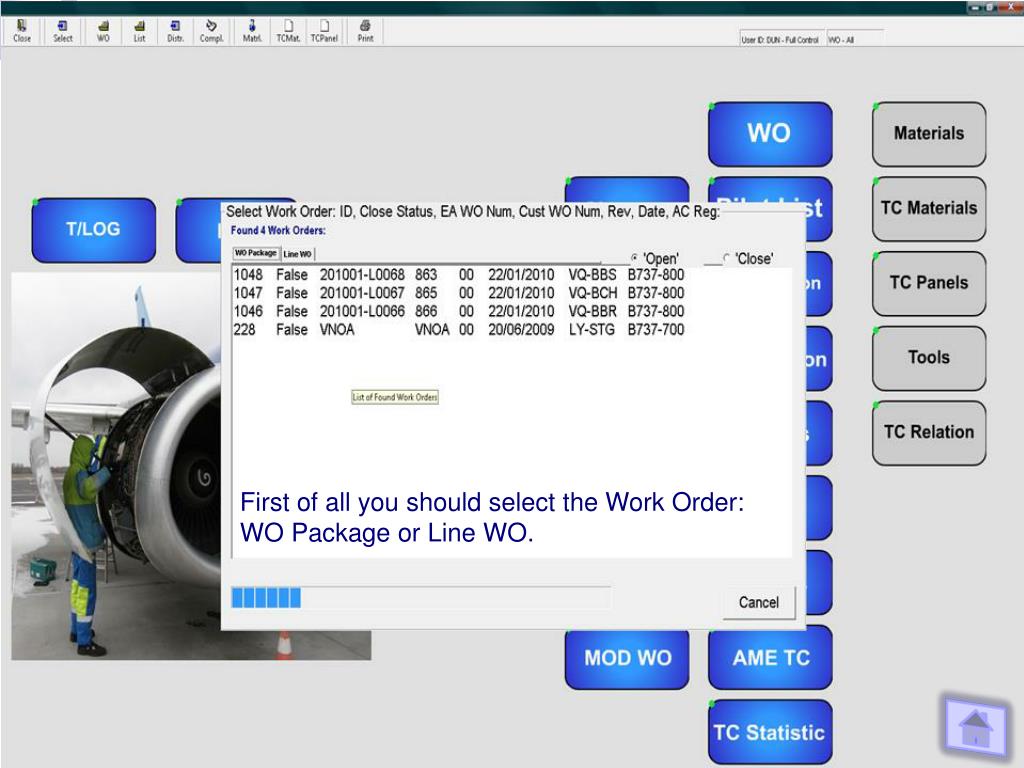

  32. First of all you should select the Work Order: WO Package or Line WO.

  33. List of Reports

  34. MAN HOURS

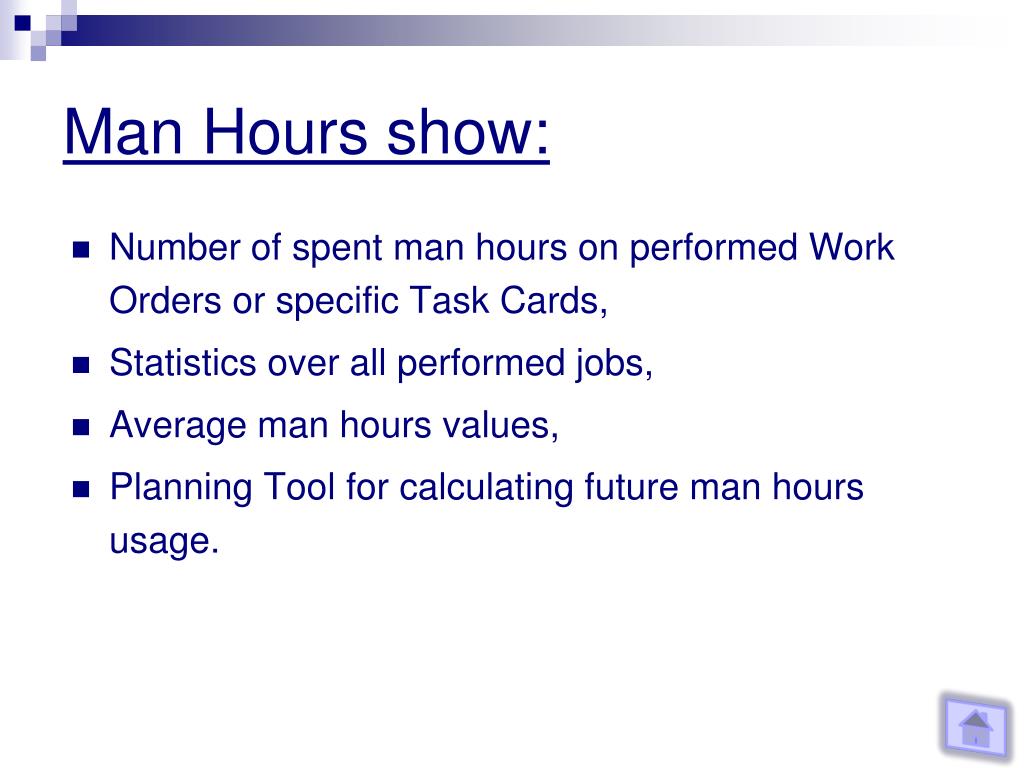

  35. Man Hours show: Number of spent man hours on performed Work Orders or specific Task Cards, Statistics over all performed jobs, Average man hours values, Planning Tool for calculating future man hours usage.

  36. Example of one of the Man Hours Reports: Spent Man Hours on specific Work Order

  37. TASK CARDS CREATION

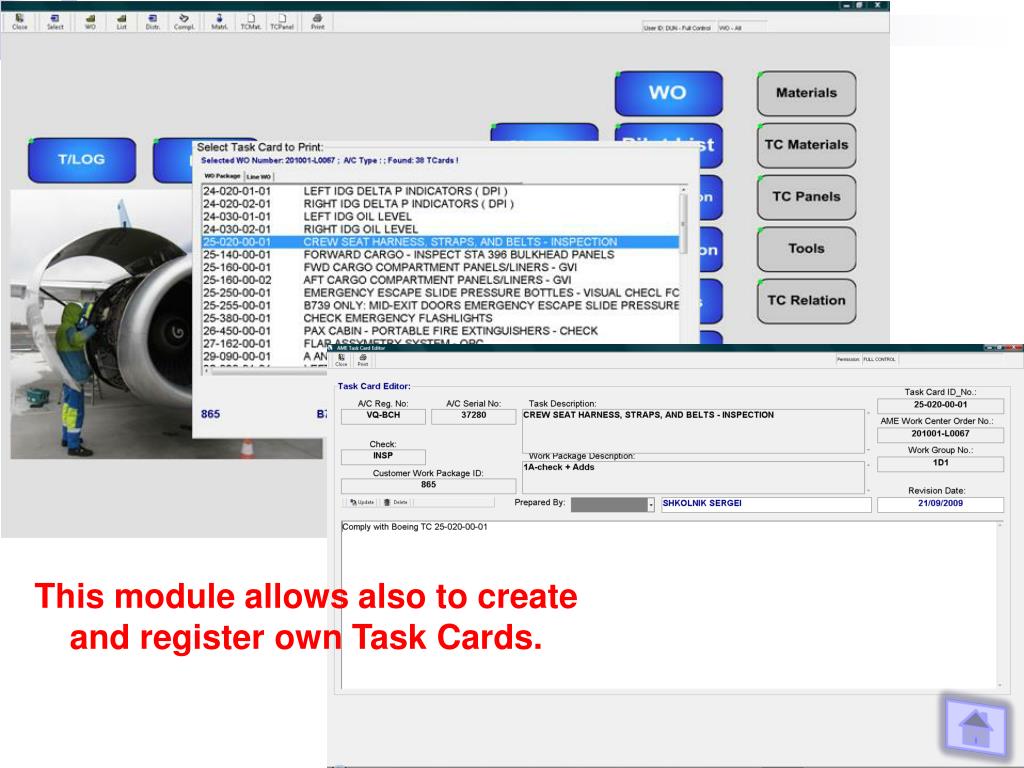

  38. This module allows also to create and register own Task Cards.

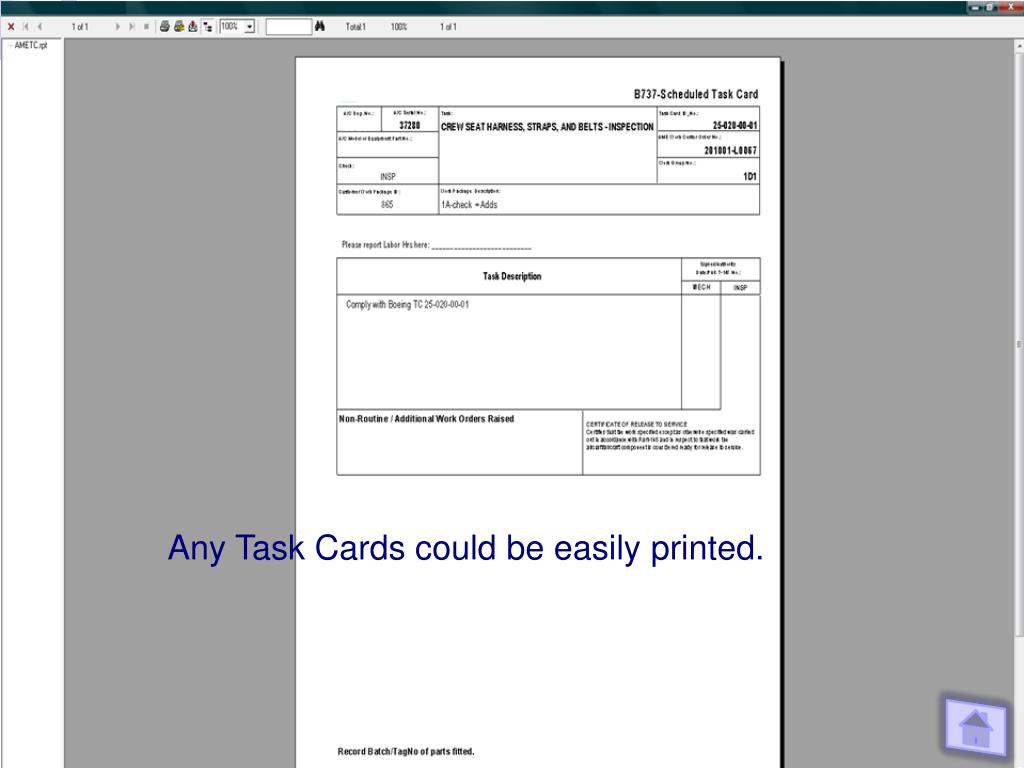

  39. Any Task Cards could be easily printed.

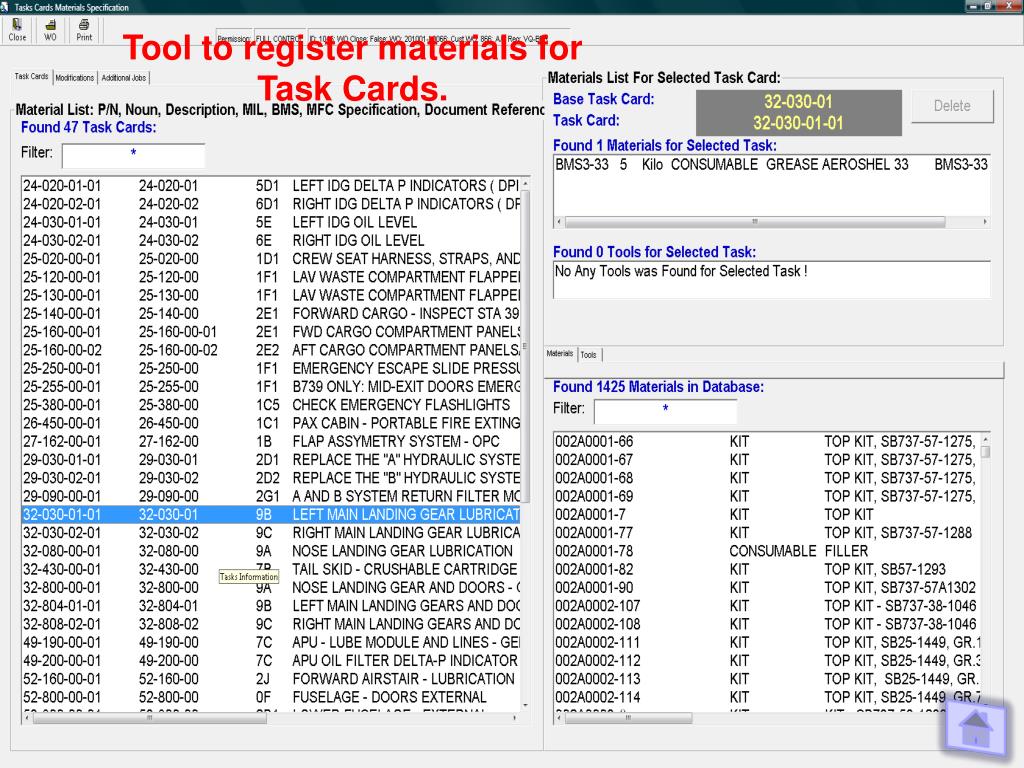

  40. Tool to register materials for Task Cards.

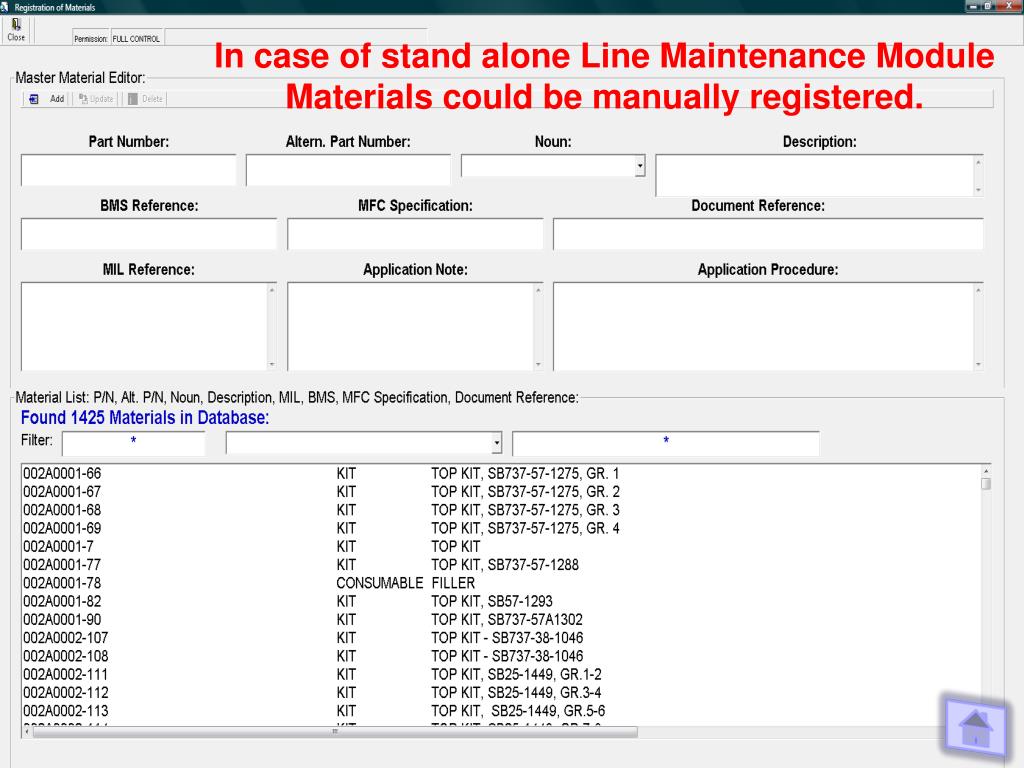

  41. In case of stand alone Line Maintenance Module Materials could be manually registered.

  42. TASK CARDS HISTORY

  43. Task Cards History: This tool allows to check and trace back all information regarding the perfomed Task Cards (spent hours, spare parts etc). Everything can be transferred to Excel to do more analysis.
