PIDX. PIDX - a parallel API to capture the data models used by HPC application and write it out in an IDX format. PIDX enables simulations to write out IDX data directly in parallel Real-time interactive visualization and analyze of data.
E N D

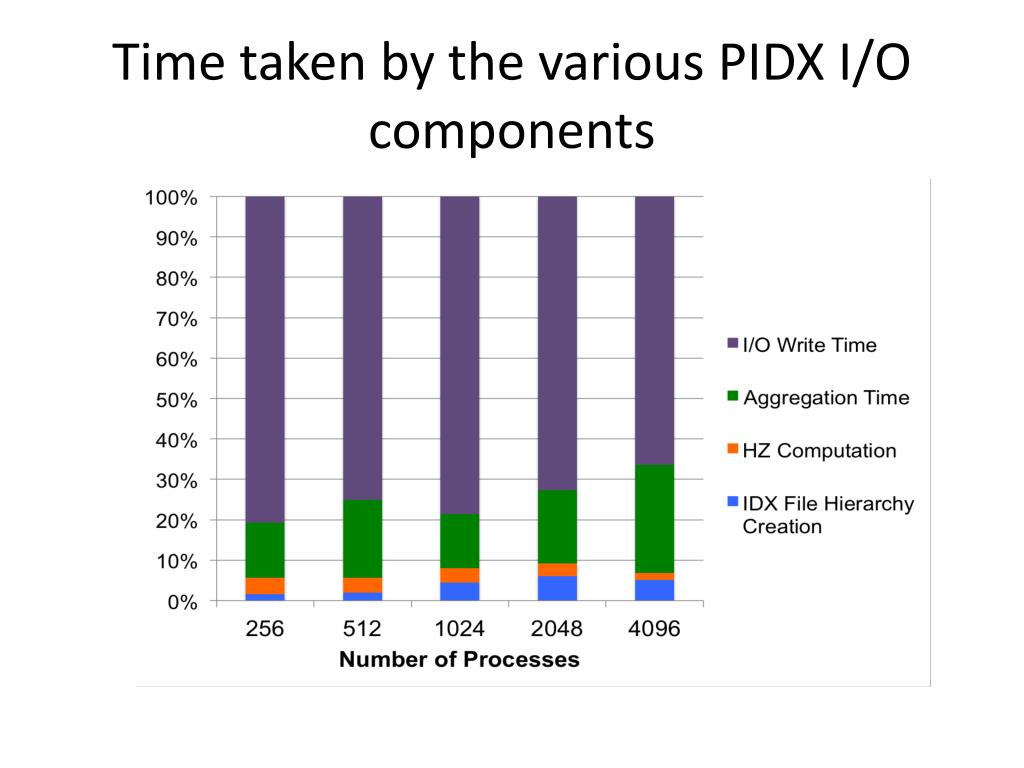

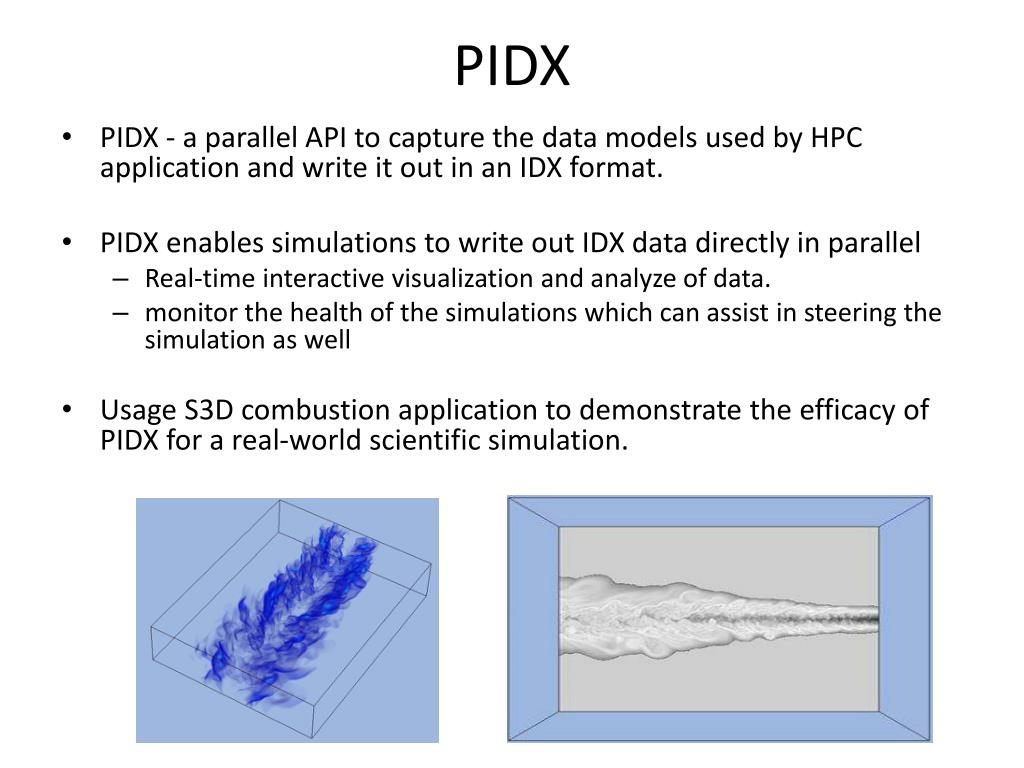

PIDX • PIDX - a parallel API to capture the data models used by HPC application and write it out in an IDX format. • PIDX enables simulations to write out IDX data directly in parallel • Real-time interactive visualization and analyze of data. • monitor the health of the simulations which can assist in steering the simulation as well • Usage S3D combustion application to demonstrate the efficacy of PIDX for a real-world scientific simulation.
PIDX I/O phases • Describe data model • Create an IDX block bitmap • The bitmap indicates which IDX blocks must be populated in order to store an arbitrary N-dimensional dataset. • Create underlying file and directory hierarchy • The IDX file and directory hierarchy is created by the rank 0 process in the application before any I/O is performed. • Perform HZ encoding • The HZ encoding step is performed independently on each process. • In order to minimize memory access complexity, all samples are copied into intermediate buffers in a linear Z ordering. • Aggregate data • Write data to storage

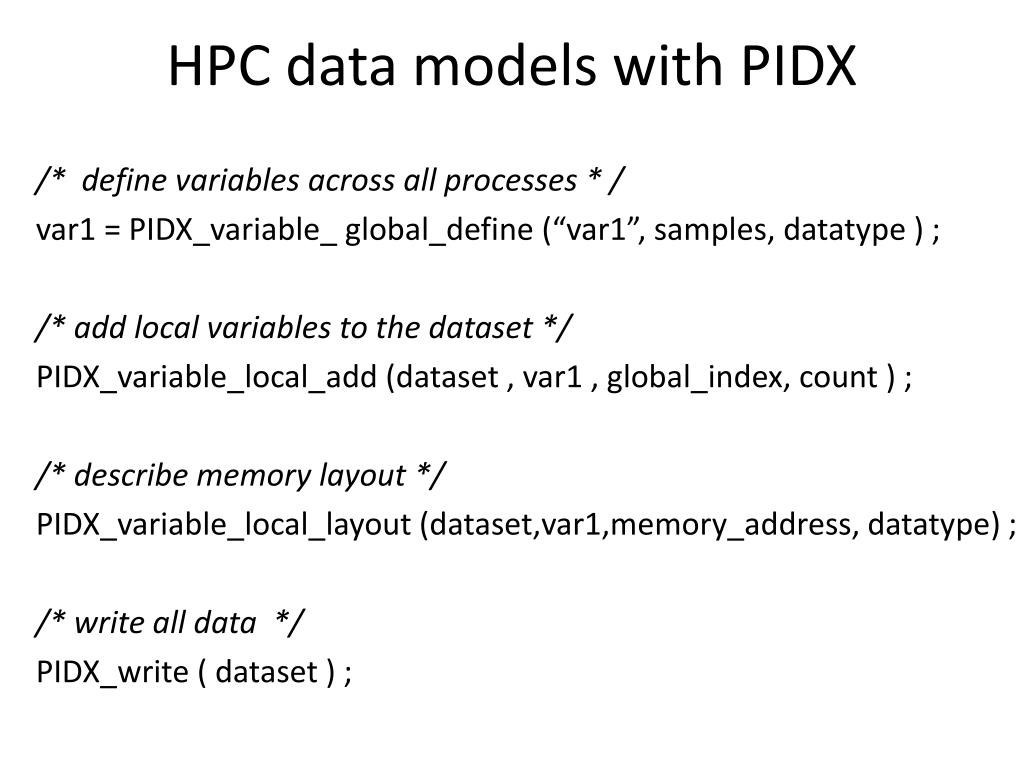

HPC data models with PIDX /* define variables across all processes * / var1 = PIDX_variable_ global_define (“var1”, samples, datatype ) ; /* add local variables to the dataset */ PIDX_variable_local_add (dataset , var1 , global_index, count ) ; /* describe memory layout */ PIDX_variable_local_layout (dataset,var1,memory_address, datatype) ; /* write all data */ PIDX_write ( dataset ) ;

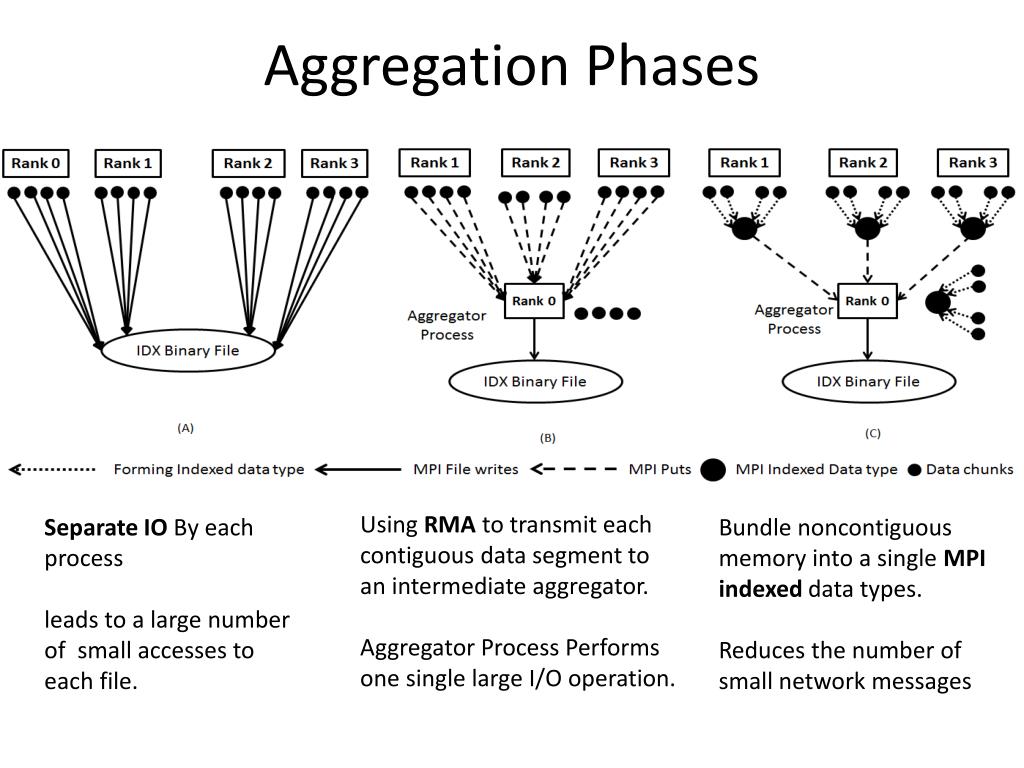

Aggregation Phases Using RMA to transmit each contiguous data segment to an intermediate aggregator. Aggregator Process Performs one single large I/O operation. SeparateIO By each process leads to a large number of small accesses to each file. Bundle noncontiguous memory into a single MPI indexed data types. Reduces the number of small network messages

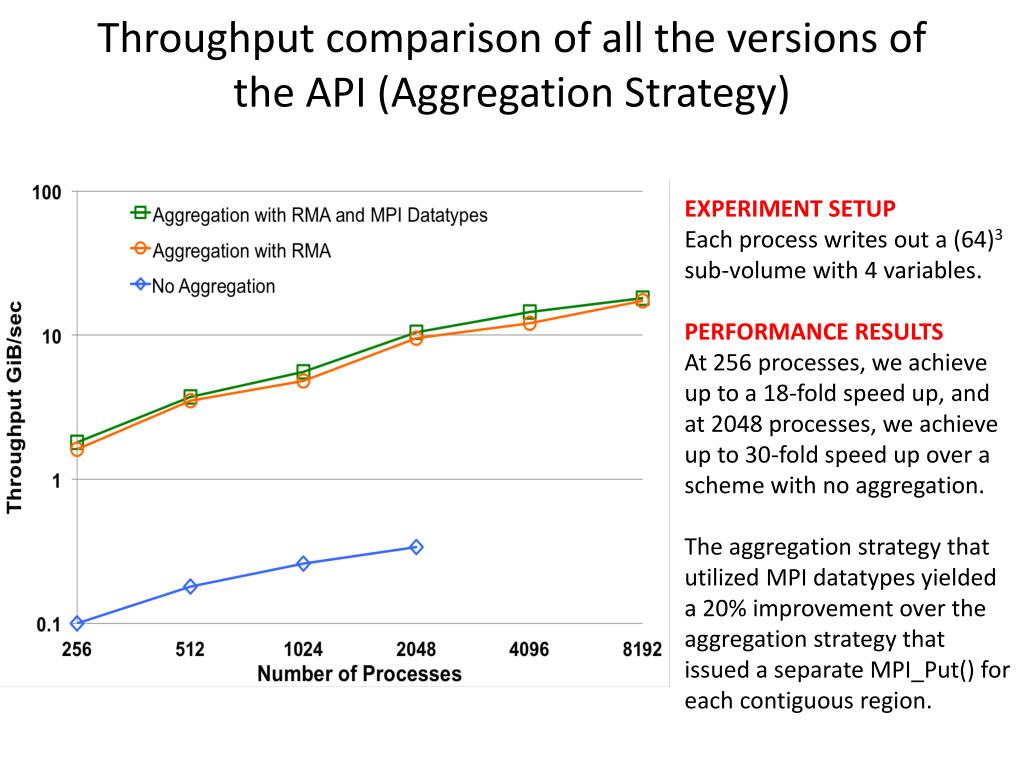

Throughput comparison of all the versions of the API (Aggregation Strategy) EXPERIMENT SETUP Each process writes out a (64)3 sub-volume with 4 variables. PERFORMANCE RESULTS At 256 processes, we achieve up to a 18-fold speed up, and at 2048 processes, we achieve up to 30-fold speed up over a scheme with no aggregation. The aggregation strategy that utilized MPI datatypes yielded a 20% improvement over the aggregation strategy that issued a separate MPI_Put() for each contiguous region.

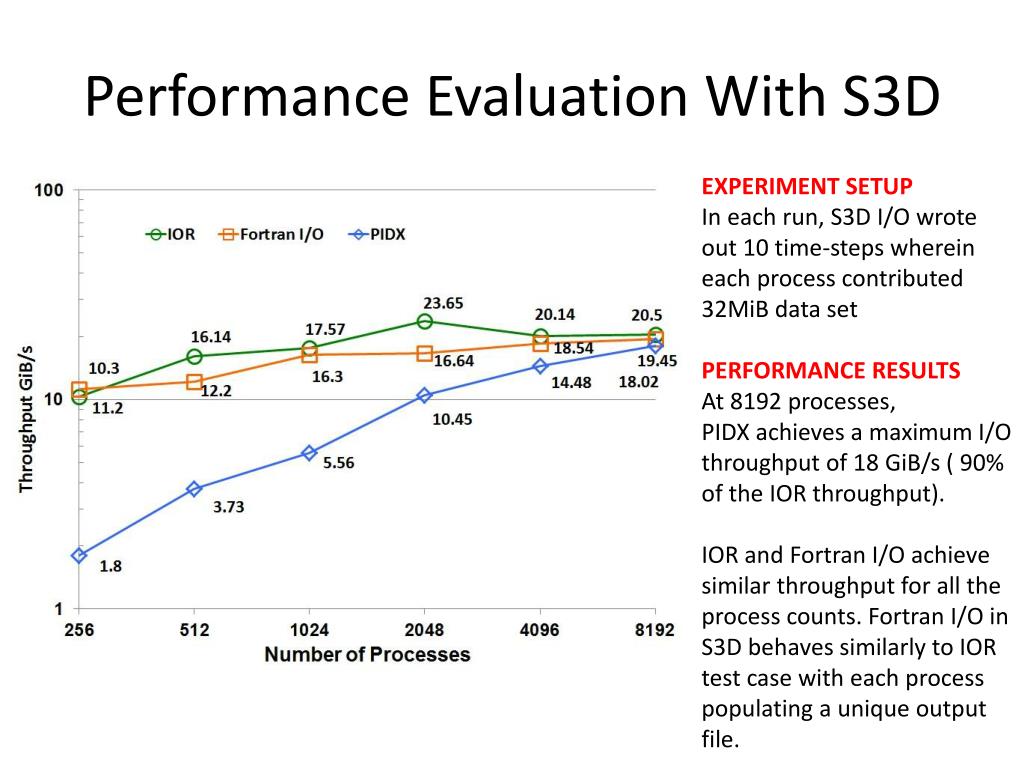

Performance Evaluation With S3D EXPERIMENT SETUP In each run, S3D I/O wrote out 10 time-steps wherein each process contributed 32MiB data set PERFORMANCE RESULTS At 8192 processes, PIDX achieves a maximum I/O throughput of 18 GiB/s ( 90% of the IOR throughput). IOR and Fortran I/O achieve similar throughput for all the process counts. Fortran I/O in S3D behaves similarly to IOR test case with each process populating a unique output file.

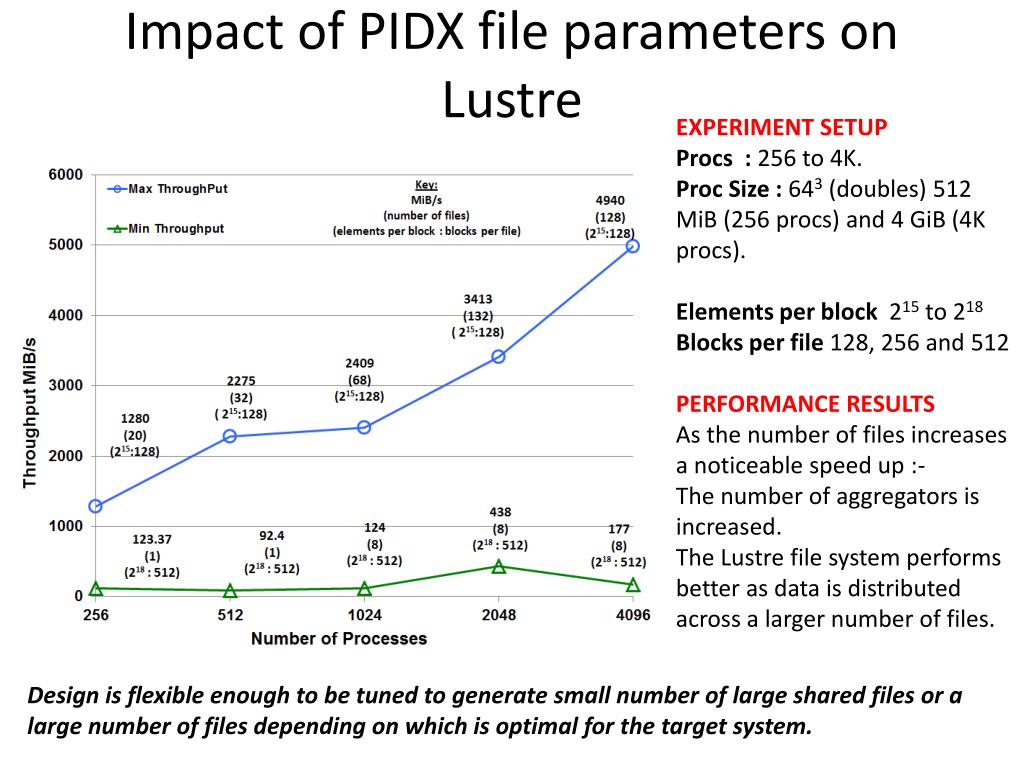

Impact of PIDX file parameters on Lustre EXPERIMENT SETUP Procs : 256 to 4K. Proc Size : 643 (doubles) 512 MiB (256 procs) and 4 GiB (4K procs). Elements per block 215 to 218 Blocks per file 128, 256 and 512 PERFORMANCE RESULTS As the number of files increases a noticeable speed up :- The number of aggregators is increased. The Lustre file system performs better as data is distributed across a larger number of files. Design is flexible enough to be tuned to generate small number of large shared files or a large number of files depending on which is optimal for the target system.
