Recreation of a Collision between a 1991 Acura Integra and a 1996 Mercury Villager

ME115

Fall 2007

Satapana Buthken

Josh Pirkl


Problem information
Problem Information 1996 Mercury Villager

  • Head on collision between 2 vehicles.

  • Known speed and directions.

  • Model will not take into account post-accident driver actions. (i.e. braking)


Satellite view of intersection
Satellite view of Intersection 1996 Mercury Villager


Objectives
Objectives 1996 Mercury Villager

  • Analyze the movement of the vehicles before, during, and after the collision.

  • Measure the forces on the vehicles during the collision.

  • Determine initial velocities and the resultant damage from increasing and decreasing these velocities.

  • Determine the final position of the vehicles and compare this to the actual collision.


Creating the vehicles solidworks
Creating the Vehicles (SolidWorks) 1996 Mercury Villager

1996 Mercury Villager

1991 Acura Integra


Nastran 4d modeling results
Nastran 4D Modeling & Results 1996 Mercury Villager

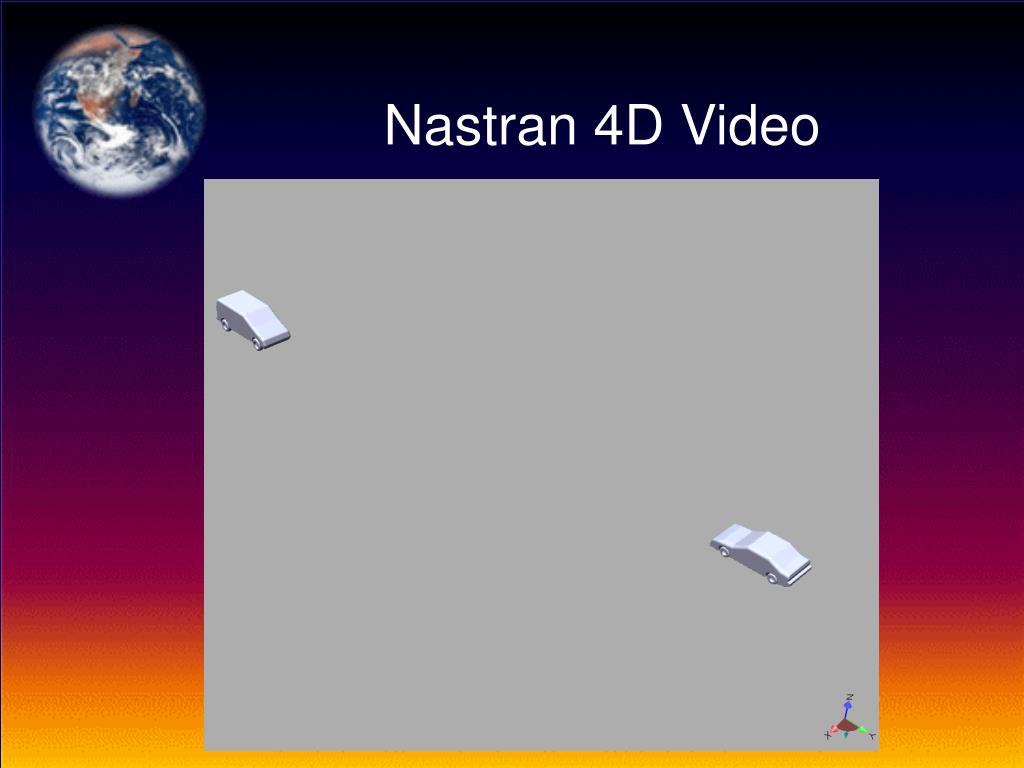

Nastran 4d video
Nastran 4D Video 1996 Mercury Villager


Questions
Questions? 1996 Mercury Villager
