The living room

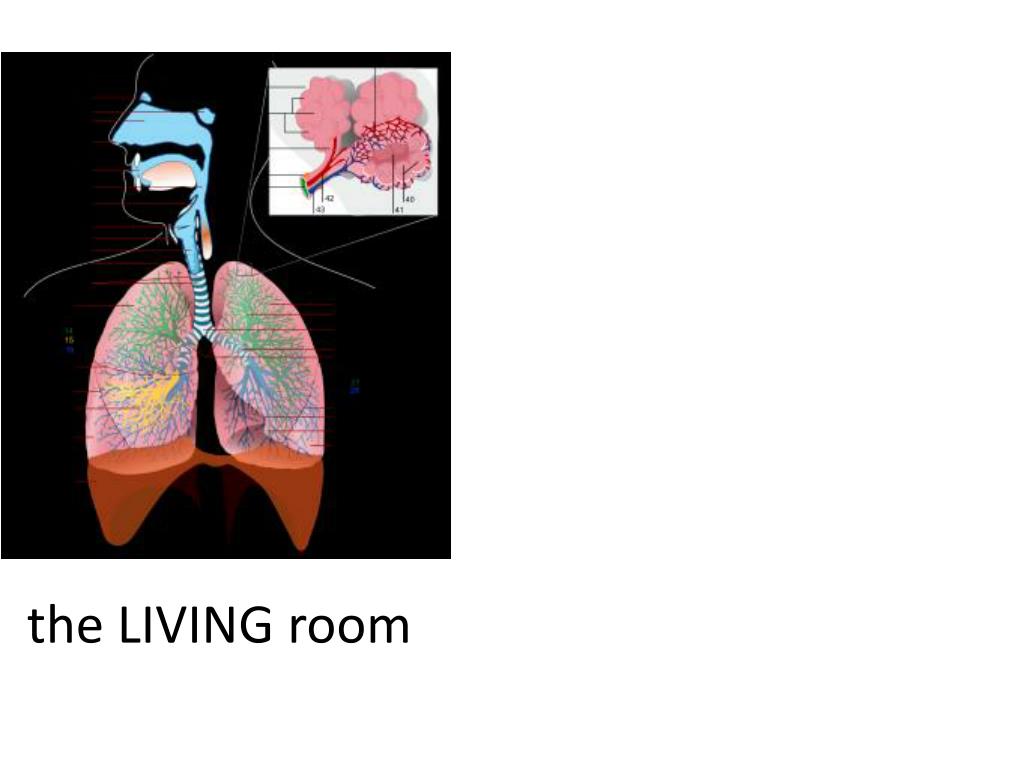

the LIVING room


Site 2 spaces

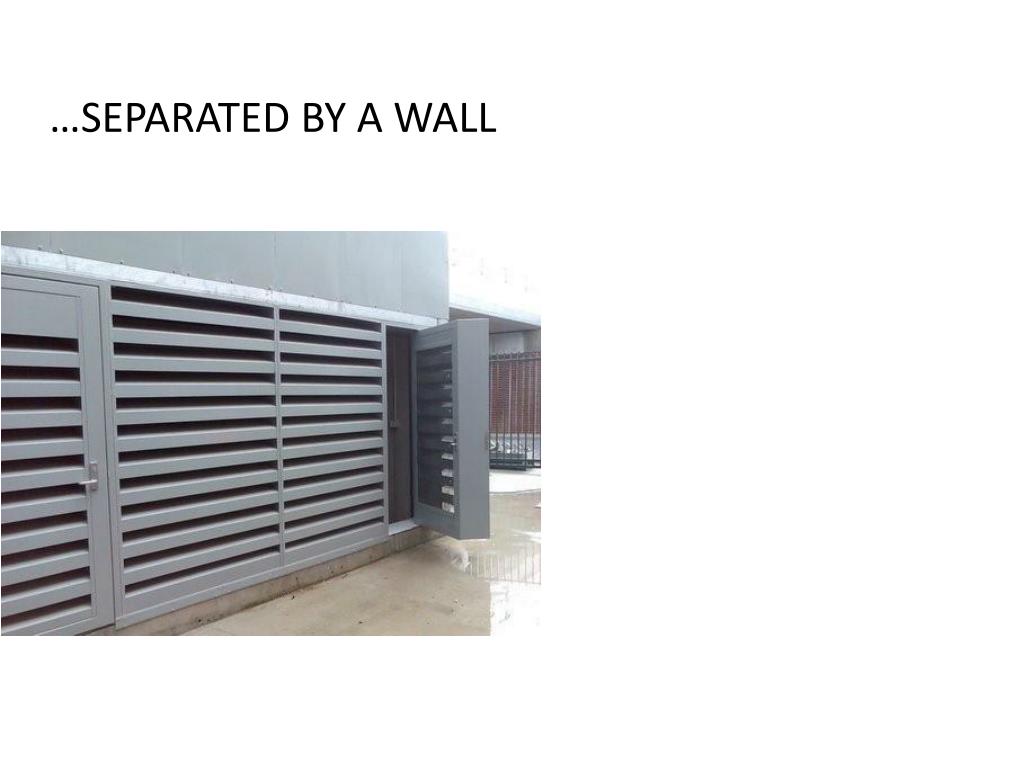

SITE: 2 SPACES…



Program a passage that dis connects 2 spaces
PROGRAM:A PASSAGE THAT DIS/CONNECTS 2 SPACES

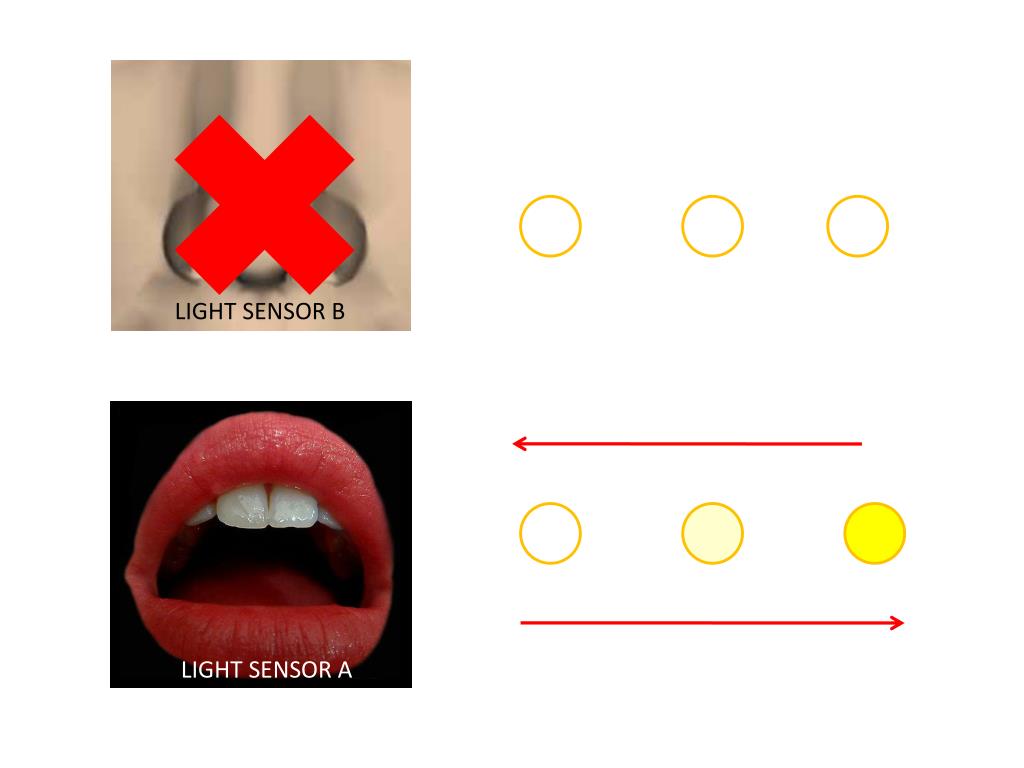

LIGHT SENSOR A

LIGHT SENSOR B


Monitoring the health of the organism

MONITORING THE HEALTH OF THE ORGANISM

AIR MOVEMENT


Setup
SETUP

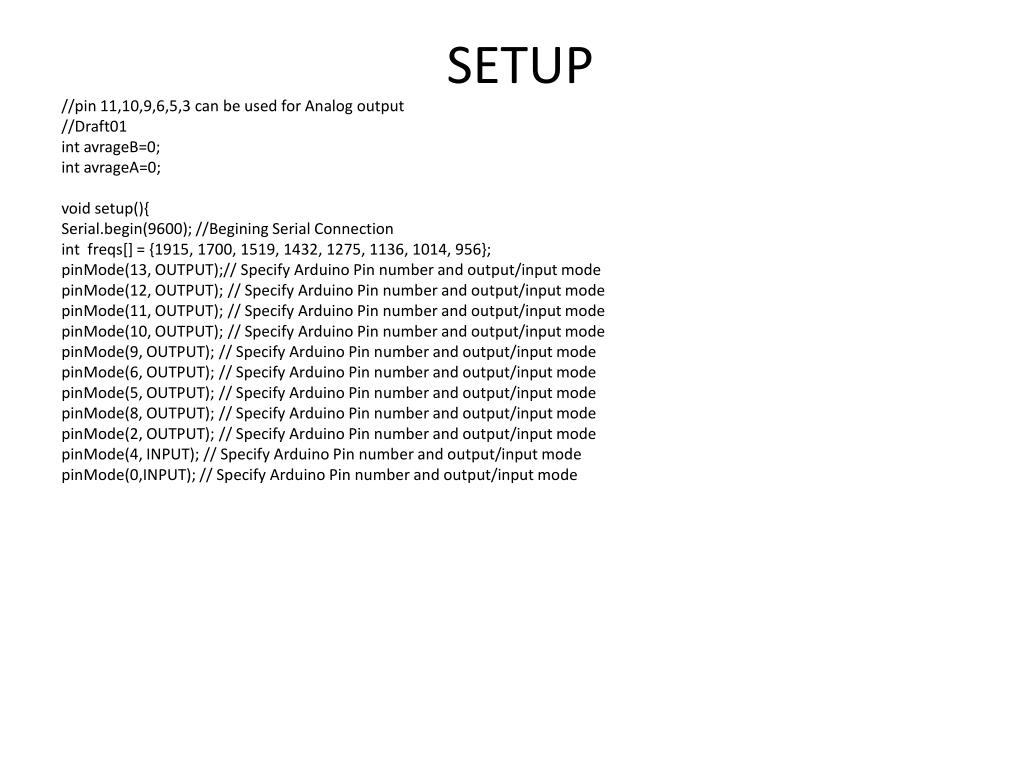

//pin 11,10,9,6,5,3 can be used for Analog output

//Draft01

intavrageB=0;

intavrageA=0;

void setup(){

Serial.begin(9600); //Begining Serial Connection

intfreqs[] = {1915, 1700, 1519, 1432, 1275, 1136, 1014, 956};

pinMode(13, OUTPUT);// Specify Arduino Pin number and output/input mode

pinMode(12, OUTPUT); // Specify Arduino Pin number and output/input mode

pinMode(11, OUTPUT); // Specify Arduino Pin number and output/input mode

pinMode(10, OUTPUT); // Specify Arduino Pin number and output/input mode

pinMode(9, OUTPUT); // Specify Arduino Pin number and output/input mode

pinMode(6, OUTPUT); // Specify Arduino Pin number and output/input mode

pinMode(5, OUTPUT); // Specify Arduino Pin number and output/input mode

pinMode(8, OUTPUT); // Specify Arduino Pin number and output/input mode

pinMode(2, OUTPUT); // Specify Arduino Pin number and output/input mode

pinMode(4, INPUT); // Specify Arduino Pin number and output/input mode

pinMode(0,INPUT); // Specify Arduino Pin number and output/input mode

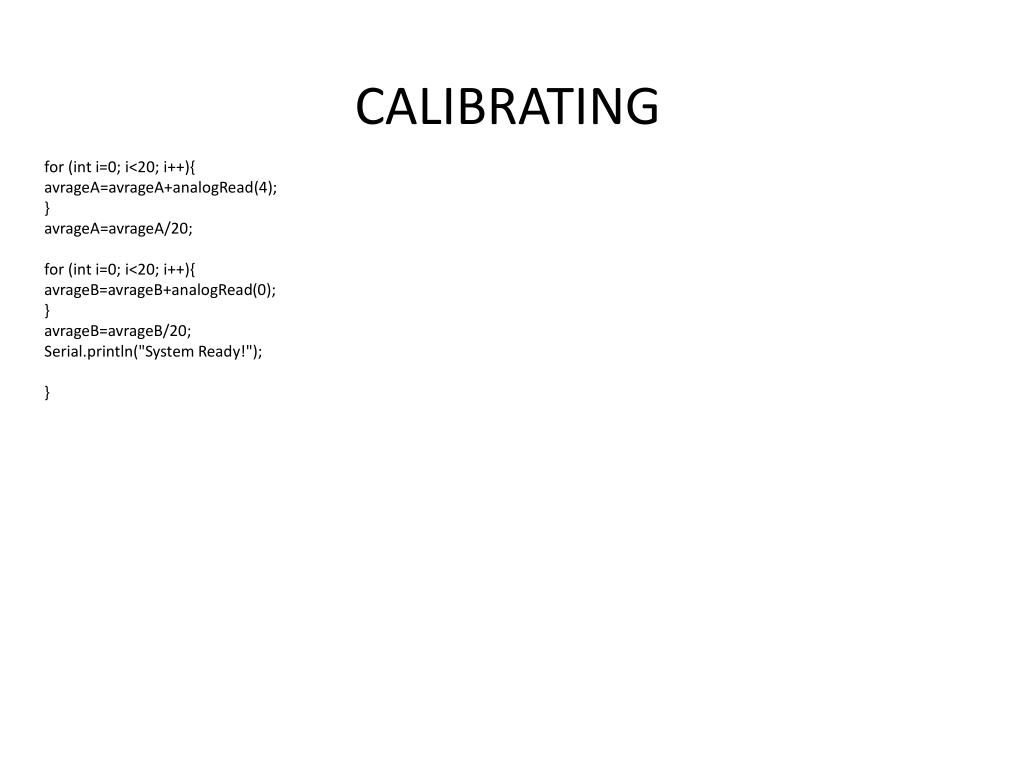

CALIBRATING

for (inti=0; i<20; i++){

avrageA=avrageA+analogRead(4);

}

avrageA=avrageA/20;

for (inti=0; i<20; i++){

avrageB=avrageB+analogRead(0);

}

avrageB=avrageB/20;

Serial.println("System Ready!");

}


Continued
…CONTINUED

void loop(){

intinA = analogRead(4);// Reading Sensed data from Arduino

intinB = analogRead(0);// Reading Sensed data from Arduino

//Serial.println(inA);// Writing Sensed Data to Serial Port

//Serial.println(inB);// Writing Sensed Data to Serial Port

//Serial.println(".....");

//delay(1000);


LIGHT SENSOR B

LIGHT SENSOR A

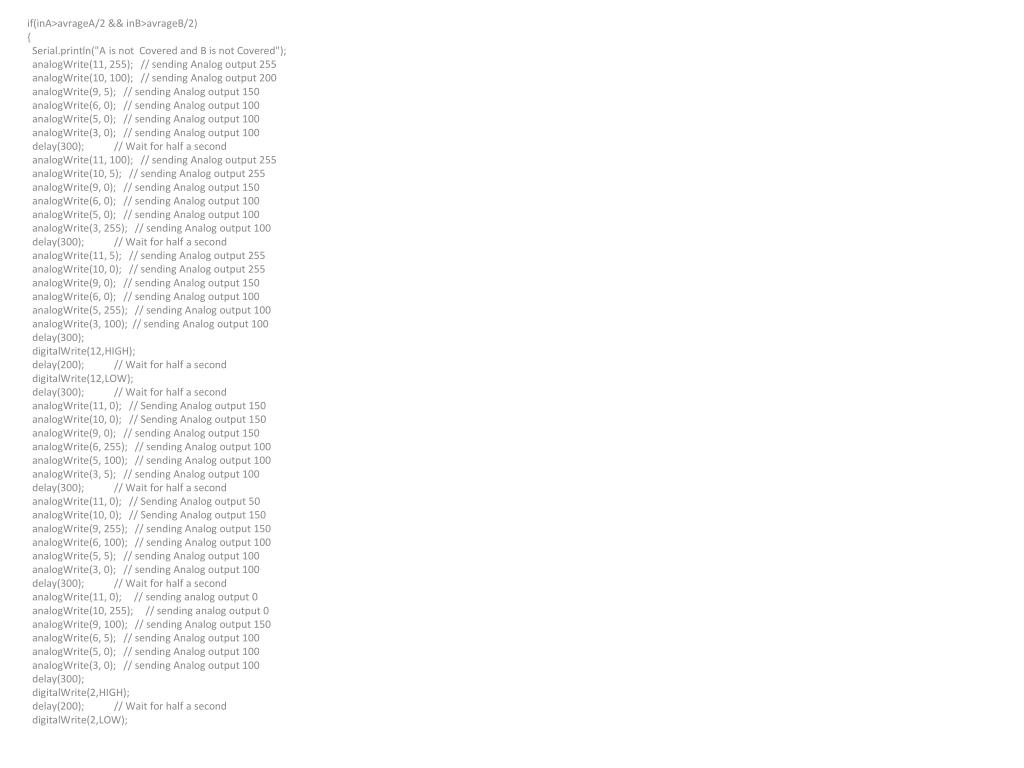

if(inA>avrageA/2 && inB>avrageB/2)

{

Serial.println("A is not Covered and B is not Covered");

analogWrite(11, 255); // sending Analog output 255

analogWrite(10, 100); // sending Analog output 200

analogWrite(9, 5); // sending Analog output 150

analogWrite(6, 0); // sending Analog output 100

analogWrite(5, 0); // sending Analog output 100

analogWrite(3, 0); // sending Analog output 100

delay(300); // Wait for half a second

analogWrite(11, 100); // sending Analog output 255

analogWrite(10, 5); // sending Analog output 255

analogWrite(9, 0); // sending Analog output 150

analogWrite(6, 0); // sending Analog output 100

analogWrite(5, 0); // sending Analog output 100

analogWrite(3, 255); // sending Analog output 100

delay(300); // Wait for half a second

analogWrite(11, 5); // sending Analog output 255

analogWrite(10, 0); // sending Analog output 255

analogWrite(9, 0); // sending Analog output 150

analogWrite(6, 0); // sending Analog output 100

analogWrite(5, 255); // sending Analog output 100

analogWrite(3, 100); // sending Analog output 100

delay(300);

digitalWrite(12,HIGH);

delay(200); // Wait for half a second

digitalWrite(12,LOW);

delay(300); // Wait for half a second

analogWrite(11, 0); // Sending Analog output 150

analogWrite(10, 0); // Sending Analog output 150

analogWrite(9, 0); // sending Analog output 150

analogWrite(6, 255); // sending Analog output 100

analogWrite(5, 100); // sending Analog output 100

analogWrite(3, 5); // sending Analog output 100

delay(300); // Wait for half a second

analogWrite(11, 0); // Sending Analog output 50

analogWrite(10, 0); // Sending Analog output 150

analogWrite(9, 255); // sending Analog output 150

analogWrite(6, 100); // sending Analog output 100

analogWrite(5, 5); // sending Analog output 100

analogWrite(3, 0); // sending Analog output 100

delay(300); // Wait for half a second

analogWrite(11, 0); // sending analog output 0

analogWrite(10, 255); // sending analog output 0

analogWrite(9, 100); // sending Analog output 150

analogWrite(6, 5); // sending Analog output 100

analogWrite(5, 0); // sending Analog output 100

analogWrite(3, 0); // sending Analog output 100

delay(300);

digitalWrite(2,HIGH);

delay(200); // Wait for half a second

digitalWrite(2,LOW);


LIGHT SENSOR B

LIGHT SENSOR A


if(inA<avrageA/2 && inB>avrageB/2)

{

Serial.println("A is Covered and B is not Covered");

analogWrite(11, 255); // sending Analog output 255

analogWrite(10, 0); // sending Analog output 200

analogWrite(9, 0); // sending Analog output 150

analogWrite(6, 0); // sending Analog output 100

analogWrite(5, 0); // sending Analog output 100

analogWrite(3, 10); // sending Analog output 100

delay(300); // Wait for half a second

analogWrite(11, 10); // sending Analog output 255

analogWrite(10, 0); // sending Analog output 255

analogWrite(9, 0); // sending Analog output 150

analogWrite(6, 0); // sending Analog output 100

analogWrite(5, 0); // sending Analog output 100

analogWrite(3, 255); // sending Analog output 100

delay(300); // Wait for half a second

analogWrite(11, 0); // sending Analog output 255

analogWrite(10, 0); // sending Analog output 255

analogWrite(9, 0); // sending Analog output 150

analogWrite(6, 0); // sending Analog output 100

analogWrite(5, 255); // sending Analog output 100

analogWrite(3, 10); // sending Analog output 100

delay(300);

digitalWrite(12,HIGH);

delay(200); // Wait for half a second

digitalWrite(12,LOW); // Wait for half a second

analogWrite(11, 0); // Sending Analog output 150

analogWrite(10, 0); // Sending Analog output 150

analogWrite(9, 0); // sending Analog output 150

analogWrite(6, 0); // sending Analog output 100

analogWrite(5, 0); // sending Analog output 100

analogWrite(3, 255); // sending Analog output 100

delay(300); // Wait for half a second

}

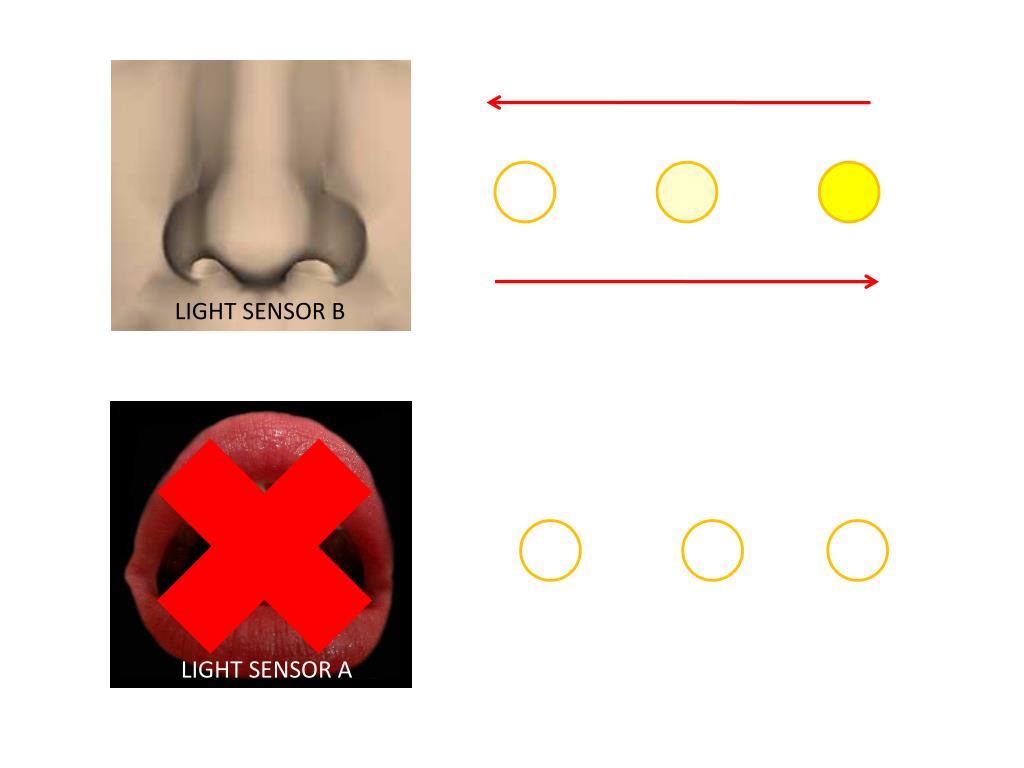

LIGHT SENSOR B

LIGHT SENSOR A


if(inA>avrageA/2 && inB<avrageB/2)

{

Serial.println("A is not Covered and B is Covered");

analogWrite(11, 0); // sending Analog output 255

analogWrite(10, 255); // sending Analog output 200

analogWrite(9, 10); // sending Analog output 150

analogWrite(6, 0); // sending Analog output 100

analogWrite(5, 0); // sending Analog output 100

analogWrite(3, 0); // sending Analog output 100

delay(300); // Wait for half a second

analogWrite(11, 0); // sending Analog output 255

analogWrite(10, 10); // sending Analog output 255

analogWrite(9,255); // sending Analog output 150

analogWrite(6, 0); // sending Analog output 100

analogWrite(5, 0); // sending Analog output 100

analogWrite(3, 0); // sending Analog output 100

delay(300); // Wait for half a second

analogWrite(11, 0); // sending Analog output 255

analogWrite(10, 0); // sending Analog output 255

analogWrite(9, 10); // sending Analog output 150

analogWrite(6, 255); // sending Analog output 100

analogWrite(5, 0); // sending Analog output 100

analogWrite(3, 0); // sending Analog output 100

delay(300); // Wait for half a second

digitalWrite(2,HIGH);

delay(200); // Wait for half a second

digitalWrite(2,LOW);

analogWrite(11, 0); // Sending Analog output 150

analogWrite(9, 255); // sending Analog output 150

analogWrite(6, 0); // sending Analog output 100

analogWrite(5, 0); // sending Analog output 100

analogWrite(3, 0); // sending Analog output 100

delay(300); // Wait for half a second

}


LIGHT SENSOR B

LIGHT SENSOR A


CONSIDER…

GAINING AWARENESS OF THE BREATHING OF A SPACE


Site 2 spaces1
SITE: 2 SPACES…
