Governor’s SchoolEngineering Specialty

Instructors

Prof. Will Schleter

Wayne Pfeiler


Objectives

Objectives

  • Introduce Science and Math Fundamentals for Engineering

  • Provide Exposure to Different Engineering Disciplines

  • Learn, Participate in, and Practice the Engineering Design Process

  • Learn and Have Fun!


What is engineering

What is Engineering?

  • Driving a train?

  • The application of scientific principles to practical ends as the design, construction, and operation of efficient and economical structures, equipment, and systems.

  • “Using science and math to figure out how to make stuff and do things.”

  • Problem Solving…


Example

Example

x

  • A protective liner exactly 12 meters wide is available to line a channel for conveying water from a reservoir to downstream areas. If a trapezoidal-shaped channel is constructed so that the liner will cover the surface completely, what are the values for x and  that will provide the maximum water flow?


Solution

Solution

x

x

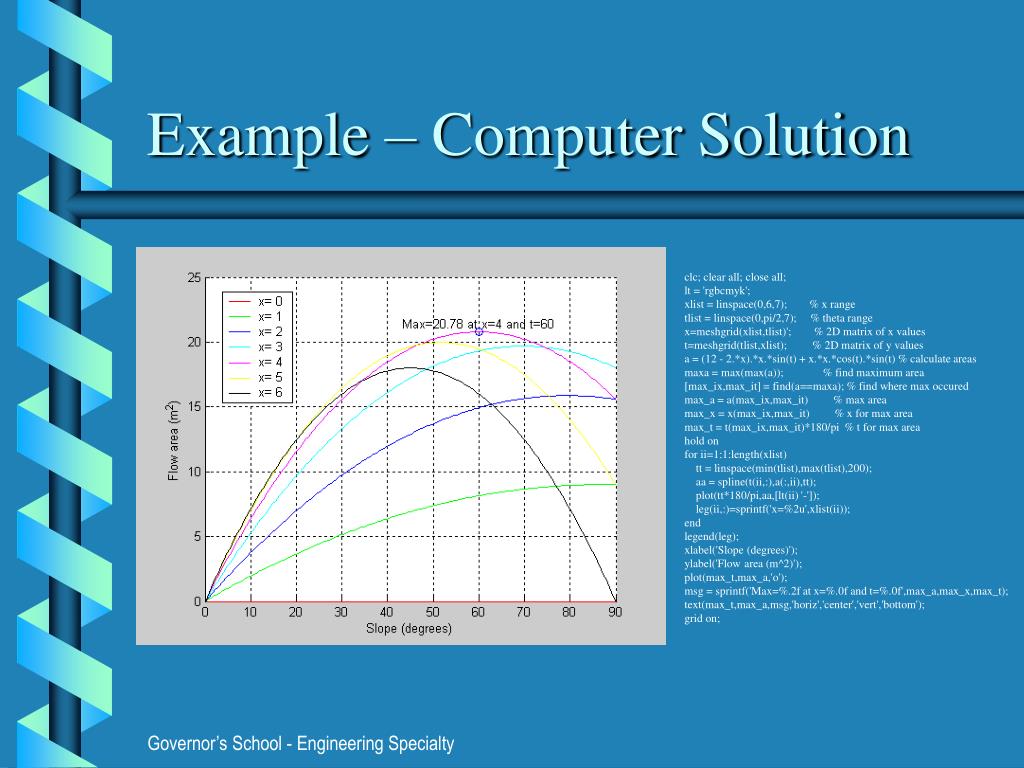

Example computer solution

Example – Computer Solution

clc; clear all; close all;

lt = 'rgbcmyk';

xlist = linspace(0,6,7); % x range

tlist = linspace(0,pi/2,7); % theta range

x=meshgrid(xlist,tlist)'; % 2D matrix of x values

t=meshgrid(tlist,xlist); % 2D matrix of y values

a = (12 - 2.*x).*x.*sin(t) + x.*x.*cos(t).*sin(t) % calculate areas

maxa = max(max(a)); % find maximum area

[max_ix,max_it] = find(a==maxa); % find where max occured

max_a = a(max_ix,max_it) % max area

max_x = x(max_ix,max_it) % x for max area

max_t = t(max_ix,max_it)*180/pi % t for max area

hold on

for ii=1:1:length(xlist)

tt = linspace(min(tlist),max(tlist),200);

aa = spline(t(ii,:),a(:,ii),tt);

plot(tt*180/pi,aa,[lt(ii) '-']);

leg(ii,:)=sprintf('x=%2u',xlist(ii));

end

legend(leg);

xlabel('Slope (degrees)');

ylabel('Flow area (m^2)');

plot(max_t,max_a,'o');

msg = sprintf('Max=%.2f at x=%.0f and t=%.0f',max_a,max_x,max_t);

text(max_t,max_a,msg,'horiz','center','vert','bottom');

grid on;


Types of engineering

Types of Engineering


Class specifics

Class Specifics

  • Science and Math Fundamentals for Engineering

    • Introduction to concepts

    • Labs

  • Examples of Engineering Disciplines

    • Labs

    • Departmental Tours

  • Design Project(s)

    • Team based

    • Design, build, test, critique

  • Objective - Learn and Have Fun!


Today s lab

Today’s Lab

  • Take Individual Pictures

  • Estabrook Computer Login – change password!

  • Web site login – UT NetID password

  • Enter your background information

  • Browse the web and find something of interest to you that represents a significant application of engineering

  • Informal two minute presentation:

    • Introduce yourself

    • Describe your engineering example. Why did you choose it? What type(s) of engineering does it represent? Neat facts?

  • Reading assignment - handout


  • Login
