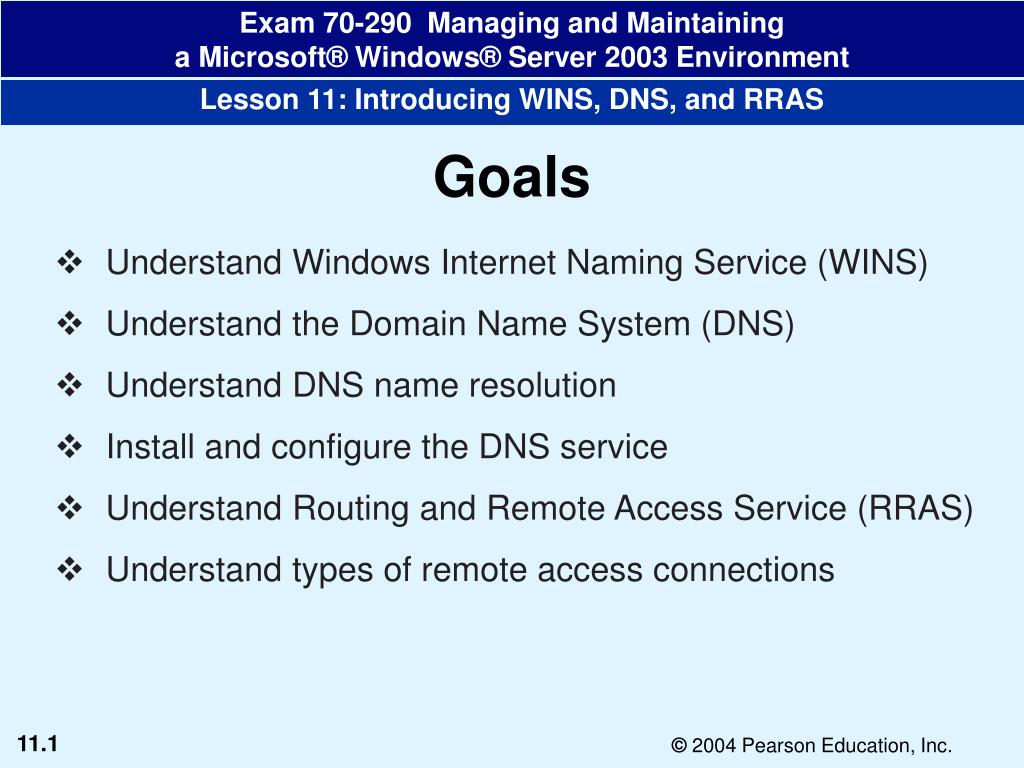

  1. Goals • Understand Windows Internet Naming Service (WINS) • Understand the Domain Name System (DNS) • Understand DNS name resolution • Install and configure the DNS service • Understand Routing and Remote Access Service (RRAS) • Understand types of remote access connections

  2. Goals (2) • Configure remote access services • Create a remote access policy • Create a VPN server • Examine Internet Connection Sharing (ICS) • Examine Network Address Translation (NAT)

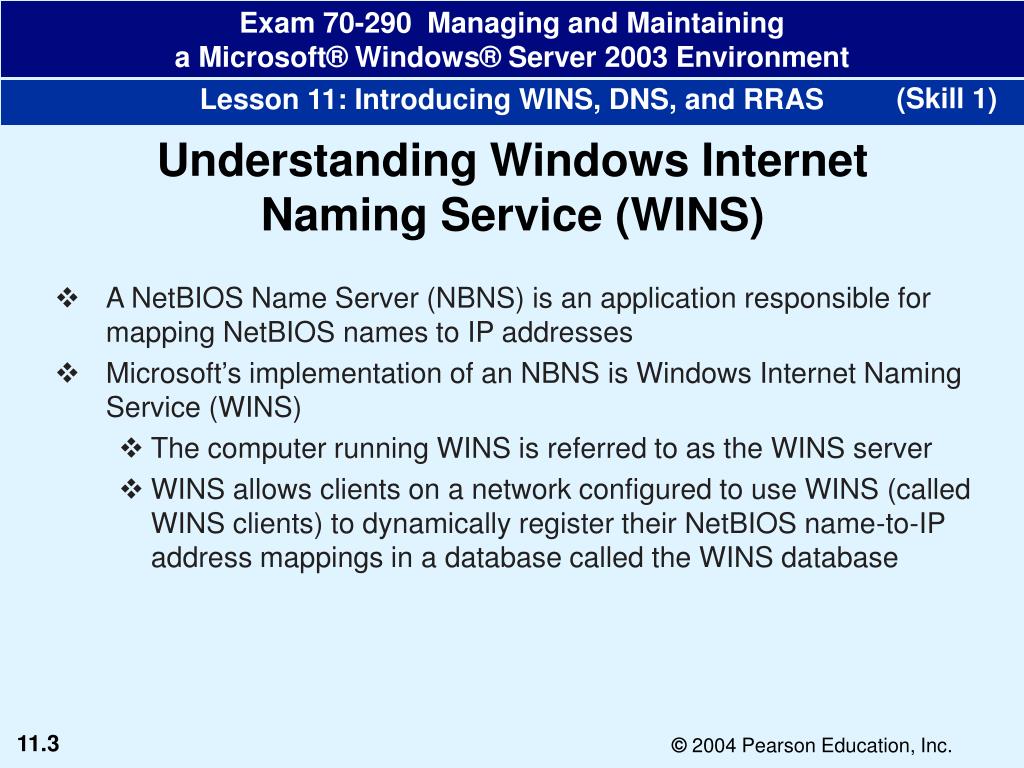

  3. (Skill 1) Understanding Windows Internet Naming Service (WINS) • A NetBIOS Name Server (NBNS) is an application responsible for mapping NetBIOS names to IP addresses • Microsoft’s implementation of an NBNS is Windows Internet Naming Service (WINS) • The computer running WINS is referred to as the WINS server • WINS allows clients on a network configured to use WINS (called WINS clients) to dynamically register their NetBIOS name-to-IP address mappings in a database called the WINS database

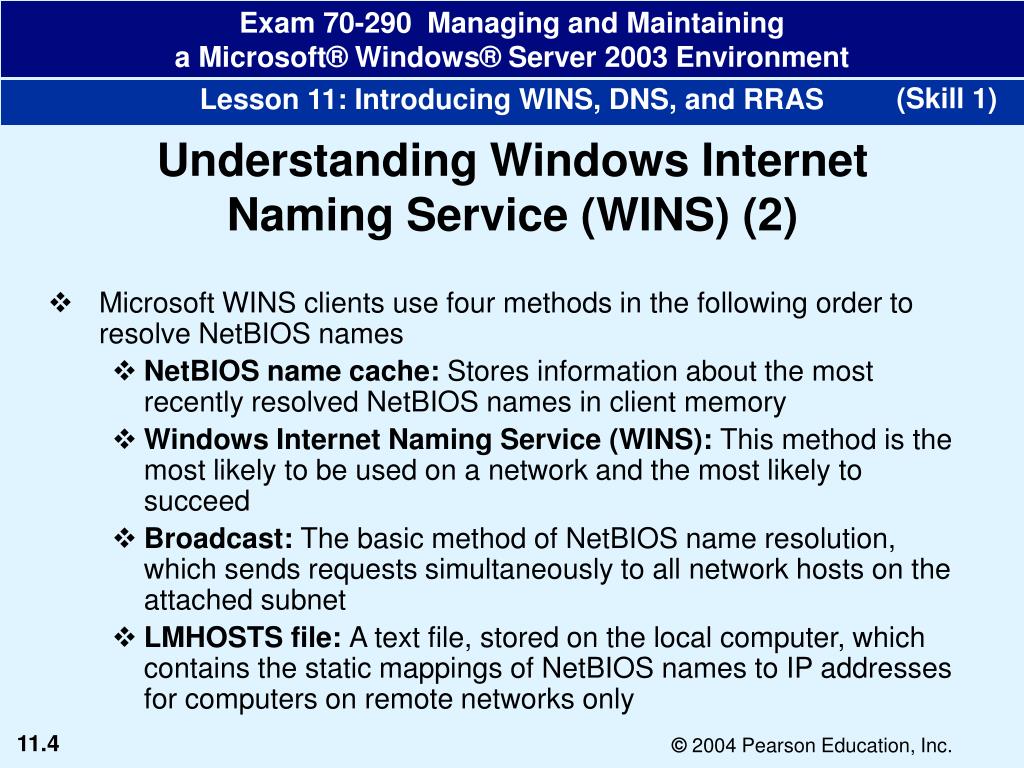

  4. (Skill 1) Understanding Windows Internet Naming Service (WINS) (2) • Microsoft WINS clients use four methods in the following order to resolve NetBIOS names • NetBIOS name cache: Stores information about the most recently resolved NetBIOS names in client memory • Windows Internet Naming Service (WINS): This method is the most likely to be used on a network and the most likely to succeed • Broadcast: The basic method of NetBIOS name resolution, which sends requests simultaneously to all network hosts on the attached subnet • LMHOSTS file: A text file, stored on the local computer, which contains the static mappings of NetBIOS names to IP addresses for computers on remote networks only

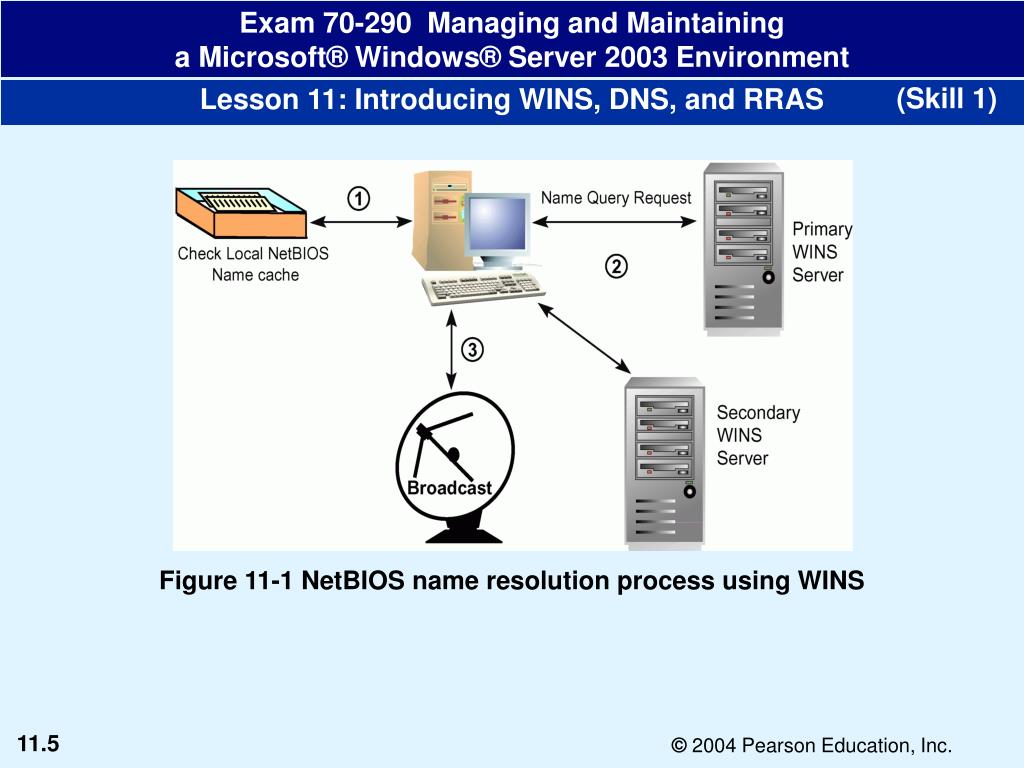

  5. (Skill 1) Figure 11-1 NetBIOS name resolution process using WINS

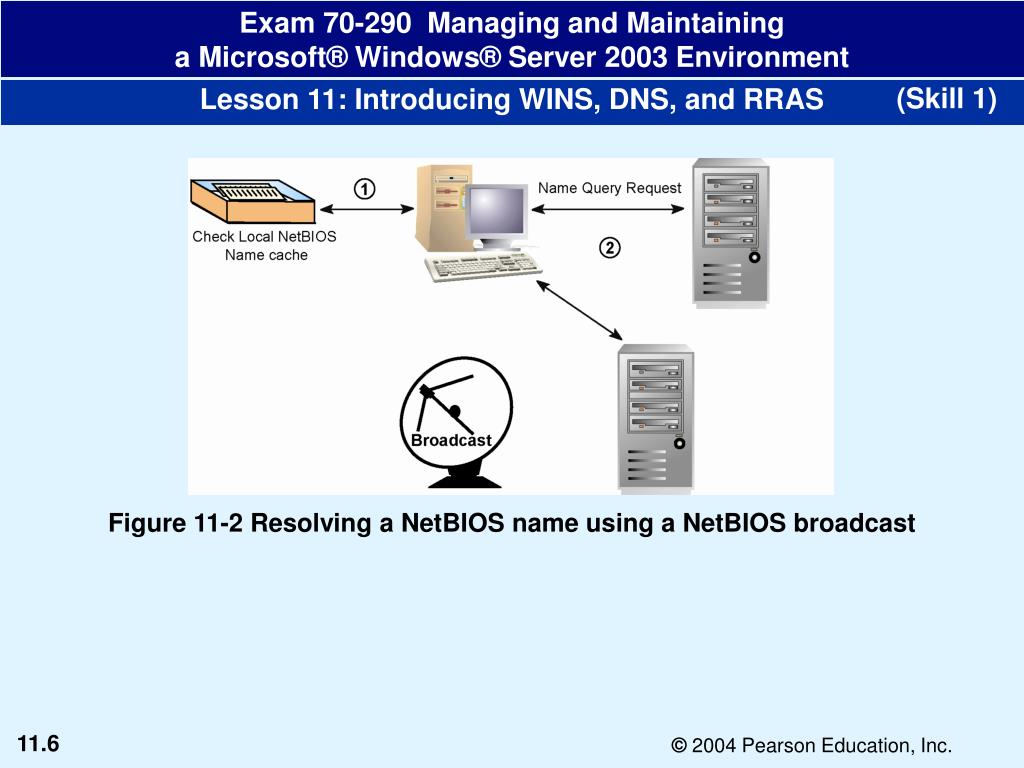

  6. (Skill 1) Figure 11-2 Resolving a NetBIOS name using a NetBIOS broadcast

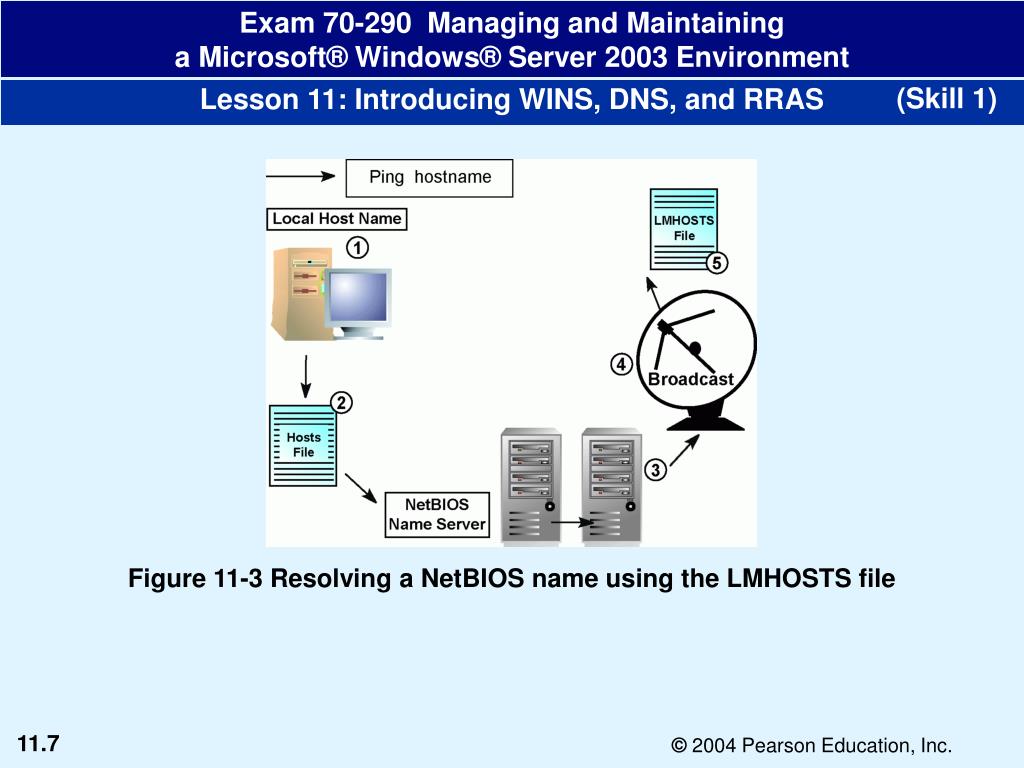

  7. (Skill 1) Figure 11-3 Resolving a NetBIOS name using the LMHOSTS file

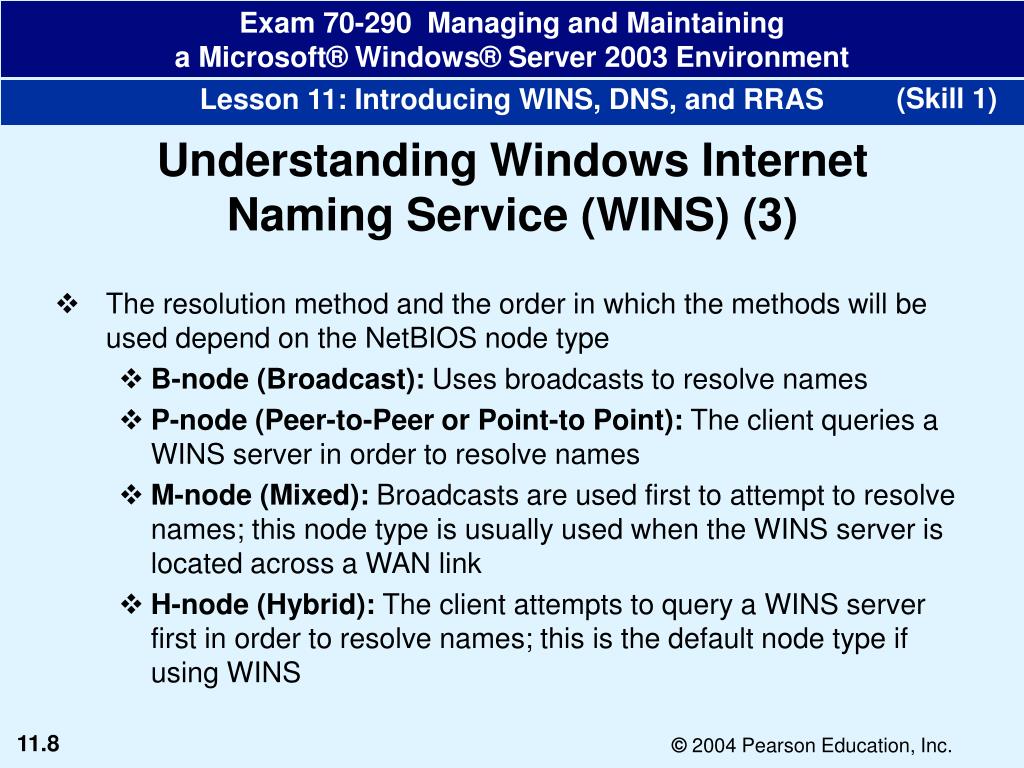

  8. (Skill 1) Understanding Windows Internet Naming Service (WINS) (3) • The resolution method and the order in which the methods will be used depend on the NetBIOS node type • B-node (Broadcast): Uses broadcasts to resolve names • P-node (Peer-to-Peer or Point-to Point): The client queries a WINS server in order to resolve names • M-node (Mixed): Broadcasts are used first to attempt to resolve names; this node type is usually used when the WINS server is located across a WAN link • H-node (Hybrid): The client attempts to query a WINS server first in order to resolve names; this is the default node type if using WINS

  9. (Skill 1) H-node (Hybrid) is the default node type for Windows 2000, Windows XP Professional, and Windows Server 2003 if WINS is enabled. The Node Type hexadecimal value is 8. Figure 11-4 The Node Type key

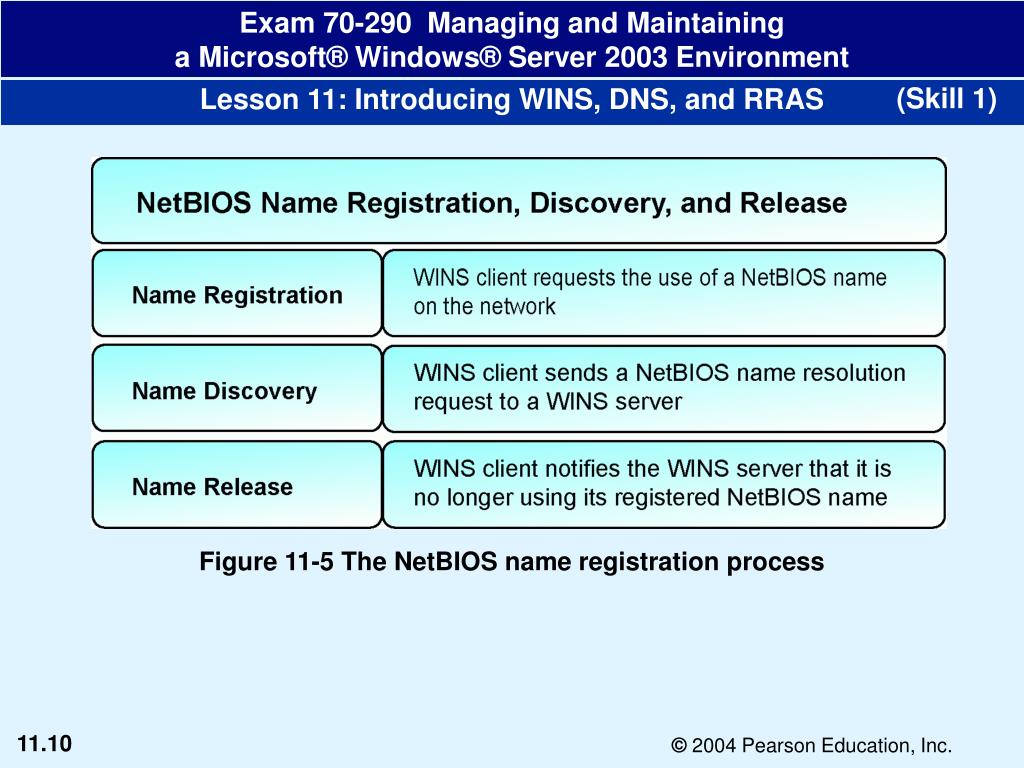

  10. (Skill 1) Figure 11-5 The NetBIOS name registration process

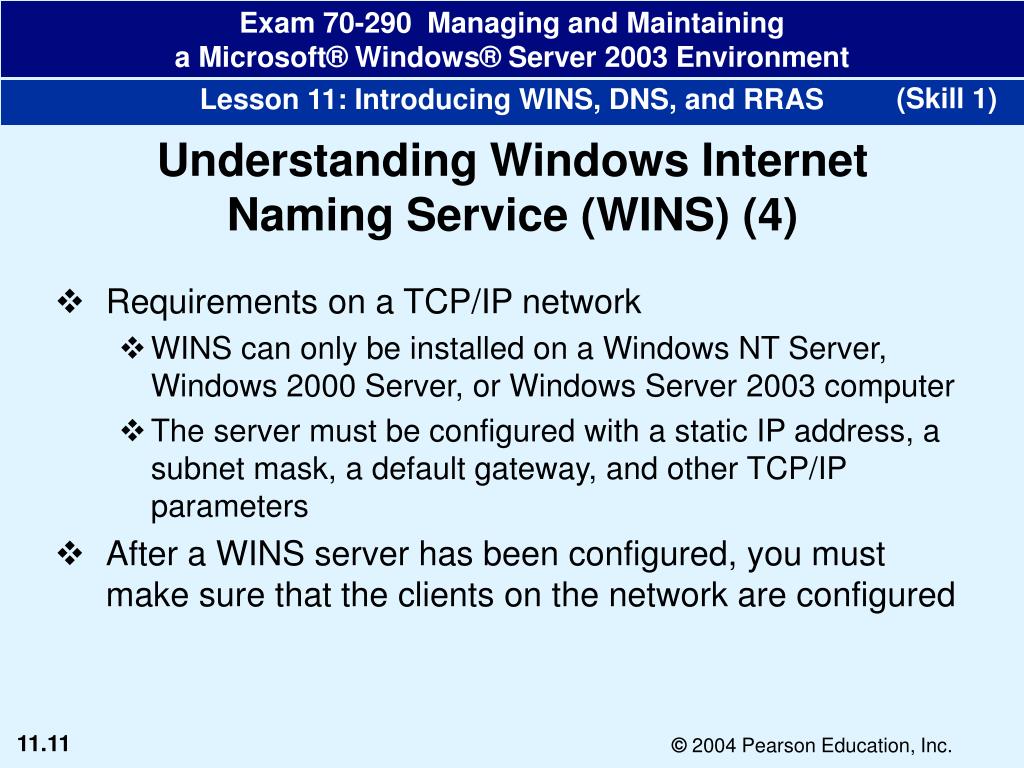

  11. (Skill 1) Understanding Windows Internet Naming Service (WINS) (4) • Requirements on a TCP/IP network • WINS can only be installed on a Windows NT Server, Windows 2000 Server, or Windows Server 2003 computer • The server must be configured with a static IP address, a subnet mask, a default gateway, and other TCP/IP parameters • After a WINS server has been configured, you must make sure that the clients on the network are configured

  12. (Skill 1) Click to open the TCP/IP WINS Server dialog box where you will enter the static IP address for a WINS server Figure 11-6 The WINS tab in the Advanced TCP/IP Settings dialog box

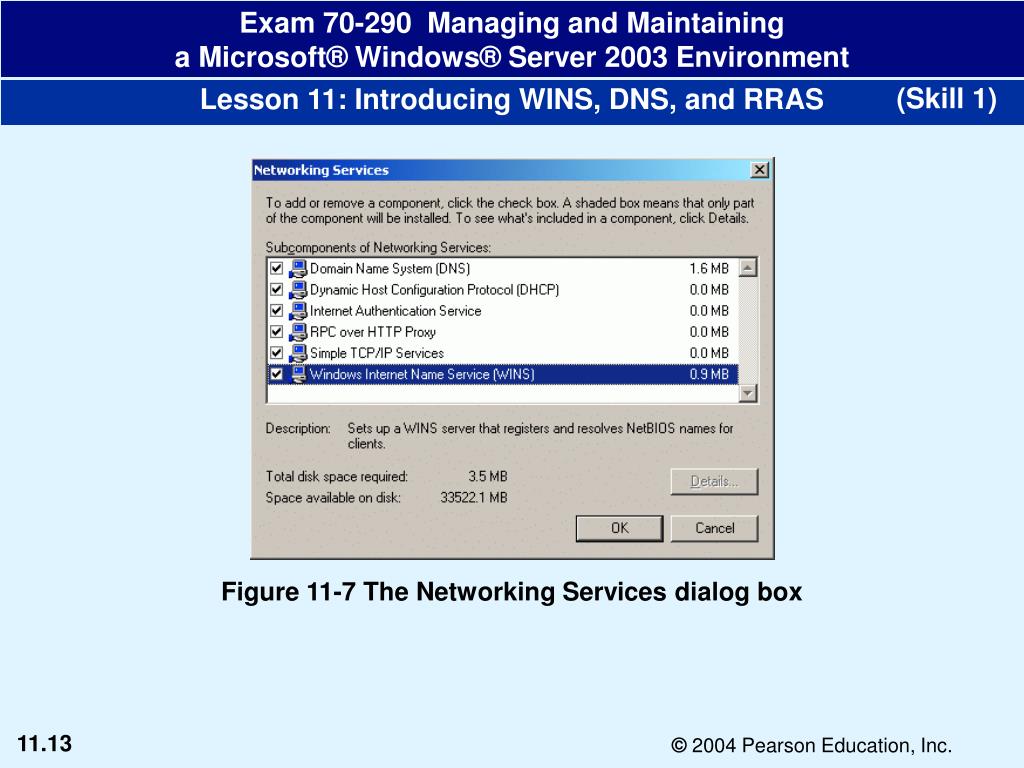

  13. (Skill 1) Figure 11-7 The Networking Services dialog box

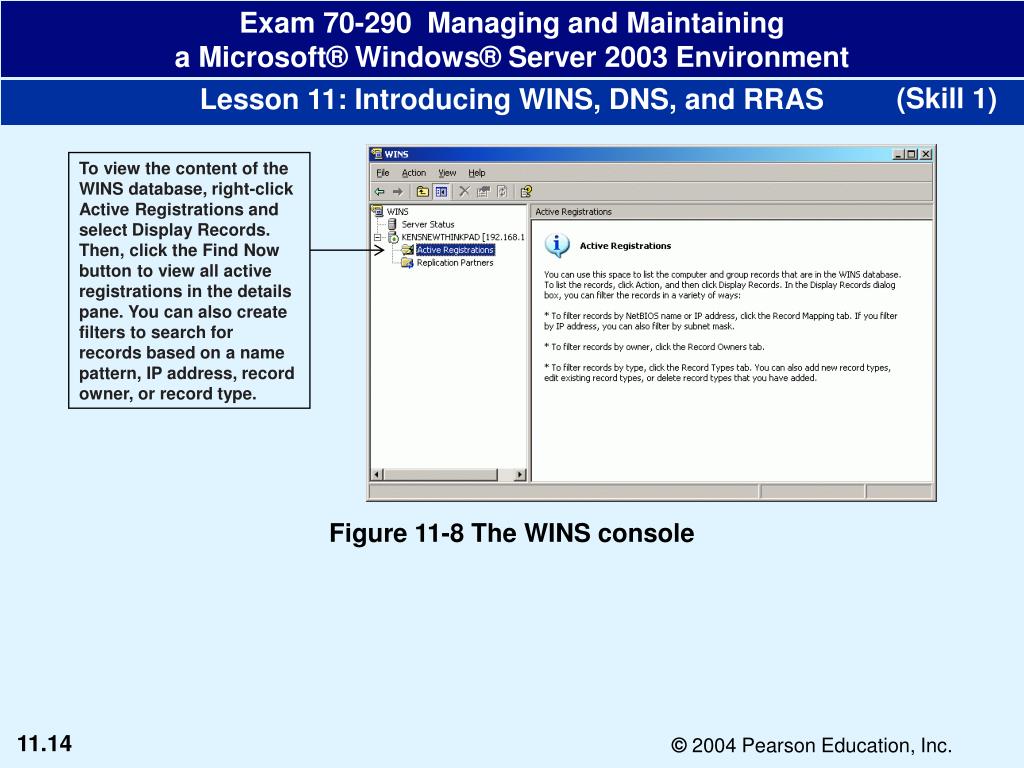

  14. (Skill 1) To view the content of the WINS database, right-click Active Registrations and select Display Records. Then, click the Find Now button to view all active registrations in the details pane. You can also create filters to search for records based on a name pattern, IP address, record owner, or record type. Figure 11-8 The WINS console

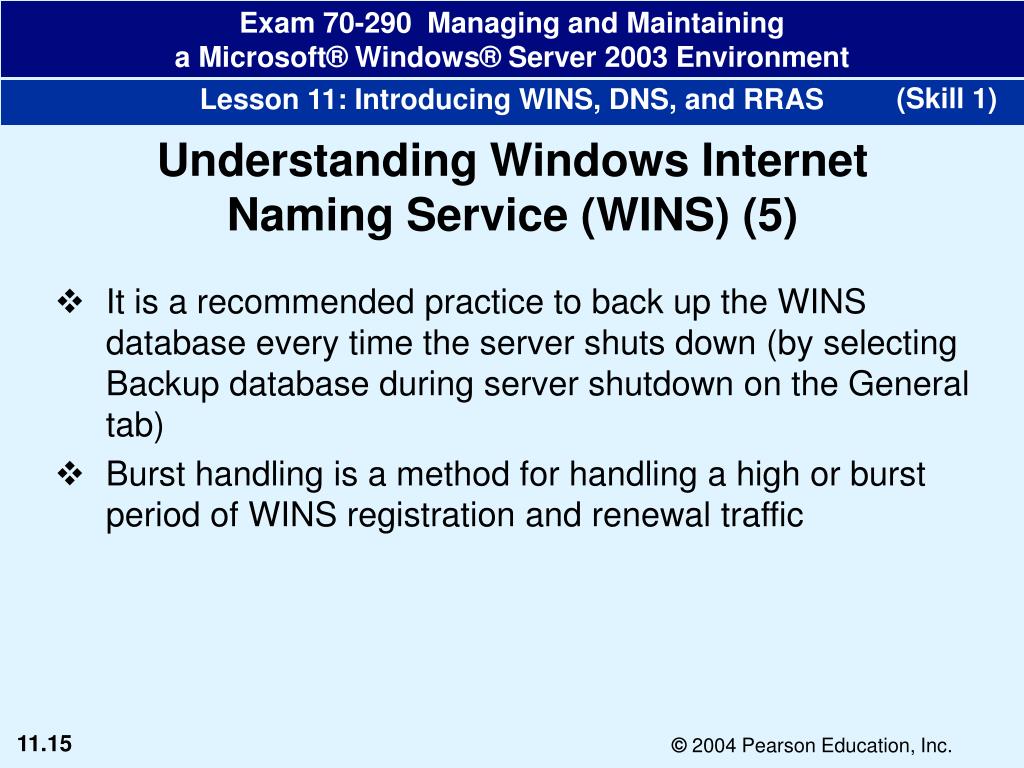

  15. (Skill 1) Understanding Windows Internet Naming Service (WINS) (5) • It is a recommended practice to back up the WINS database every time the server shuts down (by selecting Backup database during server shutdown on the General tab) • Burst handling is a method for handling a high or burst period of WINS registration and renewal traffic

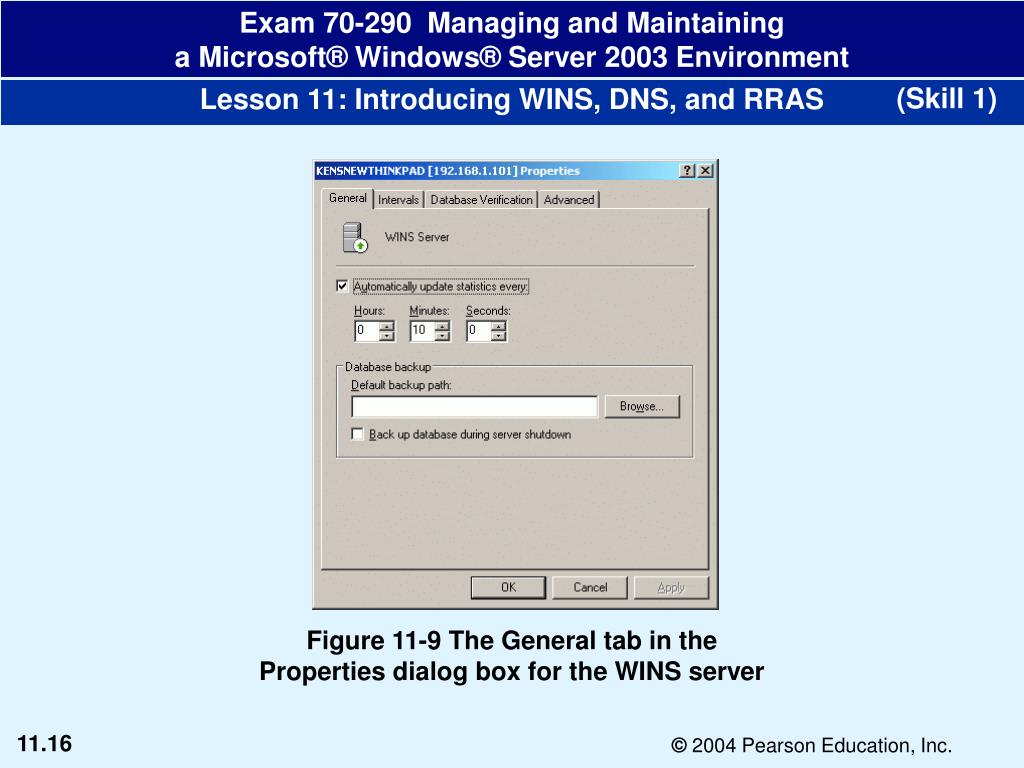

  16. (Skill 1) Figure 11-9 The General tab in the Properties dialog box for the WINS server

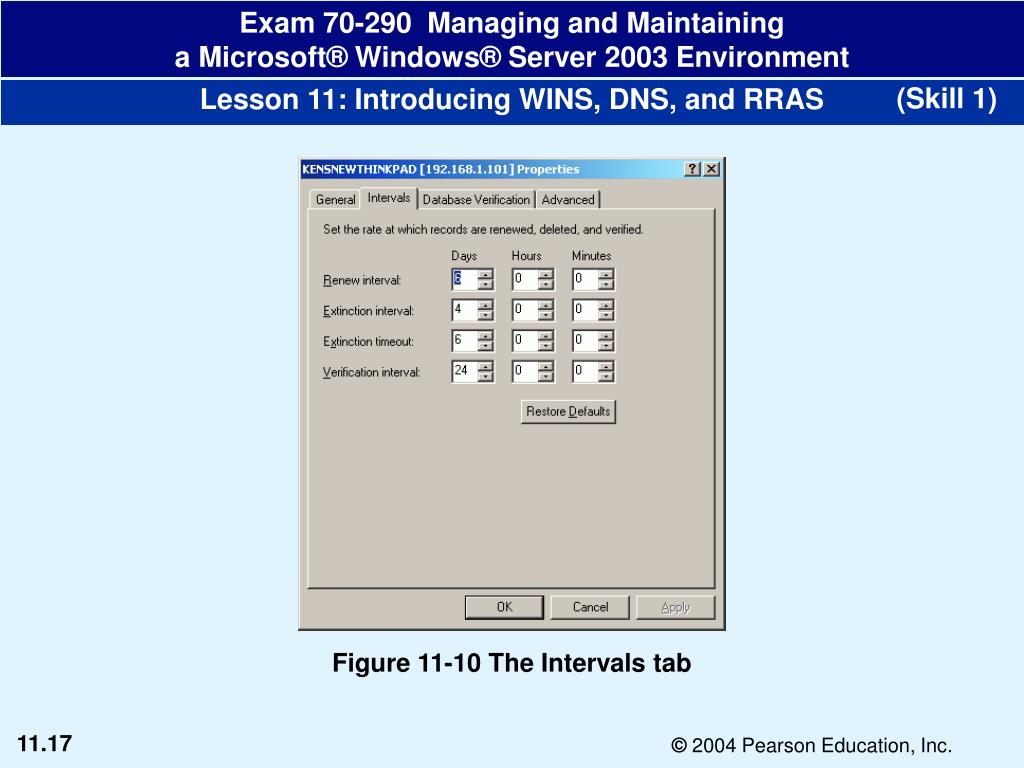

  17. (Skill 1) Figure 11-10 The Intervals tab

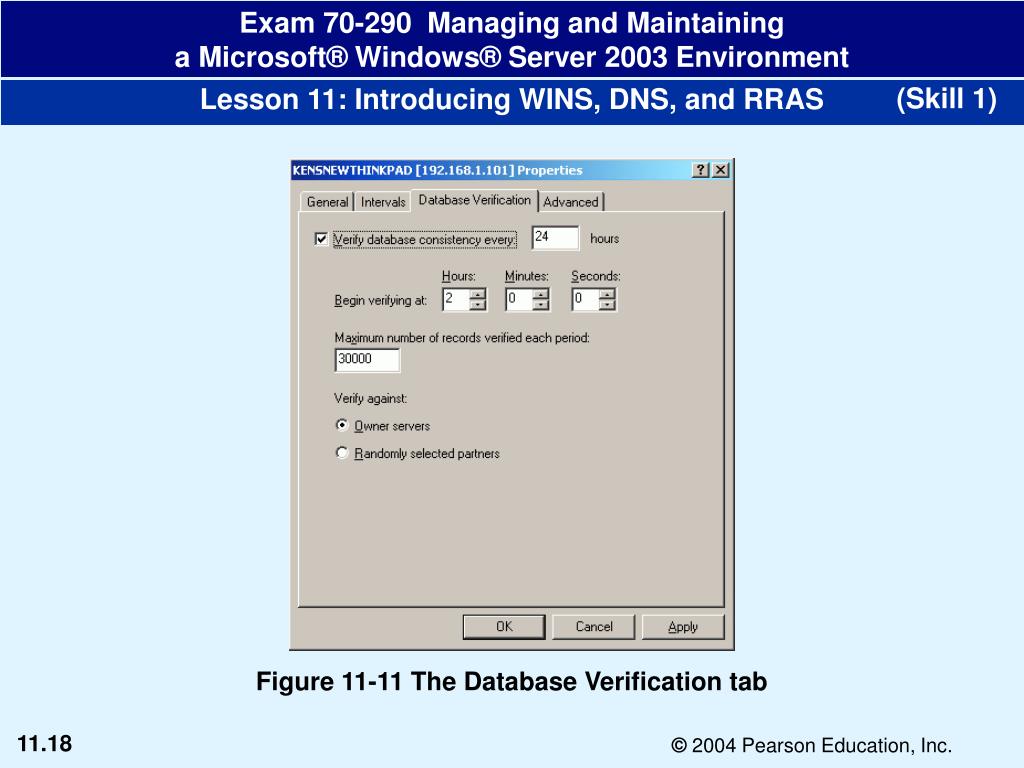

  18. (Skill 1) Figure 11-11 The Database Verification tab

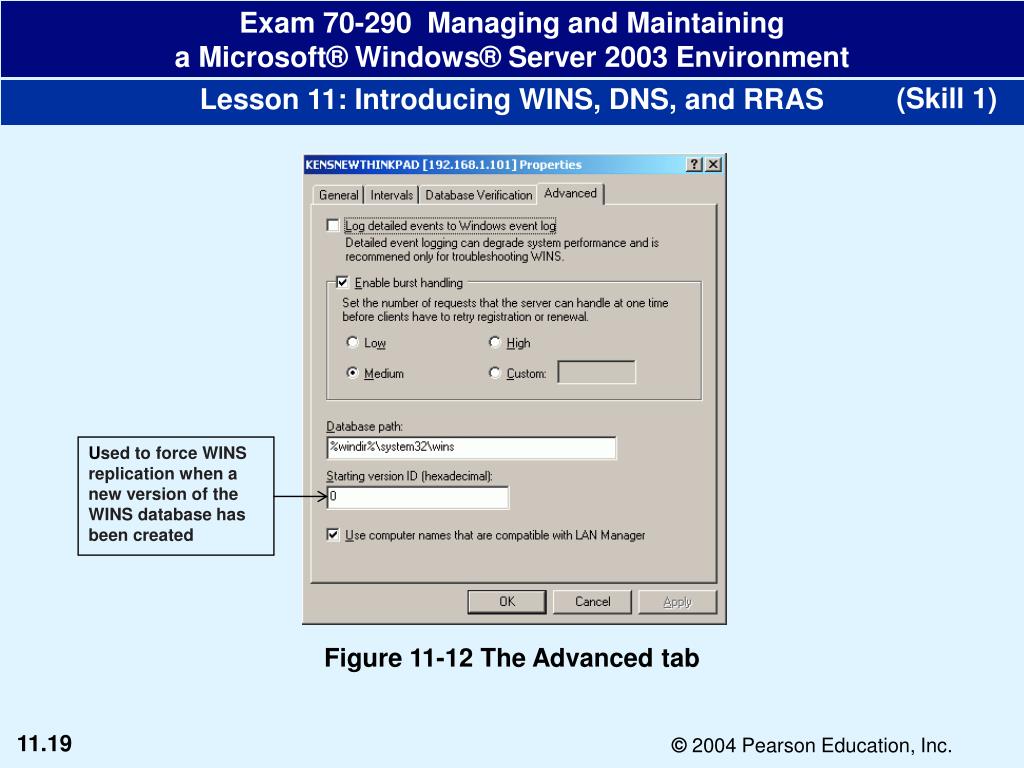

  19. (Skill 1) Used to force WINS replication when a new version of the WINS database has been created Figure 11-12 The Advanced tab

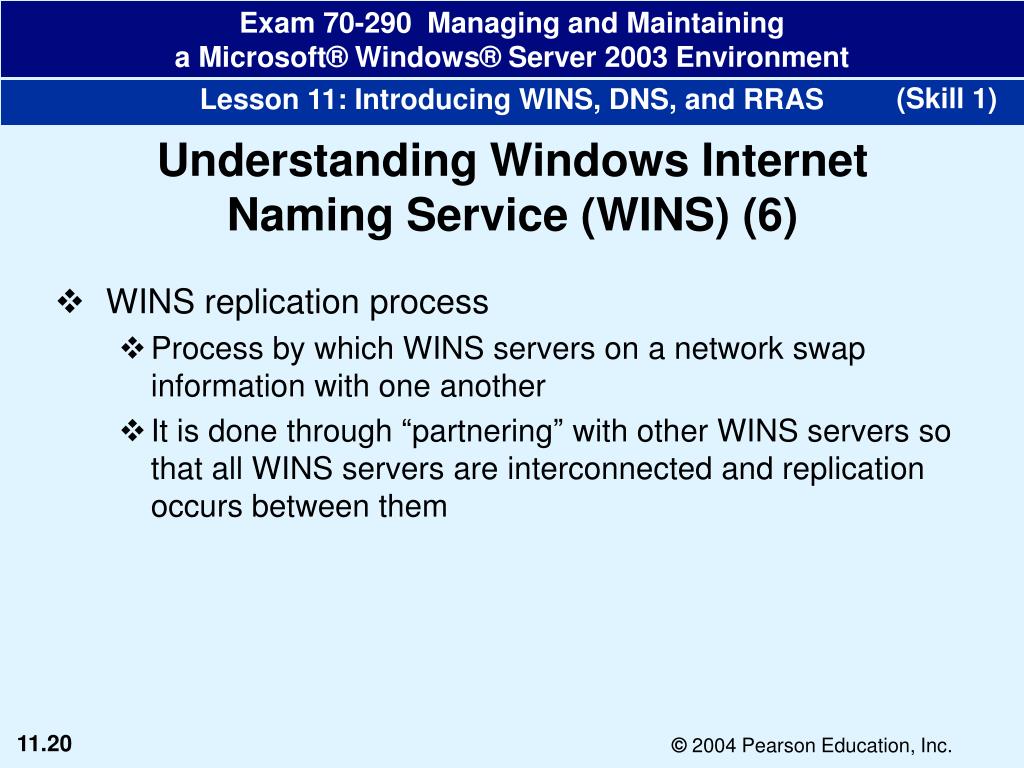

  20. (Skill 1) Understanding Windows Internet Naming Service (WINS) (6) • WINS replication process • Process by which WINS servers on a network swap information with one another • It is done through “partnering” with other WINS servers so that all WINS servers are interconnected and replication occurs between them

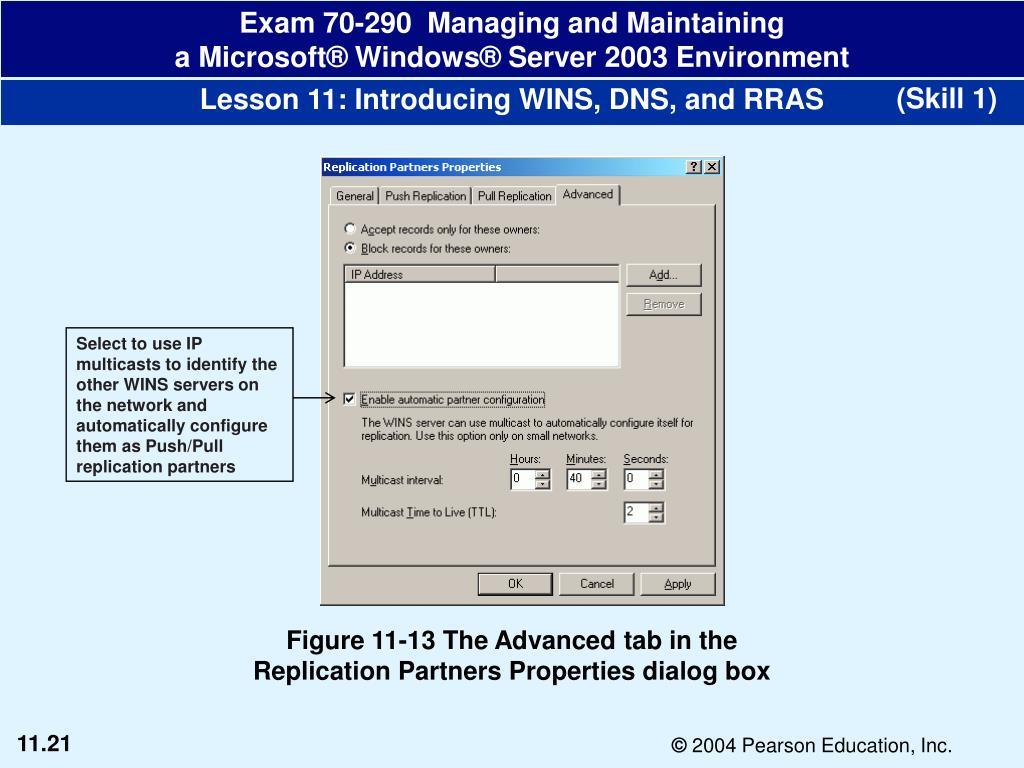

  21. (Skill 1) Select to use IP multicasts to identify the other WINS servers on the network and automatically configure them as Push/Pull replication partners Figure 11-13 The Advanced tab in the Replication Partners Properties dialog box

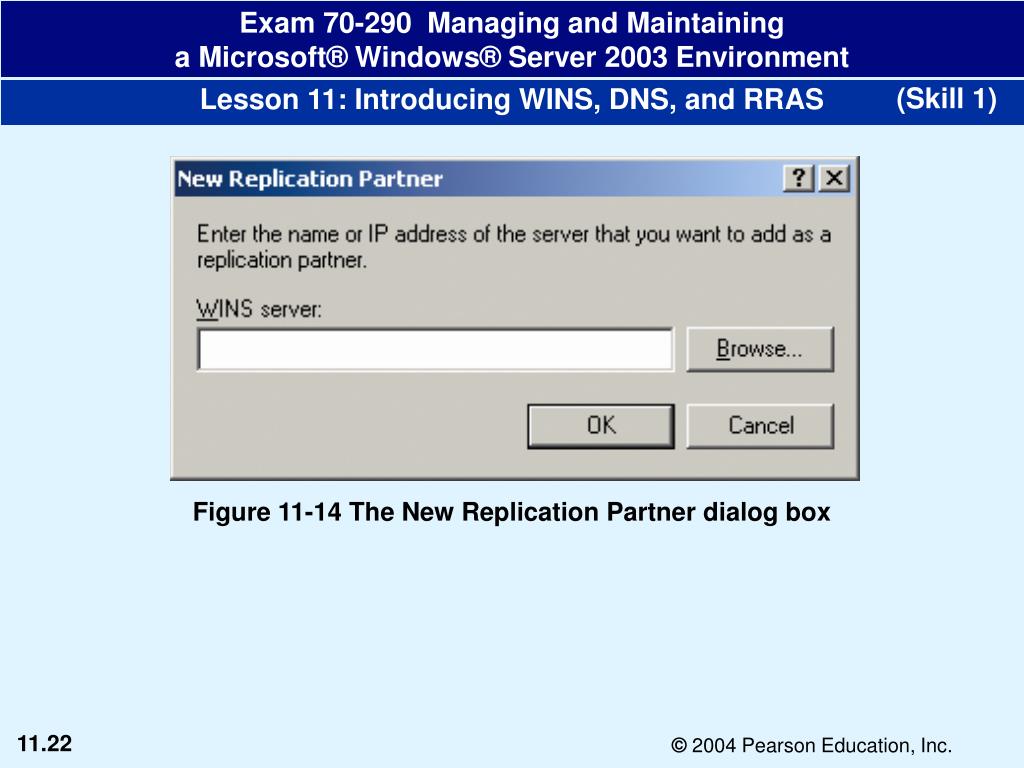

  22. (Skill 1) Figure 11-14 The New Replication Partner dialog box

  23. (Skill 1) Figure 11-15 The Replication Partners Properties dialog box

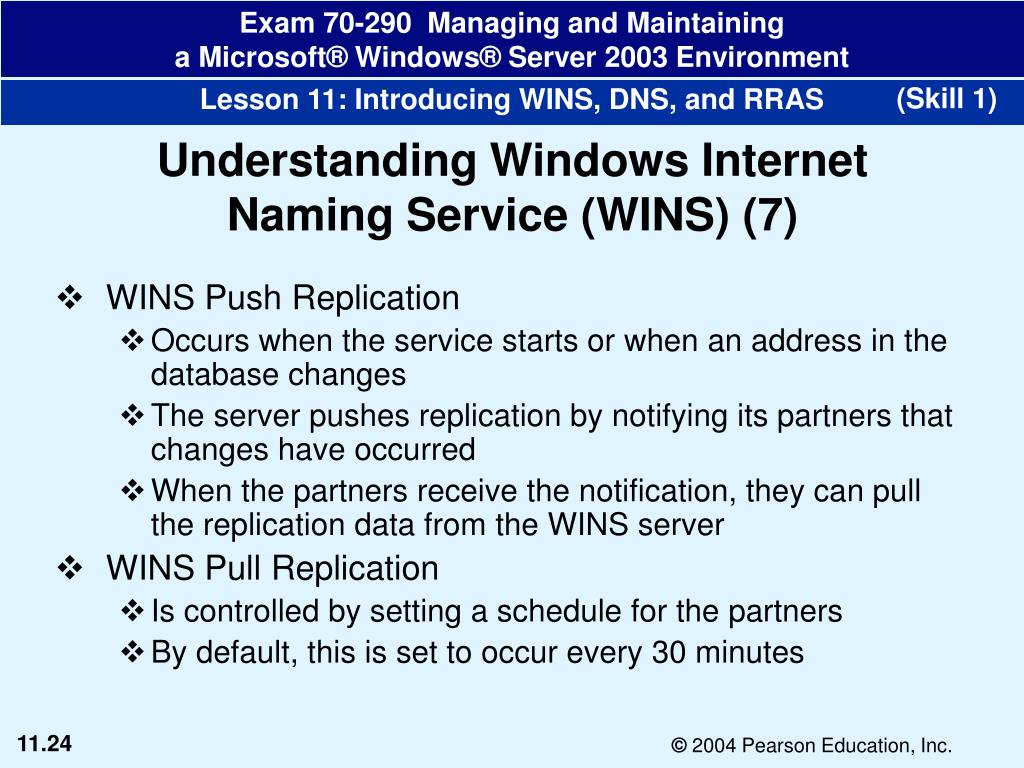

  24. (Skill 1) Understanding Windows Internet Naming Service (WINS) (7) • WINS Push Replication • Occurs when the service starts or when an address in the database changes • The server pushes replication by notifying its partners that changes have occurred • When the partners receive the notification, they can pull the replication data from the WINS server • WINS Pull Replication • Is controlled by setting a schedule for the partners • By default, this is set to occur every 30 minutes

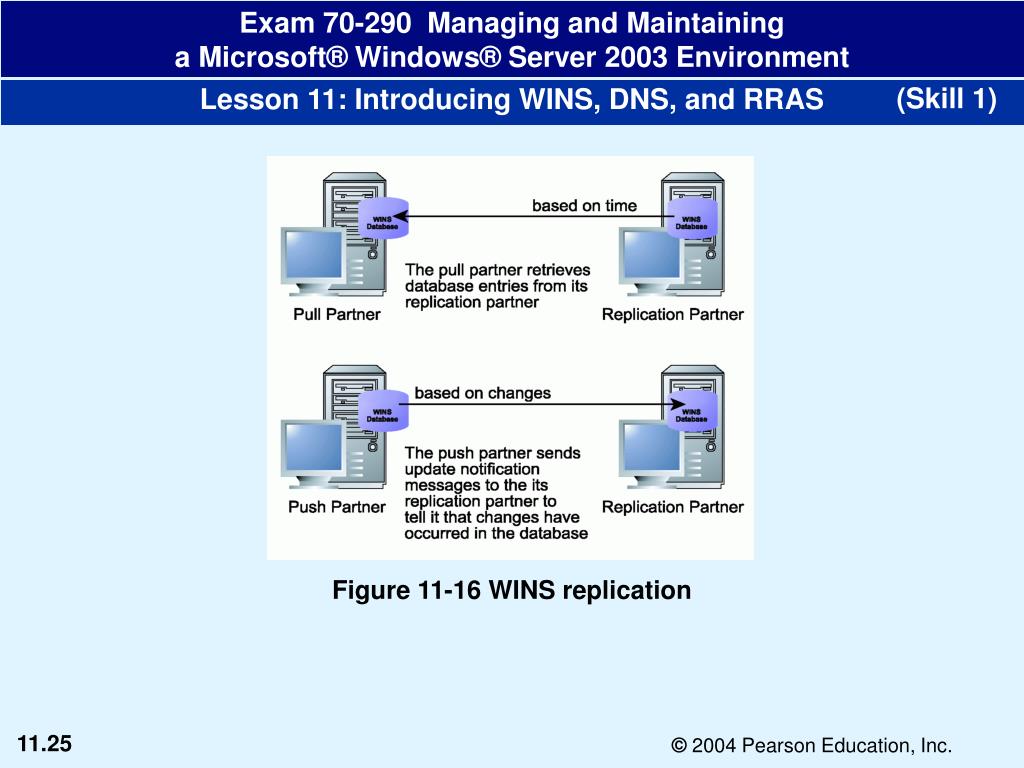

  25. (Skill 1) Figure 11-16 WINS replication

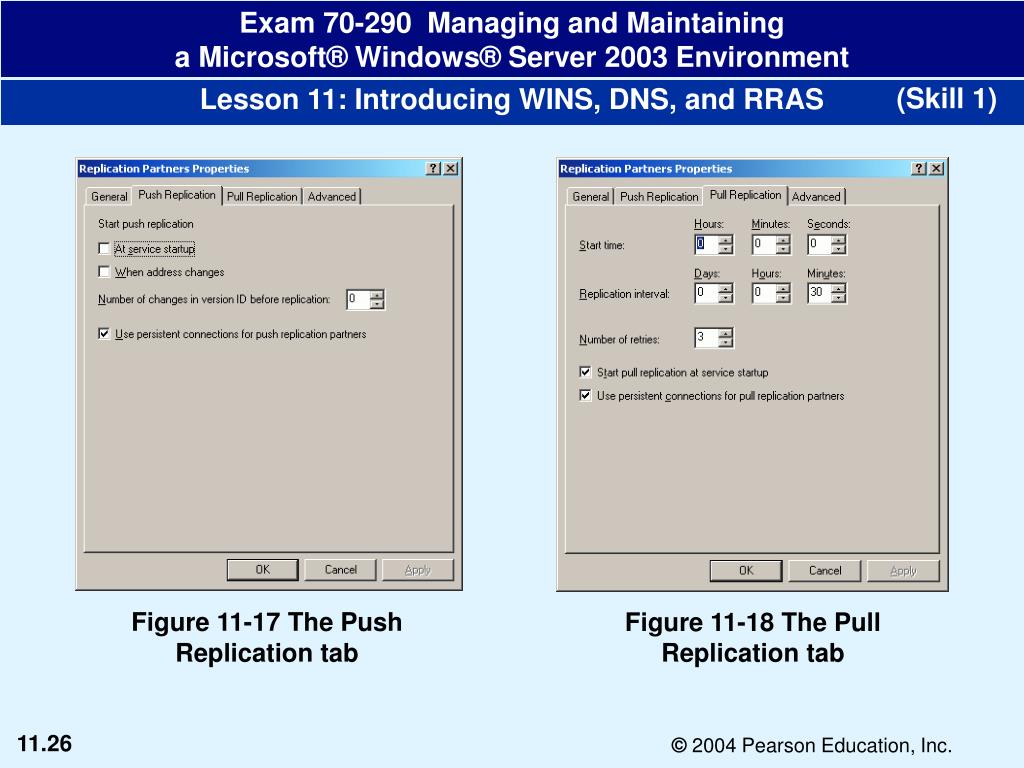

  26. (Skill 1) Figure 11-17 The Push Replication tab Figure 11-18 The Pull Replication tab

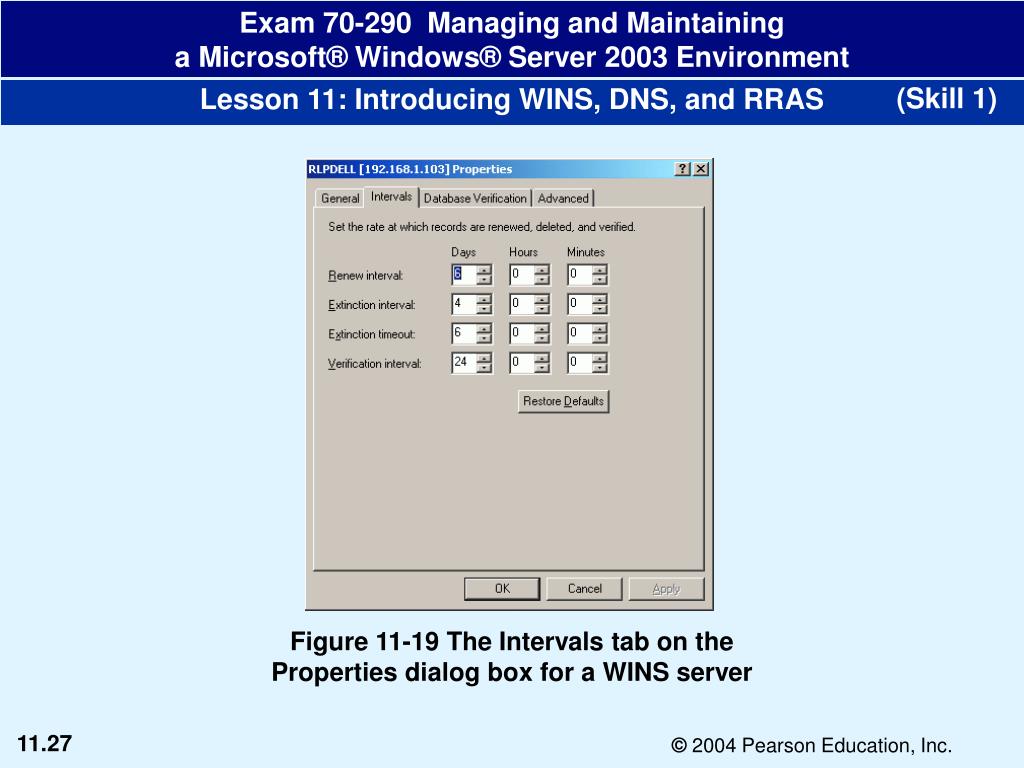

  27. (Skill 1) Figure 11-19 The Intervals tab on the Properties dialog box for a WINS server

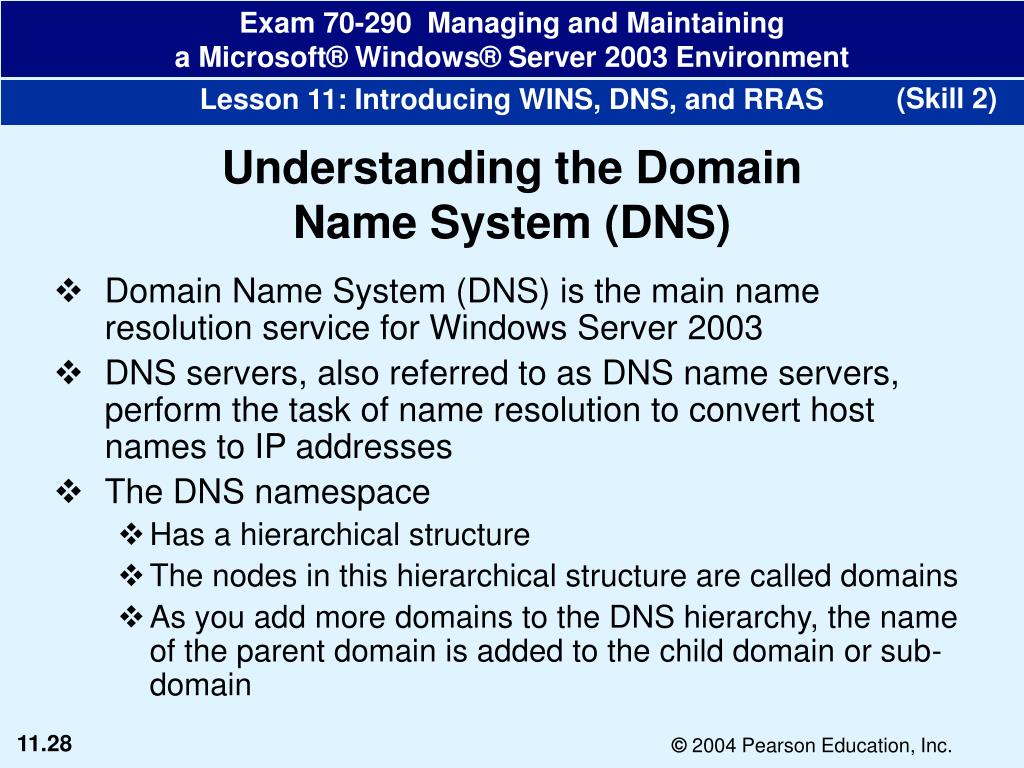

  28. (Skill 2) Understanding the Domain Name System (DNS) • Domain Name System (DNS) is the main name resolution service for Windows Server 2003 • DNS servers, also referred to as DNS name servers, perform the task of name resolution to convert host names to IP addresses • The DNS namespace • Has a hierarchical structure • The nodes in this hierarchical structure are called domains • As you add more domains to the DNS hierarchy, the name of the parent domain is added to the child domain or sub-domain

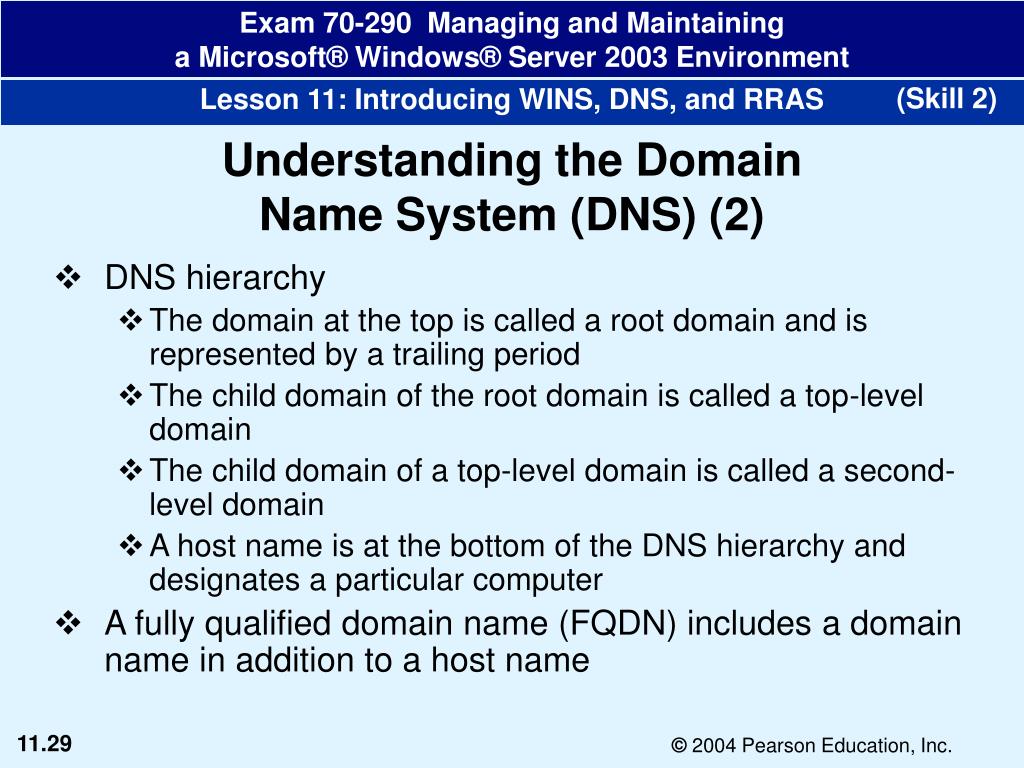

  29. (Skill 2) Understanding the Domain Name System (DNS) (2) • DNS hierarchy • The domain at the top is called a root domain and is represented by a trailing period • The child domain of the root domain is called a top-level domain • The child domain of a top-level domain is called a second-level domain • A host name is at the bottom of the DNS hierarchy and designates a particular computer • A fully qualified domain name (FQDN) includes a domain name in addition to a host name

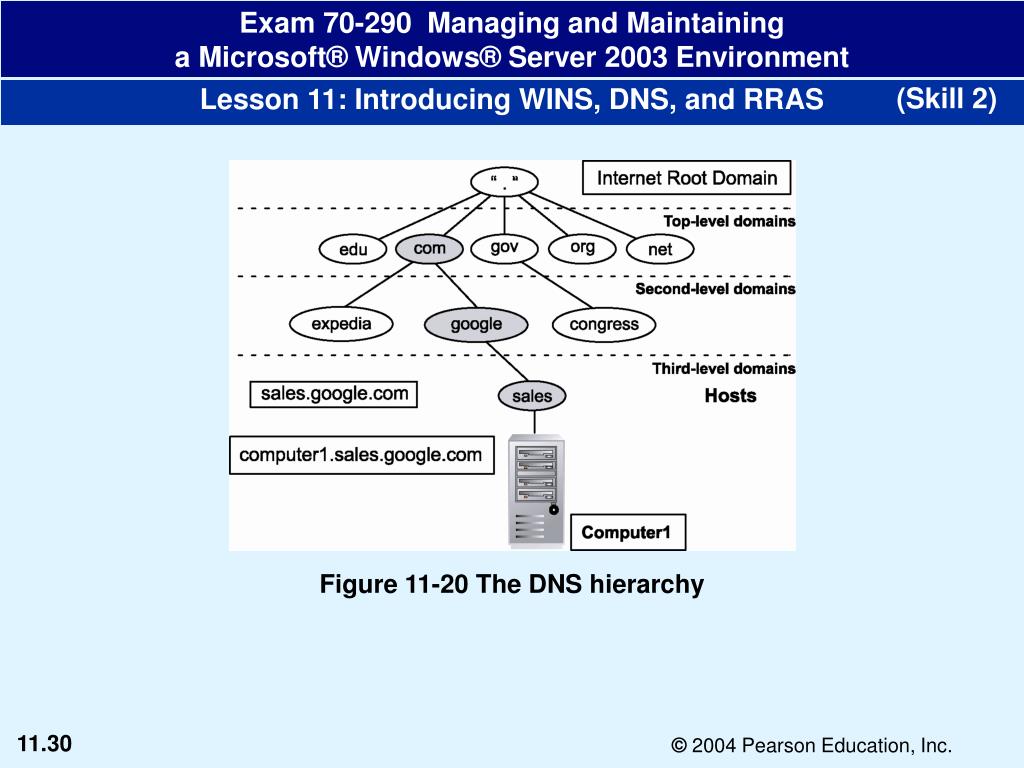

  30. (Skill 2) Figure 11-20 The DNS hierarchy

  31. (Skill 2) Figure 11-21 A FQDN

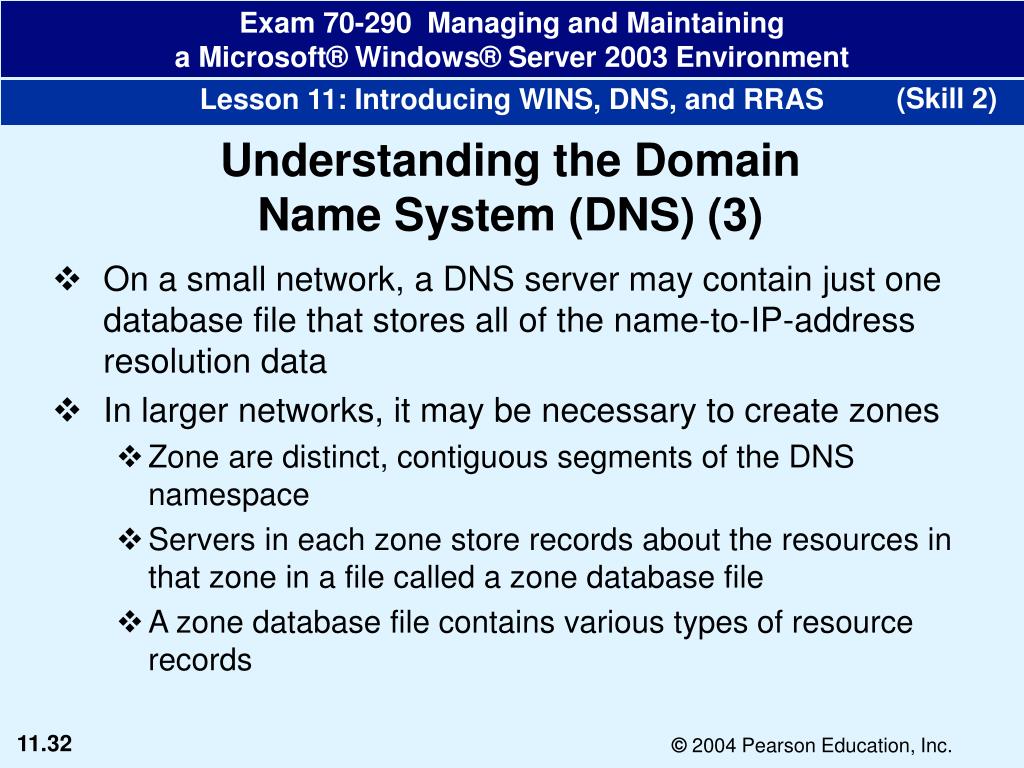

  32. (Skill 2) Understanding the Domain Name System (DNS) (3) • On a small network, a DNS server may contain just one database file that stores all of the name-to-IP-address resolution data • In larger networks, it may be necessary to create zones • Zone are distinct, contiguous segments of the DNS namespace • Servers in each zone store records about the resources in that zone in a file called a zone database file • A zone database file contains various types of resource records

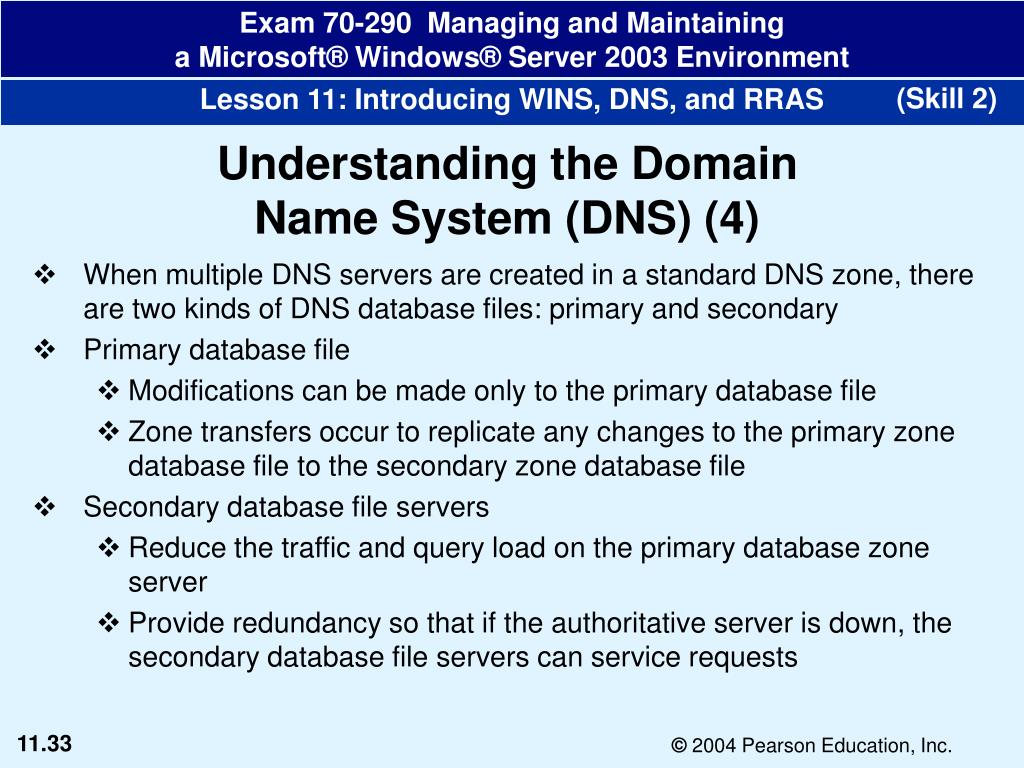

  33. (Skill 2) Understanding the Domain Name System (DNS) (4) • When multiple DNS servers are created in a standard DNS zone, there are two kinds of DNS database files: primary and secondary • Primary database file • Modifications can be made only to the primary database file • Zone transfers occur to replicate any changes to the primary zone database file to the secondary zone database file • Secondary database file servers • Reduce the traffic and query load on the primary database zone server • Provide redundancy so that if the authoritative server is down, the secondary database file servers can service requests

  34. (Skill 2) Understanding the Domain Name System (DNS) (5) • Caching-only name servers • Use caching to store information collected during name resolution • They are not authoritative for any zone • Cache query results to reduce network traffic • A query result can be cached for a specific amount of time called the Time to Live (TTL), after which it is deleted

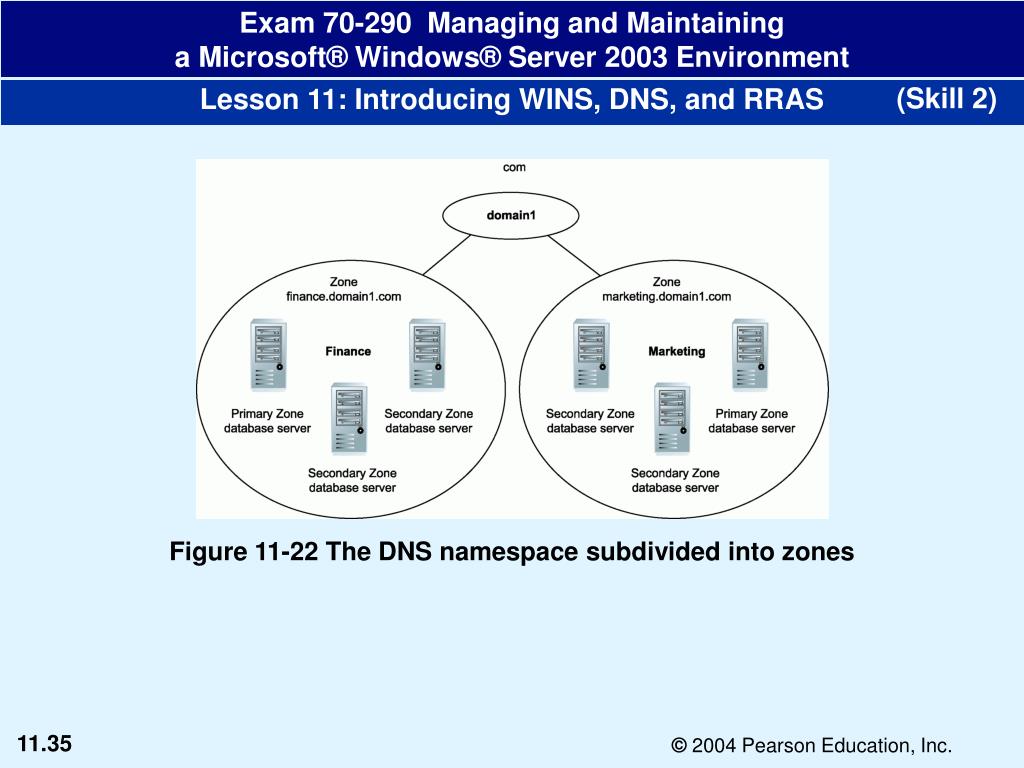

  35. (Skill 2) Figure 11-22 The DNS namespace subdivided into zones

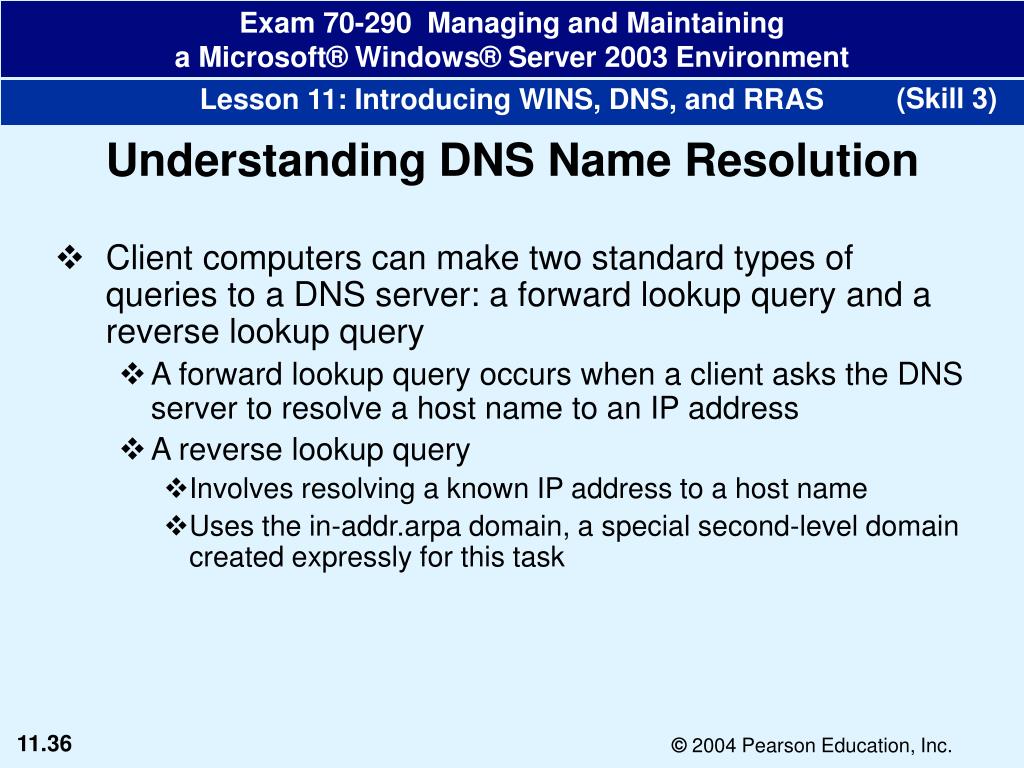

  36. (Skill 3) Understanding DNS Name Resolution • Client computers can make two standard types of queries to a DNS server: a forward lookup query and a reverse lookup query • A forward lookup query occurs when a client asks the DNS server to resolve a host name to an IP address • A reverse lookup query • Involves resolving a known IP address to a host name • Uses the in-addr.arpa domain, a special second-level domain created expressly for this task

  37. (Skill 3) Understanding DNS Name Resolution (2) • Recursive query • A type of forward lookup query used to request that a DNS name server provides the full and complete answer to the query • It is a request for the answer, not for a referral to another DNS server that may be able to answer the query • Iterative query • If the designated DNS name server is unable to resolve the destination host name on its own, it sends an iterative query on behalf of the client to assist in answering the recursive query • Iterative queries allow DNS servers to send back pointer or referrals • Resolver • A host that performs a recursive search and issues iterative queries • Queries other DNS name servers, including root servers, to look up DNS records on behalf of the client

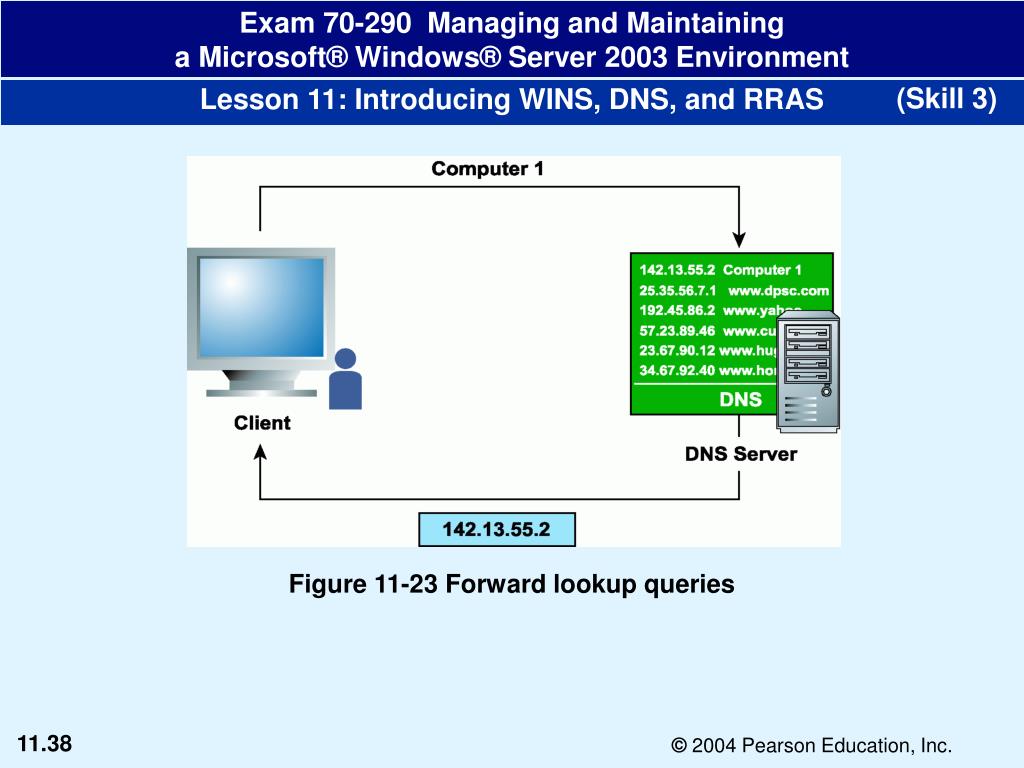

  38. (Skill 3) Figure 11-23 Forward lookup queries

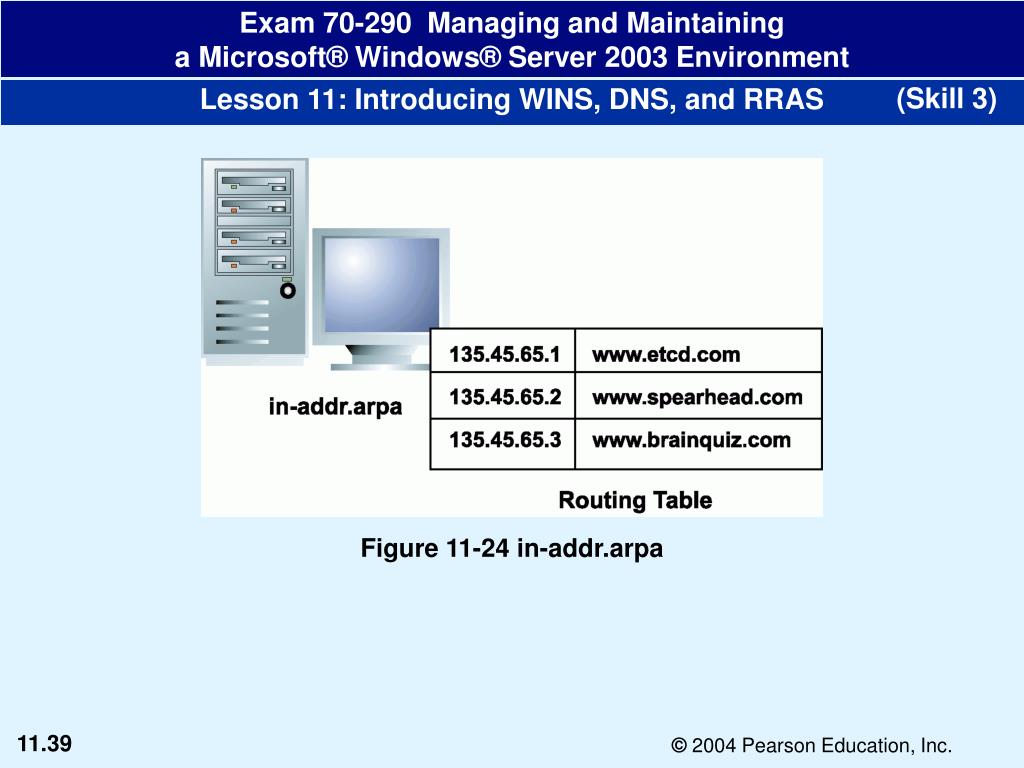

  39. (Skill 3) Figure 11-24 in-addr.arpa

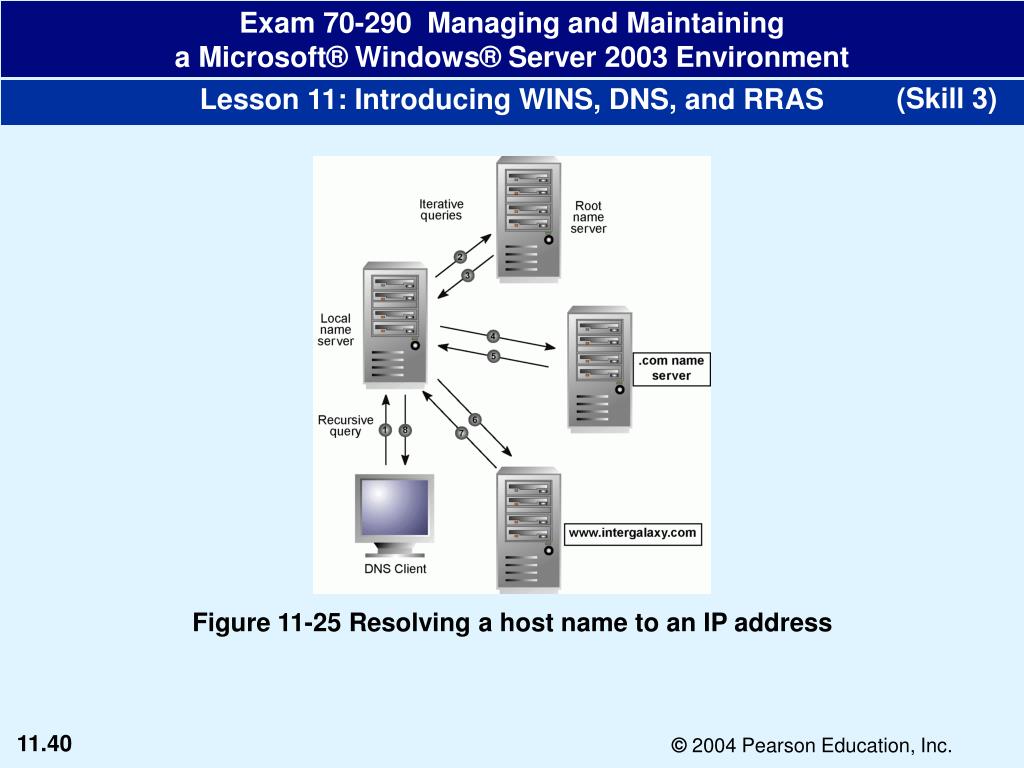

  40. (Skill 3) Figure 11-25 Resolving a host name to an IP address

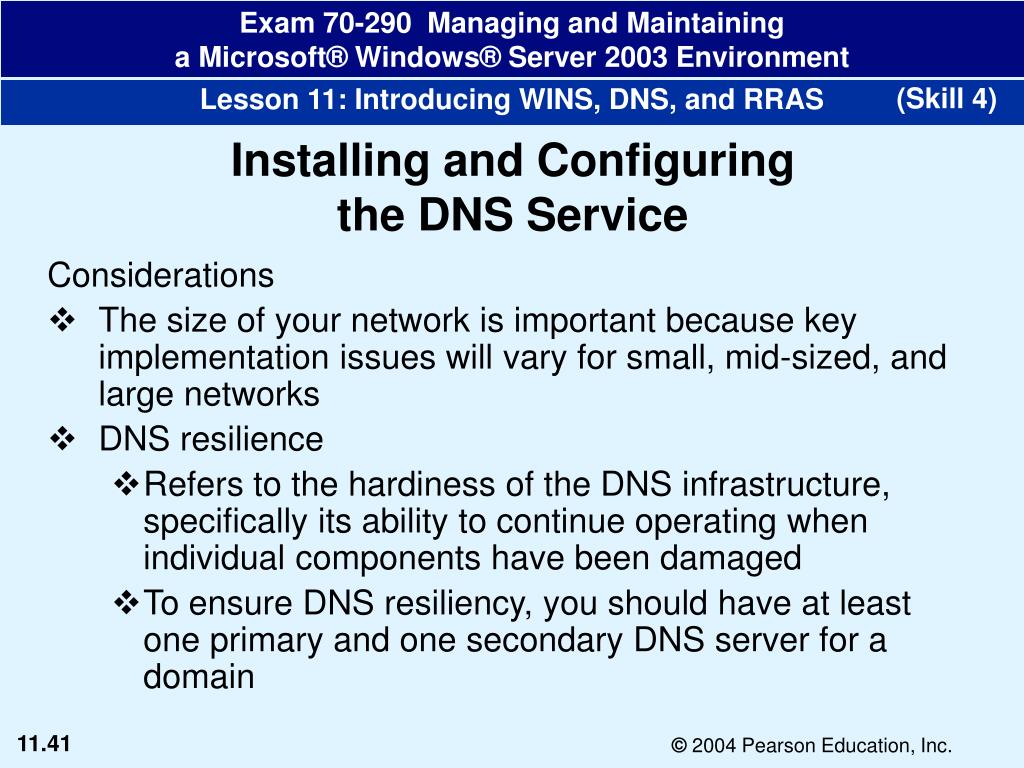

  41. (Skill 4) Installing and Configuring the DNS Service Considerations • The size of your network is important because key implementation issues will vary for small, mid-sized, and large networks • DNS resilience • Refers to the hardiness of the DNS infrastructure, specifically its ability to continue operating when individual components have been damaged • To ensure DNS resiliency, you should have at least one primary and one secondary DNS server for a domain

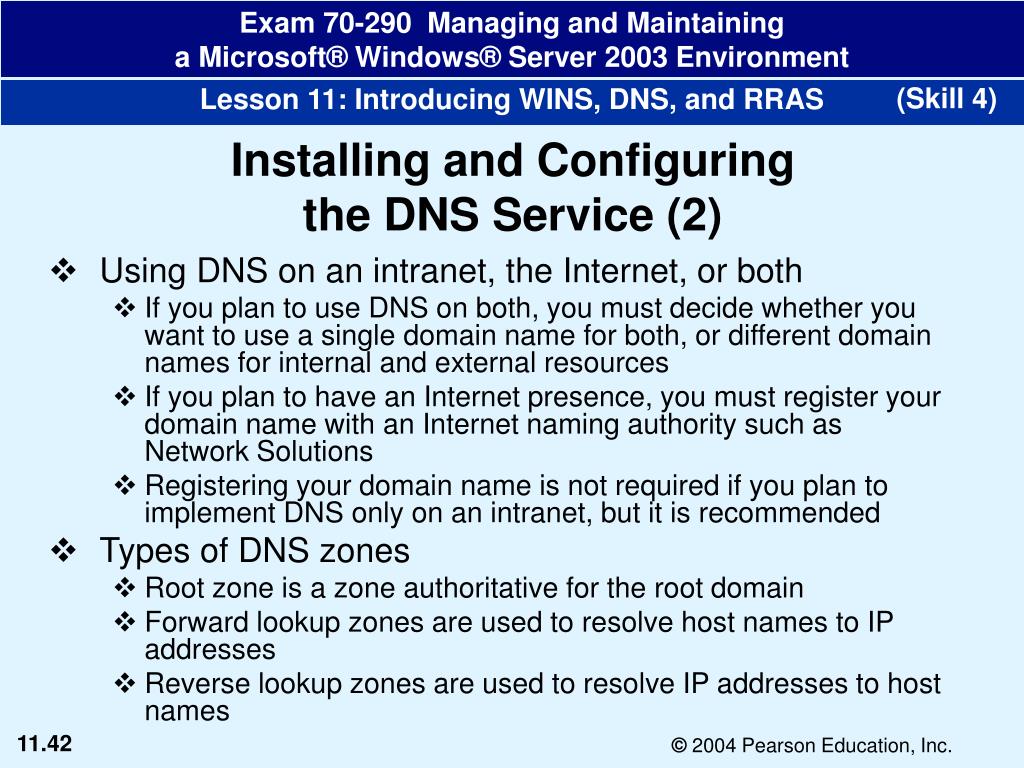

  42. (Skill 4) Installing and Configuring the DNS Service (2) • Using DNS on an intranet, the Internet, or both • If you plan to use DNS on both, you must decide whether you want to use a single domain name for both, or different domain names for internal and external resources • If you plan to have an Internet presence, you must register your domain name with an Internet naming authority such as Network Solutions • Registering your domain name is not required if you plan to implement DNS only on an intranet, but it is recommended • Types of DNS zones • Root zone is a zone authoritative for the root domain • Forward lookup zones are used to resolve host names to IP addresses • Reverse lookup zones are used to resolve IP addresses to host names

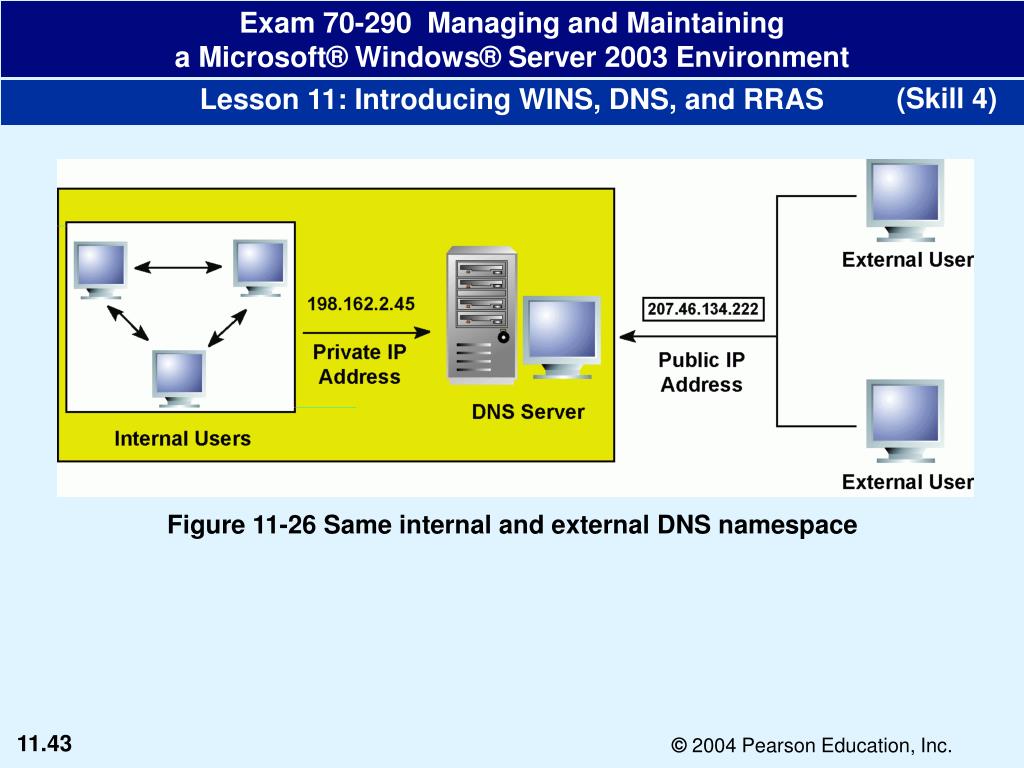

  43. (Skill 4) Figure 11-26 Same internal and external DNS namespace

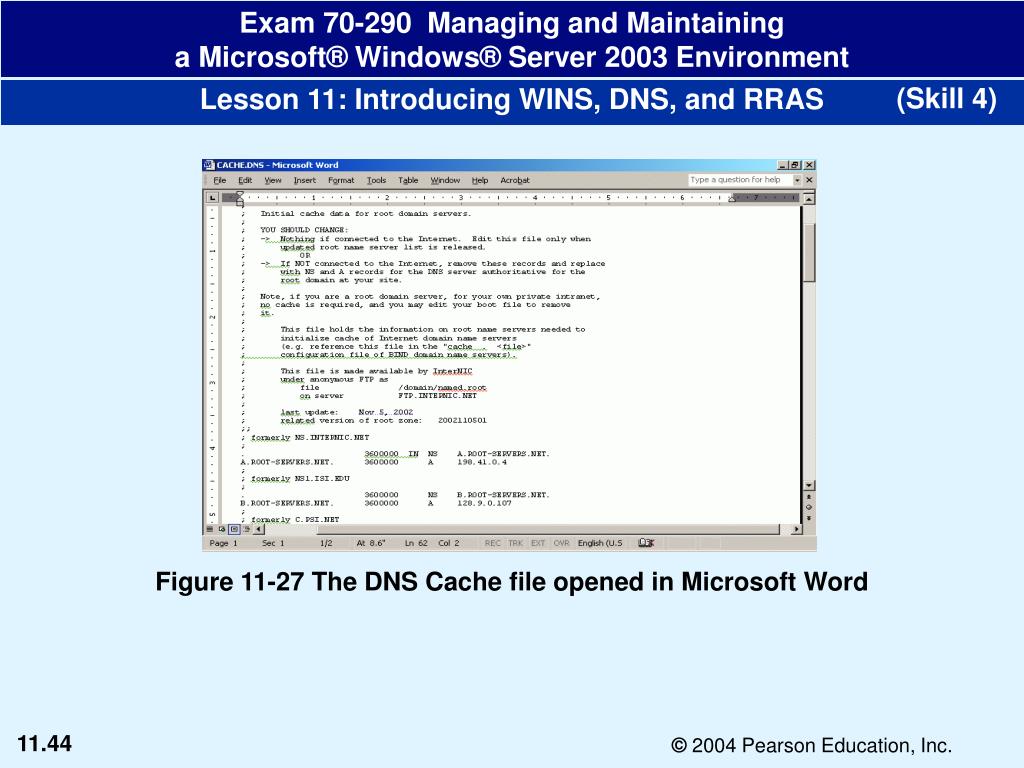

  44. (Skill 4) Figure 11-27 The DNS Cache file opened in Microsoft Word

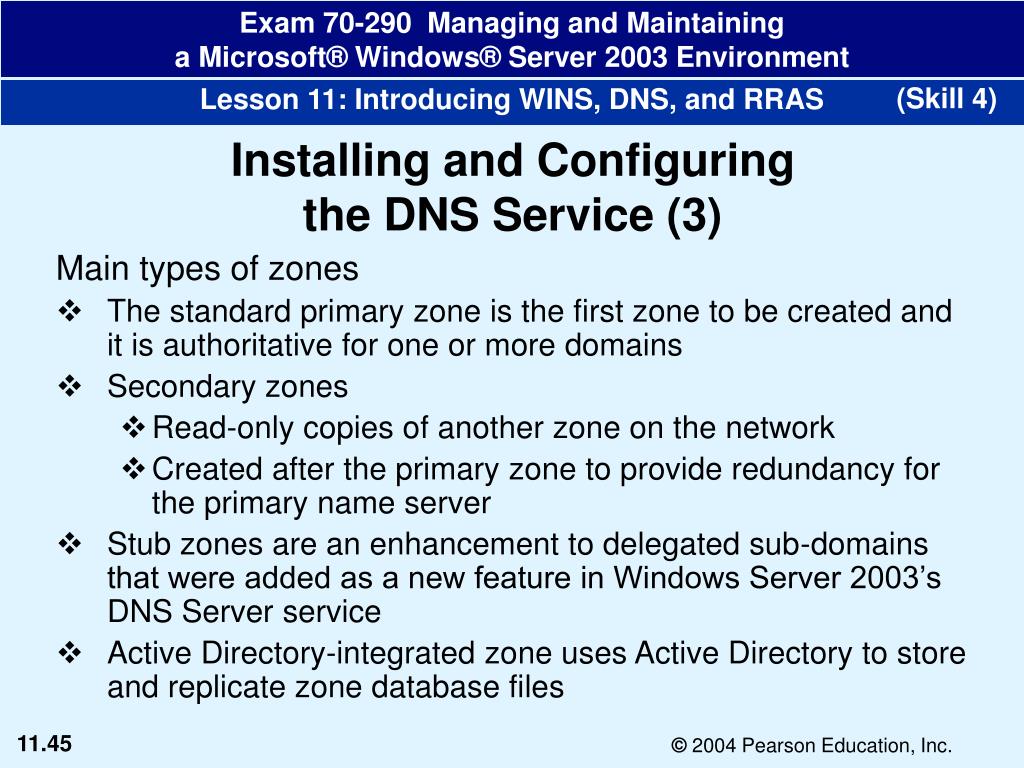

  45. (Skill 4) Installing and Configuring the DNS Service (3) Main types of zones • The standard primary zone is the first zone to be created and it is authoritative for one or more domains • Secondary zones • Read-only copies of another zone on the network • Created after the primary zone to provide redundancy for the primary name server • Stub zones are an enhancement to delegated sub-domains that were added as a new feature in Windows Server 2003’s DNS Server service • Active Directory-integrated zone uses Active Directory to store and replicate zone database files

  46. (Skill 4) Installing and Configuring the DNS Service (4) • Locations where DNS zones can be stored in Active Directory • Domain directory partition • Where data pertaining to a particular Active Directory domain is stored • This includes data about objects such as users and computers • Application directory partitions • Implemented to improve replication efficiency in situations where only a subset of the domain controllers needs a copy of the application data • Use them to store data that will only be replicated to a specific group of domain controllers

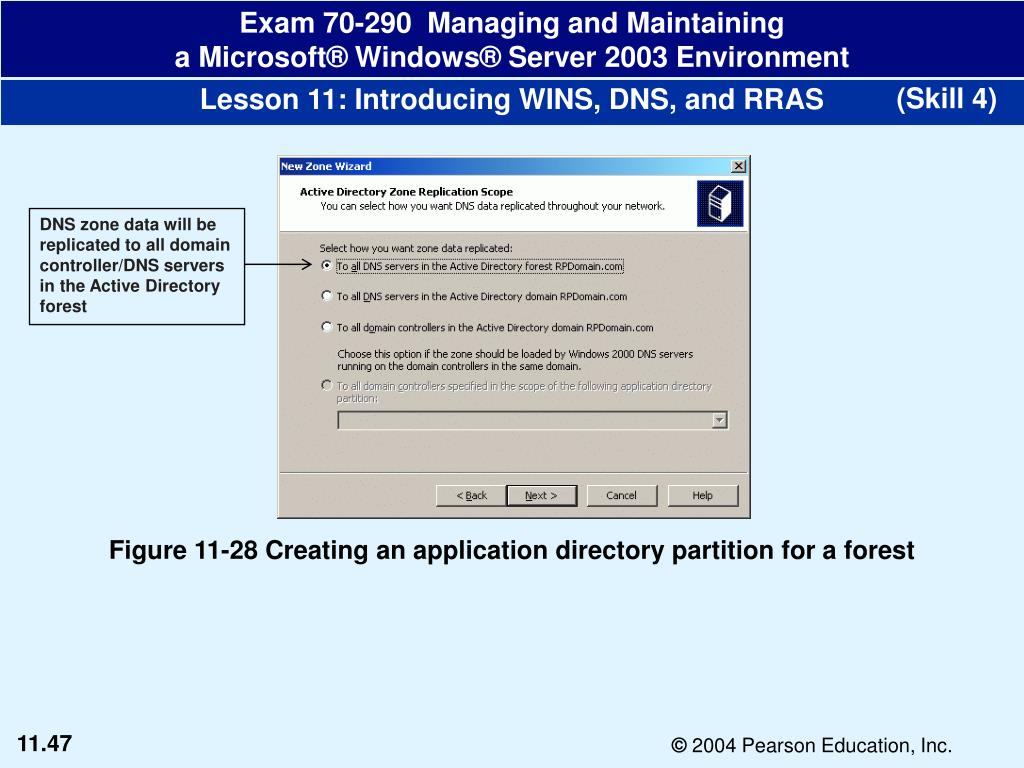

  47. (Skill 4) DNS zone data will be replicated to all domain controller/DNS servers in the Active Directory forest Figure 11-28 Creating an application directory partition for a forest

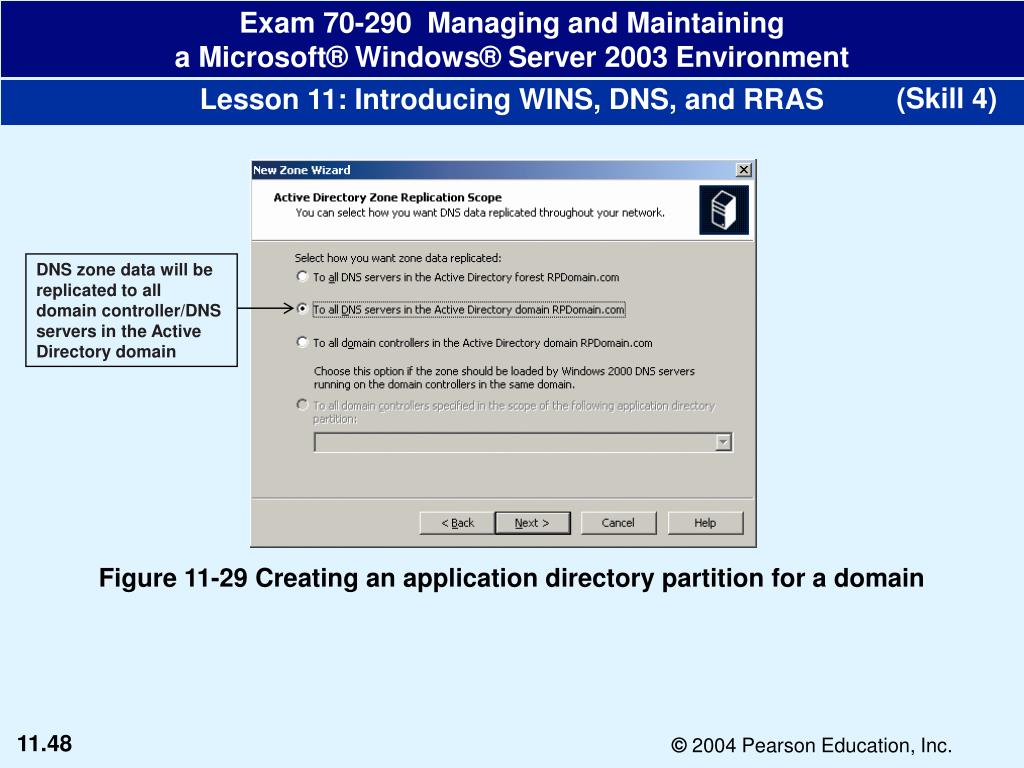

  48. (Skill 4) DNS zone data will be replicated to all domain controller/DNS servers in the Active Directory domain Figure 11-29 Creating an application directory partition for a domain

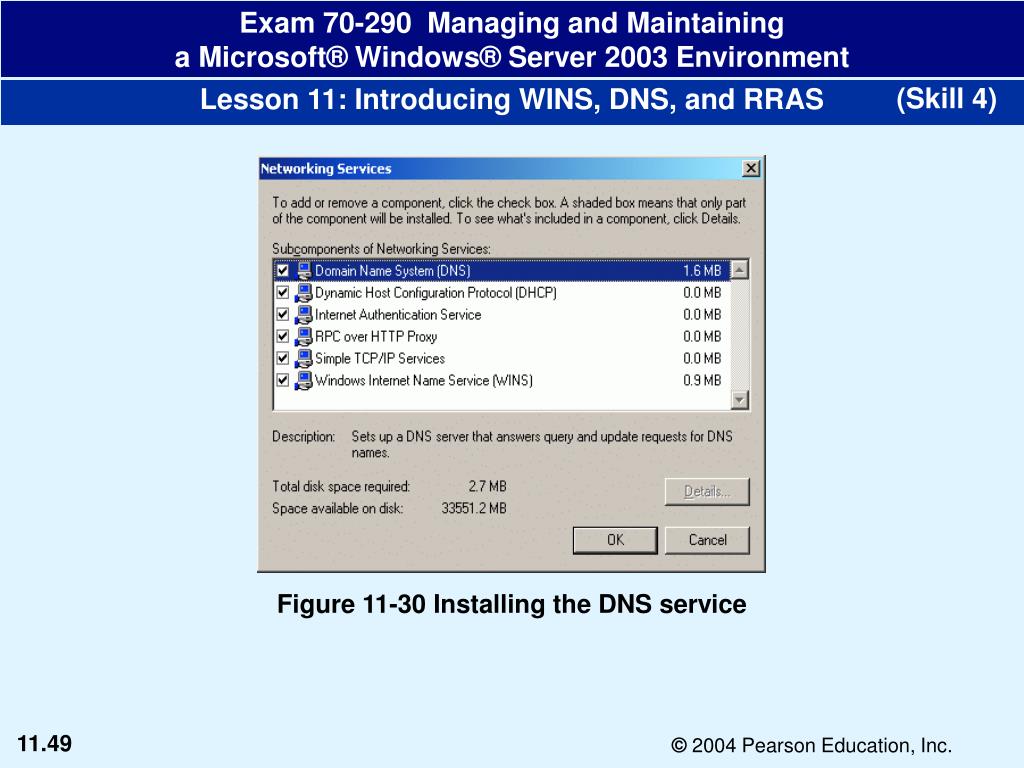

  49. (Skill 4) Figure 11-30 Installing the DNS service

  50. (Skill 4) Figure 11-31 The dnsmgmt console
