  1. OSD tutorial Joshua, 2005.3.2

  2. Outline • Introduction • Bmp format, OSD, OSD header, palette, image data • New OSD driver • Five W, structure and functions overview • Debug method • Some programming issues • Style, skills • Summary

  3. Introduction • An BMP file • An image format that only defines an image in terms of black and white.(one color) • A bitmapped image is also known as a 1-bit image.

  4. Introduction • Single color is not enough for us. (why many?) • 1-bit one pixel (1-color) • 2-bits one pixel (4-color) • 4-bits one pixel (16-color) • 8-bits one pixel (256-color) • 24-bits one pixel (true-color)

  5. Introduction • BMP file format • Header • File size and offset to image data(bytes) • Info header • Width, height, and color format • Optional palette • Color palette • Image data

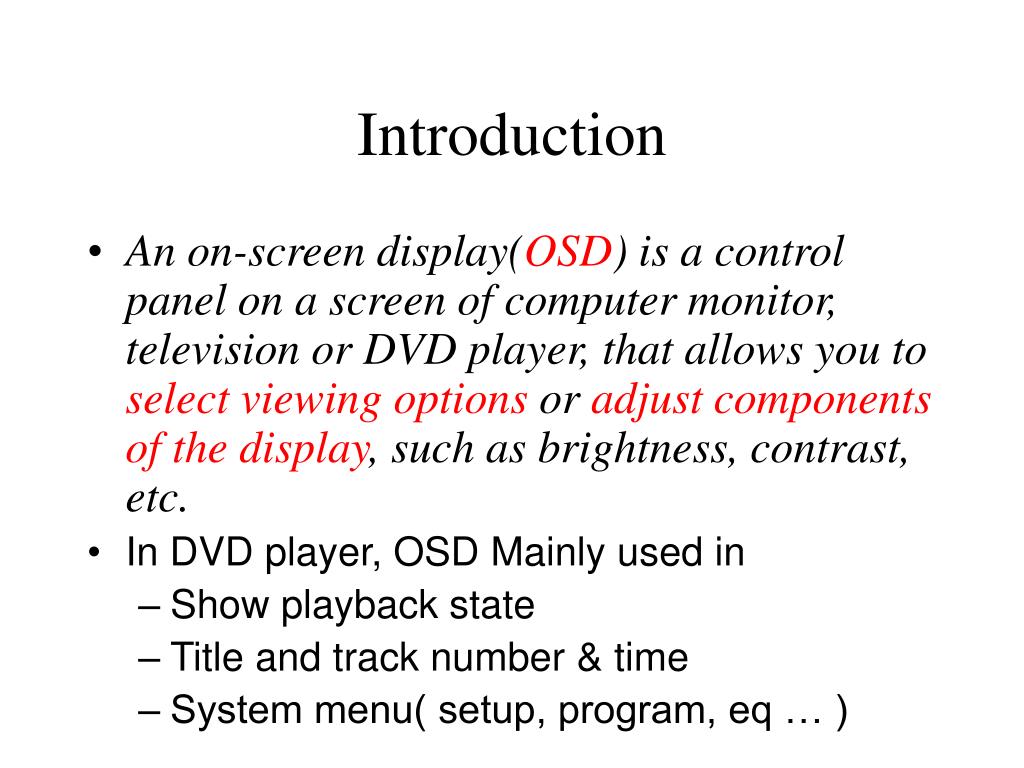

  6. Introduction • An on-screen display(OSD) is a control panel on a screen of computer monitor, television or DVD player, that allows you to select viewing options or adjust components of the display, such as brightness, contrast, etc. • In DVD player, OSD Mainly used in • Show playback state • Title and track number & time • System menu( setup, program, eq … )

  7. OSD memory

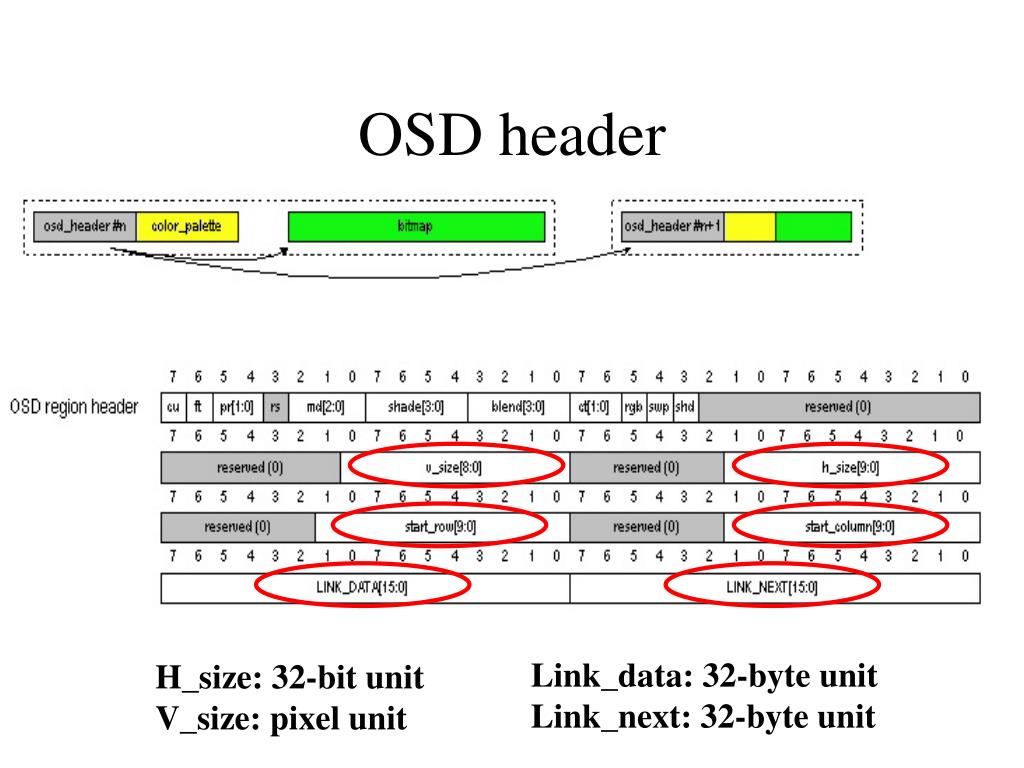

  8. OSD header Link_data: 32-byte unit Link_next: 32-byte unit H_size: 32-bit unit V_size: pixel unit

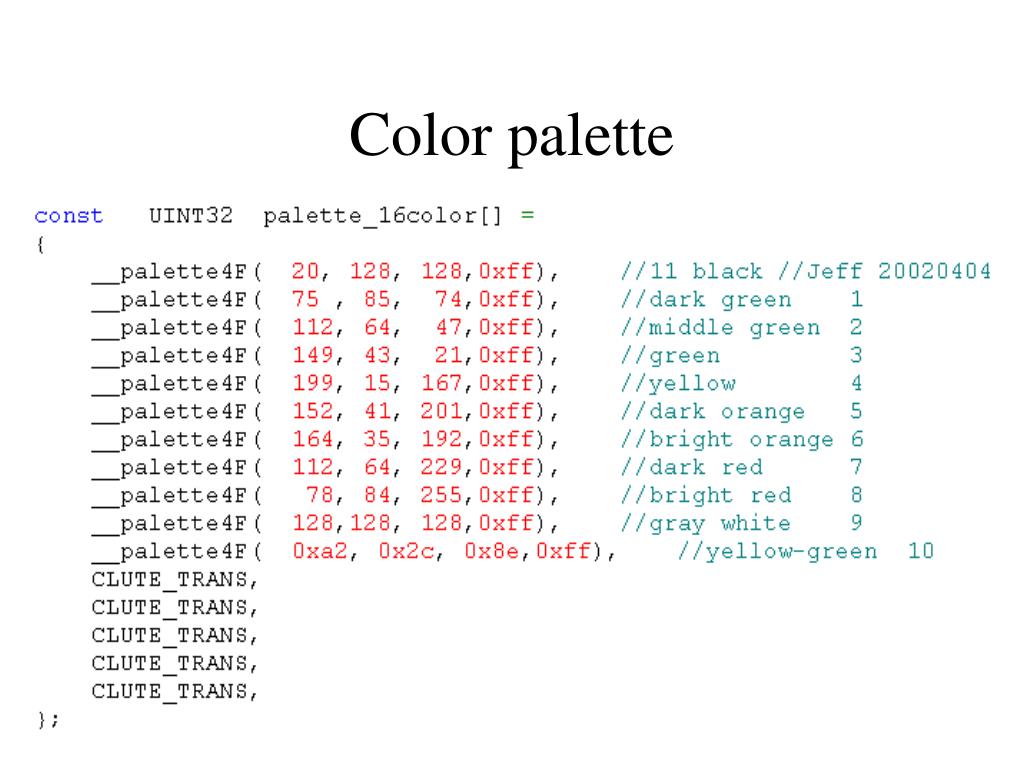

  9. Color palette

  10. 1-color bitmap 1=>font color => __palette4F(0x0,0x0,0xff,0xff) 0=>background color =>__palette4F(0x0,0x0,0x0,0xff)

  11. 16-color bitmap

  12. 16-color bitmap 16-color format, 4 bits represent one color index of one pixel

  13. Outline • Introduction • Bmp format, OSD header, palette, bitmap • New OSD driver • Five W, structure and functions overview • Some programming issues • Style, skills • Summary

  14. New OSD driver • Why • Easy maintain, reuse-functions, code size • What • An interface to control OSD hardware • When • Check in VSS on Feb 4 2005 • Where • OSD folder • Who • Joshua

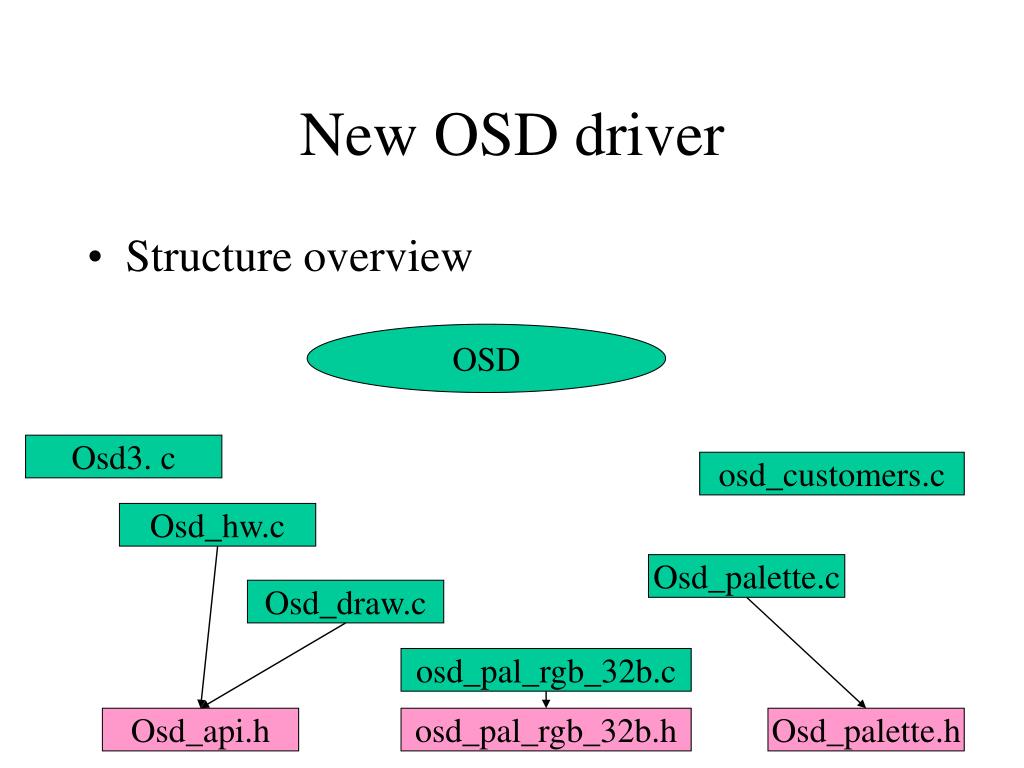

  15. New OSD driver • Structure overview OSD Osd3. c osd_customers.c Osd_hw.c Osd_palette.c Osd_draw.c osd_pal_rgb_32b.c Osd_api.h osd_pal_rgb_32b.h Osd_palette.h

  16. New OSD driver~How • In user_init.h, #define NEW_OSD_DRIVER • Functions review • int osd_set_region_position(); • int osd_draw_rectangle(); • int osd_draw_horizontal_line(); • int osd_draw_vertical_line(); • void osd_draw_rectangle_border(); • void osd_draw_button_border(); • void osd_draw_font_bitmap(); • int osd_draw_bmp();

  17. Functions review • Int osd_set_region_position (UINT8 region_index, UINT16 x, UINT16 y) • Purpose • 改變region在畫面中的位置 • Note • Y 是指interlace mode 中的Y座標 • 改變region位置後，如何知道region顯示順序？

  18. Functions review • Int osd_draw_rectangle (coordinate *start, dimension *in_dimension, UINT16 color, UINT8 region_index); • Purpose • 在某region中，畫一個長方形 • Note • 需傳入兩個位置，各別指向start, in_dimension這兩個結構變數

  19. Functions review • Int osd_draw_horizontal_line (UINT16 start_x, UINT16 end_x,UINT16 y, UINT16 color, UINT16 width, UINT8 region_index) • Purpose • 在某region中，畫一條直線 • Note • Width指直線的粗細 • osd_draw_vertical_line() is the same with this function

  20. Functions review • Int osd_draw_rectangle_border (coordinate *start, dimension *in_dimension, UINT16 line_width, UINT16 color, UINT8 region_index) • Purpose • 在某region中，畫某長方形的邊框 • Note • line_width指邊框的粗細

  21. Functions review • Int osd_draw_button_border (coordinate *start, coordinate *end, int bDown, unsigned mask, UINT8 region_index) • Purpose • 在某region中，畫某按鈕的邊框 • Note • bDown 判斷按鈕是否被按下 • Mask 判斷上下左右是否都要畫邊

  22. Functions review • Int osd_draw_font_bitmap (const UINT8* pFont, coordinate *start, dimension *in_dimension, font_palette *palette, UINT8 region_index) • Purpose • 在某region中，畫某字串 • Note • pFont 是指bmp array中image data的起頭 (需跳過前幾個byte) • 需傳入三個位置，各別指向start, in_dimension, palette 這三個結構變數

  23. Functions review • Int osd_draw_bmp (coordinate *start, const BYTE* bmp, BYTE region_index) • Purpose • 在某region中，畫某bmp圖檔 • Note • Bmp指的是此bmp array的始頭 (和osd_draw_font_bitmap不同) (第一個byte是指bmp長度，第二個byte是指bmp高度)

  24. Outline • Introduction • Bmp format, OSD header, palette, bitmap • New OSD driver • Five W, structure and functions overview • Debug method • Some programming issues • Style, skills • Summary

  25. Debug method • Osd • Check display-order of all regions • E.g. mon> osd • Region display-order is as follows: • Region[0]: (x,y)=( 26, 20) (width,height)=(608, 24) • Region[1]: (x,y)=( 32, 34) (width,height)=(576, 24) • Region[2]: (x,y)=( 32, 46) (width,height)=(576, 24)

  26. Debug method • Osd region %d • Check detail information of one region • E.g. mon> osd region 0 • header 0 => 81 (cu=1, ft=0, pr=0, md=1) • header 1 => FF (shade=15, blend=15) • header 2 => 68 (ct=1, rgb=1, swp=0,shd=1) • region x => 26 (pixel) • region y => 20 (pixel) • region width => 304 (byte) • region visible width => 608 (pixel) • region height => 24 (pixel)

  27. Debug method • Osd palette %d • Check palette of one region • E.g. mon> osd palette 0 • CLUT [G B R Alpha] • [ 0] [96 D2 8D E0] • [ 1] [ A A A FF] • [ 2] [F3 F3 F3 FF] • [ 3] [84 84 84 F0] • [ 4] [ A FF 16 FF] • [ 5] [A3 46 FF C0] • [ 6] [B3 FF 88 E0] • [ 7] [FF 0 FF FF] • [ 8] [B4 2B 15 FF] • [ 9] [B4 2C 8E FF] • [ 10] [FF FF FF FF] • [ 11] [ 0 46 0 FF] • [ 12] [1E 1E F5 FF] • [ 13] [D1 C9 2F E0] • [ 14] [C0 C0 C0 E0] • [ 15] [80 80 80 0]

  28. Outline • Introduction • Bmp format, OSD header, palette, bitmap • New OSD driver • Five W, structure and functions overview • Debug method • Some programming issues • Style, skills • Summary

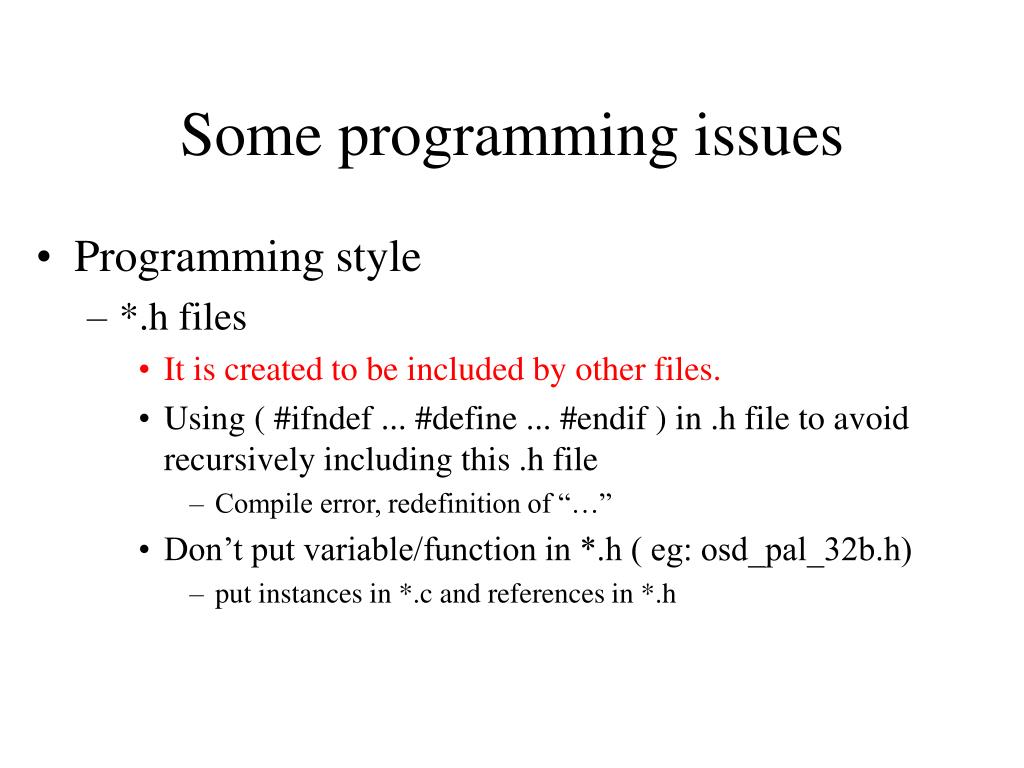

  29. Some programming issues • Programming style • *.h files • It is created to be included by other files. • Using ( #ifndef ... #define ... #endif ) in .h file to avoid recursively including this .h file • Compile error, redefinition of “…” • Don’t put variable/function in *.h ( eg: osd_pal_32b.h) • put instances in *.c and references in *.h

  30. Some programming issues • An error example(osd_pal_32b.h) A include osd_pal_32b.h B include osd_pal_32b.h Multiple definition error(linking)

  31. Some programming issues • Programming style • *.c files • Don’t arbitrarily use keyword, extern, to access variable/function • Include *.h where necessary references are. • Using conditional #define to output debug message • For example, osd_draw.c

  32. Outline • Introduction • Bmp format, OSD header, palette, bitmap • New OSD driver • Why, what, when, where, how • Some programming issues • Style, skills • Summary

  33. Summary • Welcome to use OSD driver frequently. • Away from osd hardware • Reuse function and code size • Easy maintain • Focus on GUI program logics • Simple and clear equal to better
