Presentation Transcript


What is m700dm4

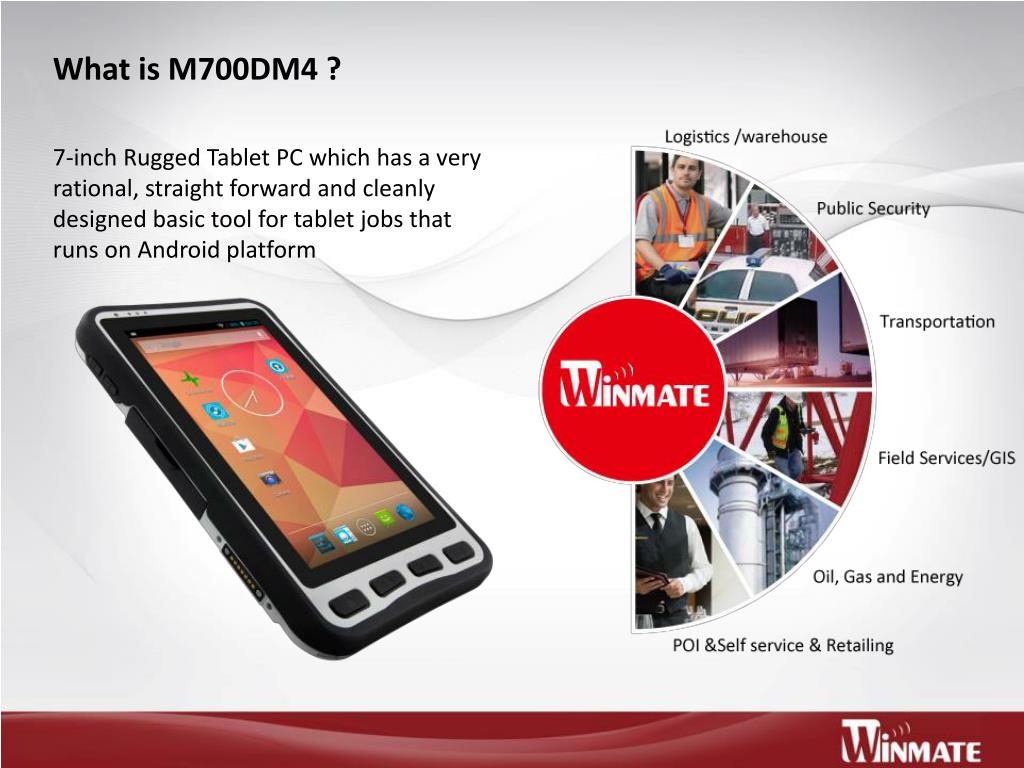

What is M700DM4 ?

7-inch Rugged Tablet PC which has a very rational, straight forward and cleanly designed basic tool for tablet jobs that runs on Android platform


What is m700dm4

How does it fit into the Ultra Rugged and Rugged Tablet PC?

5.7”

7”

9.7”

10.1”

Rugged

G570Z

M700D

M700DM4

M970D

M101B/H

8.4”

10.4”

12.1”

Ultra Rugged

R08ID8M

R10IS8M

R12IS8M


What is m700dm4

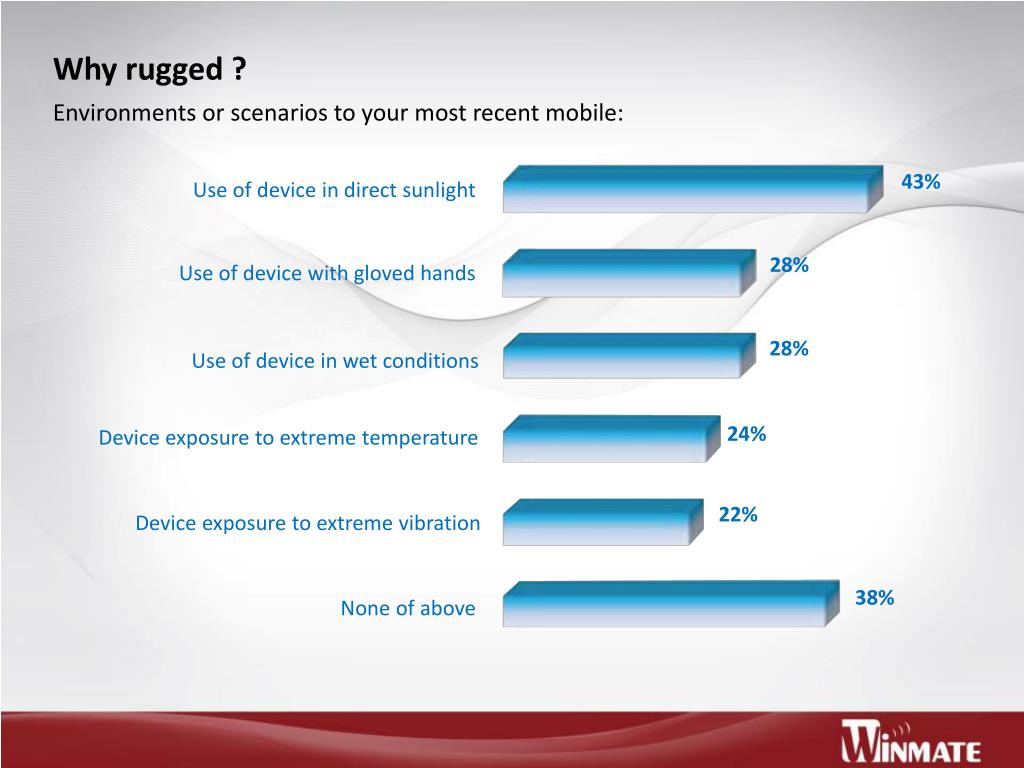

Why rugged ?

Environments or scenarios to your most recent mobile:

43%

Use of device in direct sunlight

28%

Use of device with gloved hands

28%

Use of device in wet conditions

24%

Device exposure to extreme temperature

22%

Device exposure to extreme vibration

38%

None of above


What is m700dm4

Why rugged ?

Leading Symptoms of device failure:

67%

Cracked Display

48%

Software Failure

30%

Damage Keypad

19%

Driver Failure

16%

Wireless Radio

16%

Peripheral / accessories

9%

Plug in wireless card


What is m700dm4

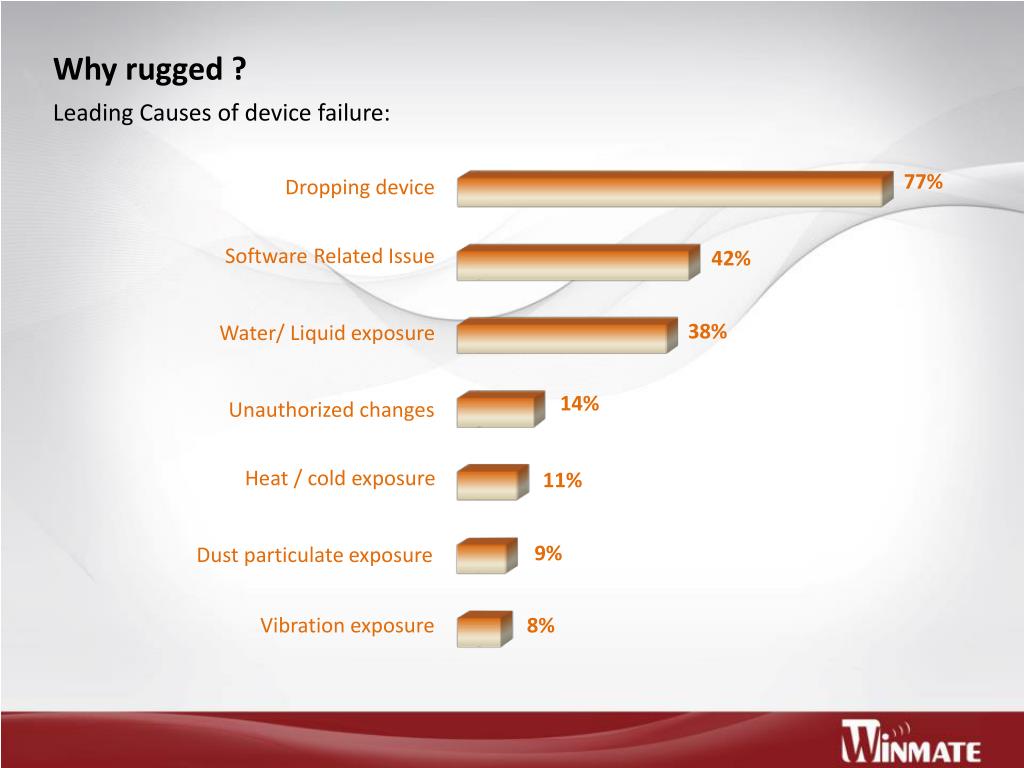

Why rugged ?

Leading Causes of device failure:

77%

42%

38%

14%

Dropping device

11%

Software Related Issue

Water/ Liquid exposure

9%

Unauthorized changes

Heat / cold exposure

8%

Dust particulate exposure

Vibration exposure


What is m700dm4

Customer feedback and research on Tablets

Winmate always listening to customer and improving our products

Environments or User scenario

M700DM4 Concept

Use device in harsh environment

74%

Ruggedness

IP65 for dust and water proof

Use device in direct sunlight

43%

High visibility under sunlight

Superb Display

Use device with gloves hand

28%

Hot Tab and physical button

Usability

Too heavy to carry

Sleek and simple design

Form Factor


What is m700dm4

Key Features

Thin and lightweight design

7” as the major form factor

Superb display

500 nits, WSVGA TFT LCD Display

Ease of Use / high usability

Hot tab to provide faster and easy use to perform basic tasks

Rugged

Full IP65 and compliant with MIL-STD-810F


What is m700dm4

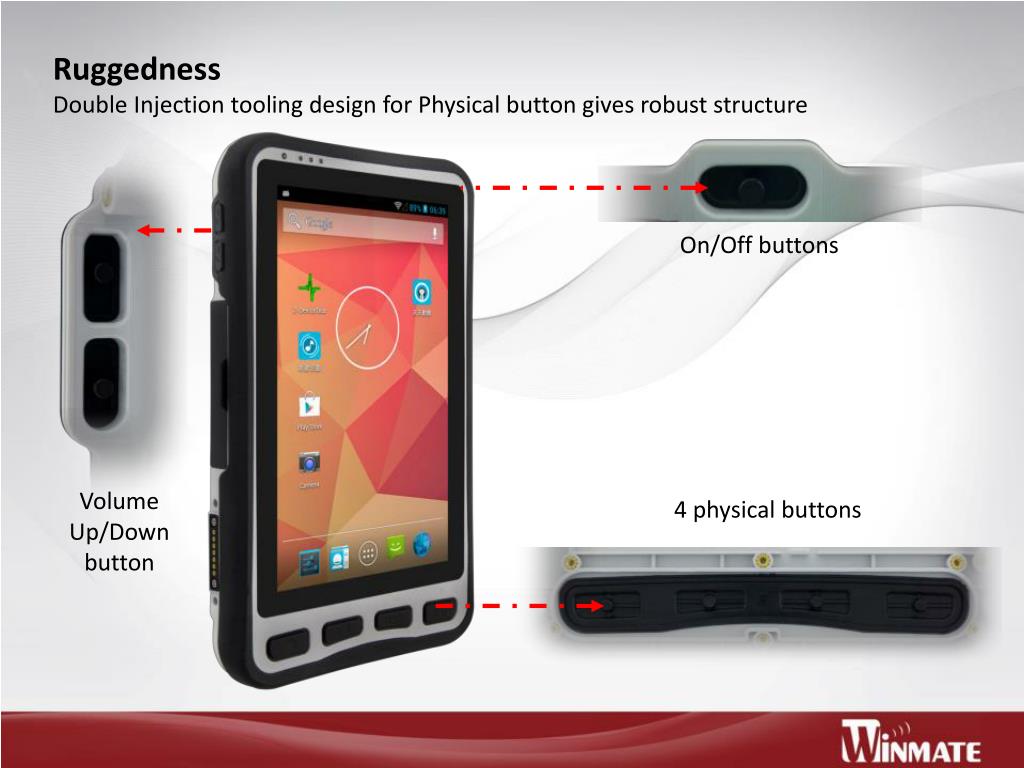

Ruggedness

Double Injection tooling design for Physical button gives robust structure

On/Off buttons

Volume

Up/Down button

4 physical buttons


What is m700dm4

Ruggedness

Rubber / elastomeric bumpers for protection around the perimeter

Bumpers made by elastomeric rubber to protect the device and reduce the impact of drop

Elastomer


What is m700dm4

Ruggedness

Rubber / elastomeric bumpers for protection around the perimeter

Rubber protector in the corner will protect the surface of the glass from any drop impact


What is m700dm4

Ruggedness

Sealing for IP65 Protection

Port Cover

Adequately protected I/O Port with a hinged plastic rubber door


What is m700dm4

Usability

Removable battery design for higher operating hours

User replaceable battery


What is m700dm4

Usability

Projected capacitive touch likes a smooth glass surface that extends well beyond the display itself

Works with Multi-Finger

Works with stylus


What is m700dm4

Form Factor (1/2)

Layout-Features

Battery status

Power mode status

LED aux light

Rear Camera (2MP)

LED indicator

7-inch WSVGA

(1024 x 600)

P-Cap touch

Removable Battery

Rubber bumper

Home

F1

F2

Menu


What is m700dm4

Form Factor (2/2)

Layout-Features

On /Off

button

Headset

Jack

Micro USB 2.0

Micro SD

Card

5V DC IN

SIM Card

slot


What is m700dm4

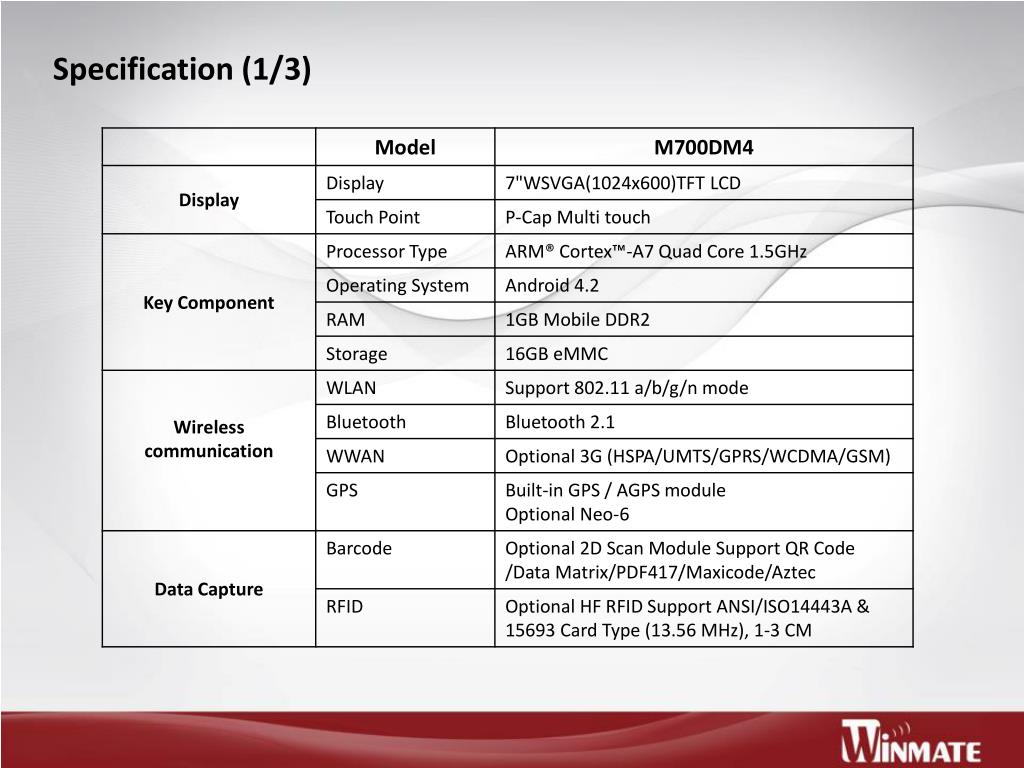

Specification (1/3)


What is m700dm4

Specification (2/3)


What is m700dm4

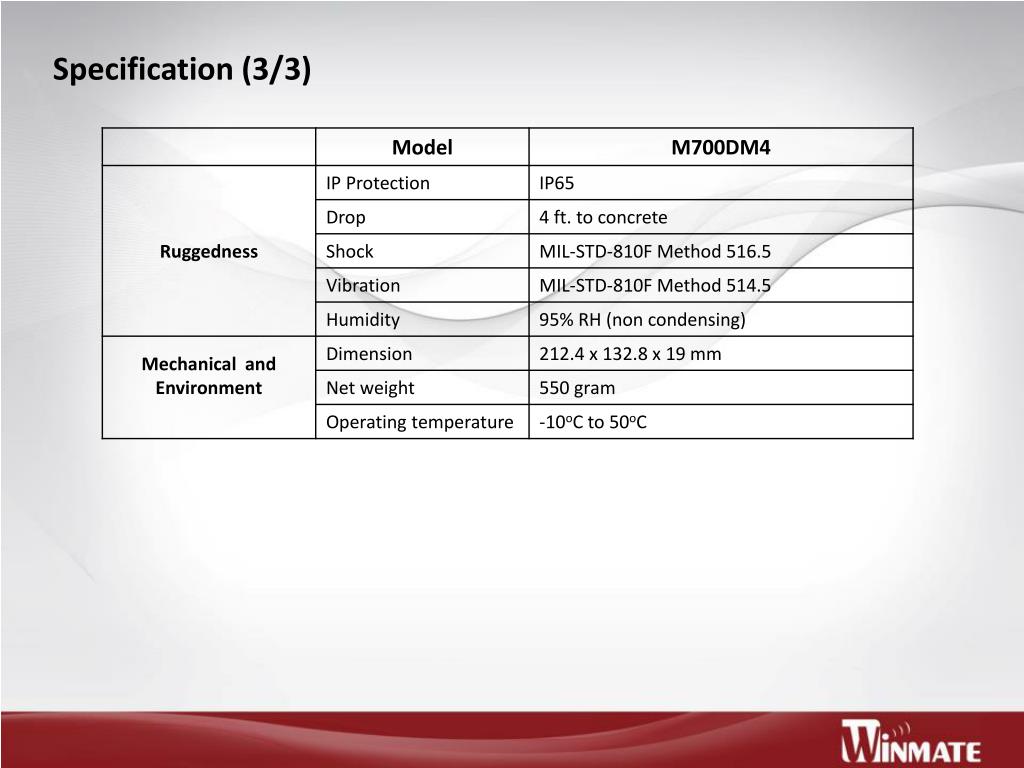

Specification (3/3)


Standard accessories

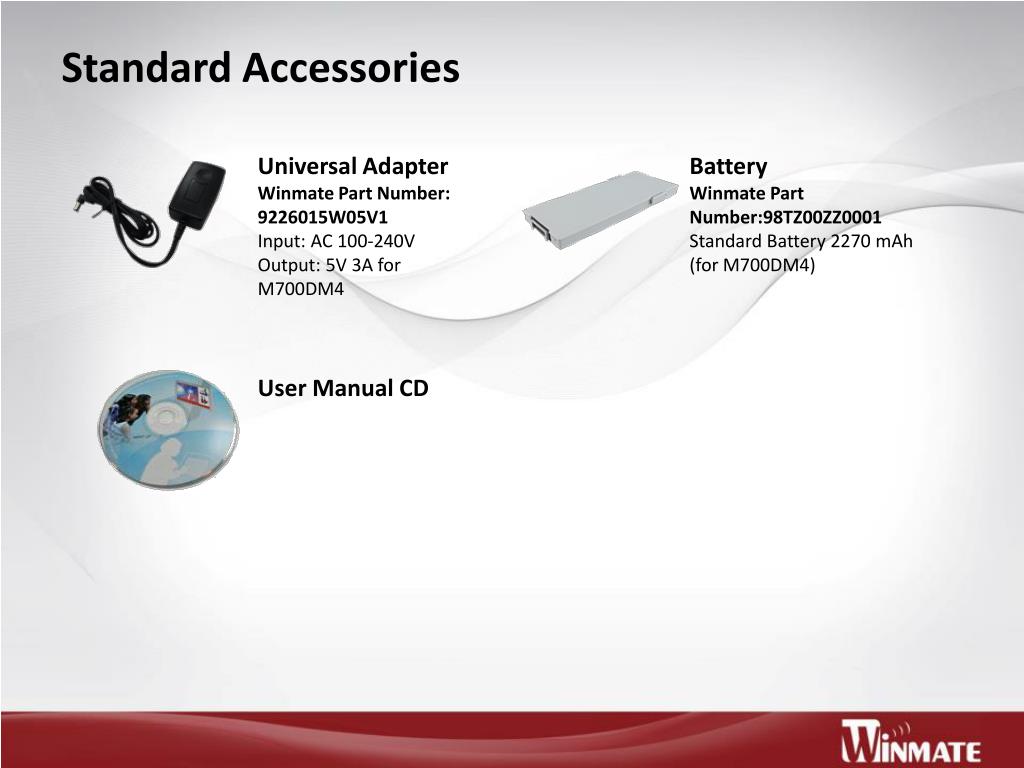

Standard Accessories

Universal Adapter

Winmate Part Number: 9226015W05V1

Input: AC 100-240V

Output: 5V 3A for M700DM4

Battery

Winmate Part Number:98TZ00ZZ0001

Standard Battery 2270 mAh(for M700DM4)

User Manual CD


Optional accessories

Optional Accessories

Carry Bag

Winmate Part Number:

9B000000000X

This durable bag protects M700 and allows users to carry it easily

Capacitive Touch Stylus

WinmatePart Number: 9B0000000326

For capacitive touch

  • Vehicle Dock

  • Model Name: VD-M700DM4

  • Winmate Part Number: 98TZ07ZZ0001

  • Hold the Tablet tightly on the moving vehicle

  • Support both terminal block & 2.5ψpower jack input

  • 9~36V DC-in wide range DC input

  • IP52 design (Rain prove)

  • Desk Dock

  • Model Name: DD-M700DM4

  • Winmate Part Number: 98TZ07ZZZ007

  • 12V DC-in for Charging

  • USB 2.0 x 4

  • 1 x COM port

  • 1 x LAN 10/100M


Optional accessories1

Optional Accessories

  • Mobile Power Station

  • Winmate Part Number:

  • 9A000000000I

  • Model Name: M44BW-100

  • 5V / 9V /12V DC out

  • Capacity: 8000mAh

Hand Strap

WinmatePart Number: 9B000000001S

The ergonomic hand-strap can help you handle the Rugged Tablet PC much more easily and comfortable.

  • Vehicle Adapter

  • Winmate Part Number:

  • 9260005W05V0

  • Input: 12V DC cigarette lighter socket

  • USB car charger

  • Option USB A-type to 2.5ψ DC jack Cable (9487040020K0)

  • Low in stock. We will get new part soon to replace this.

  • Micro SD Card

  • Winmate Part Number:

  • 76G004300000

  • 4G Micro SD Card
