  1. Support Tube Dynamic Analysis • KEK’s ANSYS simulation • model details • Single Point Response Spectrum analysis • SUGGESTED improvements • beam model • Harmonic Response Analysis • Random Analysis • Transient Dynamic Analysis (time domain) E. Doyle 12/6/99

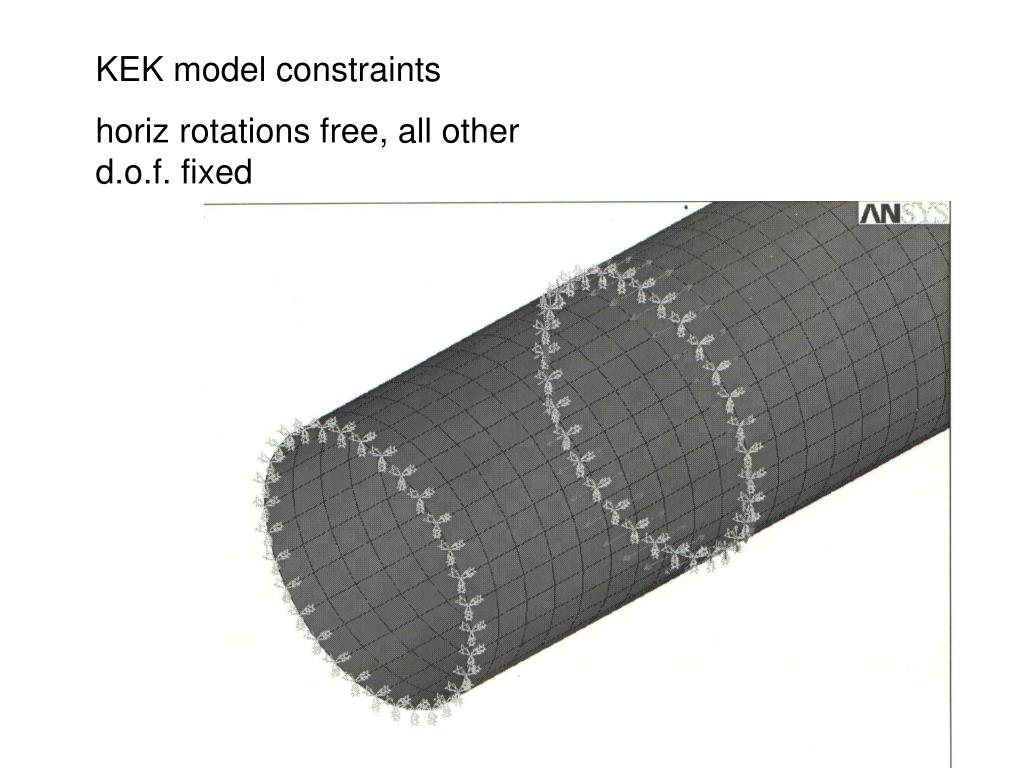

  2. KEK model constraints horiz rotations free, all other d.o.f. fixed

  3. Four freq/displacement points used in KEK SPRS analysis - analysis of max response to transient event - damping accounted for in response curve

  4. Beam Model - simply supported more efficient than shell model

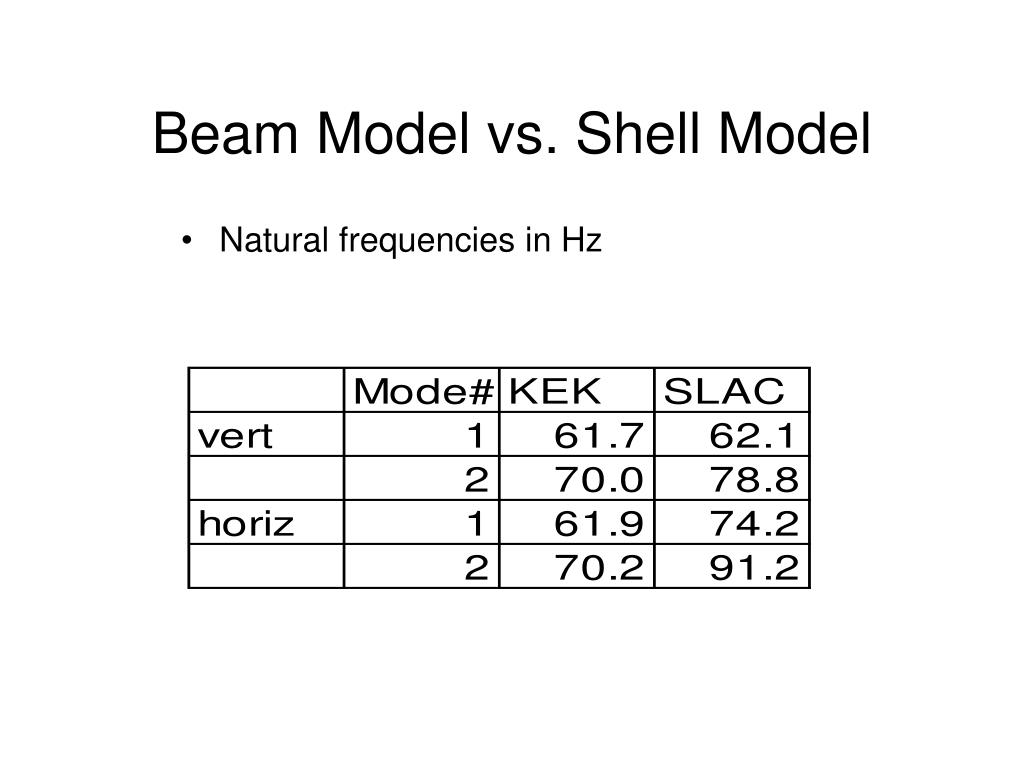

  5. Beam Model vs. Shell Model • Natural frequencies in Hz

  6. Beam Model - cantilever

  7. Responses of Concern • Differential motion between Q1 magnets • Resulting from • non-uniform ground motion at two ends • structure asymmetry • ANSYS can be used to explore these • tube support dynamics • benefit from joining two cantilevers (creation of common modes)

  8. Excitation Modes of Concern • Harmonic - cultural sources • Harmonic Response Analysis • Random - natural and cultural sources • Random PSD (power spectral density) • Transient Analysis (time domain)

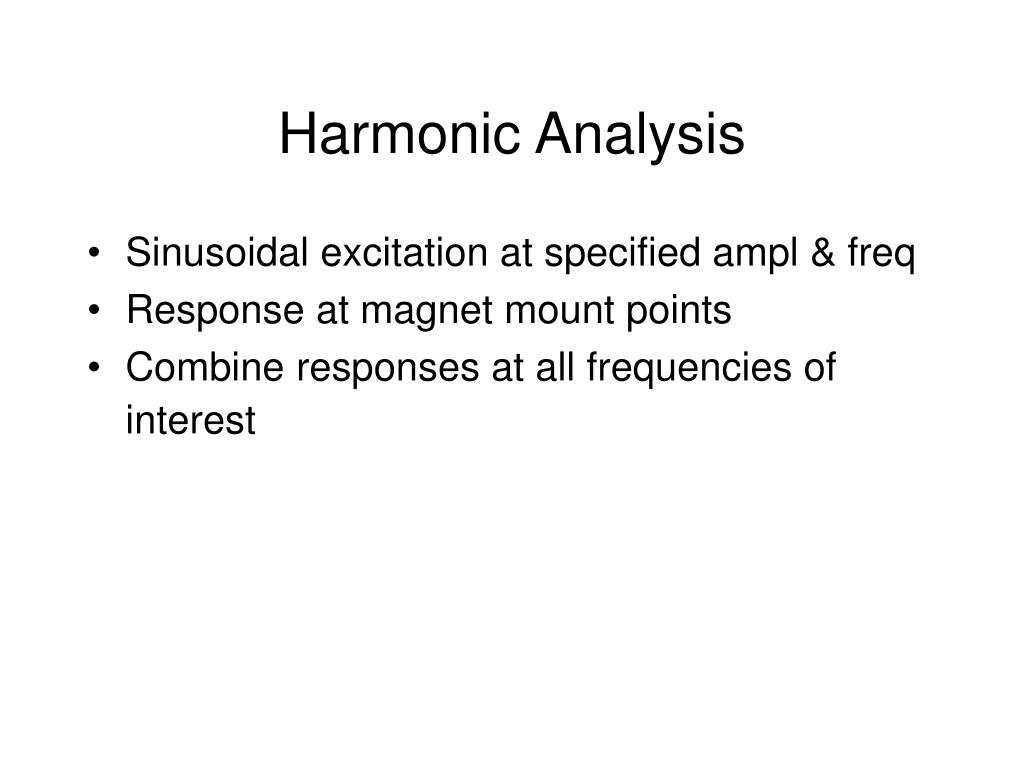

  9. Harmonic Analysis • Sinusoidal excitation at specified ampl & freq • Response at magnet mount points • Combine responses at all frequencies of interest

  10. Harmonic analysis - vert base motion, unit amplitude Different damping for the two beams

  11. Random Vibration Analysis • Input PSD of base motion • Result is PSD response at each magnet • how to interpret?

  12. Absolute PSD Response ( 1m2/hz flat input) --------- FREQUENCY

  13. PSD Response relative to base motion --------- FREQUENCY

  14. Transient Dynamic Analysis • Input sampled ground motion (time domain) • Response is motion in time domain • Combine in time domain (outside ANSYS) • Generate cross correlation function (outside ANSYS)
