  1. Embedded SQL John Ortiz

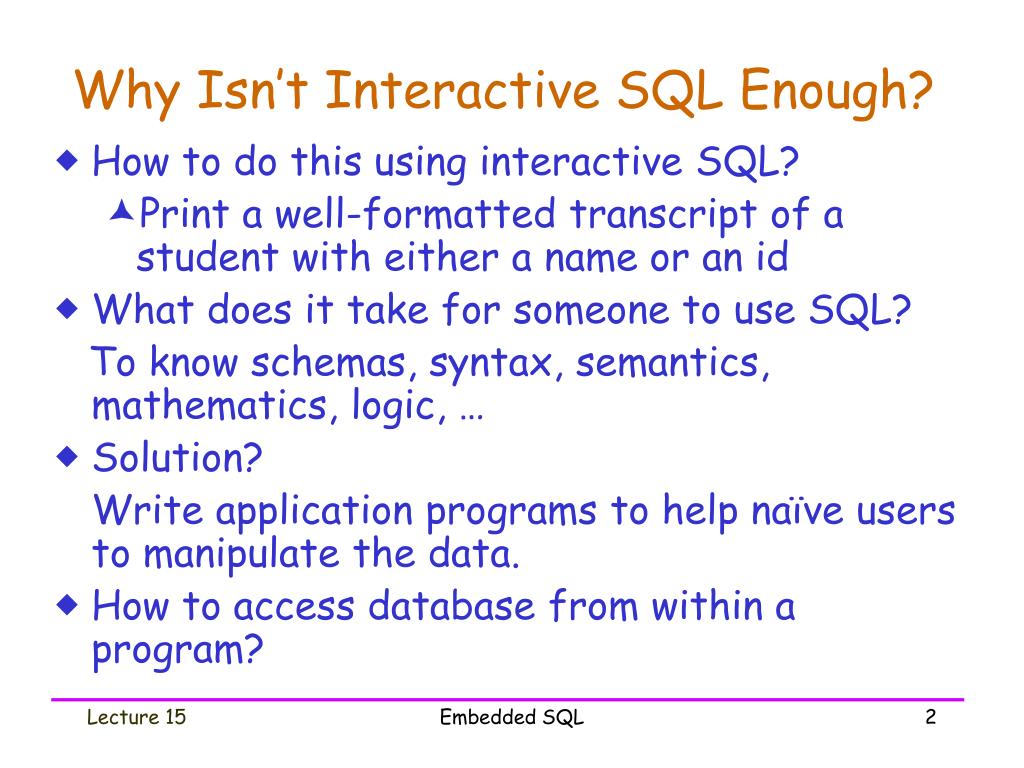

  2. Why Isn’t Interactive SQL Enough? • How to do this using interactive SQL? • Print a well-formatted transcript of a student with either a name or an id • What does it take for someone to use SQL? To know schemas, syntax, semantics, mathematics, logic, … • Solution? Write application programs to help naïve users to manipulate the data. • How to access database from within a program? Embedded SQL

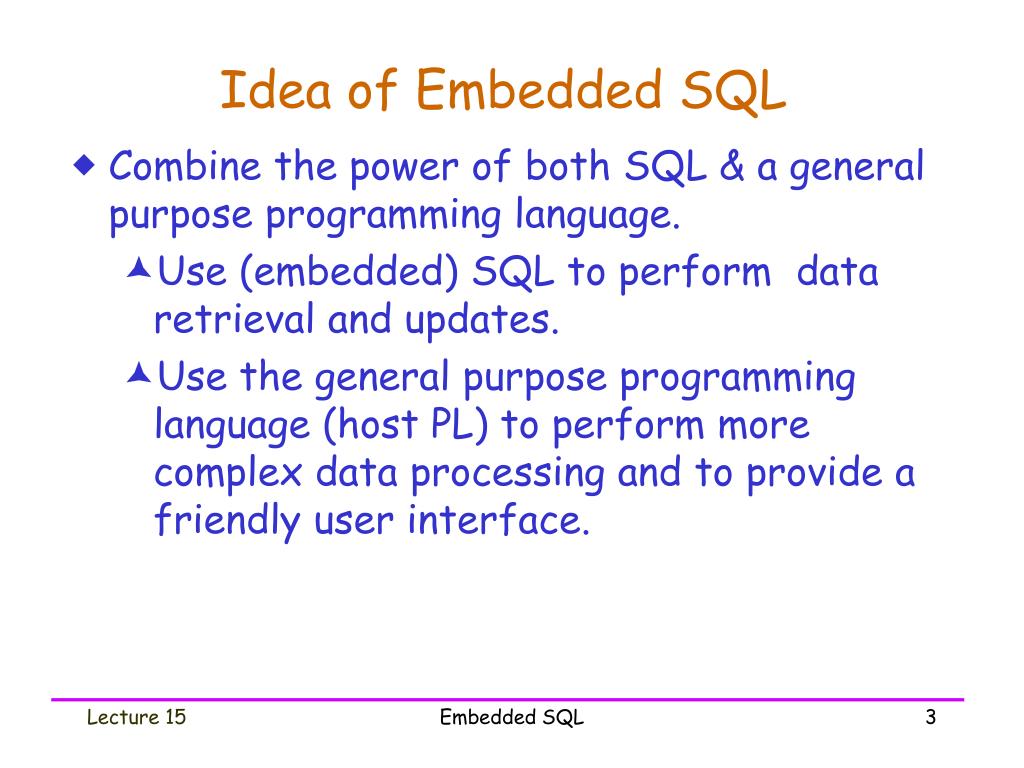

  3. Idea of Embedded SQL • Combine the power of both SQL & a general purpose programming language. • Use (embedded) SQL to perform data retrieval and updates. • Use the general purpose programming language (host PL) to perform more complex data processing and to provide a friendly user interface. Embedded SQL

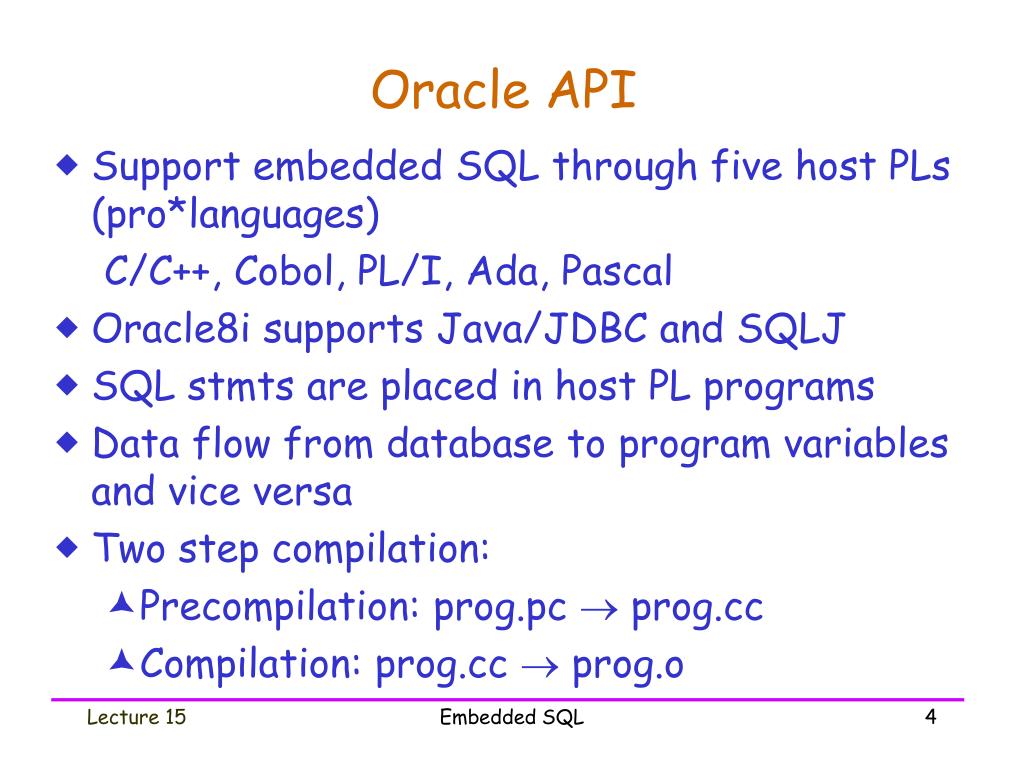

  4. Oracle API • Support embedded SQL through five host PLs (pro*languages) C/C++, Cobol, PL/I, Ada, Pascal • Oracle8i supports Java/JDBC and SQLJ • SQL stmts are placed in host PL programs • Data flow from database to program variables and vice versa • Two step compilation: • Precompilation: prog.pc  prog.cc • Compilation: prog.cc  prog.o Embedded SQL

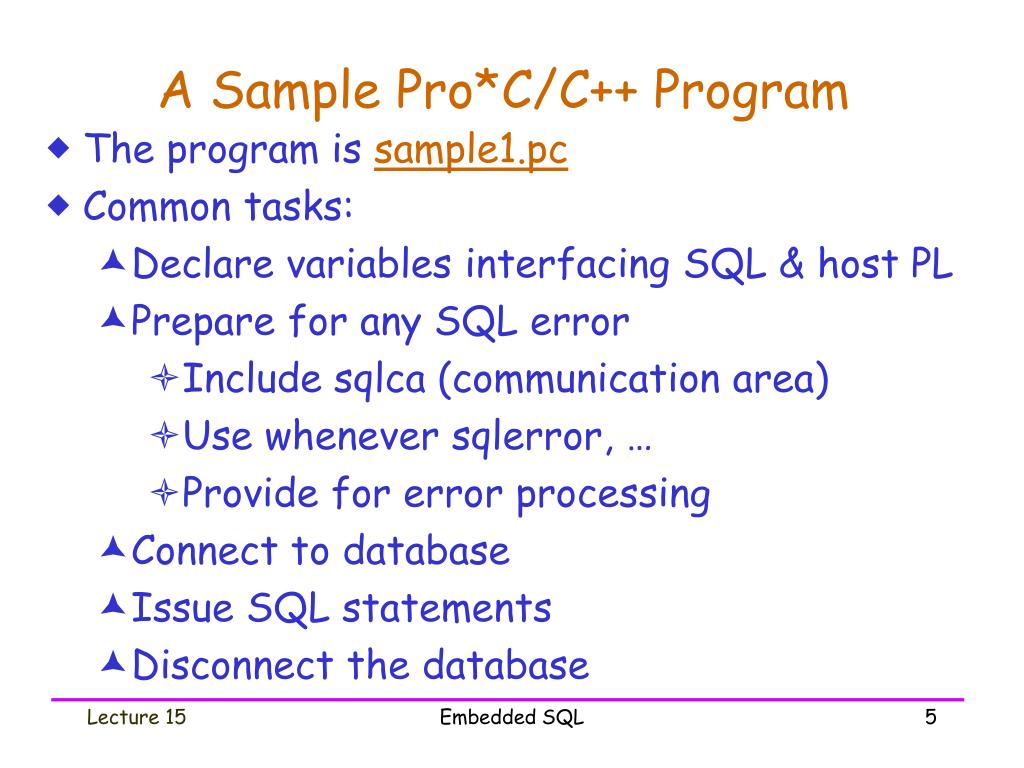

  5. A Sample Pro*C/C++ Program • The program is sample1.pc • Common tasks: • Declare variables interfacing SQL & host PL • Prepare for any SQL error • Include sqlca (communication area) • Use whenever sqlerror, … • Provide for error processing • Connect to database • Issue SQL statements • Disconnect the database Embedded SQL

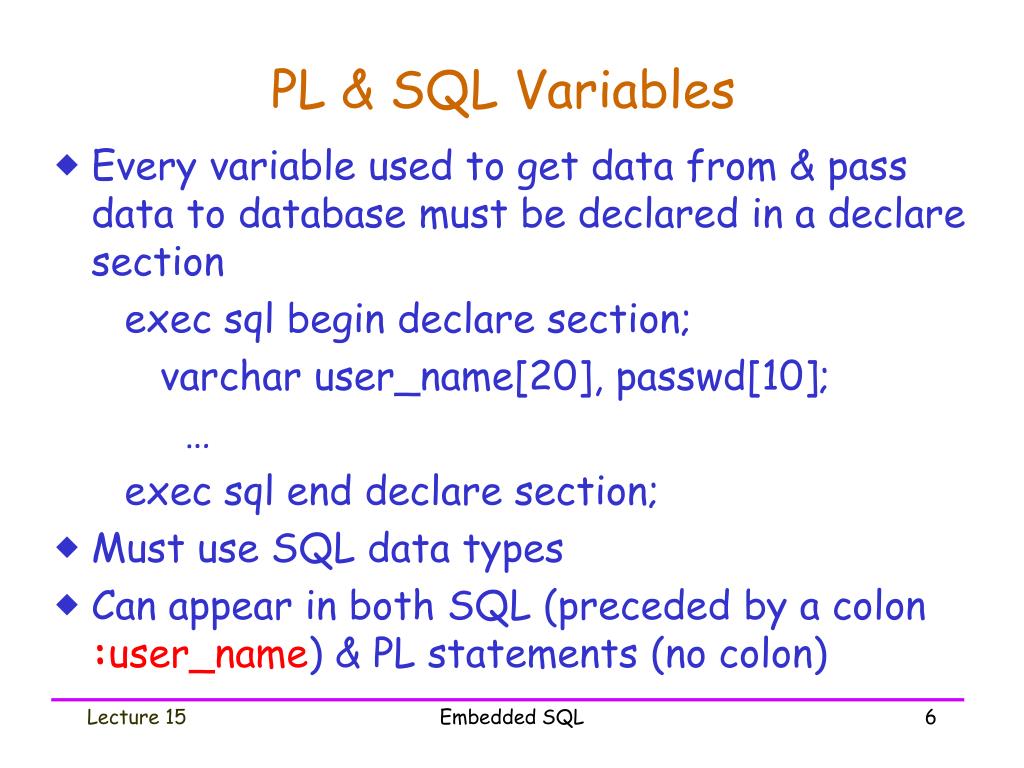

  6. PL & SQL Variables • Every variable used to get data from & pass data to database must be declared in a declare section exec sql begin declare section; varchar user_name[20], passwd[10]; … exec sql end declare section; • Must use SQL data types • Can appear in both SQL (preceded by a colon :user_name) & PL statements (no colon) Embedded SQL

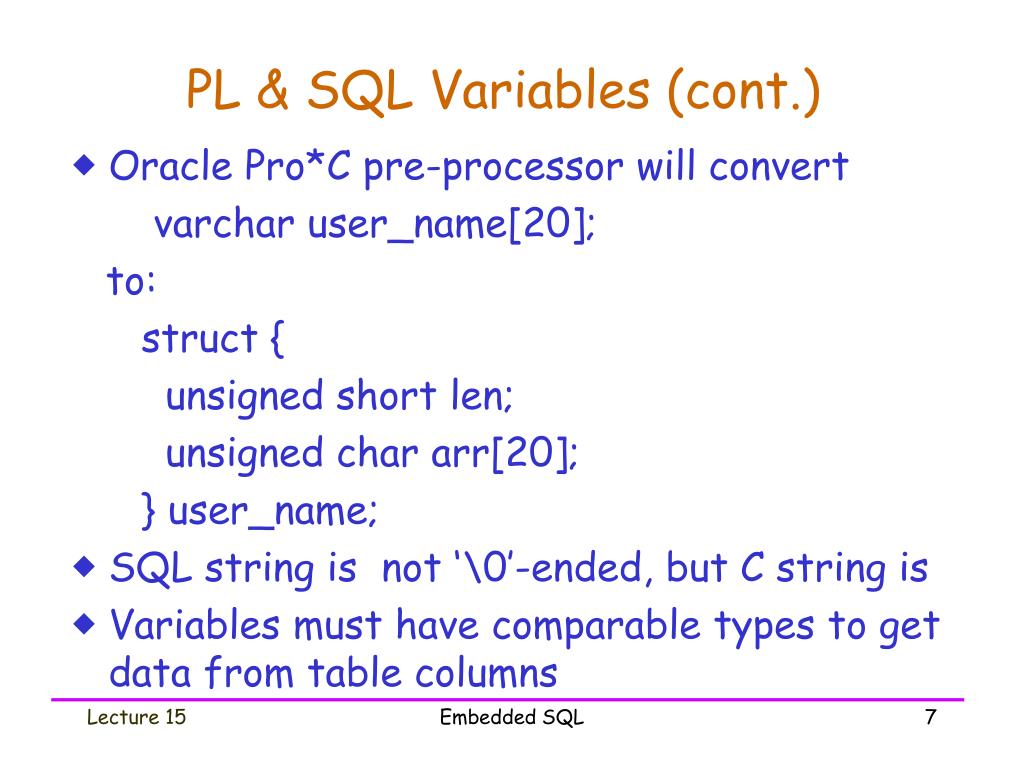

  7. PL & SQL Variables (cont.) • Oracle Pro*C pre-processor will convert varchar user_name[20]; to: struct { unsigned short len; unsigned char arr[20]; } user_name; • SQL string is not ‘\0’-ended, but C string is • Variables must have comparable types to get data from table columns Embedded SQL

  8. Handle SQL Errors • SQLCA (p.121): SQL Communication area is a predefined data structure used to pass control information from Oracle to application program • Error code: sqlca.sqlcode=0 successful; > 0 value not found; < 0 error • Can also use predefined error types in whenever: sqlerror, not found, sqlwarning, … • Common error handling actions: goto Label, continue, stop, do func, do break, do return, … Embedded SQL

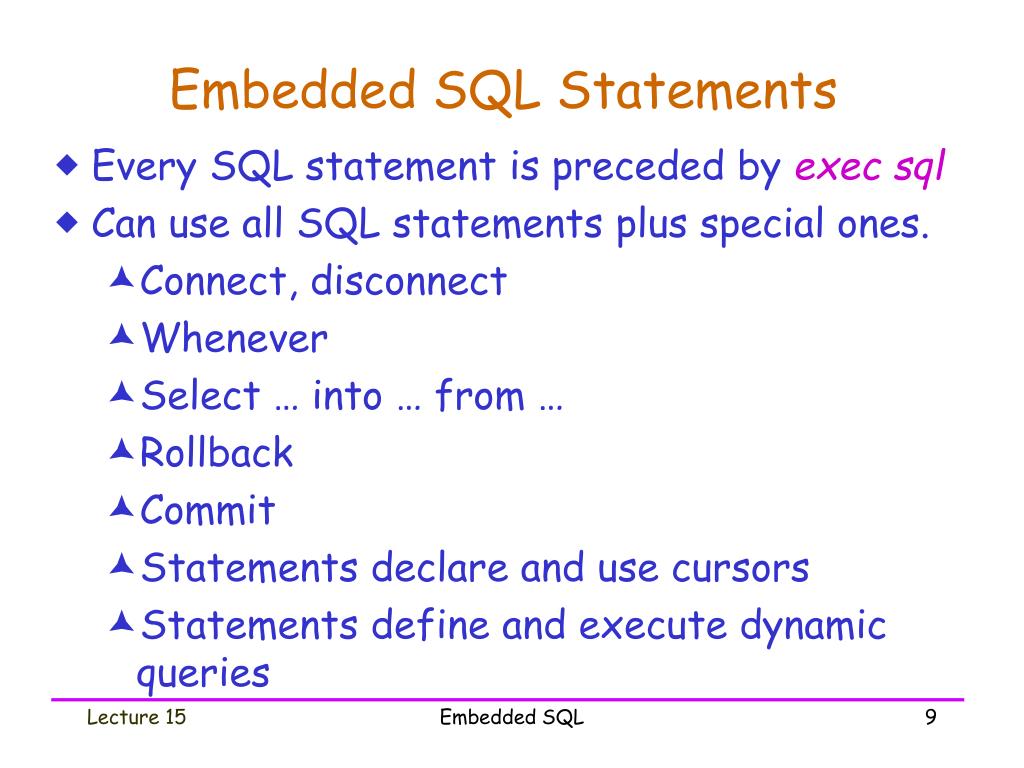

  9. Embedded SQL Statements • Every SQL statement is preceded by exec sql • Can use all SQL statements plus special ones. • Connect, disconnect • Whenever • Select … into … from … • Rollback • Commit • Statements declare and use cursors • Statements define and execute dynamic queries Embedded SQL

  10. Transaction Control Statements • A transaction is modeled by a sequence of database update operations • Operations of a transaction should either all be successfully executed or none is executed • When a failure occurs, all updates done so far need to be undone • Explicit control: • Start: set transaction [read only, read write] • Undo: rollback • End: commit Embedded SQL

  11. Sample Program Using A Cursor • How does a program handle query result containing more than one tuple? • Use a cursor. See sample2.pc • A cursor is a “window” through which one tuple can be accessed. • A cursor must be declared with a query • Open cursor executes the query • Fetch cursor moves to the next tuple • A cursor can be closed and re-opened Embedded SQL

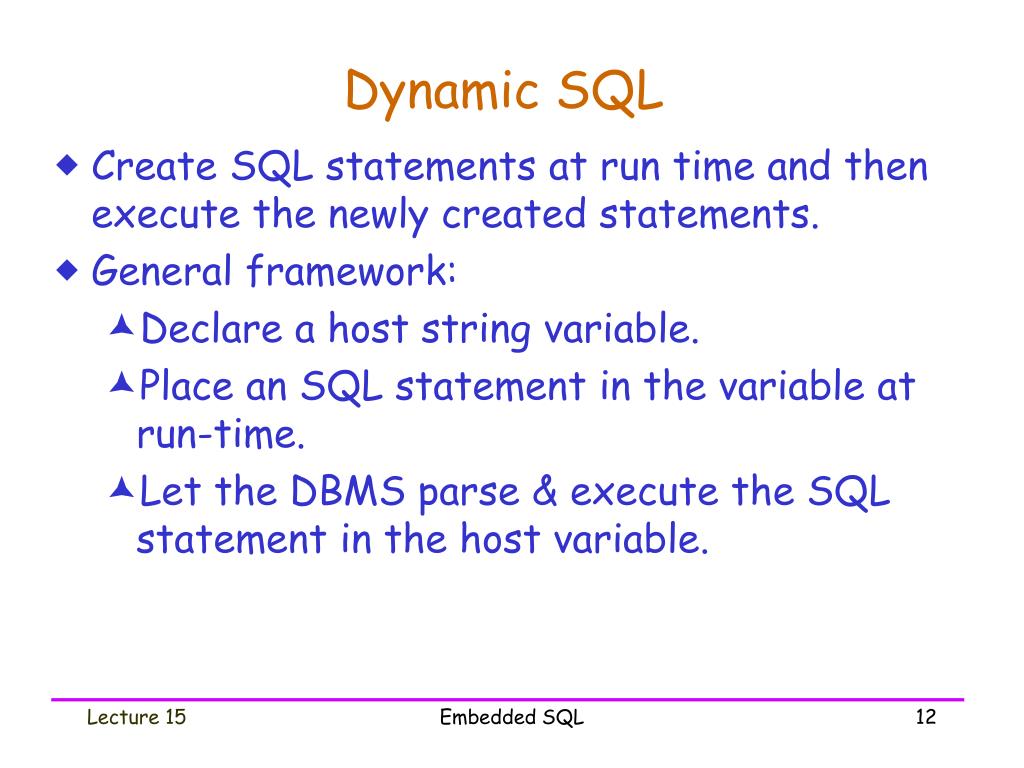

  12. Dynamic SQL • Create SQL statements at run time and then execute the newly created statements. • General framework: • Declare a host string variable. • Place an SQL statement in the variable at run-time. • Let the DBMS parse & execute the SQL statement in the host variable. Embedded SQL

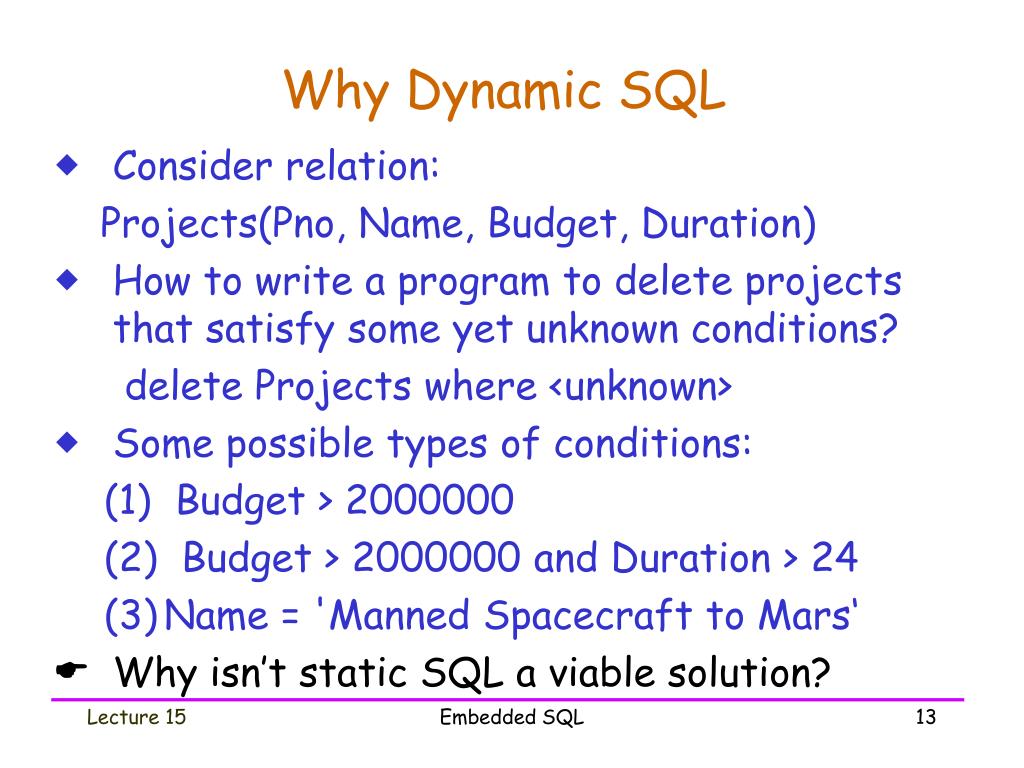

  13. Why Dynamic SQL • Consider relation: Projects(Pno, Name, Budget, Duration) • How to write a program to delete projects that satisfy some yet unknown conditions? delete Projects where <unknown> • Some possible types of conditions: (1) Budget > 2000000 (2) Budget > 2000000 and Duration > 24 • Name = 'Manned Spacecraft to Mars‘ • Why isn’t static SQL a viable solution? Embedded SQL

  14. Methods of Dynamic SQL • Method 1: Non-query statement w/o host var. delete from emp where deptno = 20 • Method 2: Non-query w/ known # of input var. delete from emp where empno = :eid • Method 3: Query w/ known select-list & input host variables. select ename from emp where deptno = :dno • Method 4: Query w/ unknown select-list & var. select <unknown> from emp Embedded SQL

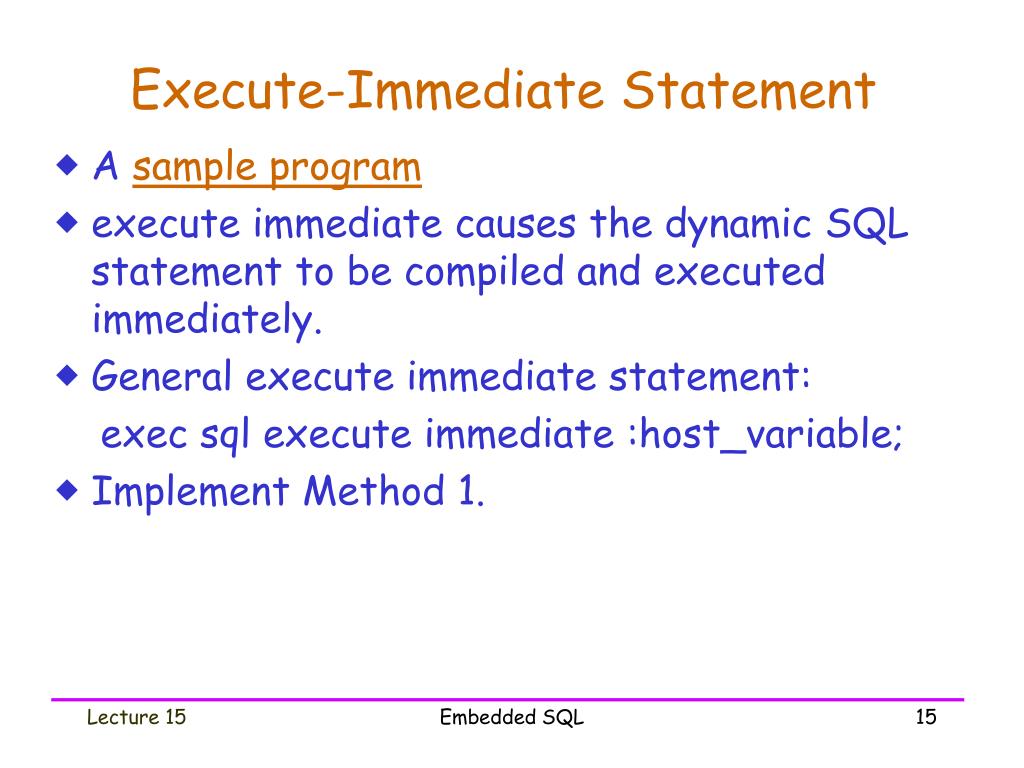

  15. Execute-Immediate Statement • A sample program • execute immediate causes the dynamic SQL statement to be compiled and executed immediately. • General execute immediate statement: exec sql execute immediate :host_variable; • Implement Method 1. Embedded SQL

  16. Prepare-Execute Statement • A sample program • prepare stmt_name from :host_variable compiles the SQL query in host_variable and then saves the prepared result in stmt_name. • stmt_name is an SQL identifier and needs not be explicitly declared. • Implement Method 2: The host_variable can contain any SQL statement other than a query and can have a known number of placeholders. • Prepare once, run many times (with different values in input host variables). Embedded SQL

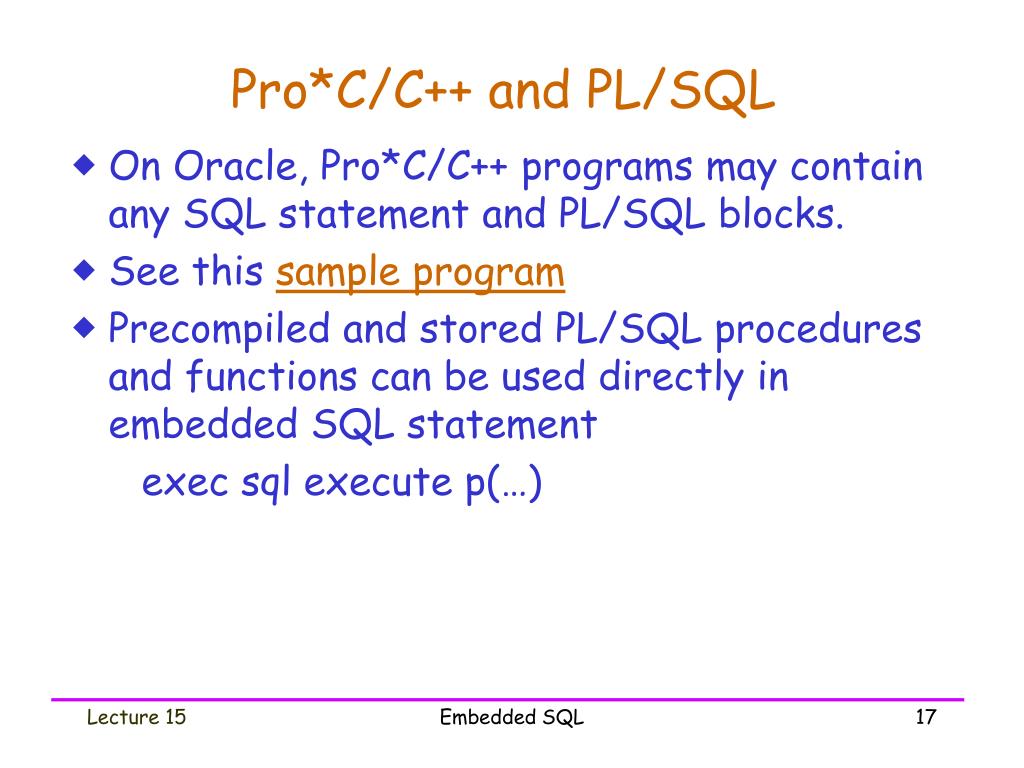

  17. Pro*C/C++ and PL/SQL • On Oracle, Pro*C/C++ programs may contain any SQL statement and PL/SQL blocks. • See this sample program • Precompiled and stored PL/SQL procedures and functions can be used directly in embedded SQL statement exec sql execute p(…) Embedded SQL

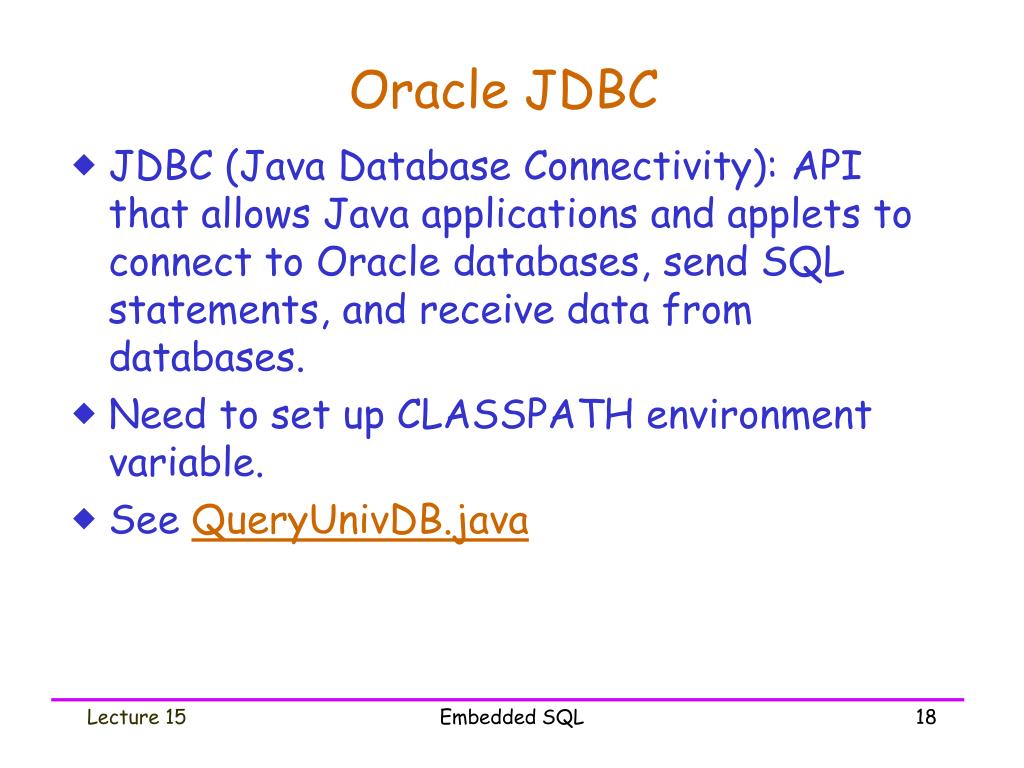

  18. Oracle JDBC • JDBC (Java Database Connectivity): API that allows Java applications and applets to connect to Oracle databases, send SQL statements, and receive data from databases. • Need to set up CLASSPATH environment variable. • See QueryUnivDB.java Embedded SQL

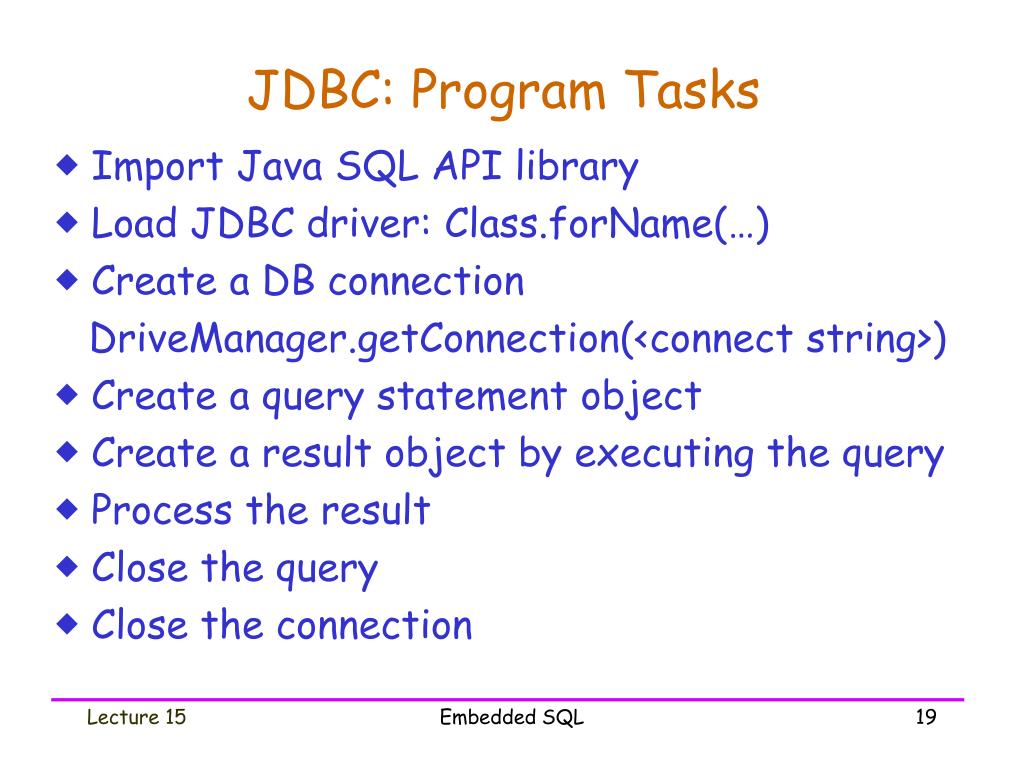

  19. JDBC: Program Tasks • Import Java SQL API library • Load JDBC driver: Class.forName(…) • Create a DB connection DriveManager.getConnection(<connect string>) • Create a query statement object • Create a result object by executing the query • Process the result • Close the query • Close the connection Embedded SQL

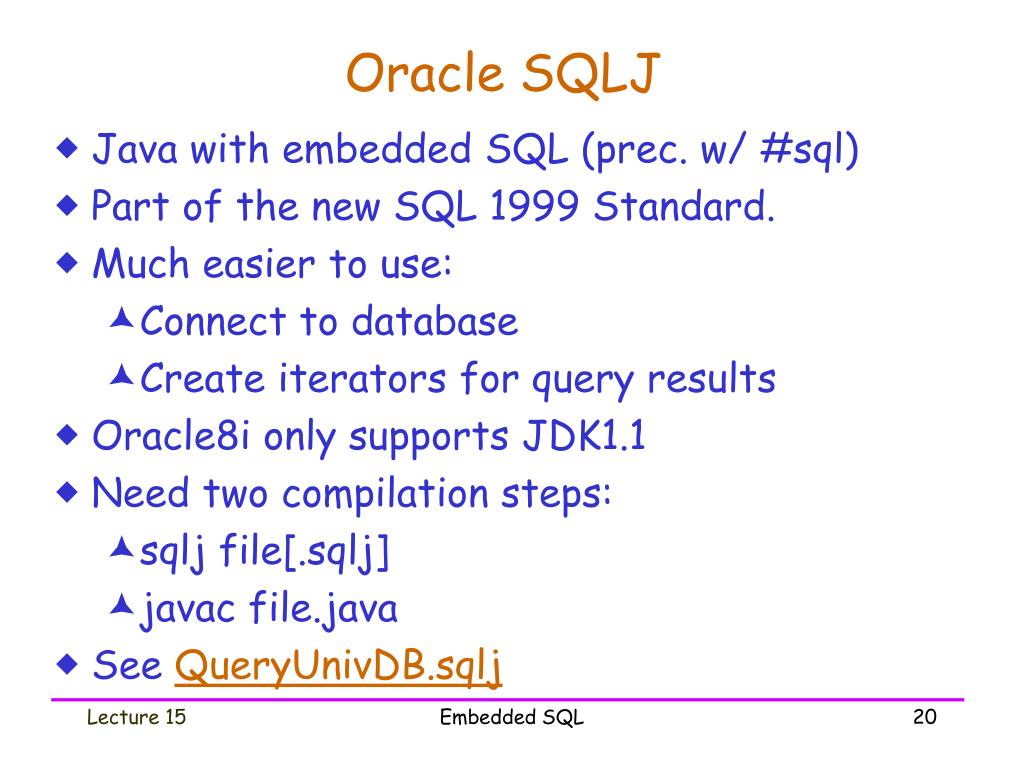

  20. Oracle SQLJ • Java with embedded SQL (prec. w/ #sql) • Part of the new SQL 1999 Standard. • Much easier to use: • Connect to database • Create iterators for query results • Oracle8i only supports JDK1.1 • Need two compilation steps: • sqlj file[.sqlj] • javac file.java • See QueryUnivDB.sqlj Embedded SQL

  21. Embedded SQL Summary • Many additional statements handling communication between database and PL system • Special handling of multiple tuple result (cursor) • Must handle errors and exceptions generated by DBMS • Must pay special attention to program structure (goto, whenever not found,… ) • JDBC & SQLJ have much better DB-PL interface Embedded SQL

  22. Look Ahead • Next topic: Storage System • Read textbook: • Chapter 5 Embedded SQL
