Critical appraisal

Critical Appraisal

Dr. Chris Hall – Facilitator

Dr. Dave Dyck R3

March 20/2003



  • Review study design and the advantages/ disadvantages of each

  • Review key concepts in hypothesis, measurement, and analysis

  • Article appraisal

    • Treatment articles

    • Diagnosis articles

    • Harm articles

    • Overviews/meta-analysis

  • Survive the next hour and still be able to smile

Study design

Study Design:

  • Ecological studies

  • Case Reports

  • Case Series

  • Cross-Sectional Studies

  • Case Control and Retrospective Cohort Studies

  • Prospective Cohort Studies

  • Randomized Controlled Trials

Ecological studies

Ecological Studies:

  • Studies of a group rather than individual subjects

  • Supplies data on exposure and disease as a summary measure of the total population as an aggregate eg. Incidence studies

  • Berkson’s Bias: ie. The correlation between the variables is not the same on the individual level as it is for the group. Therefore you cannot link exposures to disease on an individual basis

  • Also, difficult to account for confounding variables

Case reports

Case Reports

  • Submission of individual cases with rare or interesting findings

  • ++++ subject to bias (selection / submission and publication)

  • Should not infer causality or suggest practice change

Case series

Case Series:

  • A group of “consecutive cases” with unifying features

  • Selection bias = what constitutes a case, is it truly consecutive, response bias

  • Publication bias

  • Measurement bias (presence of ‘disease’ or exposure may be variable)

Cross sectional studies

Cross Sectional Studies:

  • Ie. Prevalence study

  • Presence or absence of a specific disease compared with one or several variables within a defined population at a specific point in time

Cross sectional studies disadvantages

Cross Sectional Studies disadvantages:

  • Subject to selection bias (see HO)

  • Cause and effect cannot be determined (see HO) (ie. Don’t know whether the exposure occurs before the outcome or the outcome occurs before the exposure)

  • Temporal trends may be missed (seasonal variations)

  • Previous deaths, drop-outs, and migration are not counted; and short lived, transient outcomes are underrepresented. Thus, CSS are best suited to study chronic, non-fatal conditions.

Cross sectional studies advantages

Cross sectional studies – advantages:

  • Can do quickly

  • May provide enough of an association between an exposure/outcome to generate a hypothesis which can be studied by another method.

  • Useful for descriptive/analytical studies

Case control studies

Case Control Studies:

  • Starts now and goes back in time

  • Start with the outcome and ask or find out about prior exposure

  • Specific hypothesis usually tested

  • Select all cases of a specific disease during a certain time and select a number of controls who represent general population  then determine exposure to factor in each  odds ratio

  • May match controls to patients (but can never be sure of similar baseline states)

Case control study

Case Control Study:

Ccs cont

CCS cont

  • Odds ratio provides an estimate of the relative risk (esp when disease is rare)

  • Thus, use CCS only when disease is rare (< 10% of population)

  • As OR increases (>1)  greater risk

  • As OR decreases (<1)  reduced risk

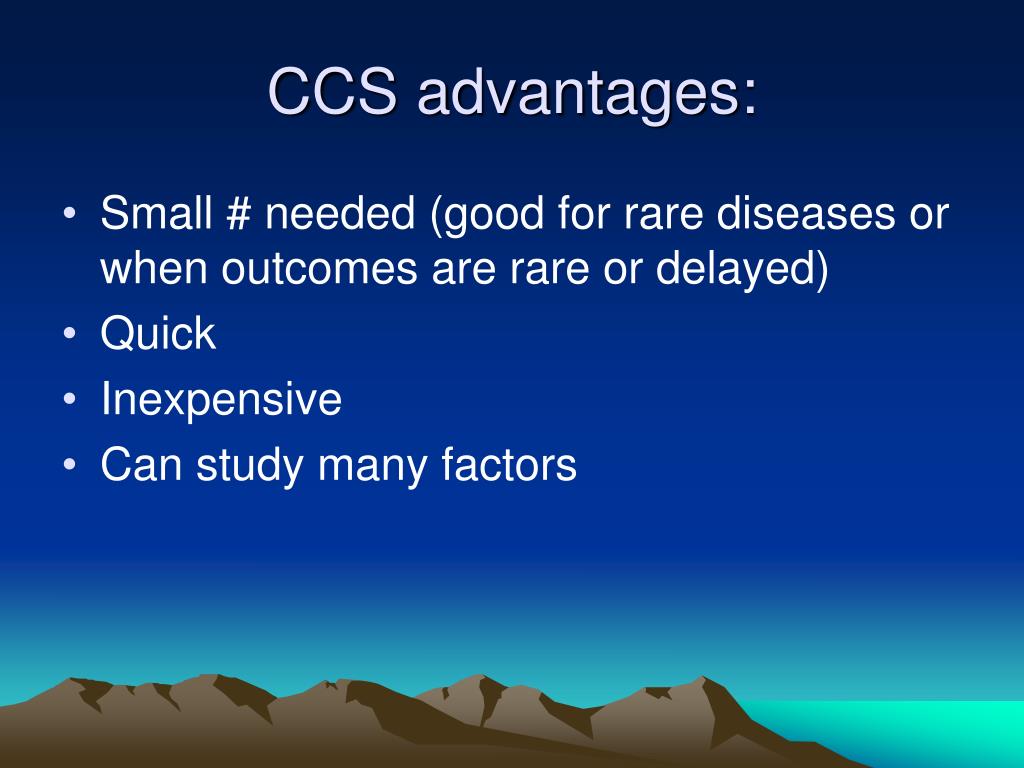

Ccs advantages

CCS advantages:

  • Small # needed (good for rare diseases or when outcomes are rare or delayed)

  • Quick

  • Inexpensive

  • Can study many factors

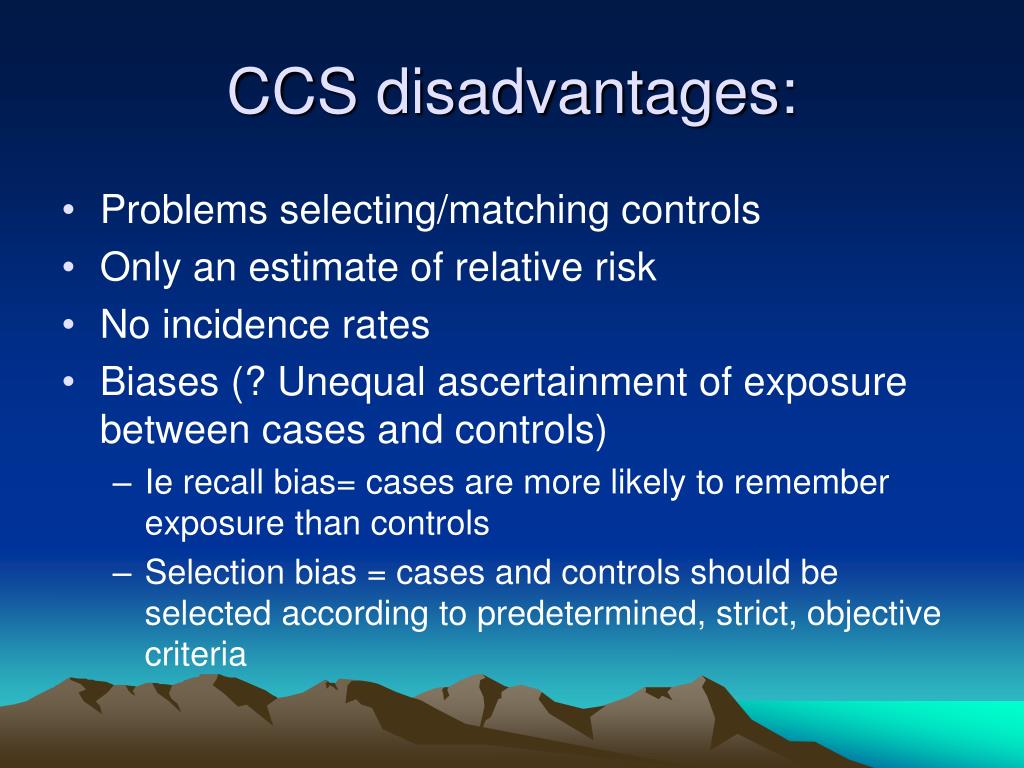

Ccs disadvantages

CCS disadvantages:

  • Problems selecting/matching controls

  • Only an estimate of relative risk

  • No incidence rates

  • Biases (? Unequal ascertainment of exposure between cases and controls)

    • Ie recall bias= cases are more likely to remember exposure than controls

    • Selection bias = cases and controls should be selected according to predetermined, strict, objective criteria

Cohort study prospective

Cohort Study (prospective)

  • Start with 2 groups free of disease and follow forward for a period of time

  • 1 group has the factor (eg. Smoking) the other group does not

  • Define 1 or more outcomes (eg. Lung CA)

  • Tabulate the # of persons who develop the outcome

  • Provides estimates of incidence, relative risk, and attributable risk

Relative risk attributable risk

Relative risk / Attributable risk

  • Relative risk = measures the strength of association between exposure and disease

  • Attributable risk = measures the number of cases of disease that can be attributed to exposure

  • Given a constant relative risk, attributable risk rises with incidence of the disease in members of the population who are not exposed

Cohort study

Cohort Study

  • Cannot by itself establish causation, but can show an association between a factor and an outcome

  • Generally provides stronger evidence for causation than case control studies

Cohort study advantages

Cohort Study advantages:

  • Lack of bias in factor

  • Uncovers natural history

  • Can study many diseases

  • Yields incidence rates, relative, and attributable risk

  • Allows for more control of confounding variables

Cohort study disadvantages

Cohort Study Disadvantages:

  • Possible bias in ascertainment of disease.

  • Need large numbers and long follow-up

  • Easy to lose patients in follow-up (attrition of subjects). This may introduce bias if lost subjects are different from those who continue to be followed

  • Hard to maintain comparable follow-up for all levels of exposure

Cohort study disadvantages cont

Cohort Study disadvantages cont.

  • Expensive

  • Locked into the factor(s) measured

  • Measurement bias (eg. Unblinded physician who looks harder for + outcomes in the exposed pt)

  • Confounding variables still present

Randomized control trials

Randomized Control Trials:

  • To test the hypothesis that an intervention (treatment or manipulation) makes a difference.

  • An experimental group is manipulated while a control group receives a placebo or standard procedure

  • All other conditions are kept the same between the groups

Critical appraisal


  • Goals=

    • Prevention (to decrease risk of disease or death)

    • Therapeutic (decrease symptoms, prevent recurrences, decrease mortality)

    • Diagnostic (evaluate new diagnostic procedures)

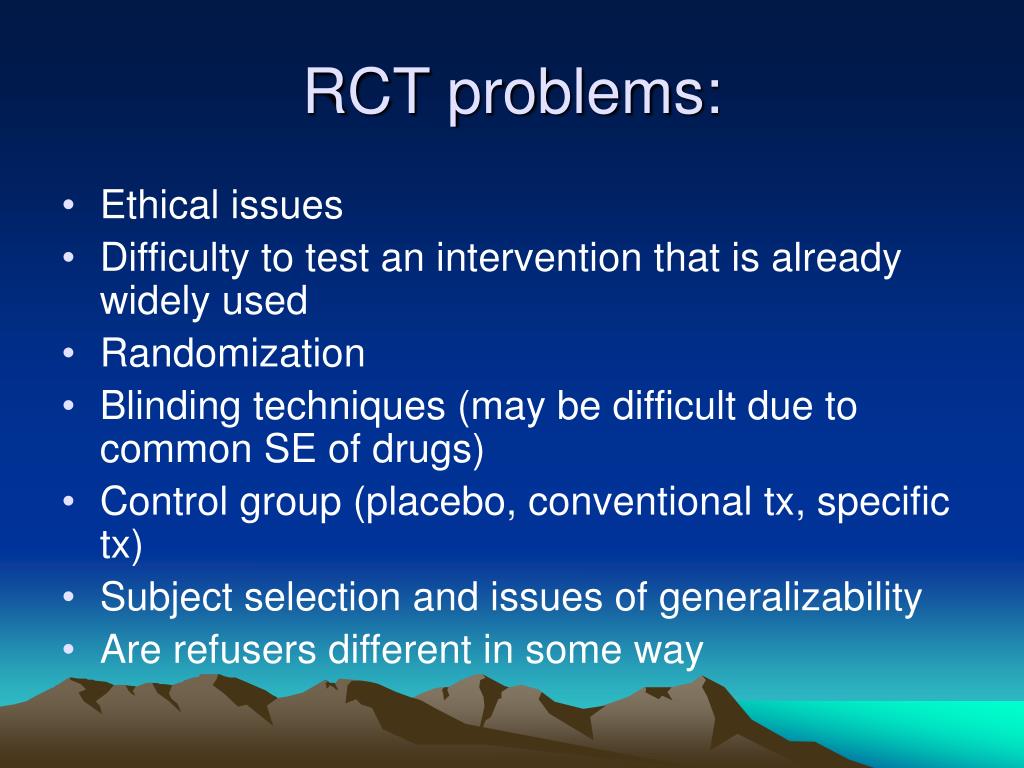

Rct problems

RCT problems:

  • Ethical issues

  • Difficulty to test an intervention that is already widely used

  • Randomization

  • Blinding techniques (may be difficult due to common SE of drugs)

  • Control group (placebo, conventional tx, specific tx)

  • Subject selection and issues of generalizability

  • Are refusers different in some way



Key terms for diagnostic tests

Key Terms for diagnostic tests:

  • Sensitivity= proportion with the disease identified by the test

  • Specificity= proportion without the disease with a negative test

Critical appraisal

Sensitivity= a/a+c

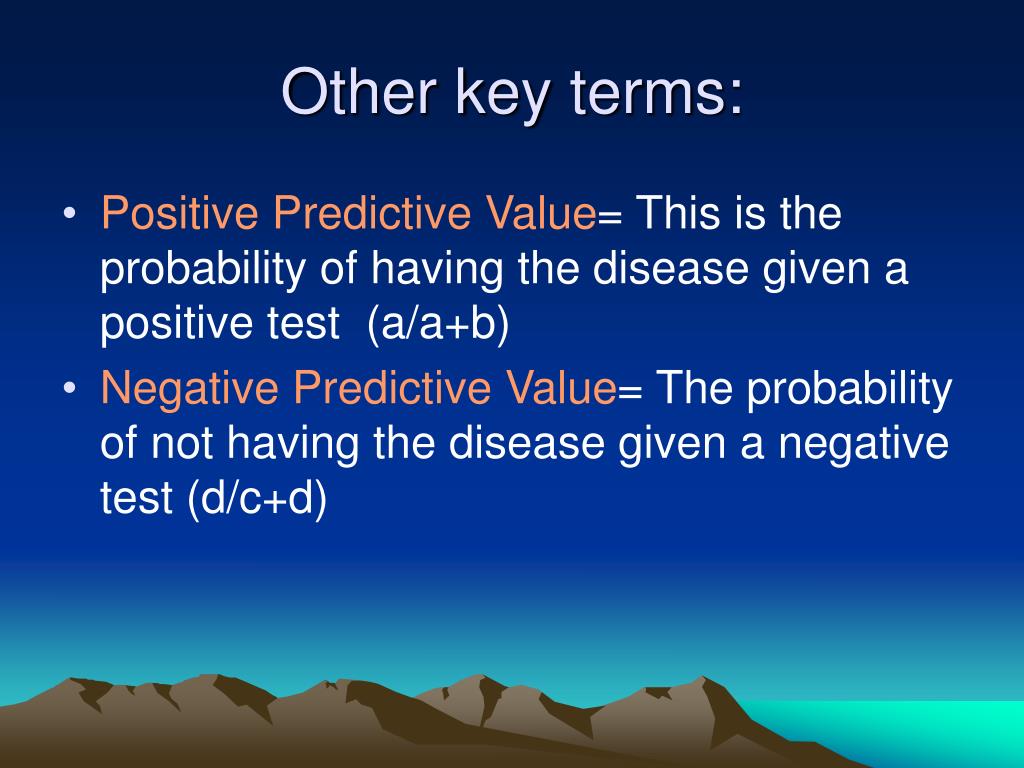

Other key terms

Other key terms:

  • Positive Predictive Value= This is the probability of having the disease given a positive test (a/a+b)

  • Negative Predictive Value= The probability of not having the disease given a negative test (d/c+d)

Statistical hypothesis

Statistical Hypothesis:

  • Null Hypothesis

    • Hypothesis of no difference between a test group and a control group (ie. There is no association between the disease and the risk factor in the population)

  • Alternative Hypothesis

    • Hypothesis that there is some difference between a test group and control group

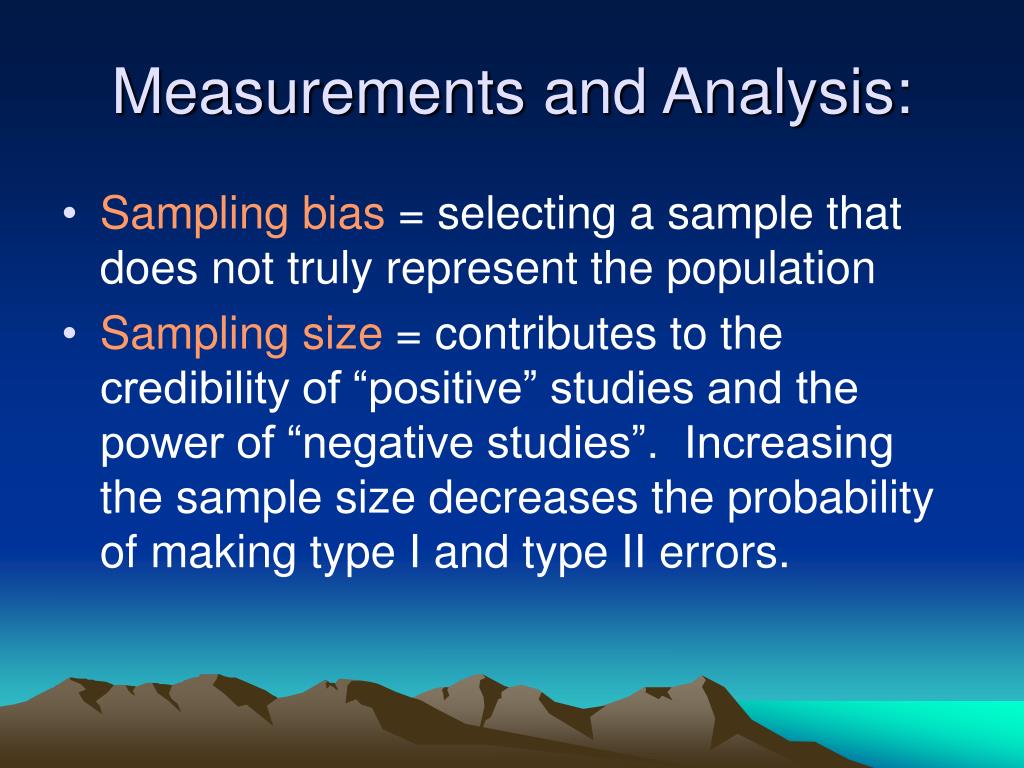

Measurements and analysis

Measurements and Analysis:

  • Sampling bias = selecting a sample that does not truly represent the population

  • Sampling size = contributes to the credibility of “positive” studies and the power of “negative studies”. Increasing the sample size decreases the probability of making type I and type II errors.



  • Type I Error (alpha error) = the probability that a null hypothesis is considered false when it is actually true. (ie. Declaring an effect to be present when it is not)

    This probability is represented by the p value or alpha; the probability the difference is due to chance alone.

Errors cont

Errors cont.

  • Type II Error (Beta Error) = the probability of accepting a null hypothesis as true when it is actually false (ie. Declaring a difference/effect to be absent when it is present)

    • The probability that a difference truly exists

    • Reflects the power (1-Beta) of a study



  • Statistical Significance: determination by a statistical test that there is evidence against the null hypothesis.

  • The level of significance depends on the values chosen for alpha error

  • Usually alpha<.05 and beta<.20 (studies rarely aim for power >80%)

Significance cont

Significance cont.

  • Clinical Significance: statistical significance is necessary but not sufficient for clinical significance which reflects the meaningfulness of the difference (eg. A statistically significant 1mm Hg BP reduction is not clinically significant)

  • Also includes such factors as cost, SE.

Other terms

Other terms:

  • Accuracy= how closely a measurement approaches the true value

  • Reliability= how consistent or reproducible a measurement is when performed by different observers under the same conditions or the same observer under different conditions

  • Validity= describes the accuracy and reliability of a test (ie. The extent to which a measurement approaches what it is designed to measure)

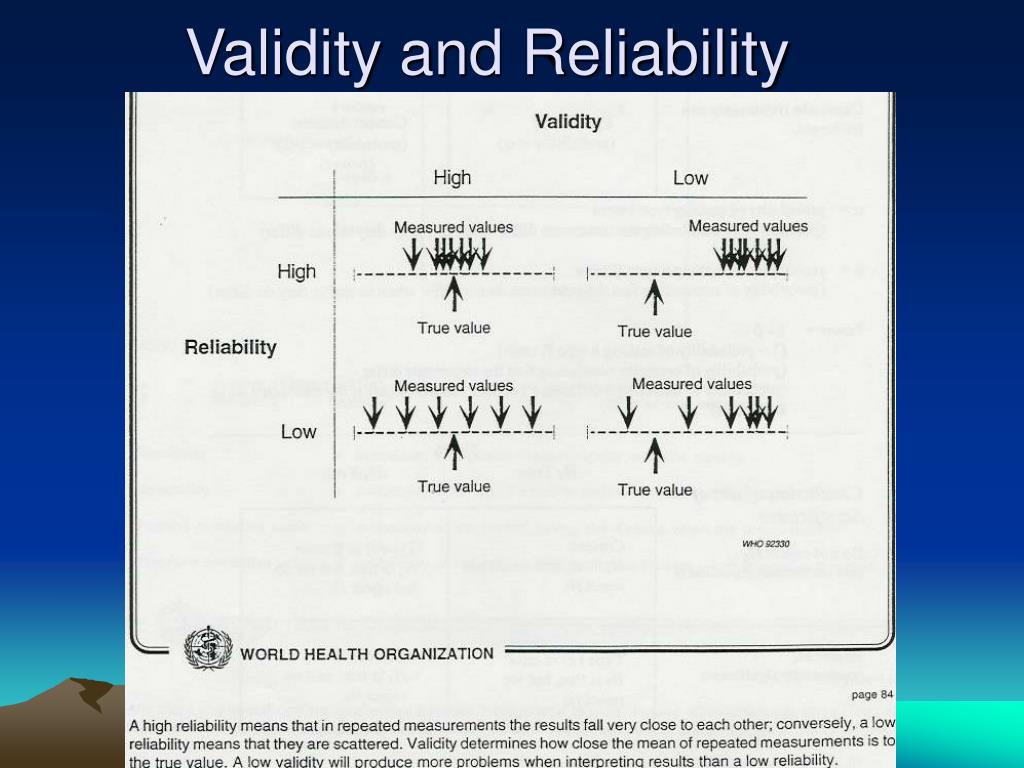

Validity and reliability

Validity and Reliability

Appraising an article jama

Appraising an article (JAMA):

  • 3 basic stages

    • 1) the validity – are the conclusions justified?

    • 2) the message – what are the results?

    • 3) the utility – can I generalise the findings to my patients?

Are the results valid therapy article

Are the results valid? – (therapy article)

  • Primary guides

    • Was the assignment of patients to treatment randomized?

    • Were all patients who entered the trial properly accounted for and attributed at its conclusion?

    • Was follow-up complete?

    • Were patients analyzed in the groups to which they were randomized? Ie. Intention to treat analysis

Are the results valid

Are the results valid?

  • Secondary guides:

    • Were patients, their clinicians, and study personnel “blind” to treatment? (avoids bias)

    • Were the groups similar at the start of the trial? (randomization not always effective if sample size small)

    • Aside from the experimental intervention, were the groups treated equally? (ie. Cointerventions)

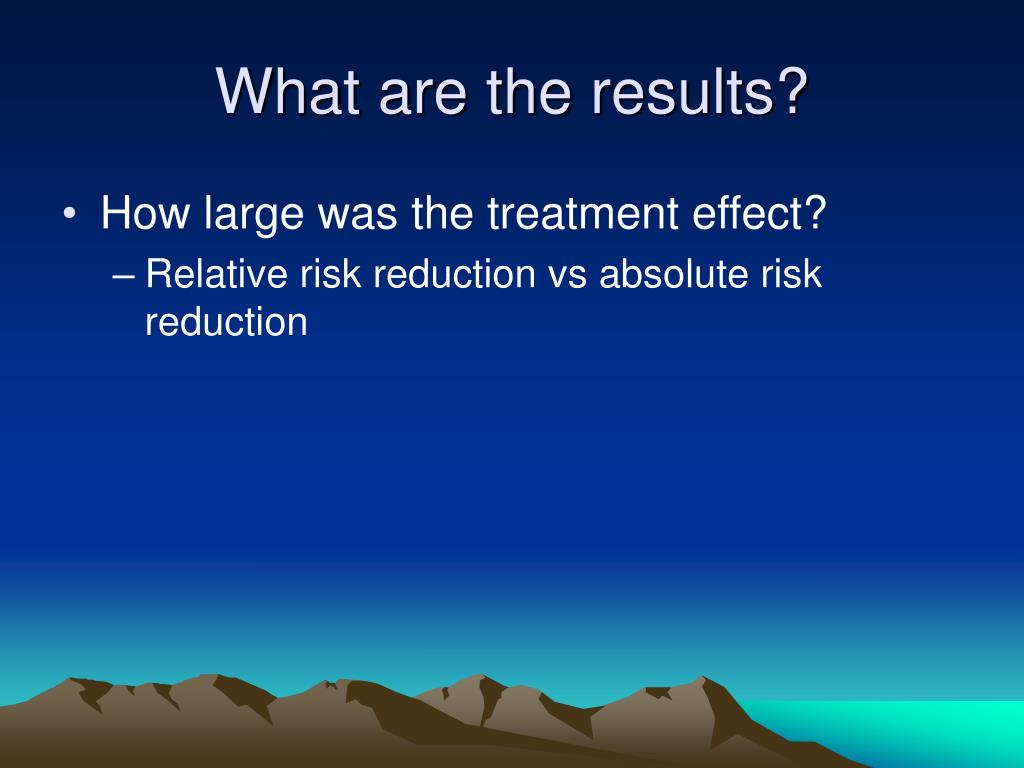

What are the results

What are the results?

  • How large was the treatment effect?

    • Relative risk reduction vs absolute risk reduction

Critical appraisal


  • Baseline risk of death without therapy=20/100 = .20 = 20% (X = .20)

  • Risk with therapy reduced to 15/100 = .15 = 15% (Y = .15)

  • Absolute Risk Reduction = (X-Y) = .20-.15 = .05 (5%)

  • Relative Risk = (Y/X) = .15/.20 = .75

  • Relative Risk Reduction = [1-(Y/X)] x 100% = [1-(.75)] x 100% = 25%

Number needed to treat nnt

Number needed to treat = NNT

  • To calculate simply take the inverse of the absolute risk reduction

  • In last example= 1/.05 = 20 is the NNT

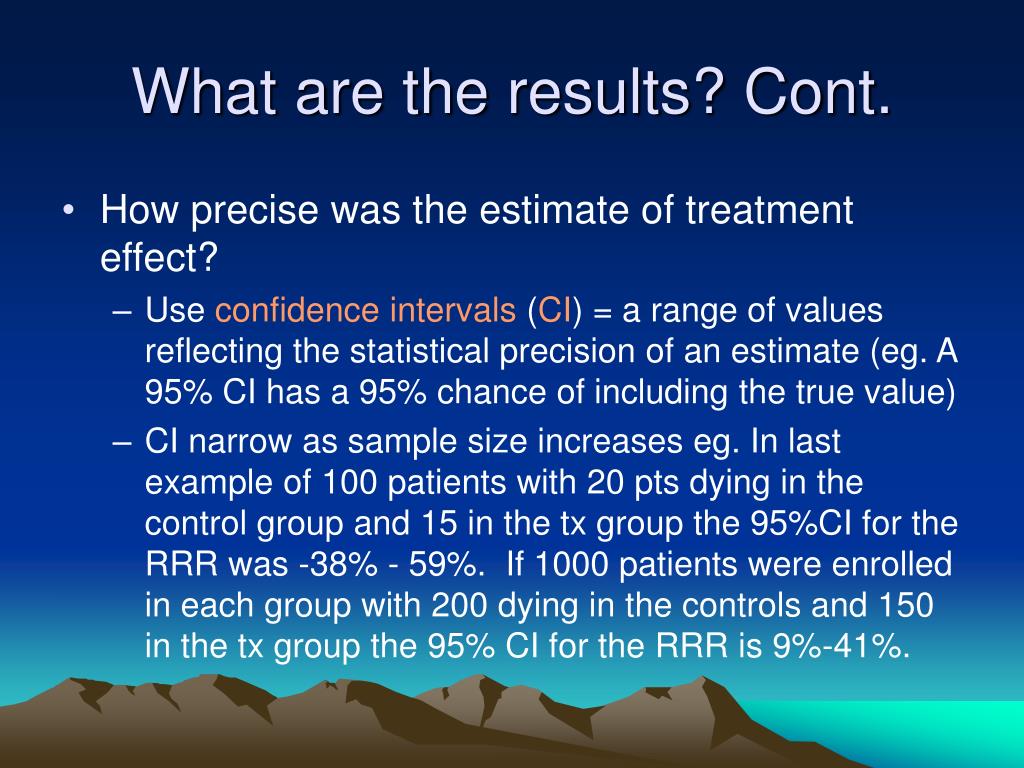

What are the results cont

What are the results? Cont.

  • How precise was the estimate of treatment effect?

    • Use confidence intervals (CI) = a range of values reflecting the statistical precision of an estimate (eg. A 95% CI has a 95% chance of including the true value)

    • CI narrow as sample size increases eg. In last example of 100 patients with 20 pts dying in the control group and 15 in the tx group the 95%CI for the RRR was -38% - 59%. If 1000 patients were enrolled in each group with 200 dying in the controls and 150 in the tx group the 95% CI for the RRR is 9%-41%.

Ci cont

CI cont

  • If CI cross 0 they are generally unhelpful in making conclusions

  • When is the sample size big enough?

    • If the lower boundary of the CI is still clinically significant to you (in + studies)

    • (or if the upper CI boundary is not clinically significant in negative studies)

What if no ci reported

What if no CI reported?

  • 1) use the p value = as the p value decreased below .05, the lower bound of the 95% confidence limit for the RRR rises above 0

  • 2) If the standard error (SE) of the RRR is presented it is easy to calculate the CI as 2xSE +/- point estimate (RRR)

  • 3) Calculate CI yourself or with a statistician

Will the results help me in caring for my patients

Will the results help me in caring for my patients?

  • Can the results be applied to my patient population?

  • Were all clinically important outcomes considered? Ie. Mortality, morbitity, quality of life endpoints

  • Are the likely treatment benefits worth the potential harm and costs? Ie. What is the patient’s baseline risk if left untreated. (NNT is helpful here)

Article about a diagnostic test

Article about a diagnostic test:

Are the results valid1

Are the results valid?

  • Primary guides:

    • Was there an independent, blind comparison with a reference standard? (ie. Gold standard)

    • Did the patient sample include an appropriate spectrum of patients to whom the diagnostic test will be applied in clinical practice?

Are the results valid2

Are the results valid?

  • Secondary guides

    • Did the results of the test being evaluated influence the decision to perform the reference standard? Ie verification bias eg. Pioped = normal, near normal, low prob V/Q scans had only 69% going on for pulmonary angiogram whereas more positive V/Q scans had 92% going on for angiograms

    • Were the methods for performing the test described in sufficient detail to permit replication?

What are the results1

What are the results?

  • Are likelihood ratios for the test results presented or data necessary for their calculation included?

  • Likelihood ratio = the ratio between the likelihoods of having the disease, and not having the disease, with a + test

Likelihood ratios

Likelihood Ratios:

  • LR>10 and <.1 generate large and often conclusive changes from pretest to posttest probability

  • LR of 5-10 and .1-.2 generate moderate shifts in pretest and posttest probability

  • LR of 2-5 and .5-.2 generate small (but sometimes important) changes in probability

  • LR of 1-2 and .5-1 are generally insignificant

Bayesian analysis

Bayesian analysis

  • Makes use of LR to change pretest probabilities to posttest probabilities. (can use Fagan’s nomogram):

Will the results help me in caring for my patients1

Will the results help me in caring for my patients?

  • Will the reproducibility of the test result and its interpretation be satisfactory in my setting?

  • Are the results applicable to my patient?

  • Will the results change my management?

  • Will patients be better off as a result of the test?

Articles about harm

Articles about Harm?

  • 1st – what is the study design (RCT, cohort, case control, case series, etc)

    • Most important is that there is an appropriate control population

Are the results valid3

Are the results valid?

  • Were the exposures and outcomes measured in the same way in the groups being compared? (minimize recall/interviewer bias)

  • Was follow-up sufficiently long and complete?

  • Is the temporal relationship correct?

  • Is there a dose response gradient?

What are the results2

What are the results?

  • How strong is the association between exposure and outcome? Ie. Relative risk (if >1= increase in risk associated with exposure and <1= decrease in risk associated with exposure)

  • How precise is the estimate of risk? Ie. CI

What are the implications for my practice

What are the implications for my practice?

  • Are the results applicable to my practice?

  • What is the magnitude of the risk?

  • Should I attempt to stop the exposure?

Overviews systemic reviews and meta analysis

Overviews, Systemic Reviews, and Meta-analysis

  • Did the overview address a focussed clinical question?

  • Were the criteria used to select articles for inclusion appropriate? - these should be revealed in the paper

  • Is it unlikely that important, relevant studies were missed? (avoids publication bias- a higher likelihood for studies with positive results to be published)

  • Was the validity of the included studies appraised? (peer review does not guarantee the validity of published research)

Critical appraisal


  • Were assessments of studies reproducible? (better if there are more reviewers who are deciding which articles to include)

  • Were the results similar from study to study? (can use “tests of homogeneity” statistical analysis)



  • What are the overall results of the overview? (are studies weighted according to their size?)

  • There should be a summary measure which clearly conveys the practical importance of the result – eg. RRR, LR, NNT etc.

  • How precise were the results? CI still very helpful

Will the results help me in caring for my patients2

Will the results help me in caring for my patients?

  • Can the results be applied to my patient care? (subgroup analysis should be critiqued closely)

  • Were all clinically important outcomes considered? ( a clinical decision will require considering all outcomes both good and bad)

  • Are the benefits worth the harms and costs?

Does your brain ache the end

Does your brain ache?THE END

  • Login
