Objectives l.jpg
Objectives Industry

  • Familiarize you with the options for controlling electrical heat-tracing systems

  • Familiarize you with the different methods of monitoring electrical heat-tracing systems

  • Provide an overview of TTC’s products for control and monitoring


Summary l.jpg
Summary Industry

XL-TraceFreeze protection

Self-Regulating, Ambient & Line Sensing Thermostats, DigiTrace 910

ElectroMelt, IceStopSnow and Ice Melting

Manual, Ambient Thermostat, Building DCS, Snow Controller

RaySolFloor Heating

Manual or Timed, Floor-Sensing Thermostat, DigiTrace910

HWATHot Water Maintenance

Self-Regulating, Line Sensing Control?


Control and monitoring are different l.jpg
Control and Monitoring are Different Industry

  • Control

    • Varying the heating cable output to achieve the desired temperature

  • Monitoring

    • Providing feedback on the status of the heat-traced system

Control

Monitoring


Options for xl trace l.jpg
Options for XL-Trace Industry

  • Self-Regulating

  • Ambient sensing control

    • Ambient sensing thermostats

  • Line sensing control

    • Line sensing thermostats

  • Monitoring & Control with DigiTrace 910


Self regulating control is simple l.jpg
Self-Regulating Control is Simple Industry

DistributionPanel

PowerConnection

Heating cable

End Seal


Ambient sensing control l.jpg
Ambient Sensing Control Industry

MainContactor

Ambient sensingthermostat

DistributionPanel


Ambient sensing thermostats l.jpg
Ambient Sensing Thermostats Industry

Fixed 40°F setpoint

AMC-1A

AMC-F5

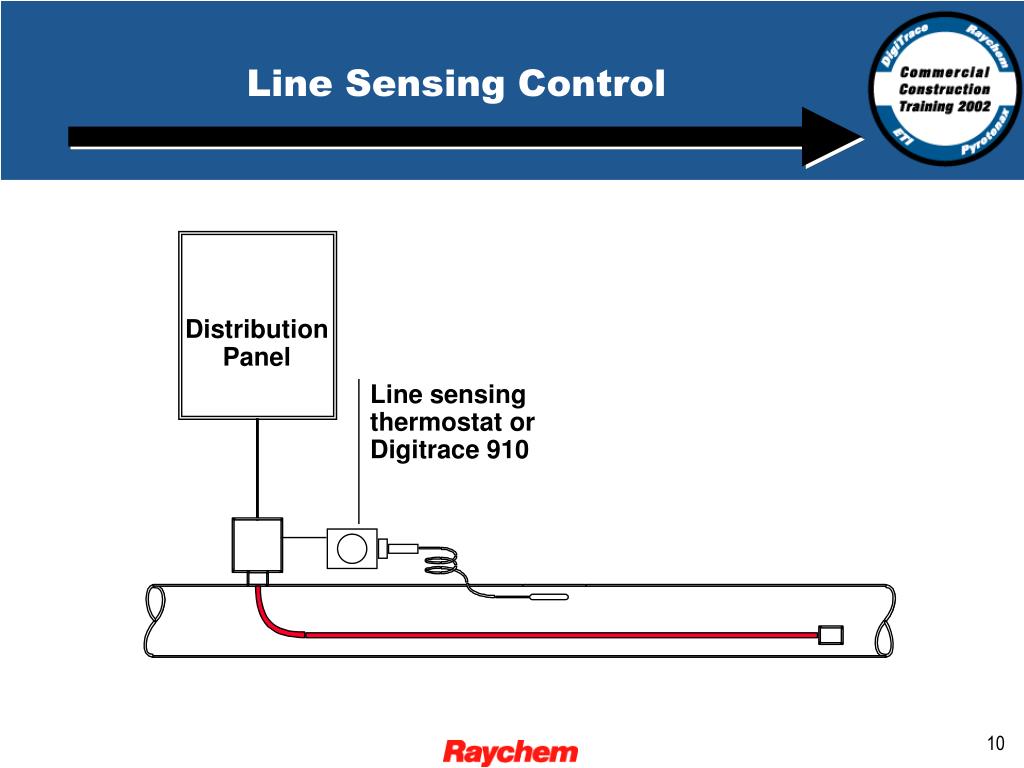

Line sensing control l.jpg
Line Sensing Control Industry

DistributionPanel

Line sensingthermostat orDigitrace 910

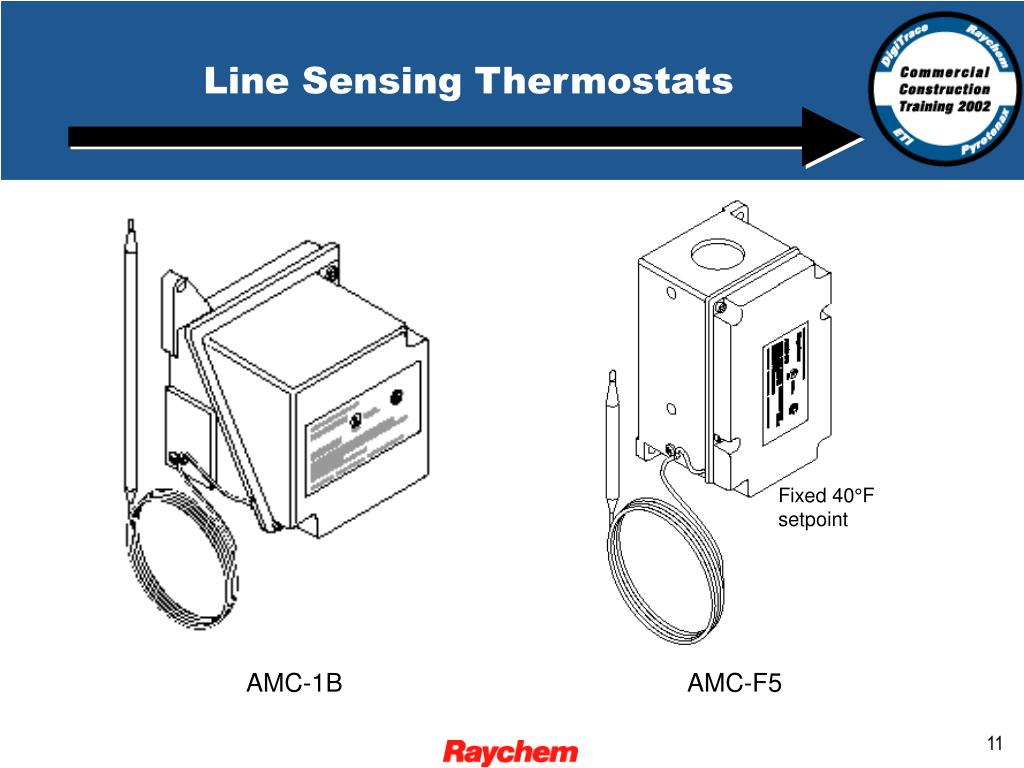

Line sensing thermostats l.jpg
Line Sensing Thermostats Industry

Fixed 40°F setpoint

AMC-1B

AMC-F5


Ground fault monitoring l.jpg
Ground-Fault Monitoring Industry

  • Advantages

    • Monitors integrity of heating cable and power distribution wiring

    • Readily available equipment

    • Low installed cost

  • Disadvantages

    • Monitors cable integrity, not performance

    • Required bell alarm contract on GFPD


Monitoring using gfpd l.jpg
Monitoring Using GFPD Industry

GFPD

DistributionPanel

PowerConnection

End Seal

Heating cable


Digitrace 910 l.jpg
DigiTrace 910 Industry

  • 910 Single point electronic controller (920 Multi-point)

  • Approved GFPD replaces t-stat and ground fault breaker

  • Compatible with BMS, Networkable

  • Provides temperature, current and ground fault monitoring

  • Order RTD separately


Temperature monitoring l.jpg
Temperature Monitoring Industry

  • Advantages

    • Measures performance (will it freeze?)

    • Provides extensive alarm capability

      • Low and high temperature

      • High Low Amps

      • High Ground fault & Ground Fault trip

    • Can be networked to each other & a PC

  • Disadvantages

    • Expensive to install on each circuit


Temperature monitoring w 910 l.jpg
Temperature Monitoring w/910 Industry

Distribution Panel W/ Standard Circuit Breaker

DigiTrace 910

RTD


Control for electromelt and icestop l.jpg
Control for ElectroMelt and Icestop Industry

  • Manual Control (on/off control switched by hand)

  • Ambient-sensing control

    • AMC-F5, AMC-1A

  • Automated Building Management System (on/off control switched by building computer)

  • Automatic snow controllers (on/off control based on temperature and moisture)

    • Controllers - APS-4 (208-240), APS-4 (277), APS-3B

    • Sensors - CIT-1, GIT-1, SIT-1


  • Product offering l.jpg
    Product Offering Industry

    APS-4

    GIT-3

    APS-3B

    RCU-1

    GIT-1

    LCD-1

    SC-40

    CIT-1

    SIT-5E

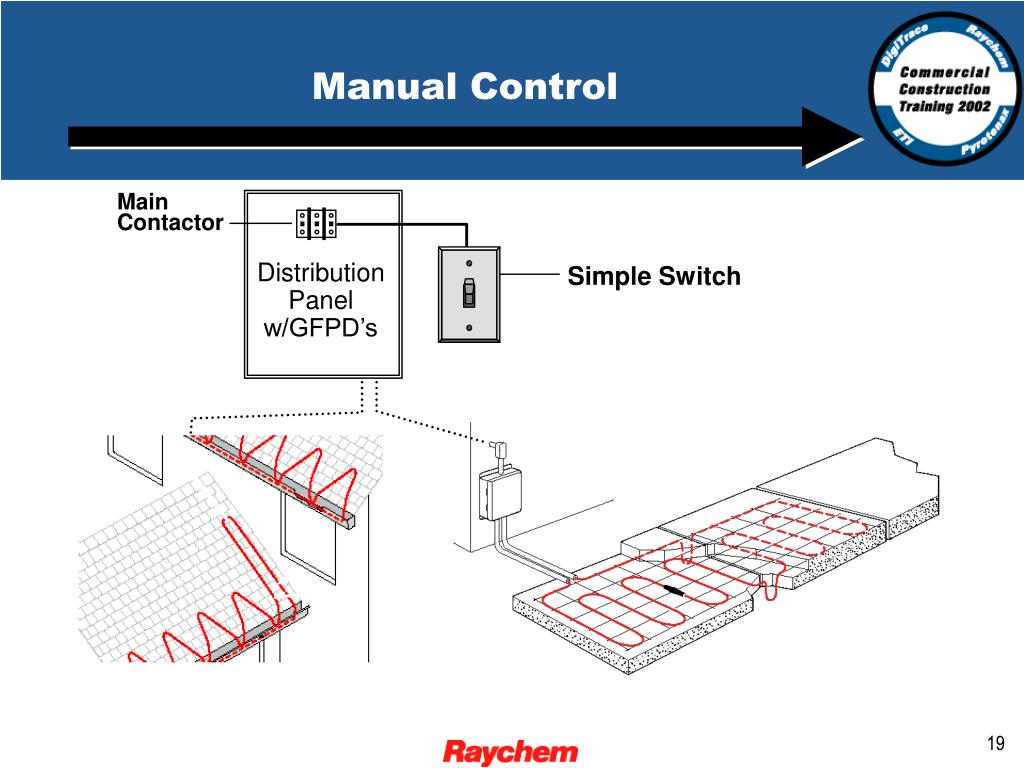

    Manual control l.jpg
    Manual Control Industry

    MainContactor

    DistributionPanel w/GFPD’s

    Simple Switch


    Ambient control l.jpg
    Ambient Control Industry

    MainContactor

    DistributionPanel w/GFPD’s

    Ambient sensing thermostat

    single circuit control


    Building management system l.jpg
    Building Management System Industry

    MainContactor

    Building Management System

    DistributionPanel w/GFPD’s


    Automatic snow controller l.jpg
    Automatic Snow Controller Industry

    • Automatically turns on system at 38°F with the presence of moisture

    • Variable hold-on time after snowfall ends

    • Manual override

    • In-pavement sensor available


    Automatic snow controller23 l.jpg
    Automatic Snow Controller Industry

    MainContactor

    CIT-1 pole mounted sensor

    APS-3B

    Snow Controller

    DistributionPanel w/GFPD’s

    SIT-1 pavement mounted sensor


    Icestop control l.jpg
    IceStop Control Industry

    GIT-1 gutter mounted sensors

    MainContactor

    DistributionPanel

    APS-4Snow Controller

    CIT-1 pole mounted sensor


    Control and monitoring for raysol l.jpg
    Control and Monitoring For RaySol Industry

    • Manual or Timed Control

    • Floor Temperature Sensing Control

    • Floor Temperature Sensing Control and Monitoring


    Manual or timed control l.jpg
    Manual or Timed Control Industry

    MainContactor

    Simple switchor timed switch

    DistributionPanel w/GFPD’s


    Floor temperature sensing control l.jpg
    Floor Temperature Sensing Control Industry

    MainContactor

    DistributionPanel w/GFPD’s

    FWT-2E Floorstat

    FWT-3


    Floor control and monitoring l.jpg
    Floor Control and Monitoring Industry

    MainContactor

    DigiTrace 910

    DistributionPanel w/GFPD’s


    Monitoring and control for hwat l.jpg
    Monitoring and Control for HWAT? Industry

    • Self-Regulating control

    • Line Sensing Control?

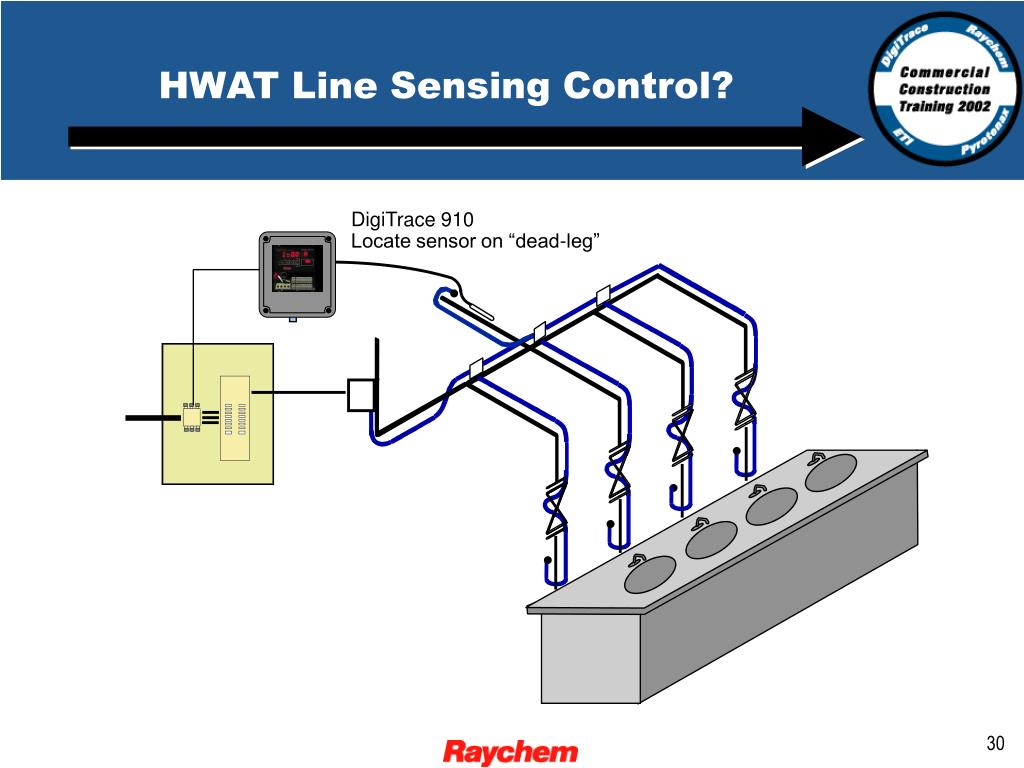

    Hwat line sensing control l.jpg
    HWAT Line Sensing Control? Industry

    DigiTrace 910

    Locate sensor on “dead-leg”
