objectives

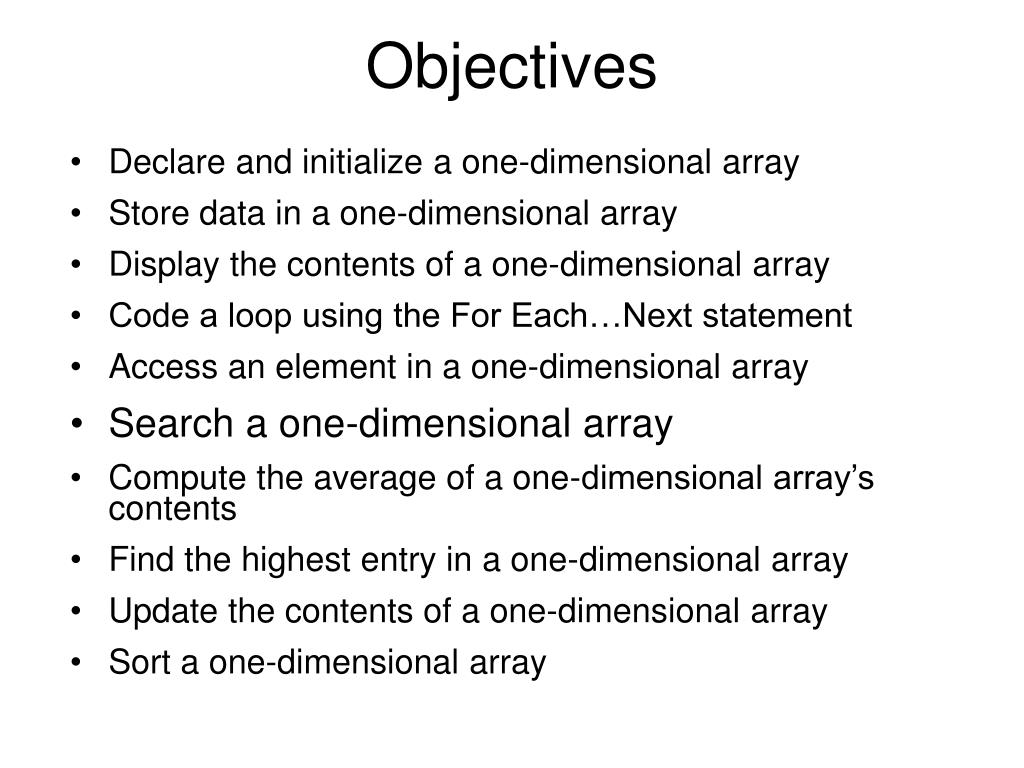

Objectives
  • Declare and initialize a one-dimensional array
  • Store data in a one-dimensional array
  • Display the contents of a one-dimensional array
  • Code a loop using the For Each…Next statement
  • Access an element in a one-dimensional array
  • Search a one-dimensional array
  • Compute the average of a one-dimensional array’s contents
  • Find the highest entry in a one-dimensional array
  • Update the contents of a one-dimensional array
  • Sort a one-dimensional array
objectives cont d

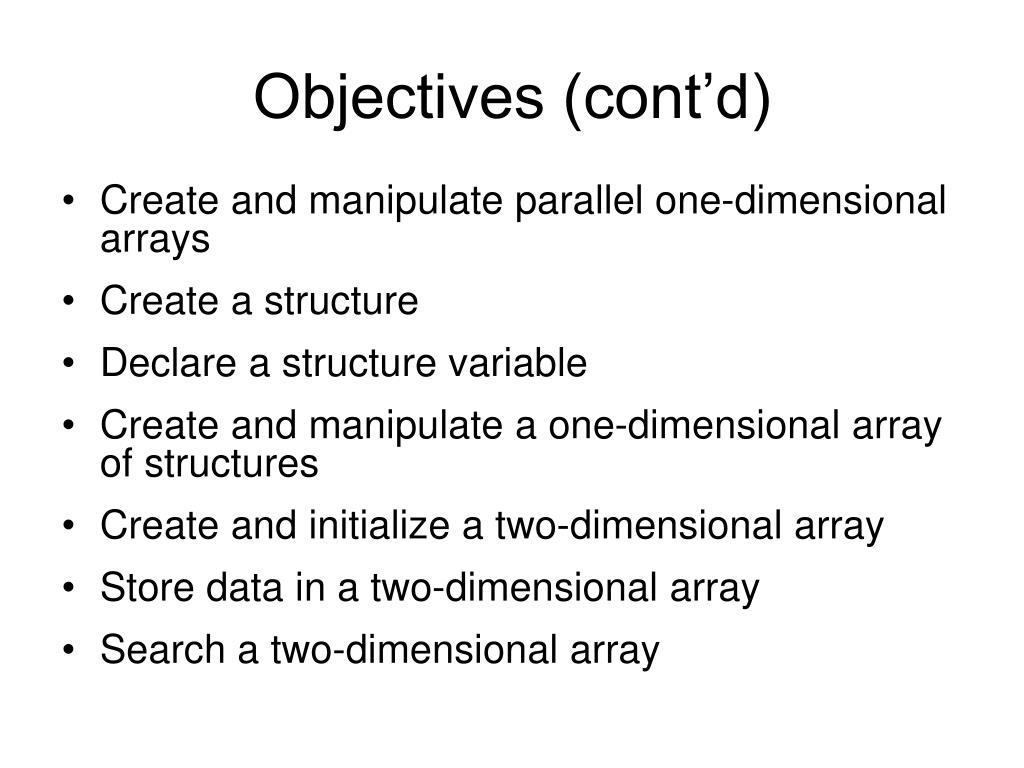

Objectives (cont’d)
  • Create and manipulate parallel one-dimensional arrays
  • Create a structure
  • Declare a structure variable
  • Create and manipulate a one-dimensional array of structures
  • Create and initialize a two-dimensional array
  • Store data in a two-dimensional array
  • Search a two-dimensional array
arrays1

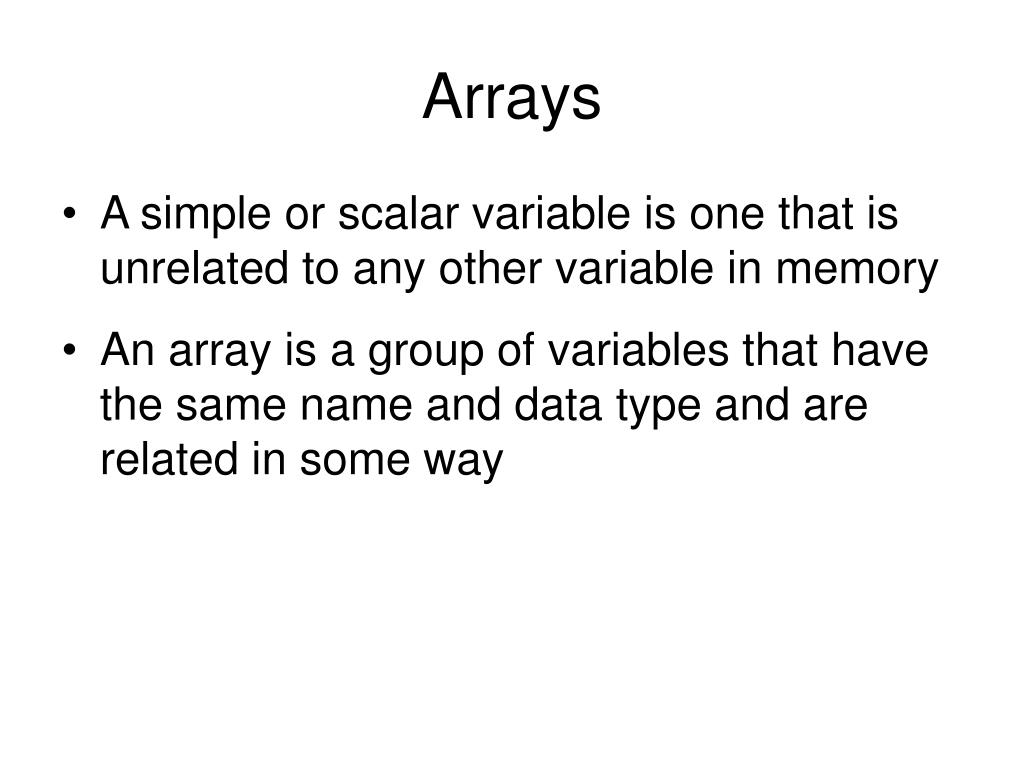

Arrays
  • A simple or scalar variable is one that is unrelated to any other variable in memory
  • An array is a group of variables that have the same name and data type and are related in some way
arrays continued

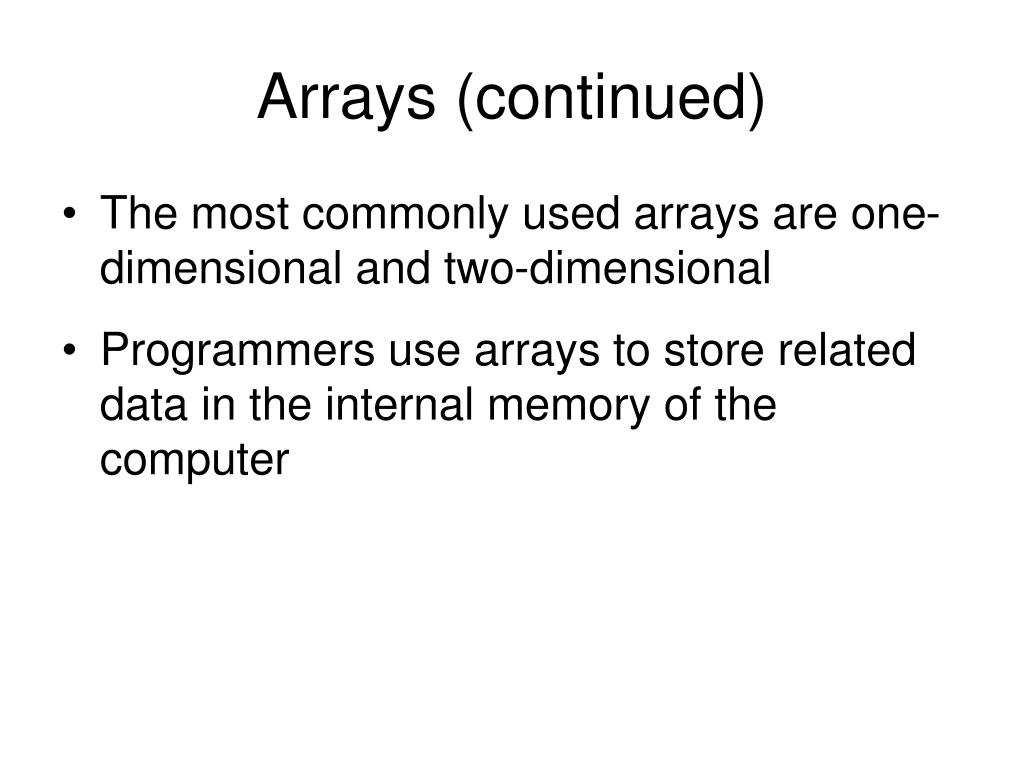

Arrays (continued)
  • The most commonly used arrays are one-dimensional and two-dimensional
  • Programmers use arrays to store related data in the internal memory of the computer
one dimensional arrays

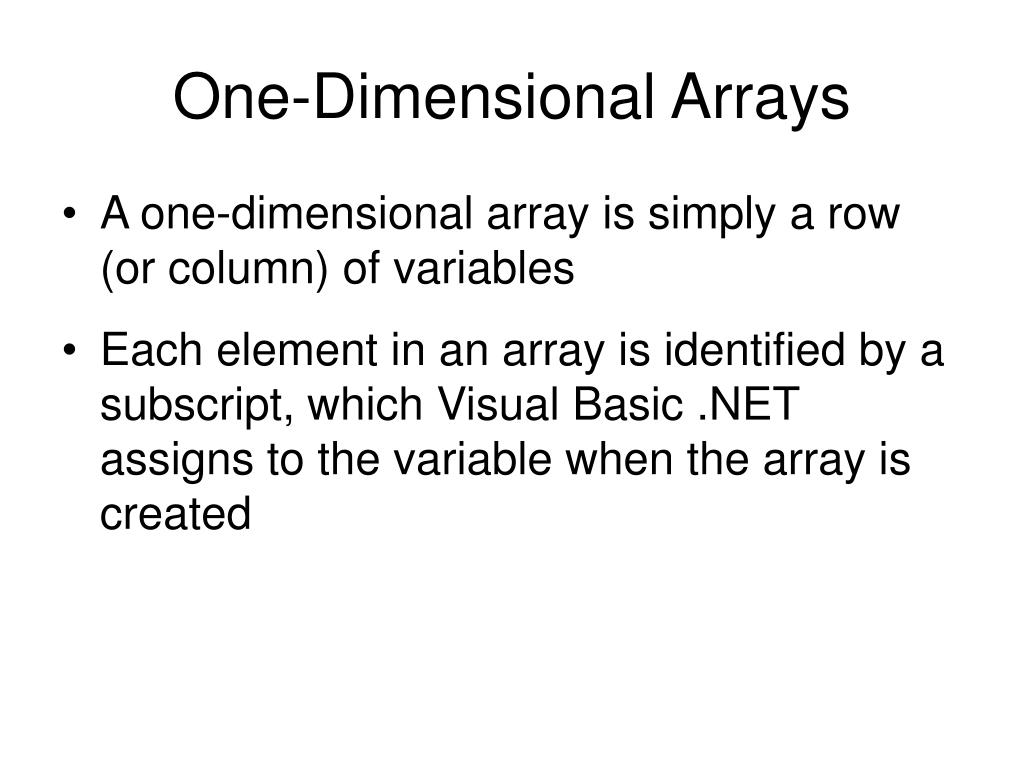

One-Dimensional Arrays
  • A one-dimensional array is simply a row (or column) of variables
  • Each element in an array is identified by a subscript, which Visual Basic .NET assigns to the variable when the array is created
one dimensional arrays continued
One-Dimensional Arrays (continued)
  • You refer to each variable in an array by its name and the variable’s subscript

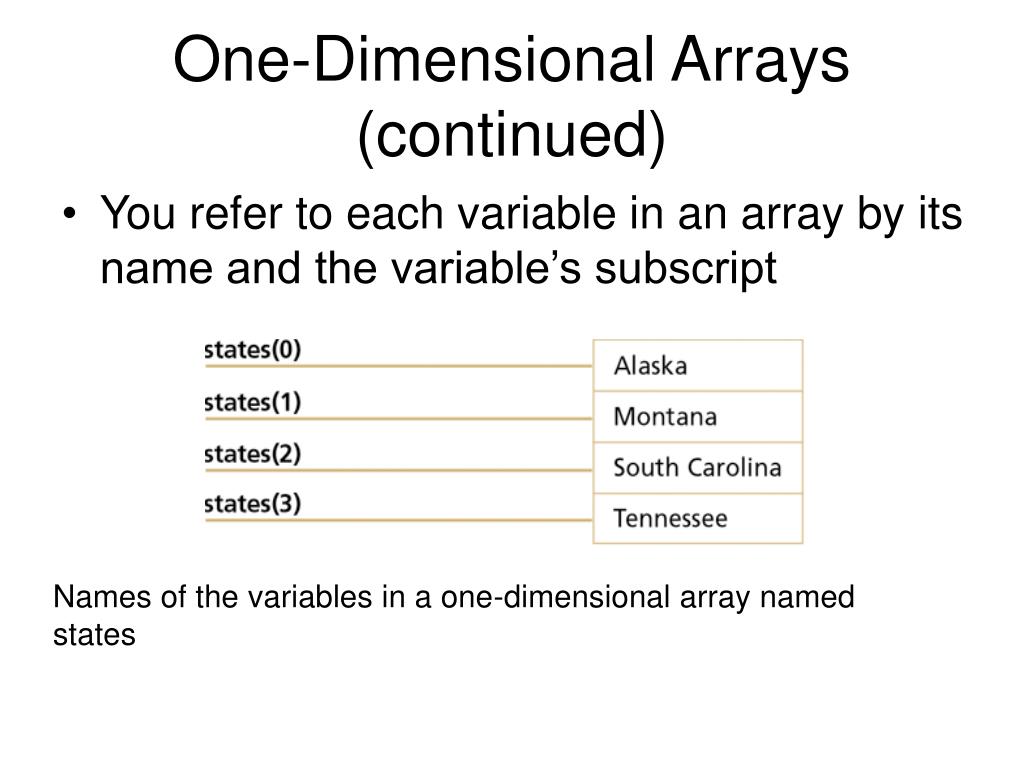

Names of the variables in a one-dimensional array named states

one dimensional arrays continued1

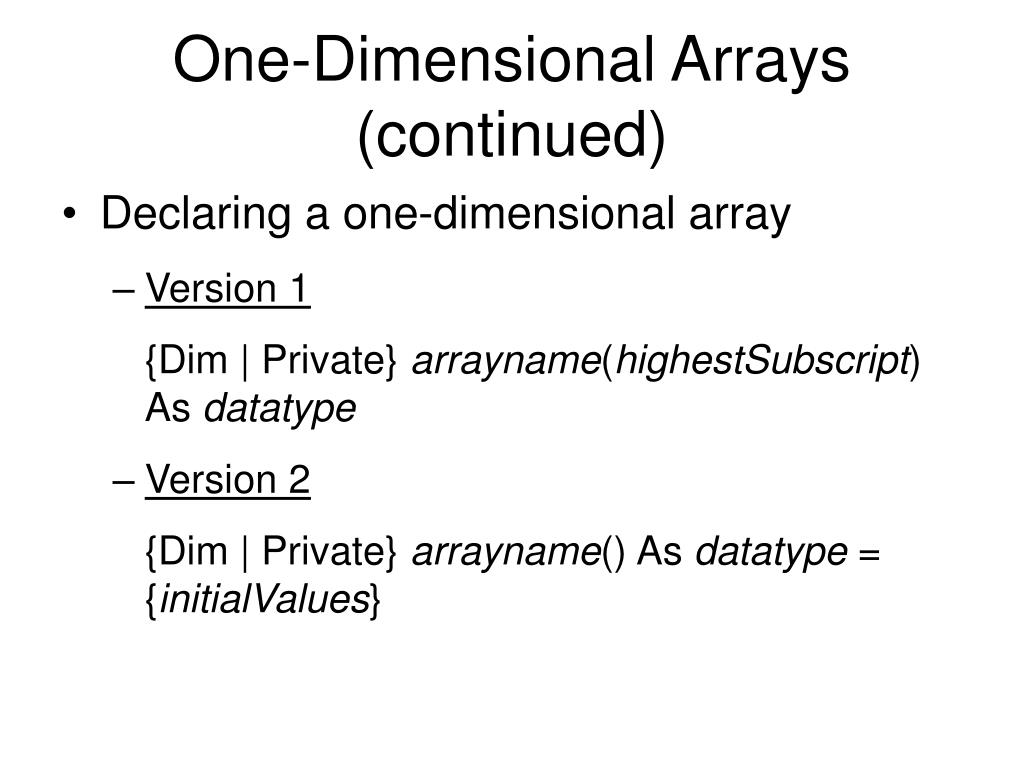

One-Dimensional Arrays (continued)
  • Declaring a one-dimensional array
    • Version 1

{Dim | Private} arrayname(highestSubscript) As datatype

    • Version 2

{Dim | Private} arrayname() As datatype = {initialValues}

one dimensional arrays continued2

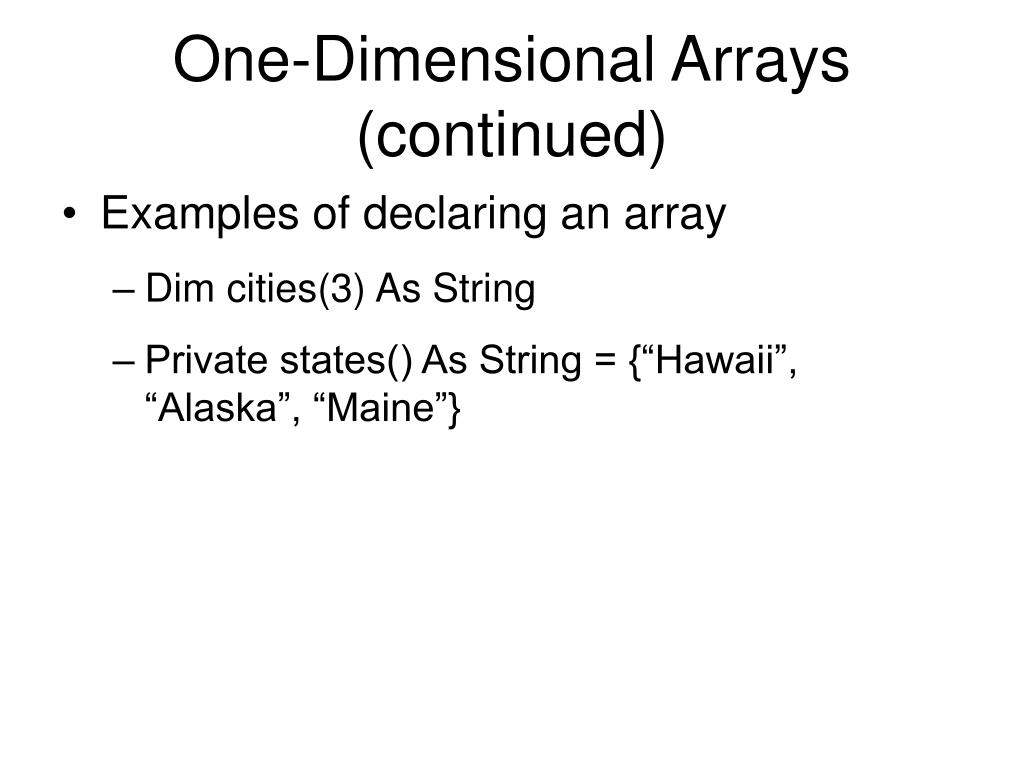

One-Dimensional Arrays (continued)
  • Examples of declaring an array
    • Dim cities(3) As String
    • Private states() As String = {“Hawaii”, “Alaska”, “Maine”}
storing data in a one dimensional array
Storing Data in a One-Dimensional Array
  • In most cases, you use an assignment statement to enter data into an existing array
  • Syntax: arrayname(subscript) = value
  • Examples
    • cities(0) = “Madrid”
    • cities(1) = “Paris”
    • cities(2) = “Rome”
manipulating one dimensional arrays
Manipulating One-Dimensional Arrays
  • You will learn how to perform the following tasks using a one-dimensional array:
    • Display the contents of an array
    • Access an array element using its subscript
    • Search the array
    • Calculate the average of the data stored in a numeric array
manipulating one dimensional arrays continued
Manipulating One-Dimensional Arrays (continued)
  • You will learn how to perform the following tasks using a one-dimensional array (continued):
    • Find the highest value stored in an array
    • Update the array elements
    • Sort the array elements
displaying the contents of a one dimensional array

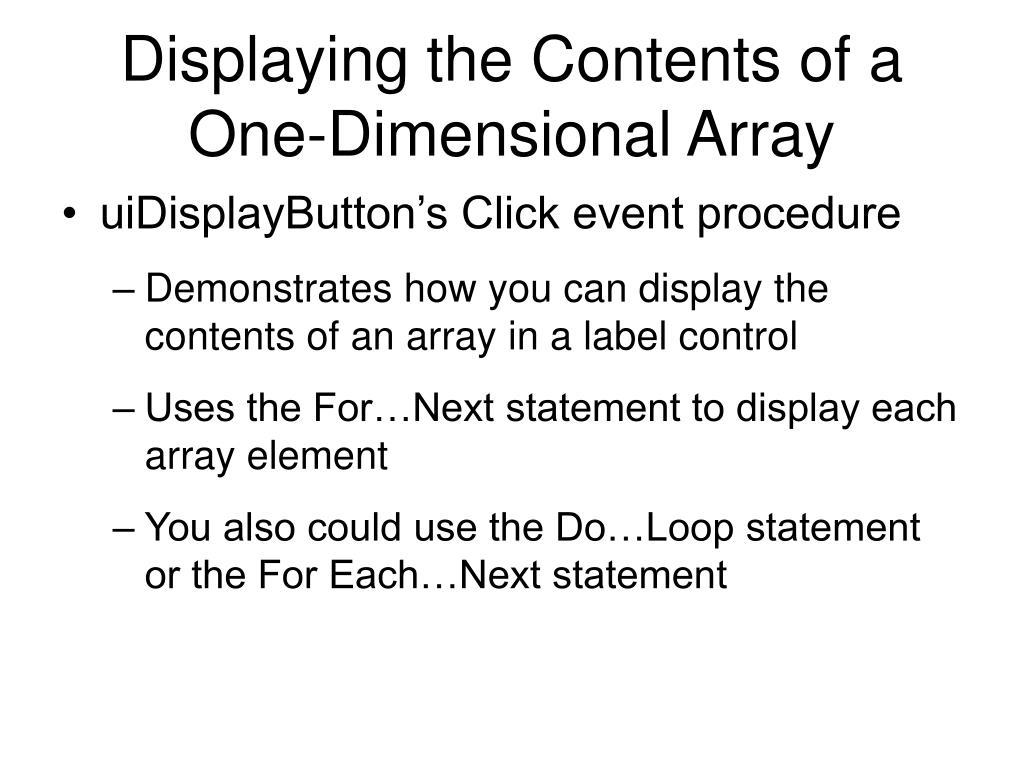

Displaying the Contents of a One-Dimensional Array
  • uiDisplayButton’s Click event procedure
    • Demonstrates how you can display the contents of an array in a label control
    • Uses the For…Next statement to display each array element
    • You also could use the Do…Loop statement or the For Each…Next statement
displaying the contents of a one dimensional array continued
Displaying the Contents of a One-Dimensional Array (continued)

uiDisplayButton’s Click event procedure

the for each next statement
The For Each…Next Statement

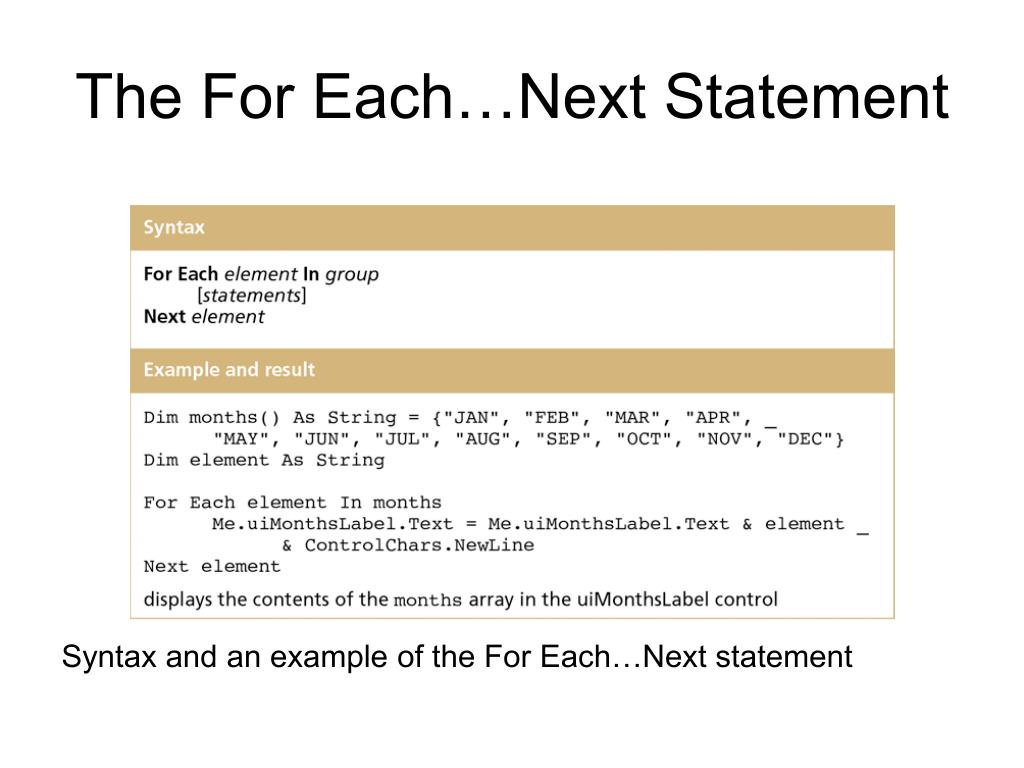

Syntax and an example of the For Each…Next statement

using the subscript to access an element in a one dimensional array

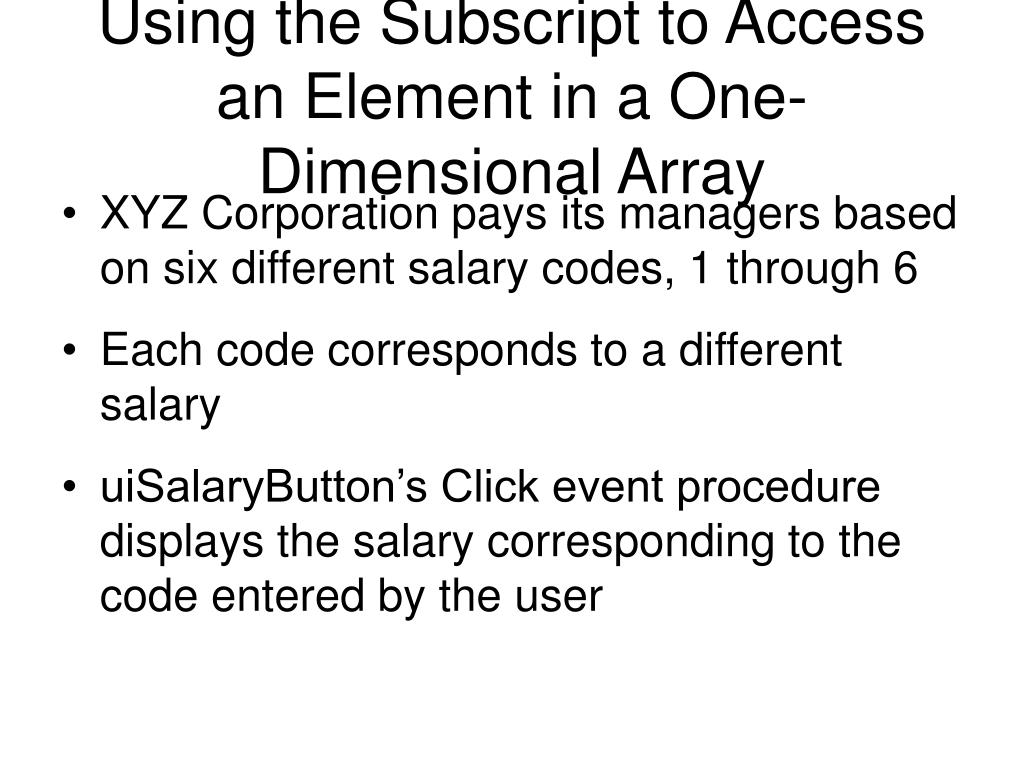

Using the Subscript to Access an Element in a One-Dimensional Array
  • XYZ Corporation pays its managers based on six different salary codes, 1 through 6
  • Each code corresponds to a different salary
  • uiSalaryButton’s Click event procedure displays the salary corresponding to the code entered by the user
searching a one dimensional array

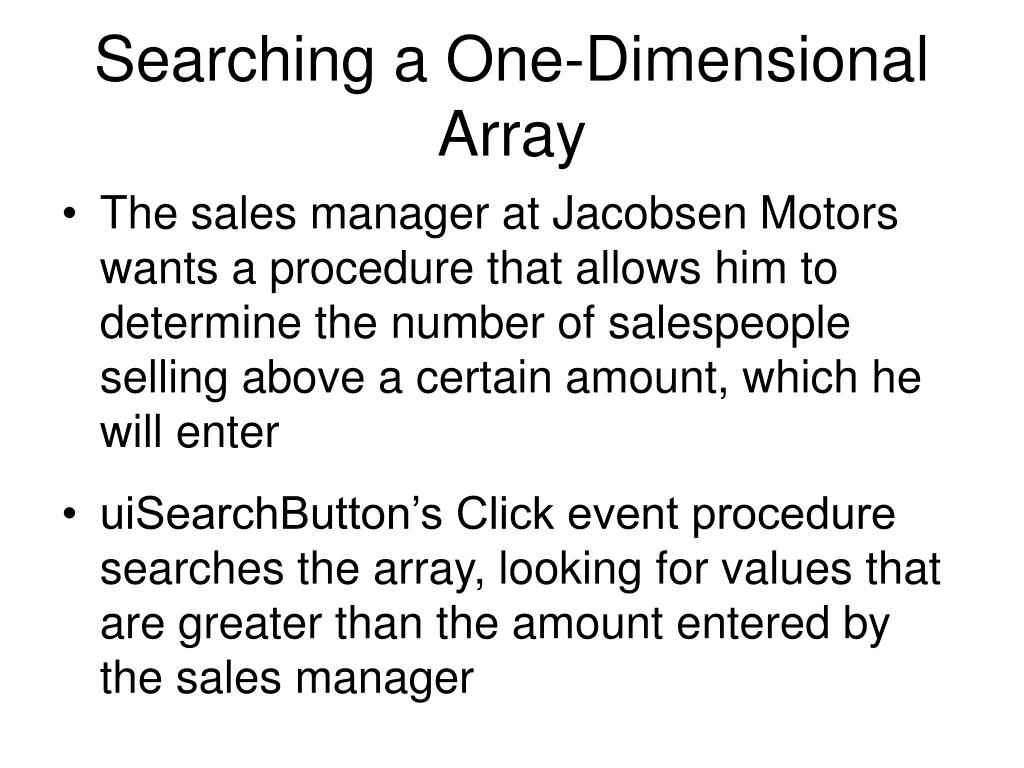

Searching a One-Dimensional Array
  • The sales manager at Jacobsen Motors wants a procedure that allows him to determine the number of salespeople selling above a certain amount, which he will enter
  • uiSearchButton’s Click event procedure searches the array, looking for values that are greater than the amount entered by the sales manager
calculating the average amount stored in a one dimensional numeric array

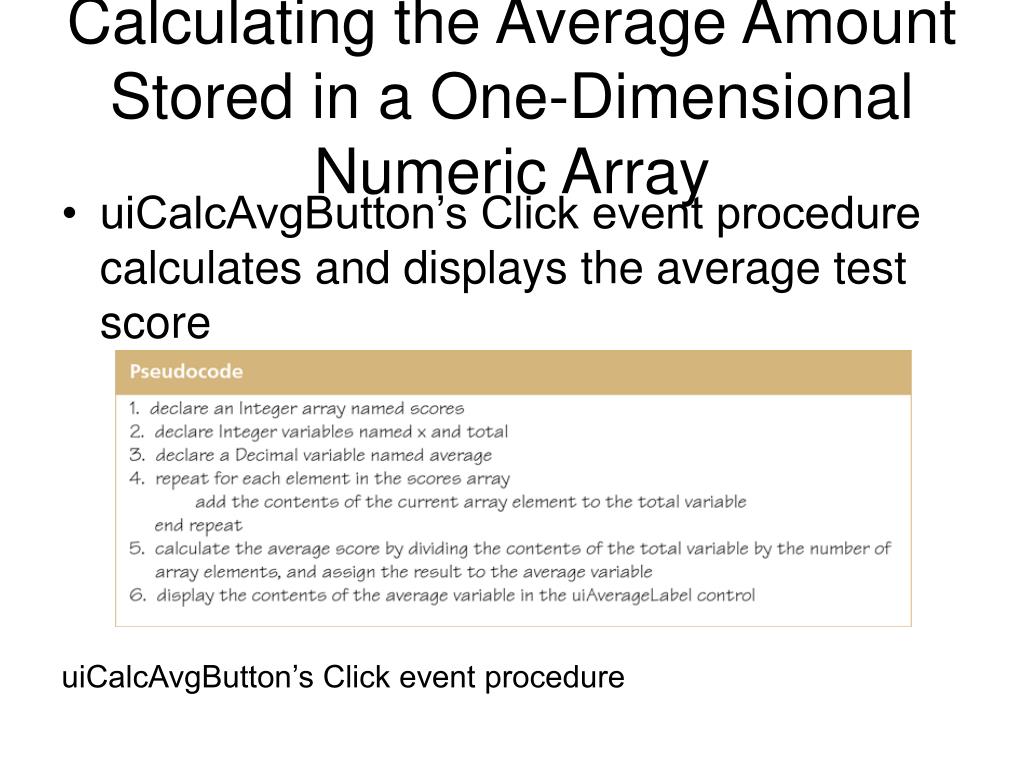

Calculating the Average Amount Stored in a One-Dimensional Numeric Array
  • uiCalcAvgButton’s Click event procedure calculates and displays the average test score

uiCalcAvgButton’s Click event procedure

calculating the average amount stored in a one dimensional numeric array continued
Calculating the Average Amount Stored in a One-Dimensional Numeric Array (continued)

uiCalcAvgButton’s Click event procedure (continued)

determining the highest value stored in a one dimensional array

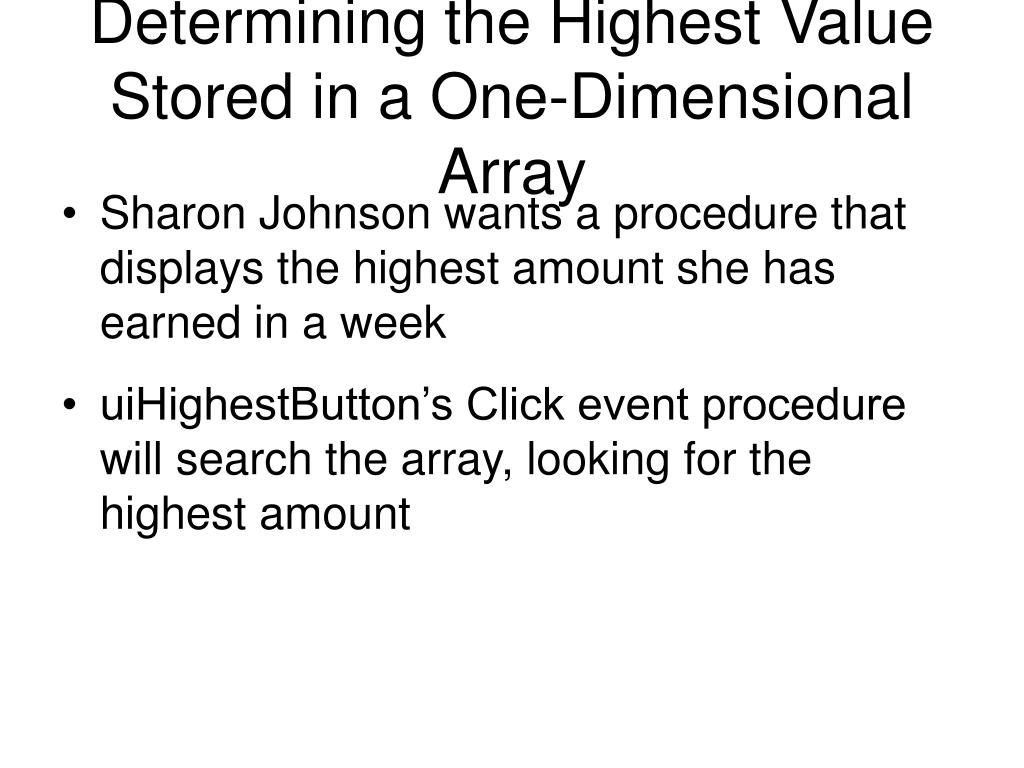

Determining the Highest Value Stored in a One-Dimensional Array
  • Sharon Johnson wants a procedure that displays the highest amount she has earned in a week
  • uiHighestButton’s Click event procedure will search the array, looking for the highest amount
updating the values stored in a one dimensional array

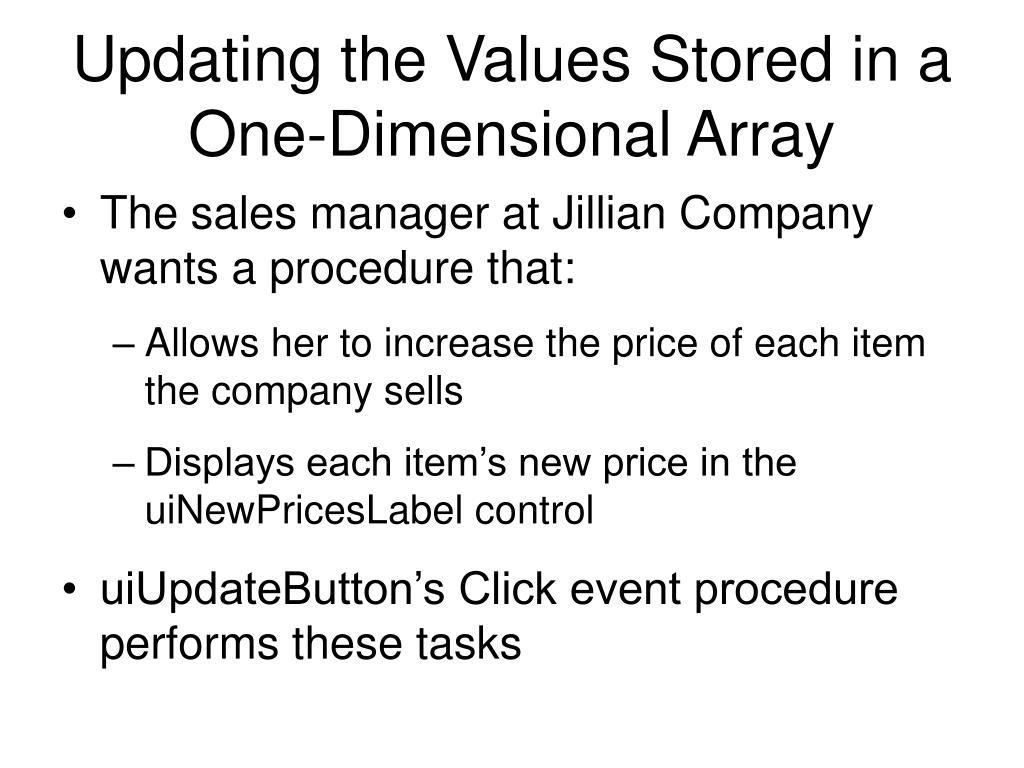

Updating the Values Stored in a One-Dimensional Array
  • The sales manager at Jillian Company wants a procedure that:
    • Allows her to increase the price of each item the company sells
    • Displays each item’s new price in the uiNewPricesLabel control
  • uiUpdateButton’s Click event procedure performs these tasks
sorting the data stored in a one dimensional array
Sorting the Data Stored in a One-Dimensional Array
  • Arranging data in a specific order is called sorting
  • Array.Sort method
    • Can be used to sort the elements in a one-dimensional array in ascending order
    • Syntax: Array.Sort(arrayname)
  • uiSortButton’s Click event procedure uses the Array.Sort method to sort the numbers array in ascending order
sorting the data stored in a one dimensional array continued

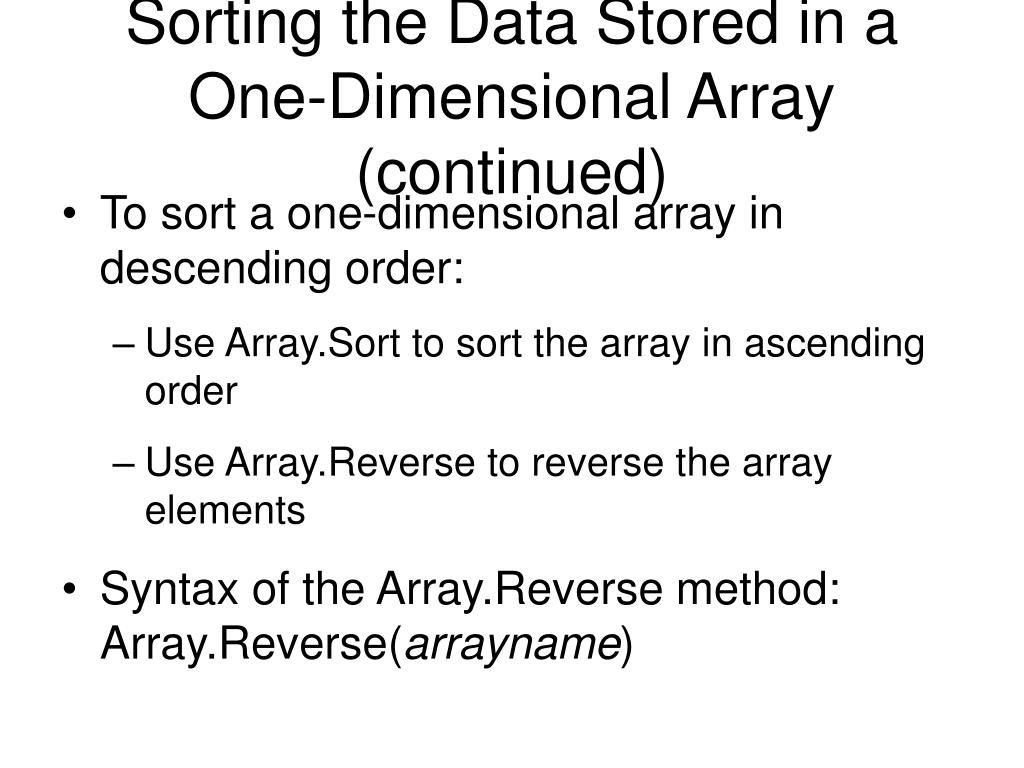

Sorting the Data Stored in a One-Dimensional Array (continued)
  • To sort a one-dimensional array in descending order:
    • Use Array.Sort to sort the array in ascending order
    • Use Array.Reverse to reverse the array elements
  • Syntax of the Array.Reverse method: Array.Reverse(arrayname)
using a module level one dimensional array

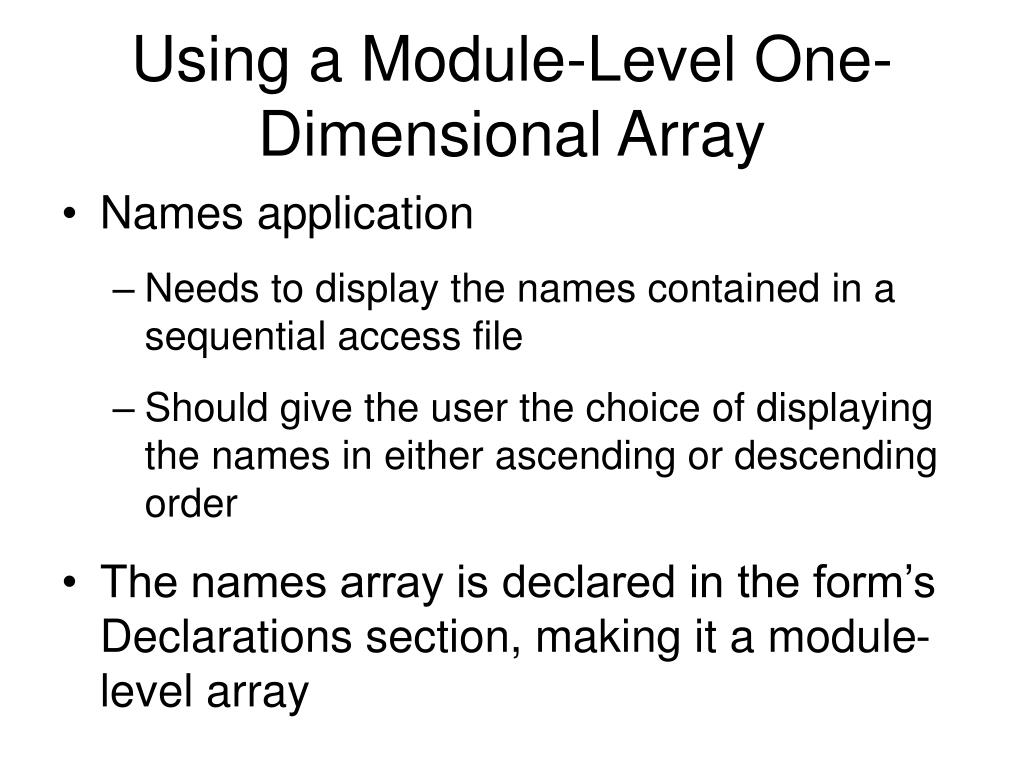

Using a Module-Level One-Dimensional Array
  • Names application
    • Needs to display the names contained in a sequential access file
    • Should give the user the choice of displaying the names in either ascending or descending order
  • The names array is declared in the form’s Declarations section, making it a module-level array
parallel one dimensional arrays

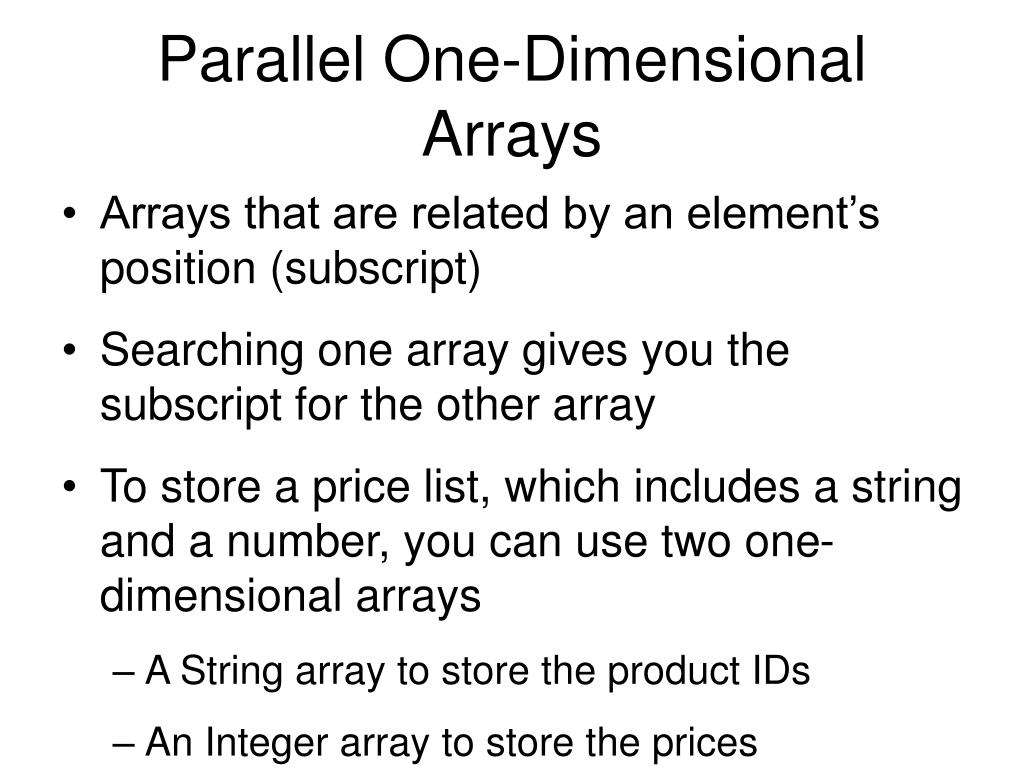

Parallel One-Dimensional Arrays
  • Arrays that are related by an element’s position (subscript)
  • Searching one array gives you the subscript for the other array
  • To store a price list, which includes a string and a number, you can use two one-dimensional arrays
    • A String array to store the product IDs
    • An Integer array to store the prices
parallel one dimensional arrays continued
Parallel One-Dimensional Arrays (continued)

Illustration of a price list stored in two one-dimensional arrays

structures

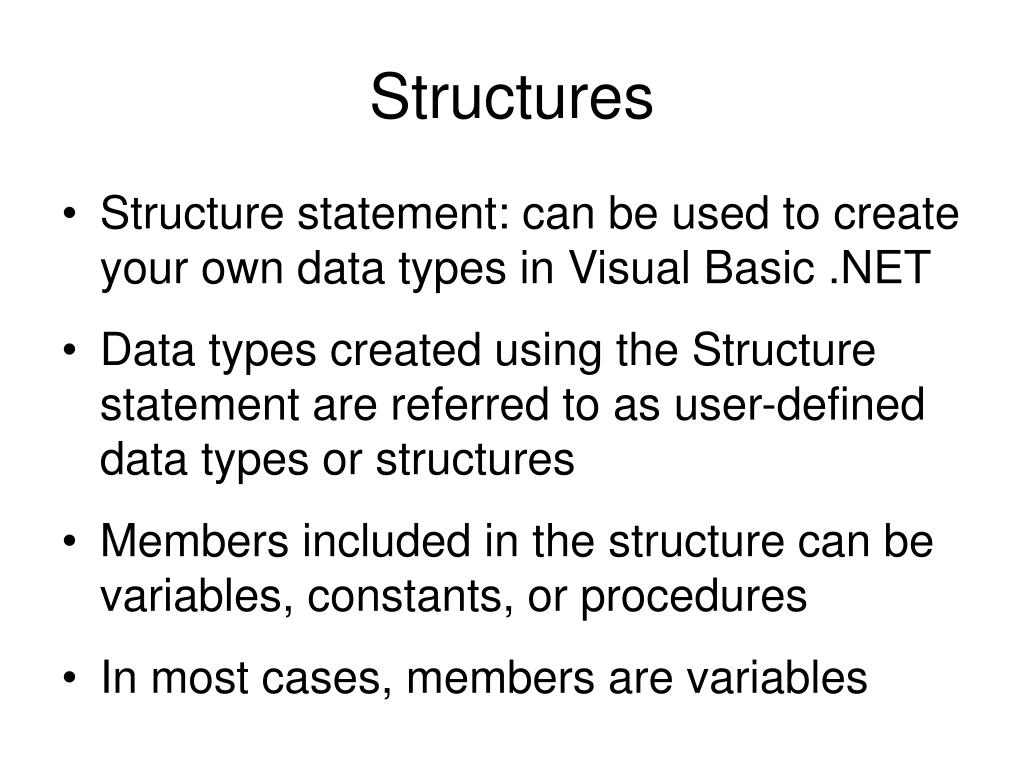

Structures
  • Structure statement: can be used to create your own data types in Visual Basic .NET
  • Data types created using the Structure statement are referred to as user-defined data types or structures
  • Members included in the structure can be variables, constants, or procedures
  • In most cases, members are variables
structures continued

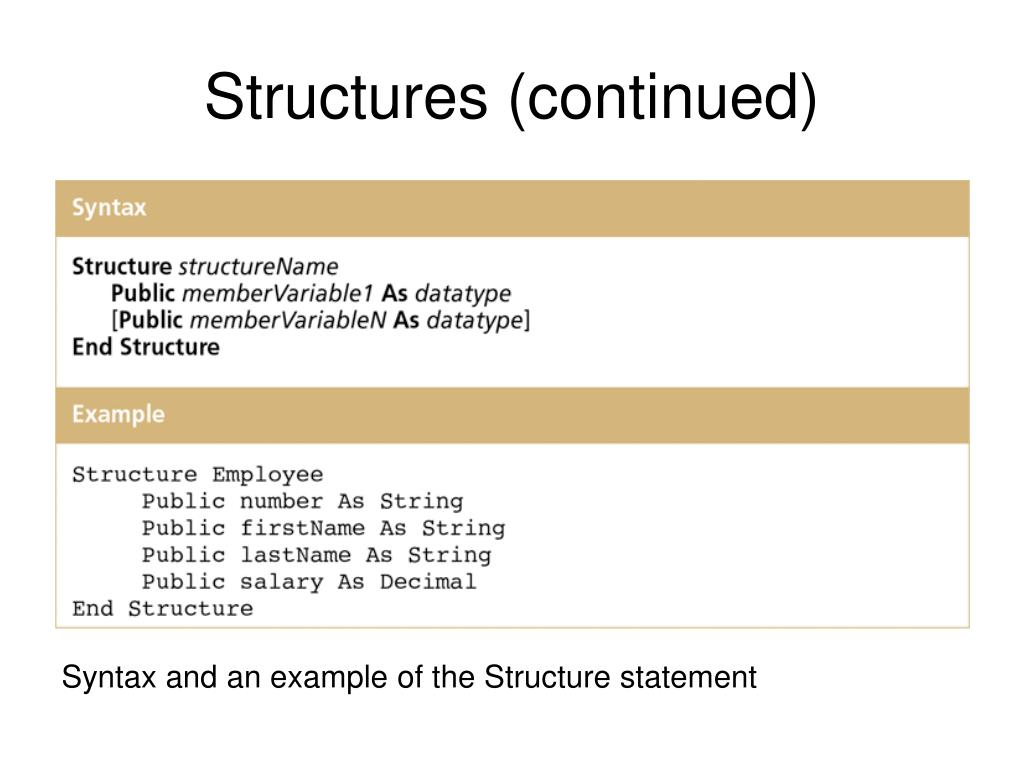

Structures (continued)

Syntax and an example of the Structure statement

using a structure to declare a variable

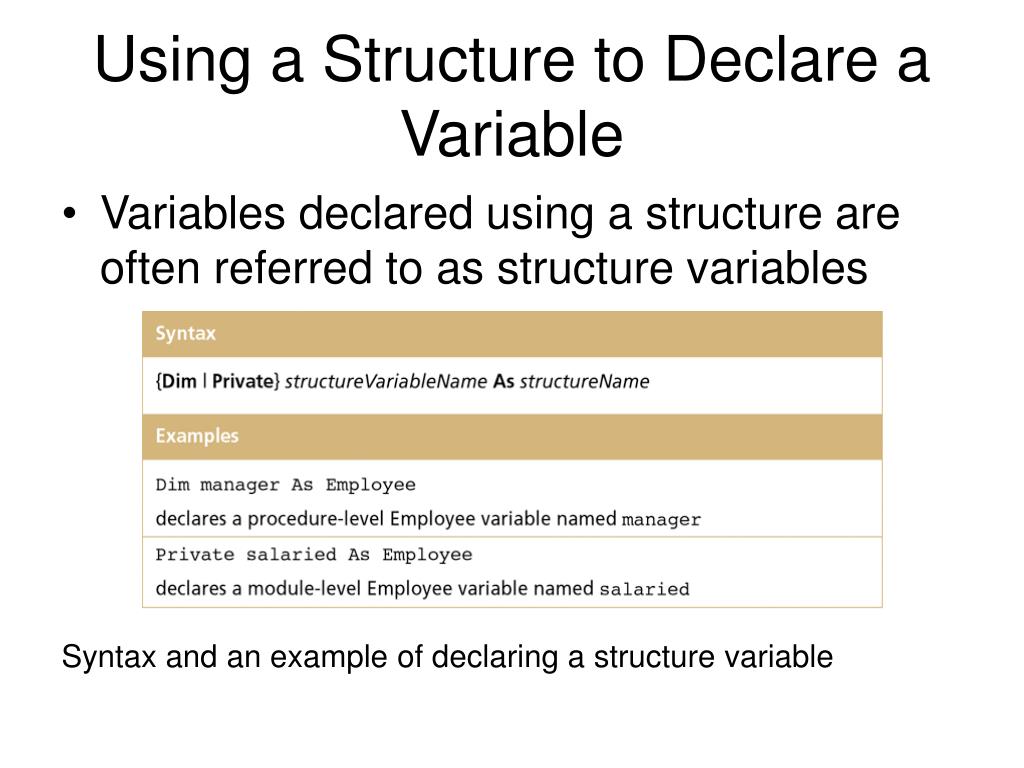

Using a Structure to Declare a Variable
  • Variables declared using a structure are often referred to as structure variables

Syntax and an example of declaring a structure variable

using a structure to declare a variable continued
Using a Structure to Declare a Variable (continued)

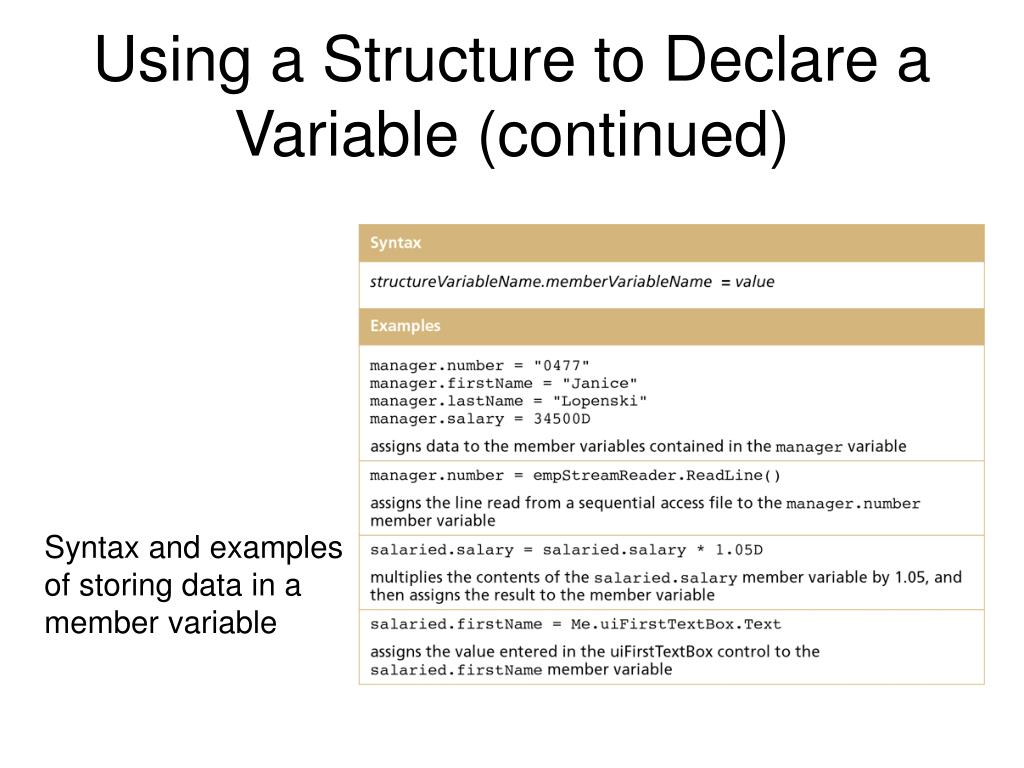

Syntax and examples of storing data in a member variable

creating an array of structure variables

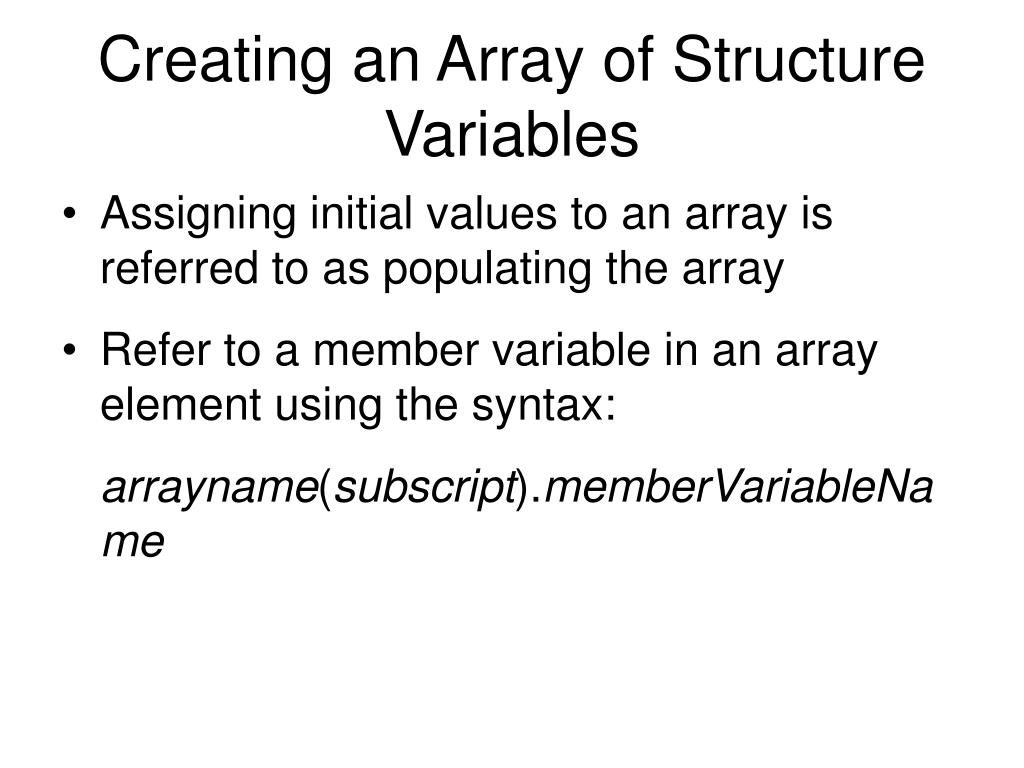

Creating an Array of Structure Variables
  • Assigning initial values to an array is referred to as populating the array
  • Refer to a member variable in an array element using the syntax:

arrayname(subscript).memberVariableName

two dimensional arrays

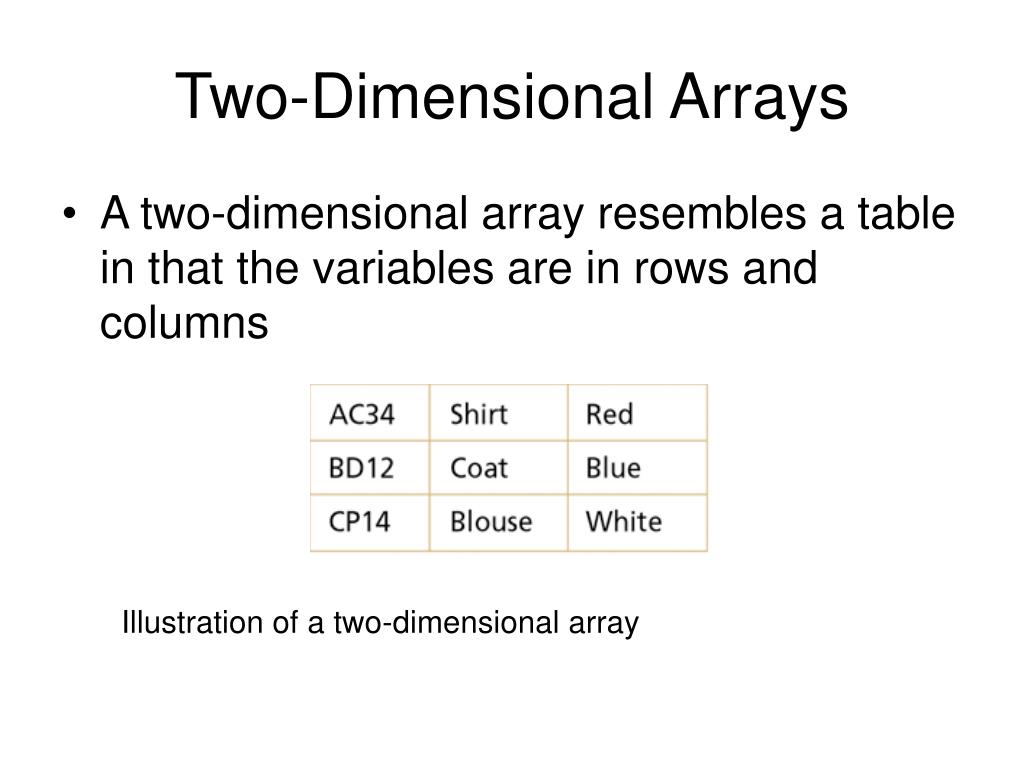

Two-Dimensional Arrays
  • A two-dimensional array resembles a table in that the variables are in rows and columns

Illustration of a two-dimensional array

two dimensional arrays continued

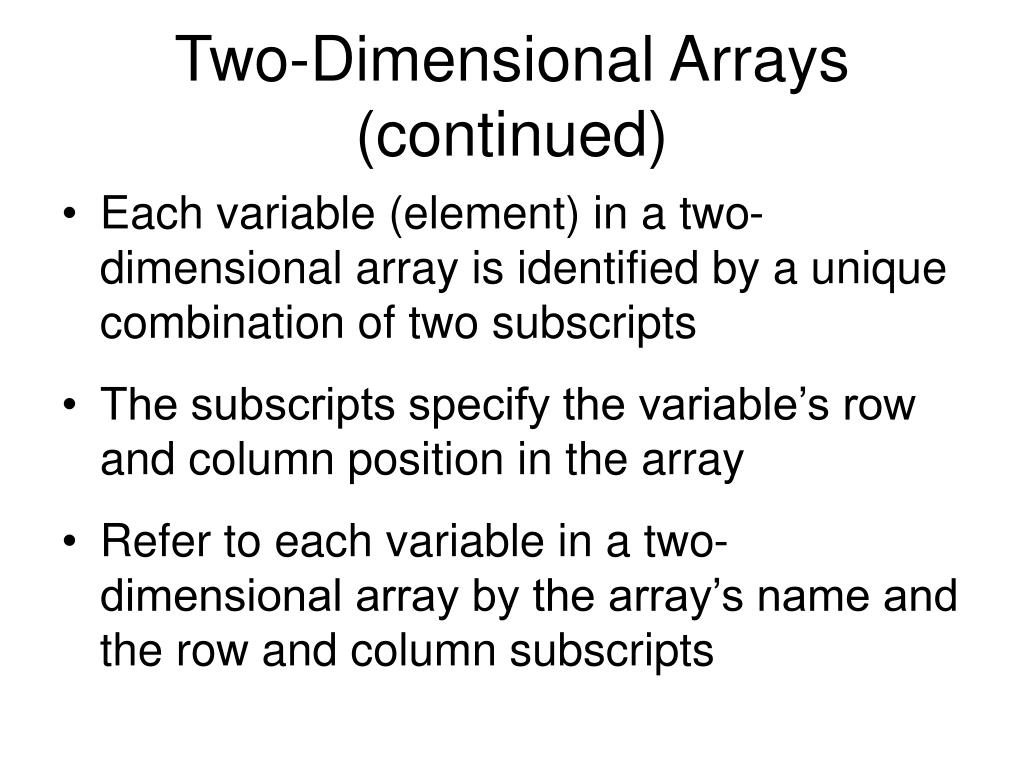

Two-Dimensional Arrays (continued)
  • Each variable (element) in a two-dimensional array is identified by a unique combination of two subscripts
  • The subscripts specify the variable’s row and column position in the array
  • Refer to each variable in a two-dimensional array by the array’s name and the row and column subscripts
two dimensional arrays continued1
Two-Dimensional Arrays (continued)

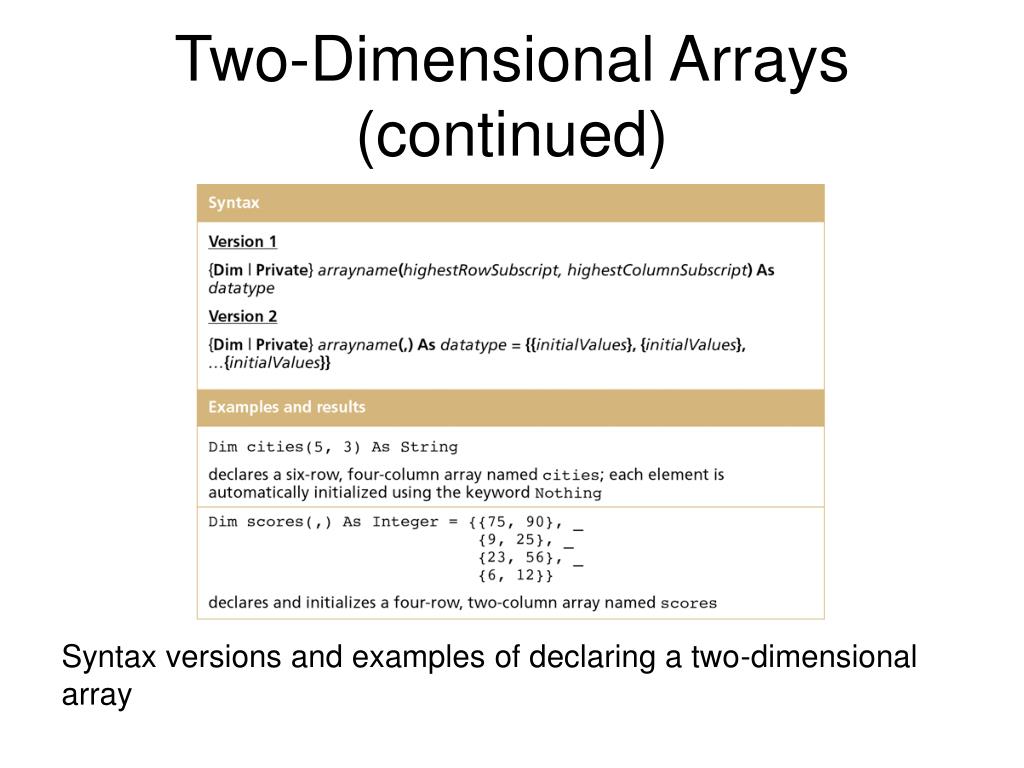

Syntax versions and examples of declaring a two-dimensional array

storing data in a two dimensional array

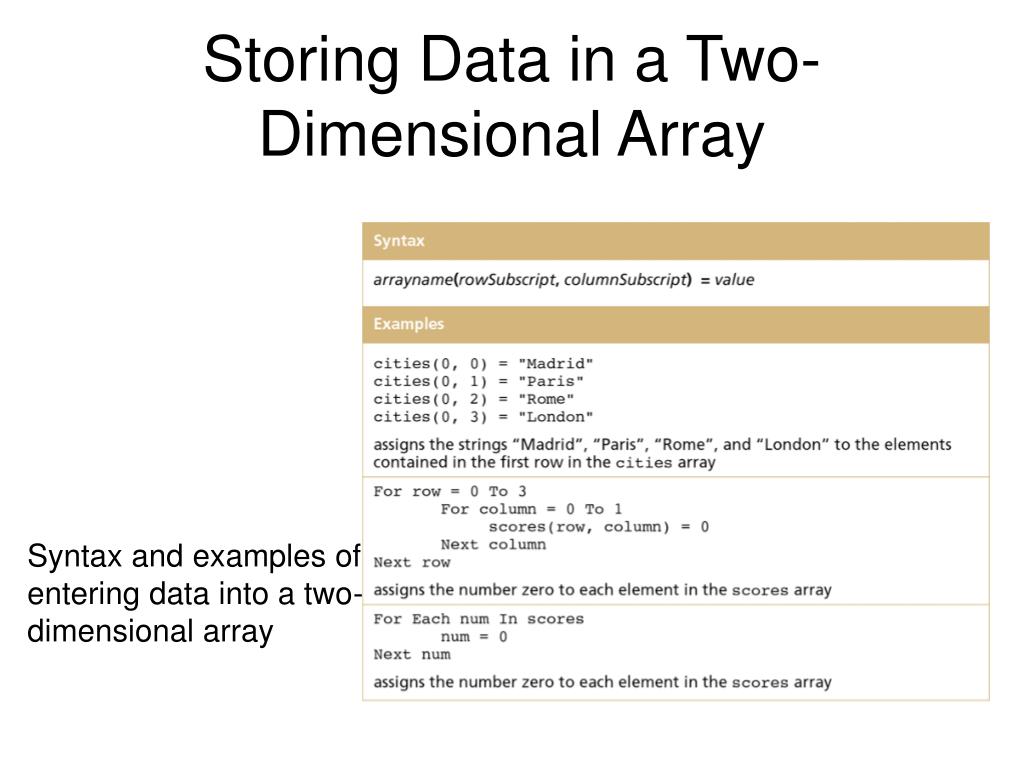

Storing Data in a Two-Dimensional Array

Syntax and examples of entering data into a two-dimensional array

searching a two dimensional array

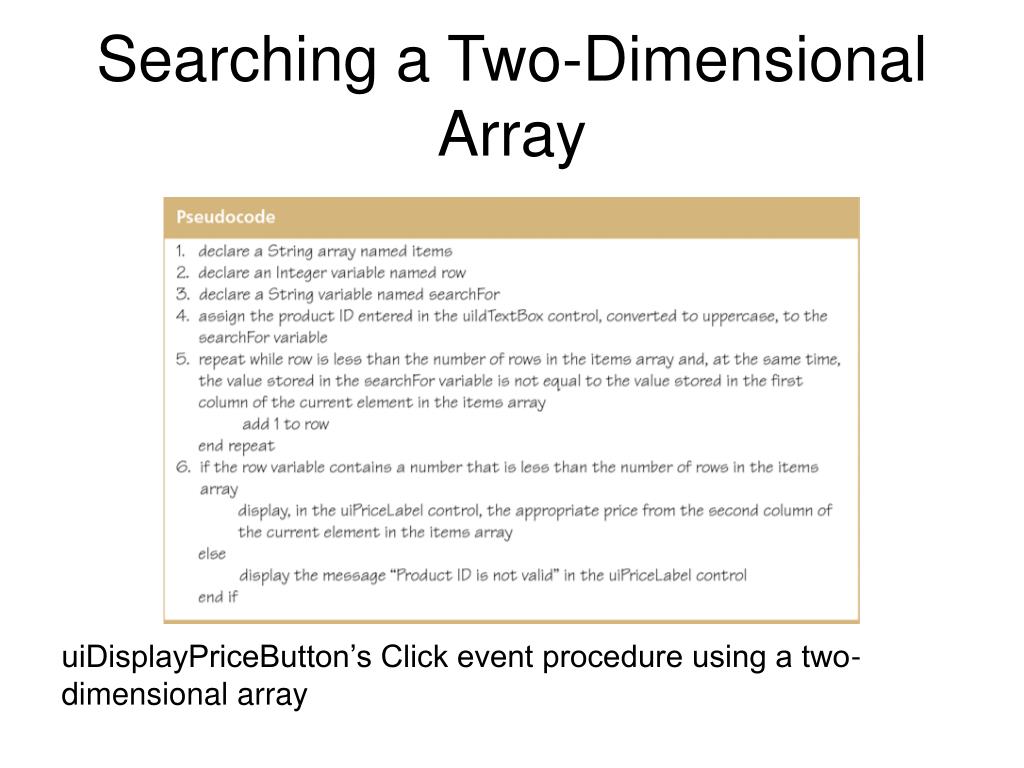

Searching a Two-Dimensional Array

uiDisplayPriceButton’s Click event procedure using a two-dimensional array

searching a two dimensional array continued

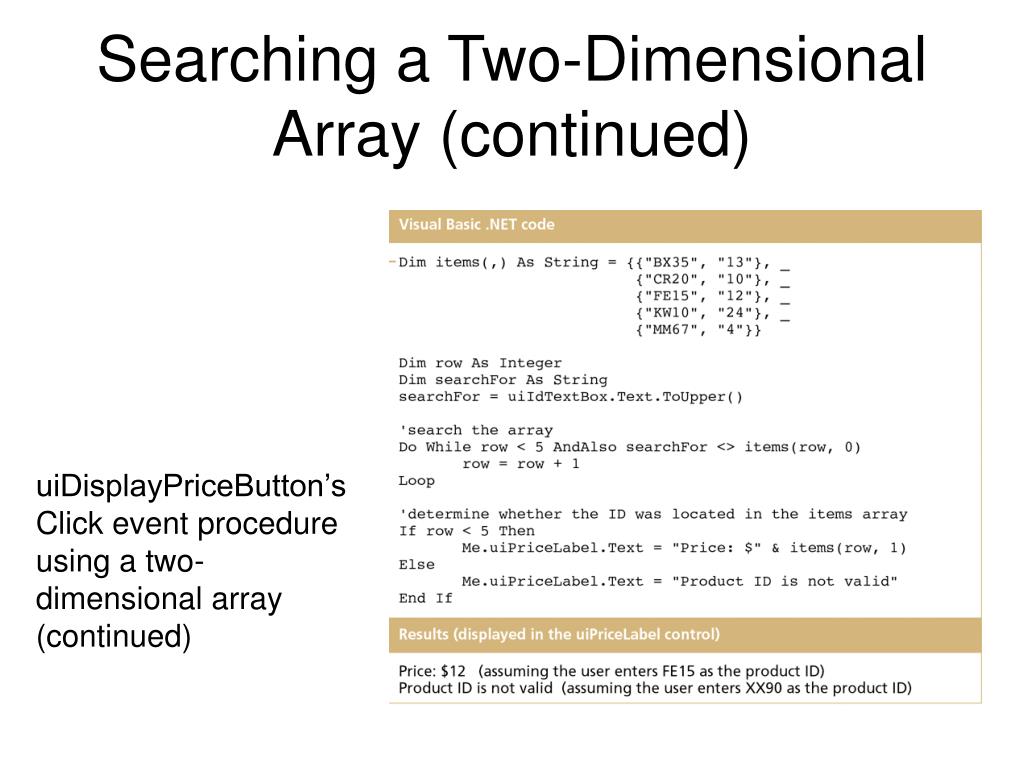

Searching a Two-Dimensional Array (continued)

uiDisplayPriceButton’s Click event procedure using a two-dimensional array (continued)

the tax calculator application

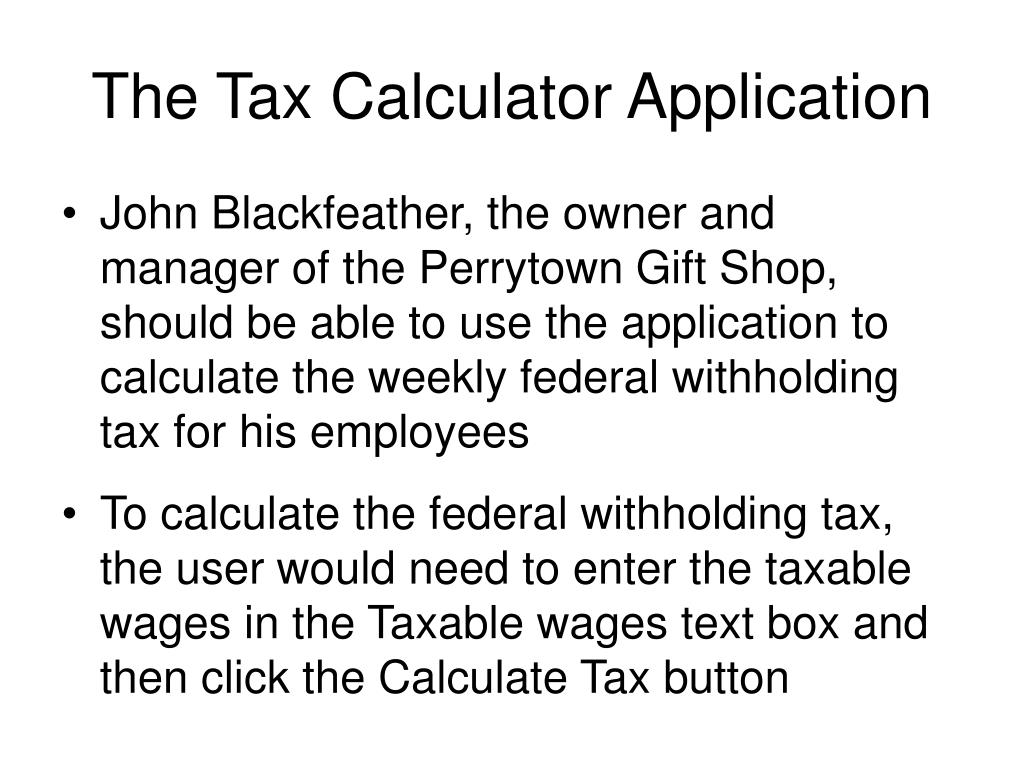

The Tax Calculator Application
  • John Blackfeather, the owner and manager of the Perrytown Gift Shop, should be able to use the application to calculate the weekly federal withholding tax for his employees
  • To calculate the federal withholding tax, the user would need to enter the taxable wages in the Taxable wages text box and then click the Calculate Tax button
the tax calculator application continued
The Tax Calculator Application (continued)

Interface for the Tax Calculator application

the tax calculator application continued1
The Tax Calculator Application (continued)

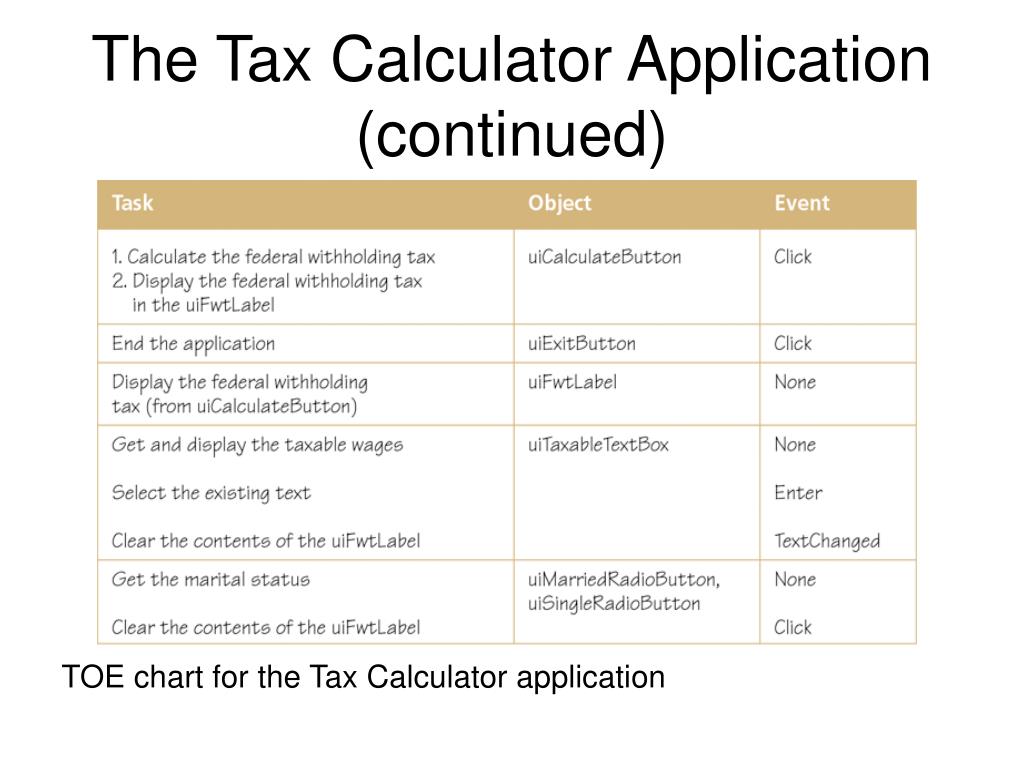

TOE chart for the Tax Calculator application

coding the uicalculatebutton click event procedure
Coding the uiCalculateButton Click Event Procedure

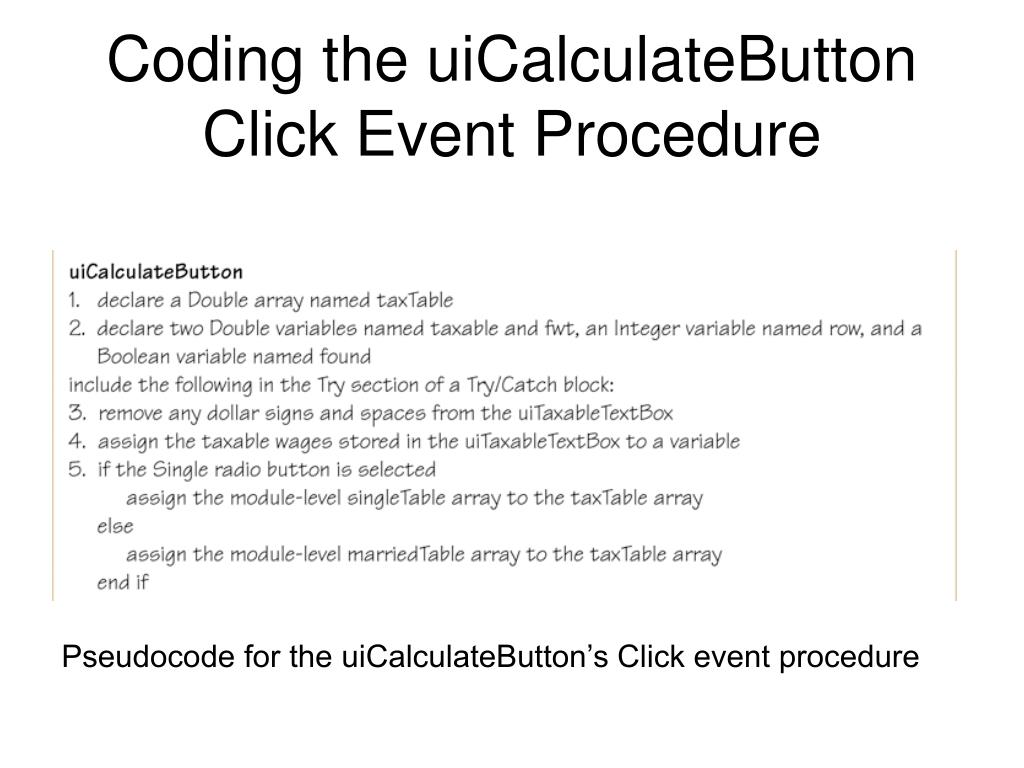

Pseudocode for the uiCalculateButton’s Click event procedure

coding the uicalculatebutton click event procedure continued
Coding the uiCalculateButton Click Event Procedure (continued)

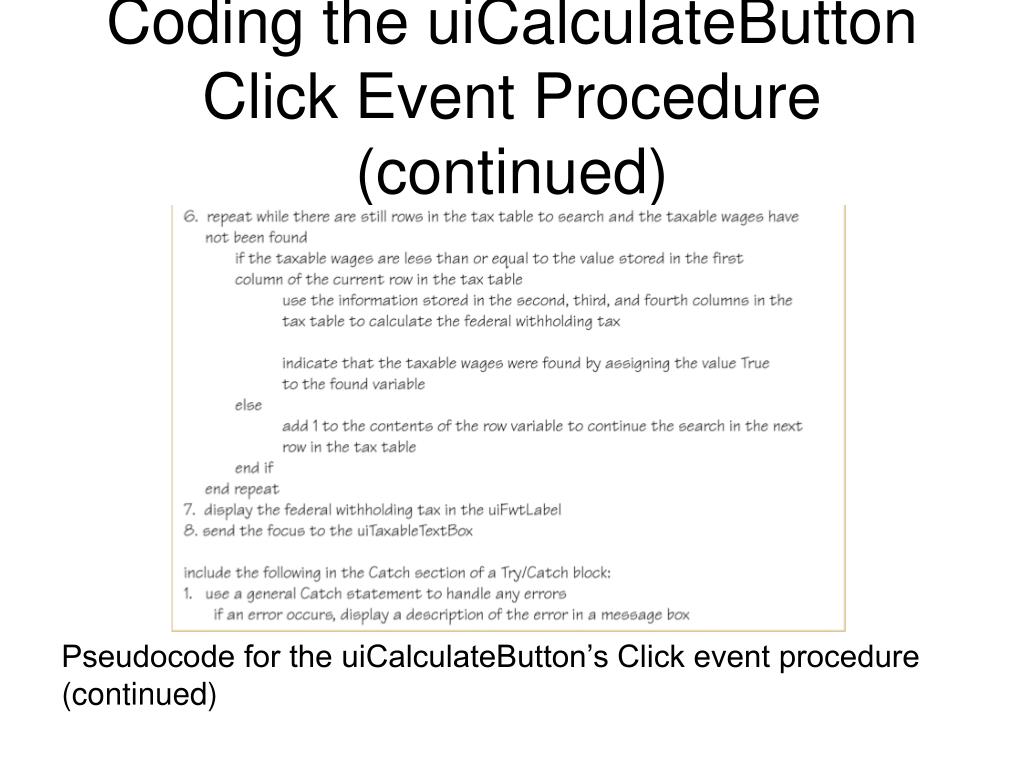

Pseudocode for the uiCalculateButton’s Click event procedure (continued)

summary

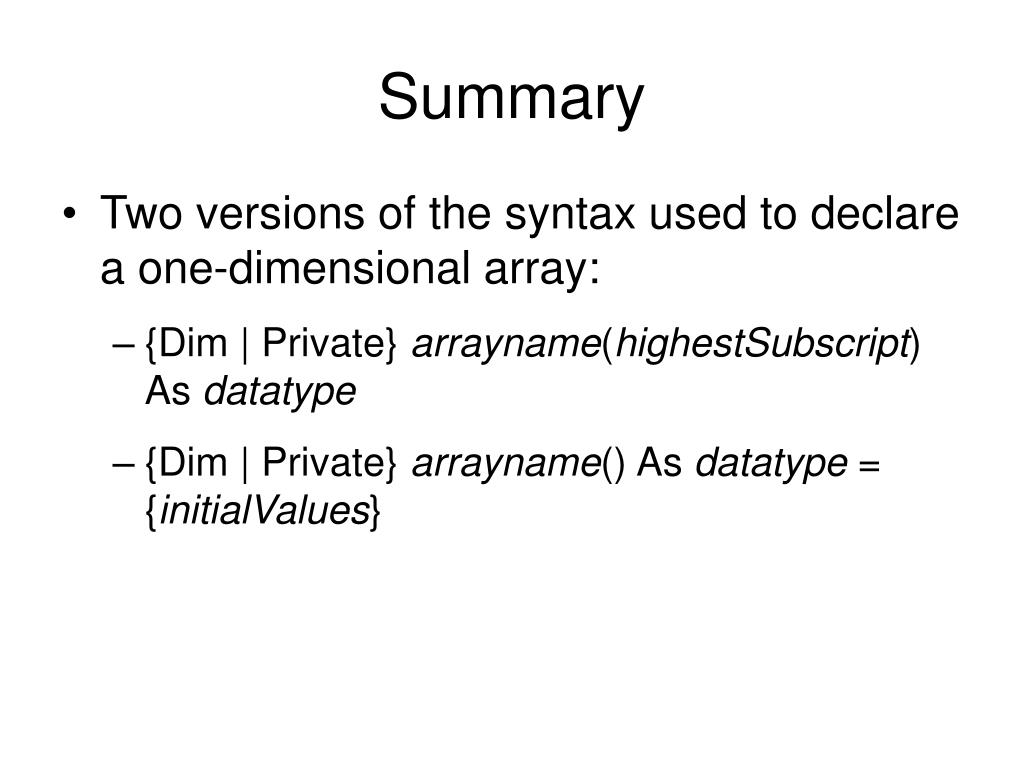

Summary
  • Two versions of the syntax used to declare a one-dimensional array:
    • {Dim | Private} arrayname(highestSubscript) As datatype
    • {Dim | Private} arrayname() As datatype = {initialValues}
summary continued
Summary (continued)
  • To refer to a variable in an array, use the array’s name followed by the variable’s subscript
  • To create parallel one-dimensional arrays, create two one-dimensional arrays
  • To create an array of structures, use the Structure statement to create a record structure, then use the record structure to declare the array
summary continued1

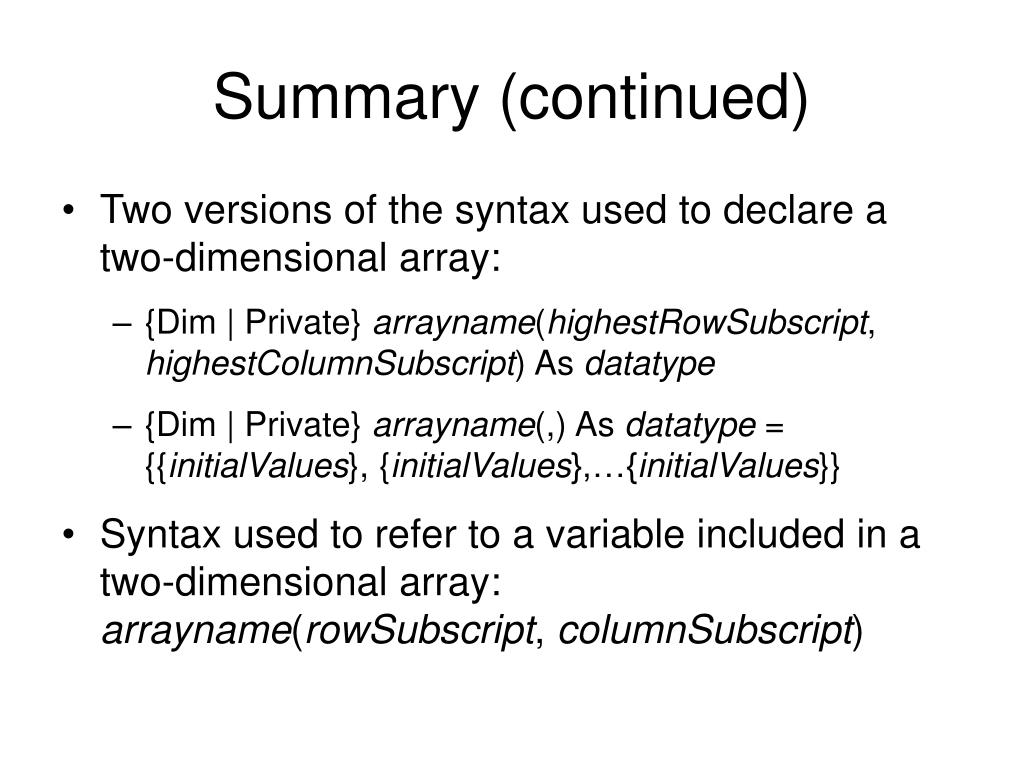

Summary (continued)
  • Two versions of the syntax used to declare a two-dimensional array:
    • {Dim | Private} arrayname(highestRowSubscript, highestColumnSubscript) As datatype
    • {Dim | Private} arrayname(,) As datatype = {{initialValues}, {initialValues},…{initialValues}}
  • Syntax used to refer to a variable included in a two-dimensional array:arrayname(rowSubscript, columnSubscript)
