  1. Uncontrolled copy not subject to amendment Airmanship KnowledgeLearning Outcome 3Part 6Training Aircraft Revision 1.00

  2. Airmanship KnowledgeLearning Outcome 3Know the aircraft in service with the British Armed Forces

  3. Hawk T1/1A Hawk 128 Tucano T1 Grob 115E Tutor Firefly T67 Beech King Air B200 Grob 109B Vigilant T1 Grob G103A Viking T1 Contents

  4. Viking Reporting Name Viking Role Letters & Marks T1 Role Cadet Training

  5. Viking

  6. Viking

  7. Viking

  8. Viking • The Viking T Mk1 is the mainstay of the Air Cadet Organisation’s glider fleet. • It has two seats in tandem, with dual controls allowing it to be flown from either seat

  9. Viking Technical Data WING SPAN 17.5M LENGTH 8.18M CREW 2 OPERATING SPEED 50-55kts (93-102km/h) RANGE SPEED 57kts (105km/h) ENGINES NONE

  10. Vigilant Reporting Name Vigilant Role Letters & Marks T1 Role Cadet Training

  11. Vigilant

  12. Vigilant

  13. Vigilant

  14. Vigilant • The Vigilant has been in service with the ATC since early 1990 and equips many of the Volunteer Gliding Squadrons (VGS) • It is a self-launching, piston-engined motorised glider which requires no winch or cable to get airborne. • The cockpit has seating for 2, side by side.

  15. Vigilant Technical Data WING SPAN 17.4M LENGTH 7.9M CREW 2 OPERATING SPEED 60kts (111km/h) RANGE SPEED 62kts (115km/h) ENGINE One Grob G2500 piston engine

  16. Tutor Reporting Name Tutor Role Letters & Marks T1 Role Primary Trainer

  17. Tutor

  18. Tutor

  19. Tutor

  20. Tutor • The Grob 115 (Tutor) aircraft entered Royal Air Force service in 1999,replacing the Bulldog at UAS and AEFs. • The RAF Tutor has dual controls and the 2 seats are in side-by-side format.

  21. Tutor Technical Data WING SPAN 10M LENGTH 7.4M CREW 2 MAXIMUM SPEED 150kts at Sea Level ENGINE One Lycoming 4-cylinder piston engine

  22. Firefly Reporting Name Firefly Role Letters & Marks T67 Role Primary Trainer

  23. Firefly

  24. Firefly

  25. Firefly

  26. Firefly

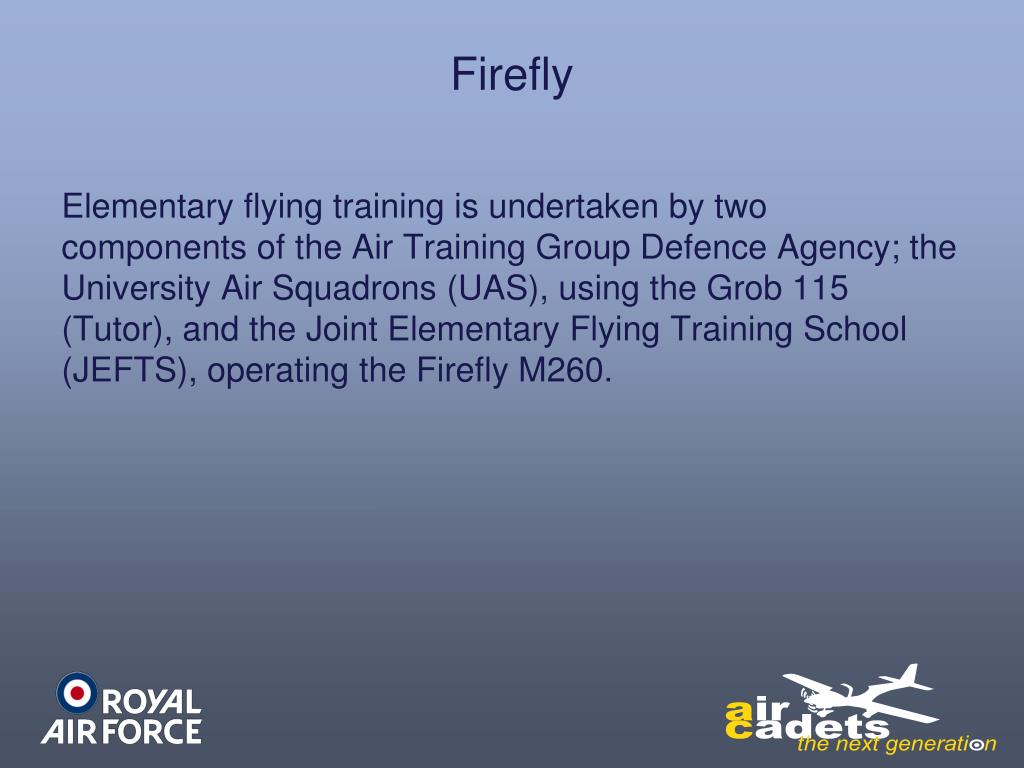

  27. Firefly Elementary flying training is undertaken by two components of the Air Training Group Defence Agency; the University Air Squadrons (UAS), using the Grob 115 (Tutor), and the Joint Elementary Flying Training School (JEFTS), operating the Firefly M260.

  28. Firefly Technical Data WING SPAN 10.6M LENGTH 7.6M CREW 2 MAXIMUM SPEED 157mph (252km/h) at sea level ENGINE One Lycoming piston engine

  29. Tucano Reporting Name Tucano Role Letters & Marks T1 Role Basic Trainer

  30. Tucano

  31. Tucano

  32. Tucano

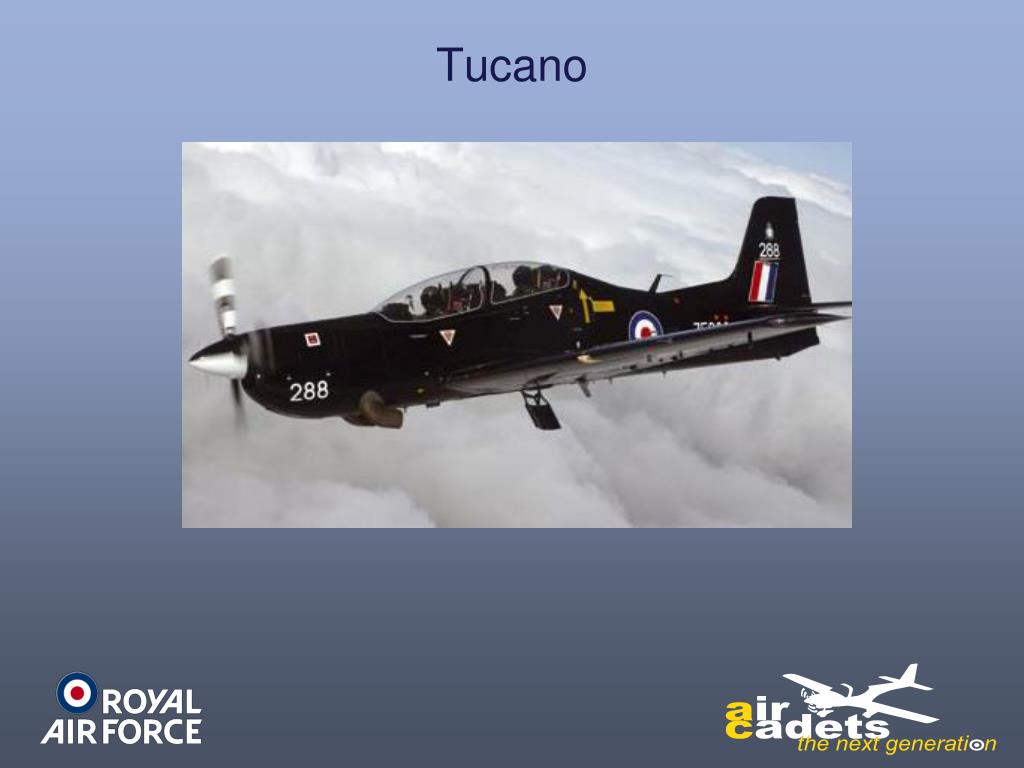

  33. Tucano • Shorts of Belfast produce the Tucano T1. It is a development of the Brazilian EMB-312 Tucano (Toucan). • The canopy is in two sections and is bird strike-resistant for pilot protection. • The cockpit layout has been designed to mimic that of the Hawk advanced trainer as much as possible, to aid continuity in training. • The instructor’s rear seat is raised to allow a clear view over the student’s head; this gives the aircraft a hump-backed appearance.

  34. Tucano Technical Data WING SPAN 11.3M LENGTH 9.8M CREW 2 MAXIMUM SPEED 273kts (507km/h) at sea level ENGINES 1 Garrett TPE 331 turboprop

  35. Hawk Reporting Name Hawk Role Letters & Marks T1 & T1A Role Advanced Jet Trainer

  36. Hawk

  37. Hawk

  38. Hawk

  39. Hawk • The Hawk is the standard aircraft for advanced fast-jet pilot training and weapon training. • Some training Hawks (the T1A) have an emergency war role in Air Defence Squadrons; they can be fitted with Sidewinder air-to-air missiles and Aden cannons, which are standard on the T1A. • It has a large ventral airbrake underneath the rear fuselage. • There are two air intakes, one on each side of the fuselage forward of the leading edges.

  40. Hawk Technical Data WING SPAN 9.4M LENGTH 11.2M CREW 2 MAXIMUM SPEED 560kts (1038km/h) at sea level ENGINES 1 Rolls-Royce Turbomeca ADOUR turbofan

  41. BEECH KING AIR B200 Reporting Name Beech King Air Role Letters & Marks B200 Role Multi-Engine Pilot Flying Training

  42. BEECH KING AIR B200

  43. BEECH KING AIR B200

  44. BEECH KING AIR B200

  45. BEECH KING AIR B200

  46. BEECH KING AIR B200 Specifications Wing Span: 16.61m Length: 13.36m Crew: 3 Max speed: 259kts Max altitude: 28,000ft Engines: Two Pratt & Whitney PT6A- 42 Turboprops

  47. Questions?
