E vs Y correction in endcap

E vs Y correction in endcap. P.Gauzzi. Y cl (cm). CLUADJUST correction. CLUADJUST correction. central modules (1, 2, 17, 18) long modules (3—12, 19—28) short modules (13—16, 29—32). MC ‘rad04’. Bhabha events. Y(cm). E(MeV). Data (runs 37000 - 37100). X(cm).

nash
Download Presentation

E vs Y correction in endcap

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

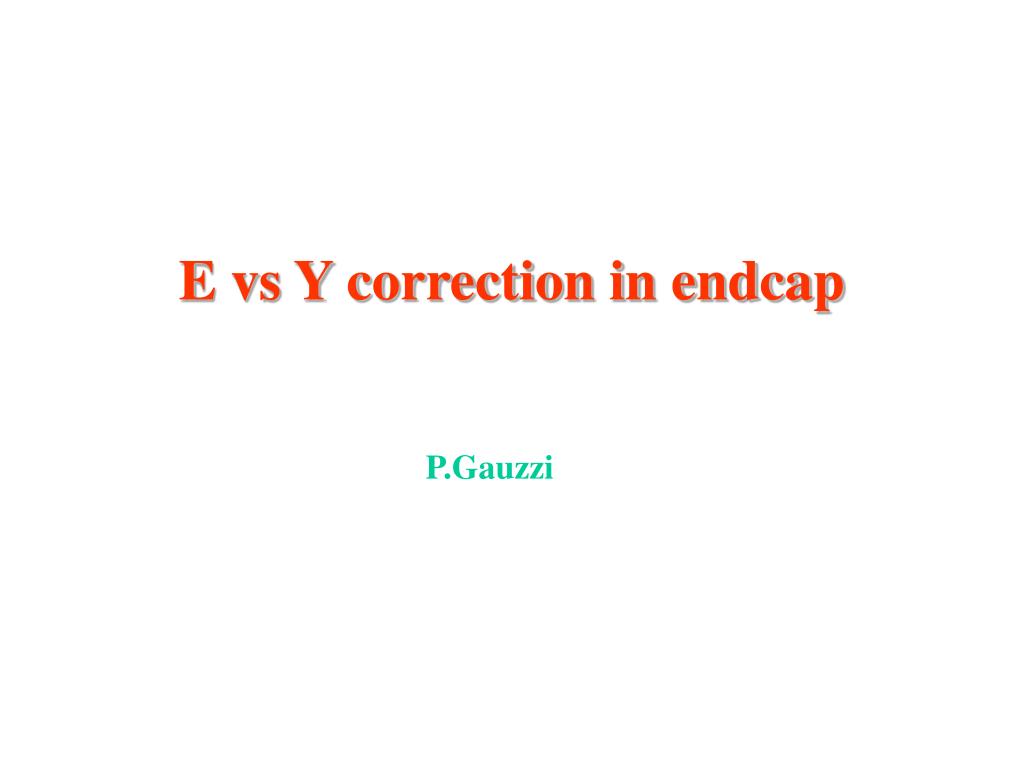

  1. E vs Y correction in endcap P.Gauzzi

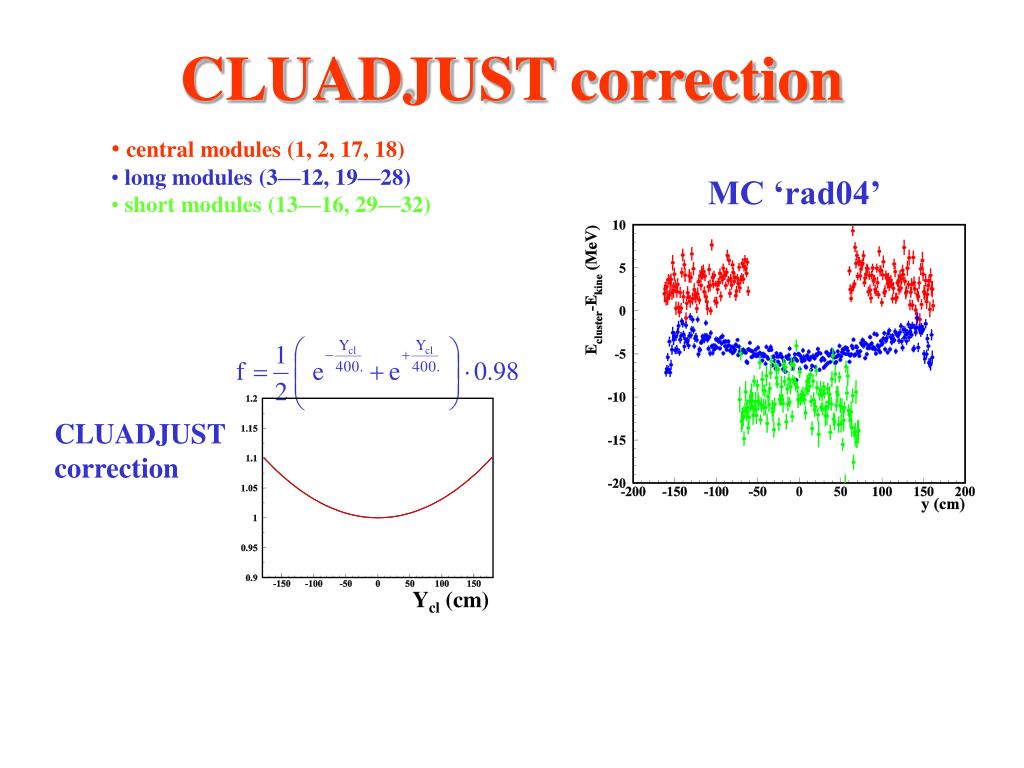

  2. Ycl (cm) CLUADJUST correction CLUADJUST correction central modules (1, 2, 17, 18) long modules (3—12, 19—28) short modules (13—16, 29—32) MC ‘rad04’

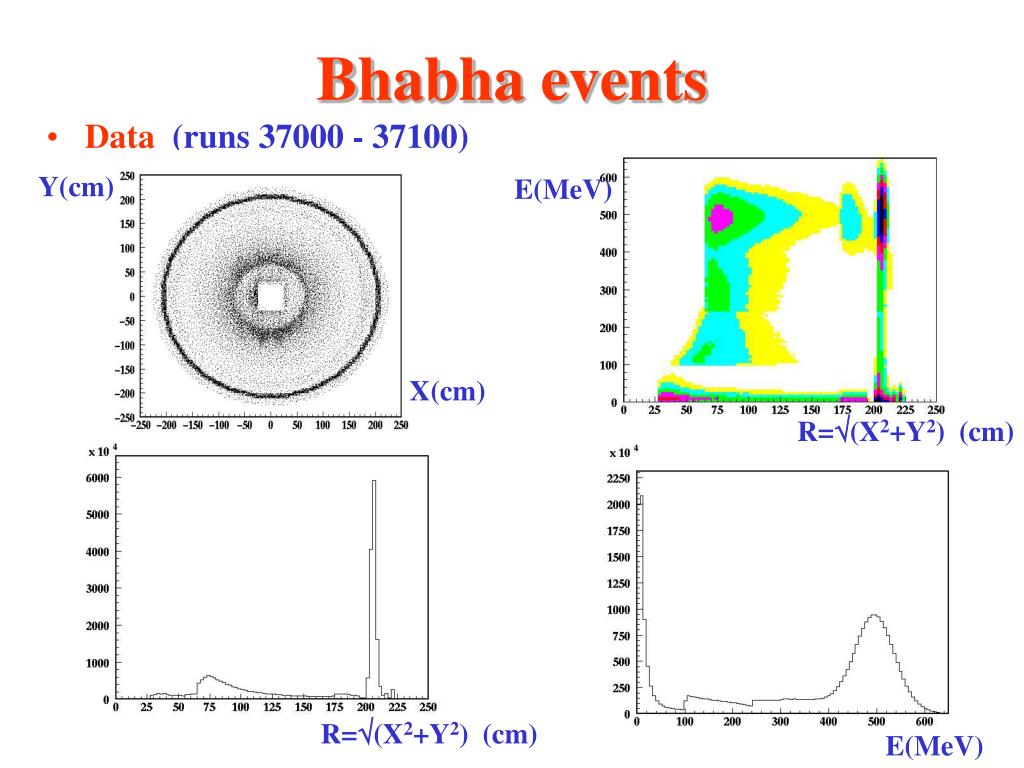

  3. Bhabha events Y(cm) E(MeV) • Data (runs 37000 - 37100) X(cm) R=(X2+Y2) (cm) R=(X2+Y2) (cm) E(MeV)

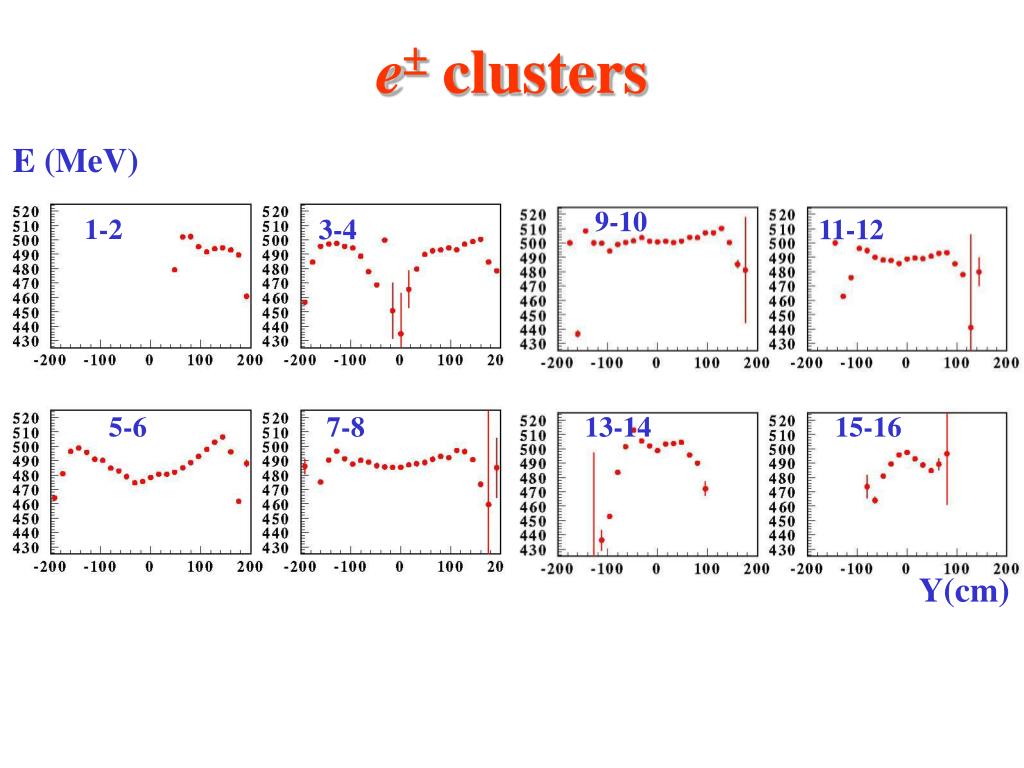

  4. e clusters E (MeV) 9-10 1-2 3-4 11-12 5-6 7-8 13-14 15-16 Y(cm)

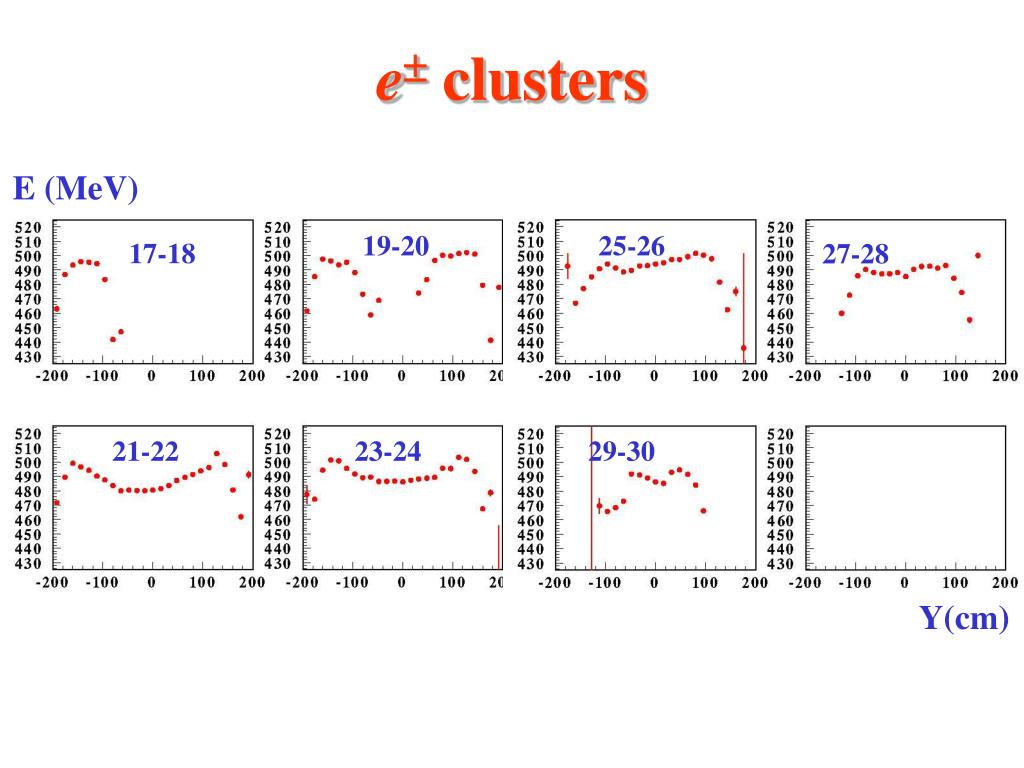

  5. e clusters E (MeV) 19-20 25-26 17-18 27-28 21-22 23-24 29-30 31-32 Y(cm)

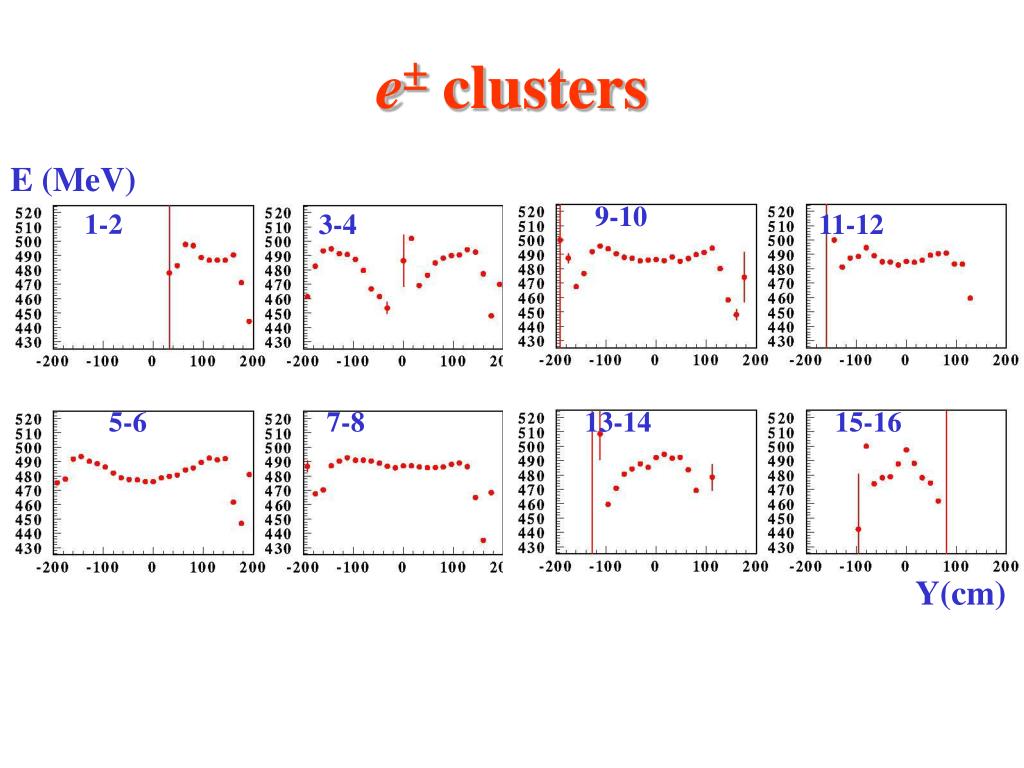

  6. e clusters E (MeV) 9-10 1-2 3-4 11-12 5-6 7-8 13-14 15-16 Y(cm)

  7. e clusters E (MeV) 19-20 25-26 17-18 27-28 21-22 23-24 29-30 Y(cm)

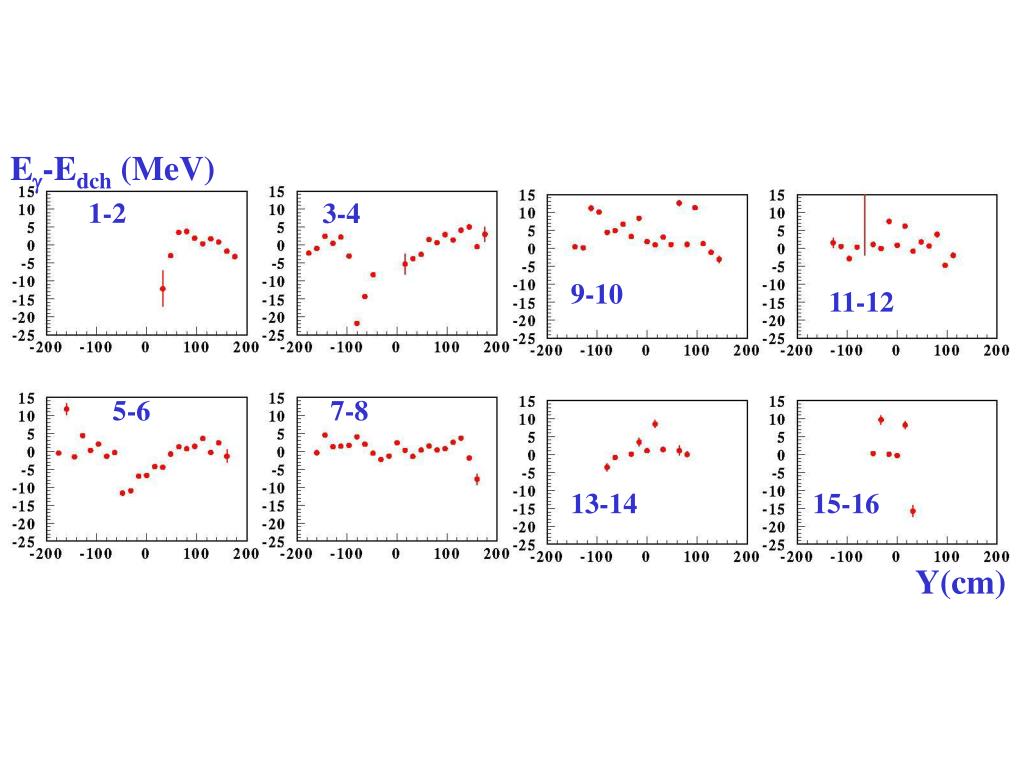

  8. CLUADJUST correction E-Edch (MeV) • Data (Bhabha events; runs 37000 - 37100) 9-10 1-2 3-4 11-12 5-6 7-8 13-14 15-16 Y(cm)

  9. E-Edch (MeV) 19-20 25-26 17-18 27-28 21-22 23-24 29-30 31-32 Y(cm)

  10. E-Edch (MeV) 1-2 3-4 9-10 11-12 5-6 7-8 13-14 15-16 Y(cm)

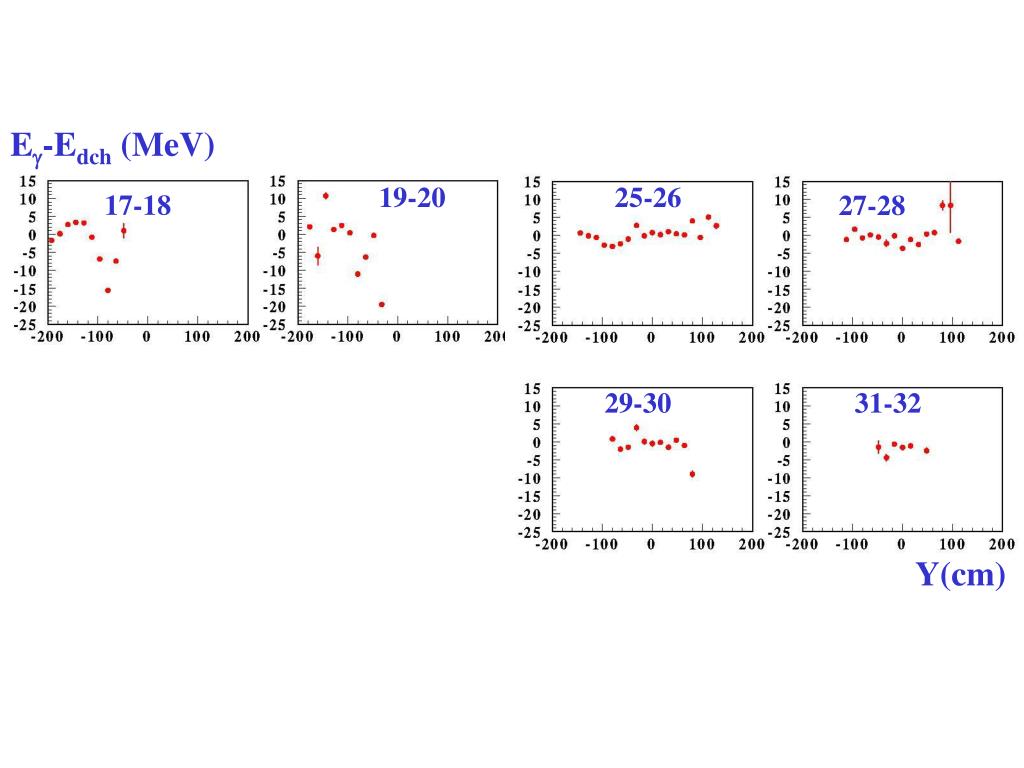

  11. E-Edch (MeV) 19-20 25-26 17-18 27-28 29-30 31-32 Y(cm)
