Presentation Transcript


Et4085 et5085 keamanan jaringan telekomunikasi et4085 et5085 telecommunication network security

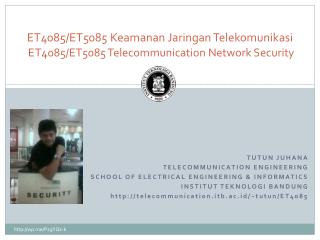

ET4085/ET5085 KeamananJaringanTelekomunikasiET4085/ET5085 Telecommunication Network Security

Tutun Juhana

Telecommunication engineering

School of electrical engineering & informatics

Institut teknologi bandung

http://telecommunication.itb.ac.id/~tutun/ET4085

http://wp.me/P29YQz-k


Cryptography

Cryptography

http://wp.me/P29YQz-k


Definition

Definition

  • Came from Greek cryptography krupto(hidden or secret) and grafh(written)

    • Art of secret writing

http://wp.me/P29YQz-k


Services provided by cryptography

User Authentication

Services Provided by Cryptography

http://wp.me/P29YQz-k


Et4085 et5085 keamanan jaringan telekomunikasi et4085 et5085 telecommunication network security

  • Data Authentication

    • Data integrity

Data Integrity

http://wp.me/P29YQz-k


Et4085 et5085 keamanan jaringan telekomunikasi et4085 et5085 telecommunication network security

Data origin authentication

B

A

He can claim that he is A

http://wp.me/P29YQz-k


Et4085 et5085 keamanan jaringan telekomunikasi et4085 et5085 telecommunication network security

Non-repudiation of origin

http://wp.me/P29YQz-k


Et4085 et5085 keamanan jaringan telekomunikasi et4085 et5085 telecommunication network security

Data confidentiality

  • ?

http://wp.me/P29YQz-k


Friends and enemies alice bob trudy

Friends and enemies: Alice, Bob, Trudy

well-known in network security world

Bob, Alice (lovers!) want to communicate “securely”

Trudy (intruder) may intercept, delete, add messages

http://wp.me/P29YQz-k


Who might bob alice be

Who might Bob, Alice be?

Real-life Bobs and Alices!

Web browser/server for electronic transactions (e.g., on-line purchases)

on-line banking client/server

DNS servers

routers exchanging routing table updates

etc.

http://wp.me/P29YQz-k


The language of cryptography

The language of cryptography

m plaintext message

KA(m) ciphertext, encrypted with key KA

m = KB(KA(m))

symmetric key crypto: sender, receiver keys identical

public-key crypto: encryption key public, decryption key secret (private)

http://wp.me/P29YQz-k


Symmetric key cryptography

Symmetric key cryptography

  • symmetric key crypto: Bob and Alice share known same (symmetric) key: KAB

    • e.g., key is knowing substitution pattern in mono alphabetic substitution cipher

http://wp.me/P29YQz-k


Et4085 et5085 keamanan jaringan telekomunikasi et4085 et5085 telecommunication network security

  • substitution cipher: substituting one thing for another

    • monoalphabetic cipher: substitute one letter for another

http://wp.me/P29YQz-k


Deciphering techniques attacks on a cryptosystem

Deciphering techniques (attacks on a cryptosystem)

  • Cipher-text only attack: no clue about contents of message: statistical analysis

  • Known-plaintext attack: trudy has some plaintext for some ciphertext

    • eg, in monoalphabetic cipher, trudy determines pairings for a,l,i,c,e,b,o

  • Chosen-plaintext attack: trudy can get the cyphertext for some chosen plaintext

    • Eg, Trudy masquerades as Alice

http://wp.me/P29YQz-k


Et4085 et5085 keamanan jaringan telekomunikasi et4085 et5085 telecommunication network security

Statistical analysis example

A typical distribution of letters in English language text

http://wp.me/P29YQz-k


Et4085 et5085 keamanan jaringan telekomunikasi et4085 et5085 telecommunication network security

Suppose we have intercepted the cipher-text below, and it is known to be encrypted using a simple substitution cipher

  • LIVITCSWPIYVEWHEVSRIQMXLEYVEOIEWHRXEXIPFEMVEWHKVSTYLXZIXLIKIIXPIJVSZEYPERRGERIM WQLMGLMXQERIWGPSRIHMXQEREKIETXMJTPRGEVEKEITREWHEXXLEXXMZITWAWSQWXSWEXTVEPMRXRSJ GSTVRIEYVIEXCVMUIMWERGMIWXMJMGCSMWXSJOMIQXLIVIQIVIXQSVSTWHKPEGARCSXRWIEVSWIIBXV IZMXFSJXLIKEGAEWHEPSWYSWIWIEVXLISXLIVXLIRGEPIRQIVIIBGIIHMWYPFLEVHEWHYPSRRFQMXLE PPXLIECCIEVEWGISJKTVWMRLIHYSPHXLIQIMYLXSJXLIMWRIGXQEROIVFVIZEVAEKPIEWHXEAMWYEPP XLMWYRMWXSGSWRMHIVEXMSWMGSTPHLEVHPFKPEZINTCMXIVJSVLMRSCMWMSWVIRCIGXMWYMX

  • For this example, uppercase letters are used to denote ciphertext, lowercase letters are used to denote plaintext (or guesses at such), and X~t is used to express a guess that ciphertext letter X represents the plaintext letter t.

  • We could use frequency analysis to help solve the message along the following lines: counts of the letters in the cryptogram show that I is the most common single letter, XL most common bigram, and XLI is the most common trigram. e is the most common letter in the English language, th is the most common bigram, and the is the most common trigram. This strongly suggests that X~t, L~h and I~e. The second most common letter in the cryptogram is E; since the first and second most frequent letters in the English language, e and t are accounted for, We guess that E~a, the third most frequent letter. Tentatively making these assumptions, the following partial decrypted message is obtained.

http://wp.me/P29YQz-k


Et4085 et5085 keamanan jaringan telekomunikasi et4085 et5085 telecommunication network security

heVeTCSWPeYVaWHaVSReQMthaYVaOeaWHRtatePFaMVaWHKVSTYhtZetheKeetPeJVSZaYPaRRGaReM WQhMGhMtQaReWGPSReHMtQaRaKeaTtMJTPRGaVaKaeTRaWHatthattMZeTWAWSQWtSWatTVaPMRtRSJ GSTVReaYVeatCVMUeMWaRGMeWtMJMGCSMWtSJOMeQtheVeQeVetQSVSTWHKPaGARCStRWeaVSWeeBtV eZMtFSJtheKaGAaWHaPSWYSWeWeaVtheStheVtheRGaPeRQeVeeBGeeHMWYPFhaVHaWHYPSRRFQMtha PPtheaCCeaVaWGeSJKTVWMRheHYSPHtheQeMYhtSJtheMWReGtQaROeVFVeZaVAaKPeaWHtaAMWYaPP thMWYRMWtSGSWRMHeVatMSWMGSTPHhaVHPFKPaZeNTCMteVJSVhMRSCMWMSWVeRCeGtMWYMt

  • Using these initial guesses, We can spot patterns that confirm our choices, such as "that". Moreover, other patterns suggest further guesses. "Rtate" might be "state", which would mean R~s. Similarly "atthattMZe" could be guessed as "atthattime", yielding M~i and Z~m. Furthermore, "heVe" might be "here", giving V~r. Filling in these guesses, We get:

  • hereTCSWPeYraWHarSseQithaYraOeaWHstatePFairaWHKrSTYhtmetheKeetPeJrSmaYPassGasei WQhiGhitQaseWGPSseHitQasaKeaTtiJTPsGaraKaeTsaWHatthattimeTWAWSQWtSWatTraPistsSJ GSTrseaYreatCriUeiWasGieWtiJiGCSiWtSJOieQthereQeretQSrSTWHKPaGAsCStsWearSWeeBtr emitFSJtheKaGAaWHaPSWYSWeWeartheStherthesGaPesQereeBGeeHiWYPFharHaWHYPSssFQitha PPtheaCCearaWGeSJKTrWisheHYSPHtheQeiYhtSJtheiWseGtQasOerFremarAaKPeaWHtaAiWYaPP thiWYsiWtSGSWsiHeratiSWiGSTPHharHPFKPameNTCiterJSrhisSCiWiSWresCeGtiWYit

http://wp.me/P29YQz-k


Et4085 et5085 keamanan jaringan telekomunikasi et4085 et5085 telecommunication network security

Penjahat #2 melakukan

penyadapan kemudian

Mempelajari ciphertext dari

PIN baru tersebut

Chosen-Plaintext Attack example

PIN di-enkripsi lalu

dikirimkan ke bank

cipher(key,PIN)

Penjahat #1 merubah

PIN yang dimilikinya

(chosen plaintext)

… diulangi untuk beberapa nilai PIN

18

http://wp.me/P29YQz-k


Polyalphabetic encryption

Polyalphabetic encryption

The Alberti cipher by Leon Battista Alberti around 1467 was believed to be the first polyalphabetic cipher

But at 750 AD , Abu Yusuf Yaqub ibn Is-haq Al-Kindi, authored a book on cryptology the "Risalah fi Istikhraj al-Mu'amma" (Manuscript for the Deciphering Cryptographic Messages)

Leon Battista Alberti

Abu Yusuf Yaqub ibn Is-haq Al-Kindi

http://wp.me/P29YQz-k


Et4085 et5085 keamanan jaringan telekomunikasi et4085 et5085 telecommunication network security

  • n monoalphabetic cyphers, M1,M2,…,Mn

  • Cycling pattern:

    • e.g., n=4, M1,M3,M4,M3,M2; M1,M3,M4,M3,M2;

  • For each new plaintext symbol, use subsequent monoalphabetic pattern in cyclic pattern

    • dog: d from M1, o from M3, g from M4

  • Key: the n ciphers and the cyclic pattern

http://wp.me/P29YQz-k


Et4085 et5085 keamanan jaringan telekomunikasi et4085 et5085 telecommunication network security

How this Cipher Works?

Pick a keyword (for our example, the keyword will be "MEC").

Write your keyword across the top of the text you want to encipher, repeating it as many times as necessary.

For each letter, look at the letter of the keyword above it (if it was 'M', then you would go to the row that starts with an 'M'), and find that row in the Vigenere table.

Then find the column of your plaintext letter (for example, 'w', so the twenty-third column)

Finally, trace down that column until you reach the row you found before and write down the letter in the cell where they intersect (in this case, you find an 'I' there).

http://wp.me/P29YQz-k


Symmetric stream ciphers

Symmetric: Stream Ciphers

  • Combine each byte of keystream with byte of plaintext to get b of ciphertext

  • p(i) = ithunit of message

  • ks(i) = ithunit of keystream

  • c(i) = ithunit of ciphertext

  • c(i) = ks(i) ⊕ p(i)

    • (⊕ = exclusive or)

  • p(i) = ks(i) ⊕ c(i)

http://wp.me/P29YQz-k


Problems with stream ciphers

Problems with stream ciphers

  • Known plain-text attack

    • There’s often predictable and repetitive data in communication messages

    • attacker receives some cipher text c and correctly guesses corresponding plaintext m

    • ks = m ⊕ c

    • Attacker now observes c’

    • m’ = (m ⊕ c) ⊕ c’

http://wp.me/P29YQz-k


Et4085 et5085 keamanan jaringan telekomunikasi et4085 et5085 telecommunication network security

  • Even easier

    • Attacker obtains two ciphertexts, c and c’, generating with same key sequence

    • c ⊕ c’ = m ⊕ m’

    • There are well known methods for decrypting 2 plaintexts given their XOR

http://wp.me/P29YQz-k


Et4085 et5085 keamanan jaringan telekomunikasi et4085 et5085 telecommunication network security

  • Integrity problem too

    • supppose attacker knows m and c;

    • want to change m to m’

    • c’ = c ⊕ (m ⊕ m’)

    • send c’ to destination

http://wp.me/P29YQz-k


Et4085 et5085 keamanan jaringan telekomunikasi et4085 et5085 telecommunication network security

  • Example of stream cipher:

    • A5 (for GSM)

    • RC4

http://wp.me/P29YQz-k


Symmetric encryption block ciphers

Symmetric encryption: block ciphers

Message to be encrypted is processed in blocks of bytes (8 or 16).

Block cipher: huge lookup table

Example: 2-bit blocks and 2-bit keys

http://wp.me/P29YQz-k


Et4085 et5085 keamanan jaringan telekomunikasi et4085 et5085 telecommunication network security

  • Each column should be a random permutation of all possible output strings

  • If block is 64 bits and key is 56 bits, have 264 rows, 256 columns, 2120 entries

  • Table too big: instead use function that simulates a randomly permuted table

  • c(i) = KAB(m(i)) : encrypt block m(i) using key AB

  • m(i) = KAB(c(i)) : decrypt block c(i) using key AB

  • Problem: if m(i) and m(j) same, c(i) and c(j) same

    • Attacker may be able to guess m(i) from context of message

http://wp.me/P29YQz-k


Block ciphers cipher block chaining

Block ciphers: cipher block chaining

  • Don’t want same plaintext giving same ciphertext

    • Have encryption of current block depend on result of previous block

    • c(i) = KAB( m(i) ⊕ c(i-1) )

    • m(i) = KAB( c(i) ⊕ c(i-1) )

  • How do we encrypt first block?

    • Initialization vector (IV): random block = c(0)

    • IVs do not have to be secret

http://wp.me/P29YQz-k


Symmetric key crypto des

Symmetric key crypto: DES

  • DES: Data Encryption Standard

    • US encryption standard [NIST 1993]

    • 56-bit symmetric key, 64-bit plaintext input

    • Block cipher with cipher block chaining

  • How secure is DES?

    • DES Challenge: 56-bit-key-encrypted phrase decrypted (brute force) in less than a day

    • No known good analytic attack

  • making DES more secure:

    • 3DES: encrypt 3 times with 3 different keys (actually encrypt, decrypt, encrypt)

http://wp.me/P29YQz-k


Et4085 et5085 keamanan jaringan telekomunikasi et4085 et5085 telecommunication network security

DES operation

initial permutation

16 identical “rounds” of function application, each using different 48 bits of key

final permutation

http://wp.me/P29YQz-k


Aes advanced encryption standard

AES: Advanced Encryption Standard

New (Nov. 2001) symmetric-key NIST standard, replacing DES

processes data in 128 bit blocks

128, 192, or 256 bit keys

brute force decryption (try each key) taking 1 sec on DES, takes 149 trillion years for AES

http://wp.me/P29YQz-k


Key distribution center kdc

Key Distribution Center (KDC)

http://wp.me/P29YQz-k


Et4085 et5085 keamanan jaringan telekomunikasi et4085 et5085 telecommunication network security

Alice, Bob need shared symmetric key.

KDC: server shares different secret key with each registered user (many users)

Alice, Bob know own symmetric keys, KA-KDC KB-KDC , for communicating with KDC.

http://wp.me/P29YQz-k


Et4085 et5085 keamanan jaringan telekomunikasi et4085 et5085 telecommunication network security

Q: How does KDC allow Bob, Alice to determine shared symmetric secret key to communicate with each other?

http://wp.me/P29YQz-k


Public key cryptography

Public Key Cryptography

  • symmetric key crypto

    • requires sender, receiver know shared secret key

    • Q: how to agree on key in first place (particularly if never “met”)?

  • public key cryptography

    • radically different approach [Diffie-Hellman76, RSA78]

    • sender, receiver do not share secret key

    • public encryption key known to all

    • private decryption key known only to receiver

http://wp.me/P29YQz-k


Et4085 et5085 keamanan jaringan telekomunikasi et4085 et5085 telecommunication network security

http://wp.me/P29YQz-k


Public key encryption algorithms

Public key encryption algorithms

http://wp.me/P29YQz-k


Rsa choosing keys

RSA: Choosing keys

http://wp.me/P29YQz-k


Rsa encryption decryption

RSA: Encryption, decryption

http://wp.me/P29YQz-k


Rsa example

RSA example

http://wp.me/P29YQz-k


Rsa another important property

RSA: another important property

http://wp.me/P29YQz-k


Rsa is slow

RSA is slow

  • Exponentiation is computationally intensive

  • DES is at least 100 times faster than RSA

  • Session key, KS

    • Bob and Alice use RSA to exchange a symmetric key KS

    • Once both have KS, they use DES

http://wp.me/P29YQz-k


Message authentication

Message Authentication

  • Allows communicating parties to verify that received messages are authentic.

    • Verify content of message has not been altered

    • Source is authentic

    • Message has not been artificially delayed (playback attack)

    • Sequence of messages is maintained

http://wp.me/P29YQz-k


Et4085 et5085 keamanan jaringan telekomunikasi et4085 et5085 telecommunication network security

  • Why not use encryption?

    • Often overkill, computationally expensive

    • Broadcast message

  • Let’s first talk about message digests

http://wp.me/P29YQz-k


Message digests

Message Digests

Function H( ) that takes as input an arbitrary length message and outputs a fixed-length strength: “message signature”

Note that H( ) is a many to-1 function

H( ) is often called a “hash function”

http://wp.me/P29YQz-k


Et4085 et5085 keamanan jaringan telekomunikasi et4085 et5085 telecommunication network security

  • Desirable properties:

    • Easy to calculate

    • Irreversibility: Can’t determine m from H(m)

    • Collision resistance: Computationally difficult to produce m and m’ such that H(m) = H(m’)

    • Seemingly random output

http://wp.me/P29YQz-k


Hash function algorithms

Hash Function Algorithms

  • MD5 hash function widely used (RFC 1321)

    • computes 128-bit message digest in 4-step process.

    • arbitrary 128-bit string x

      • appears difficult to construct msg m whose MD5 hash is equal to x.

  • SHA-1 is also used.

    • US standard [NIST, FIPS PUB 180-1]

    • 160-bit message digest

http://wp.me/P29YQz-k


Message authentication code mac

Message Authentication Code (MAC)

http://wp.me/P29YQz-k


Digital signatures

Digital Signatures

Cryptographic technique analogous to handwritten signatures.

sender (Bob) digitally signs document, establishing he is document owner/creator.

verifiable, nonforgeable: recipient (Alice) can prove to someone that Bob, and no one else (including Alice), must have signed document

http://wp.me/P29YQz-k


Et4085 et5085 keamanan jaringan telekomunikasi et4085 et5085 telecommunication network security

http://wp.me/P29YQz-k


Et4085 et5085 keamanan jaringan telekomunikasi et4085 et5085 telecommunication network security

http://wp.me/P29YQz-k


Digital signature standard

Digital Signature Standard

http://wp.me/P29YQz-k


Certification authorities

Certification Authorities

  • Certification authority (CA): binds public key to particular entity, E.

  • E (person, router) registers its public key with CA.

    • E provides “proof of identity” to CA.

    • CA creates certificate binding E to its public key.

    • certificate containing E’s public key digitally signed by CA

      • CA says “this is E’s public key”

http://wp.me/P29YQz-k


Et4085 et5085 keamanan jaringan telekomunikasi et4085 et5085 telecommunication network security

  • When Alice wants Bob’s public key:

    • gets Bob’s certificate (Bob or elsewhere).

    • apply CA’s public key to Bob’s certificate, get Bob’s public key

http://wp.me/P29YQz-k


Certificates summary

Certificates: summary

  • Primary standard X.509 (RFC 2459)

  • Certificate contains:

    • Issuer name

    • Entity name, address, domain name, etc.

    • Entity’s public key

    • Digital signature (signed with issuer’s private key)

http://wp.me/P29YQz-k


End point authentication

End-point authentication

Goal: Bob wants Alice to “prove” her identity to him

Protocol ap1.0: Alice says “I am Alice”

http://wp.me/P29YQz-k


Et4085 et5085 keamanan jaringan telekomunikasi et4085 et5085 telecommunication network security

Goal: Bob wants Alice to “prove” her identity to him

Protocol ap1.0: Alice says “I am Alice”

http://wp.me/P29YQz-k


End point authentication another try

End-point authentication: another try

Protocol ap2.0: Alice says “I am Alice” in an IP packet containing her source IP address

http://wp.me/P29YQz-k


Et4085 et5085 keamanan jaringan telekomunikasi et4085 et5085 telecommunication network security

Protocol ap2.0: Alice says “I am Alice” in an IP packet containing her source IP address

http://wp.me/P29YQz-k


End point authentication another try1

End-point authentication: another try

Protocol ap3.0: Alice says “I am Alice” and sends her secret password to “prove” it.

http://wp.me/P29YQz-k


Et4085 et5085 keamanan jaringan telekomunikasi et4085 et5085 telecommunication network security

Protocol ap3.0: Alice says “I am Alice” and sends her secret password to “prove” it.

http://wp.me/P29YQz-k


End point authentication yet another try

End-point authentication: yet another try

Protocol ap3.1: Alice says “I am Alice” and sends her encrypted secret password to “prove” it.

http://wp.me/P29YQz-k


Et4085 et5085 keamanan jaringan telekomunikasi et4085 et5085 telecommunication network security

Protocol ap3.1: Alice says “I am Alice” and sends her encrypted secret password to “prove” it.

http://wp.me/P29YQz-k


End point authentication yet another try1

End-point authentication: yet another try

Goal: avoid playback attack

Nonce: number (R) used only once-in-a-lifetime

ap4.0: to prove Alice “live”, Bob sends Alice nonce, R. Alice must return R, encrypted with shared secret key

http://wp.me/P29YQz-k


End point authentication ap5 0

End-point authentication: ap5.0

ap4.0 requires shared symmetric key

can we authenticate using public key techniques?

ap5.0: use nonce, public key cryptography

http://wp.me/P29YQz-k


Ap5 0 security hole

ap5.0: security hole

Man (woman) in the middle attack: Trudy poses as Alice (to Bob) and as Bob (to Alice)

http://wp.me/P29YQz-k


Ap5 0 security hole1

ap5.0: security hole

Man (woman) in the middle attack: Trudy poses as Alice (to Bob) and as Bob (to Alice)

http://wp.me/P29YQz-k


  • Login
