  1. imos CAD. CAM. NET. DATA

  2. Integrated process planning presentationquotation online & offline assembly drawings and explosion views post processors for different machine types; incl. Nesting & 5 axis single part drawings,cross sections CNC data generation,cutting optimization manufacturing part lists, calculation, cutting, purchased parts

  3. CAD - Article Designer • parametric cabinet designer • design of cabinets and other objects with variable dimensions

  4. CAD - Object Designer • designing of custom furniture based on cross-sections and 2D plan view drawings • for counters and bespoke designs • dimensional amendments in 3D by changing the aligned cross-sections resp. plan view

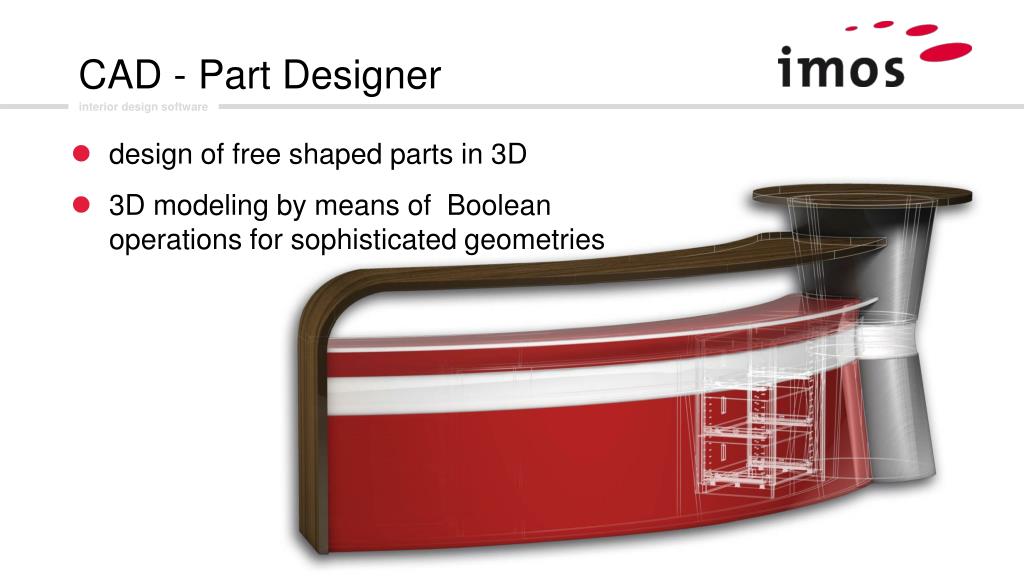

  5. CAD - Part Designer • design of free shaped parts in 3D • 3D modeling by means of Boolean operations for sophisticated geometries

  6. CAD - Drawing output From 3D model to manufacturing drawings by mouse click. • automatic views • dimensioning • part drawings • cross-section & explosion • engineering details

  7. Design Catalog Online • Supplier catalogs available for download • online available 24/7 • permanently up-to-date • sorted by manufacturer • Product data • commercial, technical 3D model, fittings/sets, workings

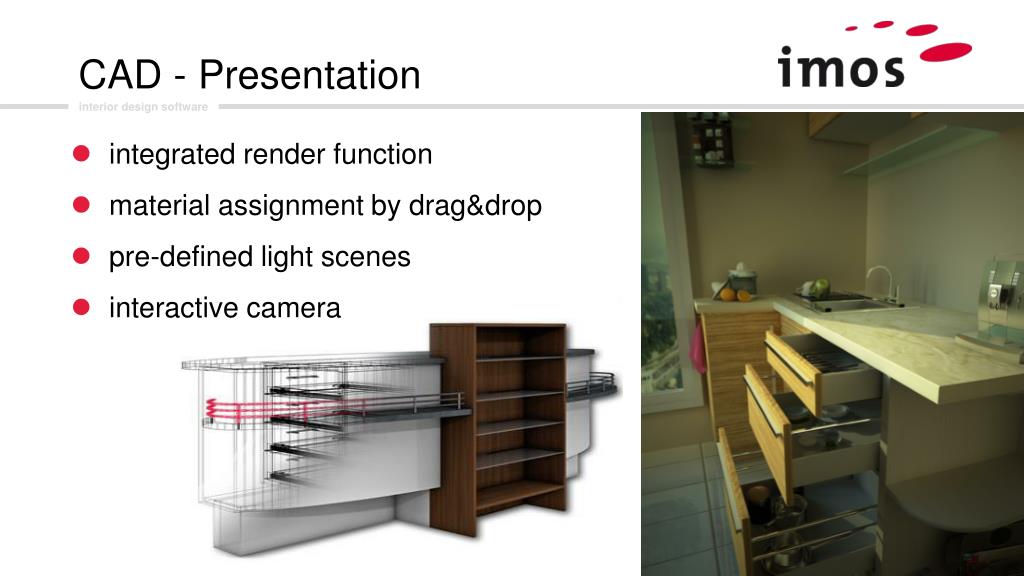

  8. CAD - Presentation • integrated render function • material assignment by drag&drop • pre-defined light scenes • interactive camera

  9. PLAN - Room planning & quotation • based on imos CAD technology • interactive article selection • product configuration, planning function • accessoires by drag&drop • photorealistic rendering • basket with editing function • customer address • customer offer and print out

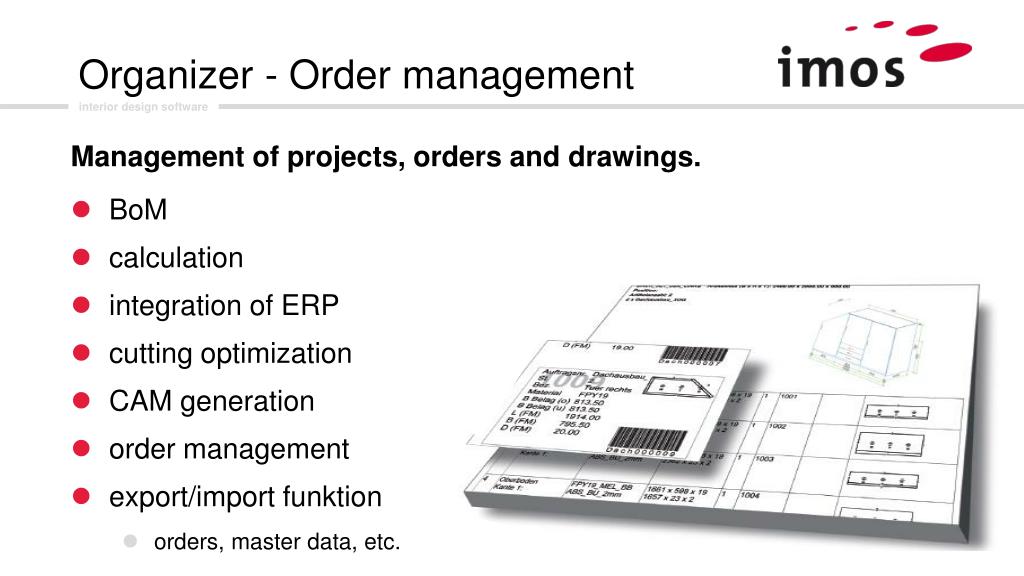

  10. Organizer - Order management Management of projects, orders and drawings. • BoM • calculation • integration of ERP • cutting optimization • CAM generation • order management • export/import funktion • orders, master data, etc.

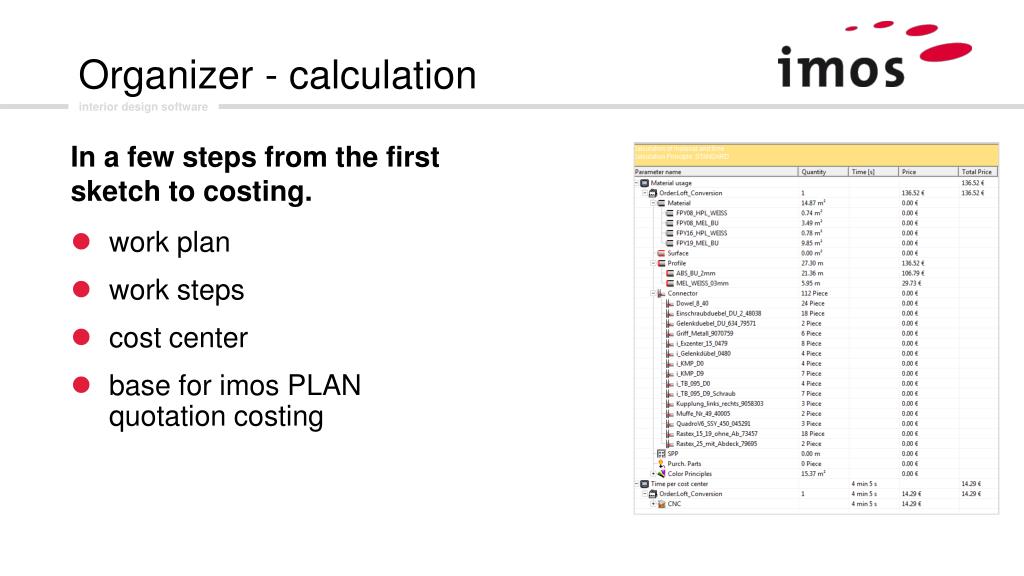

  11. Organizer - calculation In a few steps from the first sketch to costing. • work plan • work steps • cost center • base for imos PLANquotation costing

  12. Organizer - BoM & output From CAD model to manufacturing reports by mouse click. • article reports • part lists • cutting & manufacturing reports • labels • graphical BoM • barcode

  13. CAM APG - CNC program generator • automatic contours • automatic technology • tools • feed speed • rotation speed • speeds, sequences, jig position etc. • complex processing such as Nesting, Sandwich etc. • automatic post processor

  14. CAM MAX - link to 5 axis machines • 5 axis processing in CAD • simplified programming by means of KIT technology • part orientation in imos CAD • real-time simulation • interpolation and correct processing of NURBS & SPLINES

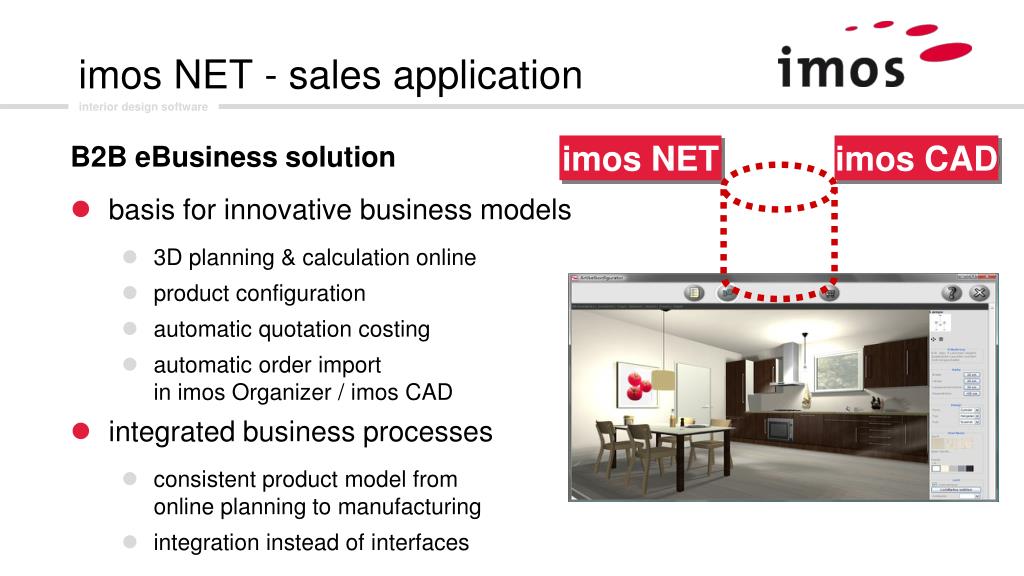

  15. imos NET - sales application imos NET imos CAD B2B eBusiness solution • basis for innovative business models • 3D planning & calculation online • product configuration • automatic quotation costing • automatic order importin imos Organizer / imos CAD • integrated business processes • consistent product model from online planning to manufacturing • integration instead of interfaces

  16. iFurn DataBroker - summary • iFurn is the online database for working with imos • free search engine for technical product information • download function for article data for importing in imos CAD/CAM/NET and other IT systems • open system - no limits for members (supplier and software houses)

  17. Summary CAD CAM NET DATA • planning • design • calculation • BoM • graphic output • CNC data generation • machine assignment • manufacturing processes • Nesting • post processor • web shop • room planning • configuration of articles • order entry • order processing • manufacturer • catalog • management of supplier data • internet portal for the supplier • industry • import / export Basic technology • future-oriented development platform → modern technologies (SQL, XML, …) • co-operation with strong partners → Microsoft, Autodesk et al • international distribution and high market share in furniture and interior design and in machinery and supplier industry → future orientation, investment security
