  1. ECE 412: Microcomputer Laboratory Lecture 17: Platform-Based Design and IP Lecture 17

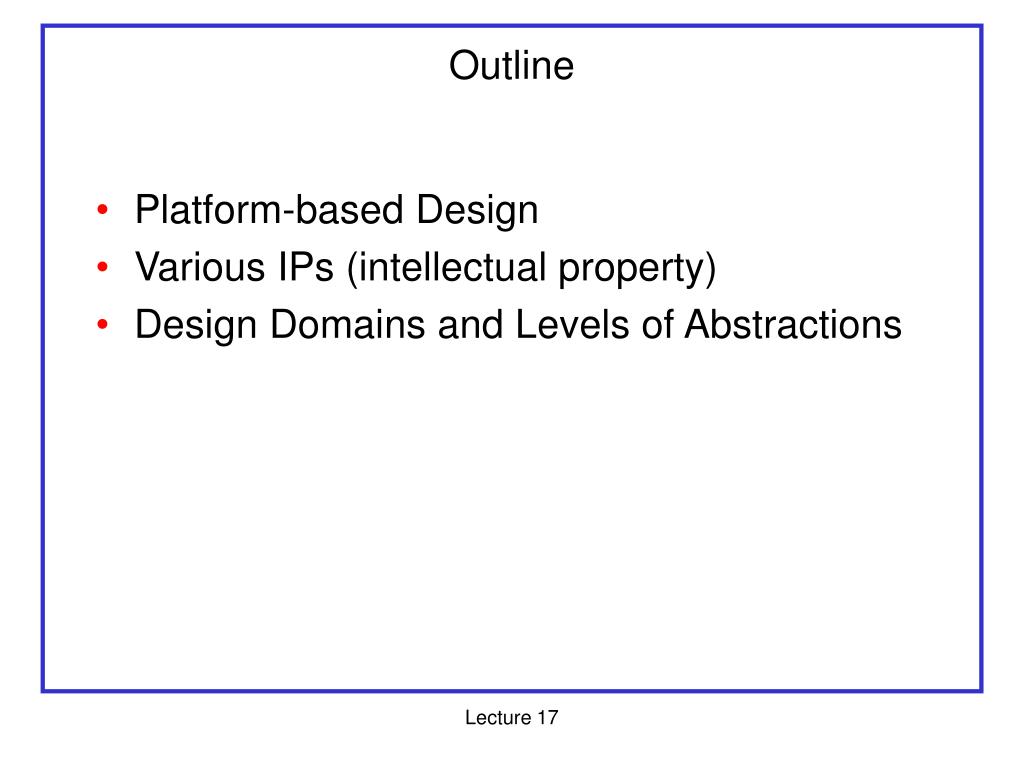

  2. Outline • Platform-based Design • Various IPs (intellectual property) • Design Domains and Levels of Abstractions Lecture 17

  3. Review Questions • What are Observability and Controllability? Name one way to improve both. • Observability: ease of observing a node by watching external output pins of the chip • Controllability: ease of forcing a node to 0 or 1 by driving input pins of the chip • Scan chain • Name some testing types. • Dynamic vs. Static • i.e. simulation vs. formal methods • Deterministic vs. Random • Pre-specified vs. randomly generated sequence of inputs • Waveforms/logs checking vs. self-checking • Non-automatic vs. automatic testing • Black- vs. glass-box testing • Considering only specification vs. considering implementation in designing tests • Unit vs. integration testing • Module vs. System testing Lecture 17

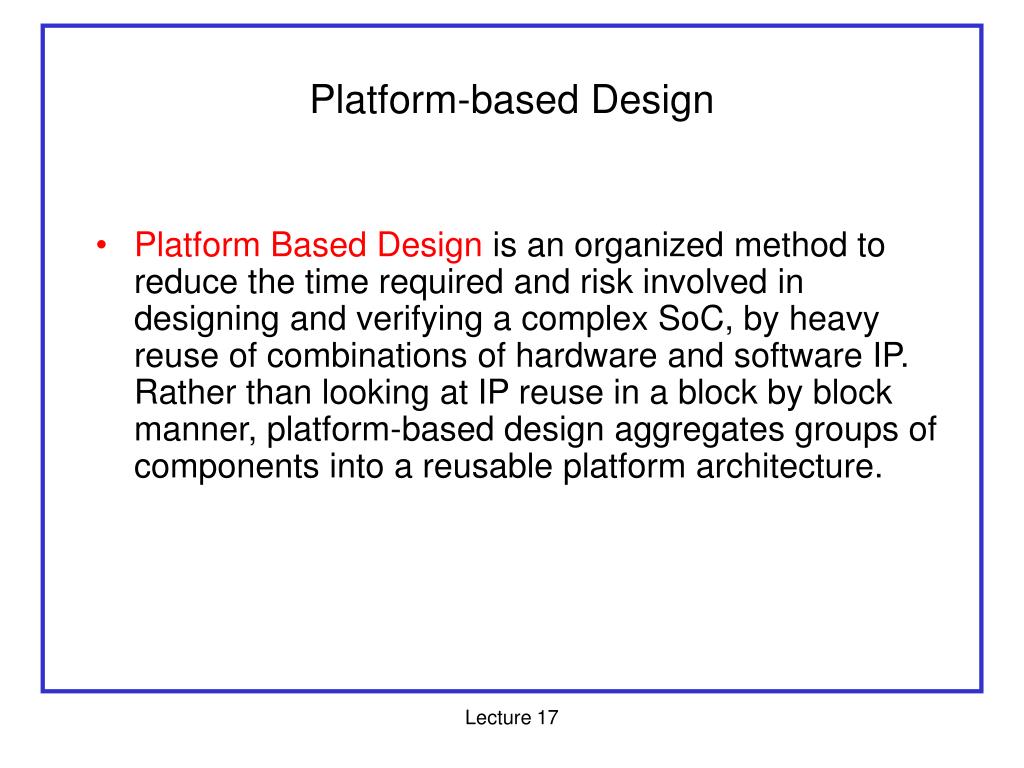

  4. Platform-based Design • Platform Based Design is an organized method to reduce the time required and risk involved in designing and verifying a complex SoC, by heavy reuse of combinations of hardware and software IP. Rather than looking at IP reuse in a block by block manner, platform-based design aggregates groups of components into a reusable platform architecture. Lecture 17

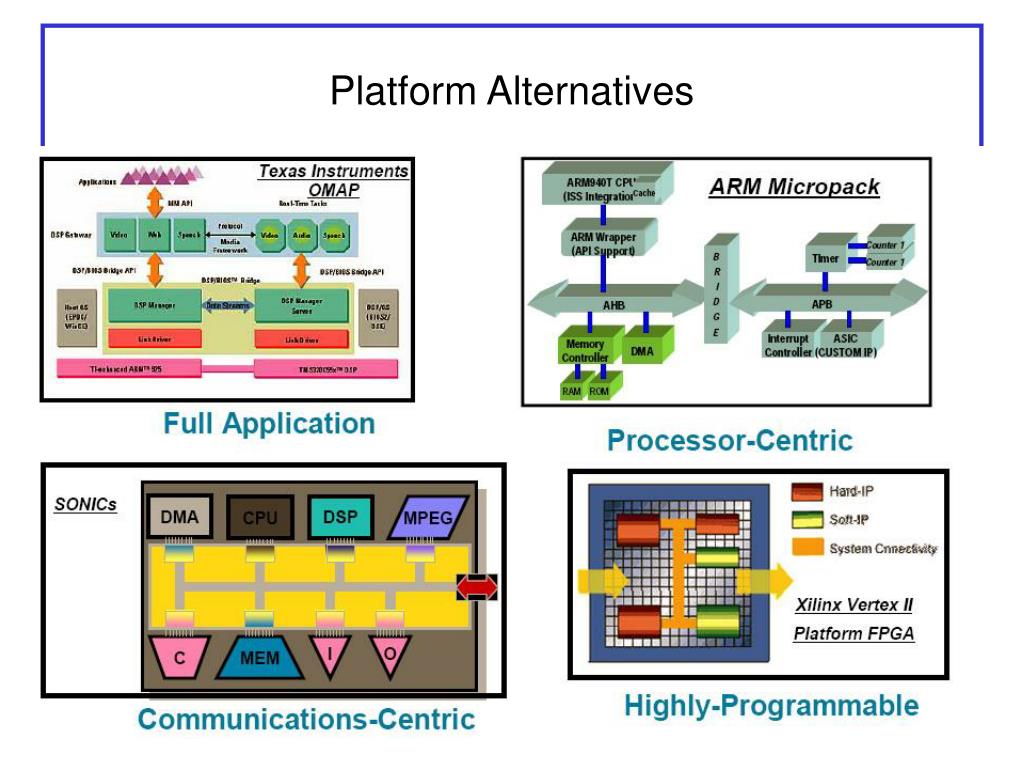

  5. Platform Alternatives Lecture 17

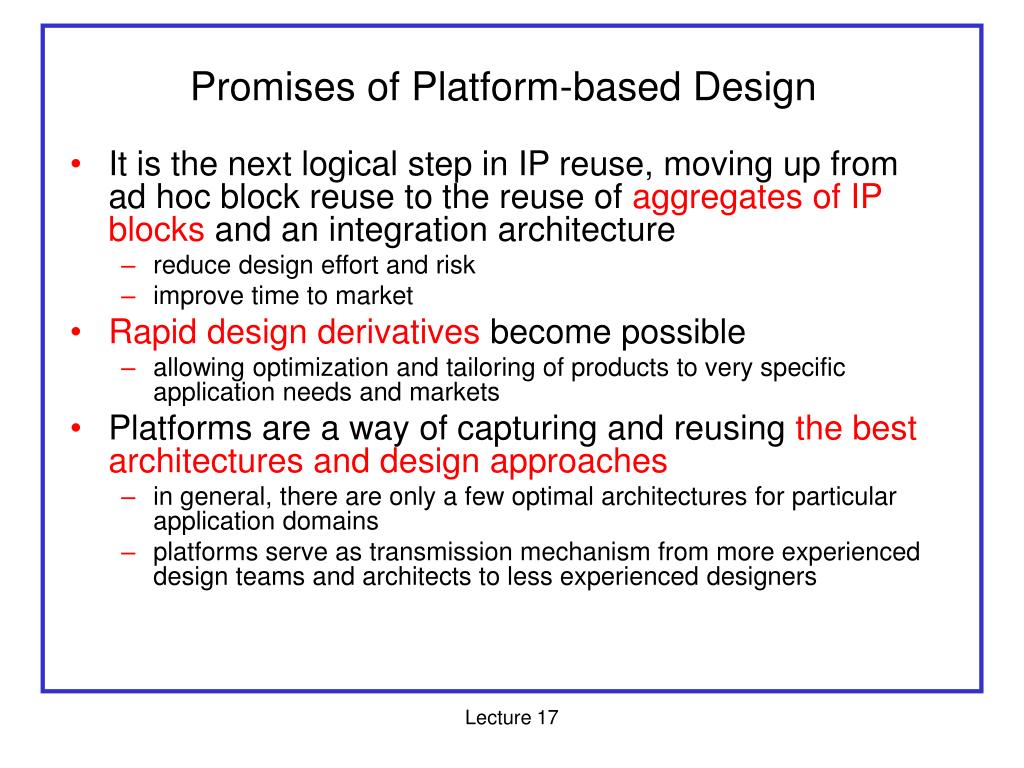

  6. Promises of Platform-based Design • It is the next logical step in IP reuse, moving up from ad hoc block reuse to the reuse of aggregates of IP blocks and an integration architecture • reduce design effort and risk • improve time to market • Rapid design derivatives become possible • allowing optimization and tailoring of products to very specific application needs and markets • Platforms are a way of capturing and reusing the best architectures and design approaches • in general, there are only a few optimal architectures for particular application domains • platforms serve as transmission mechanism from more experienced design teams and architects to less experienced designers Lecture 17

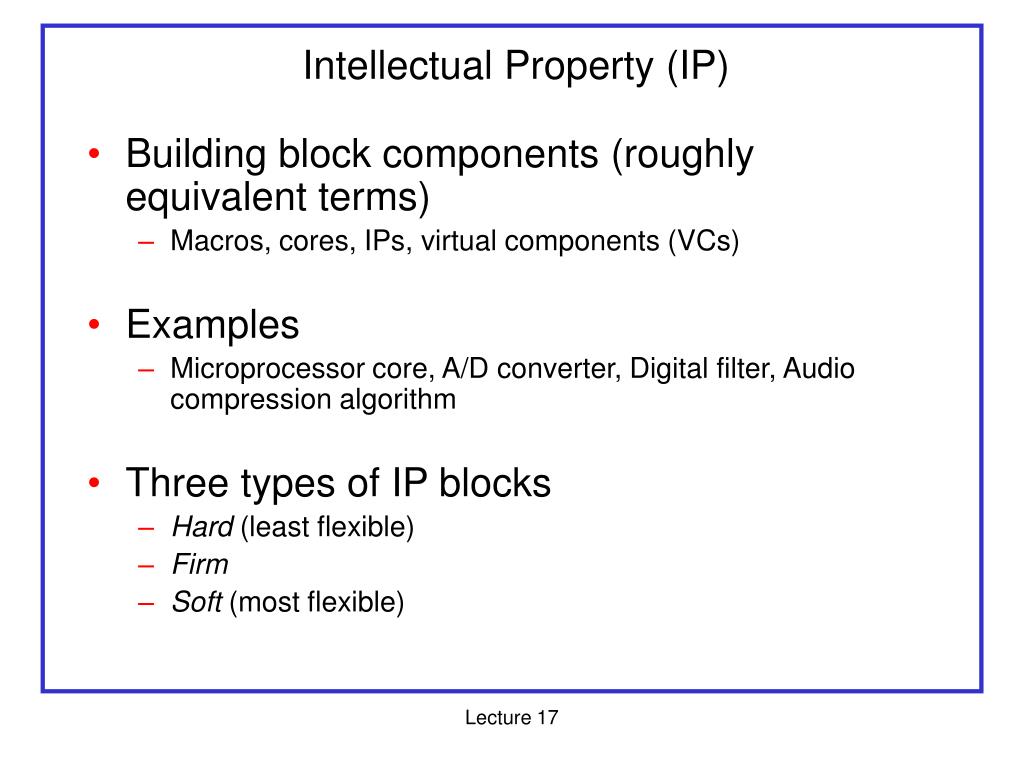

  7. Intellectual Property (IP) • Building block components (roughly equivalent terms) • Macros, cores, IPs, virtual components (VCs) • Examples • Microprocessor core, A/D converter, Digital filter, Audio compression algorithm • Three types of IP blocks • Hard (least flexible) • Firm • Soft (most flexible) Lecture 17

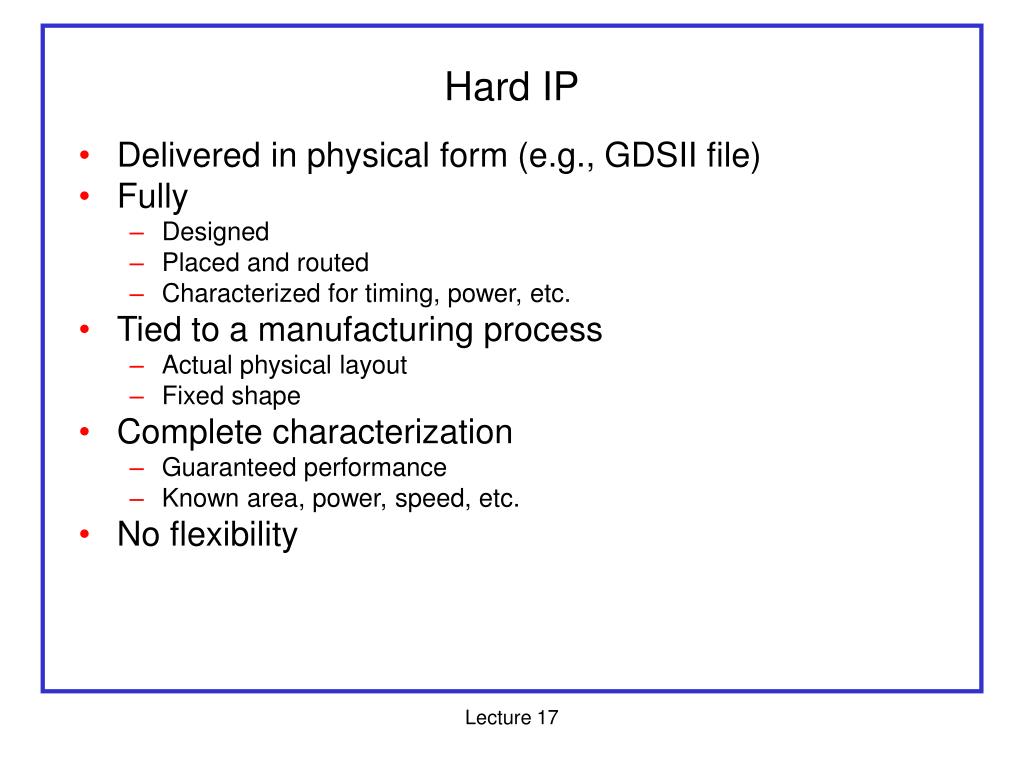

  8. Hard IP • Delivered in physical form (e.g., GDSII file) • Fully • Designed • Placed and routed • Characterized for timing, power, etc. • Tied to a manufacturing process • Actual physical layout • Fixed shape • Complete characterization • Guaranteed performance • Known area, power, speed, etc. • No flexibility Lecture 17

  9. Power Hard Macros A-Input Data Out B-Input Ground Fixed Schematics and Layout Schematic of a NAND gate Layout of a NOR gate Lecture 17

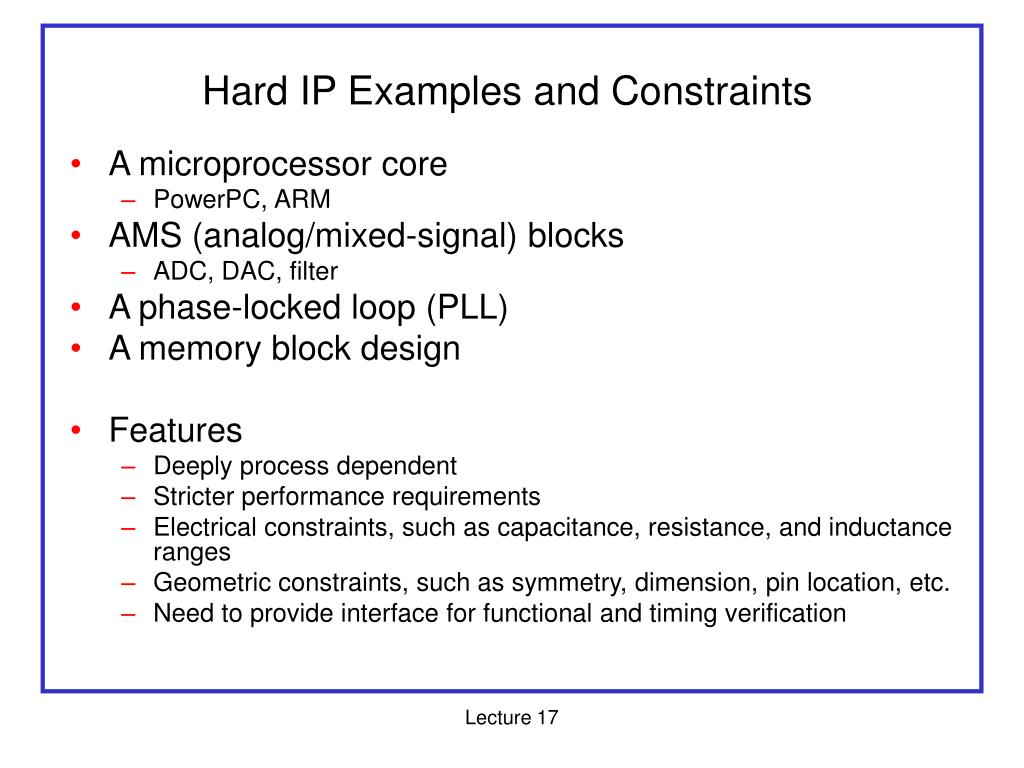

  10. Hard IP Examples and Constraints • A microprocessor core • PowerPC, ARM • AMS (analog/mixed-signal) blocks • ADC, DAC, filter • A phase-locked loop (PLL) • A memory block design • Features • Deeply process dependent • Stricter performance requirements • Electrical constraints, such as capacitance, resistance, and inductance ranges • Geometric constraints, such as symmetry, dimension, pin location, etc. • Need to provide interface for functional and timing verification Lecture 17

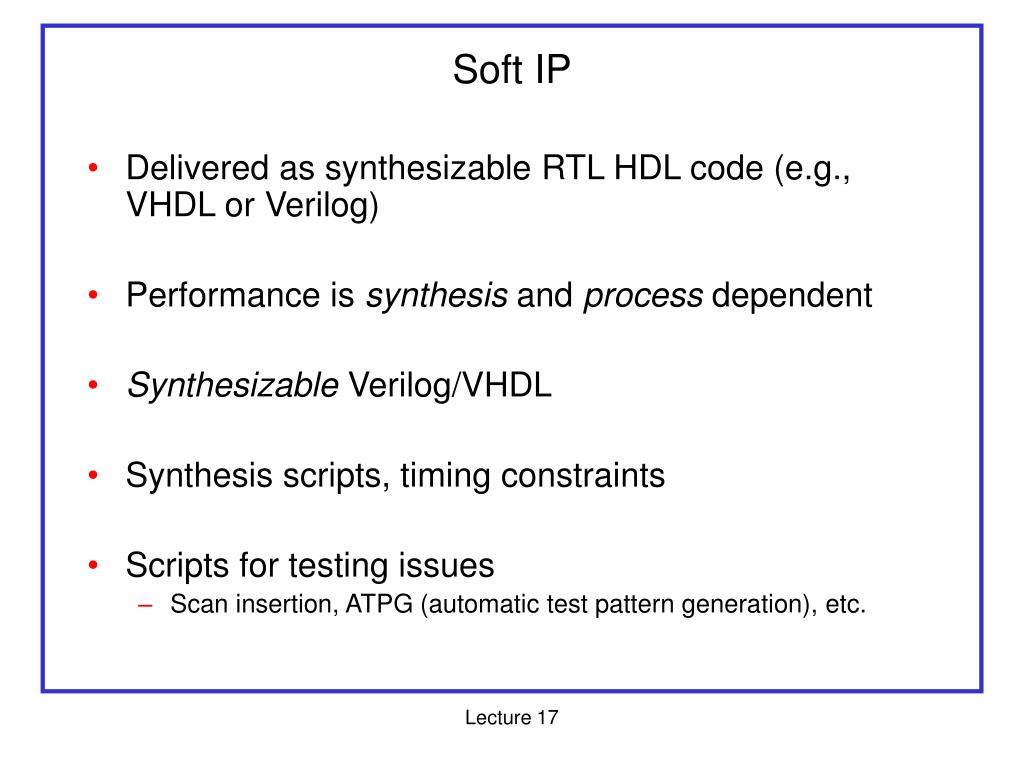

  11. Soft IP • Delivered as synthesizable RTL HDL code (e.g., VHDL or Verilog) • Performance is synthesis and process dependent • Synthesizable Verilog/VHDL • Synthesis scripts, timing constraints • Scripts for testing issues • Scan insertion, ATPG (automatic test pattern generation), etc. Lecture 17

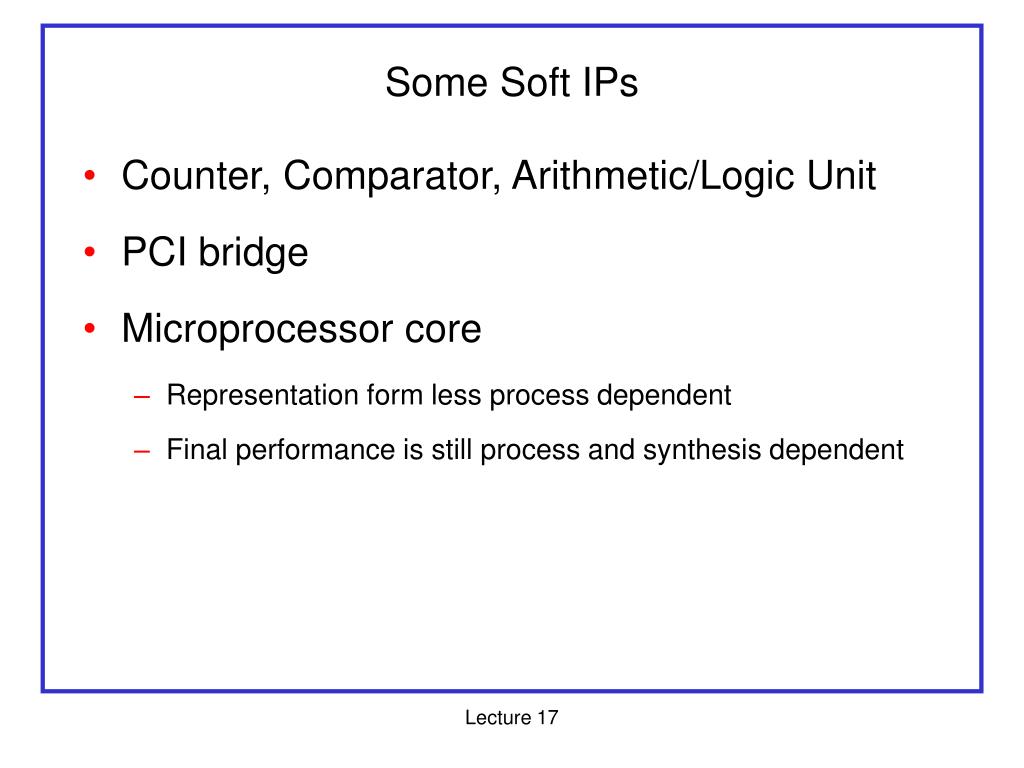

  12. Some Soft IPs • Counter, Comparator, Arithmetic/Logic Unit • PCI bridge • Microprocessor core • Representation form less process dependent • Final performance is still process and synthesis dependent Lecture 17

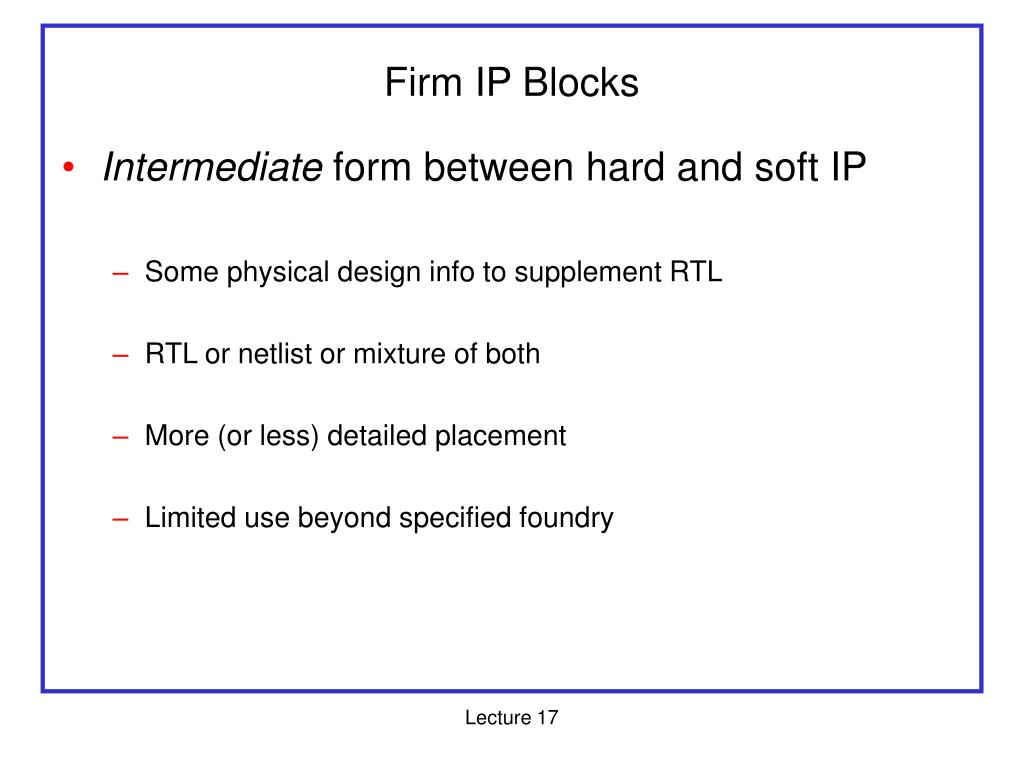

  13. Firm IP Blocks • Intermediate form between hard and soft IP • Some physical design info to supplement RTL • RTL or netlist or mixture of both • More (or less) detailed placement • Limited use beyond specified foundry Lecture 17

  14. Understand IPs • The quality of IPs and support will be the key to the success of the IP business • Need to pay much attention on software IP issues • Need application and system design expertise • Core-based design is effective on IP/core integration • Need to develop a combining platform- and core-based design methodology/environment for system designs Lecture 17

  15. Designers’ Technical Concerns on IP Reuse • Is the IP source (provider) reliable? • How can I make sure the functional correctness of the IP? • How much effort do I have to invest in test-bench development for design verification with reused IP? • What if I need to modify part of IP design? • What if the final timing is not satisfied due to the IP? • What’s the risk of the design project due to any possible defect caused by the IP? • What’s the worst scenario when reusing the IP and what are the damage control plan? Lecture 17

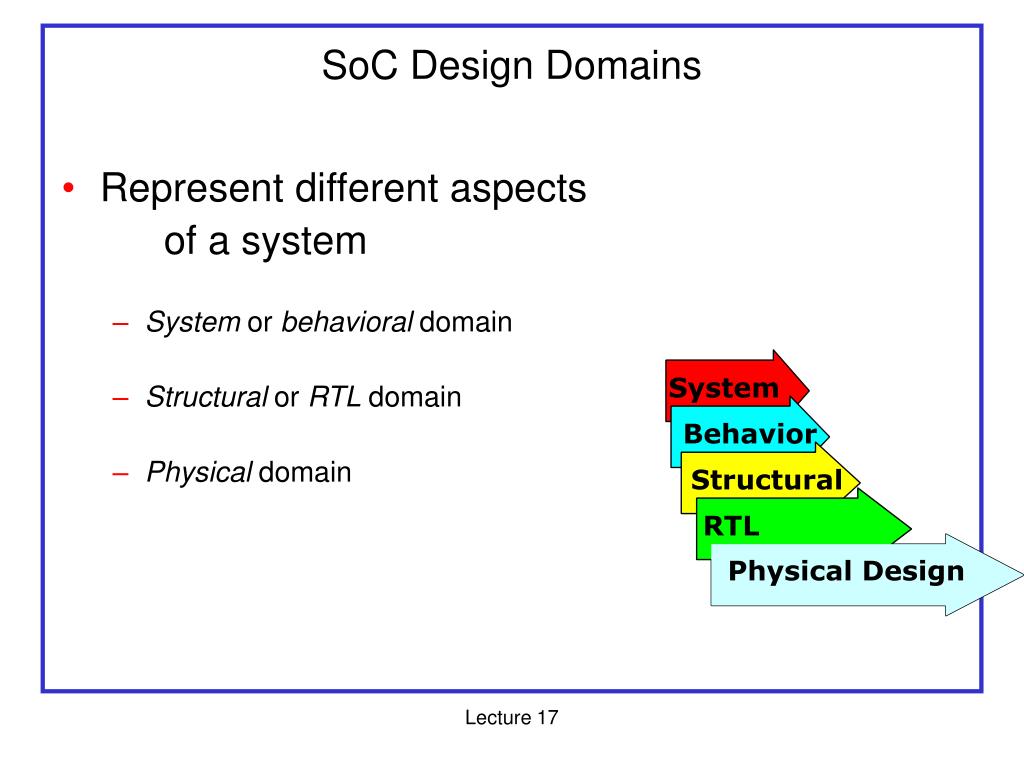

  16. System Behavior Structural RTL Physical Design SoC Design Domains • Represent different aspects of a system • System or behavioral domain • Structural or RTL domain • Physical domain Lecture 17

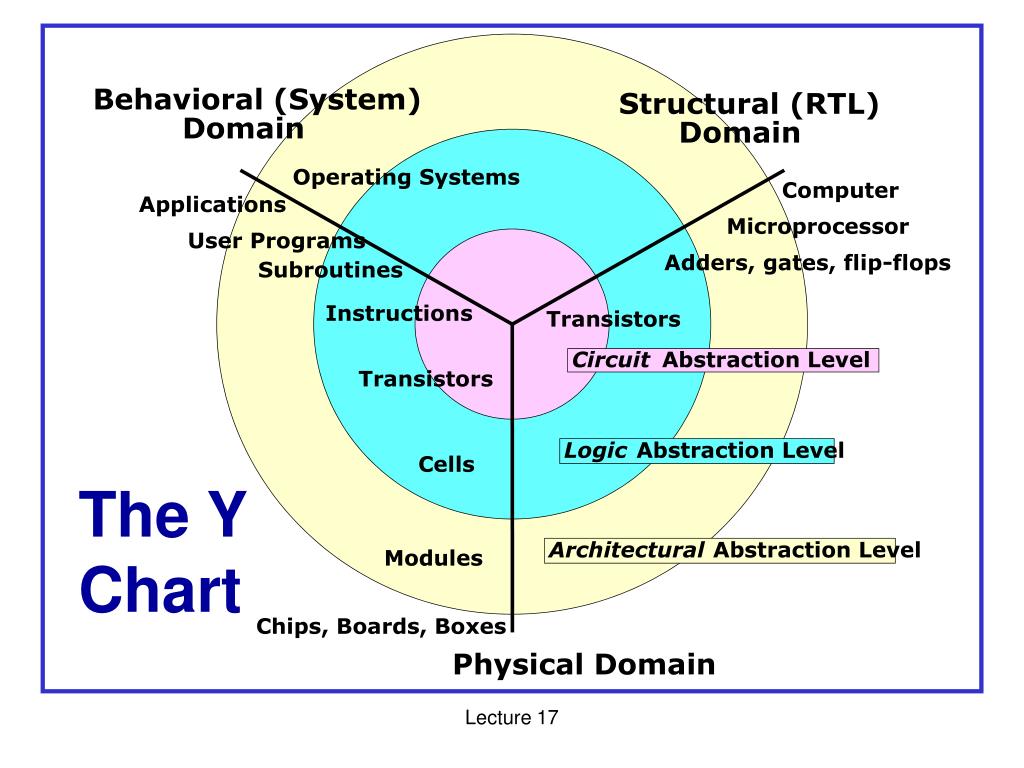

  17. Behavioral (System) Structural (RTL) Domain Domain Operating Systems Computer Applications Microprocessor User Programs Adders, gates, flip-flops Subroutines Instructions Transistors Circuit Abstraction Level Transistors Logic Abstraction Level Cells The Y Chart Architectural Abstraction Level Modules Chips, Boards, Boxes Physical Domain Lecture 17

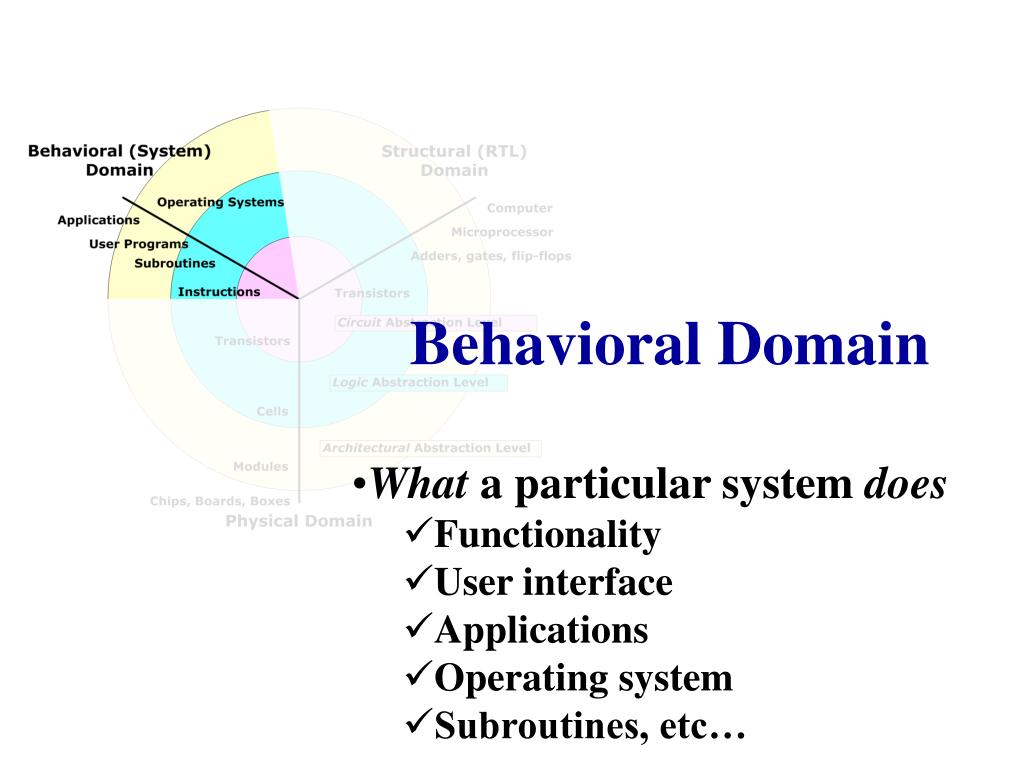

  18. Behavioral Domain • What a particular system does • Functionality • User interface • Applications • Operating system • Subroutines, etc…

  19. Structural Domain • How entities are interconnected to • implement prescribed behavior • Logic gates • Registers • RISC processor, etc…

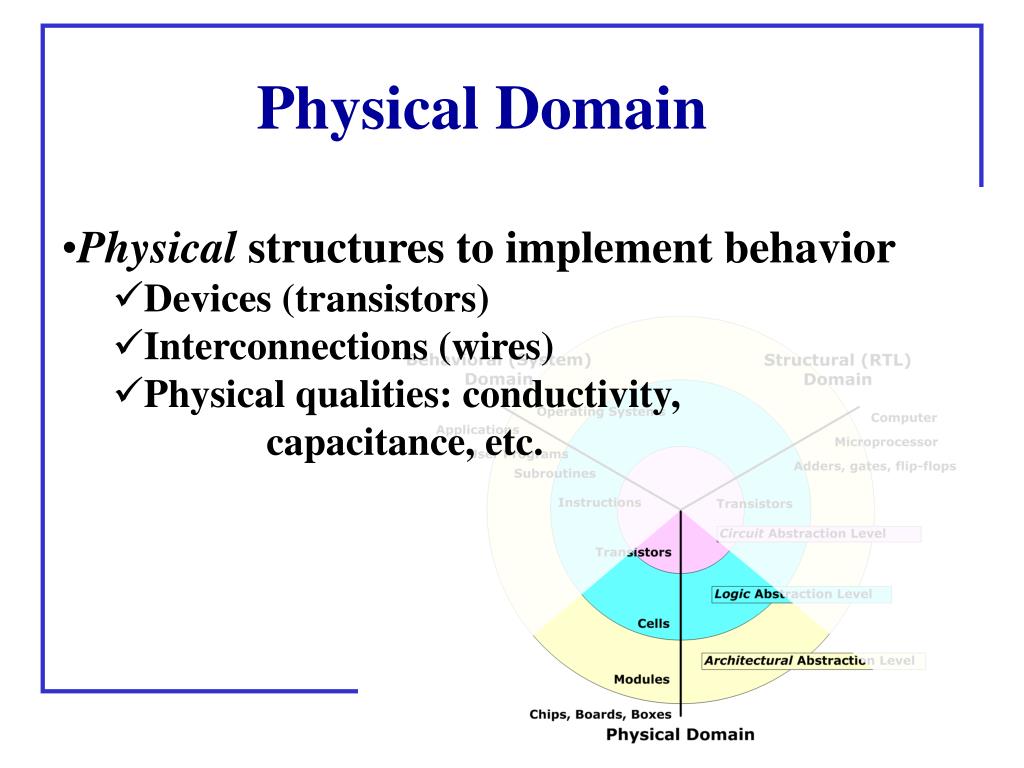

  20. Physical Domain • Physical structures to implement behavior • Devices (transistors) • Interconnections (wires) • Physical qualities: conductivity, capacitance, etc. Lecture 17

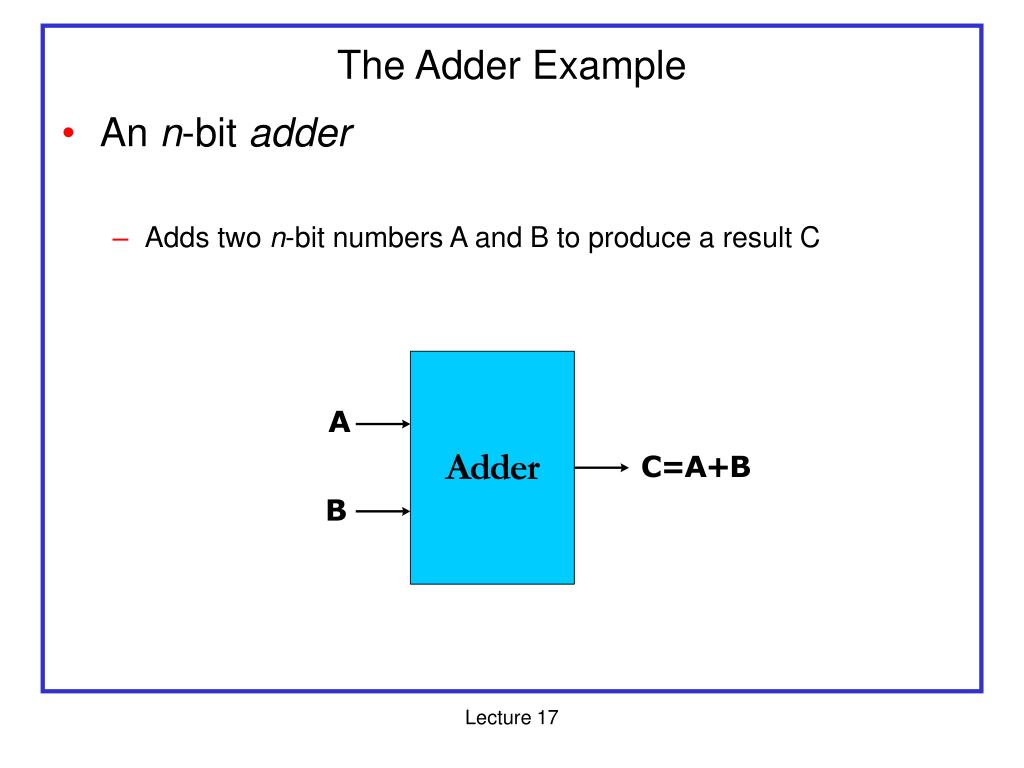

  21. The Adder Example • An n-bit adder • Adds two n-bit numbers A and B to produce a result C Lecture 17

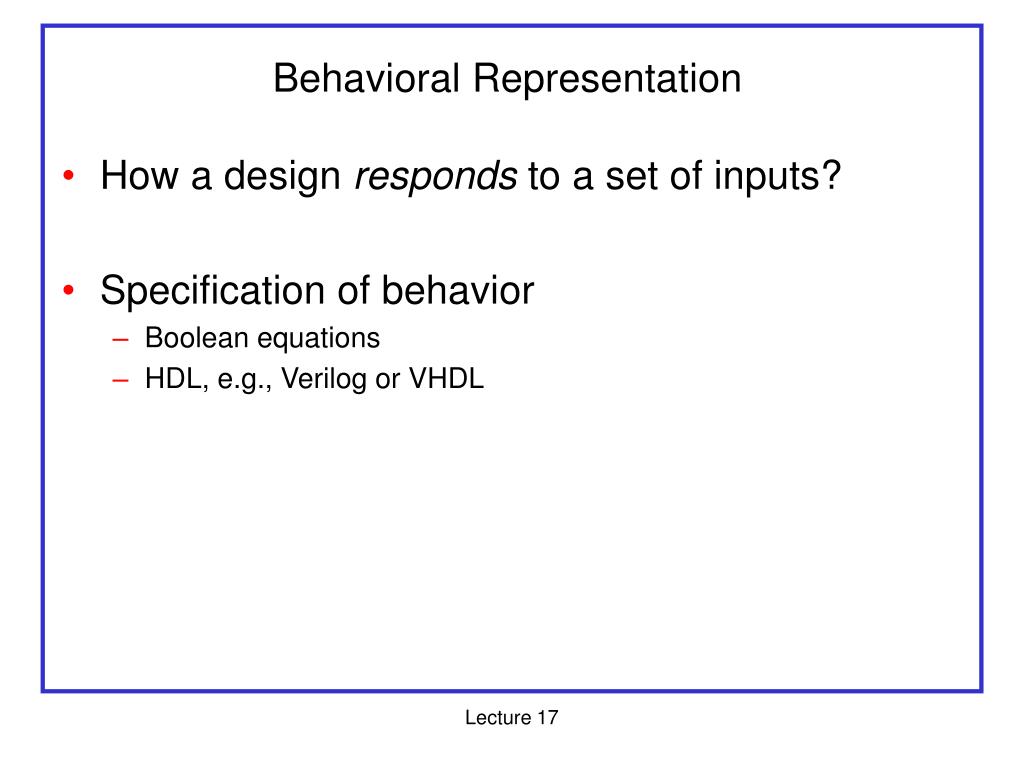

  22. Behavioral Representation • How a design responds to a set of inputs? • Specification of behavior • Boolean equations • HDL, e.g., Verilog or VHDL Lecture 17

  23. Example: 1-bit Adder (cont’) • Boolean equations • Verilog Sum = A.B’.C’ + A’.B’.C + A’.B.C’ + A.B.C Carry = A.B + A.C + B.C module carry (co, a, b, c); output co; input a, b, c; assign co = (a&b) | (b&c) | (a&c); endmodule Lecture 17

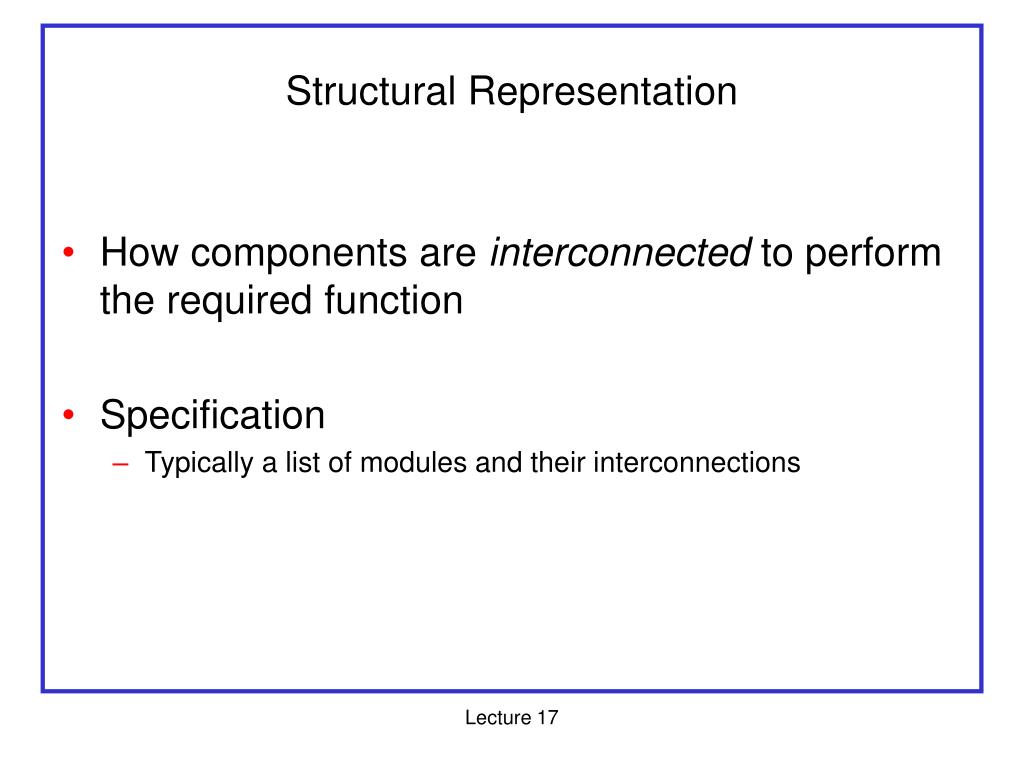

  24. Structural Representation • How components are interconnected to perform the required function • Specification • Typically a list of modules and their interconnections Lecture 17

  25. Example: 4-bit Adder (cont’) Lecture 17

  26. Structure Description in Verilog module add (co, s, a, b, c); input a, b, c; output s, co; // describe 1-bit adder enddmodule module Add4 (S, c4, ci, a, b); input [3:0] a, b; input ci; output [3:0] s; output c4; wire [2:0] co; add a0(co[0],s[0],a[0],b[0],ci ); add a1(co[1],s[1],a[1],b[1],co[0]); add a2(co[2],s[2],a[2],b[2],co[1]); add a3(c4, s[3],a[3],b[3],co[2]); endmodule interconnections modules Lecture 17

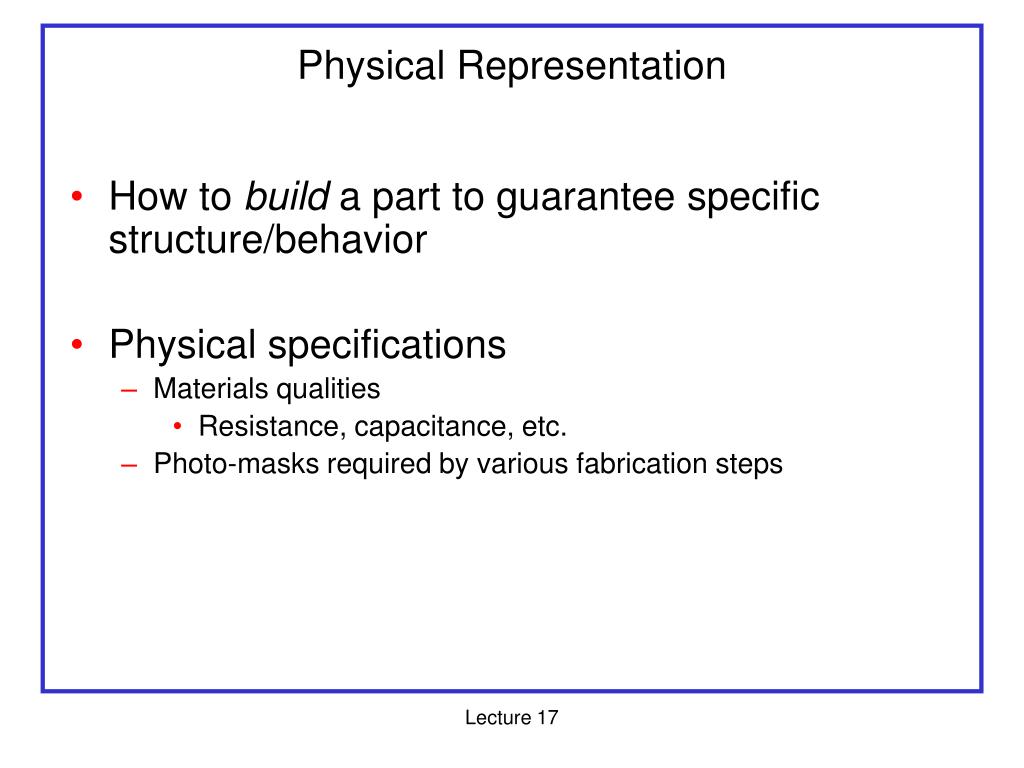

  27. Physical Representation • How to build a part to guarantee specific structure/behavior • Physical specifications • Materials qualities • Resistance, capacitance, etc. • Photo-masks required by various fabrication steps Lecture 17

  28. Physical View of the Adder Lecture 17

  29. Next Time • Case studies of SoC in FPGAs Lecture 17
