  1. Fuzzy Logic Controllerfor the Inverted Pendulum Problem . Project: by Larry Bush

  2. Why?

  3. Simulator Simulator:

  4. Problem Statement

  5. Re-statement • To improve the model.

  6. Consequent MFs: • cp = fn ( 17, [ -5.4 : +5.4 ] ) • Evenly Spaced • Horizontally Symmetrical • Orthogonal • Trapezoidal • Support = 3 x Core

  7. Rule-Base cmf(i, j, k, l) = cp(i + j + k + l - 3) for i, j, k, l = [ 1 : 5 ]

  8. 2 Dimensions

  9. Rule-Base cmf(i, j, k, l) = cp( i + (j-1) + (-k+5) + (-l+5) )

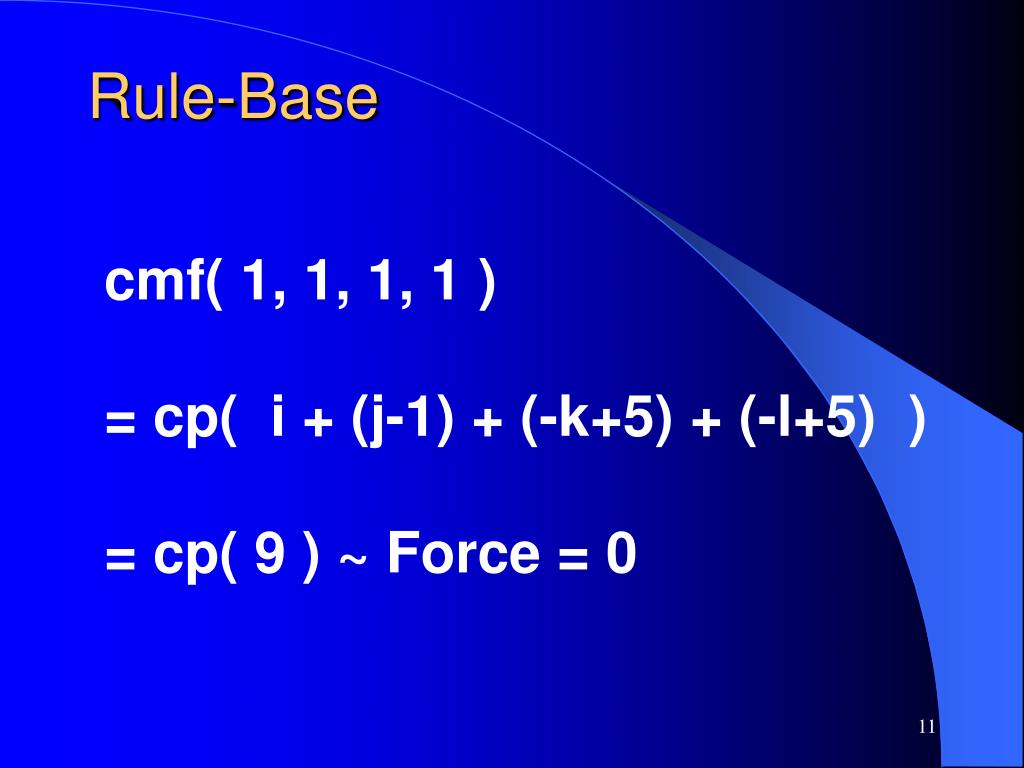

  10. Rule-Base cmf( 1, 1, 1, 1 ) = cp( i + (j-1) + (-k+5) + (-l+5) ) = cp( 9 ) ~ Force = 0

  11. Rule-Base Angle is large positive. Angular Velocity is large positive. Cart Position is large negative. Cart Velocity is large negative. cmf( 5, 5, 1, 1 ) = cp( i + (j-1) + (-k+5) + (-l+5) ) = cp( 17 ) ~ Force = large positive

  12. Rule-Base Angle is small positive. Angular Velocity is small positive. Cart Position is zero. Cart Velocity is zero. cmf( 4, 4, 3, 3 ) = cp( i + (j-1) + (-k+5) + (-l+5) ) = cp( 11 ) ~ Force = small positive

  13. Neural Net

  14. Demo

  15. Take Aways • Fuzzy Controllers Work • 4-input, 5-MF • Work the Best • Computationally Expensive • Difficult to Tune • Automated Tuning Techniques Work

  16. End

  17. Questions/Facts
