Optimizing Converged Cisco Networks (ONT)

1. Optimizing Converged Cisco Networks (ONT) Module 3: Introduction to IP QoS

2. Lesson 3.4: Using MQC for Implementing QoS

3. Objectives • Identify the features of each method for QoS policy implementation. • Describe the guidelines for using CLI to implement QoS policy. • Describe the Modular QoS Command Line (MQC)

4. Methods for Implementing QoS Policy

5. Configuring QoS at the CLI • Uses the CLI via console and Telnet • Traditional method • Nonmodular • Cannot separate traffic classification from policy definitions • Time-consuming and potentially error-prone task • Used to augment and fine-tune newer Cisco AutoQoS method

6. Guidelines for Using the CLI Configuration Method • Build a traffic policy: • Identify the traffic pattern. • Classify the traffic. • Prioritize the traffic. • Select a proper QoS mechanism: • Queuing • Compression • Apply the traffic policy to the interface.

7. For interactive traffic, you can use CQ and TCP header compression. • interface multilink • ip address 10.1.61.1 255.255.255.0 • load-interval 30 • custom-queue-list 1 • ppp multilink • ppp multilink fragment-delay 10 • ppp multilink interleave • multilink-group 1 • ip tcp header-compression iphc-format • ! • queue-list 1 protocol ip 2 tcp 23 Legacy CLI QoS Example

8. Modular QoS CLI • A command syntax for configuring QoS policy • Reduces configuration steps and time • Configures policy, not “raw” per-interface commands • Uniform CLI across major Cisco IOS platforms • Uniform CLI structure for all QoS features • Separates classification engine from the policy

9. Modular QoS CLI Components

10. Step 1: Creating Class Maps:“What Traffic Do We Care About?” • Each class is identified using a class map. • A traffic class contains three major elements: • A case-sensitive name • A series of match commands • An instruction on how to evaluate the match commands if more than one match command exists in the traffic class • Class maps can operate in two modes: • Match all: All conditions have to succeed. • Match any: At least one condition must succeed. • The default mode is match all.

11. Enter class-map configuration mode. Specify the matching strategy. router(config)# class-map [match-all | match-any] class-map-name router(config-cmap)# match any match not match-criteria router(config-cmap)# description description Configuring Class Maps • Use at least one condition to match packets. • Use descriptions in large and complex configurations. The description has no operational meaning.

12. Standard ACL Classifying Traffic with ACLs router(config)# access-list access-list-number {permit | deny | remark} source [mask] • Extended ACL router(config)# access-list access-list-number {permit | deny} protocolsourcesource-wildcard [operatorport] destinationdestination-wildcard [operatorport] [established] [log] • Use an ACL as a match criterion router(config-cmap)# match access-group access-list-number

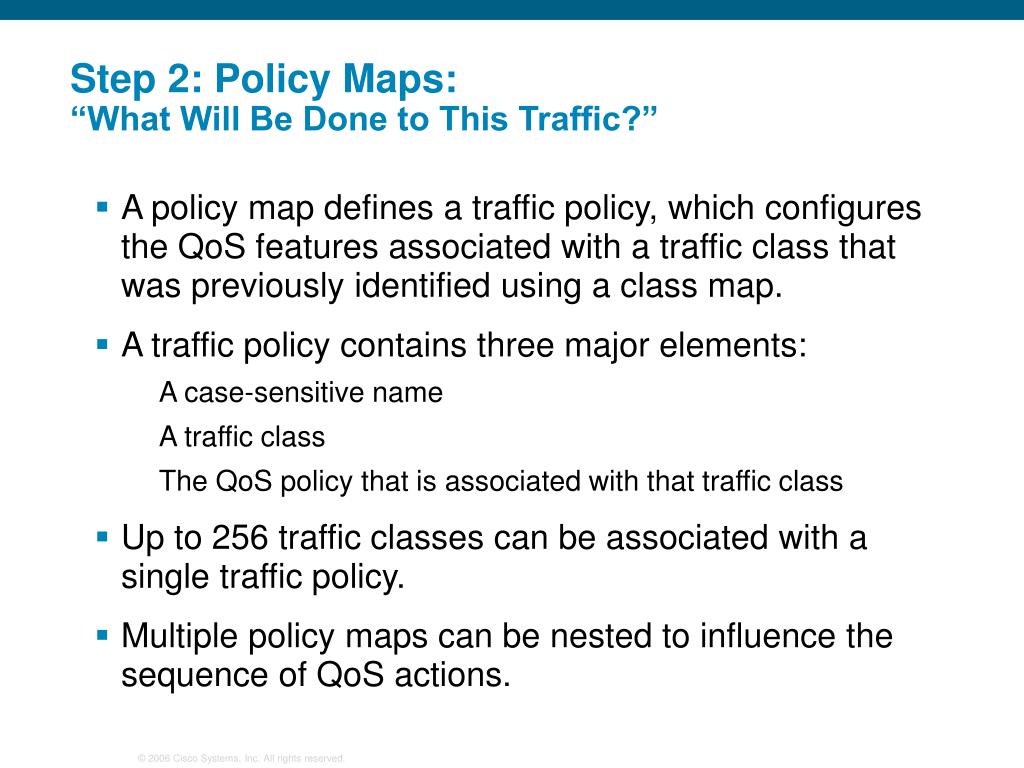

13. Step 2: Policy Maps: “What Will Be Done to This Traffic?” • A policy map defines a traffic policy, which configures the QoS features associated with a traffic class that was previously identified using a class map. • A traffic policy contains three major elements: • A case-sensitive name • A traffic class • The QoS policy that is associated with that traffic class • Up to 256 traffic classes can be associated with a single traffic policy. • Multiple policy maps can be nested to influence the sequence of QoS actions.

14. router(config)# policy-map policy-map-name router(config-pmap)# class {class-name | class-default} router(config-pmap)# class class-namecondition Configuring Policy Maps • Enter policy-map configuration mode. Policy maps are identified by a case-sensitive name. • Enter the per-class policy configuration mode by using the name of a previously configured class map. Use the class-default name to configure the policy for the default class. • Optionally, you can define a new class map by entering the condition after the name of the new class map. Uses the match-any strategy.

15. router(config-if)# service-policy {input | output} policy-map-name Step 3: Attaching Service Policies: “Where Will This Policy Be Implemented?” • Attach the specified service policy map to the input or output interface class-map HTTP match protocol http ! policy-map PM class HTTP bandwidth 2000 class class-default bandwidth 6000 ! interface Serial0/0 service-policy output PM Service policies can be applied to an interface for inbound or outbound packets

16. Modular QoS CLI Configuration Example router(config)# class-map match-any business-critical-traffic router(config-cmap)# match protocol http url “*customer*” router(config-cmap)# match protocol http url citrix router(config)# policy-map myqos policy router(config-pm am)# class business-critical-traffic router(config-pm am-c)# bandwidth 1000 router(config)# interface serial 0/0 router(config-if)# service-policy output myqos policy 1 2 3

17. Boolean Nesting Goal Goal: Find books that cover the salaries of either football players or hockey players. Solution: Boolean (salaries AND [football players OR hockey players]).

18. MQC Example • Voice traffic needs priority, low delay, and constant bandwidth. • Interactive traffic needs bandwidth and low delay.

19. MQC Configuration hostname Office ! class-map VoIP match access-group 100 class-map Application match access-group 101 ! policy-map QoS-Policy class VoIP priority 100 class Application bandwidth 25 class class-default fair-queue ! interface Serial0/0 service-policy output QoS-Policy ! access-list 100 permit ip any any precedence 5 access-list 100 permit ip any any dscp ef access-list 101 permit tcp any host 10.1.10.20 access-list 101 permit tcp any host 10.1.10.40 Classification QoS Policy QoS Policy on Interface Classification

20. router# show class-map router# show policy-map router# show policy-map interface typenumber Basic Verification Commands • Display the class maps • Display the policy maps • Display the applied policy map on the interface

21. Summary • There are 4 basic ways to implement QoS policy on Cisco devices: CLI, MQC, AutoQoS and SDM. Choosing a method will depend on the complexity of the network on the expertise of the administrator. • The Cisco MQC offers significant advantages over the legacy CLI method for implementing QoS. By using MQC, a network administrator can significantly reduce the time and effort it takes to configure QoS in a complex network. • There are three steps to follow when configuring QoS using Cisco MQC configuration. Each step answers a question concerning the classes assigned to different traffic flows: • What traffic do we care about? • What will happen to the classified traffic? • Where will the policy apply?

22. Self Check • What is a class map? • How many class maps can be configured on a Cisco router? • What is a traffic policy? • What are the 3 basic elements of a traffic policy? • What command is used to assign a policy map to an interface?

23. Q and A

24. Resources • Modular Quality of Service Command-Line Interface • http://www.cisco.com/en/US/partner/products/sw/iosswrel/ps5014/products_feature_guide_book09186a0080088141.html • QoS Policing: Cisco Modular Quality of Service Command Line Interface • http://www.cisco.com/en/US/partner/tech/tk543/tk545/technologies_white_paper09186a0080123415.shtml
