slide1

Subtropical operating region

Driftsonde, NRL P-3,

DOTSTAR, WC-130

TC Intensification and structure change

Recurvature, initiation of ET

TC track characteristics, tropical/midlatitude interaction

Tropical operating region

Driftsonde, NRL P-3,

DOTSTAR, WC-130

Tropical Measurements

Large-scale circulation,

deep convection, monsoon depressions, tropical waves,

TC formation

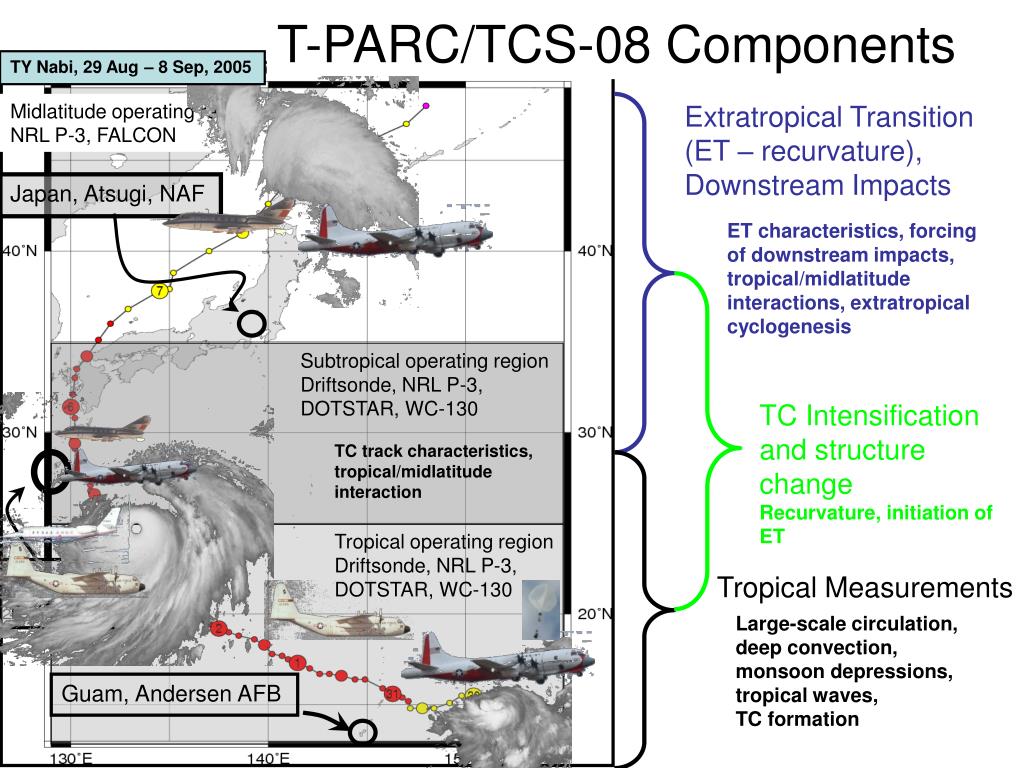

T-PARC/TCS-08 Components

TY Nabi, 29 Aug – 8 Sep, 2005

Midlatitude operating region

NRL P-3, FALCON

Extratropical Transition (ET – recurvature),

Downstream Impacts

Japan, Atsugi, NAF

ET characteristics, forcing of downstream impacts, tropical/midlatitude interactions, extratropical cyclogenesis

Okinawa,

Kadena AFB

Guam, Andersen AFB

slide2

Guam

1230 UTC 6 July 2007

Pre-Typhoon 2008 04W as a monsoon depression southeast of Guam.

slide3

Guam

1830 UTC 6 July 2007

Pre-Typhoon 2008 04W as a monsoon depression southeast of Guam.

slide4

Guam

WC-130J

Synoptic Pattern

2598 n mi

FL 200-250

NRL P-3 area

NRL P-3 area

NRL P-3 area

NRL P-3 area

0030 UTC 7 July 2007

WC-130J mission between 1800-0400

slide5

Pre-flight

Falcon

22

T/O

Falcon

Pre-flight

P-3

Initial decision time

Initiate flight planning

Final Decision time

Modify flight plan

T/O

P-3

00

06

12

18

00

06

12

18

00

21

21

21

23

23

23

01

01

14

Pre-flight

WC-130J

DPM

DPM

DPM

16

T/O

WC-130J

DSM

DSM

DSM

Start

Crew Rest

Team 2

Team 1

Sample timeline for a three plane mission: WC-130, P-3: TC structure

Falcon: Targeting for track

Assumptions: Targeting for 0000 UTC Synoptic time

TC structure missions desired to be as close to dawn as possible

Two-hour transit time to target (WC-130J, P-3)

All times are UTC: 0000 UTC = 0900 Japan, 1000 Guam, 1700 Monterey

slide6

Pre-flight

Falcon

22

T/O

Falcon

Pre-flight

P-3

Initial decision time

Initiate flight planning

Final Decision time

Modify flight plan

T/O

P-3

00

06

12

18

00

06

12

18

00

02

21

21

21

23

23

23

01

01

14

Pre-flight

WC-130J

DPM

DPM

DPM

16

T/O

WC-130J

DSM

DSM

DSM

Start

Crew Rest

06

12

18

00

04

Sample timeline for a three plane mission: WC-130, P-3: TC structure

Falcon: Targeting for track

Assumptions: Targeting for 0000 UTC Synoptic time

TC structure missions desired to be as close to dawn as possible

Two-hour transit time to target (WC-130J, P-3)

All times are UTC: 0000 UTC = 0900 Japan, 1000 Guam, 1700 Monterey

slide7

Guam

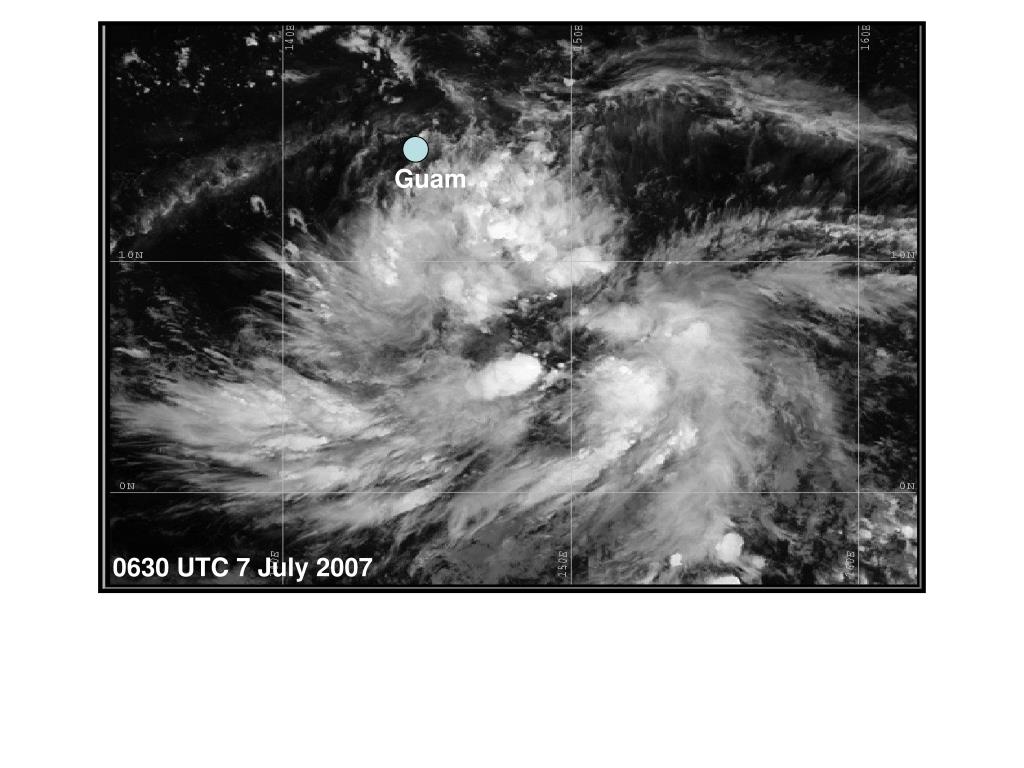

0630 UTC 7 July 2007

slide8

Guam

1230 UTC 7 July 2007

slide9

Guam

1830 UTC 7 July 2007

slide10

Guam

WC-130J

Synoptic Pattern

2533 n mi

FL 150-200

NRL P-3 Area

0230 UTC 8 July 2007

slide11

Guam

0630 UTC 8 July 2007

slide12

Guam

1230 UTC 8 July 2007

slide13

Guam

1830 UTC 8 July 2007

slide14

Guam

WC-130J

Synoptic Pattern

2526 n mi

FL 100-200

0430 UTC 9 July 2007

slide15

PGUM

0030 UTC 10 July 2007

slide16

RODN

PGUM

0930 UTC 10 July 2007

slide17

RODN

WC-130J

Synoptic Pattern

2508 n mi

FL 100-150

PGUA

0930 UTC 10 July 2007

0951 UTC 10 July 2007

ssmis 91 GhZ H

slide18

RODN

PGUM

0030 UTC 12 July 2007

0430 UTC 12 July 2007

amsre 89 GhZ H

slide19

RODN

WC-130J

2057 n mi

NRL P-3

1883 n mi

PGUA

0030 UTC 12 July 2007

0430 UTC 12 July 2007

amsre 89 GhZ H

slide22

RJSM

RJTA

RODN

2130 UTC 14 July 2007

slide23

RJTY

RODN

2130 UTC 14 July 2007

2225 UTC 14 July 2007

ssmis 91 GhZ H

slide24

Note location of upper-level jet, which extends downstream from decaying TC Science objective – TC outflow and jet interaction

slide25

0030 UTC 15 July 2007 TY Man-Yi

NRL P-3 all FL 150

OKO – 1 (33oN,141oE) 212 n mi

1 – 2 (30oN, 142.5oE) 225 n mi

2 – 3 (31.5oN, 146oE) 232 n mi

3 – 4 (35oN, 142.5oE) 315 n mi

4 – OKO 185 n mi

1169 n mi

Drops at waypoints and 60 n mi intervals

RJSM

RJTA

DLR Falcon Leg 1

1287 n mi

TC outflow-Jet Interaction

Leg 2: 1414 n mi

TC outflow – Jet Interaction

NRL P-3

1986 n mi

ET Ridge Building, warm frontogenesis

RODN

WC-130

1787 n mi

Decaying TC Core

FALCON Mission in two stages with a re-fueling stop at MSJ

slide26

0030 UTC 15 July 2007 TY Man-Yi

NRL P-3 all FL 150

OKO – 1 (33oN,141oE) 212 n mi

1 – 2 (30oN, 142.5oE) 225 n mi

2 – 3 (31.5oN, 146oE) 232 n mi

3 – 4 (35oN, 142.5oE) 315 n mi

4 – OKO 185 n mi

1169 n mi

Drops at waypoints and 60 n mi intervals

RJSM

RJTA

DLR Falcon Leg 1

1287 n mi

TC outflow-Jet Interaction

Leg 2: 1414 n mi

TC outflow – Jet Interaction

NRL P-3

1986 n mi

ET Ridge Building, warm frontogenesis

RODN

WC-130

1787 n mi

Decaying TC Core

FALCON Mission in two stages with a re-fueling stop at MSJ
