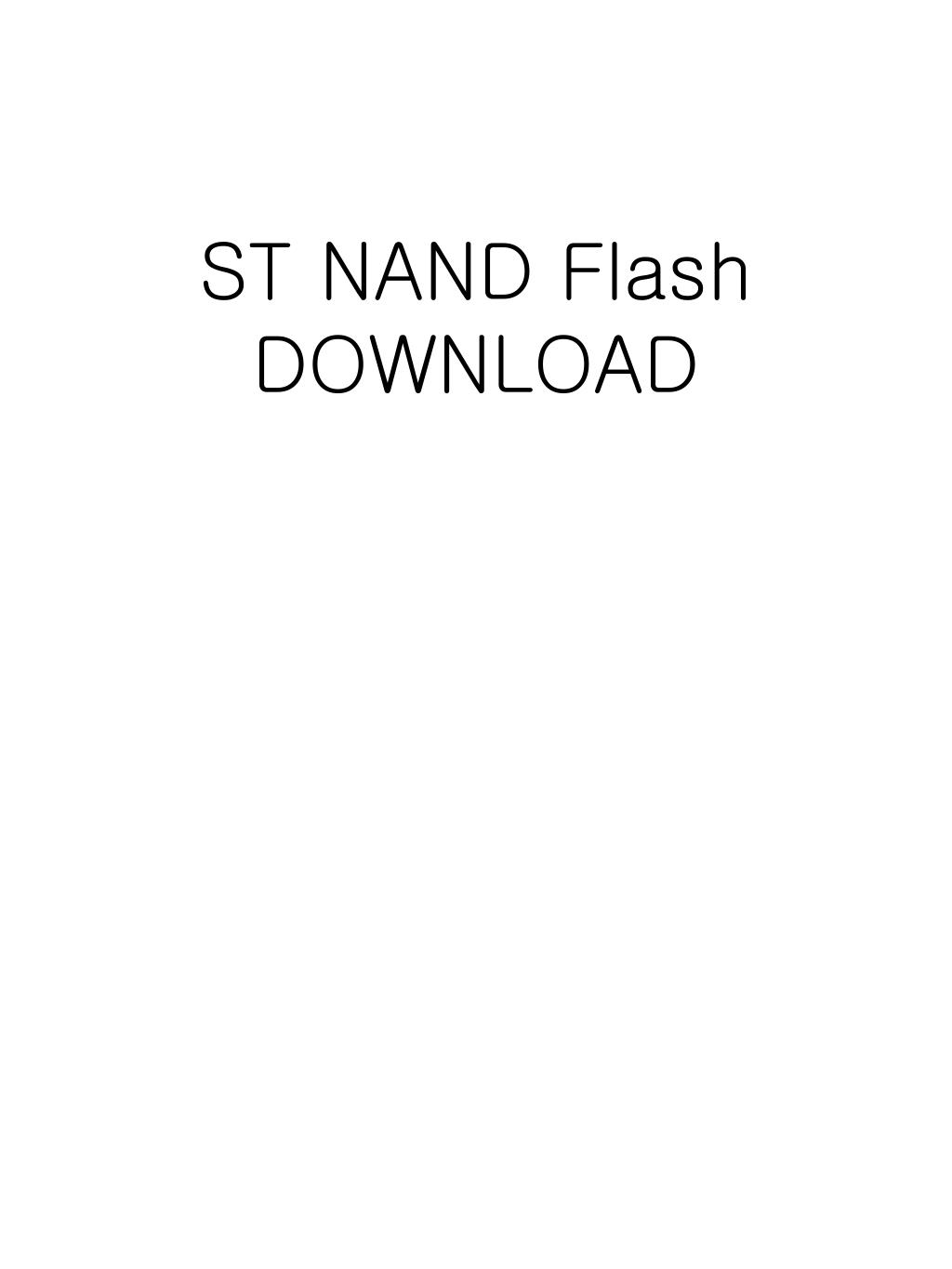

  1. ST NAND Flash DOWNLOAD

  2. Prepare ITEM. • PC • - Run Tftpd32 program. • (Tftpd32-3.28-setup.exe install) • 2. Download DVR B/D • 3. Download Serial B/D • 4. LAN CABLE After Download, Please update New Final Firmware.

  3. File need to download • Make a PCC:\tftpserver. Folder and copy files • No Space in Between. Any name possible • Ex) c:\tftpsever -> O • c:\tftp sever -> X • DvrStarter(VerXXX) -> Download Program • DVRFlasher(UBL128M) -> 4CH Boot Loader. • DVRFlasher(UBL256M) -> 8/16CH Boot Loader. • U-boot_st04_XX -> 4CH u-bootFile • U-boot_st16_XX -> 8/16CH u-bootFile • Kernel_st_XX -> 4/8/16 Kerrnel File • St04.X.X.XXXX.jffs2 -> 4CH RootFS image file • St16.X.X.XXXX.jffs2 -> 8/16CH RootFS image file

  4. PCIP Address 1. AssignC:\tftpserver 2. Diaable 3. 1,2Process, and OK RUN Tftpd32 Server - The program must be in running when download firmware to DVR board

  5. Ex) 8cHM/B Pin 1 Pin 1 Pin 1 4CH – J1 8/16CH – J13 DVR Main B/D& Serial Connected * WarnningCablemust be in right direction !!!

  6. RUNDvrStarter • C:\tftpserver\DvrStarter(Ver1.2.0).EXE • DVR B/D – SERIAL B/D – PCConnected. • DVR B/D – PC&LAN(RJ45)Connected. • DVR B/DPowerON • Make Sure PCTftpd32is RUNNING. • Select COM port. • ClickConnect tosee messages.

  7. U-boot • Download Step • Select U-boot File and RunU-boot. • - 70Sec. • - Dos Windows will appear, and disappear, and show BOOTME on the windows • - Press DVR B/DRESET(SW3), will use U-boot for booting.

  8. Sever IP DVR IP Board Type 2. Sever IP. - 1sec. - Sever IP is PCIP, When run Tftpd32 - Previous Message will be deleted and see new messages. 2. Input IPand ClickServeIP. - 1Sec - Change the last IP address match with SEVER IP. 3. DVR B/D Select, and Board Type (Warning!!) - 1 Sec

  9. Kernel RootFS New MAC Reset 5. SelectKernel File and run Kerrnel. - 10 sec. 6. Select Root File System , Run RootFS. - 4ch– 80sec - 8/16ch–100sec 7. Input DVR B/DMAC adress, Click New MAC - 1Sec. - After Process (7), Move to TEST Process. 8. Click Reset, Reboot DVR - After Process about 70 Sec. 9. After Booting, Update New Final Firmware
