Fields and Waves

Lesson 5.3

PLANE WAVE PROPAGATION

Lossy Media

Lale T. Ergene


Slide2 l.jpg

Wave Equations for a Conducting Medium

Homogenous wave equation for

Homogenous wave equation for

; propagation constant is complex


Slide3 l.jpg

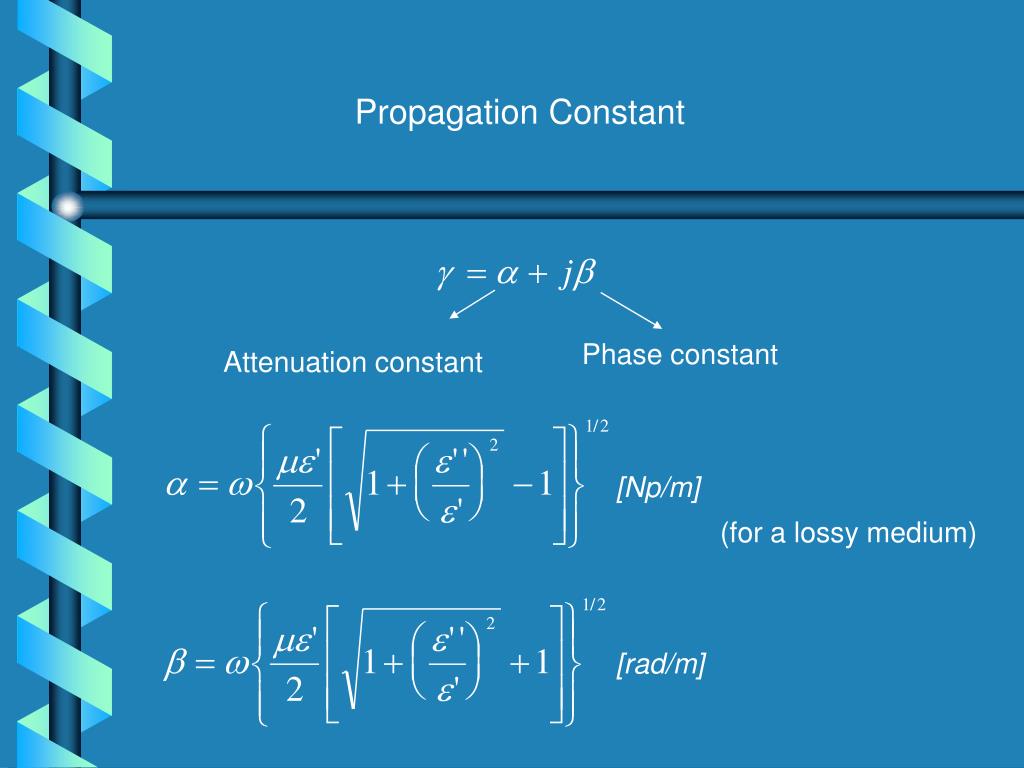

Propagation Constant

Phase constant

Attenuation constant

[Np/m]

(for a lossy medium)

[rad/m]


Slide4 l.jpg

Solution of the Wave Equation

The Electric Field in phasor form (only x component)

General solution of the differential equation for a lossy medium

backward traveling in -z direction

forward traveling in +z direction


Slide5 l.jpg

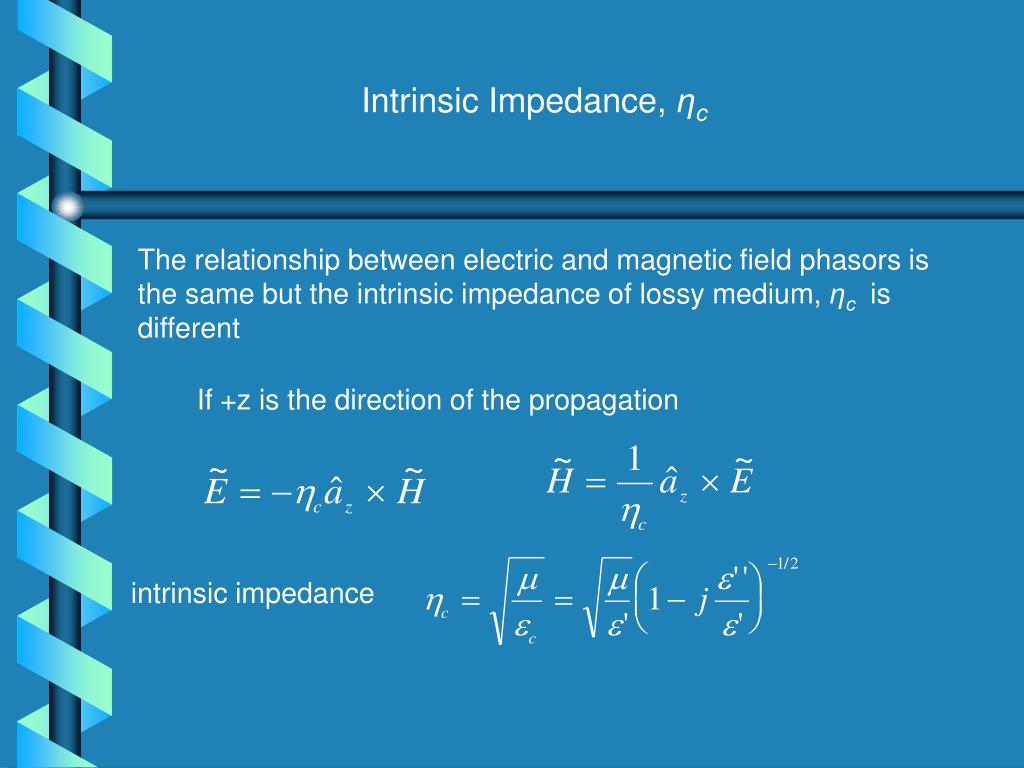

Intrinsic Impedance, ηc

The relationship between electric and magnetic field phasors is the same but the intrinsic impedance of lossy medium, ηc is different

If +z is the direction of the propagation

intrinsic impedance


Slide6 l.jpg

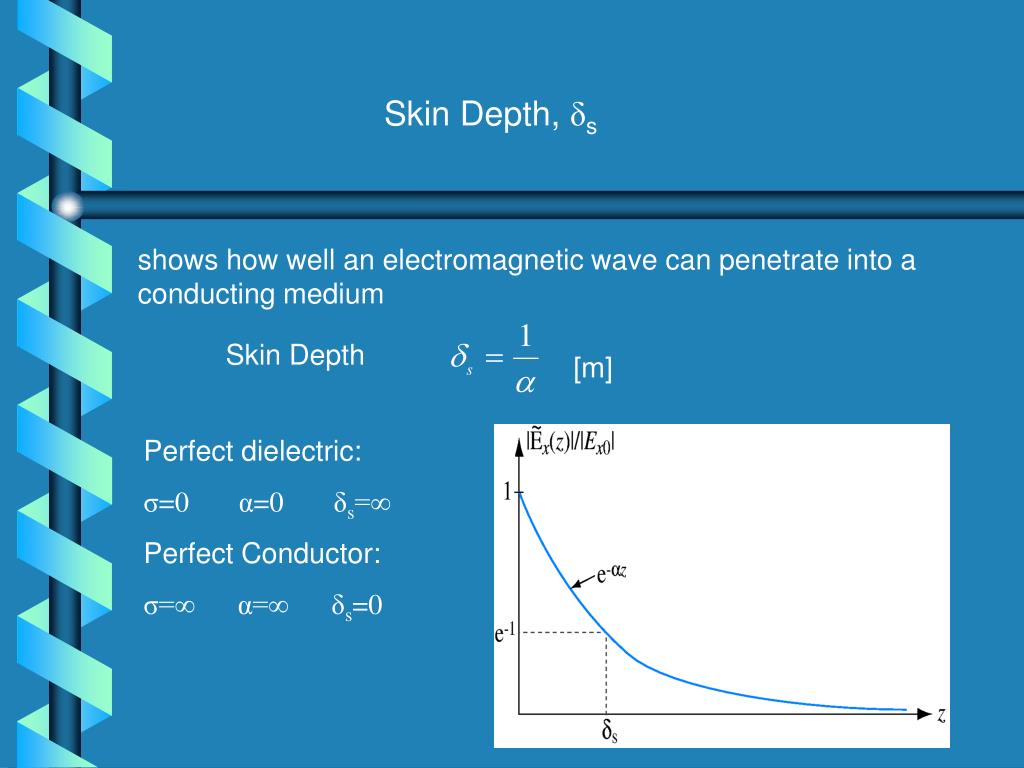

Skin Depth, δs

shows how well an electromagnetic wave can penetrate into a conducting medium

Skin Depth

[m]

Perfect dielectric:

σ=0 α=0 δs=∞

Perfect Conductor:

σ=∞ α=∞ δs=0


Slide7 l.jpg

Low-Loss Dielectric

defined when ε’’/ε’<<1

practically if ε’’/ε’<10-2, the medium can be considered as a low-loss dielectric

[Np/m]

[rad/m]

[Ω]


Slide8 l.jpg

Good Conductor

defined when ε’’/ε’>>1

practically if ε’’/ε’>100 , the medium can be considered as a good conductor

[Np/m]

[rad/m]

[Ω]

  • When 10-2≤ ε’’/ε’ ≤100, the medium is considered as a “Quasi-Conductor”.

  • Do Problem 1


Slide9 l.jpg

Average Power Density

Average power density

[W/m2]


Slide10 l.jpg

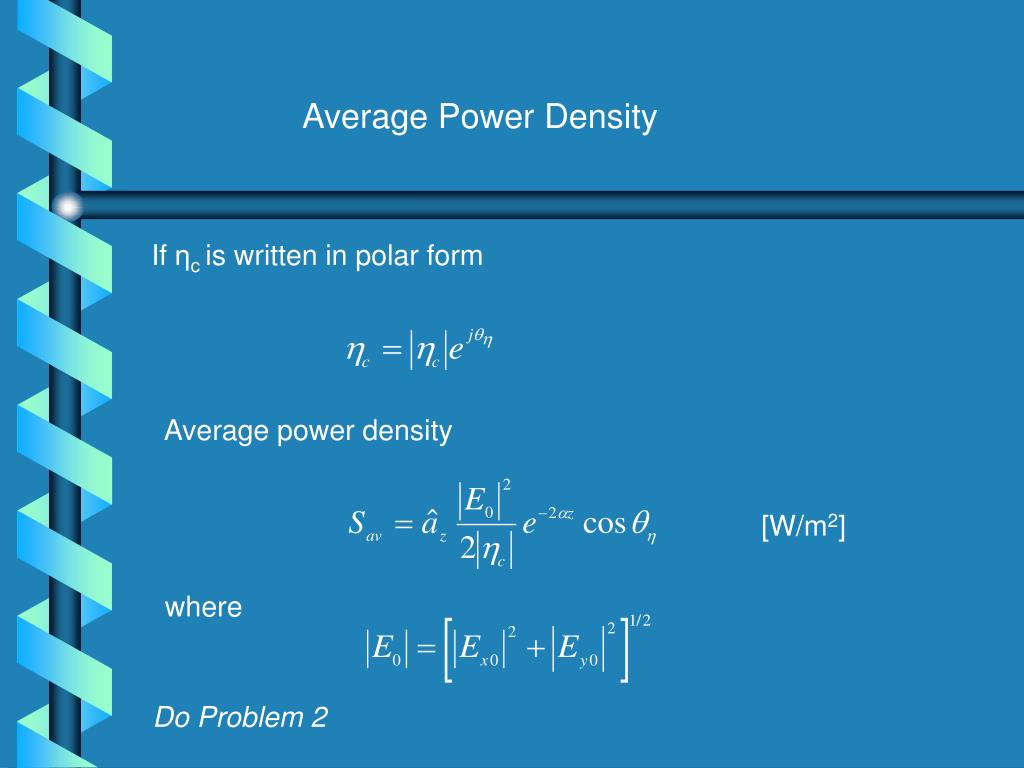

Average Power Density

If ηc is written in polar form

Average power density

[W/m2]

where

Do Problem 2
