FDR D-EVO™the Easy Transition toDR

August 2010


FDR D-EVO™ portable Flat Panel Detector (FPD)

Features

DR Innovation in a standard cassette-size & weight

  • Same as Cassette Size

    • Perfect Fit for Easy Retrofits

      • True 14x17˝

      • Thin - only 0.5˝ thick

  • Lightest FPD of its size, Only 6 lbs

  • Exceptional Speed, 5s Preview, 9s cycle

  • Image Quality

    • Patented ISS Technology

      • Samples detector output where signal is strongest & shortest resulting in

      • Sharper images with highest DQE 29% of any GOS scintillator

    • Fujifilm‘s Image Intelligence Processing & Enhancement

  • Detachable Cord

    • Easy Positioning & Fast and Reliable Imaging


If a cassette fits… so will FDR D-EVO™…

same dimensions as a standard analog or CR cassette

Retrofit Anywhere = Cost Effective

FDR D-EVO™ portable Flat Panel Detector (FPD)

DR made simple!

Dimensions of FDR D-EVO™

.59”

15”

FDR D-EVO

18”

6 lbs.

Most existing bucky grids are also compatible with FDR D-EVO™.


FDR D-EVO™ portable FPD

Thinnest!

Competition’s Dimensions

Canon CXDIs ~19x19”

too large… not a direct retrofit

18.8”

18.9”

14x17 image

14x17 image

CXDI 50G/C

CXDI 55G/C

18.9”

19.3”

7.5 lbs.

10.5 lbs.

Requires modification/replacement of Stand & Table bucky


CR

Cassette

FDR D-EVO™ portable FPD

Lightest!

FDR D-EVO™

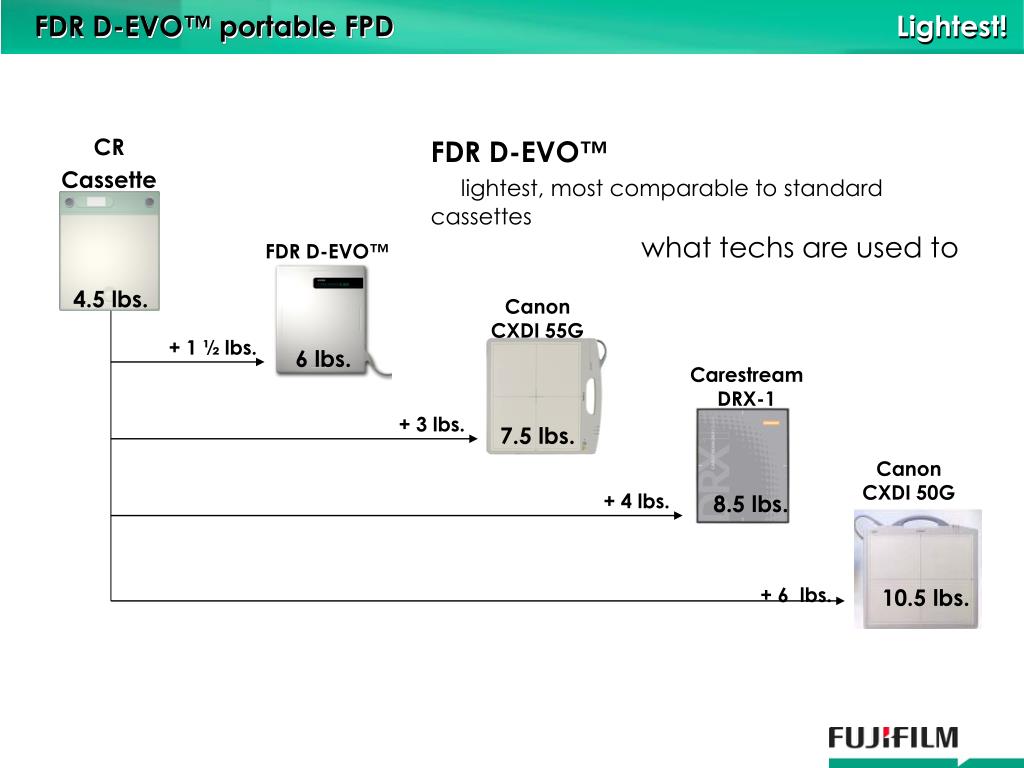

lightest, most comparable to standard cassettes

what techs are used to

FDR D-EVO™

4.5 lbs.

Canon

CXDI 55G

+ 1 ½ lbs.

6 lbs.

Carestream

DRX-1

+ 3 lbs.

7.5 lbs.

Canon

CXDI 50G

+ 4 lbs.

8.5 lbs.

+ 6 lbs.

10.5 lbs.


FDR D-EVO™ portable Flat Panel Detector (FPD)

Fastest!

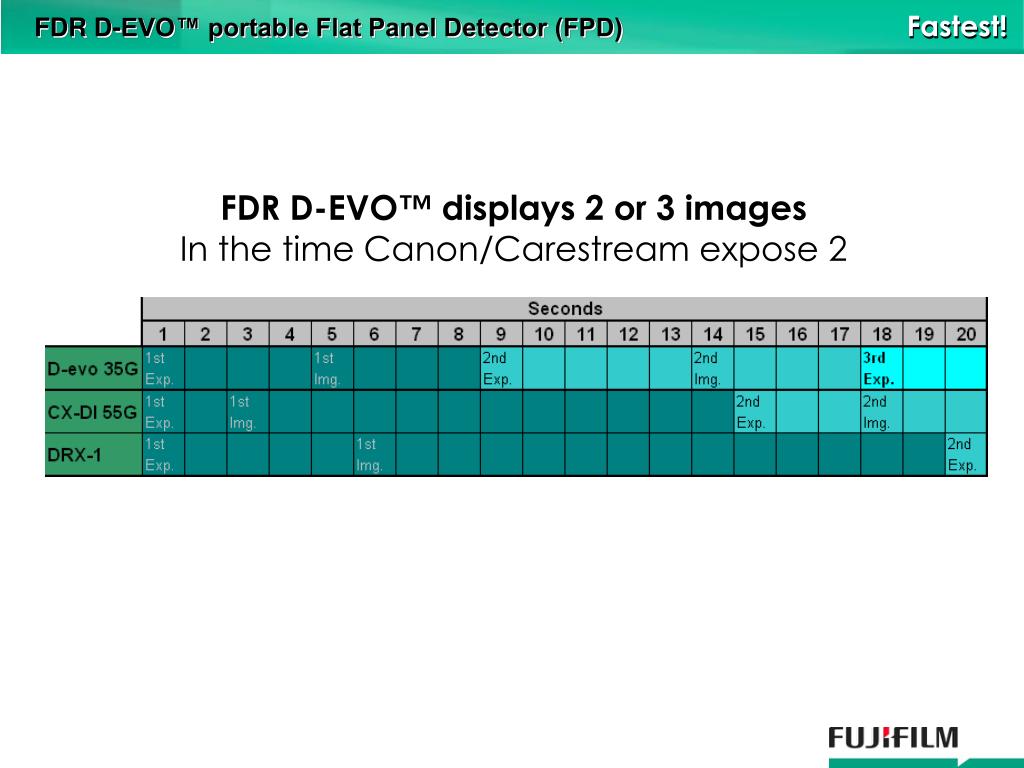

FDR D-EVO™displays 2 or 3 images

In the time Canon/Carestream expose 2


FDR D-EVO™ portable Flat Panel Detector (FPD)

IQ Technology!

Capture Method Comparison

Traditional GOS FPD

Fujifilm’s ISS GOS FPD

allows light to

S P R E A D & S C A T T E R

FUJIFILM

PATENTED!


FDR D-EVO™ portable Flat Panel Detector (FPD)

IQ Technology!

Fujifilm’s Irradiated Side Sampling (ISS)

Fujifilm’s ISS GOS FPD

Fujifilm’s FDR D-EVO™ FPD

Positions TFTs to CAPTURE

X-ray transparent circuitry

Light at its strongest

Captures signal where its stronger,

more focused and shorter distance

LOWER DOSE &

Improved MTF


FDR D-EVO™ portable Flat Panel Detector (FPD)

Image Quality!

Image Intelligence

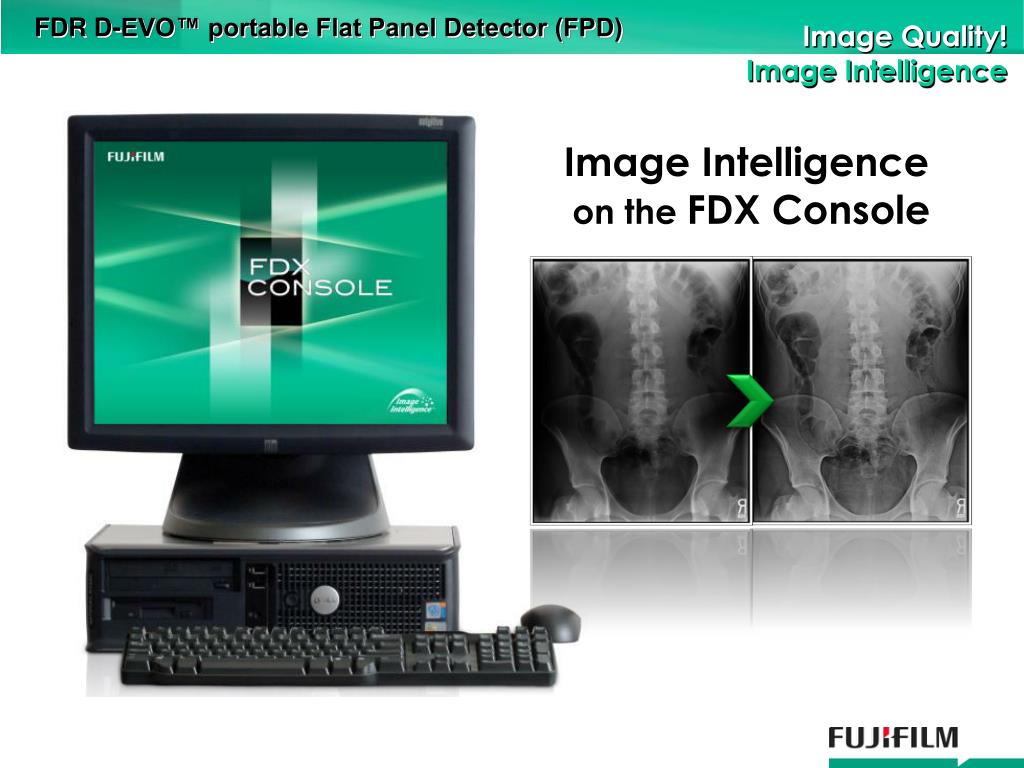

Image Intelligence

on the FDX Console


FDR D-EVO™ portable Flat Panel Detector (FPD)

Detachable Power Source

Reliability

  • Carestream DRX-1

    • Battery replace ea. 2-3 hours / 70 – 90 shots (bottlenecks)

    • Pin required to access battery removal

    • 2x as LONG for Image transmission (wireless connection)

  • FDR D-EVO™

    • READY when you are

    • Allows FAST preview

    • Option to Detach cord for positioning




FDR D-EVO™ portable Flat Panel Detector (FPD)

Retrofit & Workflow

Parts of each Configuration

X-Ray Room:

Power Supply

(MP)

FDR D-EVO™

(FPD)

Operation Room:

FDX

Console

Control Box

(MC)


FDR D-EVO™ portable Flat Panel Detector (FPD)

Configuration

Single Retrofit

  • Single Retrofit

  • Single FPD (shared between upright & table)

  • Cord from FPD to connector is 5‘ long, two tether host cables available

  • Single or Two Tether Host Cords connects to single MP Box (power supply)

  • If two tether host cords used: Remote Power Switch Needed

Control unit

Desk top computer size

It is installed near DX console.

No Operation panel

Power supply box

installed near Cassette FPD


FDR D-EVO™ portable Flat Panel Detector (FPD)

Configuration

Dual Retrofit

  • Dual Retrofit

  • Dual FPDs dedicated to each upright & table

  • Single MP Box (power supply) supports both FPDs

  • Select table, upright or free cassette by menu or manually at FDX Console

Control unit

Desk top computer size

It is installed near DX console.

No Operation panel

Power supply box

Installed near Cassette FPD
