  1. Statics

  2. Static Equilibrium • There are three conditions for static equilibrium. • The object is at rest • There is no net force • There is no net torque

  3. With no motion, forces must sum to zero. Each component is treated separately Find the tension in the ropes. T is the tension to the left S is the tension to the right W is the weight downward Vertical equality T sinq = W = mg T = mg / sinq = 3.9 x 103 N Horizontal equality S = T cosq = 3.4 x 103 N Static Forces q = 30º m = 200 kg

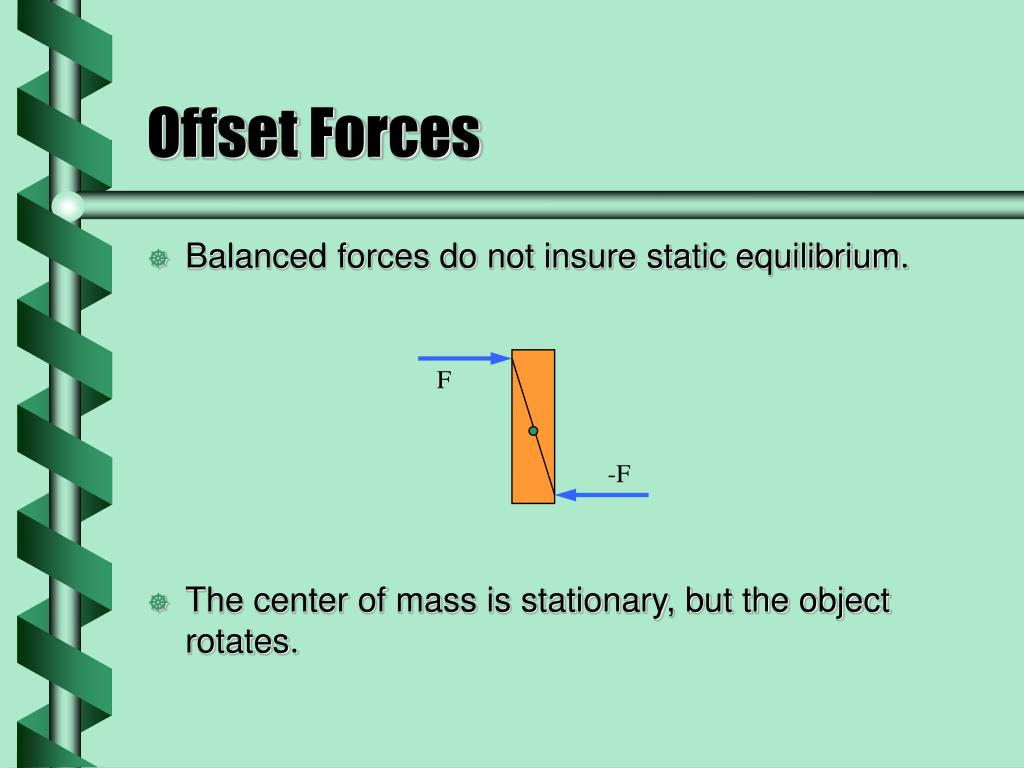

  4. Offset Forces • Balanced forces do not insure static equilibrium. • The center of mass is stationary, but the object rotates. F -F

  5. With no rotation, torques must sum to zero. A ladder leans against a wall with friction against the floor. Length l Angle q Coefficient of static friction m The sum of torques gives Static Torques FNW FNF = mg Ffrmmg -mg q

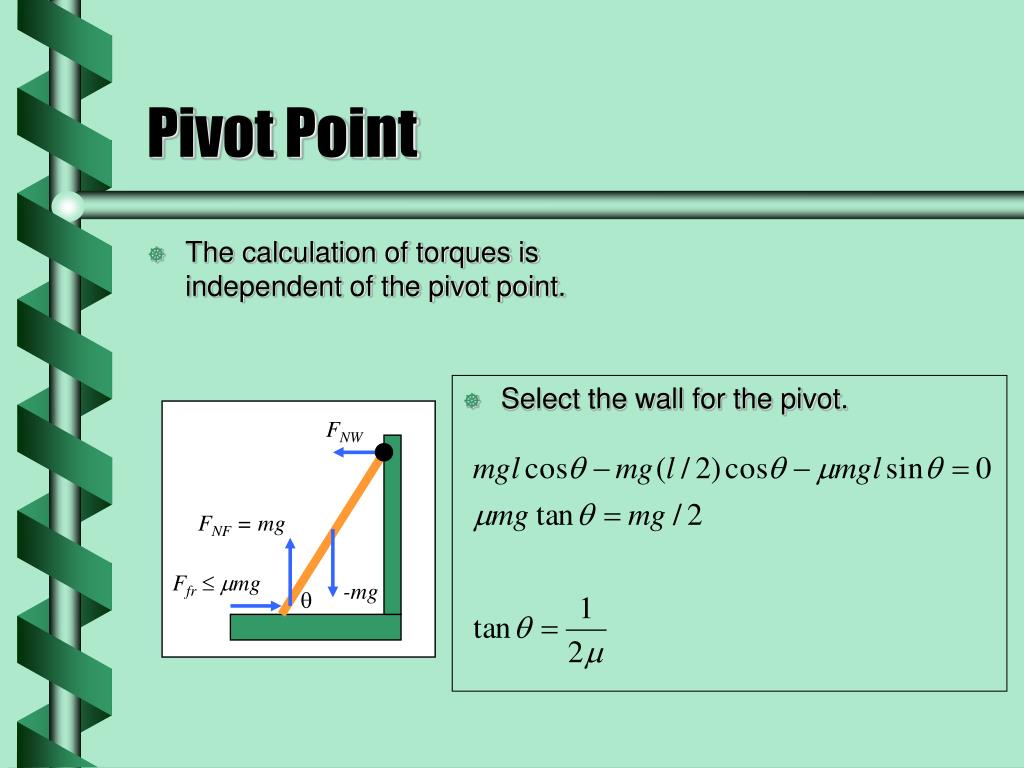

  6. The calculation of torques is independent of the pivot point. Select the wall for the pivot. Pivot Point FNW FNF = mg Ffrmmg -mg q

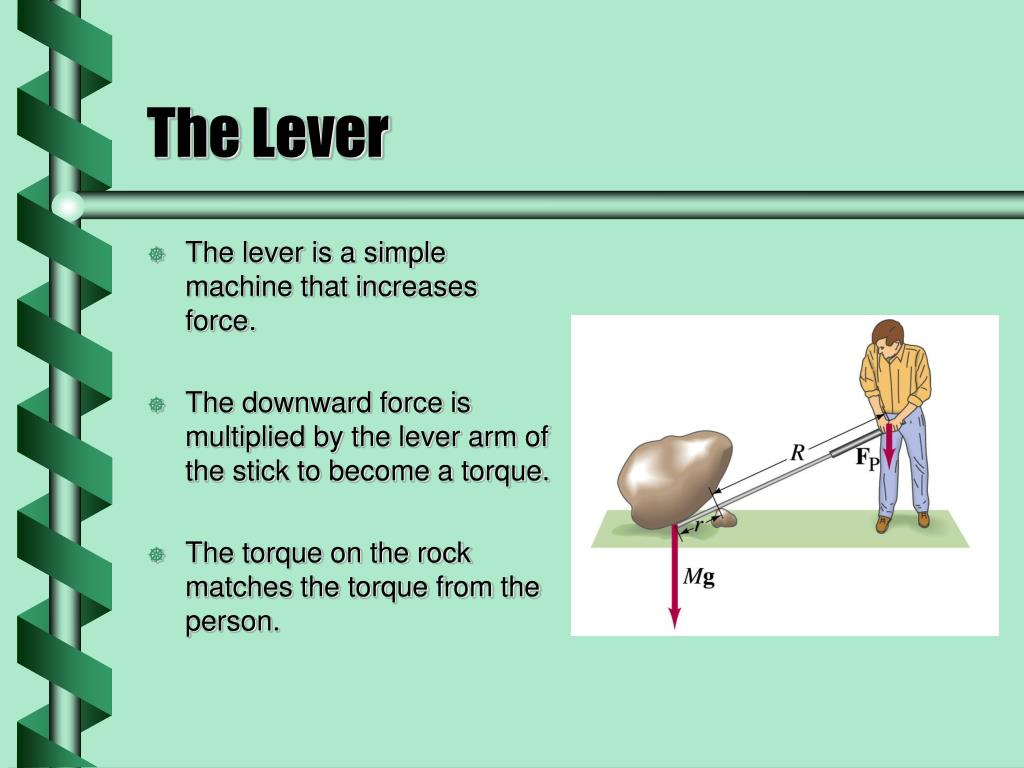

  7. The lever is a simple machine that increases force. The downward force is multiplied by the lever arm of the stick to become a torque. The torque on the rock matches the torque from the person. The Lever

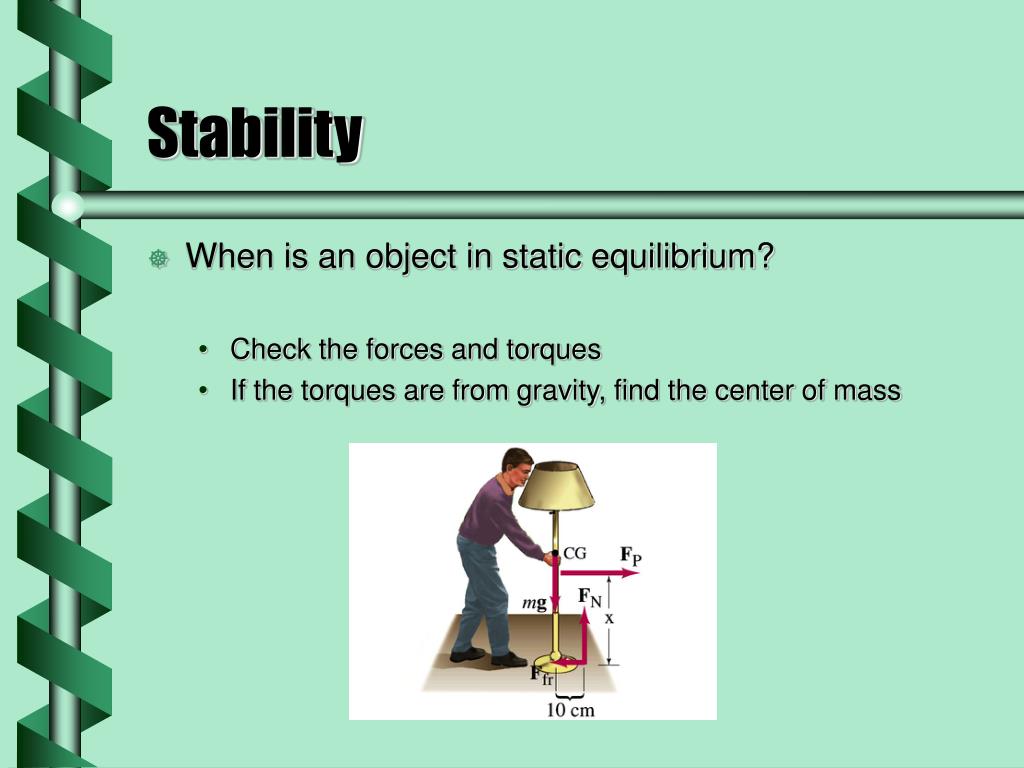

  8. Stability • When is an object in static equilibrium? • Check the forces and torques • If the torques are from gravity, find the center of mass
