Presentation Transcript

Reducing compilation overhead in j9 tr

Reducing Compilation Overhead in J9/TR

Marius Pirvu, Derek Inglis, Vijay Sundaresan

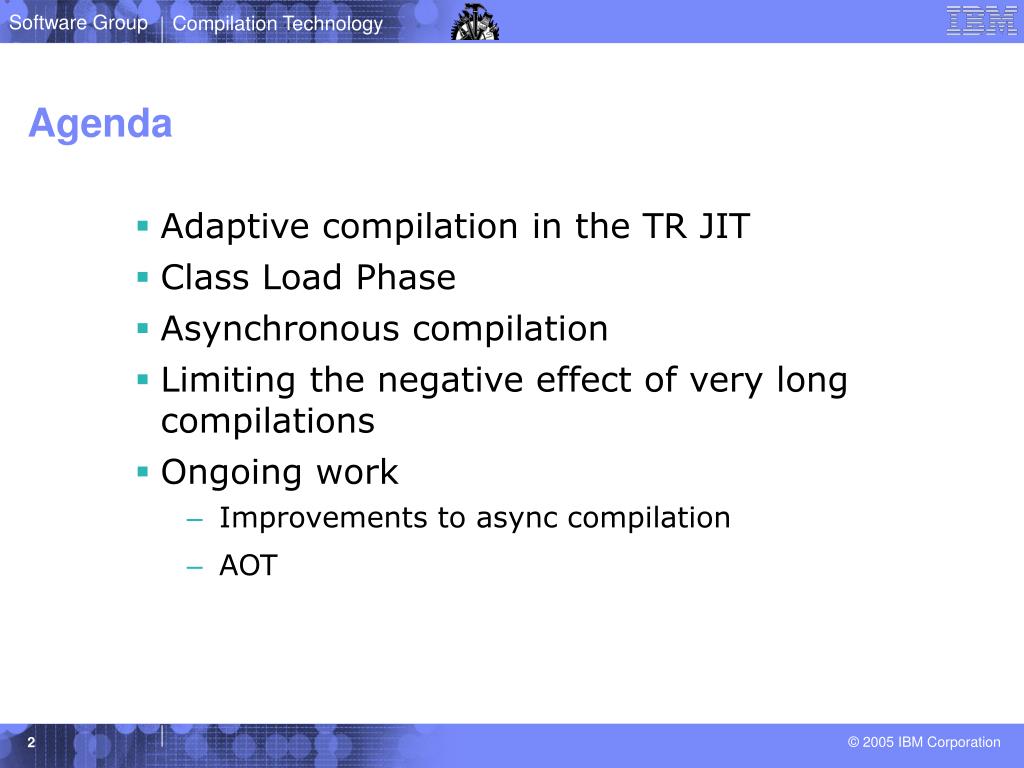

  • Adaptive compilation in the TR JIT

  • Class Load Phase

  • Asynchronous compilation

  • Limiting the negative effect of very long compilations

  • Ongoing work

    • Improvements to async compilation

    • AOT

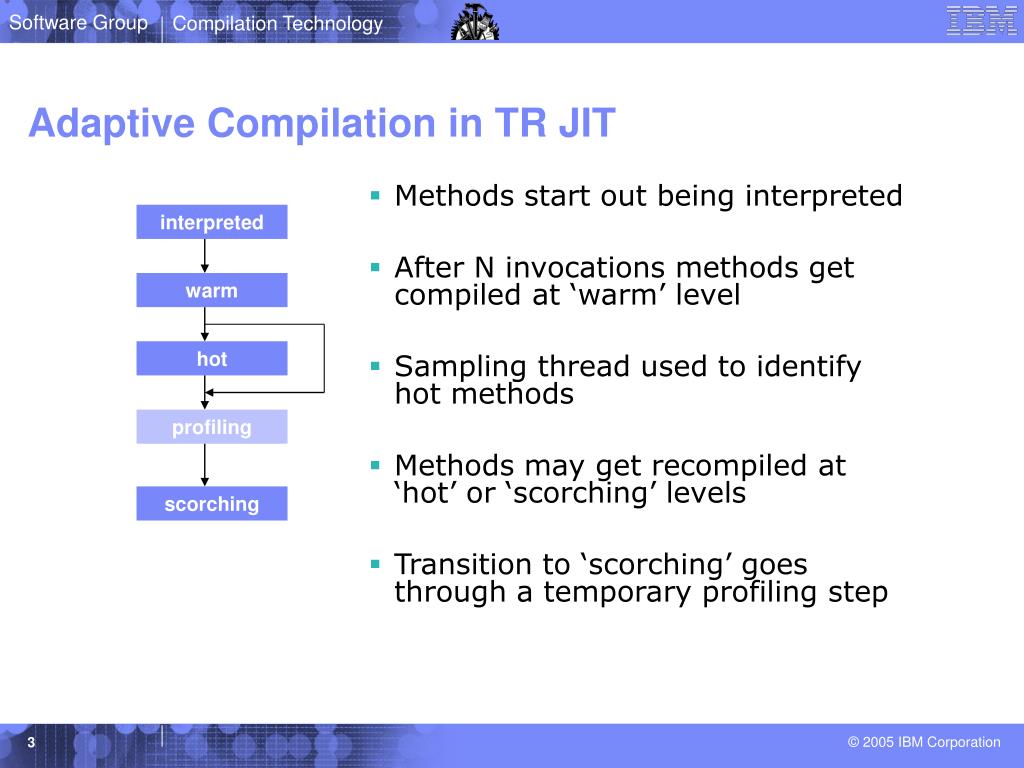

Adaptive compilation in tr jit






Adaptive Compilation in TR JIT

  • Methods start out being interpreted

  • After N invocations methods get compiled at ‘warm’ level

  • Sampling thread used to identify hot methods

  • Methods may get recompiled at ‘hot’ or ‘scorching’ levels

  • Transition to ‘scorching’ goes through a temporary profiling step

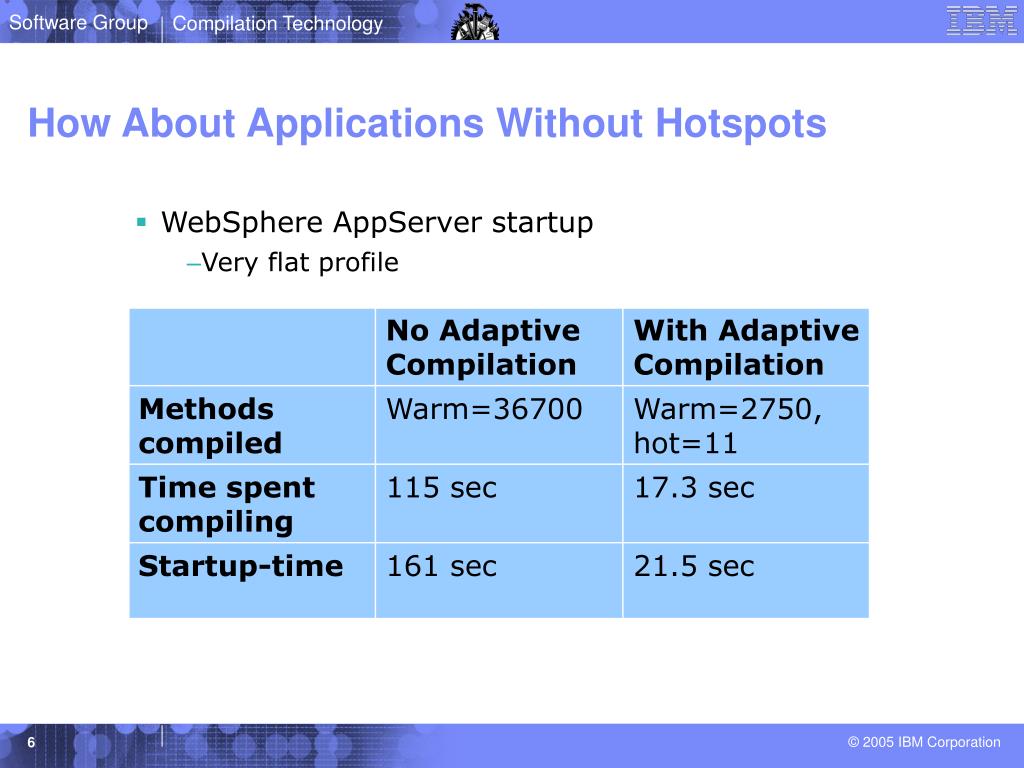

How about applications without hotspots

How About Applications Without Hotspots

  • WebSphere AppServer startup

    • Very flat profile

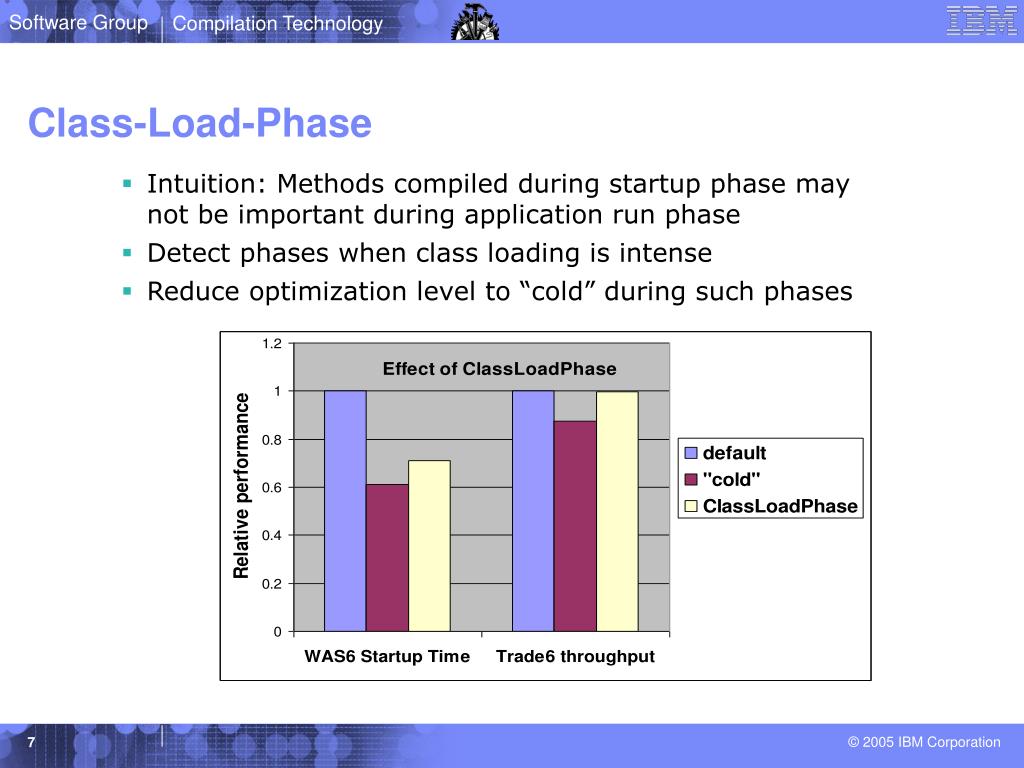

Class load phase


  • Intuition: Methods compiled during startup phase may not be important during application run phase

  • Detect phases when class loading is intense

  • Reduce optimization level to “cold” during such phases

Asynchronous compilation


  • Synchronous compilation

    • Application thread places compilation request and blocks waiting for the compilation to finish

  • Asynchronous compilation

    • Application thread does not wait for the compilation result

  • JIT compilations performed on a separate compilation thread

Asynchronous compilation1

Asynchronous Compilation

  • Implementation

    • Synchronous compilation still needed in some cases (e.g. pre-existence)

    • Synchronous and asynchronous compilation must coexist

    • Queue of compilation requests

  • Advantages

    • Takes advantage of available processors on SMP machines by increased parallelism

    • Allows performance improvements in uniprocessors by changing compilation thread priority

    • Allows reordering of compilation requests

Performance results short running apps

Performance Results – Short Running Apps.

  • Asynchronous compilation on SMP reduces execution time of short benchmarks

Limiting negative effect of long compilations

Limiting Negative Effect of Long Compilations

  • Compilations may impede GC operation

    • GC requires exclusive VM access

    • Cannot allow class unloading while compilation in progress  Compilations require VM access

  • Solution

    • Compilation thread periodically releases and reacquires VM access allowing GC to cut-in

    • Upon re-acquiring VM access, check if GC unloaded any classes

    • If classes were unloaded, abort current compilation and retry

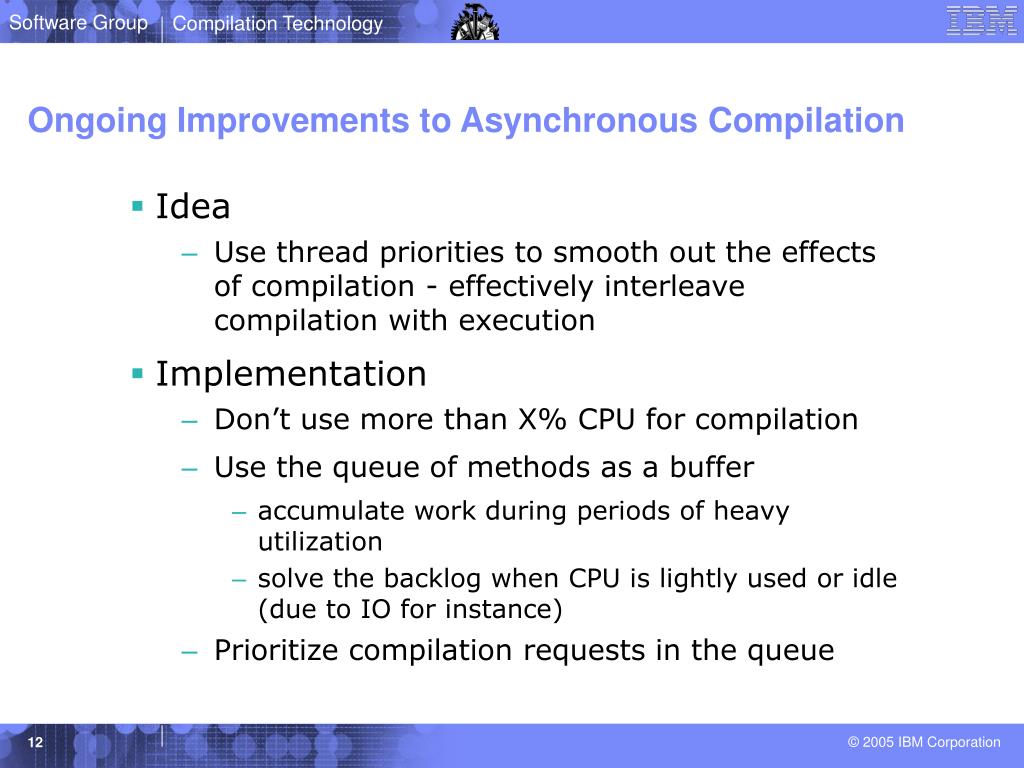

Ongoing improvements to asynchronous compilation

Ongoing Improvements to Asynchronous Compilation

  • Idea

    • Use thread priorities to smooth out the effects of compilation - effectively interleave compilation with execution

  • Implementation

    • Don’t use more than X% CPU for compilation

    • Use the queue of methods as a buffer

      • accumulate work during periods of heavy utilization

      • solve the backlog when CPU is lightly used or idle (due to IO for instance)

    • Prioritize compilation requests in the queue

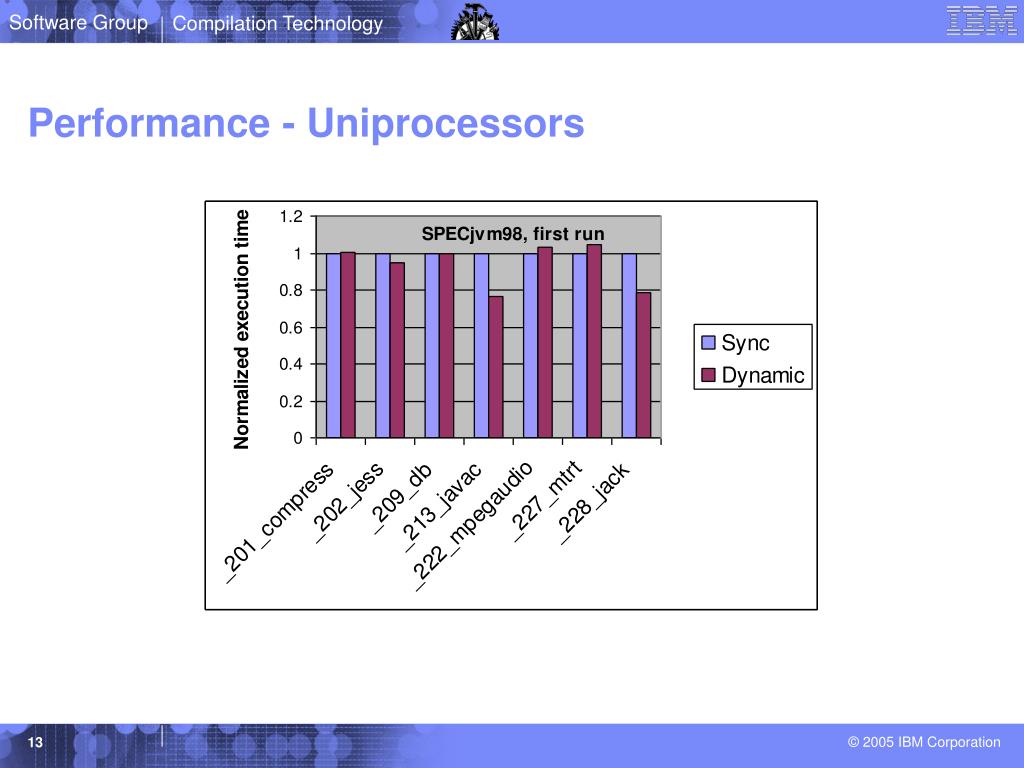

Performance uniprocessors

Performance - Uniprocessors

Ahead of time aot compilation

Ahead Of Time (AOT) Compilation

  • Using the JIT as a static compiler

  • Fully compliant code

  • Used by J2ME customers to decrease footprint by eliminating the JIT

  • Will be used by the Real Time offering to eliminate the possibility of nondeterministic behaviour introduced by the JIT

  • Experimenting with combining AOT and JIT compilation to improve startup times

Eclipse 3 0 1 startup times

Eclipse 3.0.1 Startup Times

Hardware: [email protected] Pentium3 M, Windows32 Options:-Xmx512m -Xms512m for all tests
