Fluids 101

Fluids 101

Chapter 10


Fluids

Fluids

  • Any material that flows and offers little resistance to changing its shape.

    • Liquids

    • Gases

    • Plasma?


Density

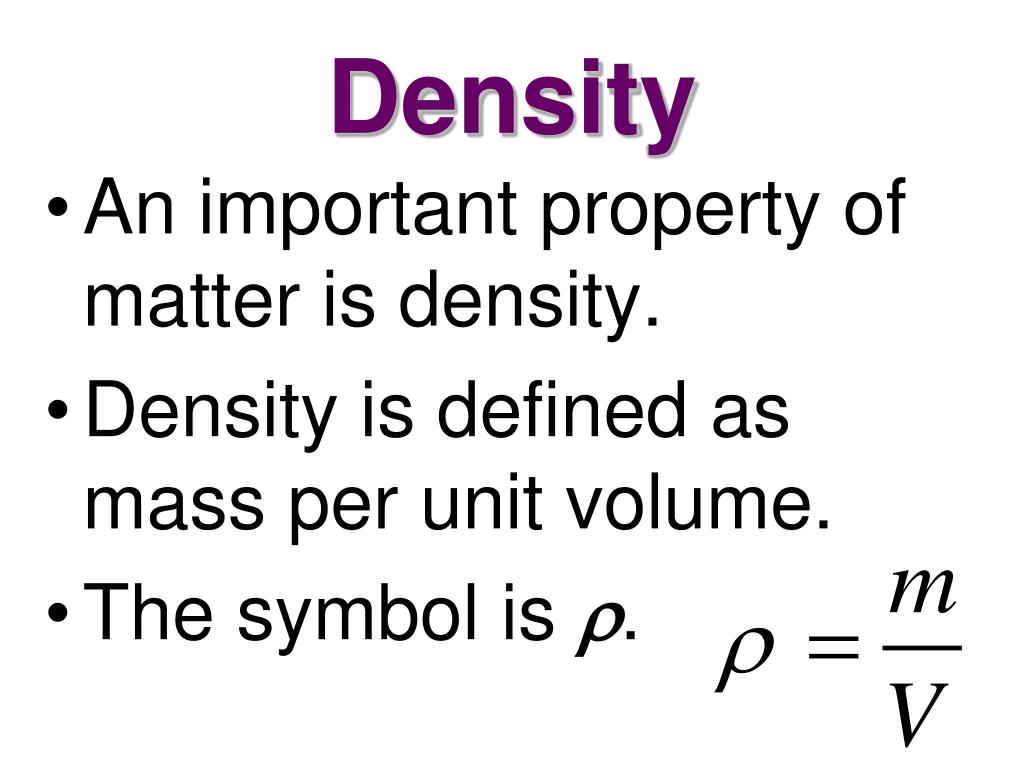

Density

  • An important property of matter is density.

  • Density is defined as mass per unit volume.

  • The symbol is .


Density of water

Density of water

  • 1.0 g/ml

  • 1.0 g/cm3

  • 1,000 kg/m3


Pressure

Pressure

  • Force per unit area.


Pressure1

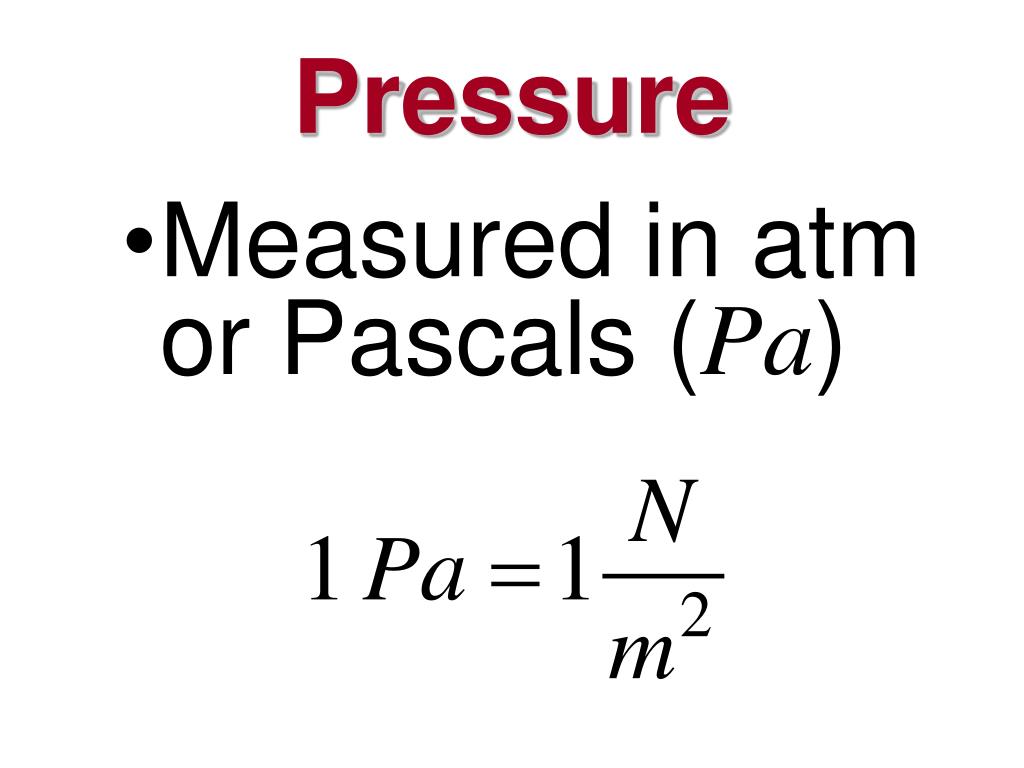

Pressure

  • Measured in atm or Pascals (Pa)


Pressure2

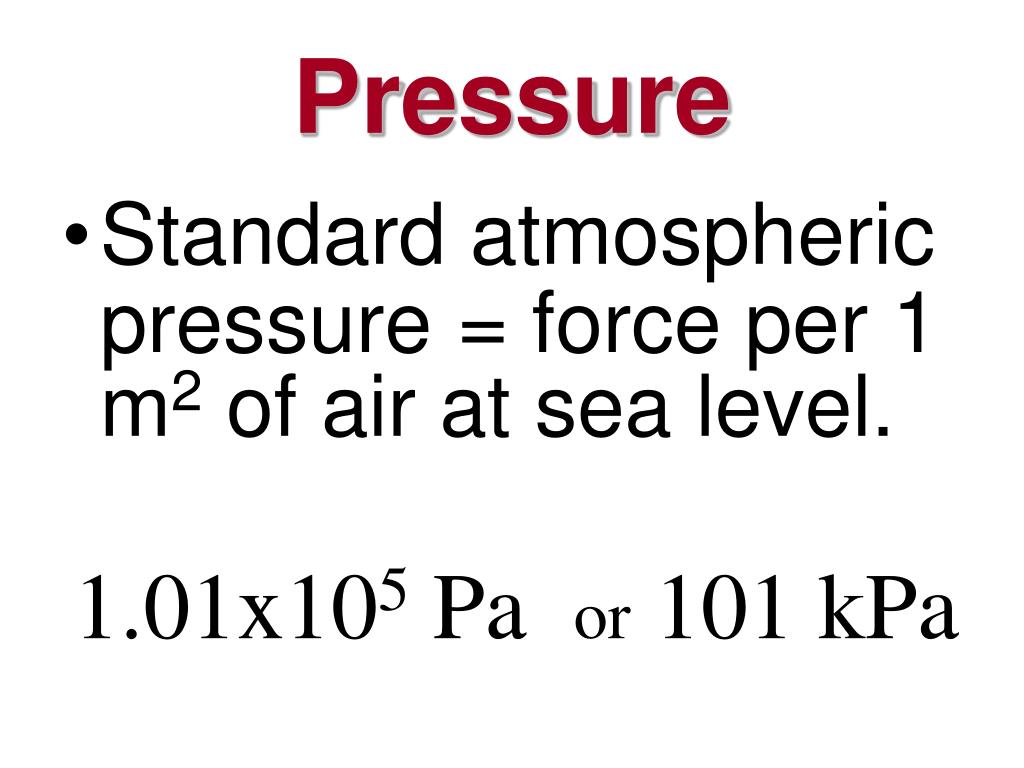

Pressure

  • Standard atmospheric pressure= force per 1 m2 of air at sea level.

    1.01x105 Pa or 101 kPa


Pressure under water

Pressure Under Water

  • The pressure due to fresh water increases about 1 atm or 100 kPa for every 10 m.


Liquid pressure

Liquid Pressure

  • Pressure of a liquid at rest depends only on density and depth.

Pressure = density x depth


Water pressure

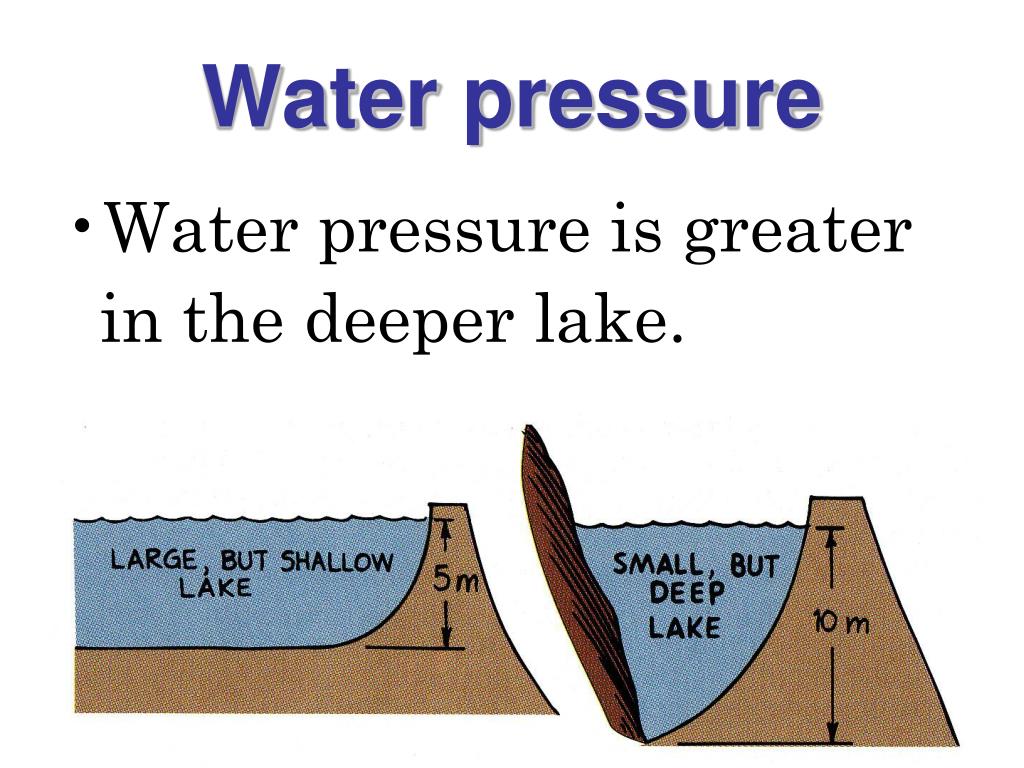

Water pressure

  • Water pressure is greater in the deeper lake.


Pascal s principle

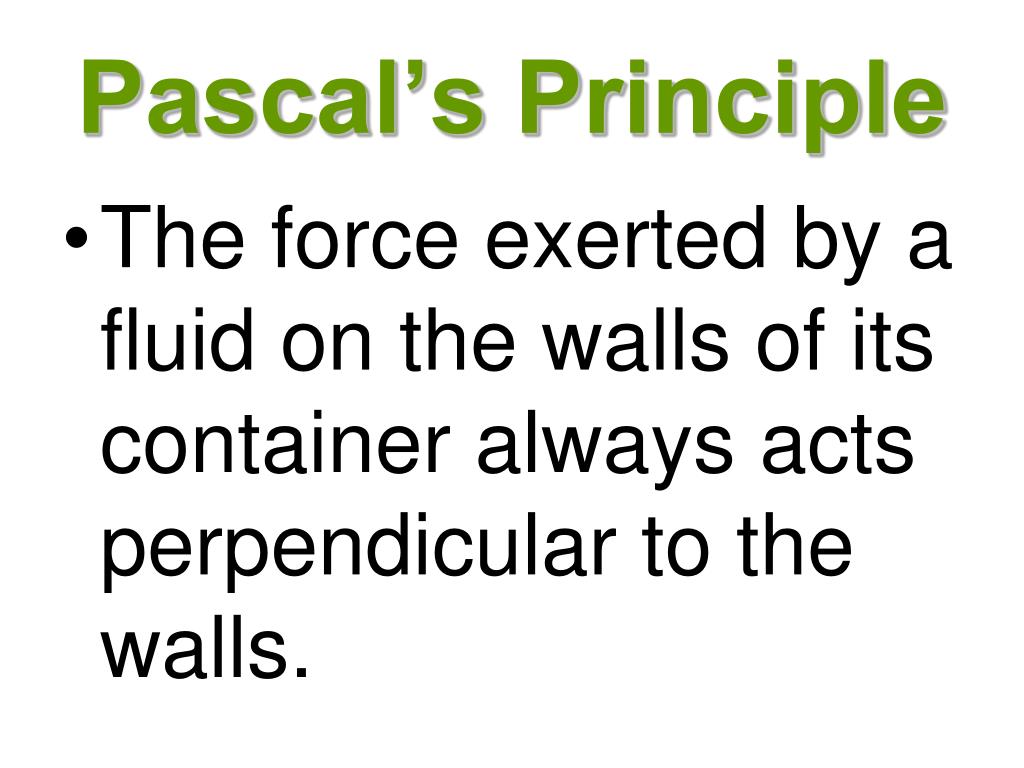

Pascal’s Principle

  • The force exerted by a fluid on the walls of its container always acts perpendicular to the walls.


Pascal s principle1

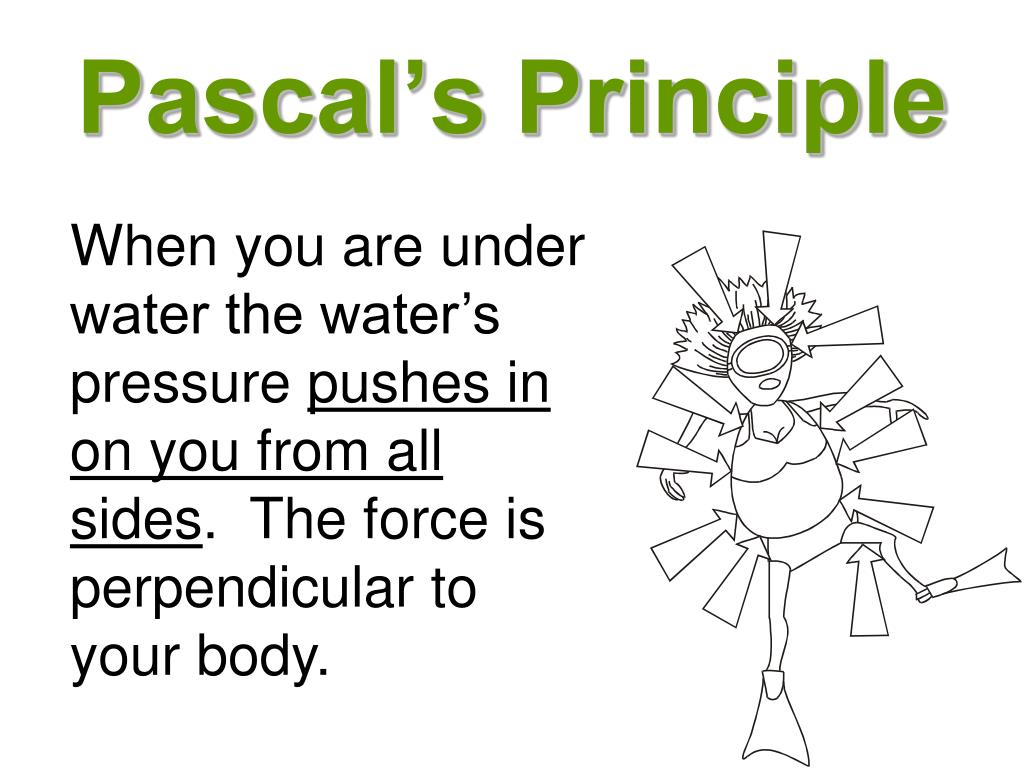

Pascal’s Principle

When you are under water the water’s pressure pushes in on you from all sides. The force is perpendicular to your body.


Pascal s principle2

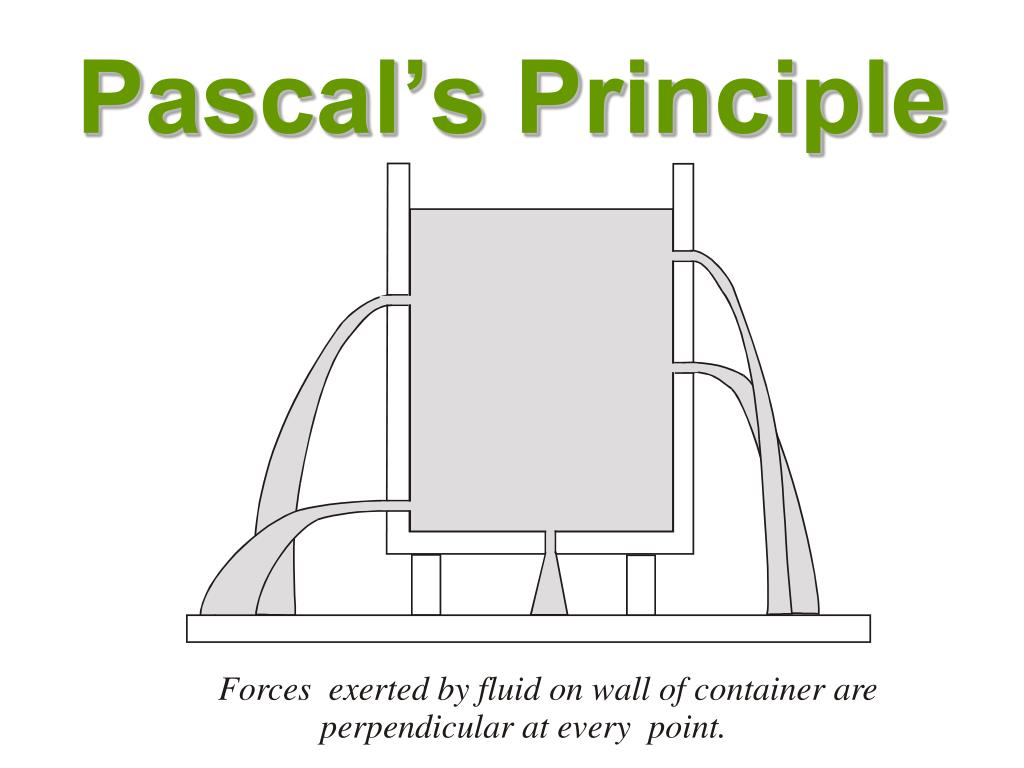

Pascal’s Principle


Pascal vases

Pascal Vases

  • The pressure of a liquid is the same at any depth regardless of the shape of its container.


Pressure in a column

Pressure in a Column

  • The pressure in a fluid column can be found using this equation:


Pressure in a column1

Pressure in a Column

  • AP test version of the same equation:

- this stands for the initial pressure.


Problem

Problem

  • What is the pressure exerted by water at a depth of 45.0 m?


Solution

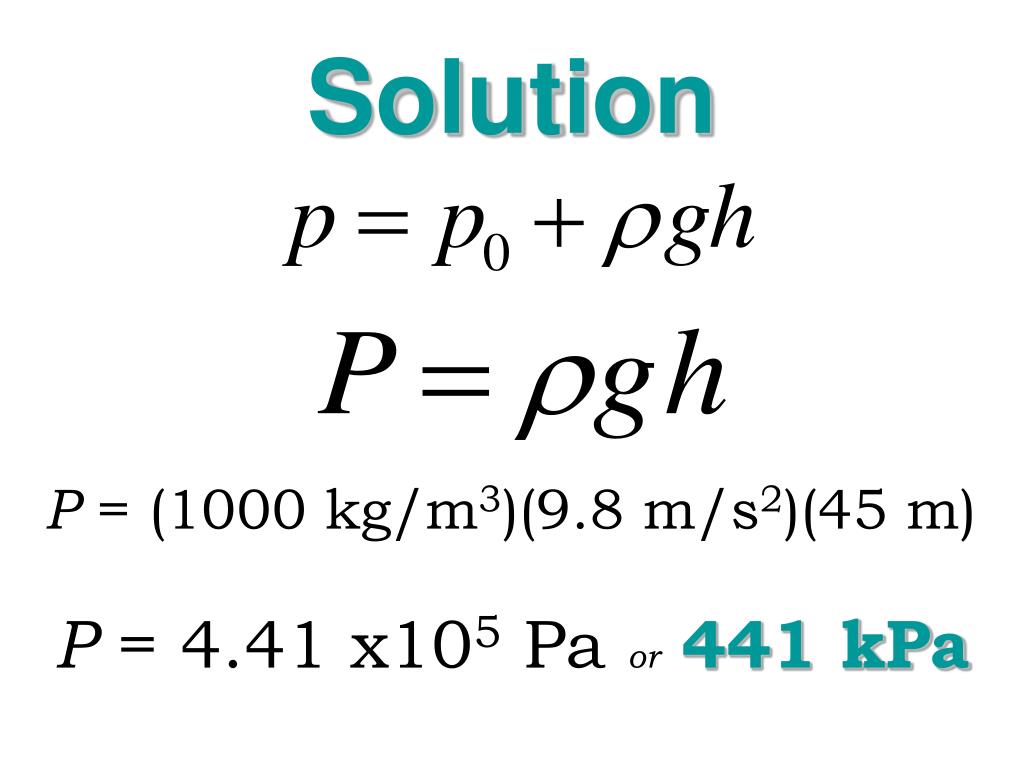

Solution

P = (1000 kg/m3)(9.8 m/s2)(45 m)

P = 4.41 x105 Pa or441 kPa


Buoyancy

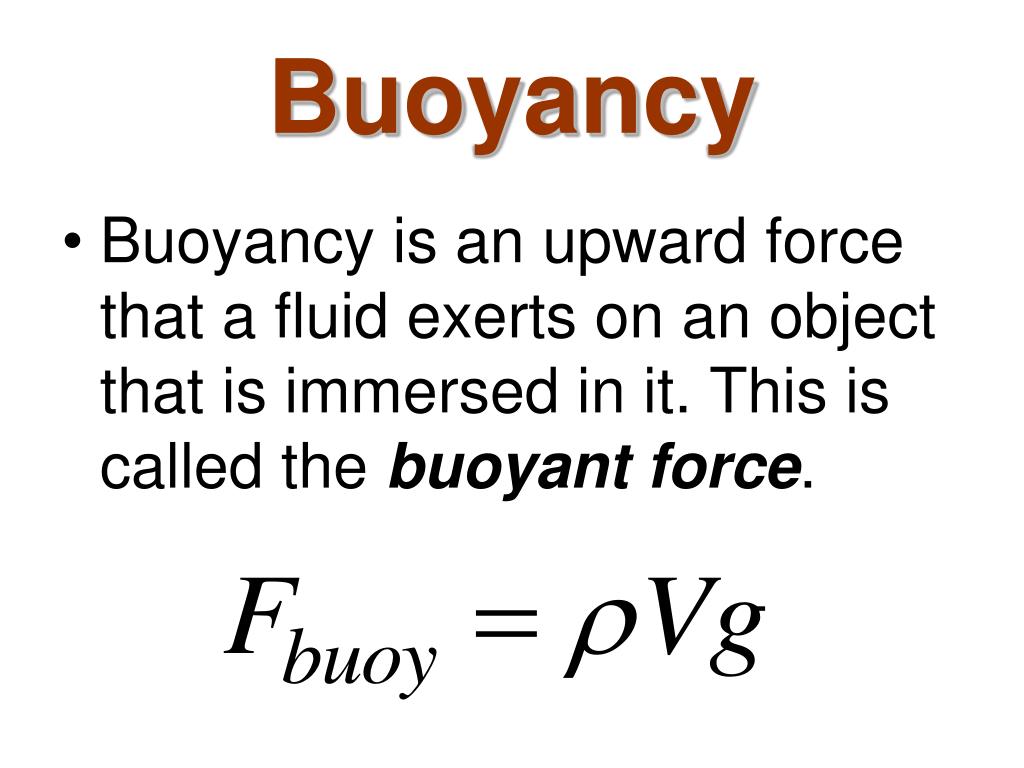

Buoyancy

  • Buoyancy is an upward force that a fluid exerts on an object that is immersed in it. This is called the buoyant force.


Buoyant forces

Buoyant Forces


Archimedes principle

Archimedes Principle

  • An object is buoyed up by a force equal to the weight of the fluid it displaces


Archimedes principle1

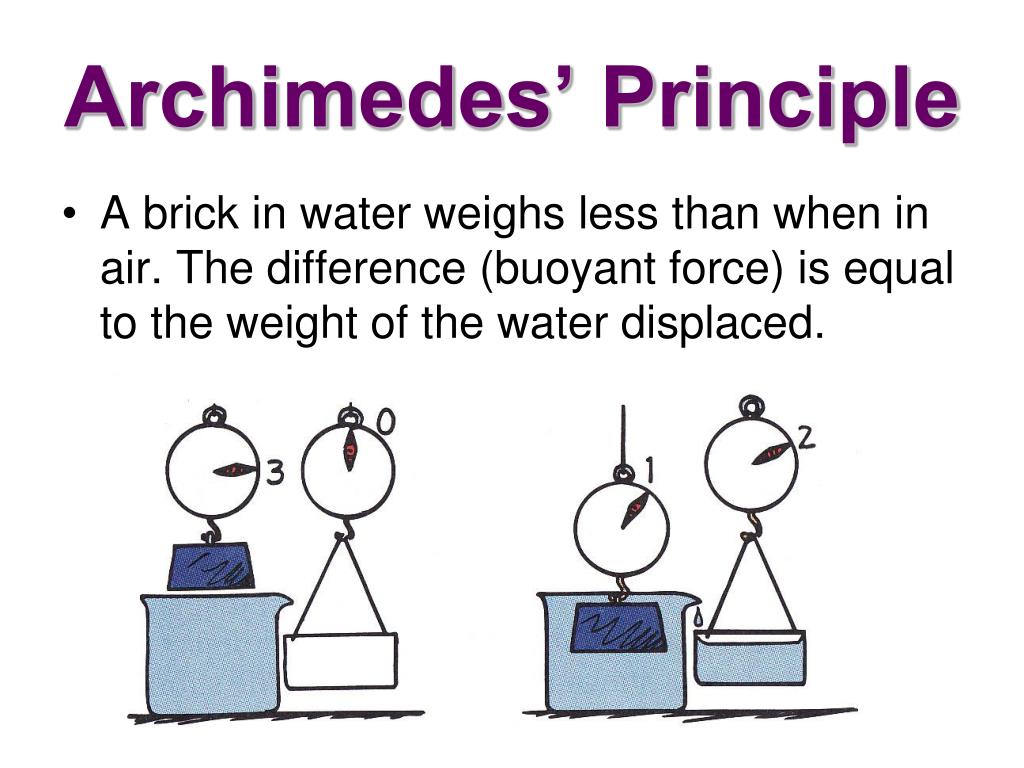

Archimedes’ Principle

  • A brick in water weighs less than when in air. The difference (buoyant force) is equal to the weight of the water displaced.


Apparent weight

Apparent Weight

  • The apparent weight (FA) is the difference between its actual weight and the buoyant force.


Problem1

Problem

  • A cube of steel that measures 5.0 cm on each side is immersed in fresh water. The density of steel is 9.0 x 103 kg/m3. What is the buoyant force acting on the cube?What is the apparent weight of the steel?


Answer pt 1

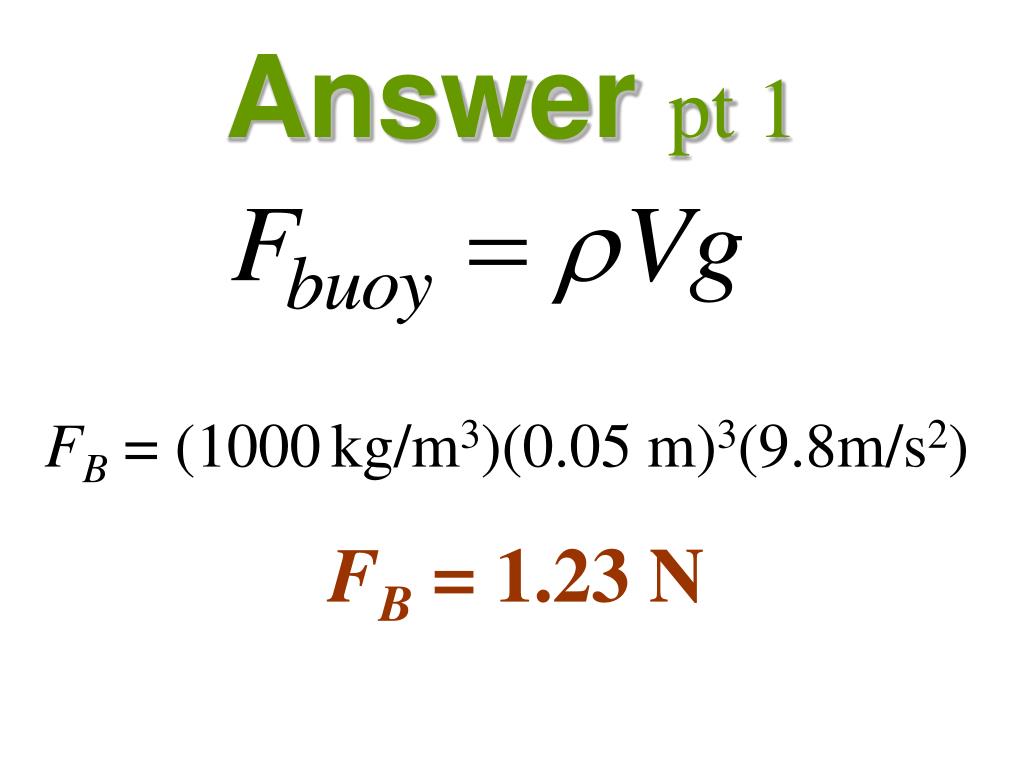

Answer pt 1

FB = (1000kg/m3)(0.05 m)3(9.8m/s2)

FB = 1.23 N


Answer pt 2

Answer pt.2

a m = ρV

FW = (9.0 x 103 kg/m3)(0.05 m)3(9.8m/s2)

FA = W – FB

FA = 11.03 N – 1.23 N = 9.8 N


Fluids 101

“Bob, do you think I’m sinking? Be honest”
