Computer science at a crossroads
Computer Science at a Crossroads

  • Computer technology has made incredible progress in the roughly 60 years.

  • A better personal computer (< $500) with faster processor, more main memory, and more storage can be bought than a super computer cost for 1M in 1985

  • However…


Computer science at a crossroads1
Computer Science at a Crossroads

“Power wall”

  • Triple hurdles of maximum power dissipation of air-cooled chips


Computer science at a crossroads2
Computer Science at a Crossroads

“ILP wall”

  • Little instruction-level parallelism left to exploit efficiently


Computer science at a crossroads3
Computer Science at a Crossroads

“Memory wall”

  • Almost unchanged memory latency


Computer science at a crossroads4
Computer Science at a Crossroads

  • Old Conventional Wisdom : Uniprocessor performance 2X / 1.5 yrs

  • New Conventional Wisdom :

    Power Wall + ILP Wall + Memory Wall = Brick Wall

    • Uniprocessor performance now 2X / 5(?) yrs



Computer science at a crossroads6
Computer Science at a Crossroads

  • Indeed, in 2004 INTEL canceled its high-performance uniprocessor projects and joined IBM and Sun in declaring that the road to higher performance would via multiple processors per chip rather than via faster uniprocessors

  • “We are dedicating all of our future product development to multicore designs. … This is a sea change in computing”

    Paul Otellini, President, Intel (2004)


Computer science at a crossroads7
Computer Science at a Crossroads

  • Difference is all microprocessor companies switch to multiprocessors (AMD, Intel, IBM, Sun; all new Apples 2 CPUs)

     Biggest programming challenge: 1 to 2 CPUs

  • This signals a historic switch from instruction-level parallelism (ILP) to thread-level parallelism (TLP) and data-level parallelism (DLP)


Problems with sea change
Problems with Sea Change

  • Algorithms, Programming Languages, Compilers, Operating Systems, Architectures, Libraries, (EVERYTHING!!) … not ready to supply Thread Level Parallelism or Data Level Parallelism for CPUs


Problems with sea change1
Problems with Sea Change

  • Unlike Instruction Level Parallelism, cannot be solved by just by computer architects and compiler writers alone, but also cannot be solved without participation of computer architects

  • The 4th Edition of textbook Computer Architecture: A Quantitative Approach explores shift from Instruction Level Parallelism to Thread Level Parallelism / Data Level Parallelism


Outline1
Outline

  • Computer Science at a Crossroads

  • Defining Computer Architecture

  • Trend in Technology and Cost


Defining computer architecture
Defining Computer Architecture

  • The task of computer designer:

    Determine what attributes are important for a new computer, then design a computer to maximize performance while staying within cost, power, and availability constrains


Defining computer architecture1
Defining Computer Architecture

  • This task has many aspects:

    • Instruction set design

    • Functional organization

    • Logic design

    • And implementation

  • Also,

    • Integrate circuit design

    • Packaging

    • Power

    • Cooling

  • AND

    • Optimization, including a lot of technologies (complier, OS…)


Defining computer architecture2
Defining Computer Architecture

  • In the past, the term computer architecture often referred only to instruction set design

  • Other aspects of computer design were called implementation, often assuming that implementation is uninteresting or less challenging

  • Of course, it is wrong for today’s trend


Instruction set design isd
Instruction Set Design (ISD)

  • Instruction set servers as the boundary between software and hardware

  • ISD include

    • Class

    • Memory addressing

    • Address mode

    • Operations

    • …and more


Instruction code format

15 12 11 0

Op. Code Address

15 12 11 0

data

Instruction code format

  • Instruction code format with two parts : Op. Code + Address

    • Op. Code : specify 16 possible operations(4 bits)

    • Address : specify the address of an operand(12 bits)

    • If an operation in an instruction code does not need an operand from memory, the rest of the bits in the instruction(address field) can be used for other purpose

instruction

Not an instruction


Defining computer architecture3
Defining Computer Architecture 0

  • We will have a complete introduction to this part. (Some examples in the next two slides)

  • Architect’s job much more than instruction set design; technical hurdles today more challenging than those in instruction set design

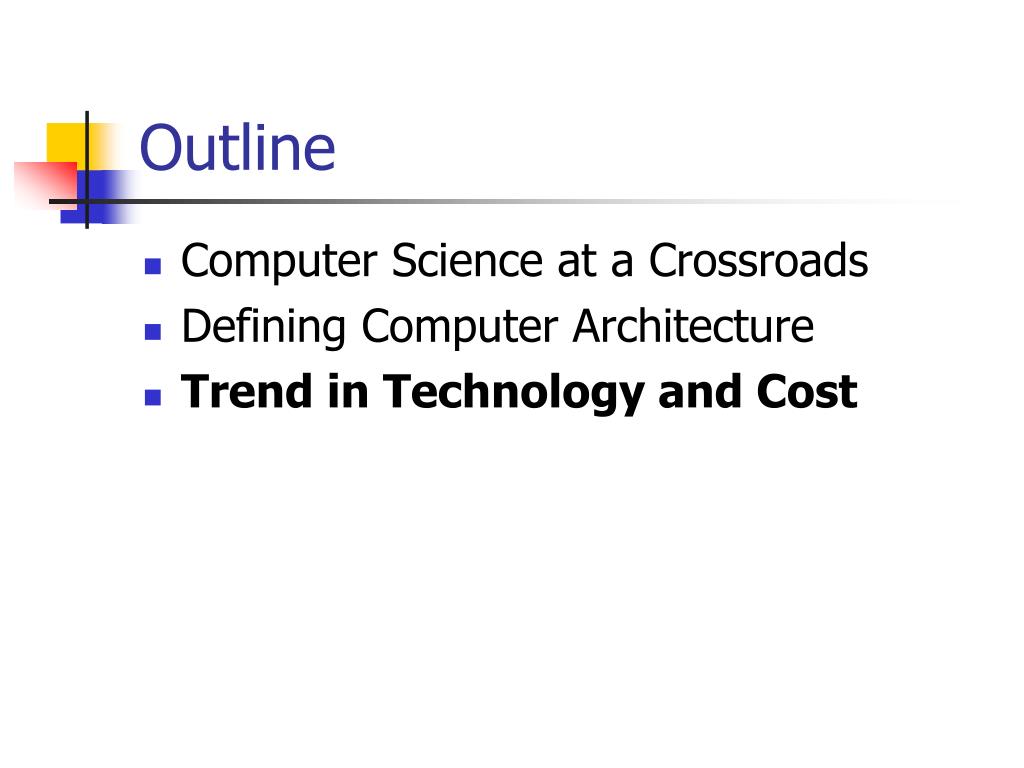

Outline2
Outline 0

  • Computer Science at a Crossroads

  • Defining Computer Architecture

  • Trend in Technology and Cost


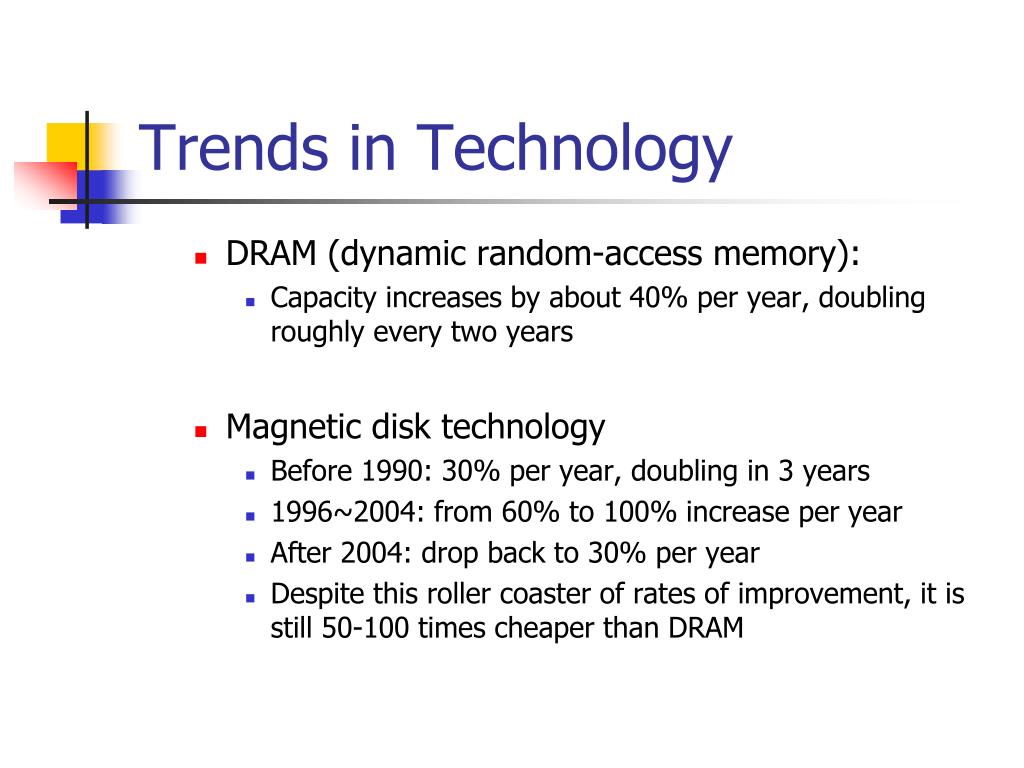

Trends in technology
Trends in Technology 0

  • To evaluate a computer, designer must be aware of rapid changes in implementation technology

    • Integrated circuit logic:

      • transistor density increase by about 35% per year

      • Increase in die size is ranging from 10% to 20% per year

      • The combined effect is a growth rate in transistor count on a chip is about 40%~55% per year


Trends in technology1
Trends in Technology 0

  • DRAM (dynamic random-access memory):

    • Capacity increases by about 40% per year, doubling roughly every two years

  • Magnetic disk technology

    • Before 1990: 30% per year, doubling in 3 years

    • 1996~2004: from 60% to 100% increase per year

    • After 2004: drop back to 30% per year

    • Despite this roller coaster of rates of improvement, it is still 50-100 times cheaper than DRAM



Intel pentium4 and pentium m price over time1
Intel Pentium4 and Pentium M price over time 0

  • The most recent introductions will continue to decrease until they reach similar price to the lowest-cost parts available in 2005 ($200)

  • Such price decreases assume a competitive environment

    (Data Courtesy of Microprocessor Report, May 2005)


Cost of an integrated circuit
Cost of an Integrated Circuit 0

  • Cost of integrated circuit=

    Cost of die + Cost of testing die + Cost of packaging and final test

    Final test yield

    In this section, we focus on cost of dies


Cost of an integrated circuit1
Cost of an Integrated Circuit 0

  • Cost of die =

    Cost of wafer / (Dies per wafer * Die yield)

    Learning how to predict the number of good chips per wafer requires first learning how many dies fit on a wafer


Cost of an integrated circuit2
Cost of an Integrated Circuit 0

  • This 300 mm wafer contains 117 AMD chips
