What a tangled mess tackling windows complexity

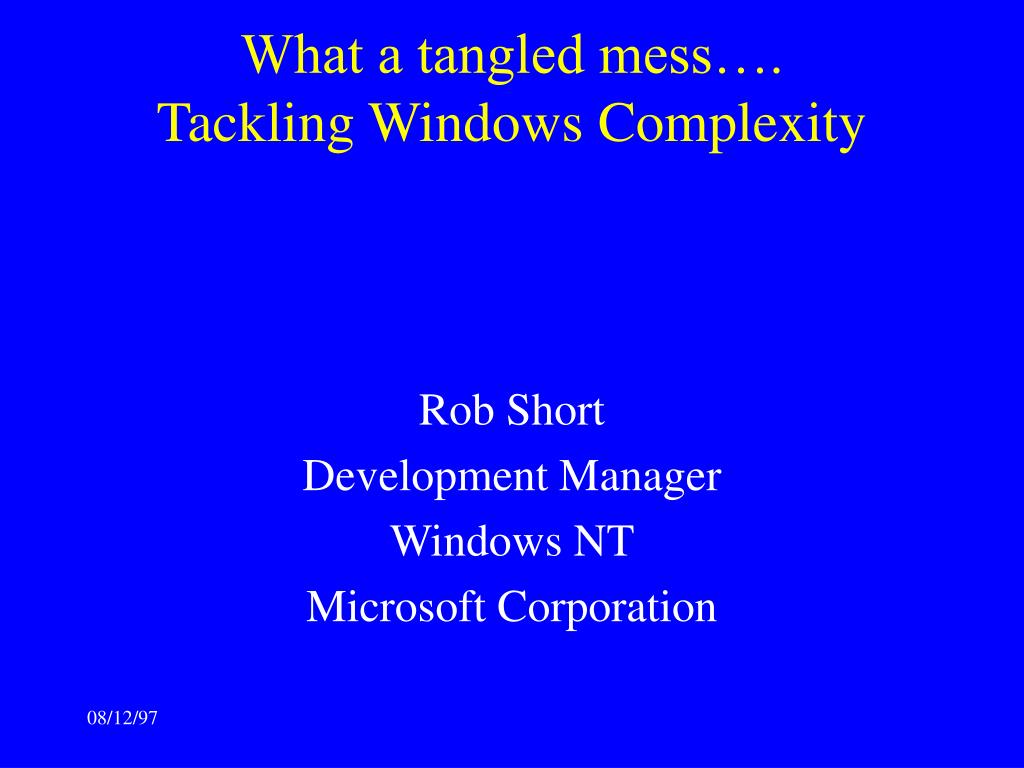

What a tangled mess….Tackling Windows Complexity

Rob Short

Development Manager

Windows NT

Microsoft Corporation


What i ll talk about

What I’ll talk about

  • The problem

  • Hardware detection/installation issues

  • Application installation

  • Managing large installations


Today s situation

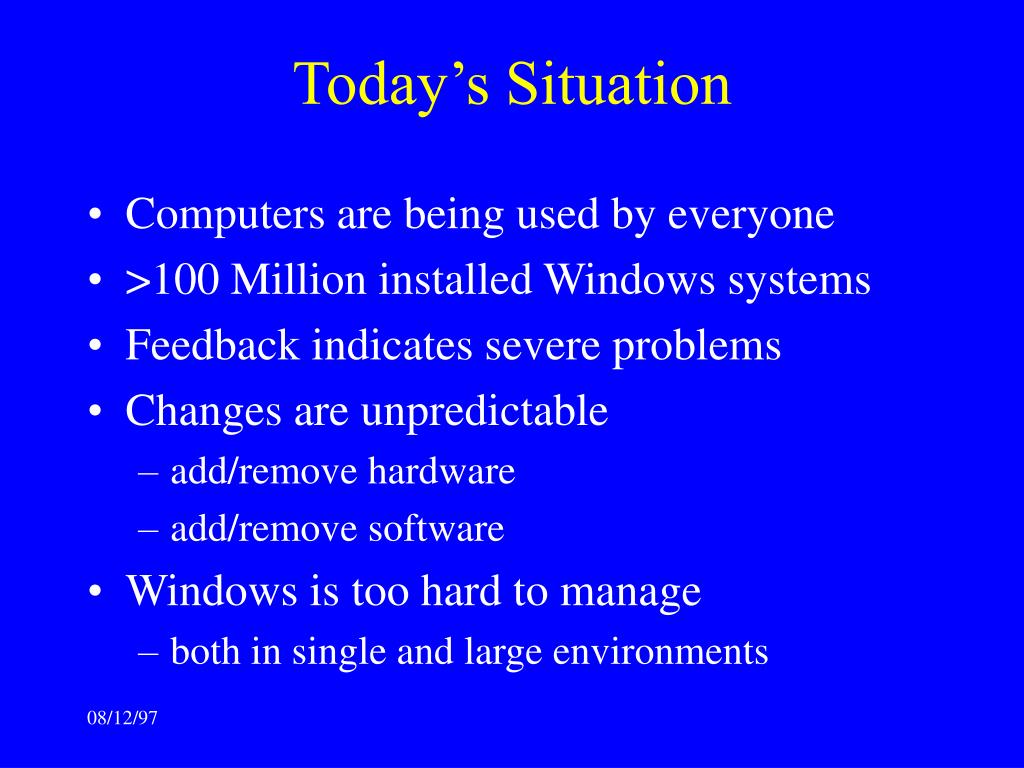

Today’s Situation

  • Computers are being used by everyone

  • >100 Million installed Windows systems

  • Feedback indicates severe problems

  • Changes are unpredictable

    • add/remove hardware

    • add/remove software

  • Windows is too hard to manage

    • both in single and large environments


Hardware configuration

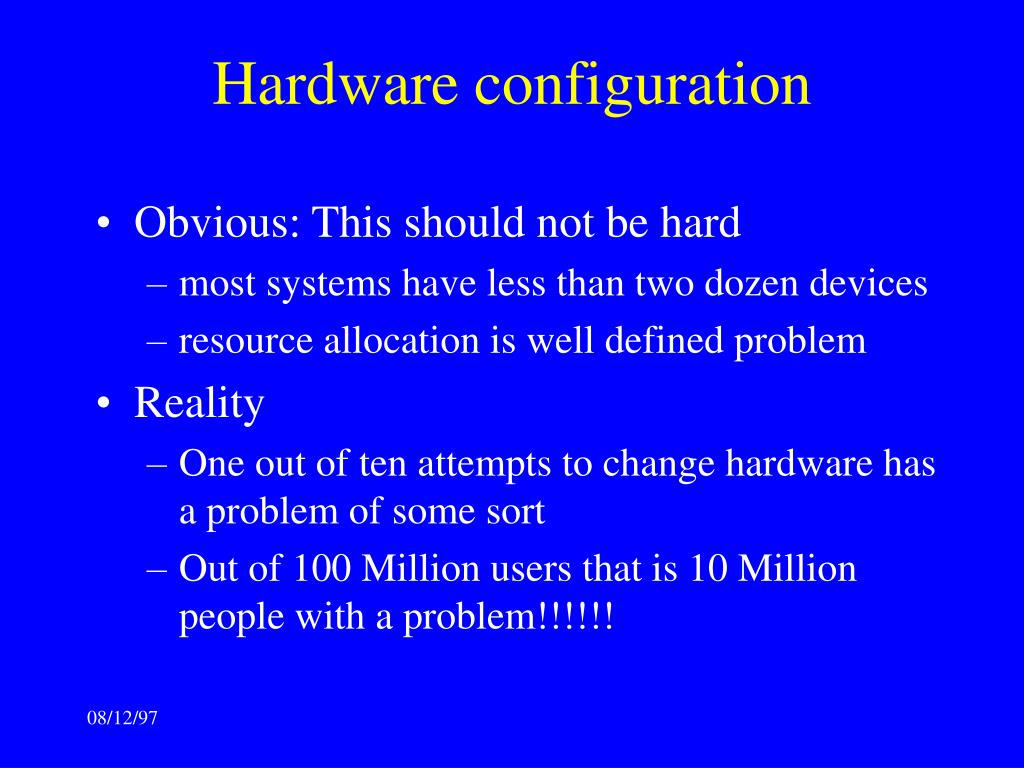

Hardware configuration

  • Obvious: This should not be hard

    • most systems have less than two dozen devices

    • resource allocation is well defined problem

  • Reality

    • One out of ten attempts to change hardware has a problem of some sort

    • Out of 100 Million users that is 10 Million people with a problem!!!!!!


Hardware related issues

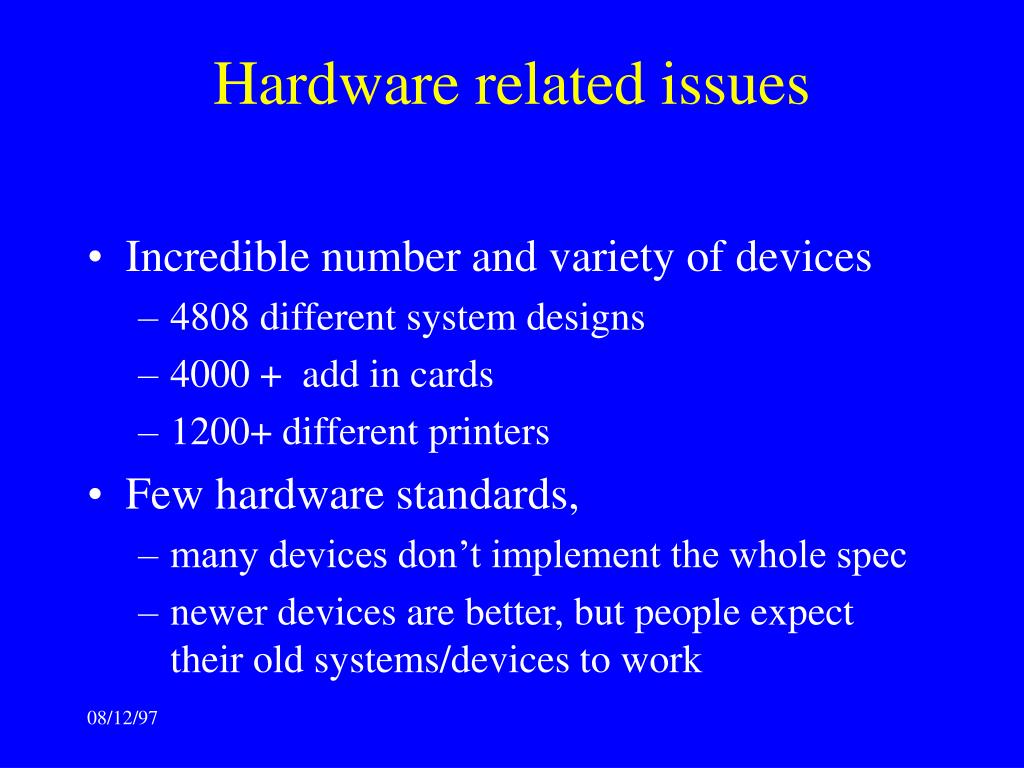

Hardware related issues

  • Incredible number and variety of devices

    • 4808 different system designs

    • 4000 + add in cards

    • 1200+ different printers

  • Few hardware standards,

    • many devices don’t implement the whole spec

    • newer devices are better, but people expect their old systems/devices to work


Windows nt 4 0 hcl

Windows NT 4.0 HCL


Hardware standards oxymoron

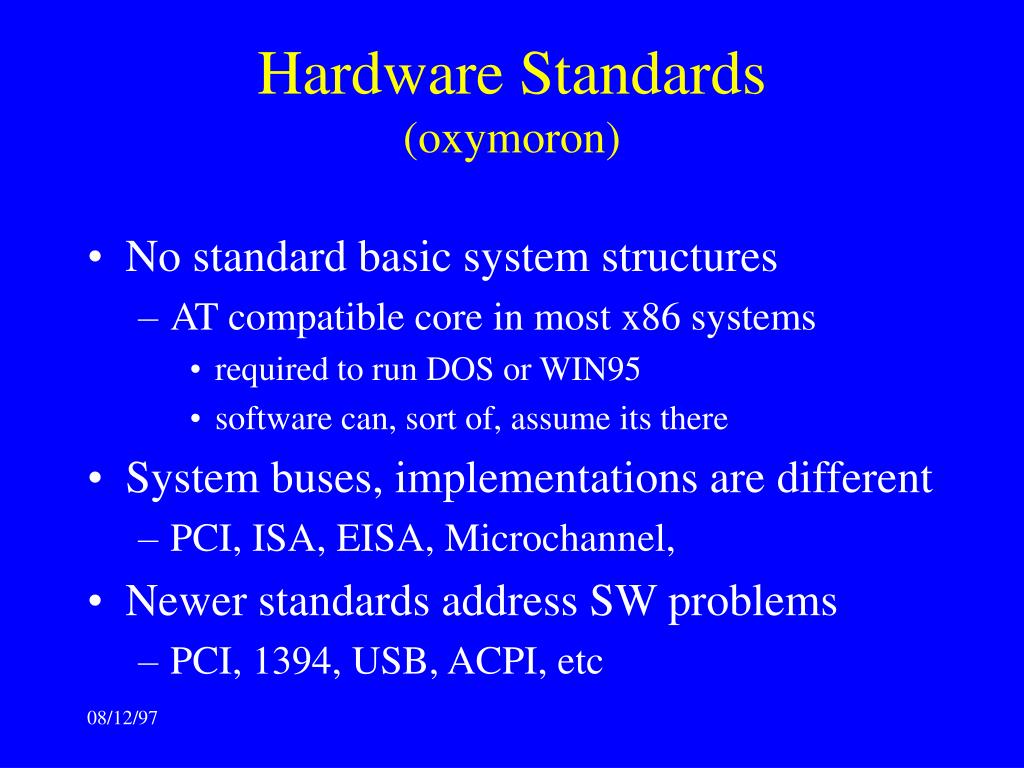

Hardware Standards(oxymoron)

  • No standard basic system structures

    • AT compatible core in most x86 systems

      • required to run DOS or WIN95

      • software can, sort of, assume its there

  • System buses, implementations are different

    • PCI, ISA, EISA, Microchannel,

  • Newer standards address SW problems

    • PCI, 1394, USB, ACPI, etc


Windows driver model

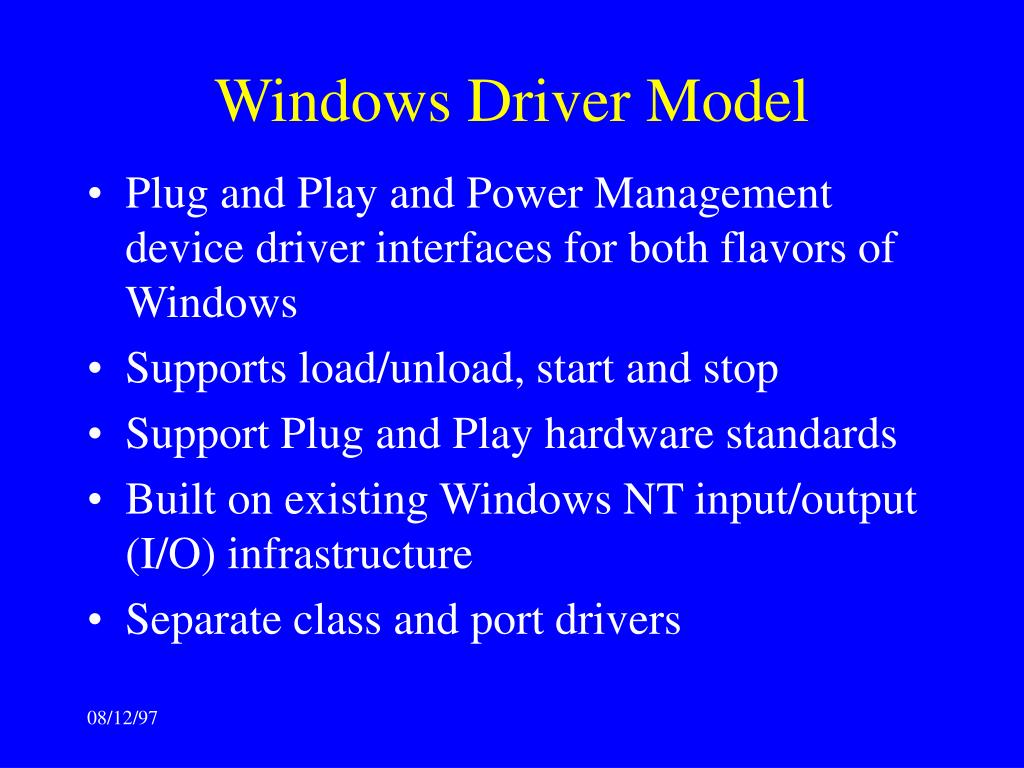

Windows Driver Model

  • Plug and Play and Power Management device driver interfaces for both flavors of Windows

  • Supports load/unload, start and stop

  • Support Plug and Play hardware standards

  • Built on existing Windows NT input/output (I/O) infrastructure

  • Separate class and port drivers


Wdm bus drivers

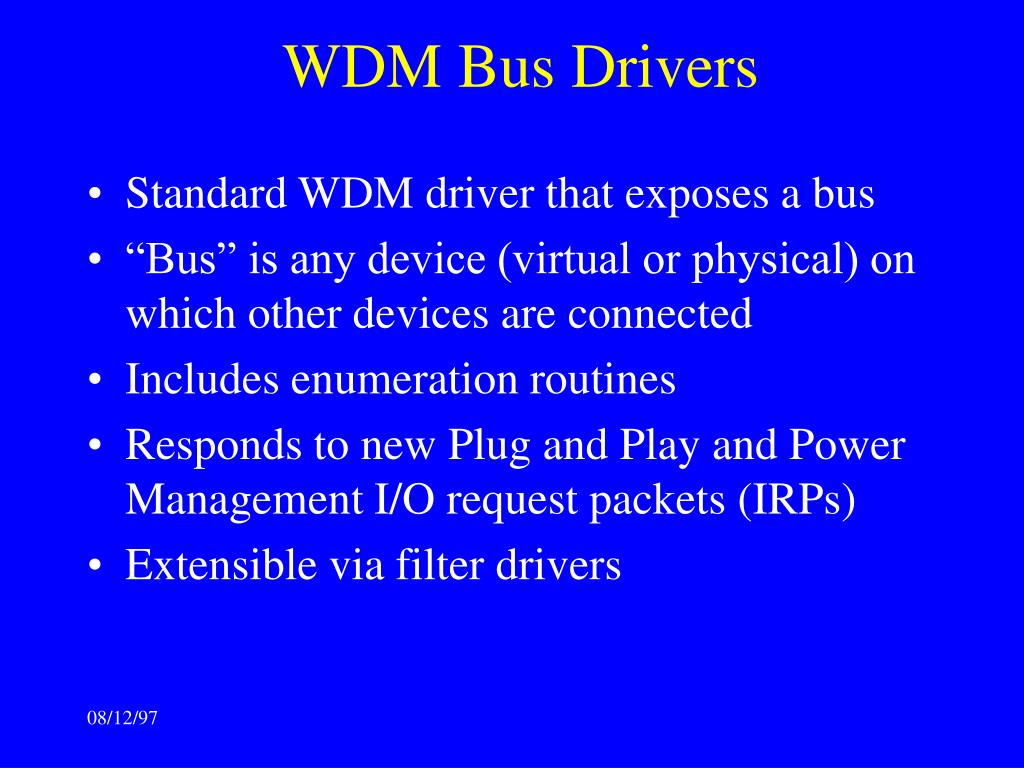

WDM Bus Drivers

  • Standard WDM driver that exposes a bus

  • “Bus” is any device (virtual or physical) on which other devices are connected

  • Includes enumeration routines

  • Responds to new Plug and Play and Power Management I/O request packets (IRPs)

  • Extensible via filter drivers


What a tangled mess tackling windows complexity

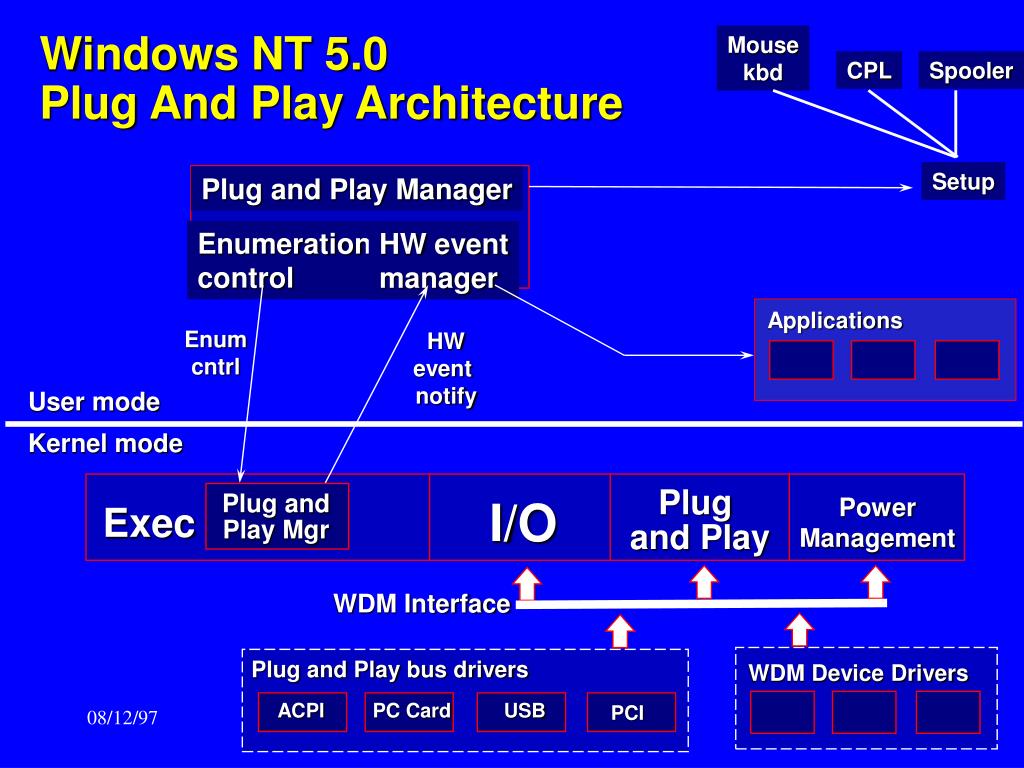

Windows NT 5.0Plug And Play Architecture

Mouse

kbd

CPL

Spooler

Setup

Plug and Play Manager

Enumeration

control

HW event

manager

Applications

Enum

cntrl

HW

event

notify

User mode

Kernel mode

Plug and Play

I/O

Power

Management

Plug and

Play Mgr

Exec

WDM Interface

Plug and Play bus drivers

WDM Device Drivers

ACPI

PC Card

USB

PCI


Wdm device tree

SCSI disk FDO

(disk.sys)

SCSI CD-ROM FDO

(cdrom.sys)

SCSI disk PDO

(scsiport.sys)

SCSI CD-ROM PDO

(scsiport.sys)

“Toaster” FDO

(toaster.sys)

SCSI adapter FDO

(scsiport.sys)

“Toaster” PDO

(pci_bus.sys)

SCSI adapter PDO

(pci_bus.sys)

PCI bus FDO

(pci_bus.sys)

PCI bus PDO

(Plug and Play Manager)

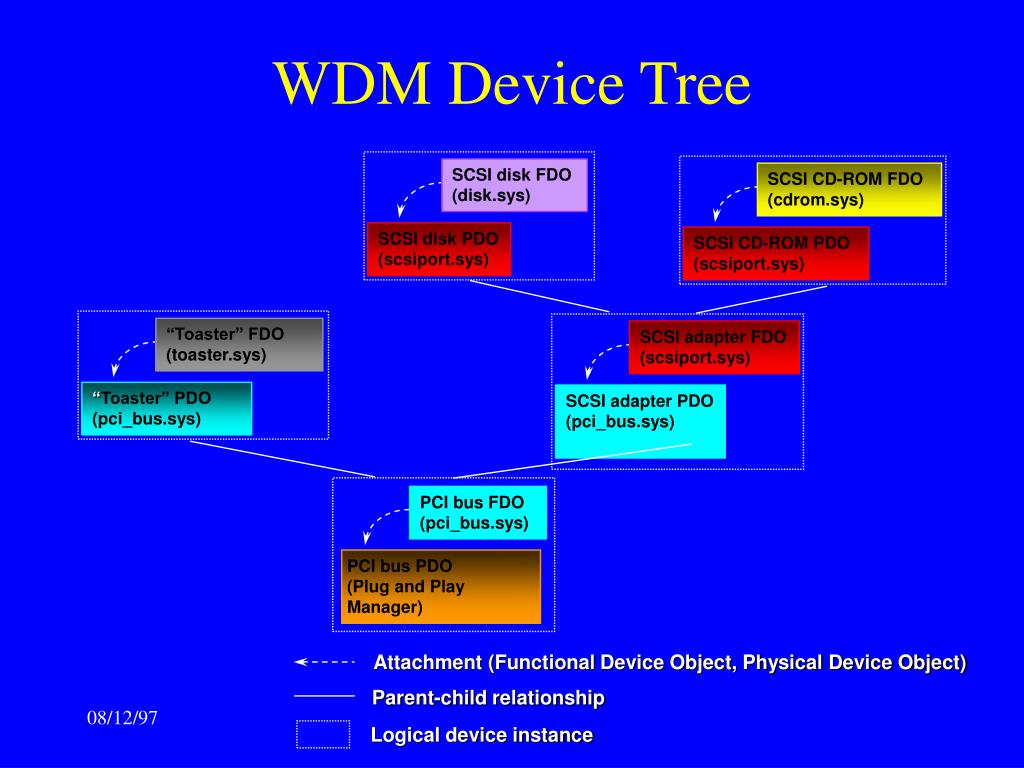

WDM Device Tree

Attachment (Functional Device Object, Physical Device Object)

Parent-child relationship

Logical device instance


Windows software issues

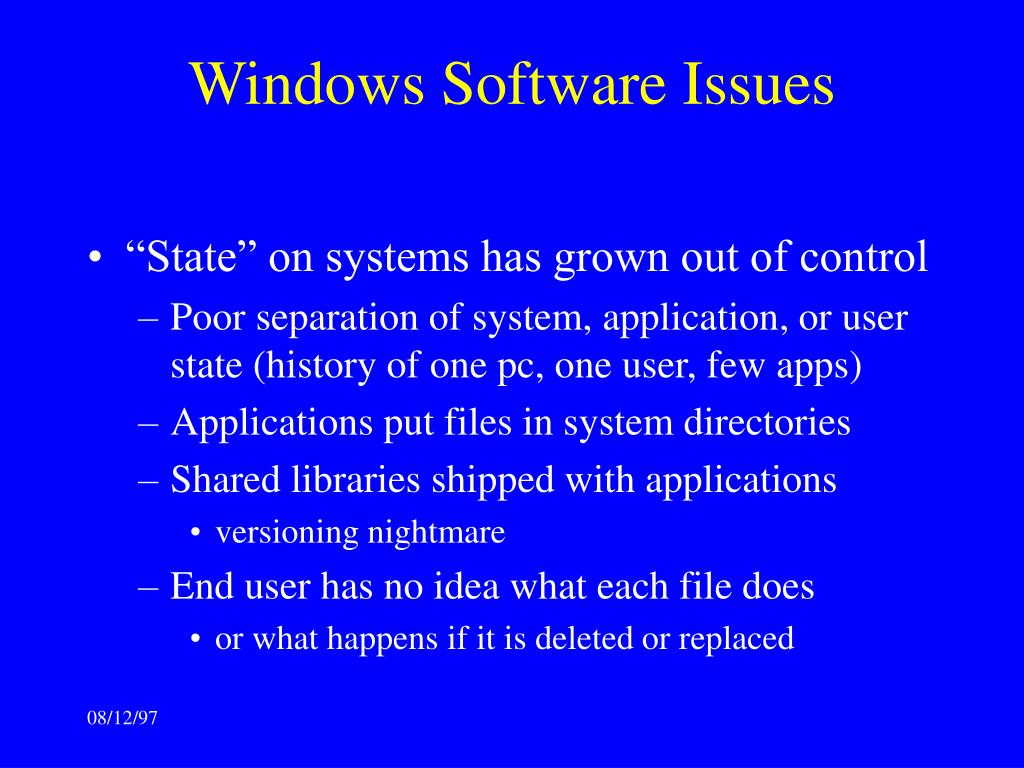

Windows Software Issues

  • “State” on systems has grown out of control

    • Poor separation of system, application, or user state (history of one pc, one user, few apps)

    • Applications put files in system directories

    • Shared libraries shipped with applications

      • versioning nightmare

    • End user has no idea what each file does

      • or what happens if it is deleted or replaced


Solutions

Solutions

  • Guidelines to separate the state

  • Better application guidelines

    • ideally an app can be dropped onto the system

  • Add an installation service to system

    • takes a “package” and installs it

    • tracks versions of shared components

    • puts application files in separate directories

    • tracks ownership of files

    • Tools needed to create packages


Managing large installations goals

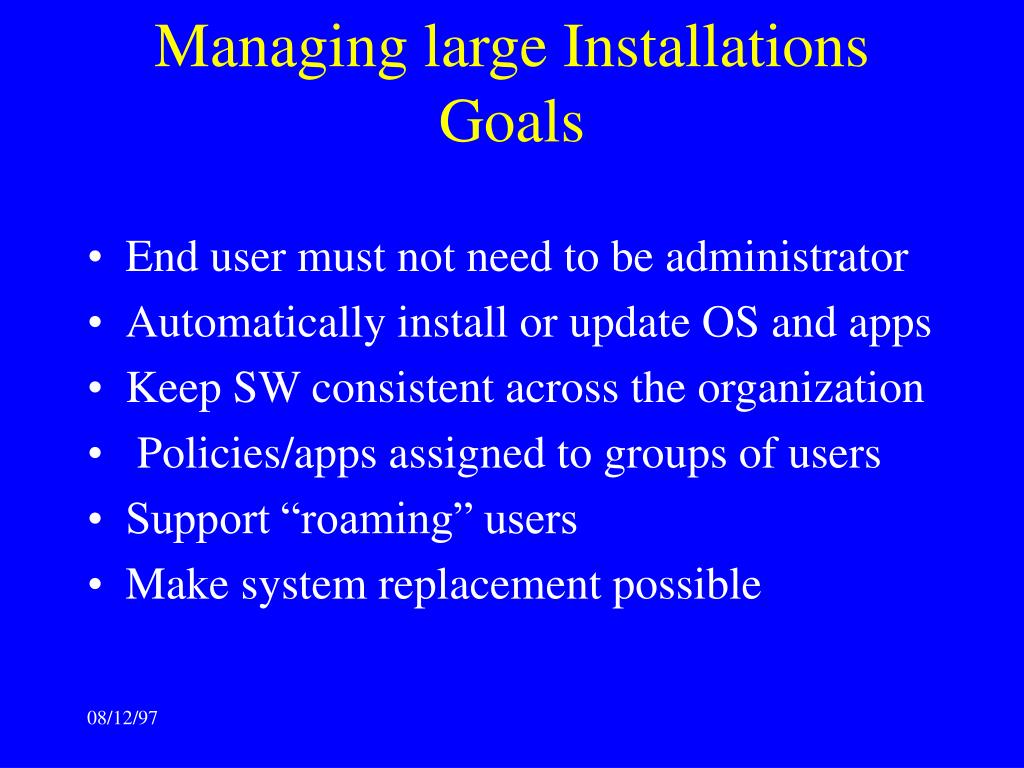

Managing large InstallationsGoals

  • End user must not need to be administrator

  • Automatically install or update OS and apps

  • Keep SW consistent across the organization

  • Policies/apps assigned to groups of users

  • Support “roaming” users

  • Make system replacement possible


Technology to make this happen

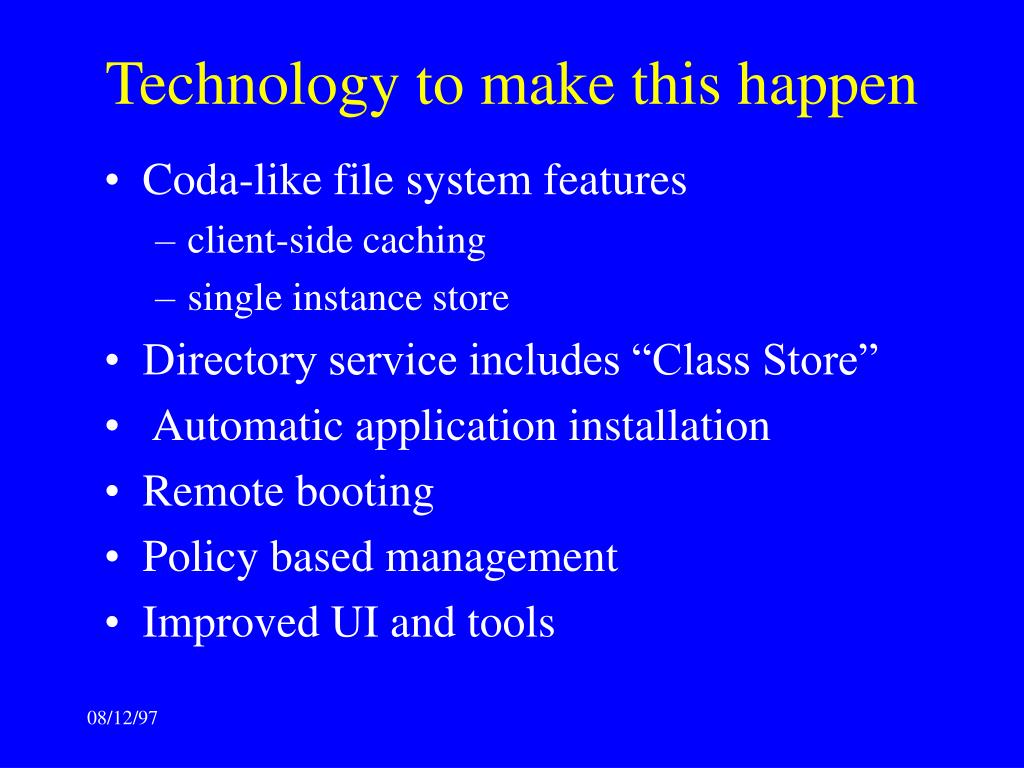

Technology to make this happen

  • Coda-like file system features

    • client-side caching

    • single instance store

  • Directory service includes “Class Store”

  • Automatic application installation

  • Remote booting

  • Policy based management

  • Improved UI and tools


File document management client side caching

File/Document ManagementClient side caching

  • Master copy of files live on the server

  • Copy is cached on the local system

  • Caching is done by network re-director

  • Data is stored in file system with minimal meta-data

  • Improves performance and availability of network files and installed applications


Connected to a network

Connected to a Network

1: Open any file - redirected to network

2: Store copy in client

side cache

3: Read from local

client side cache

4: Write-through cache

5: “Pin” cached files

to prevent eviction


Working off line

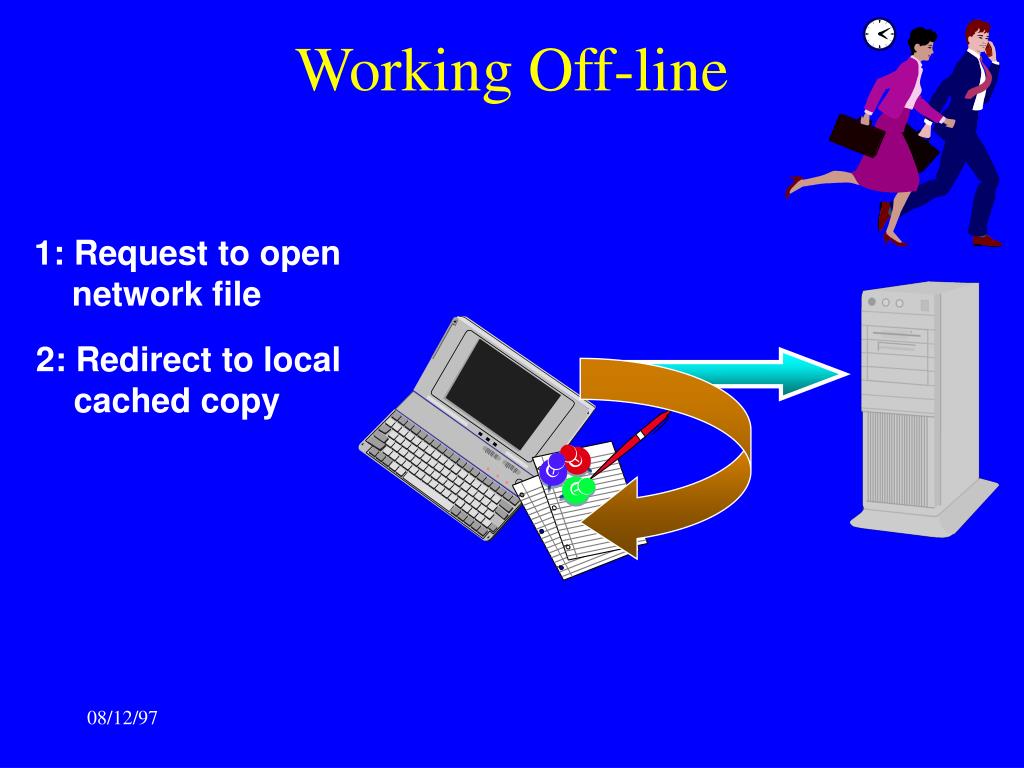

Working Off-line

1: Request to open

network file

2: Redirect to local

cached copy


Reconnecting to the network

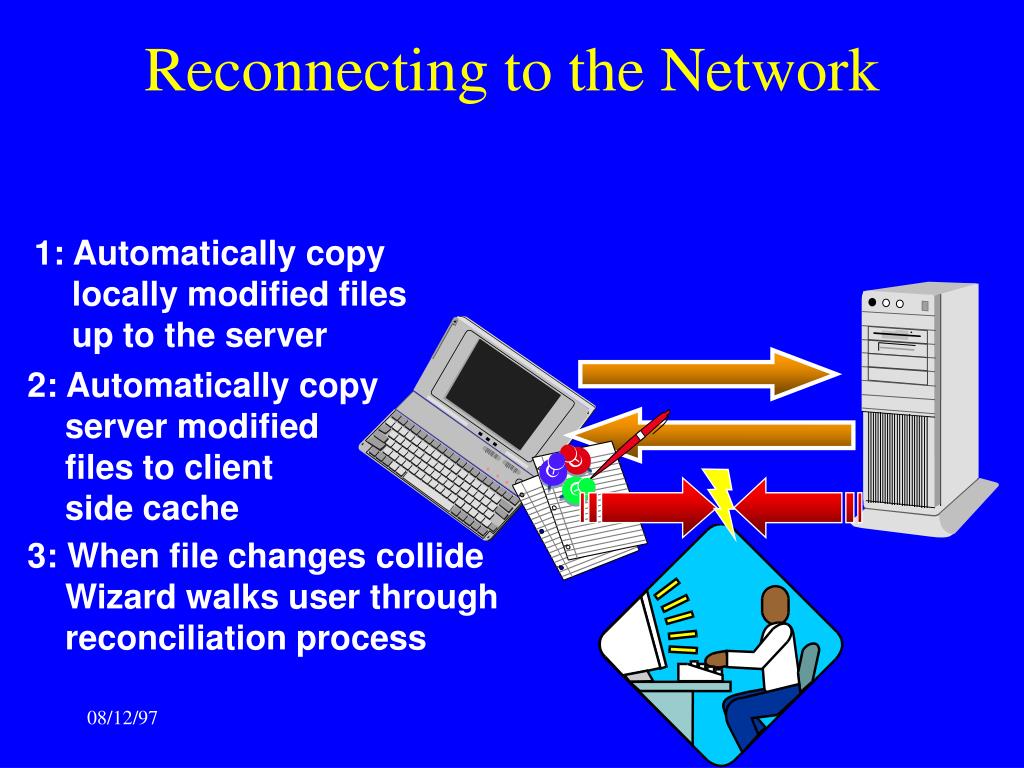

Reconnecting to the Network

1: Automatically copy

locally modified files

up to the server

2: Automatically copy

server modified

files to client

side cache

3: When file changes collide

Wizard walks user through

reconciliation process


File document management cont

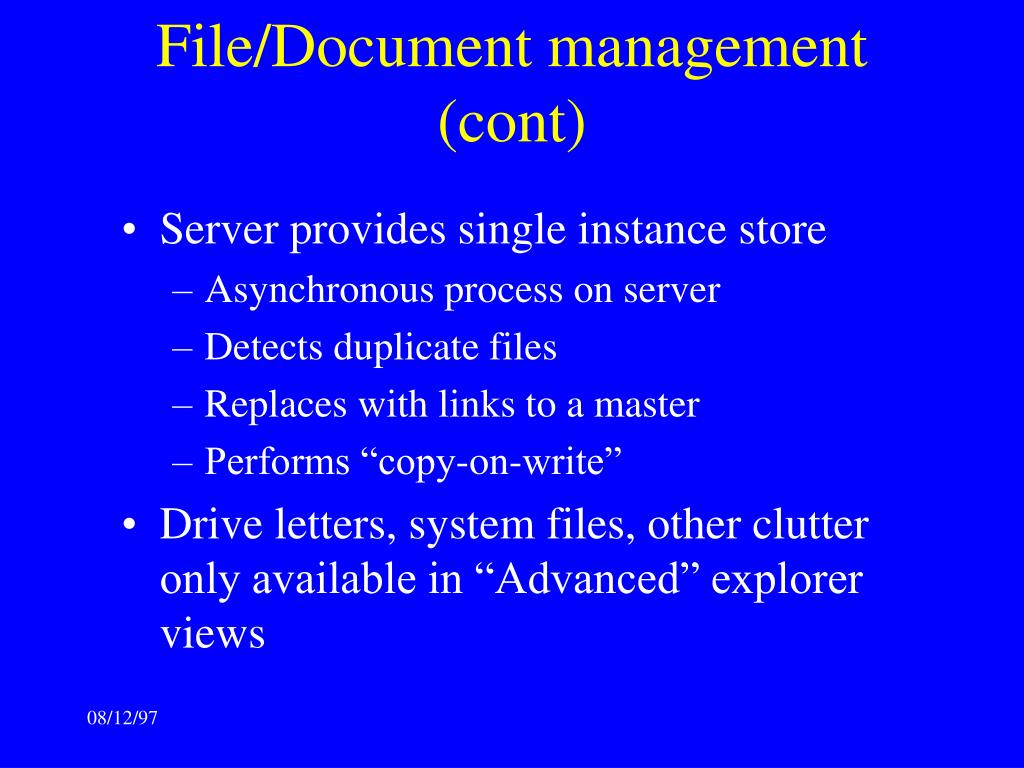

File/Document management (cont)

  • Server provides single instance store

    • Asynchronous process on server

    • Detects duplicate files

    • Replaces with links to a master

    • Performs “copy-on-write”

  • Drive letters, system files, other clutter only available in “Advanced” explorer views


Directory service

Directory Service

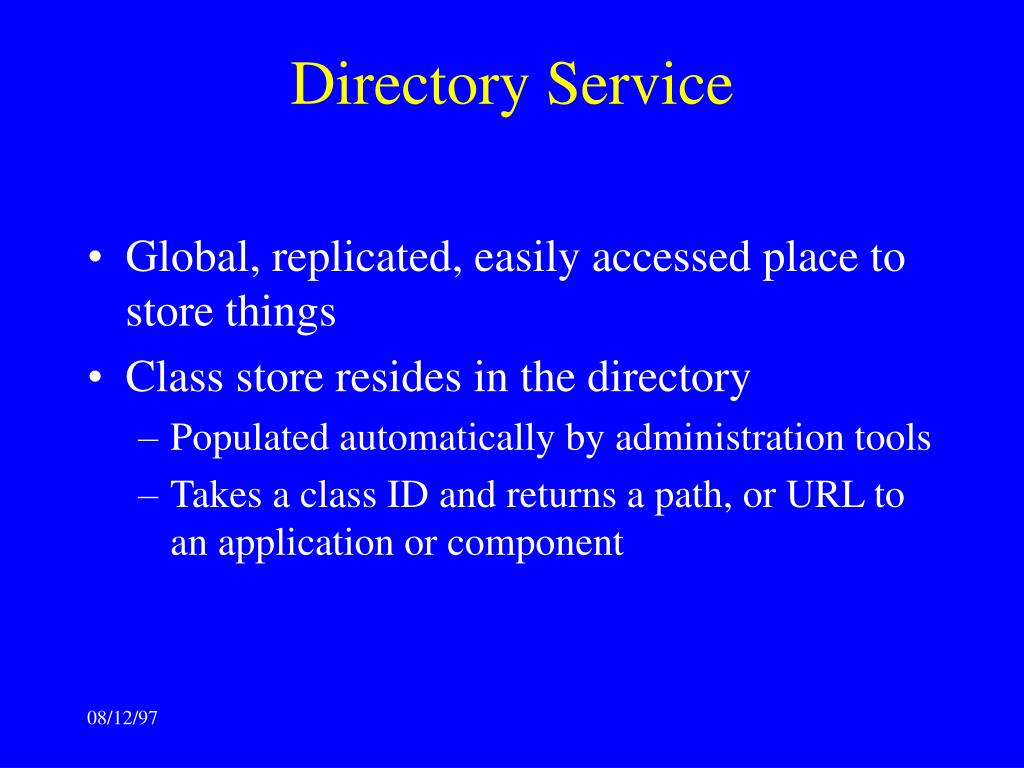

  • Global, replicated, easily accessed place to store things

  • Class store resides in the directory

    • Populated automatically by administration tools

    • Takes a class ID and returns a path, or URL to an application or component


Centralized management

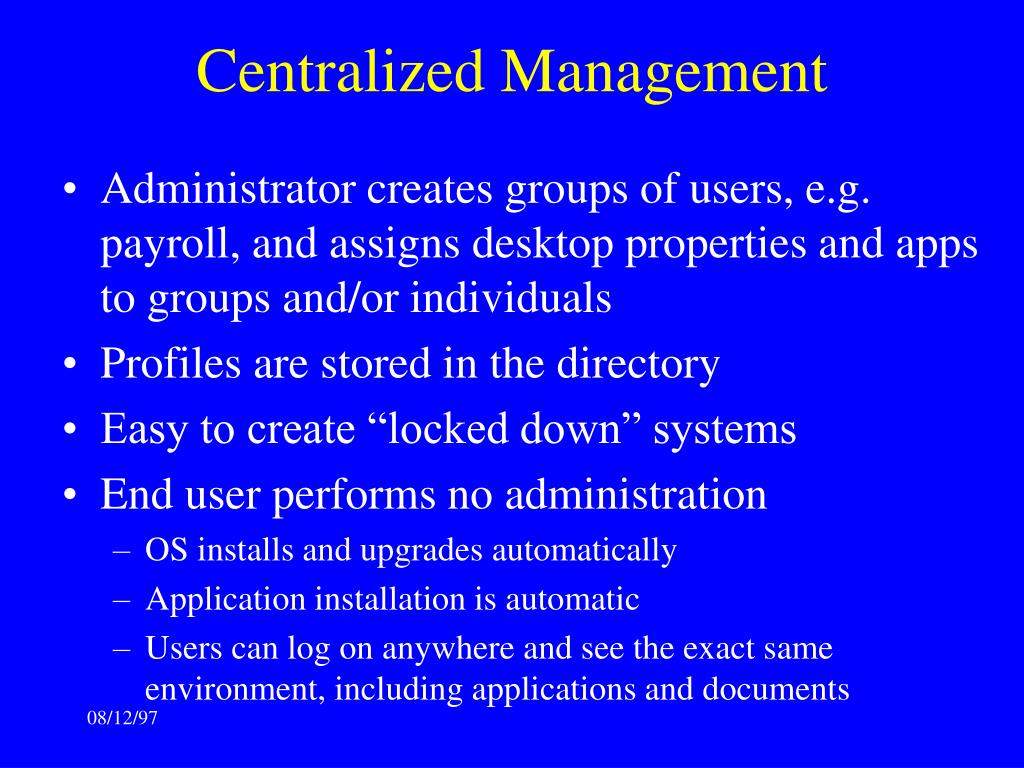

Centralized Management

  • Administrator creates groups of users, e.g. payroll, and assigns desktop properties and apps to groups and/or individuals

  • Profiles are stored in the directory

  • Easy to create “locked down” systems

  • End user performs no administration

    • OS installs and upgrades automatically

    • Application installation is automatic

    • Users can log on anywhere and see the exact same environment, including applications and documents


Application installation

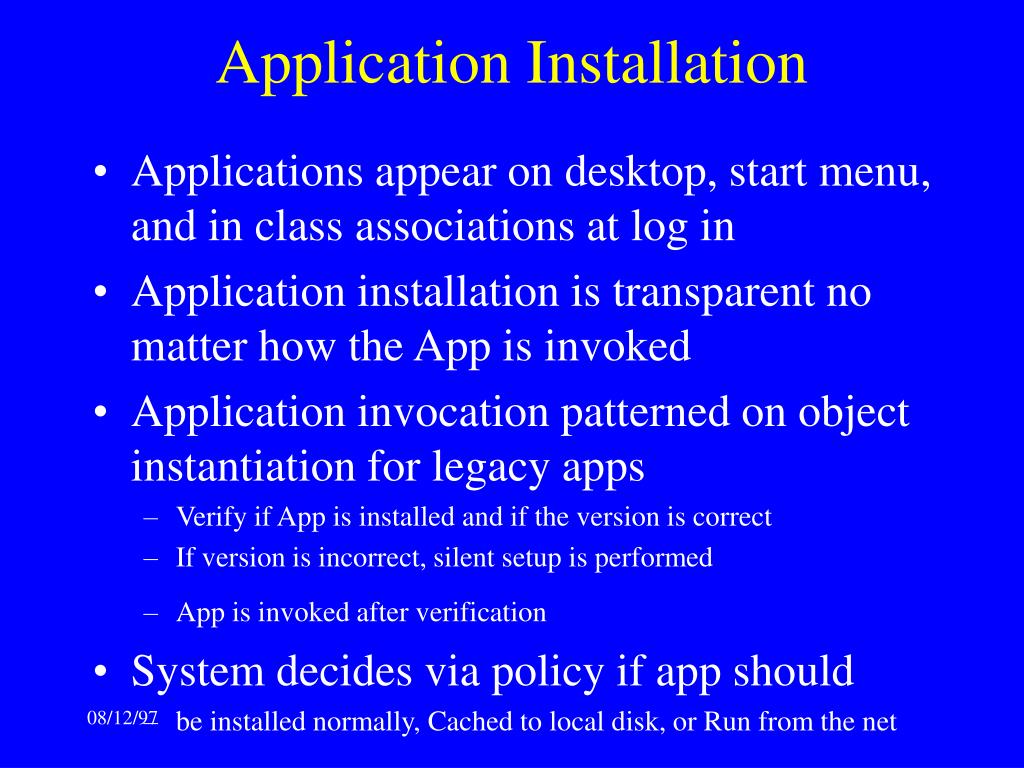

Application Installation

  • Applications appear on desktop, start menu, and in class associations at log in

  • Application installation is transparent no matter how the App is invoked

  • Application invocation patterned on object instantiation for legacy apps

    • Verify if App is installed and if the version is correct

    • If version is incorrect, silent setup is performed

    • App is invoked after verification

  • System decides via policy if app should

    • be installed normally, Cached to local disk, or Run from the net


App deployment model assigned published applications

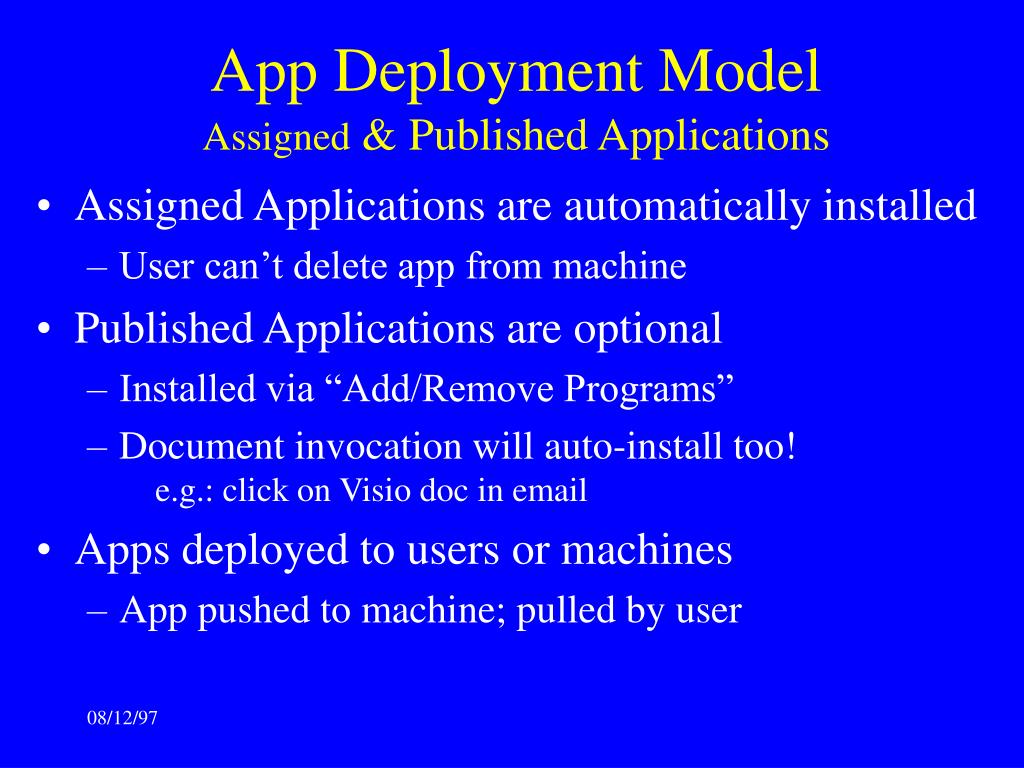

App Deployment ModelAssigned & Published Applications

  • Assigned Applications are automatically installed

    • User can’t delete app from machine

  • Published Applications are optional

    • Installed via “Add/Remove Programs”

    • Document invocation will auto-install too!

      e.g.: click on Visio doc in email

  • Apps deployed to users or machines

    • App pushed to machine; pulled by user


Deployment process

Office 98 CD

Network Server

“Sales Force” Group Policy

Pat

Deployment Process

1: Create a network install for app.

2: Customize installation options

3: Assign application in policy

4: User in OU “receives” policy

5: At User Logon, the machine receives portions of the app.

6: Upon user invocation, the app is installed on user’s machine


Remote boot

Remote Boot

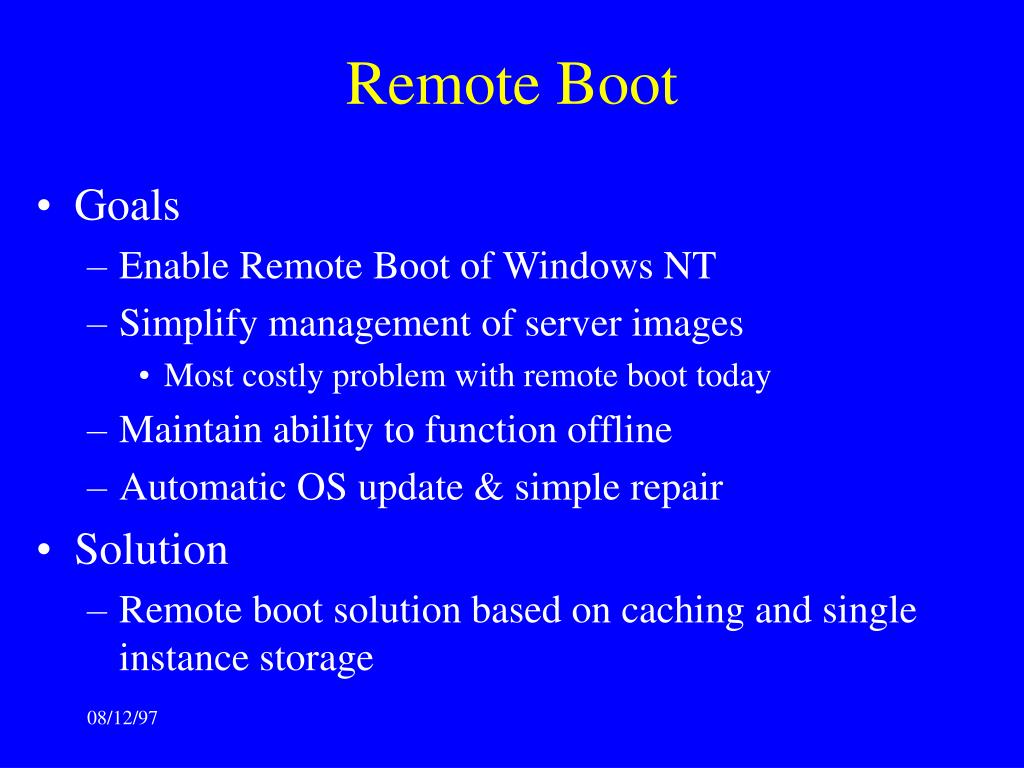

  • Goals

    • Enable Remote Boot of Windows NT

    • Simplify management of server images

      • Most costly problem with remote boot today

    • Maintain ability to function offline

    • Automatic OS update & simple repair

  • Solution

    • Remote boot solution based on caching and single instance storage


Remote boot cont d

Remote Boot (cont’d)

  • NT maps client physical storage to “D:\”

  • “C:\” is a cache -- replica lives on net

    • Entirecontents of C:\ drive is placed on net

      • i.e.: Each client has their own disk image

    • Single instance storage (NTFS filter driver) eliminates storage of duplicate files

      • Enable flexible configuration without drive bloat.

        E.g.: older app, different driver


Remote boot1

Remote Boot

  • Client boots via new boot ROMs

  • DHCP server hosts extensions

    • Dialect between OS-less client & server

    • Fully defined in NetPC specification

  • Policy used to define client behavior

  • DS accounts used for state storage

  • Applet (OSChooser) sent as “bootstrap” code to offer initial choices


Scenario new machine

Directory Services

Install

Server

Remote Boot

Server

Client A

Client B

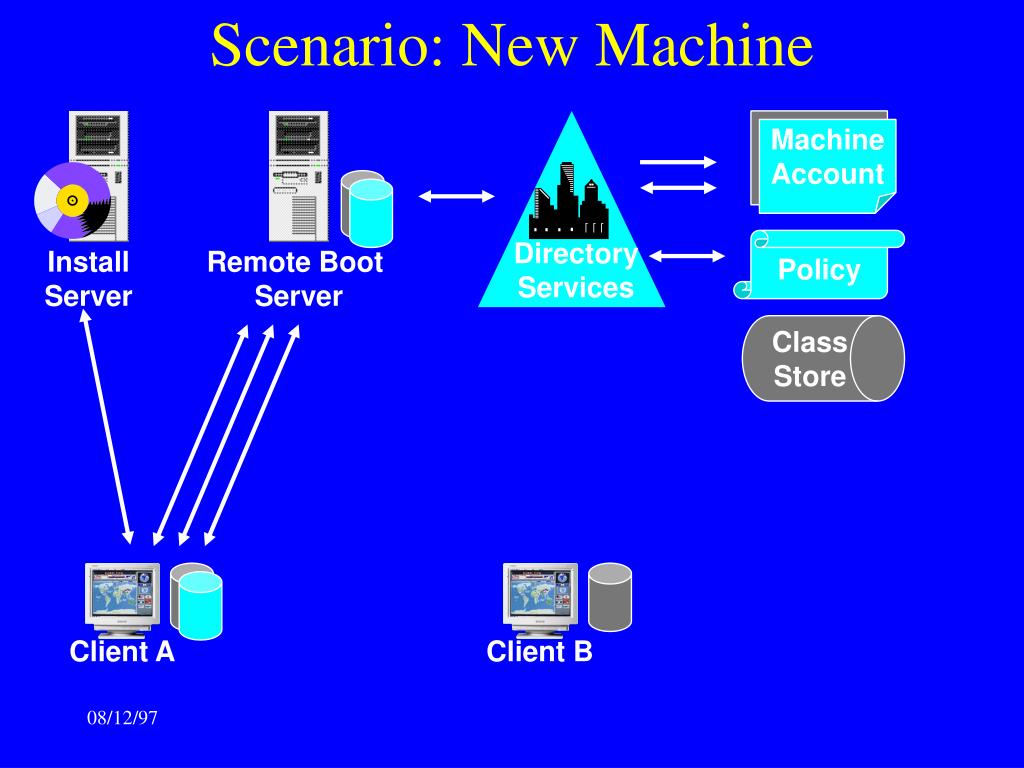

Scenario: New Machine

Machine

Account

Machine

Account

Policy

Class

Store


Scenario existing machine

Directory Services

Install

Server

Remote Boot

Server

Client A

Client B

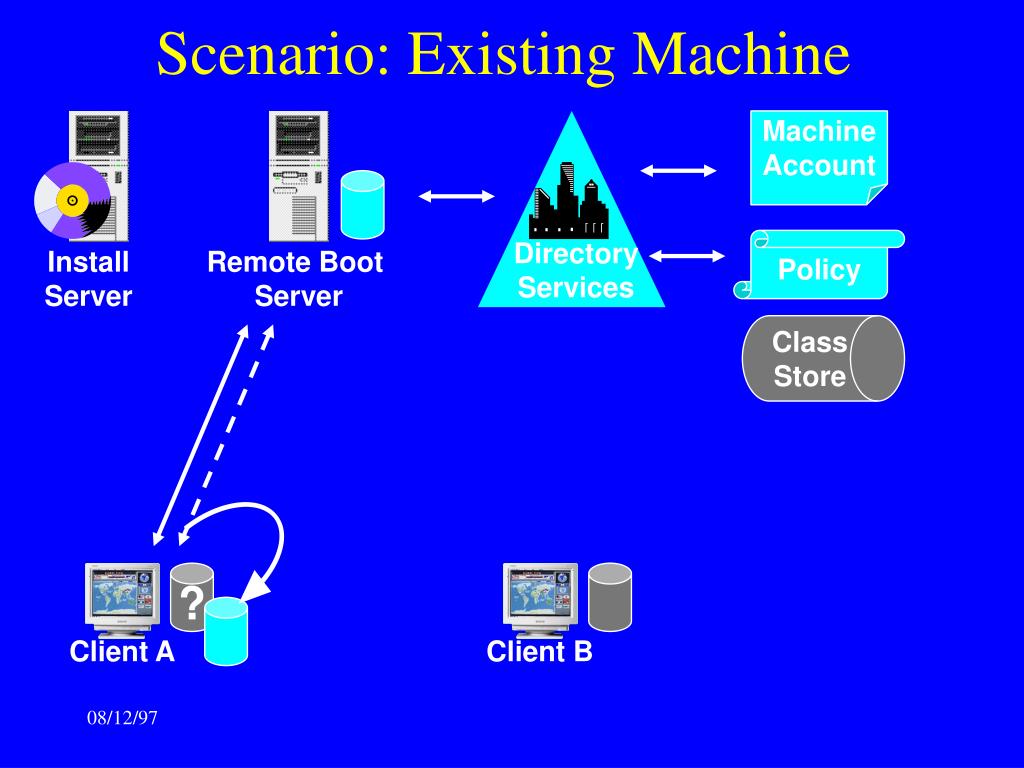

Scenario: Existing Machine

Machine

Account

Policy

Class

Store

?


Scenario machine failure

Directory Services

Install

Server

Remote Boot

Server

Client A

Client B

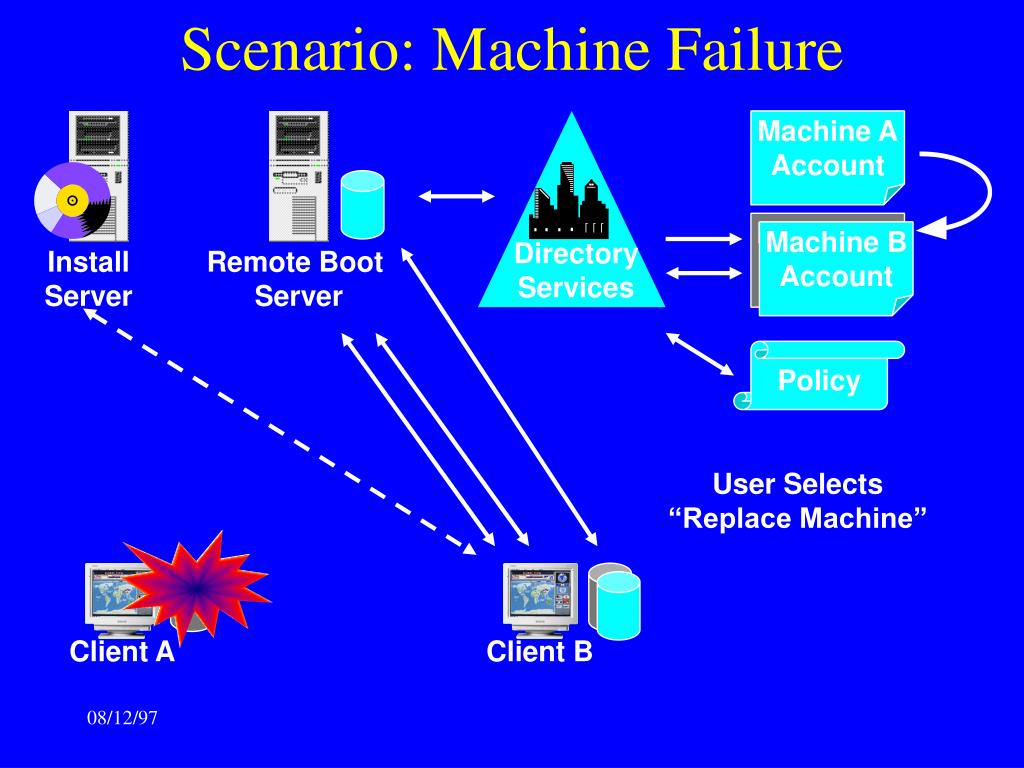

Scenario: Machine Failure

Machine A

Account

Machine B

Account

Machine B

Account

Policy

User Selects “Replace Machine”


Summary

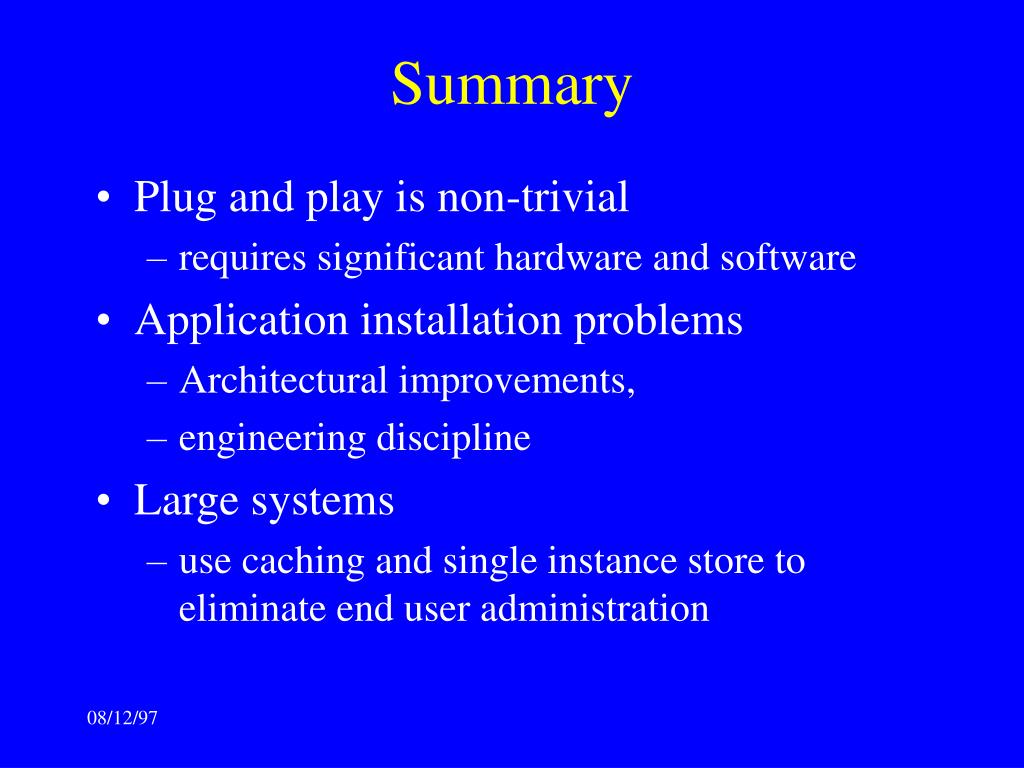

Summary

  • Plug and play is non-trivial

    • requires significant hardware and software

  • Application installation problems

    • Architectural improvements,

    • engineering discipline

  • Large systems

    • use caching and single instance store to eliminate end user administration


Questions

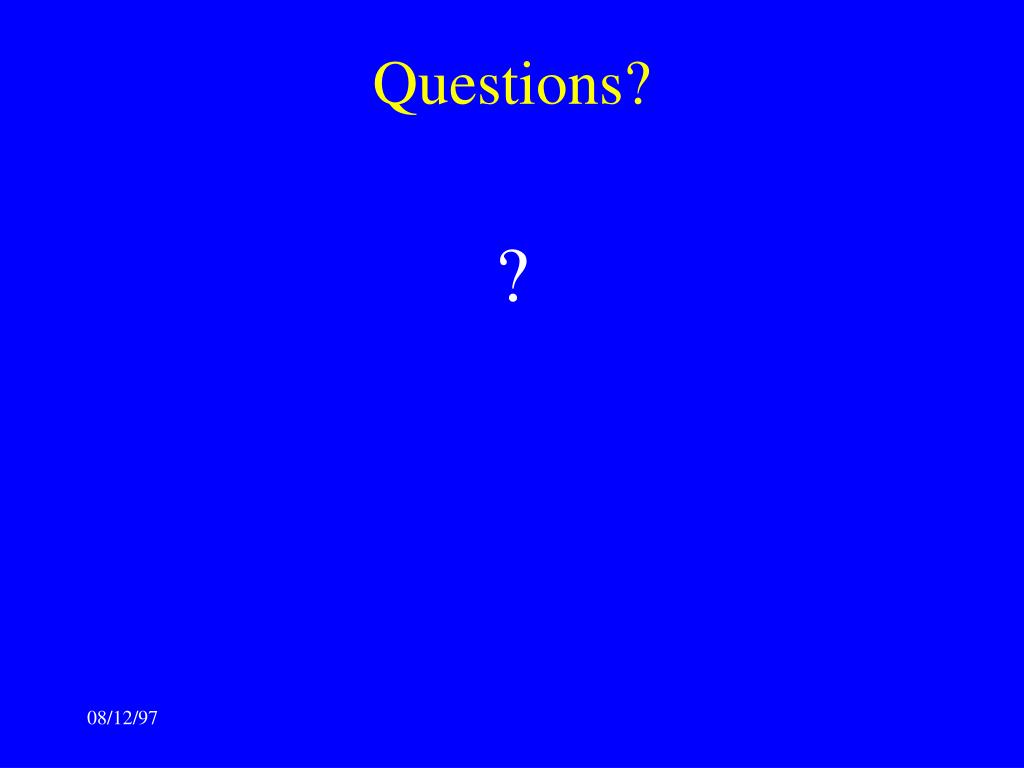

Questions?

?
