Attitude Estimation

Attitude Estimation. Thomas Bak Institute of Electronic Systems Aalborg University tb@control.auc.dk. Outline. Motivation Sensors Problem formulation – Wahba Single point methods Filtering. What is Attitude Determination?.

nadine-pena
Download Presentation

Attitude Estimation

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Attitude Estimation Thomas Bak Institute of Electronic Systems Aalborg University tb@control.auc.dk

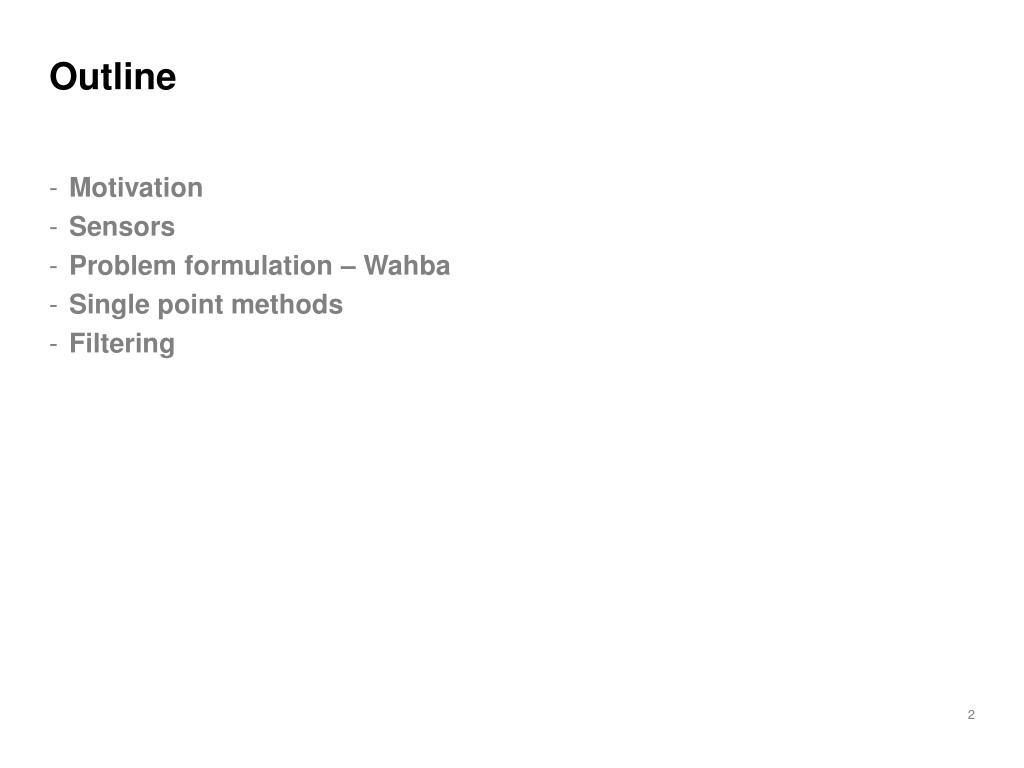

  2. Outline • Motivation • Sensors • Problem formulation – Wahba • Single point methods • Filtering

  3. What is Attitude Determination? How do we estimating the orientation of a spacecraft by making remote observations of celestial bodies or reference points?

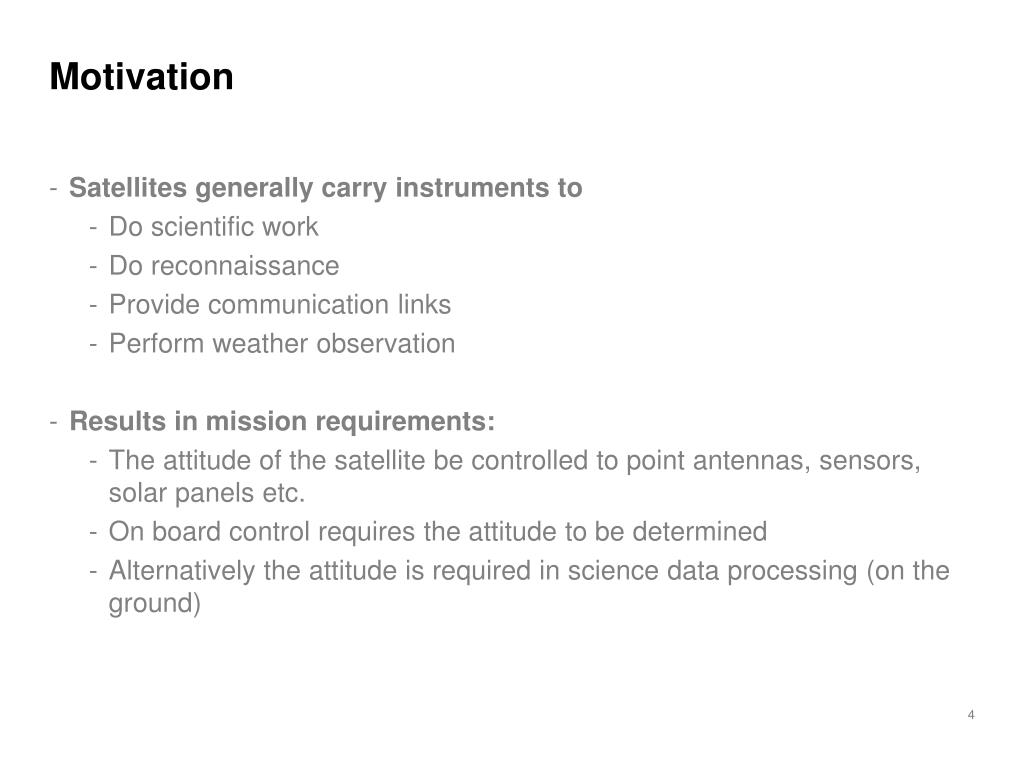

  4. Motivation • Satellites generally carry instruments to • Do scientific work • Do reconnaissance • Provide communication links • Perform weather observation • Results in mission requirements: • The attitude of the satellite be controlled to point antennas, sensors, solar panels etc. • On board control requires the attitude to be determined • Alternatively the attitude is required in science data processing (on the ground)

  5. Attitude Sensors 1 • Rate sensors • For initial acquisition modes, where the spin rate of the spacecraft must be controlled to attain a first inertial lock • Coarse Pointing Sensors • Coarse control is carried out using sun sensors, magnetometer Earth sensors, GPS etc. • Fine Pointing Sensors • Fine pointing control is almost invariably by star camera. Recently, designs have converged towards simple camera systems recording 2D images using a Charged Coupled Device (CCD)

  6. Attitude Sensors 2

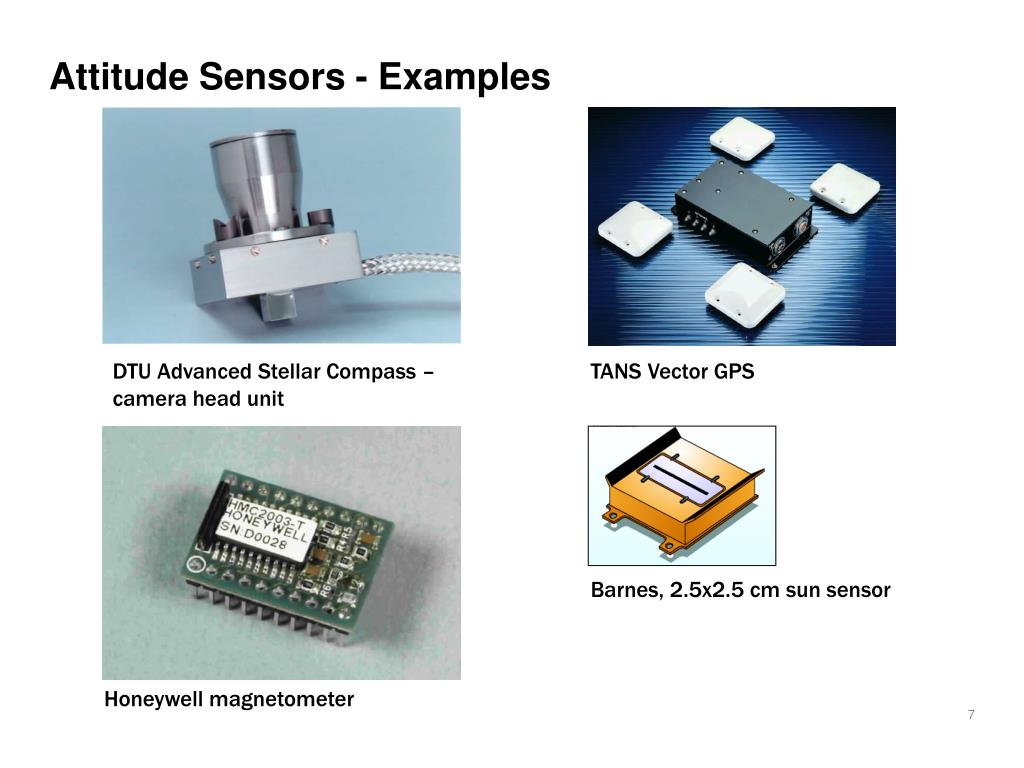

  7. Barnes’ Model 13-515 Double-Triangle Sun Sensor Module Figure 1 Attitude Sensors - Examples DTU Advanced Stellar Compass – camera head unit TANS Vector GPS Barnes, 2.5x2.5 cm sun sensor Honeywell magnetometer

  8. Problem Formulation – Wahba’s problem

  9. Attitude Determination Methods In general the solutions fall into two groups: • Deterministic (point-by-point)solutions, where the attitude is found basedon two or more vector observations from a single point in time, • Filters, recursive stochastic estimatorsthat statistically combine measurementsfrom several sensors and often dynamic and/or kinematic models inorder to achieve an estimate of the attitude.

  10. Deterministic (point-by-point) • Requires 2 or more measurements • Numerous solutions are available:

  11. Assignment • Note: Examples of Matlab code is found at the address www.control.auc.dk/~tb/best/ • The directory www.control.auc.dk/~tb/best/matlab/ holds a number of files used in the exercise. The main references are given in the text below. • The purpose of this exercise is to demonstrate a simple three-axis attitude determination using sun and magnetic field data. Data is generated for a satellite in a 800 km orbit with a slow rotation about the z-axis. Reference data as well as simulated measurements are generated, the SVD algorithm applied and finally the results are compared.

  12. Assignment (cont’d) • In Matlab generate 100 points simulating the inertial position and Julian date (time) of a satellite in Earth orbit. Hint, use provided program, svddemo.m • Using the provided function, BDipole.m calculate the Earth magnetic field vector in the position points and time found in 1). The result is 100 magnetic reference vectors in an inertial frame.

  13. Assignment (cont’d) • Find the sun position in an inertial frame at the same time and position points using SunV1.m . Generate 100 sun position reference vectors. • Generate 100 random spacecraft attitudes in terms of quaternions by rotation about the z-axis. The quaternions describe rotation from inertial to spacecraft frame. • Rotate the sun and magnetic reference vectors into the spacecraft frame using the Q2Mat.m, which generates rotation matrices that may be multiplied with vectors to generate body frame sun and magnetic vectors. • Use the two sets of vectors (magnetic field reference and spacecraft frame + sun reference and spacecraft frame) in the SVD single point attitude determination algorithm. • Compare results from the SVD attitude determination algorithm with the direction cosines generated in 5) or convert the SVD direction cosine solution to quaternions using Mat2Q.m and compare the quaternions from 4)

  14. References
