Presentation Transcript


Security assurance tools

Security Assurance Tools

Amarendra Godbole

Software Security Analyst


Agenda

Agenda

Security assurance and tools

1

Categories and usage

2

Host based

3

Network based

4

CVSS v2

5

Security Assurance Tools


Disclaimer

Disclaimer

  • Symantec does not endorse these tools

  • If anything breaks, both parts are yours. ;-)

  • Etc.

Security Assurance Tools


Security assurance and tools

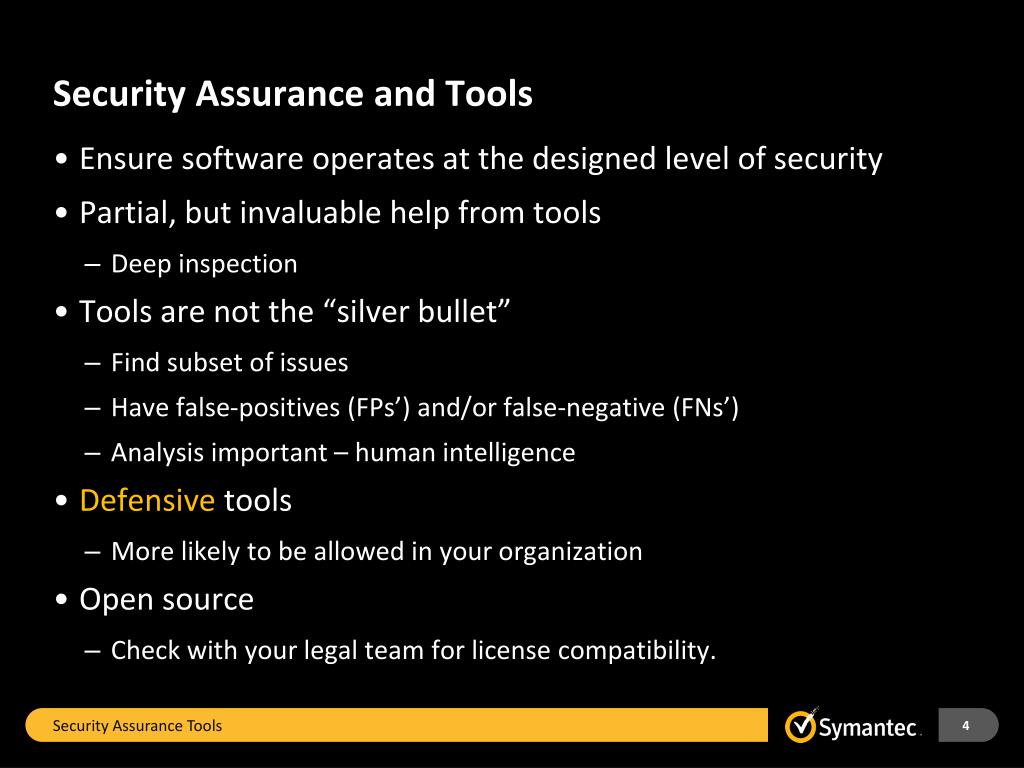

Security Assurance and Tools

  • Ensure software operates at the designed level of security

  • Partial, but invaluable help from tools

    • Deep inspection

  • Tools are not the “silver bullet”

    • Find subset of issues

    • Have false-positives (FPs’) and/or false-negative (FNs’)

    • Analysis important – human intelligence

  • Defensive tools

    • More likely to be allowed in your organization

  • Open source

    • Check with your legal team for license compatibility.

Security Assurance Tools


Categories

Categories

  • Host-based

    • Find issues on the host (permission checkers, config checkers, debuggers)

    • Standard system commands/tools being ignored in the light of more exotic ones  (netstat, tcpdump, find, compiler flags anyone?)

  • Network-based

    • Tools for inspecting network packets (wireshark/ethereal, tcpdump)

    • Protocol specific tools (burp proxy, ratproxy, SkipFish for web)

  • Numerous other tools (see sectools.org)

Security Assurance Tools


Compiler flags

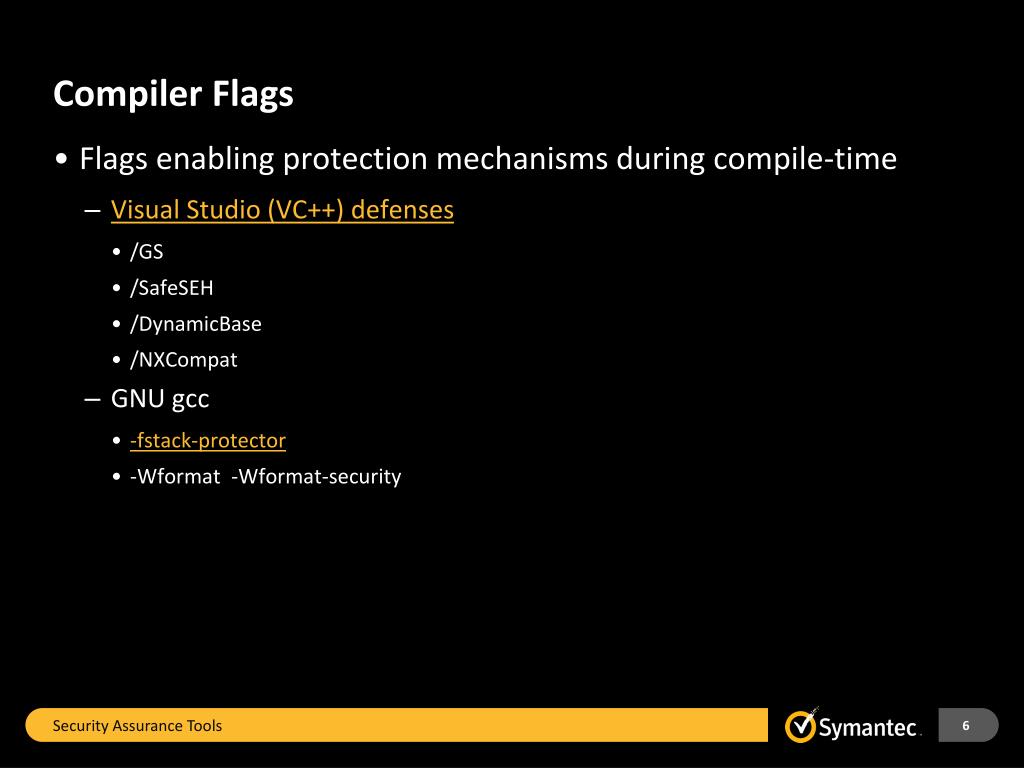

Compiler Flags

  • Flags enabling protection mechanisms during compile-time

    • Visual Studio (VC++) defenses

      • /GS

      • /SafeSEH

      • /DynamicBase

      • /NXCompat

    • GNU gcc

      • -fstack-protector

      • -Wformat -Wformat-security

Security Assurance Tools


Binscope

BinScope

  • Microsoft verification tool that analyzes binaries

  • Checks for compliance with the Microsoft SDLC

  • Stand-alone or can be integrated with Visual Studio 2008

Security Assurance Tools


Sysinternal tools

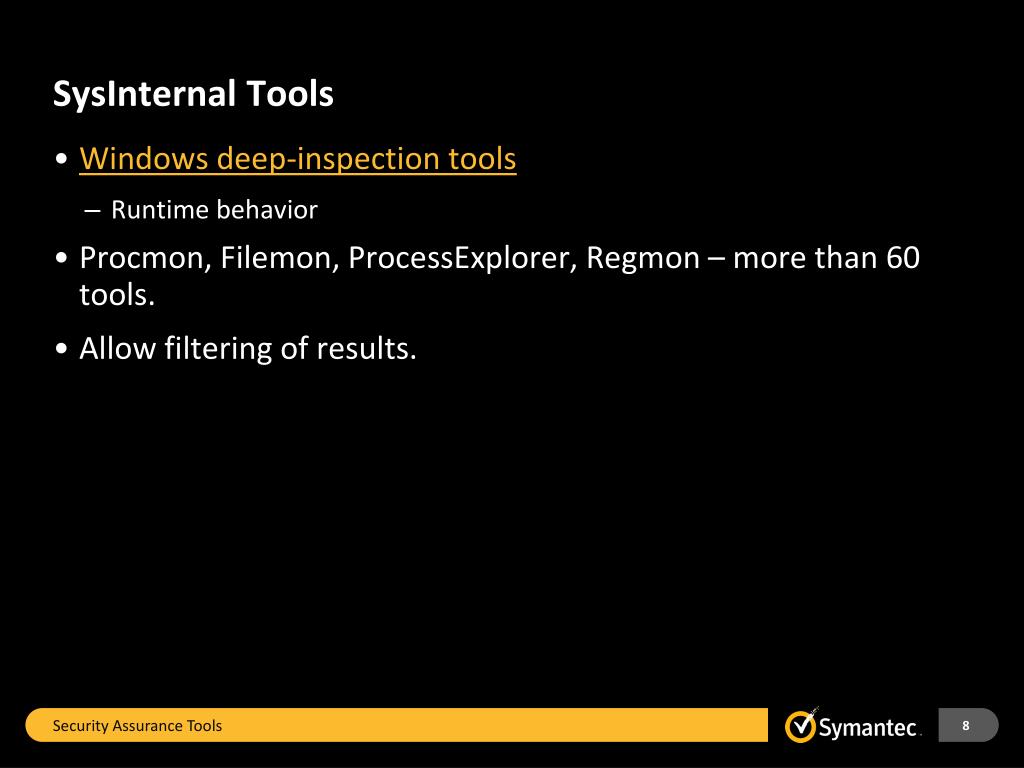

SysInternal Tools

  • Windows deep-inspection tools

    • Runtime behavior

  • Procmon, Filemon, ProcessExplorer, Regmon – more than 60 tools.

  • Allow filtering of results.

Security Assurance Tools


Security assurance tools

find

  • Unix command line utility for “finding” things

    • World-writable files and directories

    • Setuid binaries

      find / -type f –perm 0002 –exec ls –lg {} \;

      find / -type d \( -perm -0002 –a ! –perm -1000 \) –exec ls –ldg {} \;

      find / -type f \( -perm -4000 –o –perm -2000 \) –exec ls –lg {} \;

Security Assurance Tools


B ase64 to ascii encoder decoder

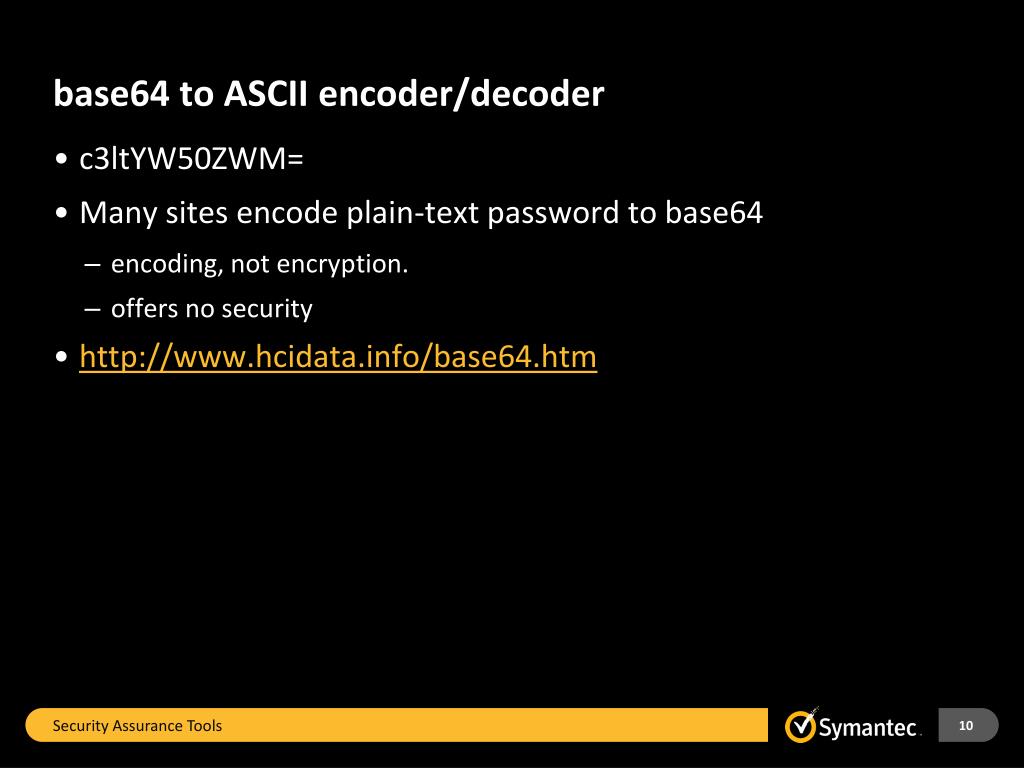

base64 to ASCII encoder/decoder

  • c3ltYW50ZWM=

  • Many sites encode plain-text password to base64

    • encoding, not encryption.

    • offers no security

  • http://www.hcidata.info/base64.htm

Security Assurance Tools


Netstat

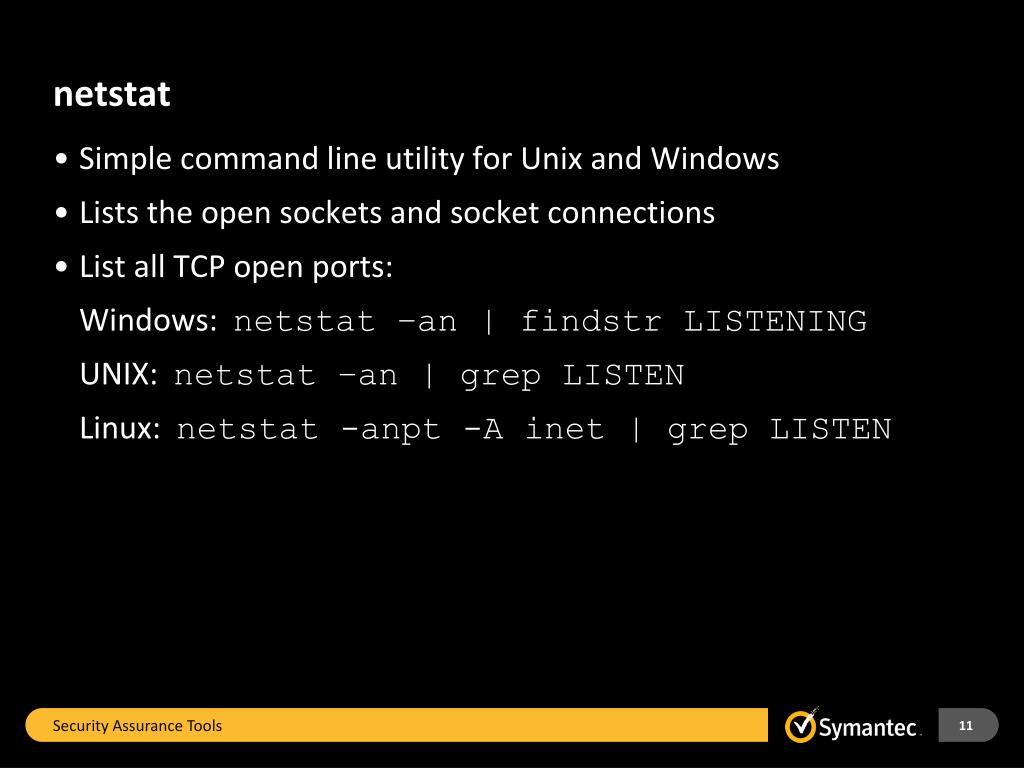

netstat

  • Simple command line utilityfor Unix and Windows

  • Lists the open sockets and socket connections

  • List all TCP open ports:

    Windows: netstat–an | findstr LISTENING

    UNIX: netstat–an | grep LISTEN

    Linux: netstat-anpt -A inet | grep LISTEN

Security Assurance Tools


Tcpdump

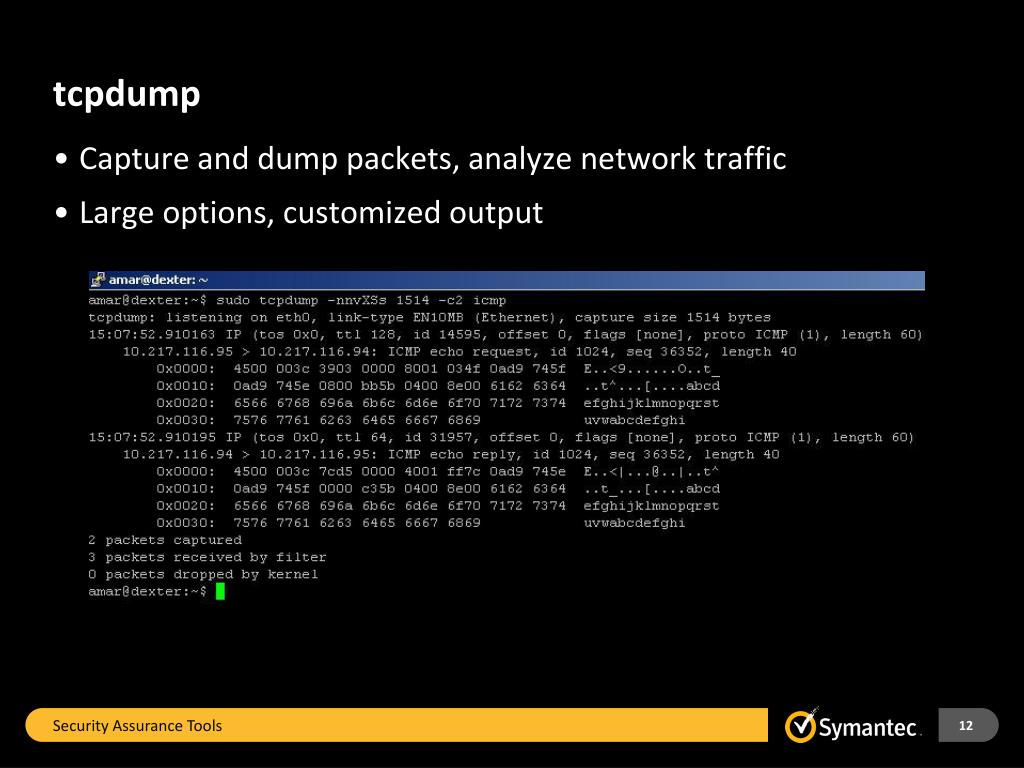

tcpdump

  • Capture and dump packets, analyze network traffic

  • Large options, customized output

Security Assurance Tools


Wireshark network protocol analyzer

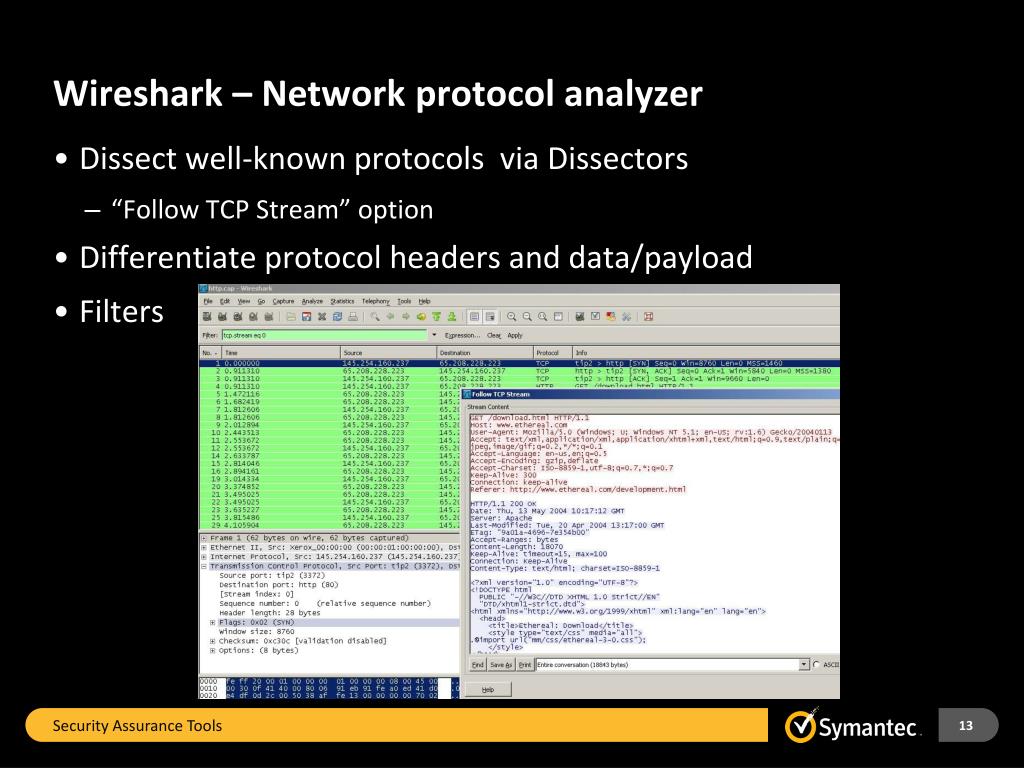

Wireshark – Network protocol analyzer

  • Dissect well-known protocols via Dissectors

    • “Follow TCP Stream” option

  • Differentiate protocol headers and data/payload

  • Filters

Security Assurance Tools


Web based tools

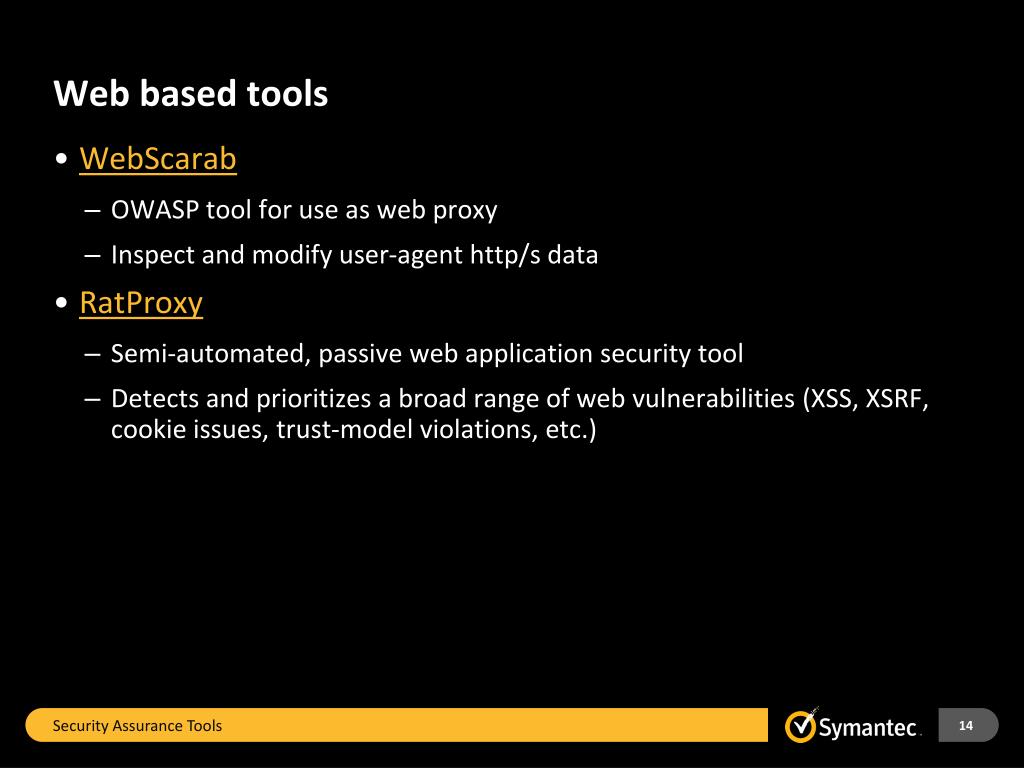

Web based tools

  • WebScarab

    • OWASP tool for use as web proxy

    • Inspect and modify user-agent http/s data

  • RatProxy

    • Semi-automated, passive web application security tool

    • Detects and prioritizes a broad range of web vulnerabilities (XSS, XSRF, cookie issues, trust-model violations, etc.)

Security Assurance Tools


Cvss v2 scores

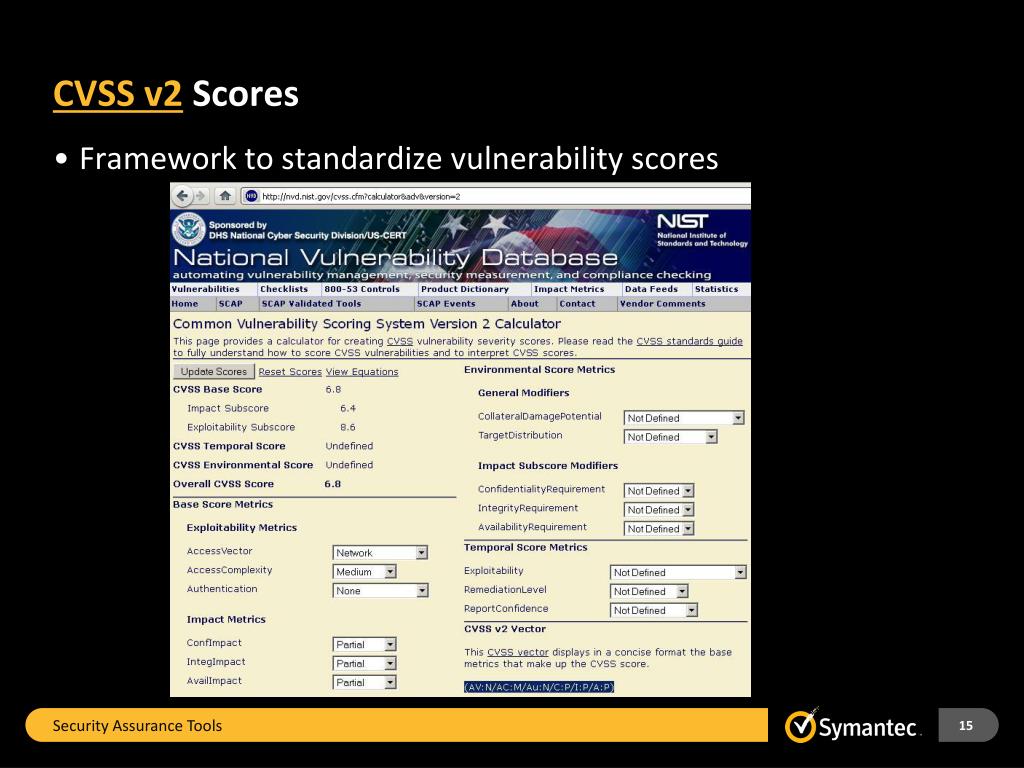

CVSS v2 Scores

  • Framework to standardize vulnerability scores

Security Assurance Tools


Amarendra godbole amarendra godbole@symantec com 91 20 4075 4401

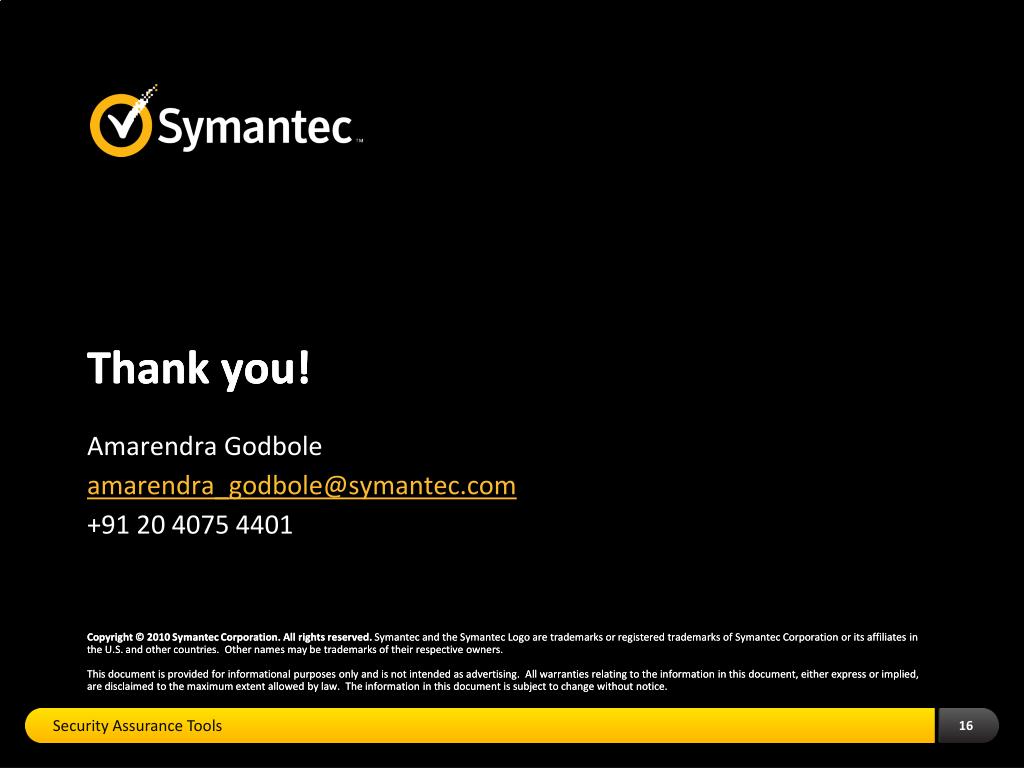

Amarendra Godbole

[email protected]

+91 20 4075 4401
