Satori enlightened page sharing

Satori: Enlightened page sharing

Grzegorz Milos et al., USENIX 09

presenter : Dongwoo Kang

[email protected]


Contents

Contents

  • Motivation

  • Satori

  • Implementation

  • Evaluation

  • Conclusion


Motivation

Motivation


Difficult to increase the memory size

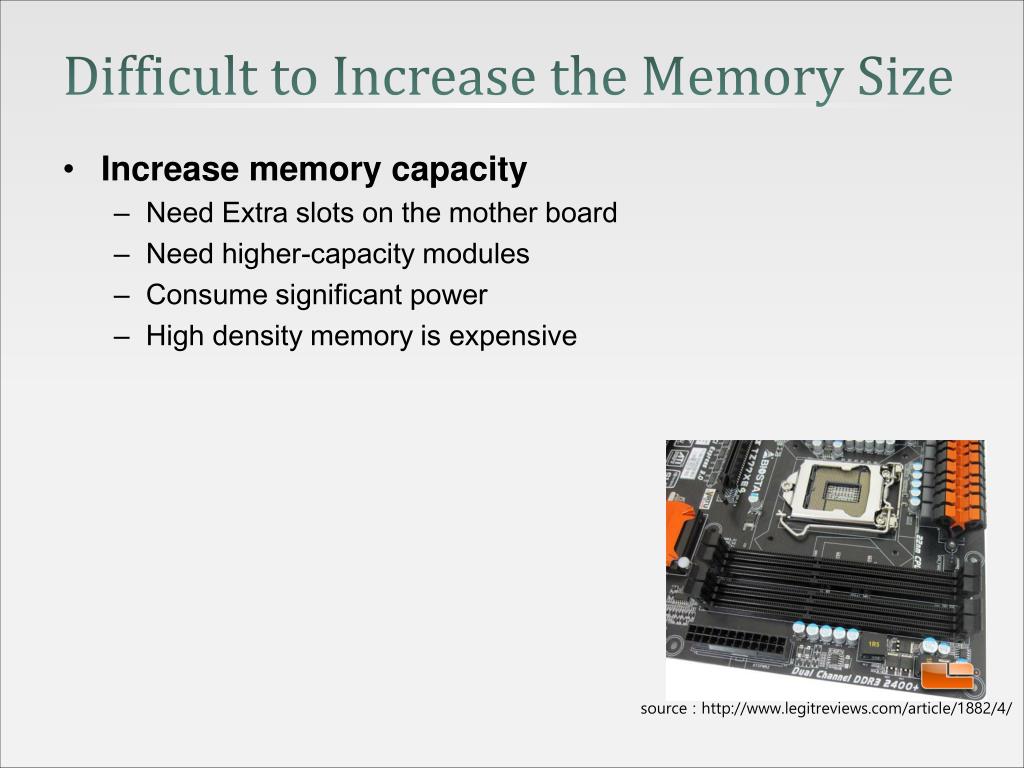

Difficult to Increase the Memory Size

  • Increase memory capacity

    • Need Extra slots on the mother board

    • Need higher-capacity modules

    • Consume significant power

    • High density memory is expensive

source : http://www.legitreviews.com/article/1882/4/


Page sharing cycle

Page Sharing Cycle

Duplicates

Page

Copy

Shared Page

Private Page

Write Attempt

Reclaimed

Duplicates


Motivation 1

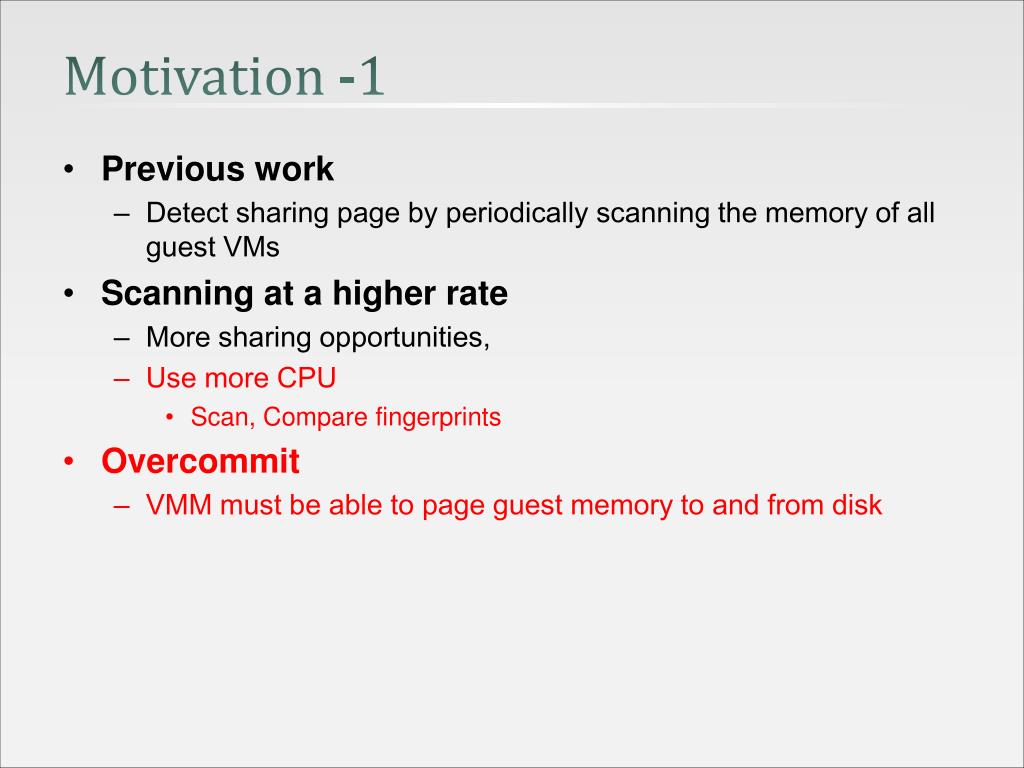

Motivation -1

  • Previous work

    • Detect sharing page by periodically scanning the memory of all guest VMs

  • Scanning at a higher rate

    • More sharing opportunities,

    • Use more CPU

      • Scan, Compare fingerprints

  • Overcommit

    • VMM must be able to page guest memory to and from disk


Motivation 2

Motivation -2

  • Life time of many shareable pages is short

  • KBUILD-256

    • Vanilla Linux 2.6.24 kernel build with 256MB of physical memory

  • KBUILD-512

    • Vanilla Linux 2.6.24 kernel build with 512MB of physical memory


Satori

Satori

The state of sudden indescribable intuitive enlightenment from Wiki

VMs


Satori1

Satori


What is the goal of satori

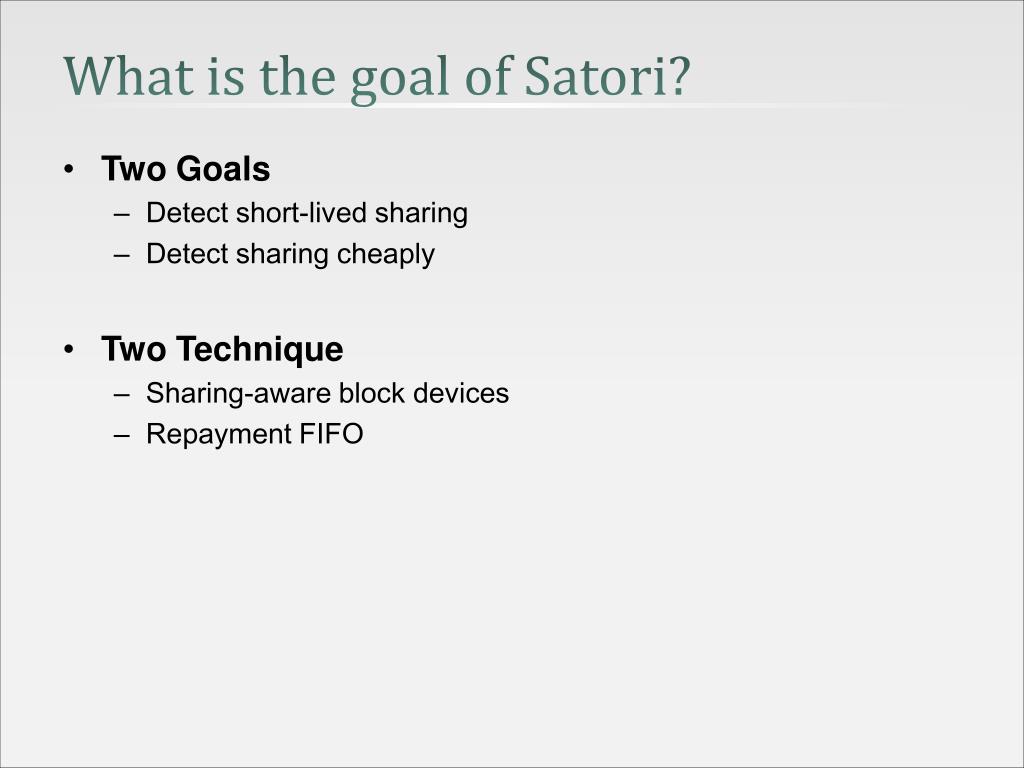

What is the goal of Satori?

  • Two Goals

    • Detect short-lived sharing

    • Detect sharing cheaply

  • Two Technique

    • Sharing-aware block devices

    • Repayment FIFO


How are duplicates detected

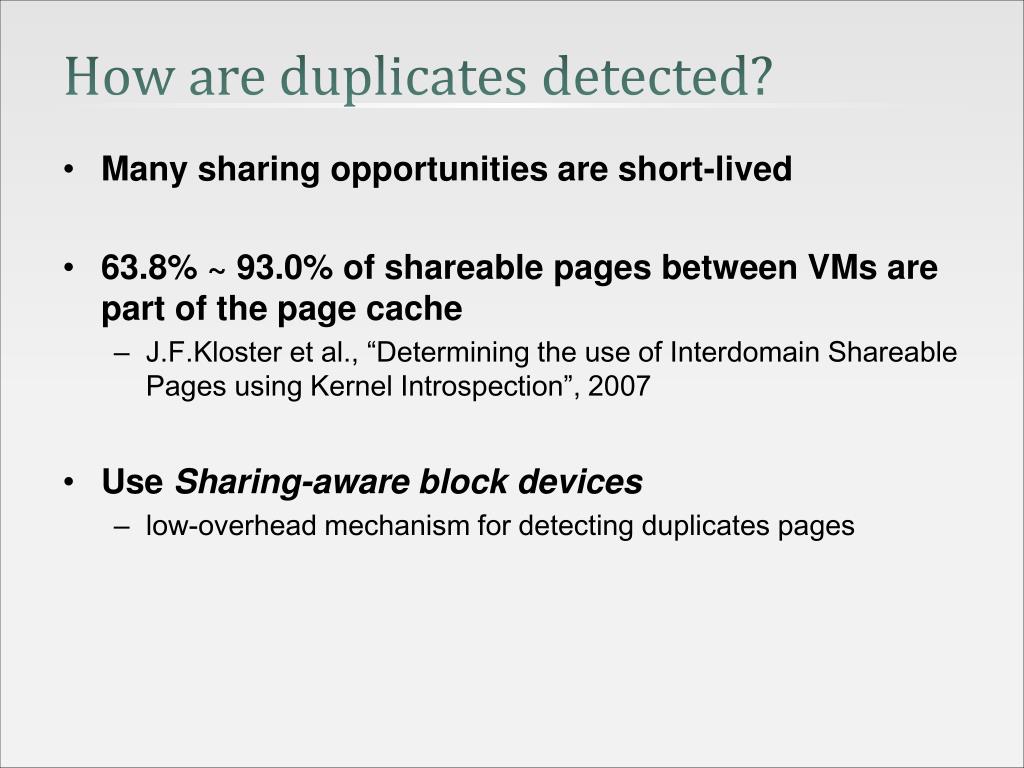

How are duplicates detected?

  • Many sharing opportunities are short-lived

  • 63.8% ~ 93.0% of shareable pages between VMs are part of the page cache

    • J.F.Kloster et al., “Determining the use of Interdomain Shareable Pages using Kernel Introspection”, 2007

  • Use Sharing-aware block devices

    • low-overhead mechanism for detecting duplicates pages


Sharing aware block devices

Sharing-aware block devices

  • It was implemented in tapdisk

  • Content-based sharing

  • Copy-on-write disk sharing

  • Identical OSes use identical data

    • binaries( kernel + programs )

    • libraries

    • configuration files

    • some data files

source : presentation of satori


How are memory savings distributed

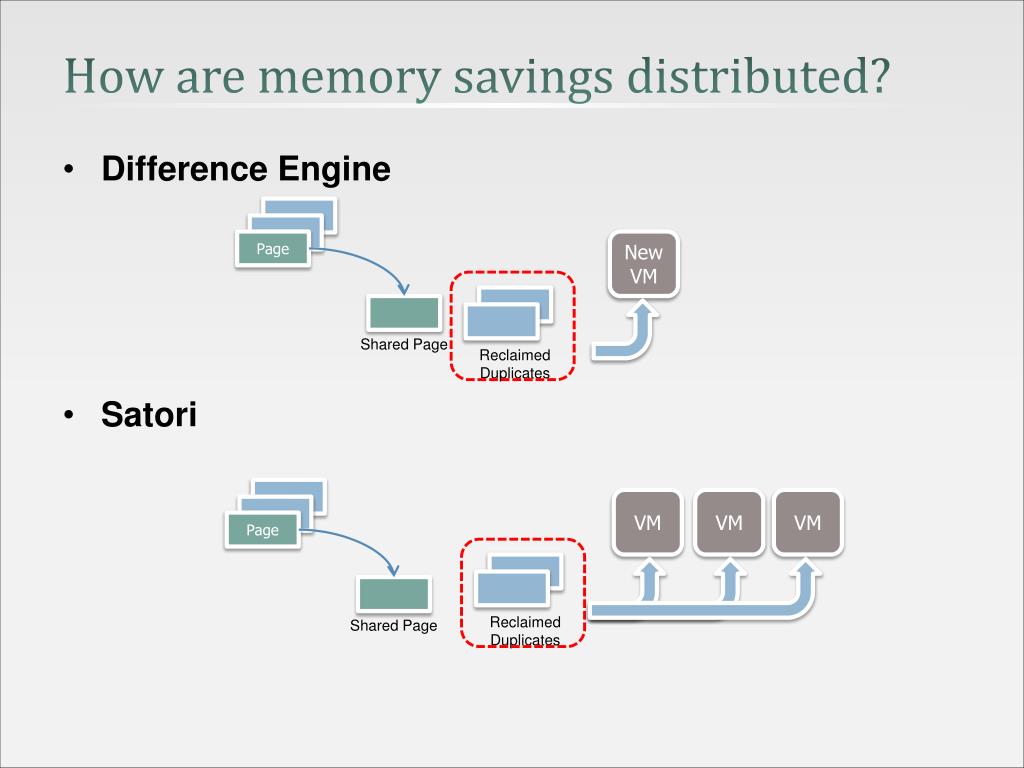

How are memory savings distributed?

  • Difference Engine

  • Satori

New VM

Page

Shared Page

Reclaimed

Duplicates

VM

VM

VM

Page

Reclaimed

Duplicates

Shared Page


Sharing entitlement

Sharing entitlement

  • n is duplicates of the same page

    • it will reclaim n – 1 redundant copies

    • Contributing VM

      • (n-1)/n

  • Sharing entitlement

p : each page

n(p) : sharing rank of page

M(i) : For VM i, which uses the set of pages

s(i) : Sharing entitlement


Example of sharing entitlements

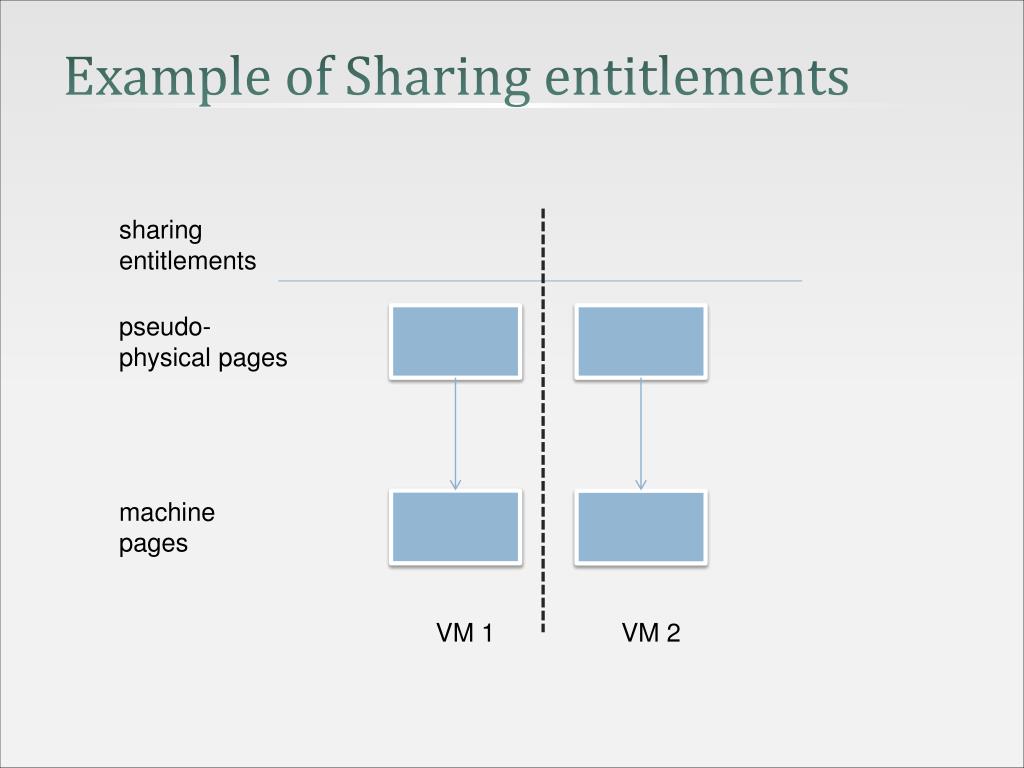

Example of Sharing entitlements

sharing entitlements

pseudo-physical pages

machine pages

VM 1

VM 2


Example of sharing entitlements1

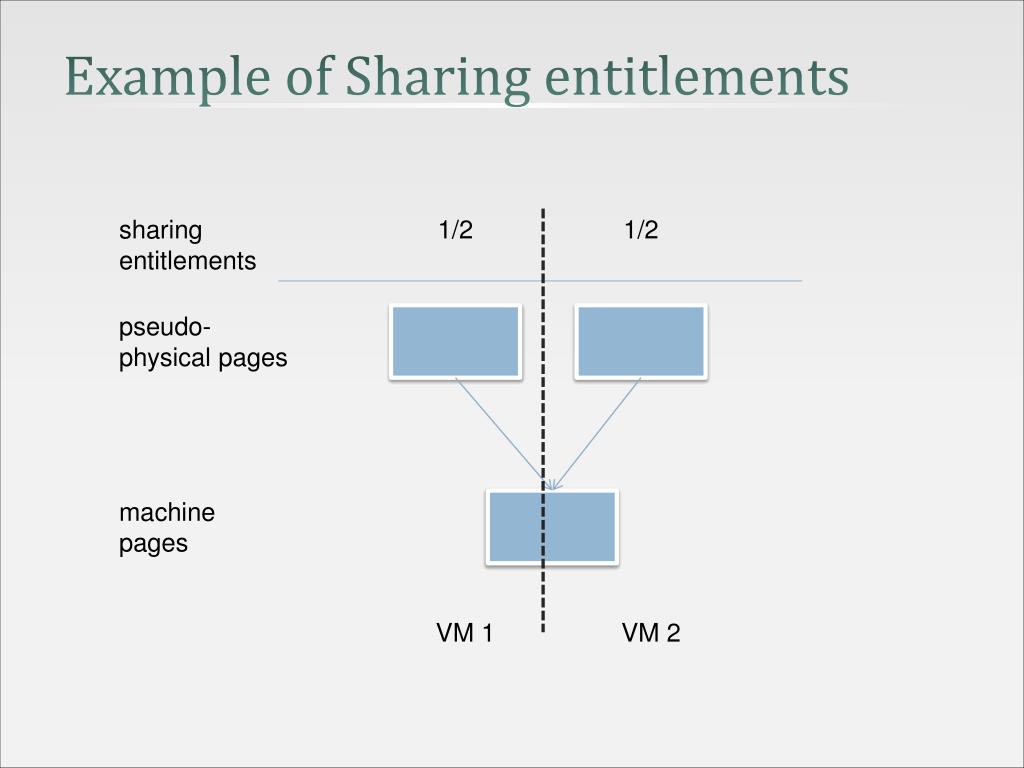

Example of Sharing entitlements

sharing entitlements

1/2

1/2

pseudo-physical pages

machine pages

VM 1

VM 2


Example of sharing entitlements2

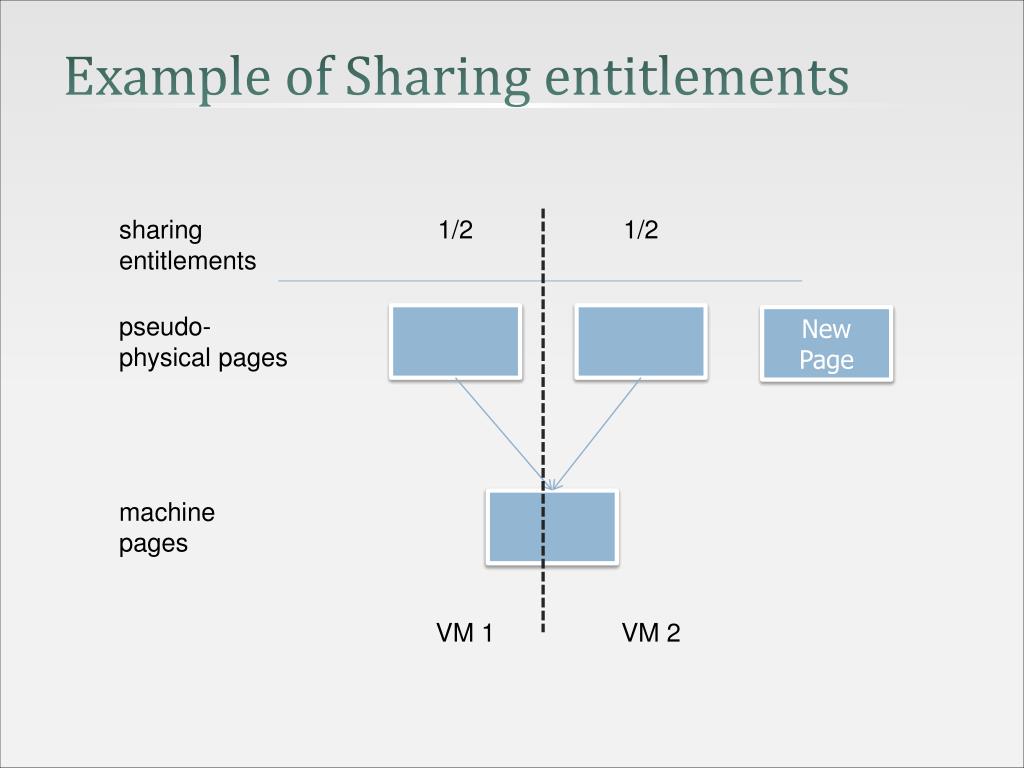

Example of Sharing entitlements

sharing entitlements

1/2

1/2

pseudo-physical pages

New Page

machine pages

VM 1

VM 2


Example of sharing entitlements3

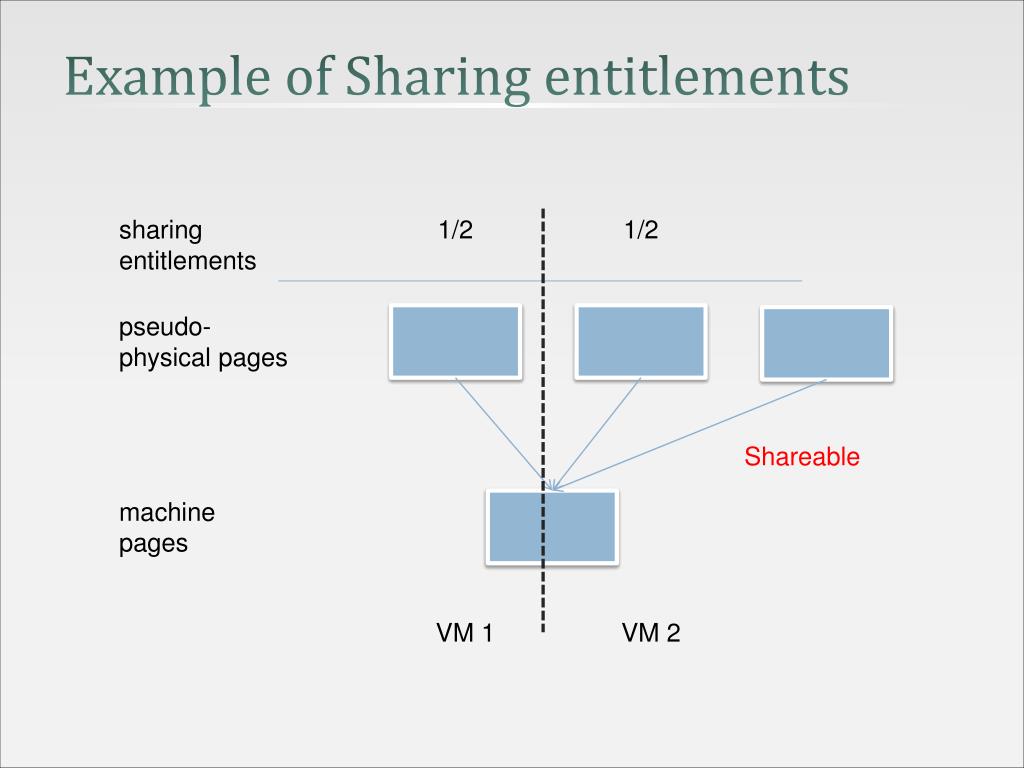

Example of Sharing entitlements

sharing entitlements

1/2

1/2

pseudo-physical pages

Shareable

machine pages

VM 1

VM 2


Example of sharing entitlements4

Example of Sharing entitlements

sharing entitlements

2/3

4/3

2/3

2/3

pseudo-physical pages

2/3

machine pages

VM 1

VM 2


What if sharing is broken

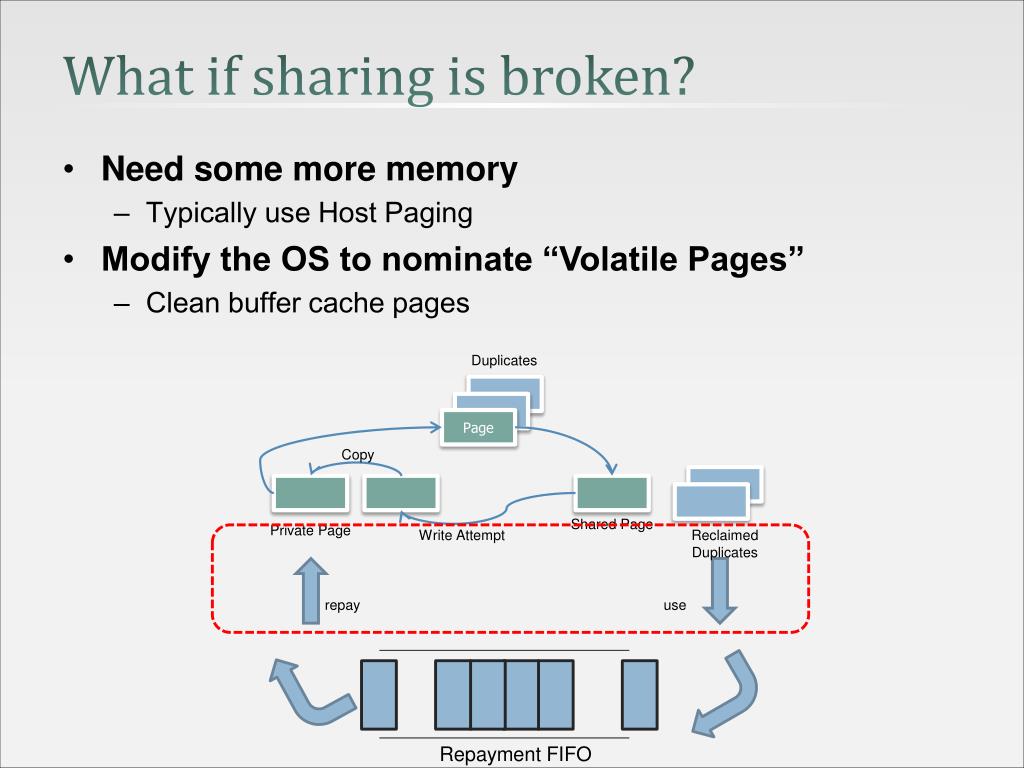

What if sharing is broken?

  • Need some more memory

    • Typically use Host Paging

  • Modify the OS to nominate “Volatile Pages”

    • Clean buffer cache pages

Duplicates

Page

Copy

Shared Page

Private Page

Write Attempt

Reclaimed

Duplicates

repay

use

Repayment FIFO


Satori2

Satori

  • Detect sharing quickly and cheaply

    • HVM scans guest memory and compares fingerprints

    • Monitors virtual I/O devices

  • Distribute memory saving fairly

    • HVM manages common pool of surplus memory

    • VMs receive sharing entitlements in proportion to # pages shared

  • Reclaim memory efficiently

    • HVM implements secondary memory paging algorithm

    • Memory managed exclusively by the VMs sharing exposed to the VMs


Implementation

Implementation


Implementation1

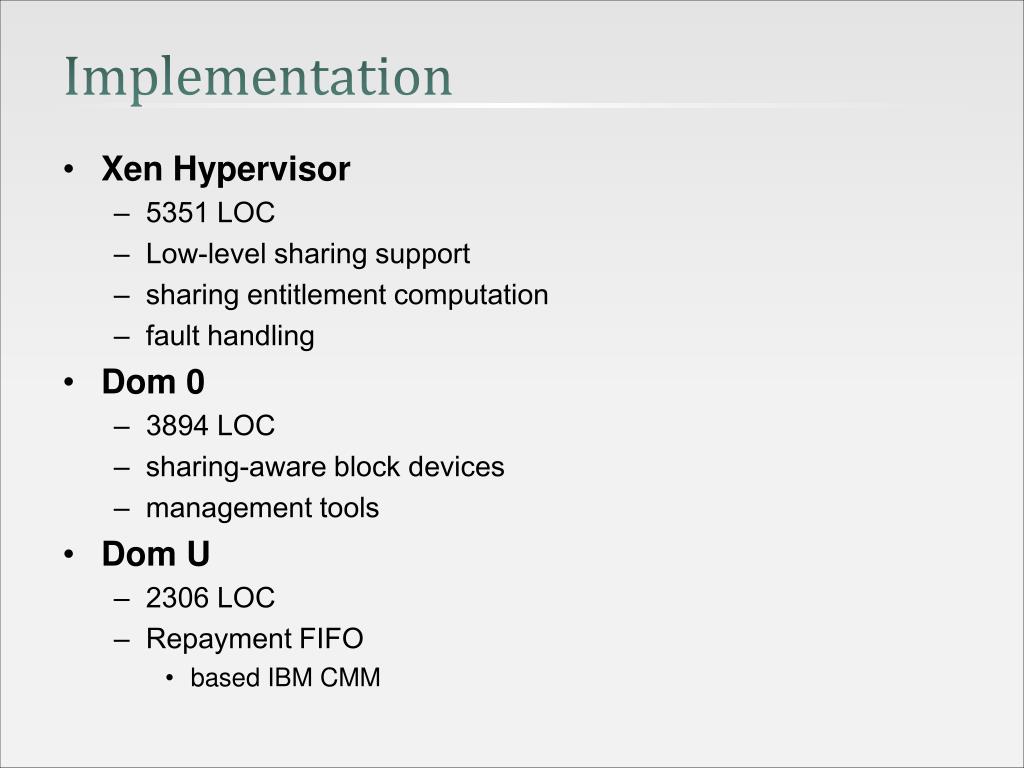

Implementation

  • Xen Hypervisor

    • 5351 LOC

    • Low-level sharing support

    • sharing entitlement computation

    • fault handling

  • Dom 0

    • 3894 LOC

    • sharing-aware block devices

    • management tools

  • Dom U

    • 2306 LOC

    • Repayment FIFO

      • based IBM CMM


Evaluation

Evaluation


Environments

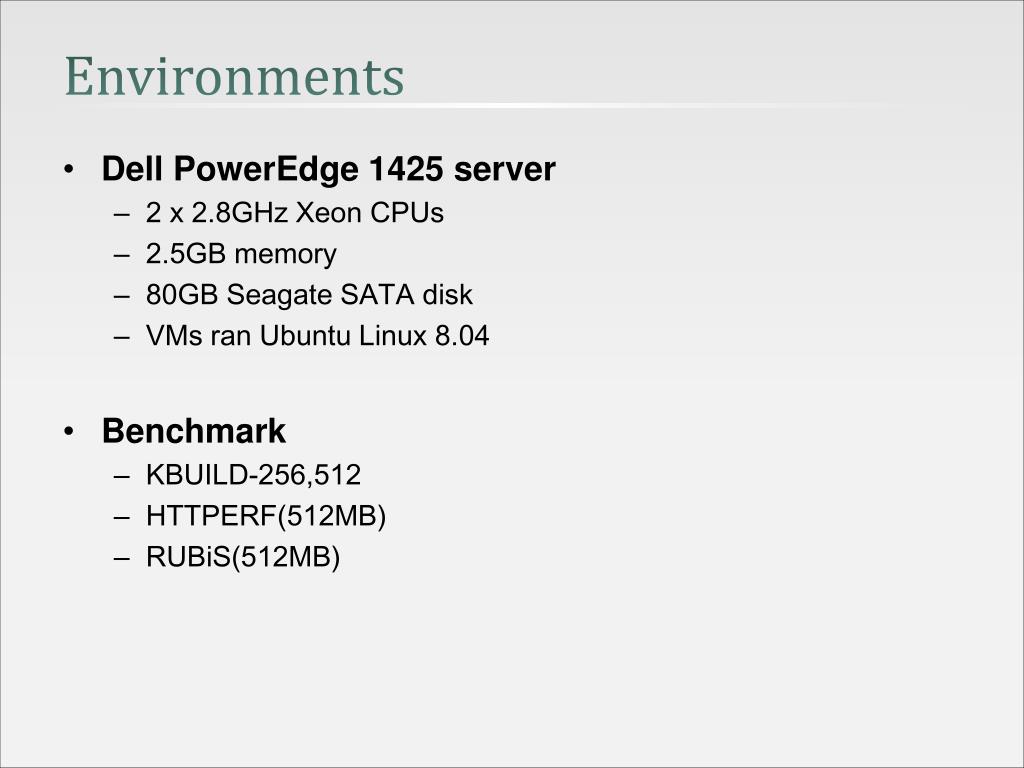

Environments

  • Dell PowerEdge 1425 server

    • 2 x 2.8GHz Xeon CPUs

    • 2.5GB memory

    • 80GB Seagate SATA disk

    • VMs ran Ubuntu Linux 8.04

  • Benchmark

    • KBUILD-256,512

    • HTTPERF(512MB)

    • RUBiS(512MB)


Shareable opportunities

Shareable Opportunities

  • Achieves 94% Opp HTTPERF

  • Achives 91% OppRUBiS

  • Achives 50% Opp KBUILD-512


Performance

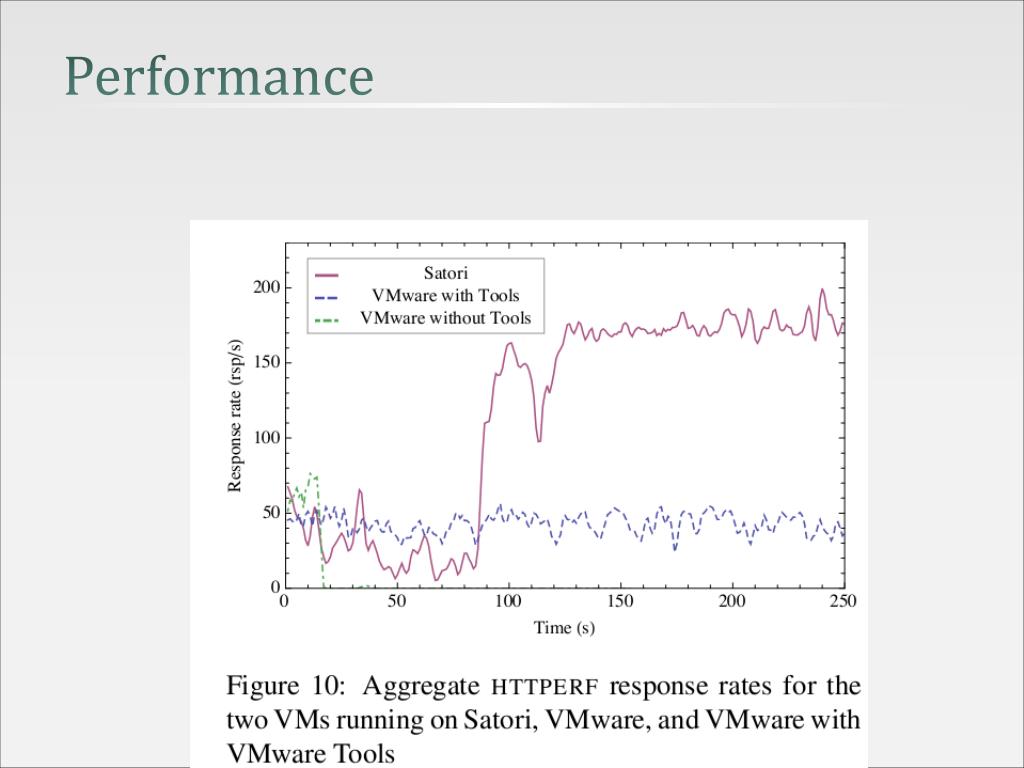

Performance


Conclusion

Conclusion


Conclusion1

Conclusion

  • Satori no need memory scan

    • Detection cheap and effective

  • Satori is effective

    • High Coverage( HTTPERF, RUBiS)


Satori enlightened page sharing

Q & A
