The Edaphosauridae:

Abraham Miranda



Edaphosauridae l.jpg


  • Barrel bodied

  • Small heads

  • Originally lumped together, the subclass Edaphosauria include

    • Edaphosauridae

    • Casea

    • Lupeosauridae

    • Nitrosauridae

  • Romer appeared to have decided Edaphosaurus should have their own subclass, but he was overruled

  • Romer compared the Edaphosaurus to Casea because of their pelycosaur similarities

The edaphosauridae3 l.jpg

The Edaphosauridae

Where the edaphosauridae lived l.jpg

Where the Edaphosauridae lived…

Commonalitys of the edaphosauridae l.jpg

Commonalitys of the Edaphosauridae

  • Projection off the frontal bone, creating a large lappet

  • Quadratojugal not connected to the subtemporal bar

  • Lacrimal bone reaches from the orbits to the naris

  • A narrow skull table

  • Have a supraorbial brow or shelf created from the prefrontal, frontal and post frontal bones

The edaphosaurid head l.jpg

The Edaphosaurid head

  • Postorbital process reduced

  • No connection with the postorbital bone and supratemporal bone

  • Temporal bar is created from the jugal and squamosal bones

  • Quadratojugal jugal is reduced

Back of the head occiput l.jpg

Back of the head- Occiput

  • Supraoccipital is smaller compared to sphenacodonts

Jaw and tooth l.jpg

Jaw and Tooth

  • Articulation of the jaw joint is below the rows of teeth

  • Dentary bone has a big coronid process

  • The prearticular bone is rotated to fit under the pterygoid process of articular bone

  • All marginal teeth slightly enlarged at distal portions

The axial skeleton and the sail l.jpg

The Axial skeleton and the sail

  • Sail: Formed by the neuro spinous processes of the cervical, thoracic, and lumbar vertebrae

  • Neural spines are circular at distal ends

  • Neural spines are laterally compressed at proximal ends

  • Cervical neural spines bend anterioly

  • Posterior neural spines bend posteriorly

  • Neural spine tubercles paired at the proximal ends

The neurospine process sail l.jpg

The Neurospine process Sail

  • Neural spines enlongated on presacral bones

    • Short transverse tubercles

  • Distal neural spines loose dual cylinder structure

    • Stolen from Adam Huttenlocker

Axial and appendicular skeleton l.jpg

Axial and Appendicular skeleton

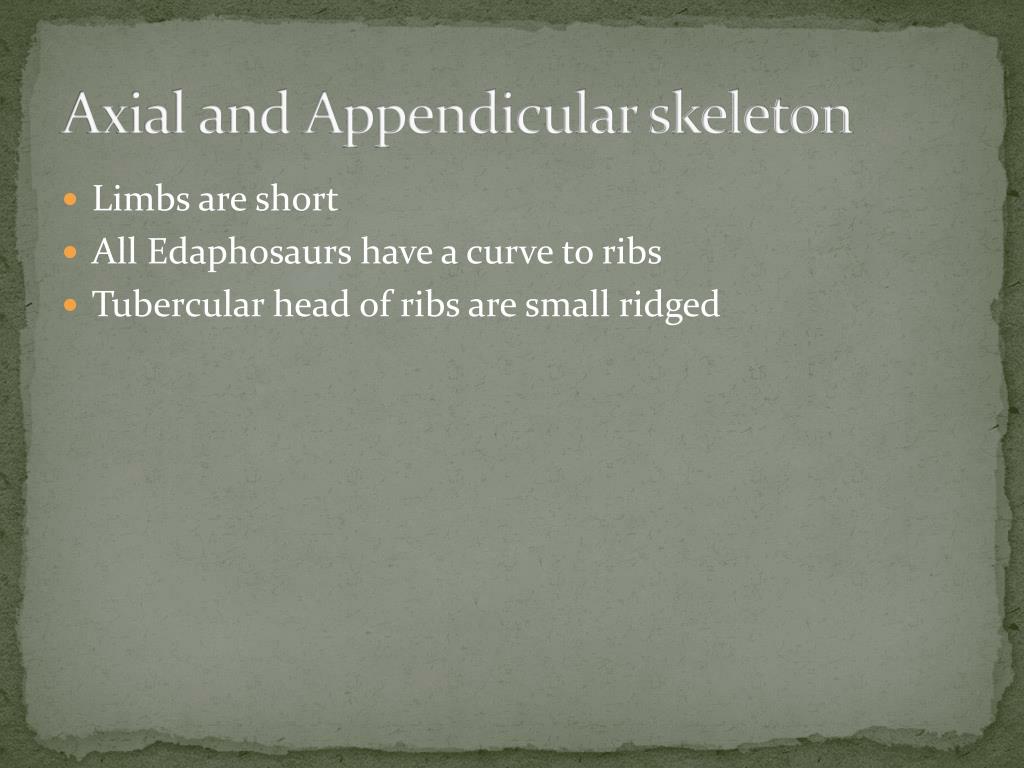

  • Limbs are short

  • All Edaphosaurs have a curve to ribs

  • Tubercular head of ribs are small ridged

Ianthasaurus l.jpg


Slide13 l.jpg


Ianthasaurus14 l.jpg


Ianthasaurus15 l.jpg

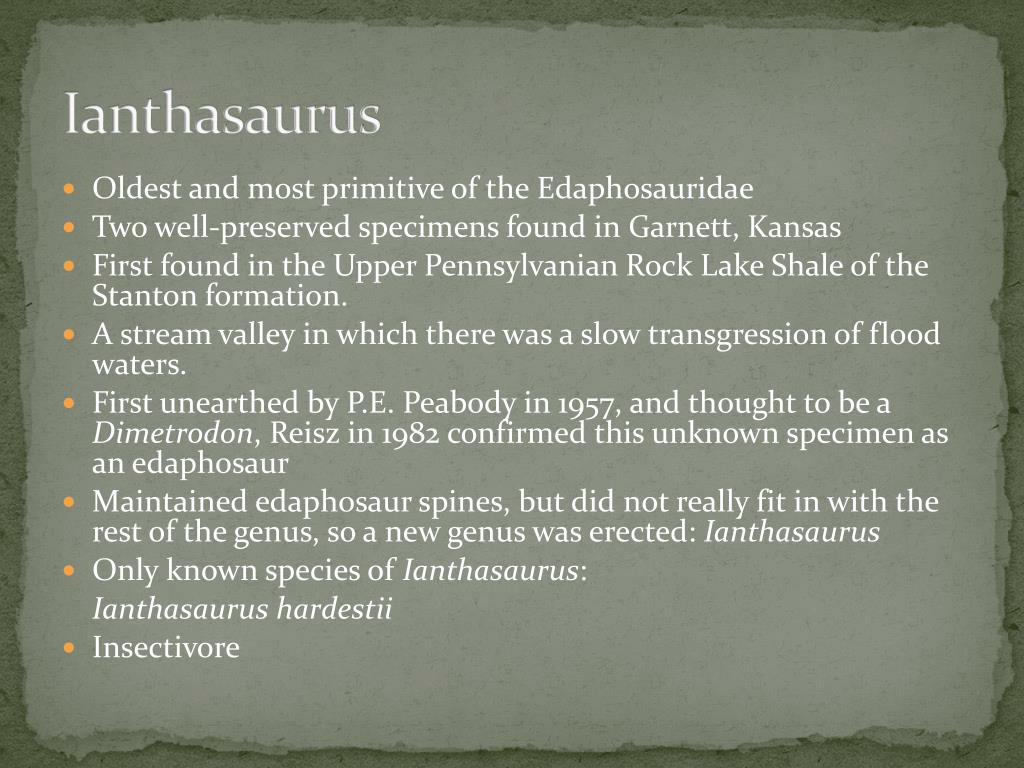

  • Oldest and most primitive of the Edaphosauridae

  • Two well-preserved specimens found in Garnett, Kansas

  • First found in the Upper Pennsylvanian Rock Lake Shale of the Stanton formation.

  • A stream valley in which there was a slow transgression of flood waters.

  • First unearthed by P.E. Peabody in 1957, and thought to be a Dimetrodon, Reisz in 1982 confirmed this unknown specimen as an edaphosaur

  • Maintained edaphosaur spines, but did not really fit in with the rest of the genus, so a new genus was erected: Ianthasaurus

  • Only known species of Ianthasaurus:


  • Insectivore

Ianthasaurus hardestii l.jpg

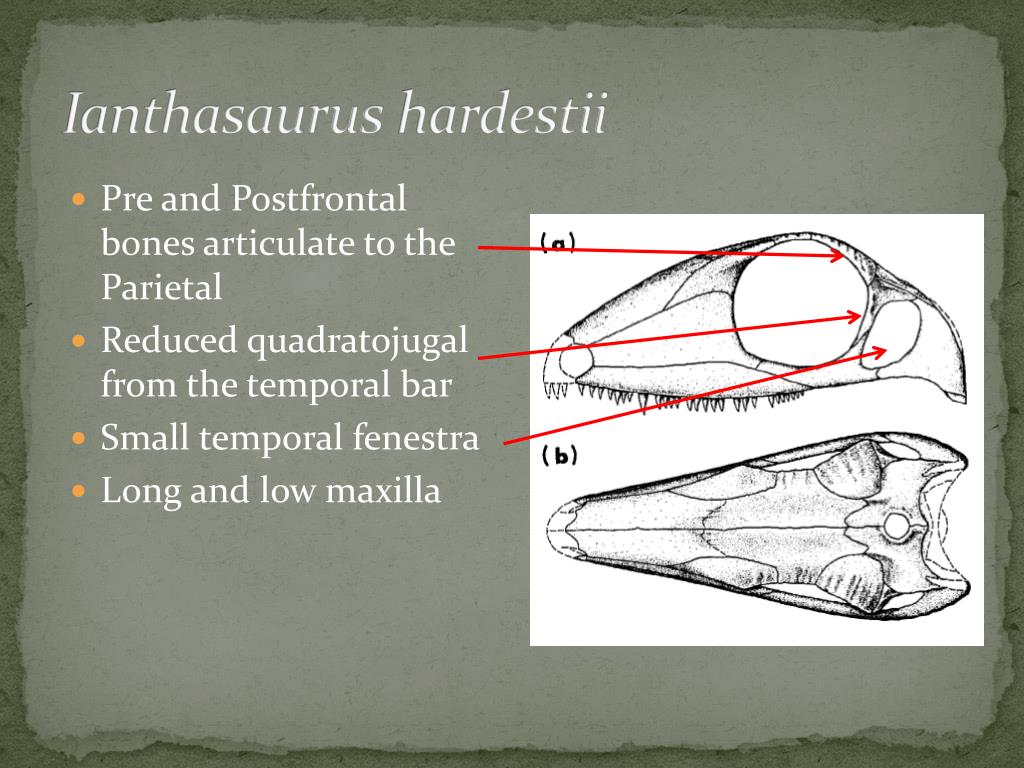

  • Pre and Postfrontal bones articulate to the Parietal

  • Reduced quadratojugal from the temporal bar

  • Small temporal fenestra

  • Long and low maxilla

Dorsal view of the ianthasaurus l.jpg

Dorsal view of the Ianthasaurus

Tooth and jaw l.jpg

Tooth and jaw

  • 27-29 teeth

  • Enlongate maxilla

  • Caniniform teeth

  • Sharp and recurved posteriorly dentition

  • Homodont dentition

  • No toothplates

  • Palatine teeth infer insectivory

Cervical vertebrae l.jpg

Cervical Vertebrae

  • Centrum lengths of the Cervical vertebrae are greated than the rest of the presacral vertebrae

  • Neural spines running of the cervical vertebrae are thicker and more robust

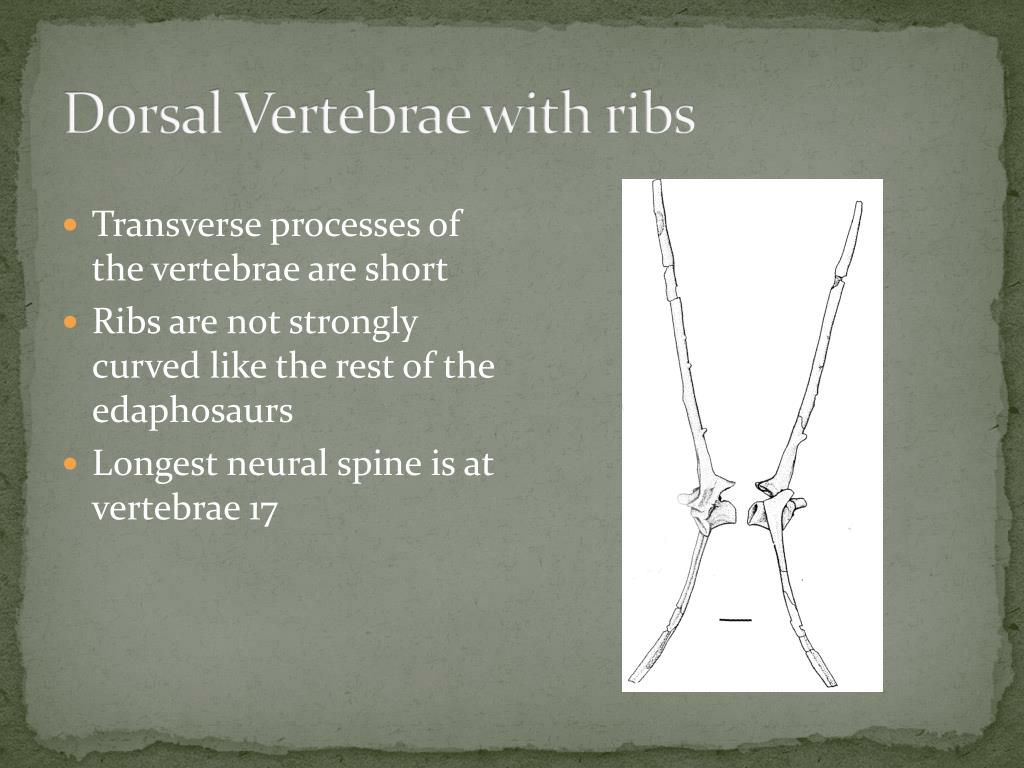

Dorsal vertebrae with ribs l.jpg

Dorsal Vertebrae with ribs

  • Transverse processes of the vertebrae are short

  • Ribs are not strongly curved like the rest of the edaphosaurs

  • Longest neural spine is at vertebrae 17

Lumbar vertebrae l.jpg

Lumbar vertebrae

  • 29 Presacral vertebrae

  • Lack tubercles on the neural spines

Neural spine sail l.jpg

Neural Spine Sail

  • Neural spine sail is the smallest of the Edaphosauridae

  • No more than 5 tubercles on neural spines

  • 27 Neural spines in the sail

  • No central elements in all neural spines

  • Neural spines lean forward in cervical region and rearward in the lumbar region

  • Neural spines begin at third cervical vertebrae on down to the second to last lumbar vertebrae

  • Measurements of the centra impossible to crush and bad preparation

  • Proximal portions of the neural spines are laterally compressed

  • Neural spines are subcircular at the basal tubercle

  • Considered a tool for heat exchange over a sexual dimorphism or “solar collector”

Appendicular skeleton l.jpg

Appendicular Skeleton

  • Right scapulocorocoid

  • Left pelvis

  • Partial manus

  • Left humerous

  • Only 2 usable Ianthasaurus have been recovered

Scapula corocoid humerous l.jpg

Scapula, corocoid, Humerous

  • Medial view: the scapular and anterior corocoid is exposed.

  • Posterior corocoid is unavalible

  • Scapula and corocoid are separated by nature or by degradation along suture contact

  • Gleniod is too poorly preserved

  • Supragleniod foramen exist?

  • At the anterior margin of scapular blade, a notch is seen in many pelcosaurs

  • Function?

  • Anterior corocoid expanded dorsoventrally and with a convex shape.

  • Function?

The humerus l.jpg

The Humerus

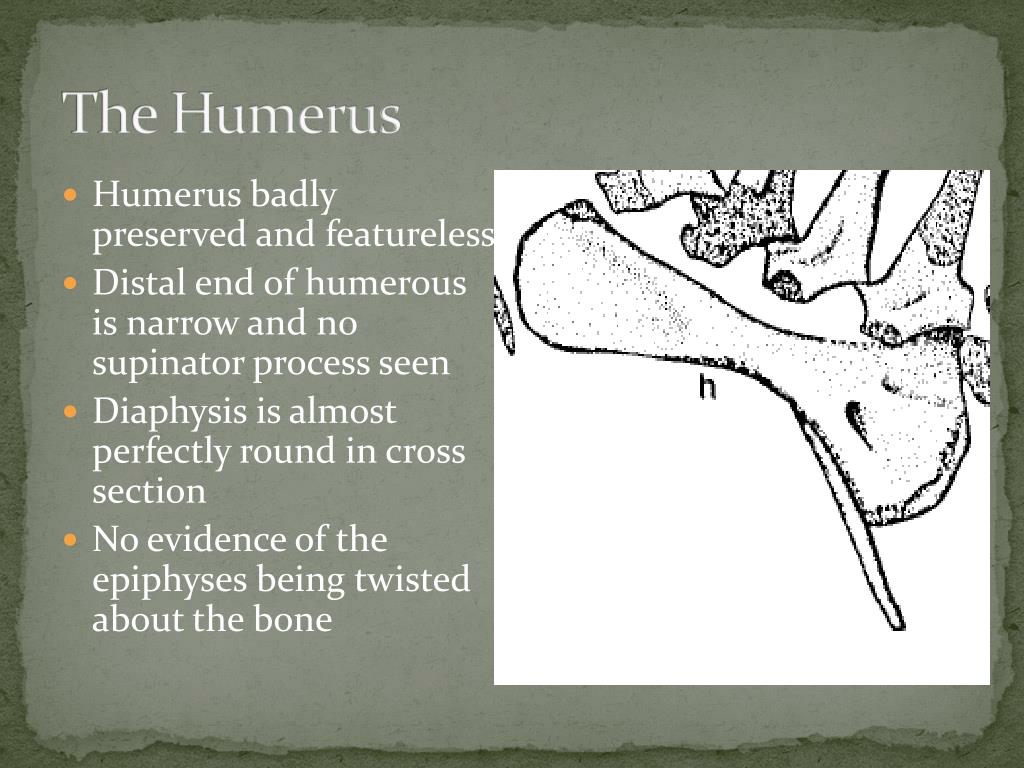

  • Humerus badly preserved and featureless

  • Distal end of humerous is narrow and no supinator process seen

  • Diaphysis is almost perfectly round in cross section

  • No evidence of the epiphyses being twisted about the bone

Manus l.jpg

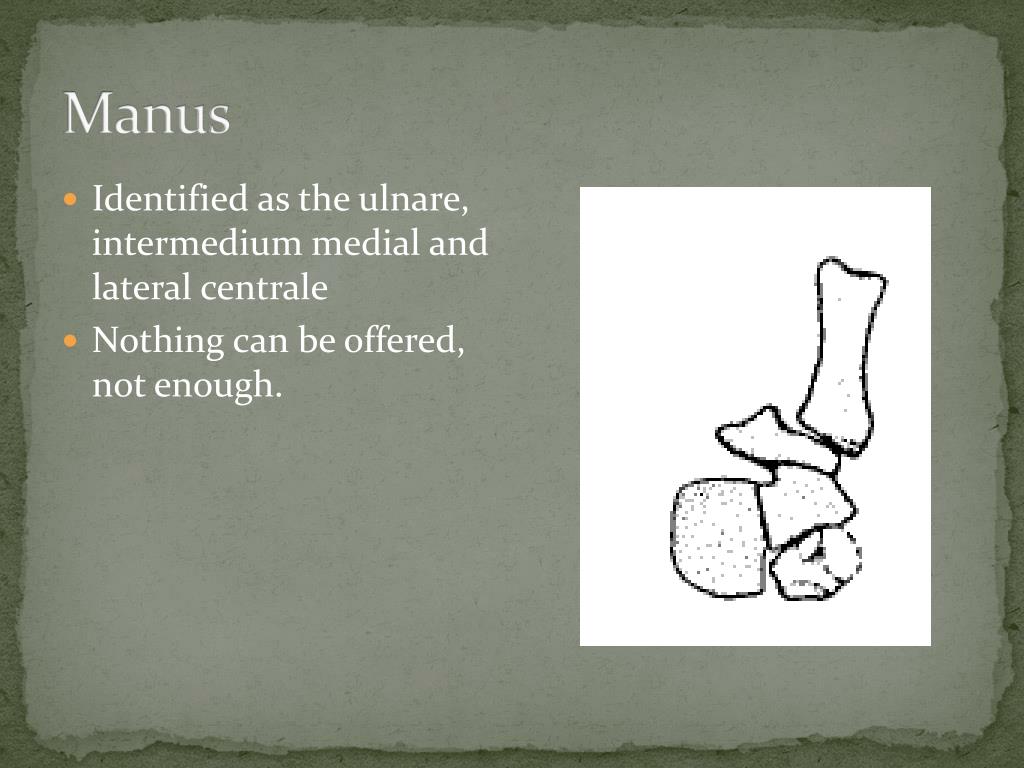

  • Identified as the ulnare, intermedium medial and lateral centrale

  • Nothing can be offered, not enough.

Left pelvis l.jpg

Left Pelvis

  • Illuim is well-developed with a blade-like processes extending posteriorly

  • The anterodorsal process is smaller than the posteriordorsal process

Pelvis ribs l.jpg


  • Ribs are slighly curved with a smooth tubercular bump

  • Complete ilium has been found

  • Pubis and ischium have been lost

  • Iliac blade is extended posteriorly like other primitive pelycosaurs

  • Obturator foramen on posterior edge , but posterior boarder is opened

  • Indicates that this specimen is immature

  • Ischium retains the structure of other early pelycosaurs

  • Pubis and ischium are narrowly connected below the acetabulum

Glaucosaurus l.jpg

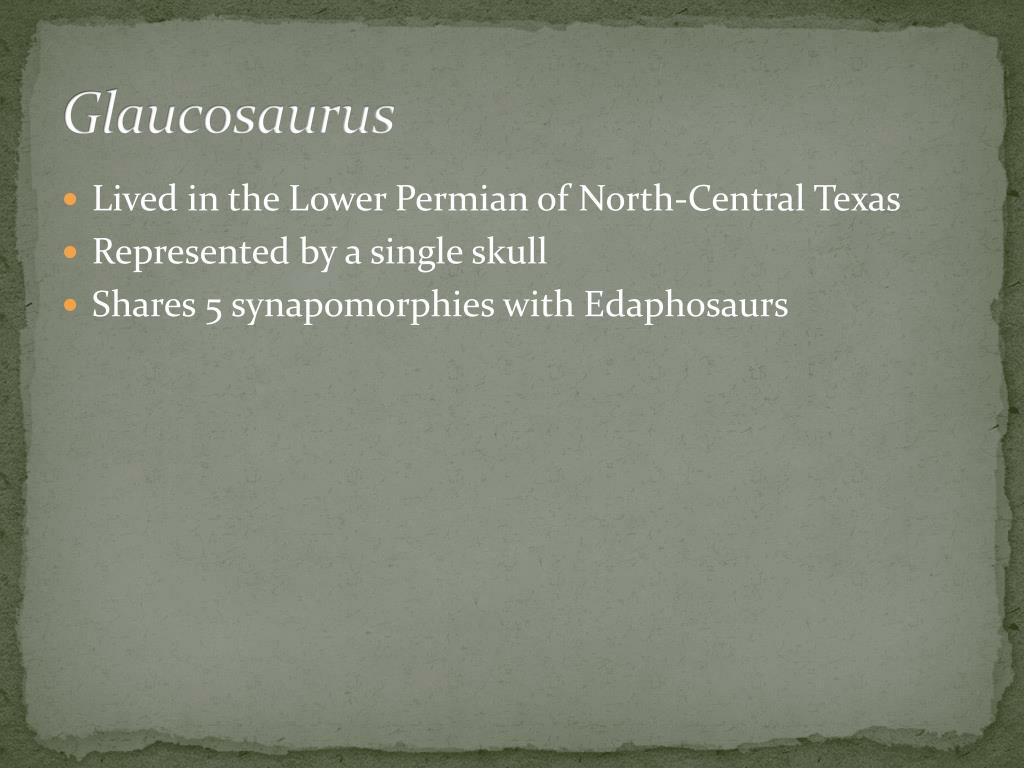

  • Lived in the Lower Permian of North-Central Texas

  • Represented by a single skull

  • Shares 5 synapomorphies with Edaphosaurs

Glaucosaurus30 l.jpg


What is G?

G= 5 reasons

5 reasons to be an edaphosaur l.jpg

5 Reasons to be an Edaphosaur

  • Transverse flange of pterygiod is missing

Slide32 l.jpg

  • The prefrontal bone ventral process is transversly expanded

5 reasons to be an edaphosaur33 l.jpg

5 Reasons to be an Edaphosaur

  • No caniniform teeth

  • No caniniform region

  • Premaxillary and maxillary teeth identical

Edaphosaurus l.jpg


  • 8 species currently recognized

  • Edaphosaurus

    • E. boanerges

    • E. cruciger- largest sail

    • E. pogonias

    • E. novomexicanus

    • E. colohistion

    • E. credneri

    • E. raymondi

Recovered edaphosaur remains l.jpg

Recovered Edaphosaur Remains

  • Most species are described by 1 or 2 badly preserved skulls

  • Many specimens found in the Geraldine Bonebed in Archer County, Texas

  • Larger barrel shaped body over Ianthasaurus

Ianthasaurus36 l.jpg


Edaphosaurus boanerges and friends l.jpg

Edaphosaurus boanerges and friends

  • Dozens of specimens found in North-Central Texas

  • Many complete skulls

  • No so many complete skeletons

  • Used as the model for all Edaphosaurs

Edaphosaurus boanerges l.jpg

Edaphosaurus boanerges

Edaphosaurus pongonias l.jpg

Edaphosaurus pongonias

Skull information l.jpg

Skull information

  • Reduced skull size

  • Head is the size of 5 dorsal centra

  • Not as enlongate as the Ianthasaurus

  • Process of the postorbital is short, not extending to the parietal foramen

  • Nasal bone is ¾ the size of the frontal

  • Subtemporal bar is displaced superiorly

  • Temporal fenestra is enlarged anteriorly and posteriorly

Slide41 l.jpg

  • Supraorbital shelf is wide and deep concealing the orbits

  • Lacrimal bone is thin at the maxillae and progressively thickens posteriorly suggesting it carries some kind of load and transfers it to the prefrontal

  • Prefrontal and lacrimal form a buttress attachment for reinforcement

  • The nasal bone has a “scarred shelf” and sutures that lock into the prefrontal bone as well as thicken around the orbit.

  • Suggests that carries load for feeding

Edaphosaurs l.jpg


  • Premaxilla is enlongated in cross section

  • Premaxilla has 5 teeth, but none have survived to determine dimensions

  • The maxilla accomodates

  • 18-21 teeth

  • No Caniniform teeth

  • No Caniniform region

  • No pterygiod flange

  • All Homodont/isodonty dentition

Ventral and medial aspects l.jpg

Ventral and medial aspects

  • Jaw is suspended way below the upper tooth row

  • Well developed tooth plates on palate and mandible

  • Densely packet teeth

  • Tooth plates form on the palate and inner aspect of the mandible

  • Palatal plate consists of the pterygoidectopterygiod, and palatine

Ventral and medial aspects44 l.jpg

Ventral and medial aspects

  • Mandibular tooth plate is formed by the coroniod, posterior coroniod, and prearticular bones

  • Denticulated plate is formed by the ant coroniod, coroniod and prearticular bones

  • 120-150 teeth per palatal bone plate

  • Maxilla bone is twisted out laterally

  • Dentary bone is twisted in medially

  • Purpose?

Edaphosaur mandibles l.jpg

Edaphosaur mandibles

  • Massive tooth plate found on the mandible, bigger than on the maxilla/palate

  • Deeply cut through mandibularsymphysis

  • Jaw articulation denoted propalinal or front to back movement of jaws

  • Maxillary teeth progressively angle backwards as you go to the dentary bone

Edaphosaur teeth l.jpg

Edaphosaur Teeth

  • Reduced homodont dentition

  • Isodonty in the marginal teeth cropped plant matter

  • Teeth are distally swollen

  • Fine serrated tips curving backwards

  • Palatal and mandibular tooth plates served as primary grinders of plant matter

  • Posterior maxillae and dentary teeth assisted with minor grinding

Occipital view of the skull l.jpg

Occipital view of the skull

  • Supraoccipital has little lateral exposure

  • Tabular bones are thick towards the parietal, but they are thin and suture into paraocciptal bones

  • Postorbital is a slender sigmiodal bone.


Cervical vertebrae48 l.jpg

Cervical Vertebrae

  • Cervical vertebrae are extremely short compared to the dorsal and lumbar vertebrae

  • Ianthasaurus has longer centra on their cervical vertebrae

  • Contain neural spines that are enlongated with longitudinal ridges at the sides of the spines

Dorsal vertebrae l.jpg

Dorsal Vertebrae

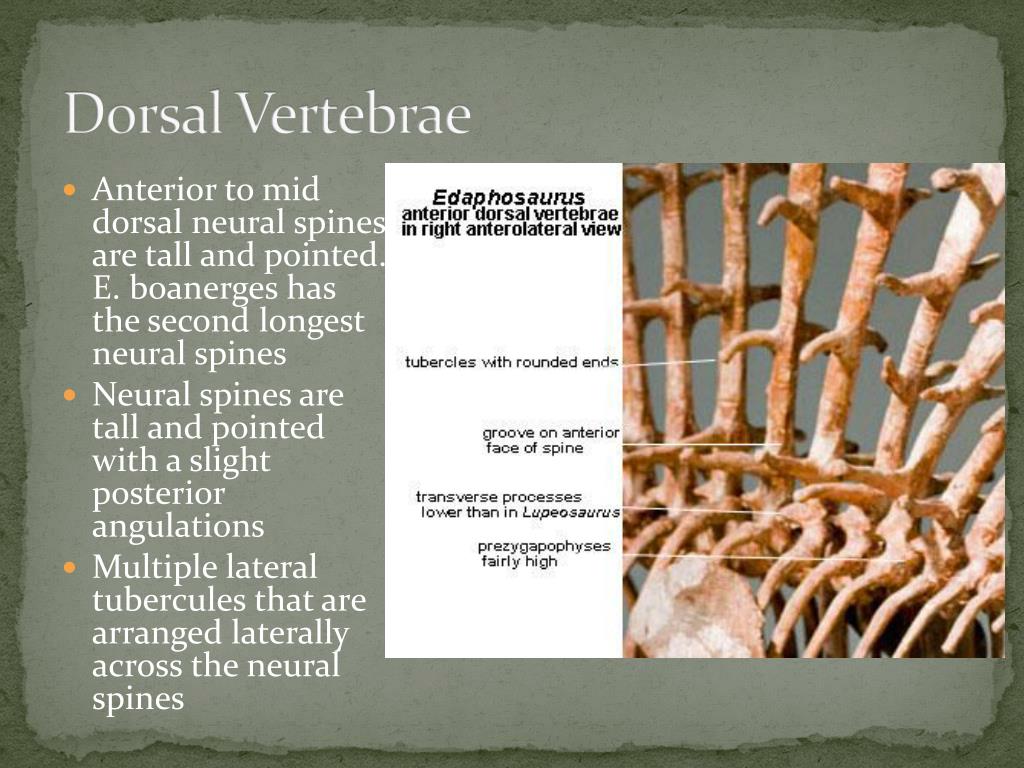

  • Anterior to mid dorsal neural spines are tall and pointed. E. boanerges has the second longest neural spines

  • Neural spines are tall and pointed with a slight posterior angulations

  • Multiple lateral tubercules that are arranged laterally across the neural spines

Sacral and caudal vertebrae l.jpg

Sacral and Caudal Vertebrae

  • Neural spine tips of sacral and caudal vertebrae are roughened or crenulated like a castle

  • They have longitudianal ridges that are rough

Anterior view w/ R rib

Clavicle and shoulder l.jpg

Clavicle and Shoulder

  • Ventrally hypertropied clavicle

  • A heavy scapular blade

  • A reinforced or

  • Butressedsupragleniodfossa

  • Increased coracoid processes

Neuro spinal process sail l.jpg

Neuro spinal process (sail)

  • Anterior neural spines neural spines lean forward, lean posteriorly towards lumbar neural spines.

Slide53 l.jpg


  • Dorsal ribs are strongly curved to the midline

  • Tuberculae are well developed and slightly roughened

Pelvis l.jpg


  • Ilium: anterodorsal process are in equal size of the posterodorsal process.

Special case e raymondi l.jpg

Special case: E. raymondi

  • First fragments recovered by P.E. Raymond in Pitcairn,Pennsylvania in 1908

  • Romer and Price wanted to keep this sample as E. mirabilis, but renamed it due to geopgraphic incompatibilies (1940)

  • Permian sample

  • Only small spine fragment with some tubercles found

Is it really its own species l.jpg

Is it really its own species?

  • 12mm long

  • Oval in cross-section

  • Anterior and posterior sides cannot be dicerned

  • Little of lateral tubercle survives

  • Unknown mature sample

  • Declared a novum vanum

Lupeosaurus what happened to the head l.jpg

Lupeosaurus…. What happened to the head?

Lupeosaurus tenative edaphosaur l.jpg

Lupeosaurus (tenative Edaphosaur)

  • Early Permian pelycosaur found in the Wichita deposits of Texas

  • First thought by Romer or intermediate betweeen Edaphosaurus and Dimetrodon

  • Lack of cranial fossils

  • Lack of Ianthasaurus-like shoulder girdle, nothing to compare it to.

Cervical vertebrae59 l.jpg

Cervical Vertebrae

  • Only 3 survived

  • Centrum is 30mm long

  • Have a mid ventral keel

  • The centra have a diamond shape when cut transversly

  • This aspect is considered to be conserved through out the vertebral column

  • Anterior and posterior articular faces have “heavy lips”

  • Transverse processes are nearly identical to Edaphosaurus

Sacral vertebrae l.jpg

Sacral Vertebrae

  • Sacral vertebrae have been recovered , but the number is unknown

  • Considered robust and shorter, but the anterolateral aspect is dominated by the articulation to the ribs

All vertebrae l.jpg

All Vertebrae

  • NO tubercles

  • Elevated transverse processes across the vertebral column

  • Zygapophyses are elevated

  • The centrum have a projecting keel

Neural spines l.jpg

Neural spines

  • Lacked trabecular crossbars in neural spines

  • Mid-Dorsal Neural spine end missing

  • Neural spines have a forward tilt of 20 degrees at the base

  • Neural spines appear triangular at the base

  • 8 spines have been recovered, considered to belong to the cervical vertebrae

  • Tall and narrow, no lateral depressions or modifications

  • Subcircular in cross-section

Mid dorsal vs posterior neuro spinal processes l.jpg

Mid-dorsal vs. Posterior neuro spinal processes

  • Mid Dorsal neural spines extend vertically , or almost perpendicular to level of the vertebral column

  • Posteriodorsalneurospinous processes lean posterior of the animal

  • Maintain a similar orientation to that of Ianthasaurus

Clavicle l.jpg


  • Expanded ventral aspect

  • Slightly bigger than the range of the edaphosaur clavicle

  • Anteromedial aspect is thick but the anterodorsal aspect is missing. Maybe some of clavicle is missing!

Scapulocoracoid l.jpg


  • Dorsal edge of scapula preserved

  • Scapula blade could be larger and longer than any previous recorded pelycosaur!

  • Probably smooth surfaced

  • Contains a broad convex fossa on medial side for large subcorocoid muscle

  • Supragleniod contains lots of bone

  • Gleniodfossa is marginally preserved, hard to analyze

Ending findings l.jpg

Ending findings

  • An enlarged sail seems to be primitive, with advanced organisms down regulating the sail size.

  • Conversion from omnivorous to plant eater with advancing species

  • Edaphosaurs and Ianthasaurs clearly vary

    • Look for key features

    • Caniniformvs non-caniniform

    • Prefrontal transverse process

    • Smooth or roughened neural spines

  • Glaucosaurs: an interesting intermediate

  • Lupeosaurs are tenativeedaphosaurs, but their vertebral and spinous process features confirm their standing as Edaphosaurs

  • Login
