  1. CS566 Parallel Programming, Spring '13 GPU Computing and CUDA Cijo Thomas Janith Kaiprath Valiyalappil

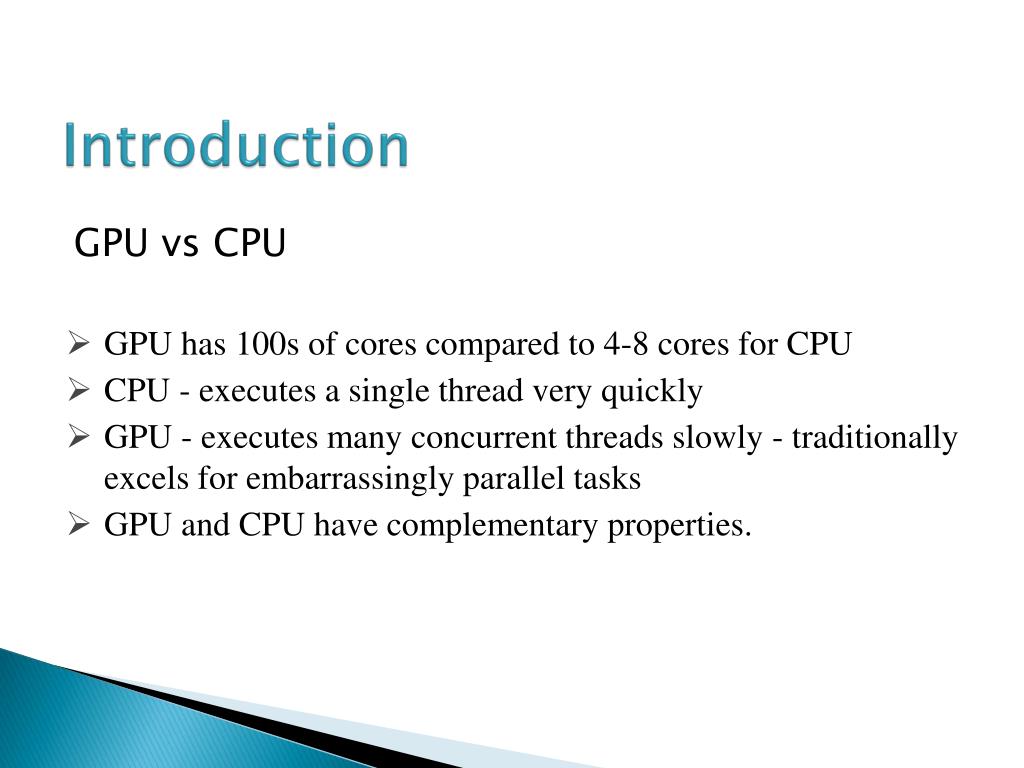

  2. Introduction GPU vs CPU • GPU has 100s of cores compared to 4-8 cores for CPU • CPU - executes a single thread very quickly • GPU - executes many concurrent threads slowly - traditionally excels for embarrassingly parallel tasks • GPU and CPU have complementary properties.

  3. GPGPU • Solve General Purpose problems using GPU. • Core idea is to map data parallel algorithms into equivalent graphics concepts • Have to make heavy use of graphics APIs. • Traditionally a cumbersome task • Never gained prominence among developers. Until......

  4. CUDA - Introduction • Compute Unified Device Architecture • Released in 2006 by NVIDIA • Easy programming of GPU using C extension • Transparently scales harnessing the ever growing power of NVIDIA GPUs • Programs portable to newer GPU releases

  5. CUDA - Architecture • Scalable array of multi-threaded SMs (Streaming Multiprocessors) • Each SM consists of multiple Streaming Processor (SM) • Inter-thread communication using shared memory • CUDA Terms – Host – CPU Device - GPU

  6. CUDA - Architecture (Cntd.) [Nickolls,ACM,2008]

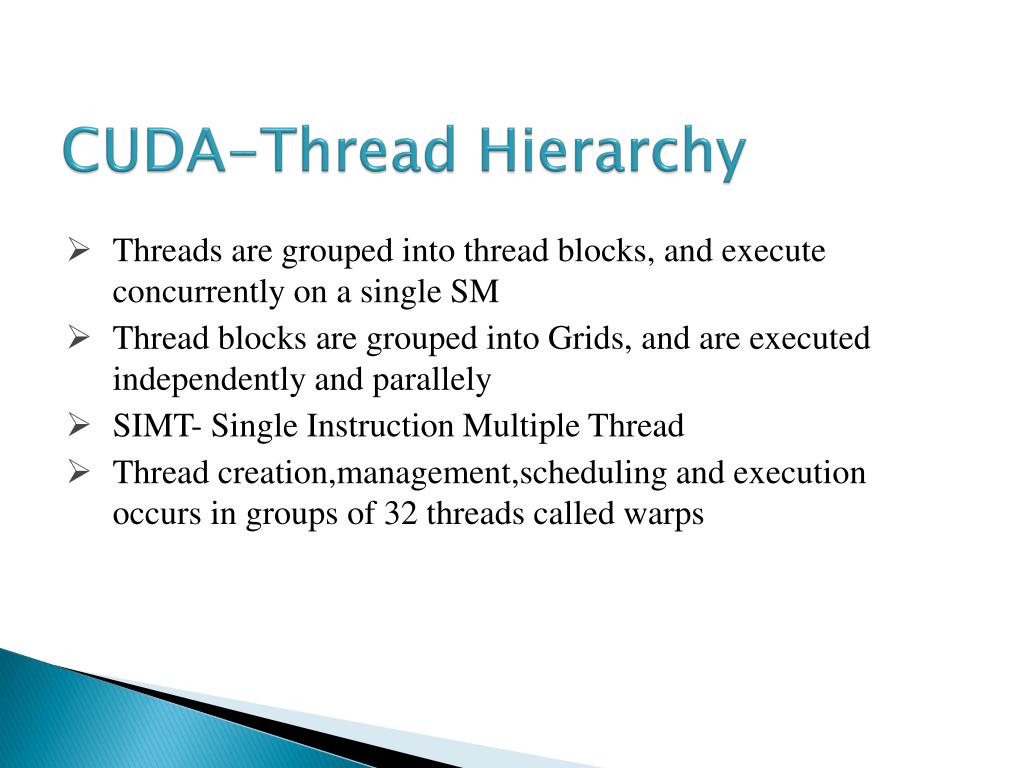

  7. CUDA-Thread Hierarchy • Threads are grouped into thread blocks, and execute concurrently on a single SM • Thread blocks are grouped into Grids, and are executed independently and parallely • SIMT- Single Instruction Multiple Thread • Thread creation,management,scheduling and execution occurs in groups of 32 threads called warps

  8. CUDA-Thread Hierarchy [Nickolls,ACM,2008]

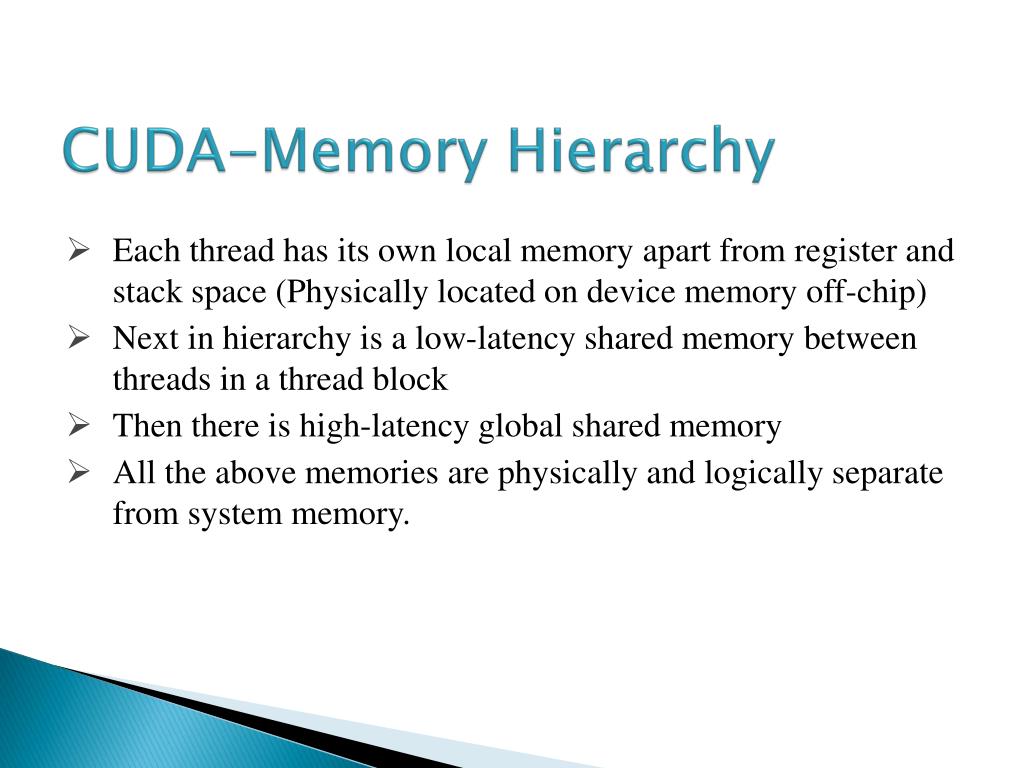

  9. CUDA-Memory Hierarchy • Each thread has its own local memory apart from register and stack space (Physically located on device memory off-chip) • Next in hierarchy is a low-latency shared memory between threads in a thread block • Then there is high-latency global shared memory • All the above memories are physically and logically separate from system memory.

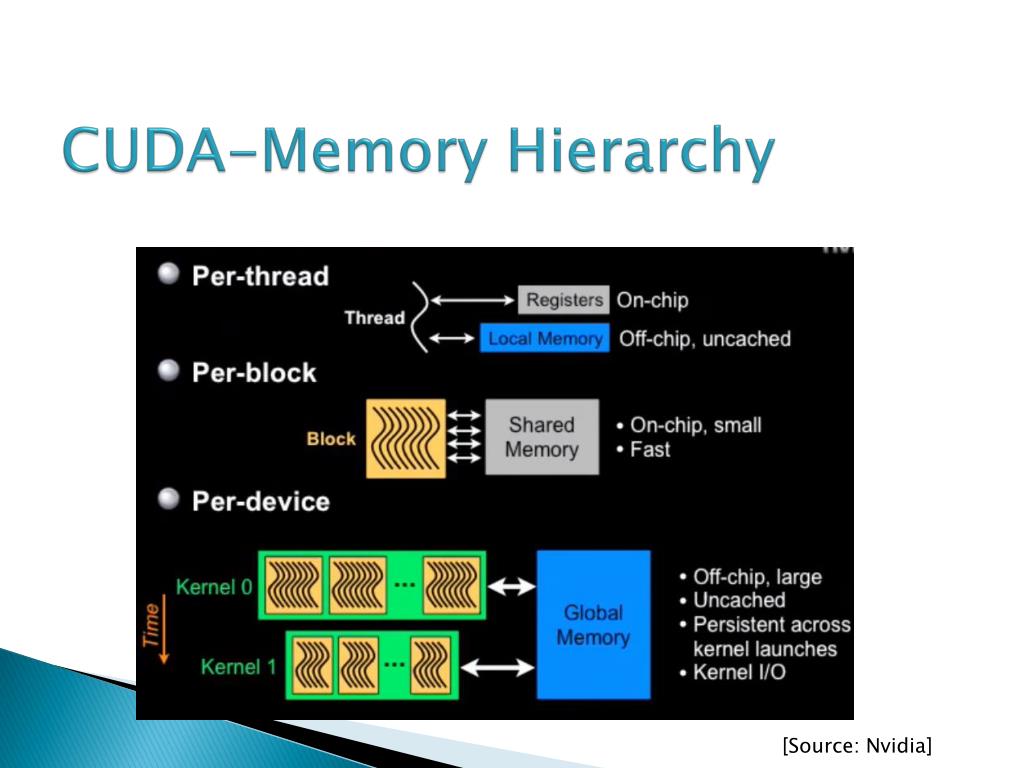

  10. CUDA-Memory Hierarchy [Source: Nvidia]

  11. CUDA - Memory Operations • cudamalloc,cudafree is used for allocation and releasing memory in Device. • cudamemcpy- is used to transfer data in 2 directions a) device to host memory - cudaMemcpyHostToDevice b) host to device memory- cudaMemcpyDeviceToHost • Device memory refers to global shared memory, and not thread block shared memory

  12. CUDA- Programming Model • CUDA programs are heterogeneous CPU+GPU co-processing systems • Use CPU core for serial portions, GPU for parallel portions • CUDA kernel - can be a simple function or a program on its own • GPU needs 1000s of threads for full efficiency • CUDA threads are extremely light-weight with little or no overhead in creation/switching

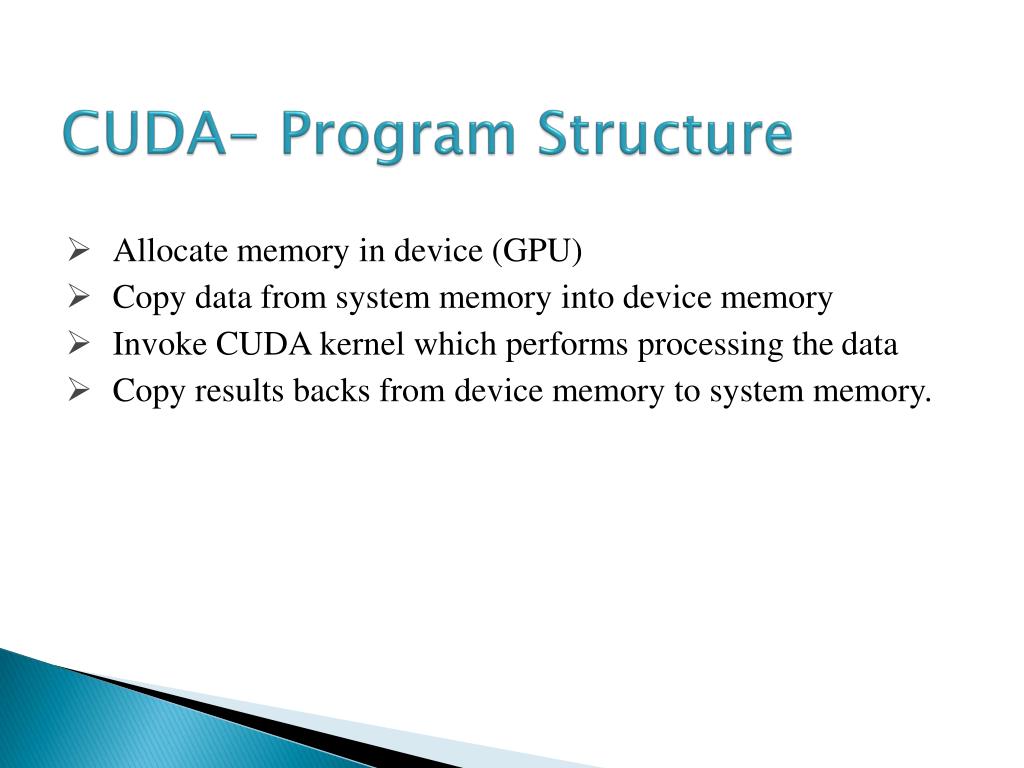

  13. CUDA- Program Structure • Allocate memory in device (GPU) • Copy data from system memory into device memory • Invoke CUDA kernel which performs processing the data • Copy results backs from device memory to system memory.

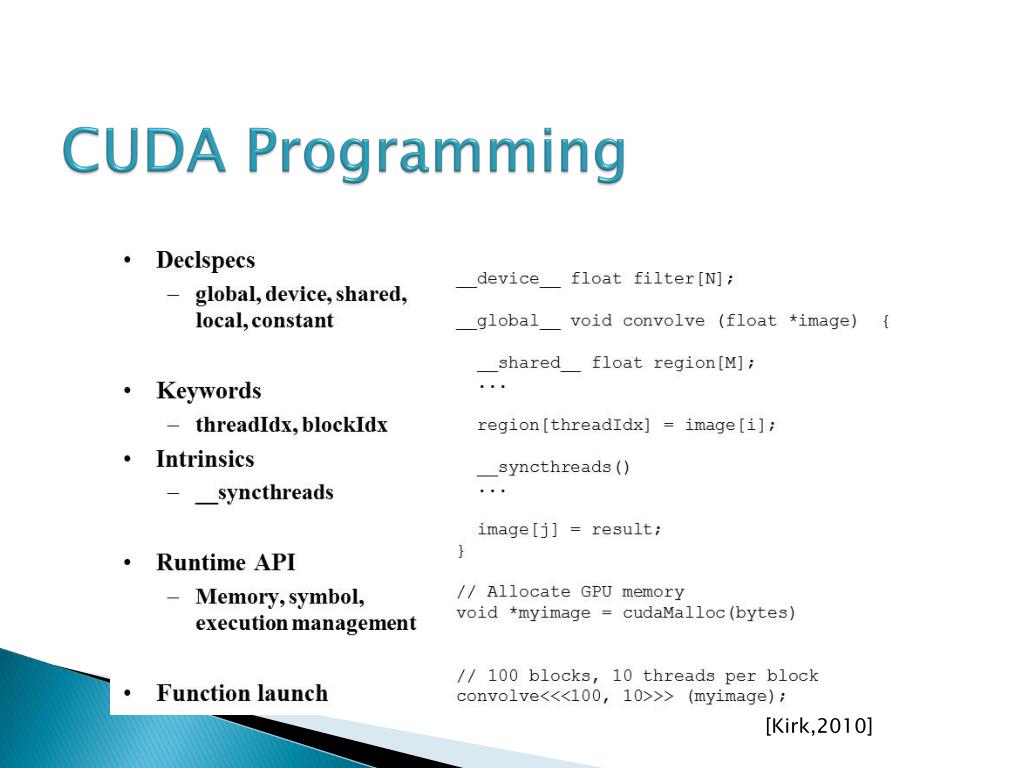

  14. CUDA Programming [Kirk,2010]

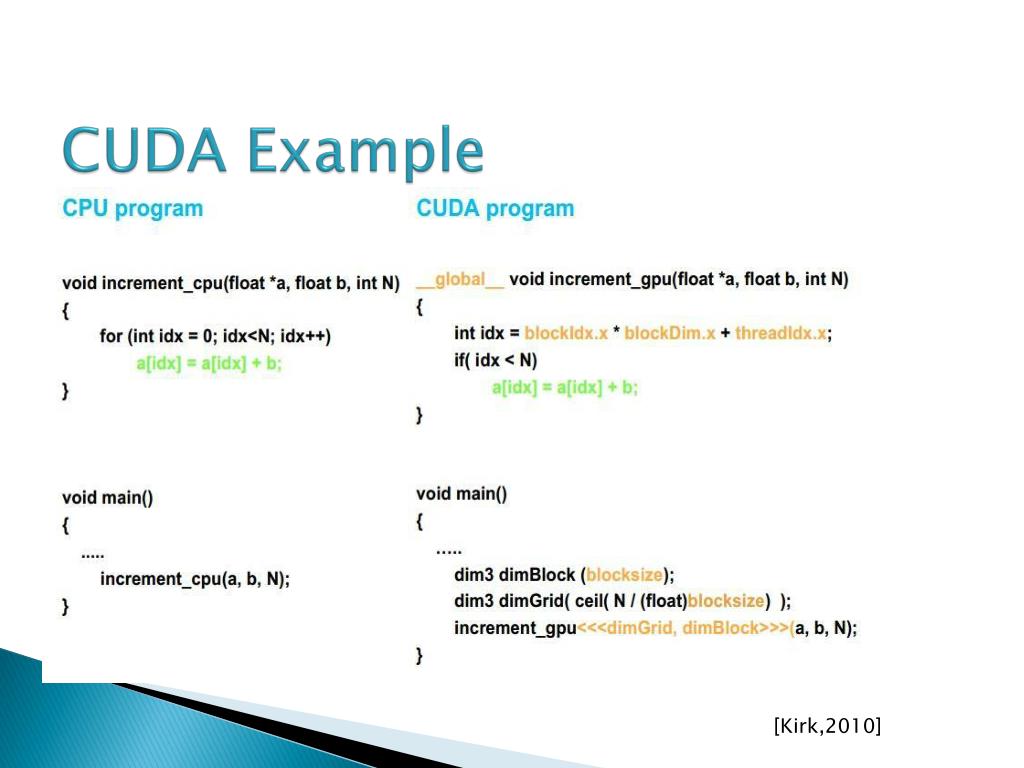

  15. CUDA Example [Kirk,2010]

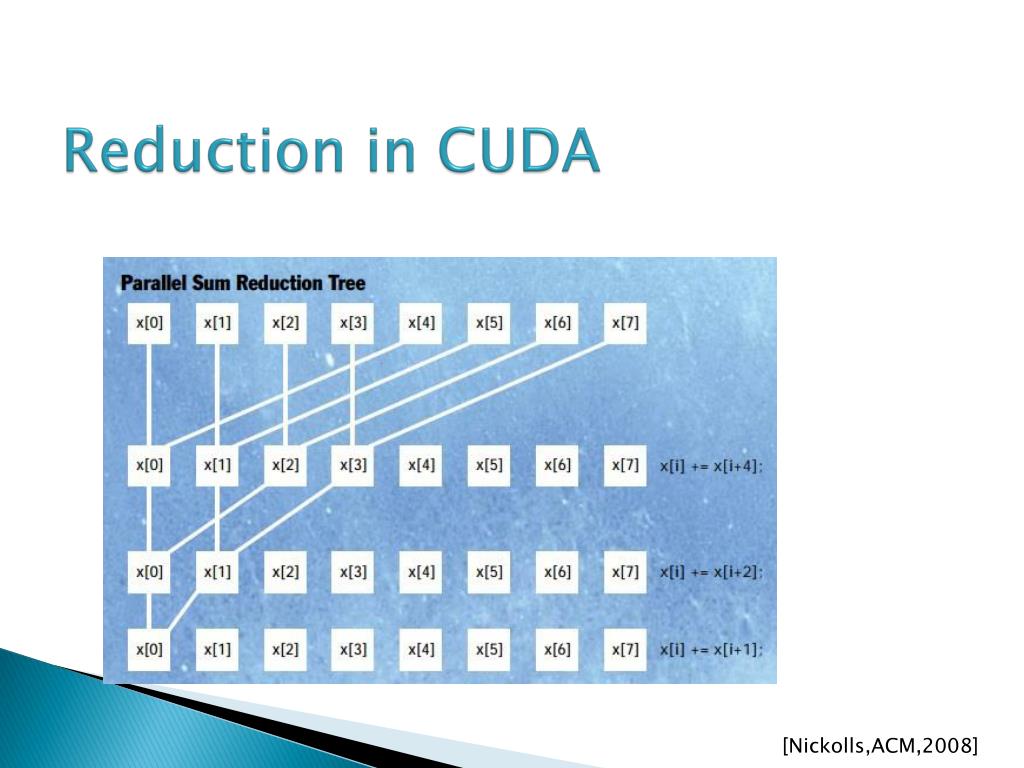

  16. Reduction in CUDA [Nickolls,ACM,2008]

  17. Reduction in CUDA (Cntd.) [Nickolls,ACM,2008]

  18. CUDA Compilation [Kirk,2010]

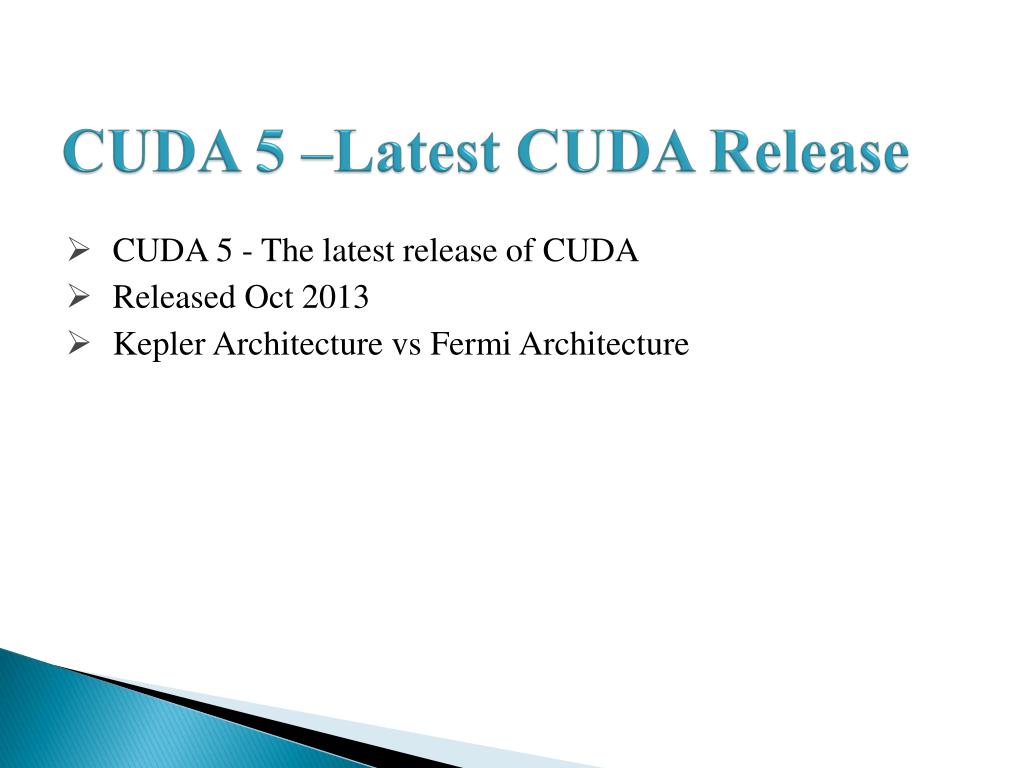

  19. CUDA 5 –Latest CUDA Release • CUDA 5 - The latest release of CUDA • Released Oct 2013 • Kepler Architecture vs Fermi Architecture

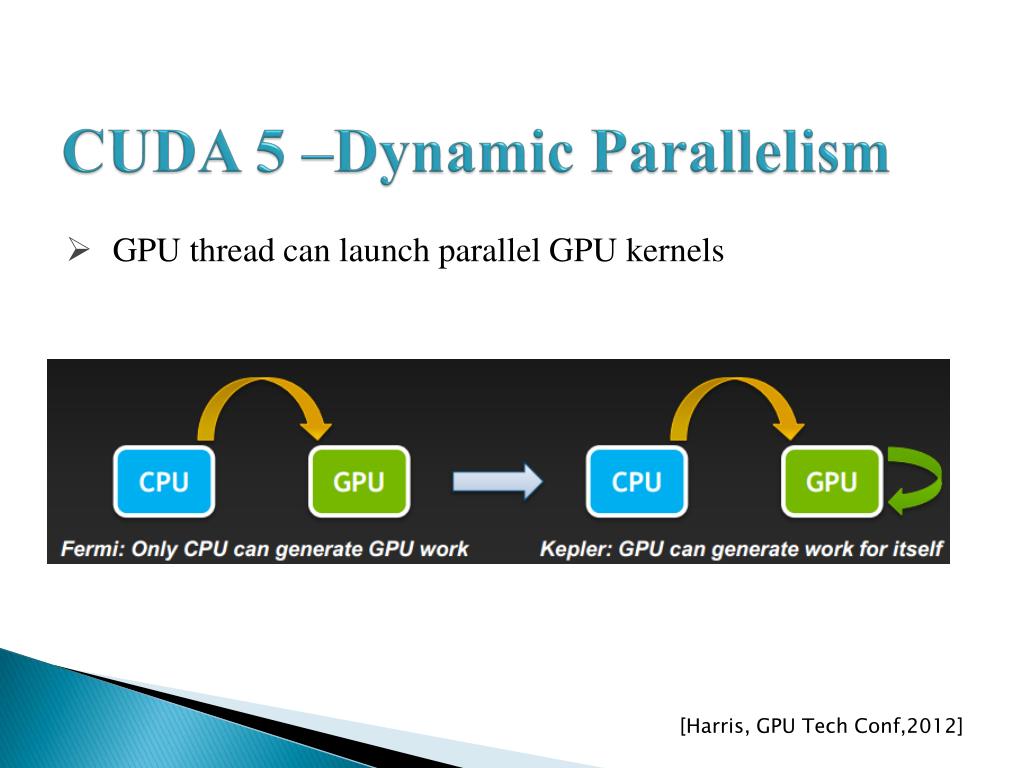

  20. CUDA 5 –Dynamic Parallelism • GPU thread can launch parallel GPU kernels [Harris, GPU Tech Conf,2012]

  21. CUDA 5 –Dynamic Parallelism(Cntd) [Harris, GPU Tech Conf,2012]

  22. CUDA 5 –Dynamic Parallelism(Cntd) Advantages • Recursive parallel algorithms • More efficient – GPU kept more occupied • Simplify CPU/GPU divide • Library calls can be made from kernel

  23. CUDA 5 Features • GPU Object Linking [Harris, GPU Tech Conf,2012]

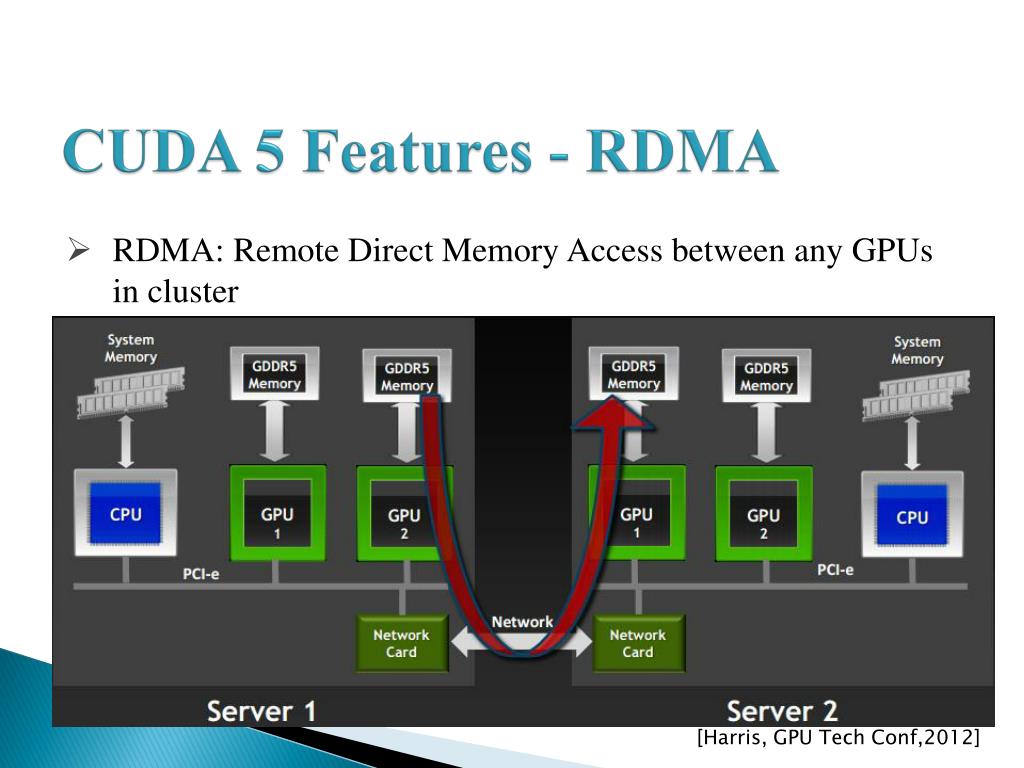

  24. CUDA 5 Features - RDMA • RDMA: Remote Direct Memory Access between any GPUs in cluster [Harris, GPU Tech Conf,2012]

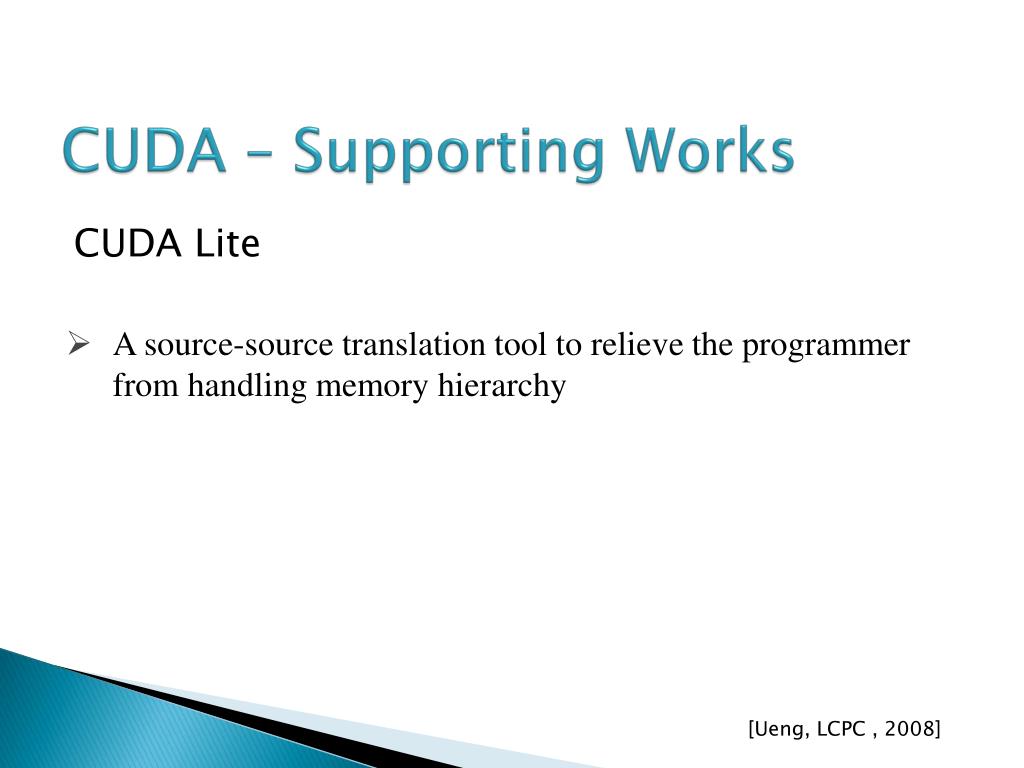

  25. CUDA – Supporting Works CUDA Lite • A source-source translation tool to relieve the programmer from handling memory hierarchy [Ueng,LCPC , 2008]

  26. CUDA – Supporting Works m-CUDA • makes CUDA architecture run on regular multi-core CPU systems. • Proves the effectiveness of CUDA model in non-GPU systems as well [Buck,SC08,2008]

  27. Alternate Developments • CUDA not as simple as it sounds • People have questioned the future of CUDA • CUDA has a strong reputation for performance, but at the expense of ease of programming • Alternates like XMT is developed, challenging CUDA • XMT – many core general purpose parallel architecture. [Caragea,,Hotpar 2010]

  28. CUDA Achievements • 375million CUDA capable GPUs sold by Nvidia • 1 million toolkit downloads • >120,000 active developers • Active research community • New domains like Big-Data Analytics Shazam– top 5 music app in Apple Store SalesForce.com – real time twitter data analysis • and many more…. Source : NVIDIA

  29. CUDA Achievements [Nickolls,IEEE,2010]

  30. Conclusion & Some Thoughts CUDA is promising but only supports NVIDIA GPU OpenCL, AMD Brook not main stream yet. Automatic extraction of parallelism Automatic conversion of existing code base in popular models eg: Java Threads More support for higher level languages

  31. References • [Buck,SC08,2008] : Massimiliano Fatica (NVIDIA), Patrick LeGresley (NVIDIA),Ian Buck (NVIDIA) ,John Stone (University of Illinois at Urbana-Champaign) , Jim Phillips (University of Illinois at Urbana-Champaign), Scott Morton (Hess Corporation), Paulius Micikevicius (NVIDIA), "High Performance Computing with CUDA" Nov.2008 • [Ueng, LCPC , 2008] :Sain-Zee Ueng, Melvin Lathara, Sara S,Wen-mei W. Hwu, CUDA-Lite: Reducing GPU Programming ComplexityInternational Workshop, LCPC 2008, Edmonton, Canada, July 31 - August 2, 2008 • [Nickolls,IEEE,2010]: Nickolls, J, The GPU Computing Era, Micro IEEE, 2010 • [Harris,GPU Tech Conf 2012] : Mark Harris, CUDA 5 and Beyond , GPU Tech Conference 2012 • [Nickolls,ACM,2008] : John Nickolls, Ian Buck, Michael Garland, Kevin Skadron,Scalable Parallel Programming with CUDA ,Queue – GPU Computing Vol 6, Issue 2, ACM Digital Library April 2008 • [Kirk,2010]: Programming Massively Parallel Processors: A Hands-on Approach 2010, David B. Kirk, Wen-mei W. Hwu • [Caragea,,Hotpar 2010] : GC Caragea, F Keceli, A Tzannes, U Vishkin - Proc. HotPar, 2010

  32. ThankYou!
