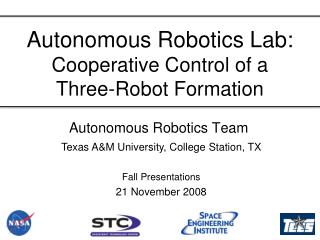

Autonomous Robotics Lab:Cooperative Control of a Three-Robot Formation

Autonomous Robotics Team

Texas A&M University, College Station, TX

Fall Presentations

21 November 2008


Outline l.jpg

Outline

  • Motivation

  • Autonomous Robotics Lab

  • Project Objectives

  • Cooperative Control Laws

  • Implementation Challenges

  • Project Results

  • Conclusions


Motivation l.jpg

Motivation

  • NASA’sVision for Space Exploration includes returning manned missions to the moon by 2020.

  • Robots are expected to be an integral part of lunar and Martian exploration.

  • The robots can have varying levels of autonomy:

    • Teleoperation from Earth (Mars Rovers)

    • Teleoperation from the lunar surface (Chariot)

    • Fully autonomous


Motivation4 l.jpg

Motivation

  • Possible autonomous tasks include:

    • Transporting materials from point A to point B

      • Moving materials from landing sites to building sites

      • Cooperative manipulation of large objects by n robots

    • Terrain mapping

    • Search and rescue

  • The SEI Autonomous Robotics Team’s Mission is to address and understand some of the challenges encountered in the development of autonomous robotics.


Outline5 l.jpg

Outline

  • Motivation

  • Autonomous Robotics Lab

  • Project Objectives

  • Cooperative Control Laws

  • Implementation Challenges

  • Project Results

  • Conclusions


Autonomous robotics lab l.jpg

Autonomous Robotics Lab

  • The Autonomous Robotics Lab has been developed to enable hardware testing of autonomous robotics theory and concepts.

  • The lab includes:

    • Three iRobot Create platforms

    • A global-positioning system to measure robot states.

    • A wireless communications network.

    • A central PC that manages functions including:

      • Sequences of autonomous tasks

      • Trajectory planning

      • Trajectory-tracking control laws


Autonomous robotics lab7 l.jpg

Autonomous Robotics Lab

  • The global-positioning system is an overhead camera integrated with image processing software to measure robot states (inertial position and orientation).

  • On the moon or Mars, satellites or star-tracking systems may provide global positioning information.


Project objectives l.jpg

Project Objectives

  • The semester goals are:

    • A hardware demonstration of cooperative control laws for a three-robot formation.

    • Investigation of time-delay effects on formation stability.

  • Primary Tasks:

    • Development and testing of formation control laws in a MATLAB environment.

    • Integrating control-law code with the central-PC software for a three-robot formation.

    • Hardware demonstrations of the formation control laws.


Outline9 l.jpg

Outline

  • Motivation

  • Autonomous Robotics Lab

  • Project Objectives

  • Cooperative Control Laws

  • Implementation Challenges

  • Project Results

  • Conclusions


Cooperative control laws l.jpg

Cooperative Control Laws

  • Cooperative control involves the control of a group of entities that are working collectively to meet a common objective.

  • Decentralized cooperative controllers use state information from other vehicles in order to determine control inputs.

  • Decentralized systems are more efficient for large numbers of vehicles.

  • Formation control laws used here were developed by Weitz, Hurtado, and Sinclair.


Cooperative control laws11 l.jpg

Cooperative Control Laws

  • The robot equations of motion:

  • The kinematic vehicle model can be written as:

Exact linear representation becomes design space

Transformation from design space to robot controls


Cooperative control laws12 l.jpg

Cooperative Control Laws

  • Cooperative control laws were designed to drive three robots to a desired formation (drive errors between vehicles to zero).

    • Robot 1 tracks a Reference Trajectory.

    • Robot 2 follows Robot 1 (and reference trajectory).

    • Robot 3 follows Robot 2 (and reference trajectory).

  • General control form:

Position error wrt lead vehicle

Velocity error wrt lead vehicle

Velocity error wrt reference trajectory

Position error wrt reference trajectory


Cooperative control laws13 l.jpg

Cooperative Control Laws

  • If a leader-tracking scheme is preferred set cp, cv = 0.

  • If a reference-trajectory-tracking scheme is preferred set kp, kv = 0.

Position error wrt lead vehicle

Velocity error wrt lead vehicle

Velocity error wrt reference trajectory

Position error wrt reference trajectory


Cooperative control laws14 l.jpg

Cooperative Control Laws

  • Three control schemes were investigated:

    • Full-State Measurement Control Law

    • Rate-Estimate Control Law: rates are estimated using an additional state, f.

    • Rate-Free Control Law: a different control law is developed that only requires position information relative to the reference trajectory.

Commanded Velocity

vs.

Actual Velocity


Cooperative control laws15 l.jpg

Cooperative Control Laws

  • MATLAB Simulations of control laws were used to:

    • Select control gains that meet robot performance criteria (acceleration and angular turn rate).

    • Design reference trajectories that fit within the lab space.

Full-State Control Law

Rate-Estimate Control Law

Rate-Free Control Law


Cooperative control laws16 l.jpg

Cooperative Control Laws

Full-State Control Law

Rate-Estimate Control Law

Rate-Free Control Law


Outline17 l.jpg

Outline

  • Motivation

  • Autonomous Robotics Lab

  • Project Objectives

  • Cooperative Control Laws

  • Implementation Challenges

  • Project Results

  • Conclusions


Implementation challenges l.jpg

Implementation Challenges

  • Due to lack of computational power onboard the robots, the central PC computes control inputs based upon state information received from the camera (centralized vs. decentralized).

Delays are introduced in the process flow due to both computational time and planned delays when sending velocity commands to the robot.

Largest delays occur when sending velocity commands to each robot. Delays must be introduced to allow the robots’ onboard microcontrollers to parse data packets.


Implementation challenges19 l.jpg

Implementation Challenges

  • The control laws command and , but the robot inputs are and .

  • There are two approaches to implementing the control laws:

    • Send and commands to the robot, and the onboard microcontroller finds the velocity using a first-order approximation.

    • Send and commands to the robot, which are held constant until the next update from the camera.


Implementation challenges20 l.jpg

Implementation Challenges


Outline21 l.jpg

Outline

  • Motivation

  • Autonomous Robotics Lab

  • Project Objectives

  • Cooperative Control Laws

  • Implementation Challenges

  • Project Results

  • Conclusions


Project results l.jpg

Project Results

  • Tests run for two trajectories:

    • Piece-wise trajectory

      • Tracking both lead vehicle and reference trajectory

      • Reference trajectory tracking only

      • Lead vehicle tracking only

    • Circular trajectory

      • Tracking both lead vehicle and reference trajectory

      • Reference trajectory tracking only

      • Lead vehicle tracking only


Project results23 l.jpg

Project Results

Piece-wise trajectory

  • 4 constant-velocity trajectories

  • Some aggressive velocity changes


Project results24 l.jpg

Project Results

  • Lead-vehicle and reference-trajectory tracking (kp=kv=cp=cv = 0.5).


Project results25 l.jpg

Project Results

  • Piece-wise Trajectory Test Results

  • Lead-vehicle tracking only was unstable for the following cases:

    • Gains = 0.5

    • Gains = 0.5 with velocity commands sent in the order:

      Robot 3 → Robot 2 → Robot 1

    • Gains = 0.25 with reversed order


Project results26 l.jpg

Project Results

  • Video demonstration: piece-wise trajectory


Project results27 l.jpg

Project Results

  • Circular trajectory: Lead-vehicle and reference-trajectory tracking (kp=kv=cp=cv = 0.5).


Project results28 l.jpg

Project Results

  • Test results


Project results29 l.jpg

Project Results

Lead-Vehicle Tracking (gains = 0.5). Velocity commands sent in order Robot 3 → Robot 2 → Robot 1.

Lead-Vehicle and Reference-Trajectory Tracking (gains = 0.5).


Project results30 l.jpg

Project Results

  • Video Demonstration: circular trajectory with poor initial conditions.


Conclusions l.jpg

Conclusions

  • The full-state measurement cooperative formation control laws were demonstrated in hardware.

  • The control-law implementation on the central PC yields good results despite the computational and communication delays and the discrete implementation.

  • The aggressive velocity changes in the piece-wise trajectory caused some instabilities for the lead-vehicle-only tracking schemes.

  • Delay effects can be seen in the results of the third vehicle.

  • All vehicles using reference-trajectory information greatly improves convergence and mitigates delay effects.


Acknowledgments l.jpg

Acknowledgments

  • Thank you to NASA-JSC for sponsoring the project.

  • Thanks to Dr. Hurtado (Faculty Advisor) and Ms. Lagoudas (SEI Director).
