  1. Understanding Design Vehicle and Turning Radius for Urban Street DesignNorman W. Garrick

  2. AASHTO Design Vehicles

  3. AASHTO on Selecting a Design Vehicle AASHTO specifies 10 class of vehicles The representative design vehicle in each class is larger than and has a larger turning radius than more vehicles in that class For a specific facility the largest design vehicle likely to use the facility with considerable frequency must be taken into account in designing features such as radii at intersections

  4. 70 Feet

  5. P BUS WB-40 70 Feet

  6. 70 Feet

  7. 70 Feet

  8. 70 Feet

  9. 70 Feet

  10. 70 Feet

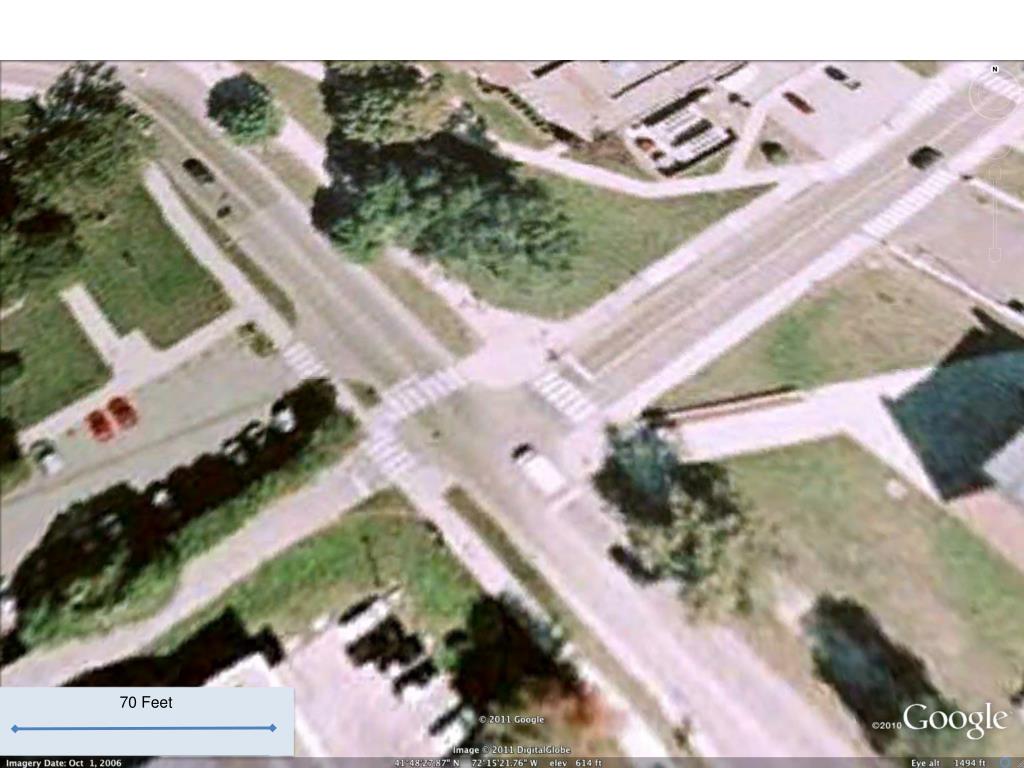

  11. 70 Feet

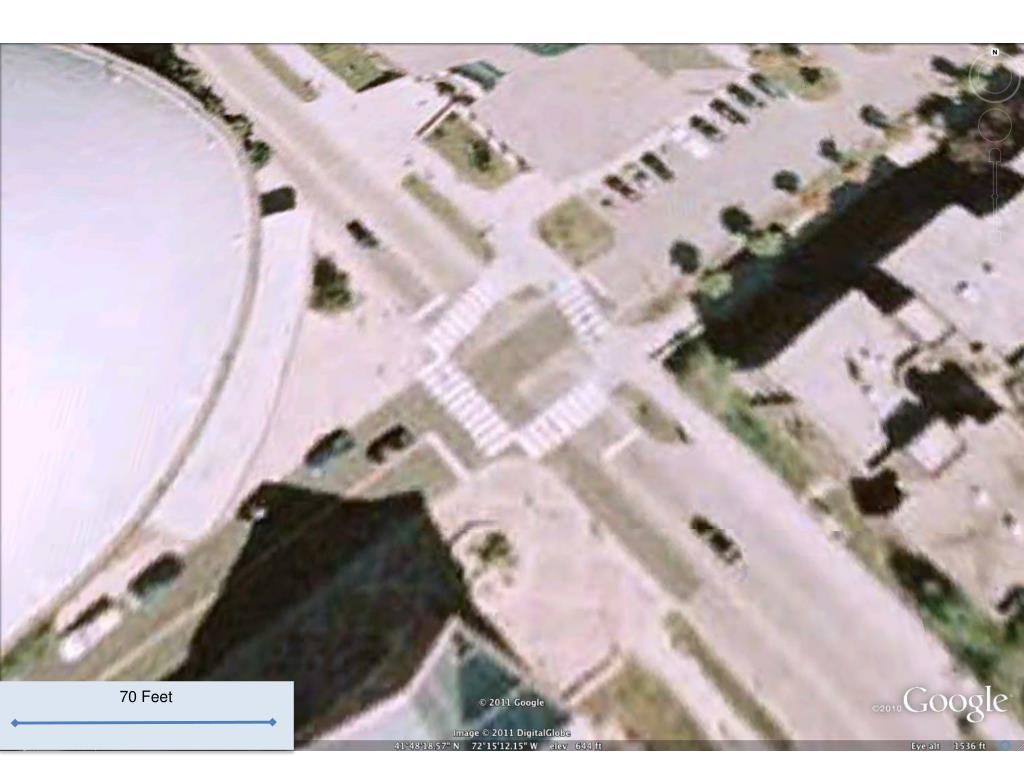

  12. 70 Feet

  13. 70 Feet

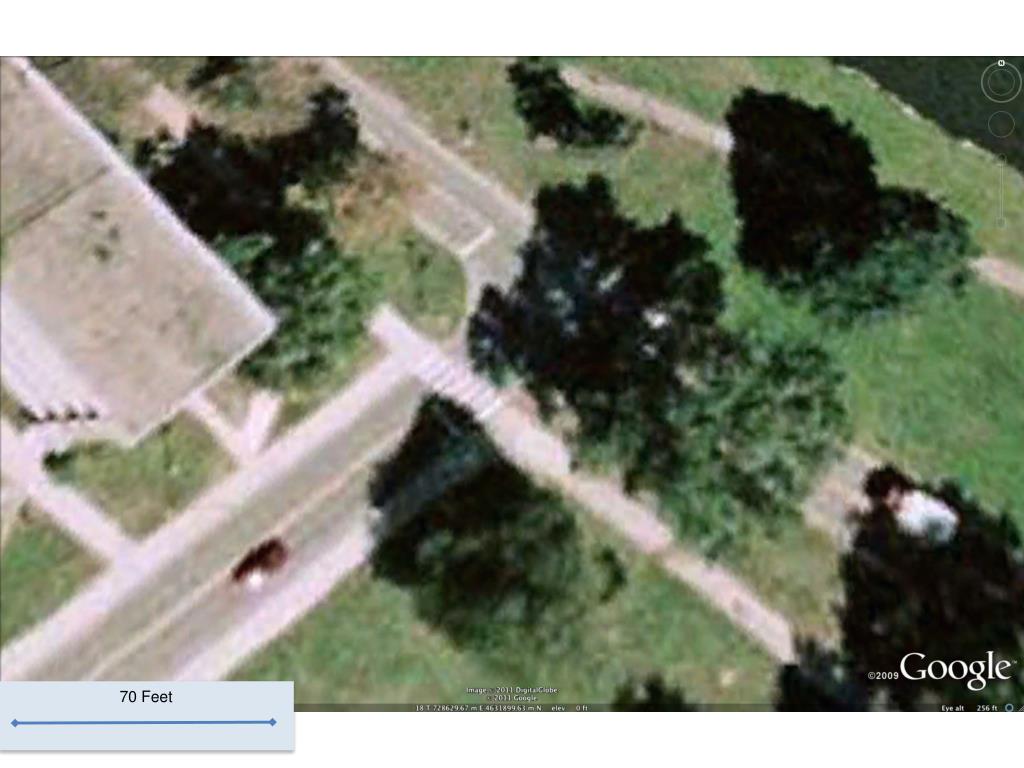

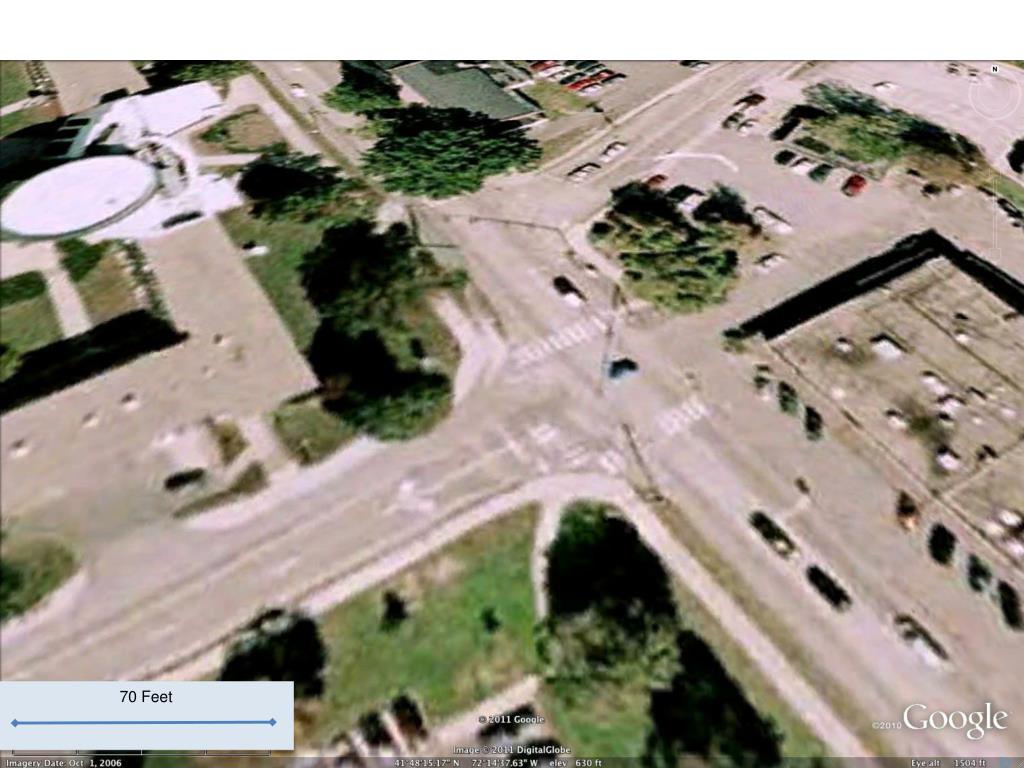

  14. 70 Feet

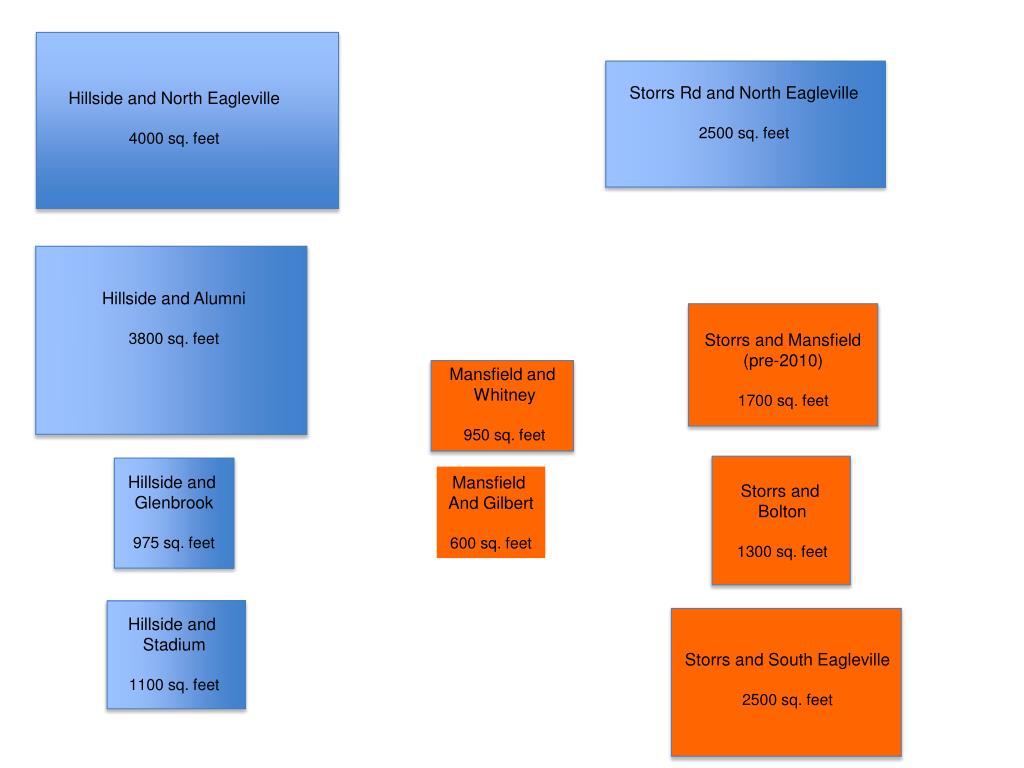

  15. Storrs Rd and North Eagleville 2500 sq. feet Hillside and North Eagleville 4000 sq. feet Storrs and Mansfield (pre-2010) 1700 sq. feet Mansfield and Whitney 950 sq. feet Hillside and Alumni 3800 sq. feet Hillside and Glenbrook 975 sq. feet Mansfield And Gilbert 600 sq. feet Hillside and Stadium 1100 sq. feet Storrs and South Eagleville 2500 sq. feet Storrs and Bolton 1300 sq. feet

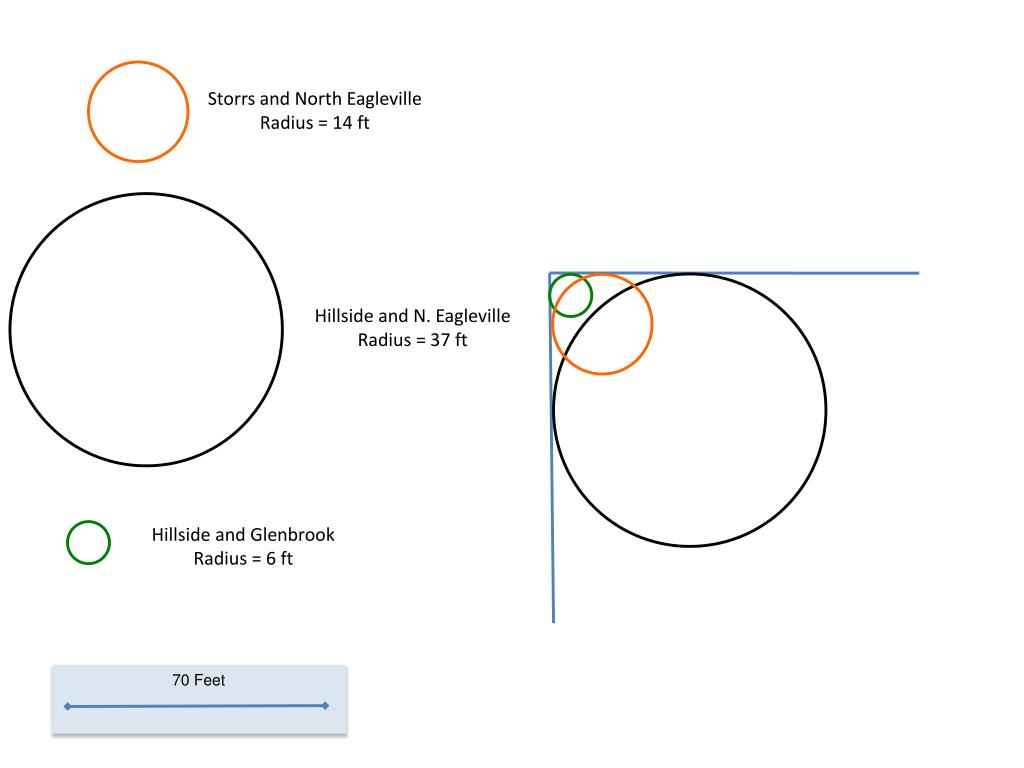

  16. Storrs and North Eagleville Radius = 14 ft Hillside and N. Eagleville Radius = 37 ft Hillside and Glenbrook Radius = 6 ft 70 Feet

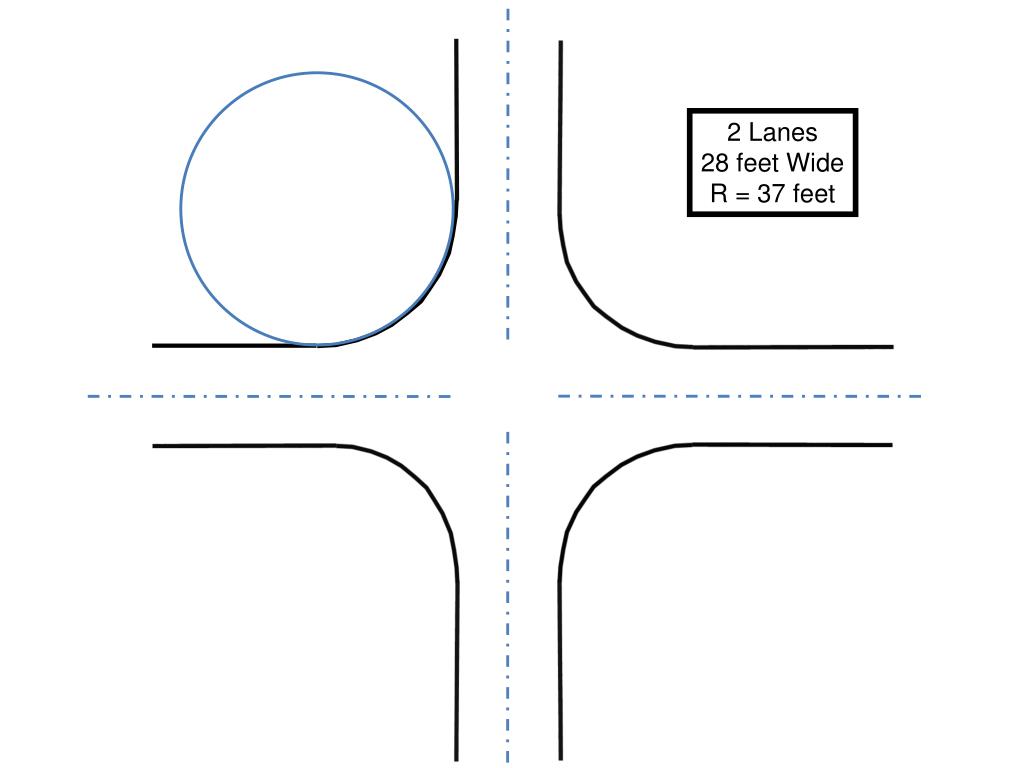

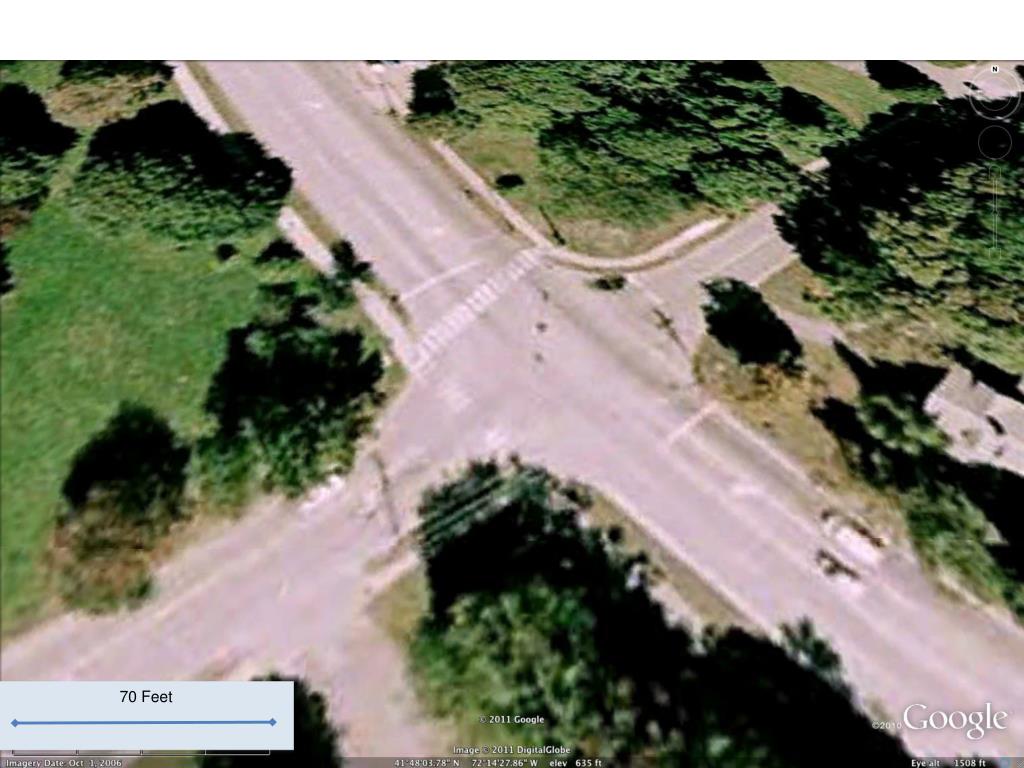

  17. 2 Lanes 28 feet Wide R = 37 feet

  18. 2 Lanes 28 feet Wide R = 14 feet

  19. 2 Lanes 28 feet Wide R = 6 feet This is similar to the design of Mansfield and Whitney 70 Feet

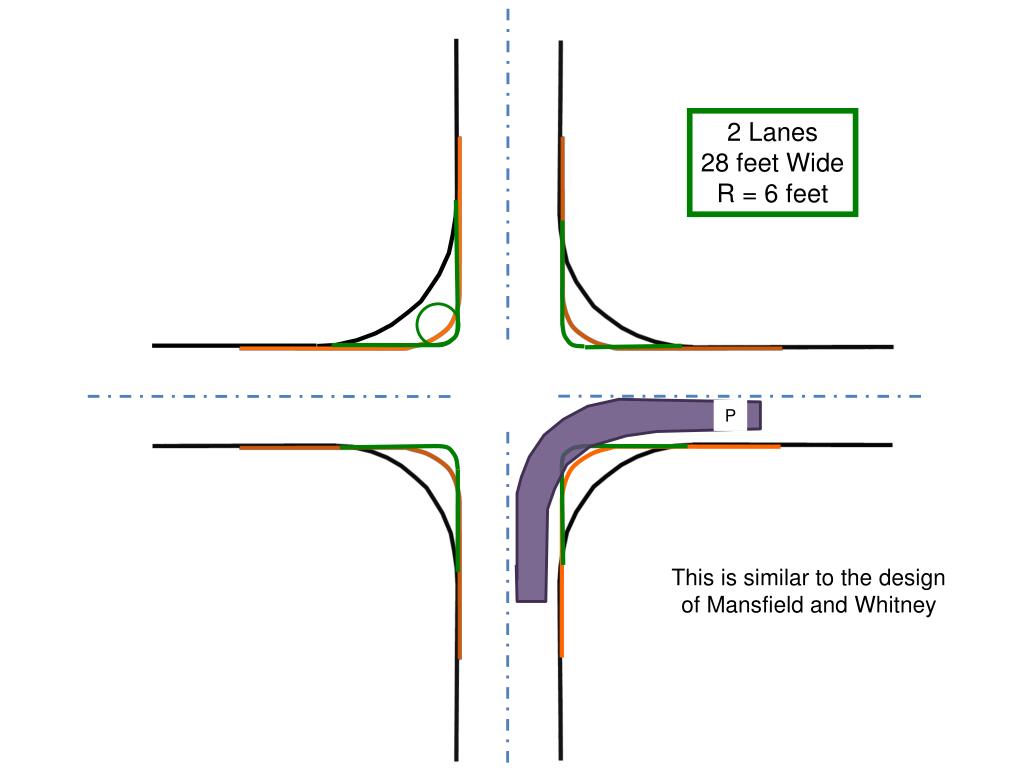

  20. P 2 Lanes 28 feet Wide R = 6 feet This is similar to the design of Mansfield and Whitney

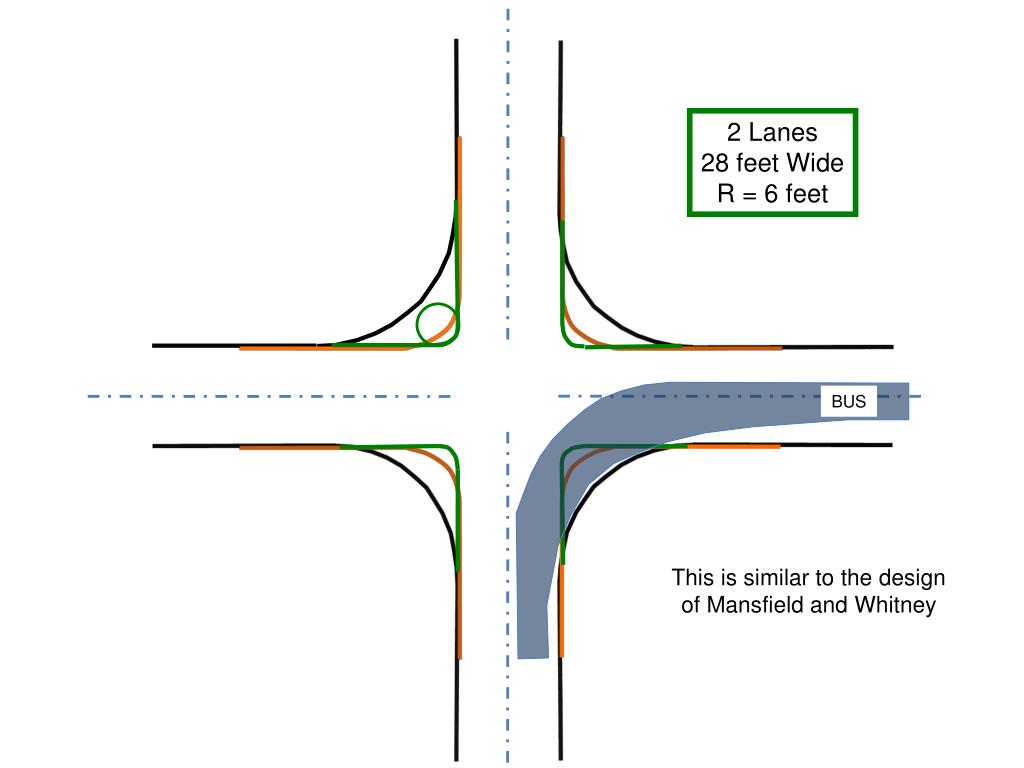

  21. BUS 2 Lanes 28 feet Wide R = 6 feet This is similar to the design of Mansfield and Whitney

  22. 2 Lanes 28 feet Wide R = 6 feet WB-40 This is similar to the design of Mansfield and Whitney

  23. Actual Path of a UCONN Bus at Mansfield and Whitney

  24. BUS 2 Lanes 28 feet Wide R = 6 feet Actual UCONN Bus 70 Feet

  25. Peter Pan Bus
