  1. NEO 3000 Substation

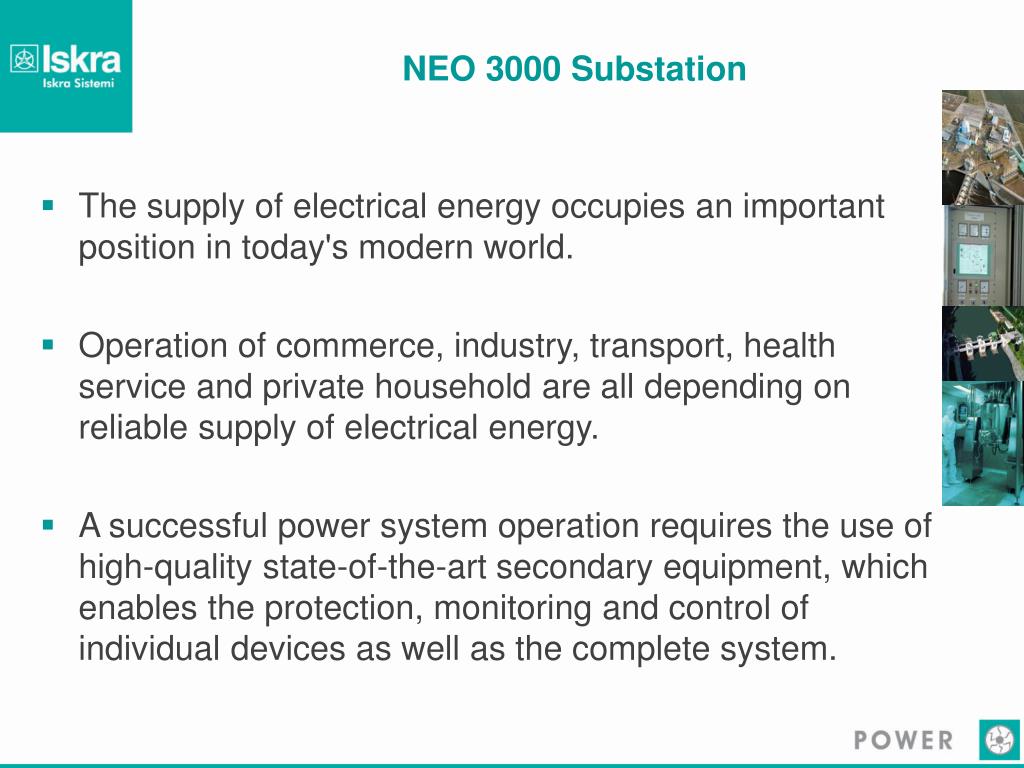

  2. NEO 3000 Substation • The supply of electrical energy occupies an important position in today's modern world. • Operation of commerce, industry, transport, health service and private household are all depending on reliable supply of electrical energy. • A successful power system operation requires the use of high-quality state-of-the-art secondary equipment, which enables the protection, monitoring and control of individual devices as well as the complete system.

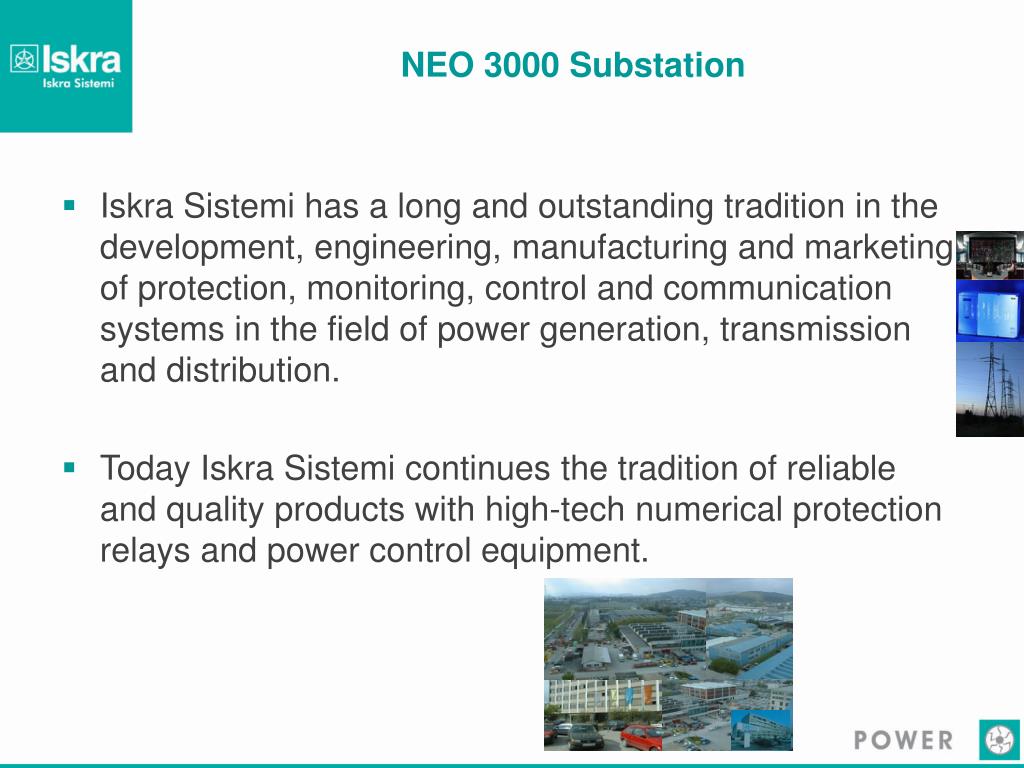

  3. NEO 3000 Substation • Iskra Sistemi has a long and outstanding tradition in the development, engineering, manufacturing and marketing of protection, monitoring, control and communication systems in the field of power generation, transmission and distribution. • Today Iskra Sistemi continues the tradition of reliable and quality products with high-tech numerical protection relays and power control equipment.

  4. NEO 3000 Substation • NEO 3000 Substation is the state-of-the-art system which enables protection, monitoring and control of individual devices as well as a complete power system. • NEO 3000 Substation – the result of our own know-how – provides our business partners with full control over power systems and enables optimum utilization with minimum loses.

  5. NEO 3000 Substation

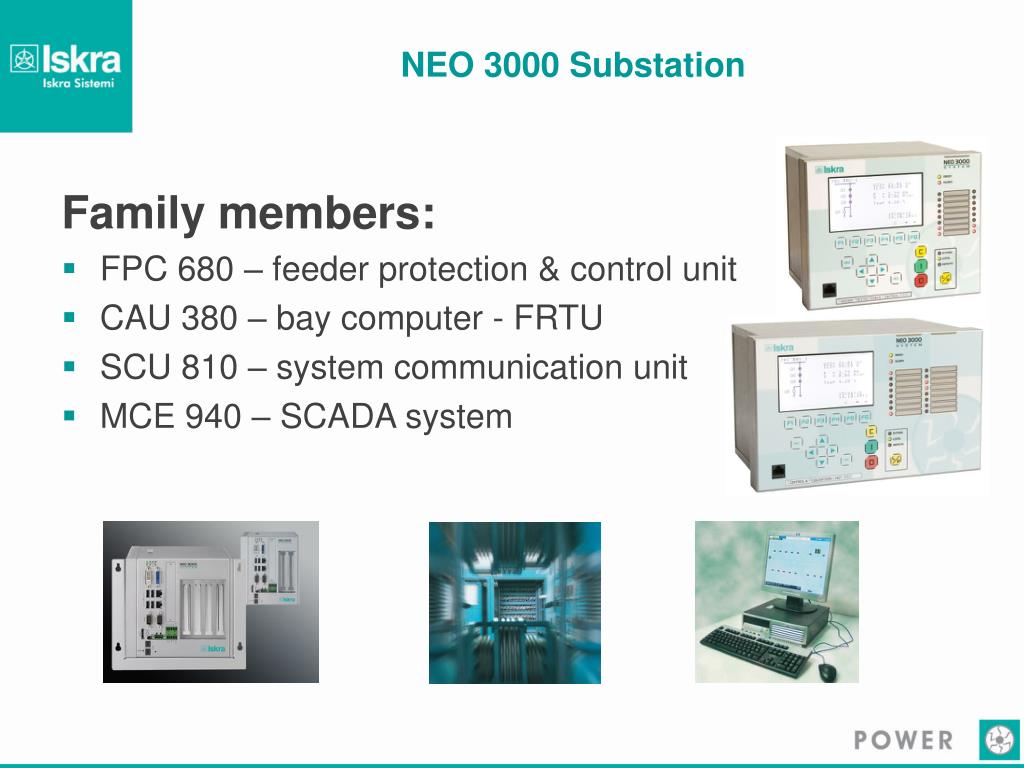

  6. NEO 3000 Substation Family members: • FPC 680 – feeder protection & control unit • CAU 380 – bay computer - FRTU • SCU 810 – system communication unit • MCE 940 – SCADA system

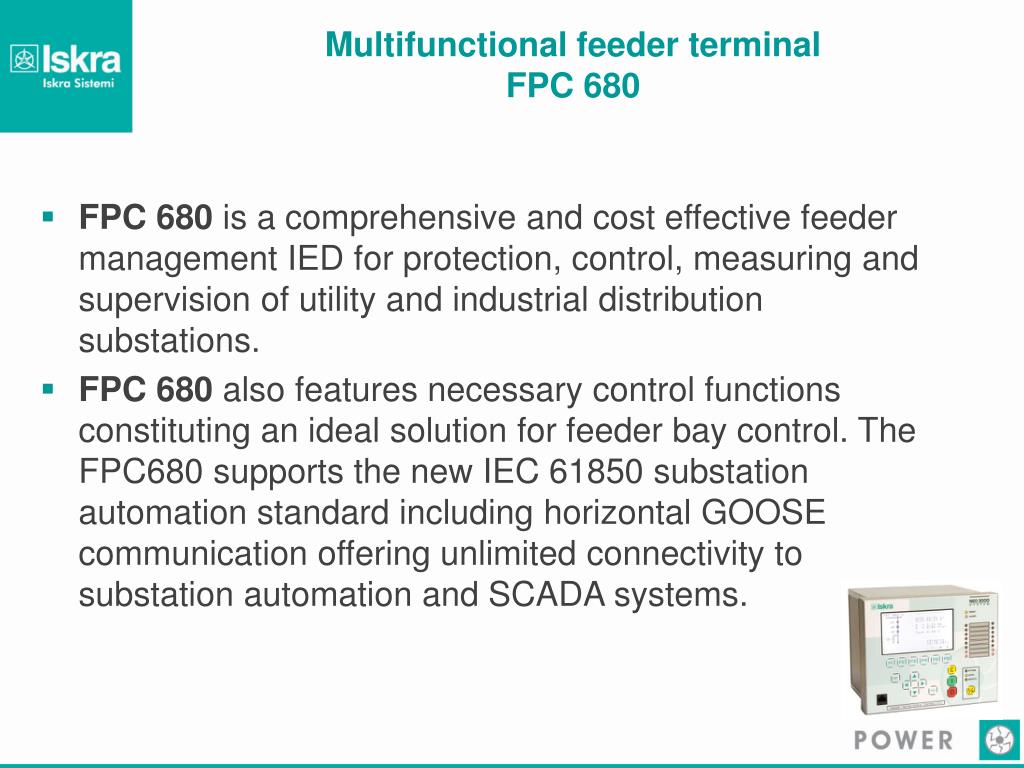

  7. Multifunctional feeder terminalFPC 680 • FPC 680 is a comprehensive and cost effective feeder management IED for protection, control, measuring and supervision of utility and industrial distribution substations. • FPC 680 also features necessary control functions constituting an ideal solution for feeder bay control. The FPC680 supports the new IEC 61850 substation automation standard including horizontal GOOSE communication offering unlimited connectivity to substation automation and SCADA systems.

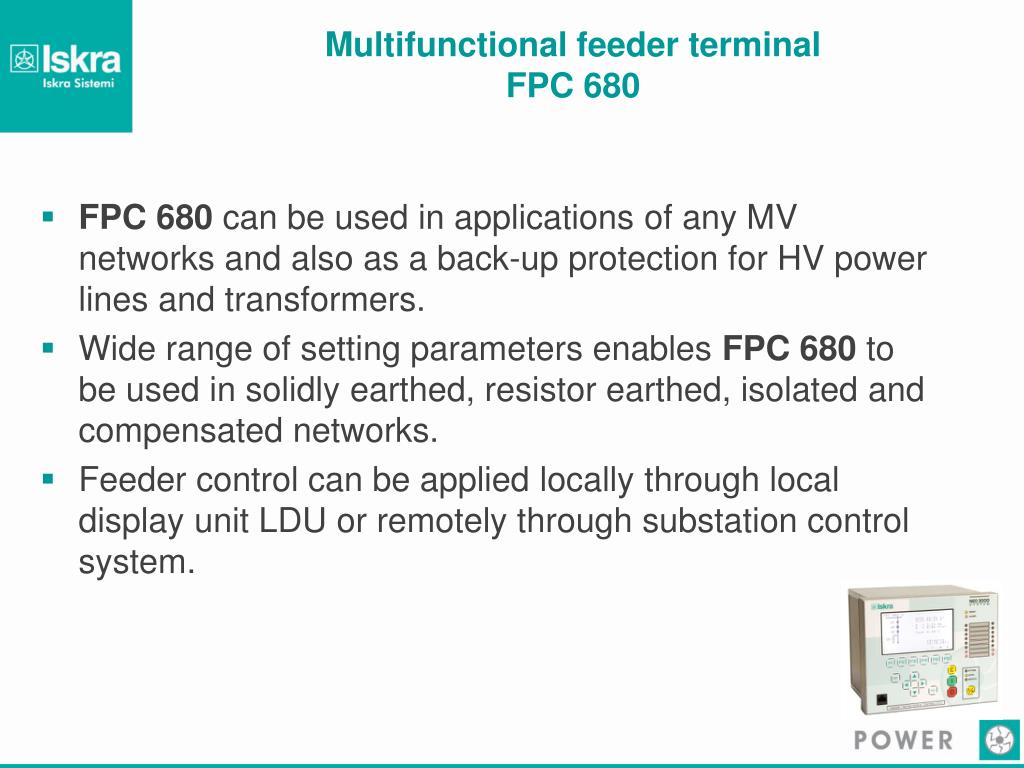

  8. Multifunctional feeder terminalFPC 680 • FPC 680 can be used in applications of any MV networks and also as a back-up protection for HV power lines and transformers. • Wide range of setting parameters enables FPC 680 to be used in solidly earthed, resistor earthed, isolated and compensated networks. • Feeder control can be applied locally through local display unit LDU or remotely through substation control system.

  9. MV feeder terminal with complete scope of protection and control functions Five stage fully programmable automatic reclosing Complete scope of measurements and energy metering Directional protection capability Communication over IEC-61850 Multifunctional feeder terminalFPC 680

  10. Multifunctional feeder terminalFPC 680 FPC 680: Protection overview

  11. Bay computer - CAU 380 • CAU 380 bay computer is designed for data acquisition, processing and transmission of process data as well as for local automation tasks in the substations. • CAU 380 is modular design, scalability and PQM functions are the essential qualities to meet the novel power system control standards. • CAU 380 is designed in various models of different sizes and functionality.

  12. HV and MV feeders up to 12 AI up to 110 DI up to 24 DO Synhrocheck Power quality monitoring Higher harmonic (up to 40th) IEC 60870-5 based protocol IEC 61850 (MMS&GOOSE) Bay computer - CAU 380

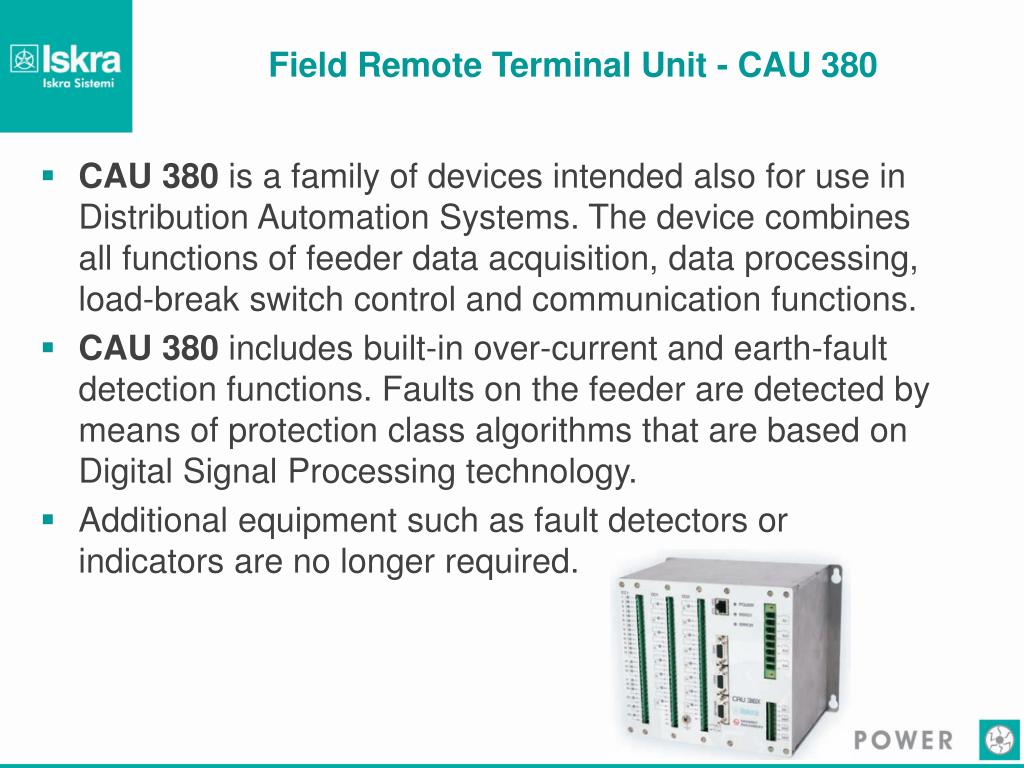

  13. Field Remote Terminal Unit - CAU 380 • CAU 380 is a family of devices intended also for use in Distribution Automation Systems. The device combines all functions of feeder data acquisition, data processing, load-break switch control and communication functions. • CAU 380 includes built-in over-current and earth-fault detection functions. Faults on the feeder are detected by means of protectionclass algorithms that are based on Digital Signal Processing technology. • Additional equipment such as fault detectors or indicators are no longer required.

  14. Distribution Automation Systems up to 12 AI up to 110 DI up to 24 DO Fault detection Voltage regulator Scheduler DNP 3.0 Radio or GPRS Field Remote Terminal Unit CAU 380

  15. System Communication UnitSCU810 • SCU 810 module is a complex communication device intended for theinterconnection of any intelligent electronic device (IED) of Iskra Sistemi NEO 3000 and NEO 2000Substation Control and Protection System and any third-party vendors. • SCU 810 device covers communication functions needed within substation andfunctions of data handling, world time synchronization and substation automation. • SCU 810 can alsoserve as interconnection gateway between hierarchically different controlsystem levels from substation to utility dispatching centers.

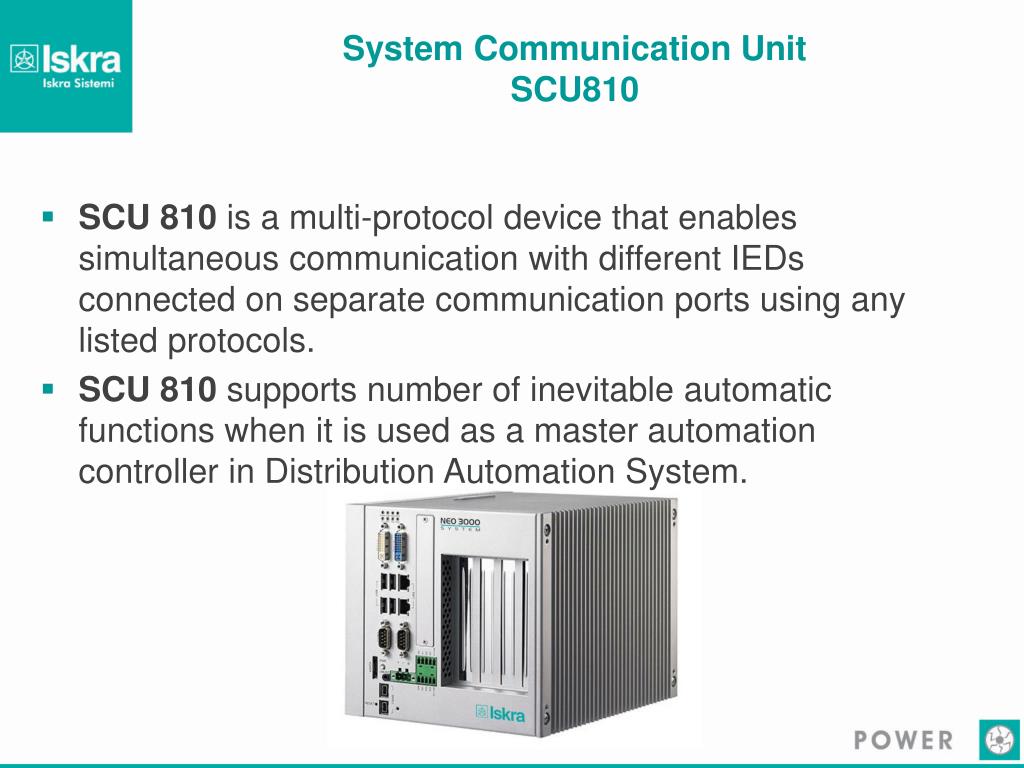

  16. System Communication UnitSCU810 • SCU 810 is a multi-protocol device that enables simultaneous communication with different IEDs connected on separate communication ports using any listed protocols. • SCU 810 supports number of inevitable automatic functions when it is used as a master automation controller in Distribution Automation System.

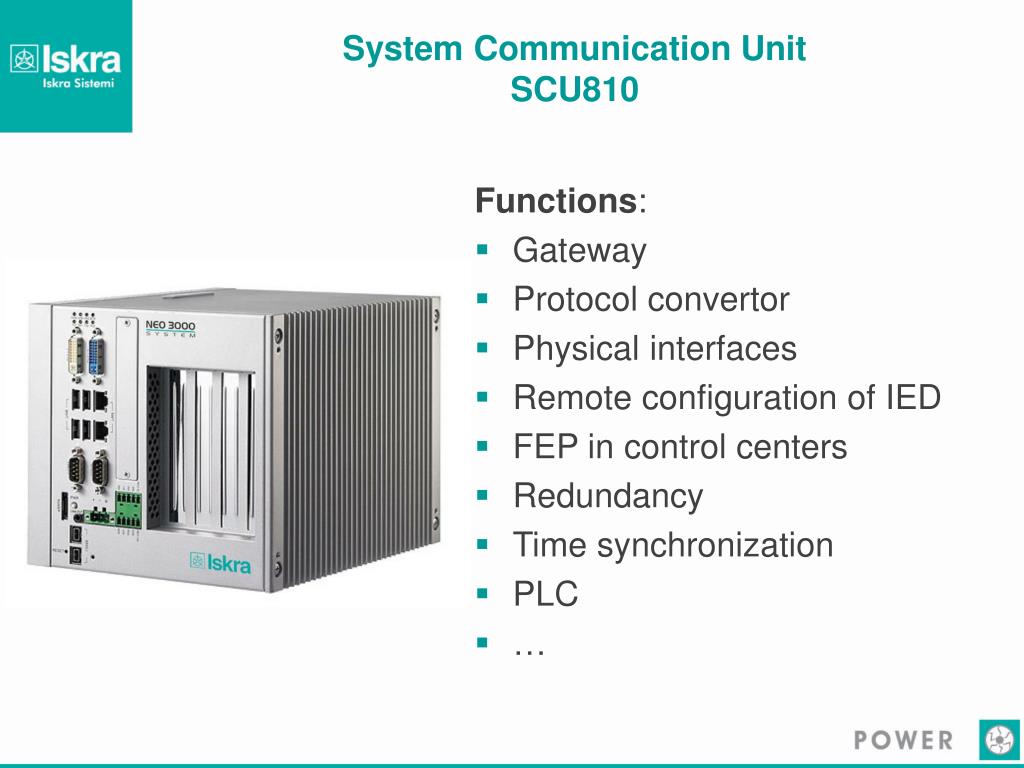

  17. Functions: Gateway Protocol convertor Physical interfaces Remote configuration of IED FEP in control centers Redundancy Time synchronization PLC … System Communication UnitSCU810

  18. System Communication UnitSCU810

  19. System Communication UnitSCU810

  20. System Communication UnitSCU810 Communication protocols supported: • IEC61850 • IEC 60870-5-104 • IEC 60870-5-101 • IEC 60870-5-103 • IEC 60870-5-102 • DNP 3.0 • Modbus • NEO • SPA • Empros • …

  21. MCE 940 SCADA • MCE 940 is used for real time process monitoring and control on different control levels, specially designed for power utilities. • MCE 940 main features are: control secured by interlockings, events presented with single or group alarms and continuous archiving of historical data into the database.

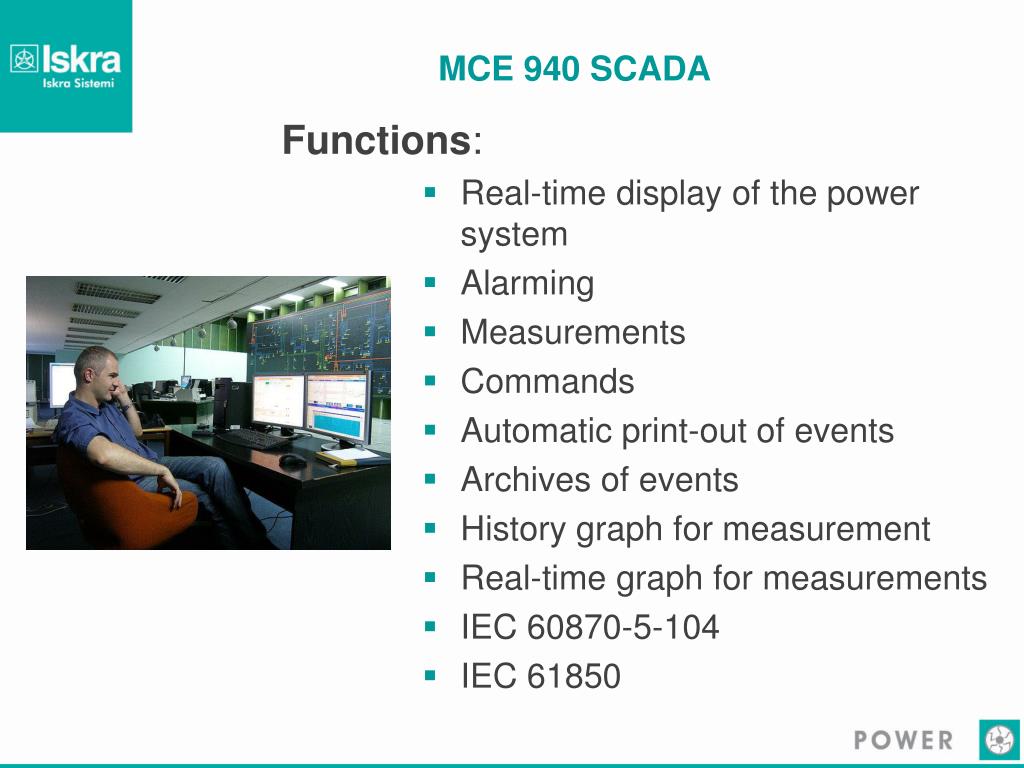

  22. Functions: Real-time display of the power system Alarming Measurements Commands Automatic print-out of events Archives of events History graph for measurement Real-time graph for measurements IEC 60870-5-104 IEC 61850 MCE 940 SCADA

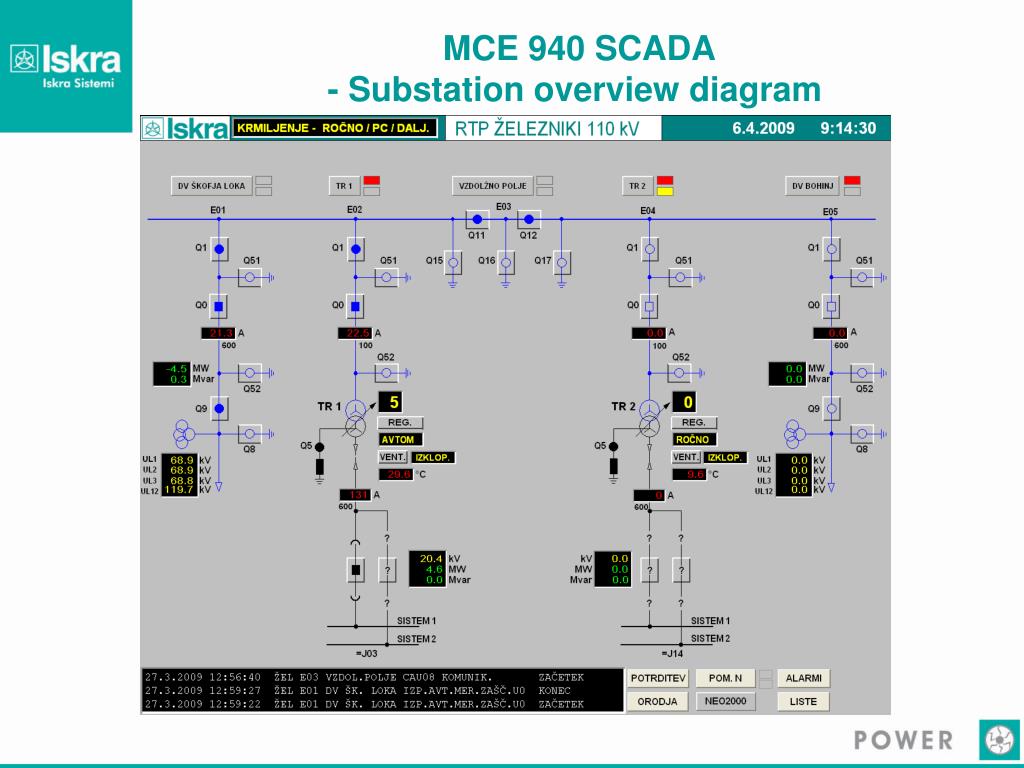

  23. MCE 940 SCADA- Substation overview diagram

  24. MCE 940 SCADA- Alarming

  25. MCE 940 SCADA- Commands

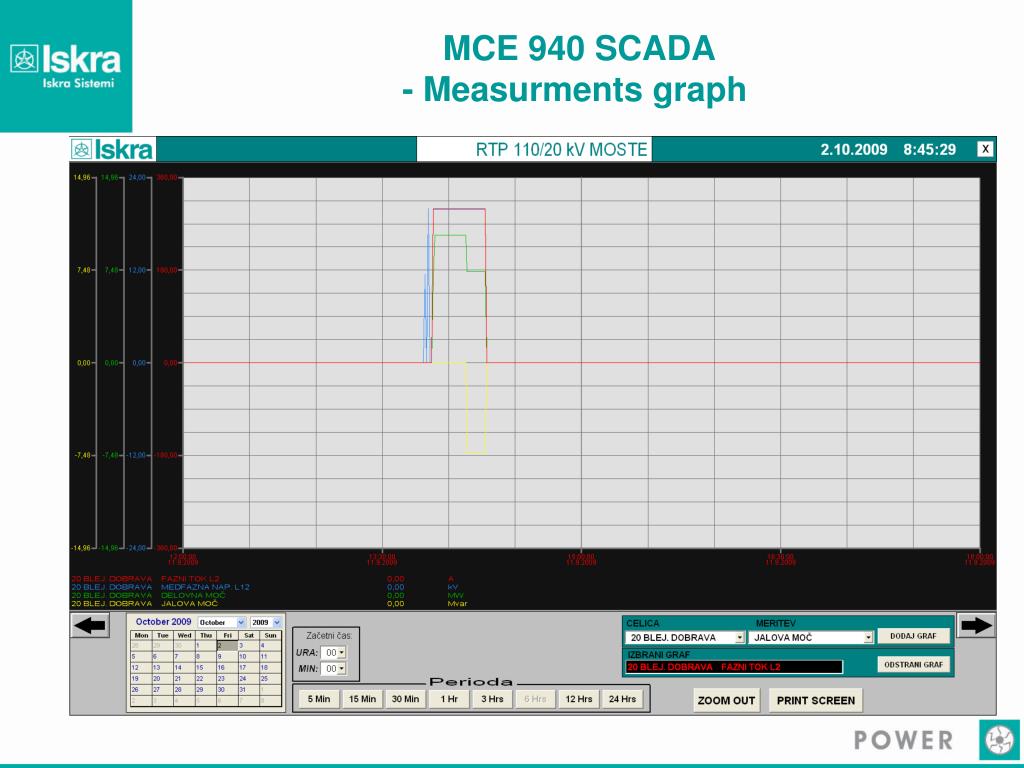

  26. MCE 940 SCADA- Measurments graph

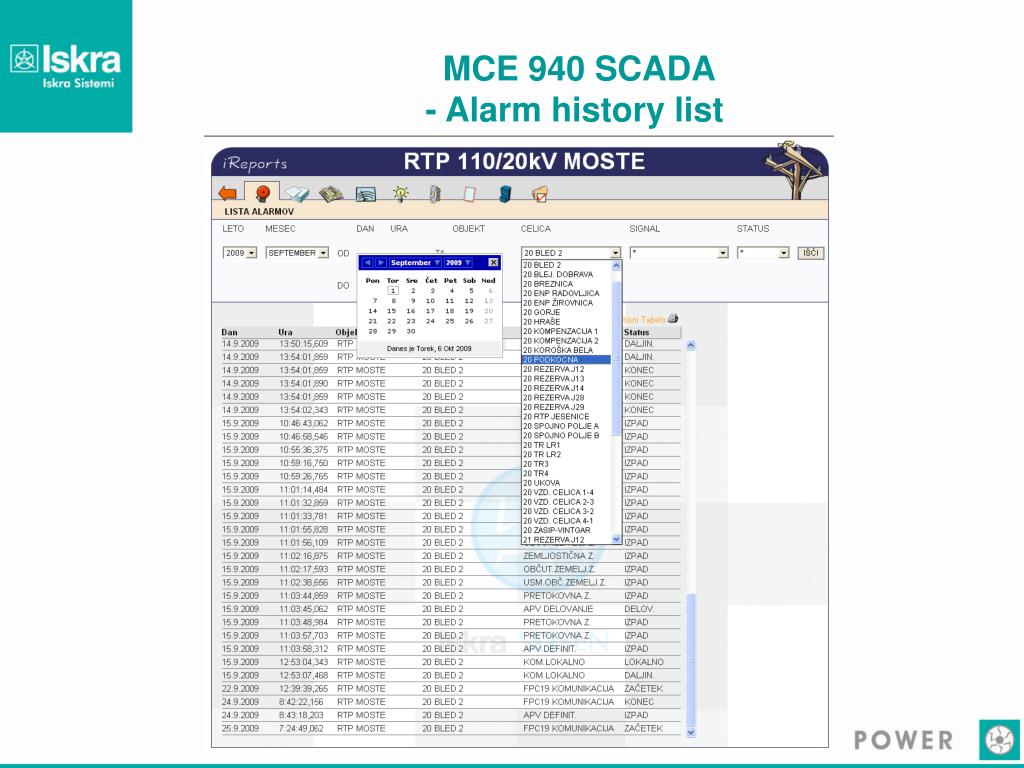

  27. MCE 940 SCADA- Alarm history list
