Aula te rica 14

Aula Teórica 14

Escoamento de Couette, i.e., escoamento entre duasplacasplanas.


Couette flow

Couette Flow

  • We will assume stationary, incompressible and that the plates have infinite length and depth along the direction normal to the paper. This is equivalent to say that we are far away from the entrance and the exit and from the walls perpendicular to x3. In this case the velocity as a single component, along x1.

  • The BC are u=0 at y=0 and u=U0 at y=h

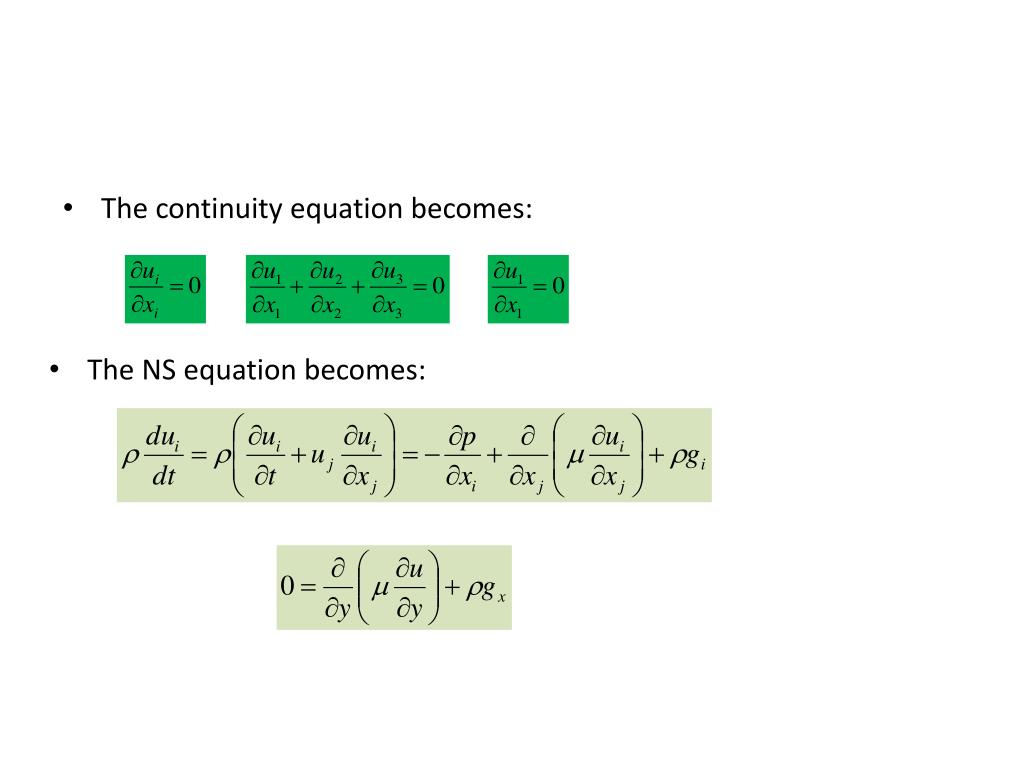

  • The continuity equation becomes:

  • The NS equation becomes:


Aula te rica 14

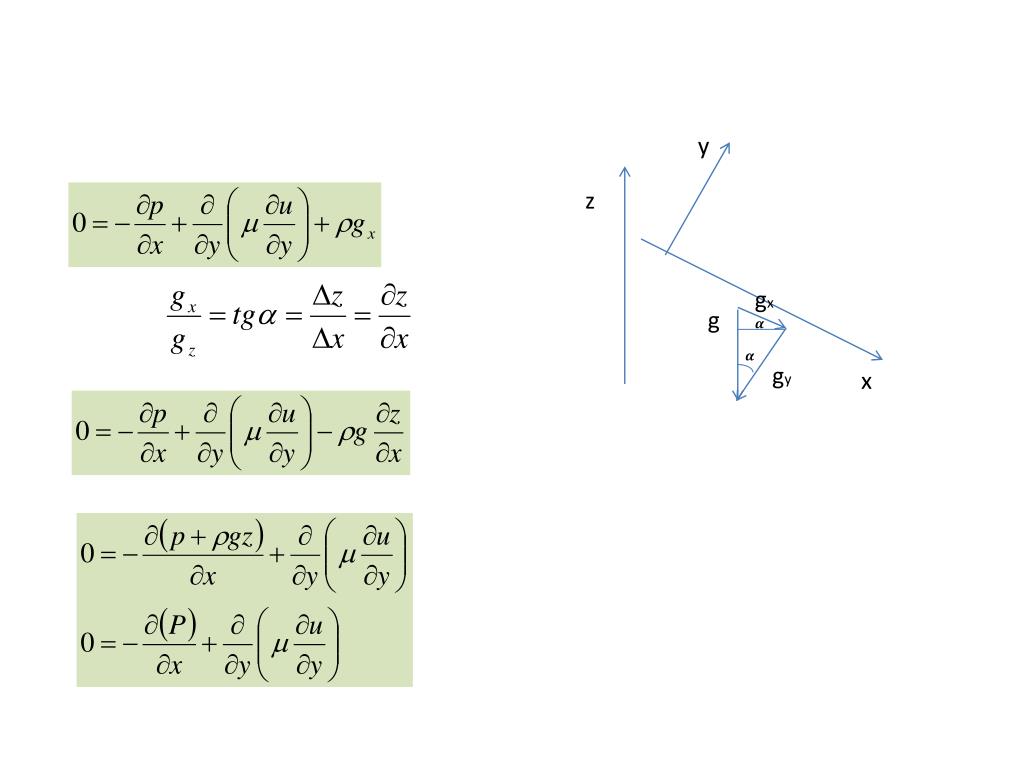

y

z

gx

g

𝜶

𝜶

gy

x

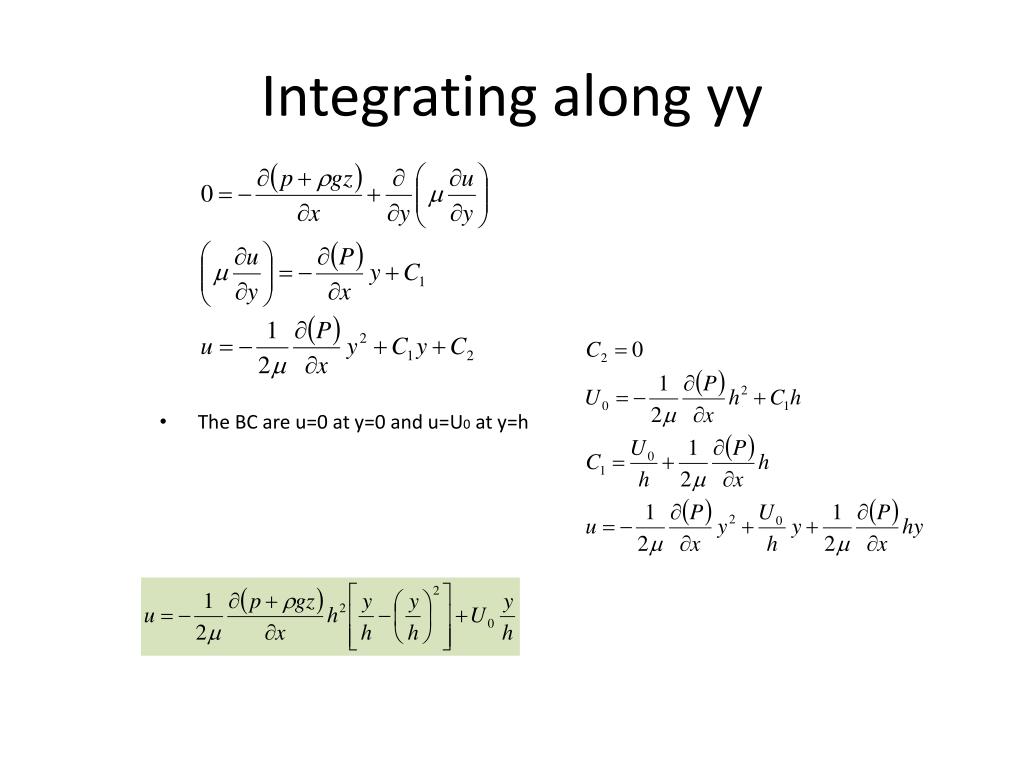

Integrating along yy

Integrating along yy

  • The BC are u=0 at y=0 and u=U0 at y=h

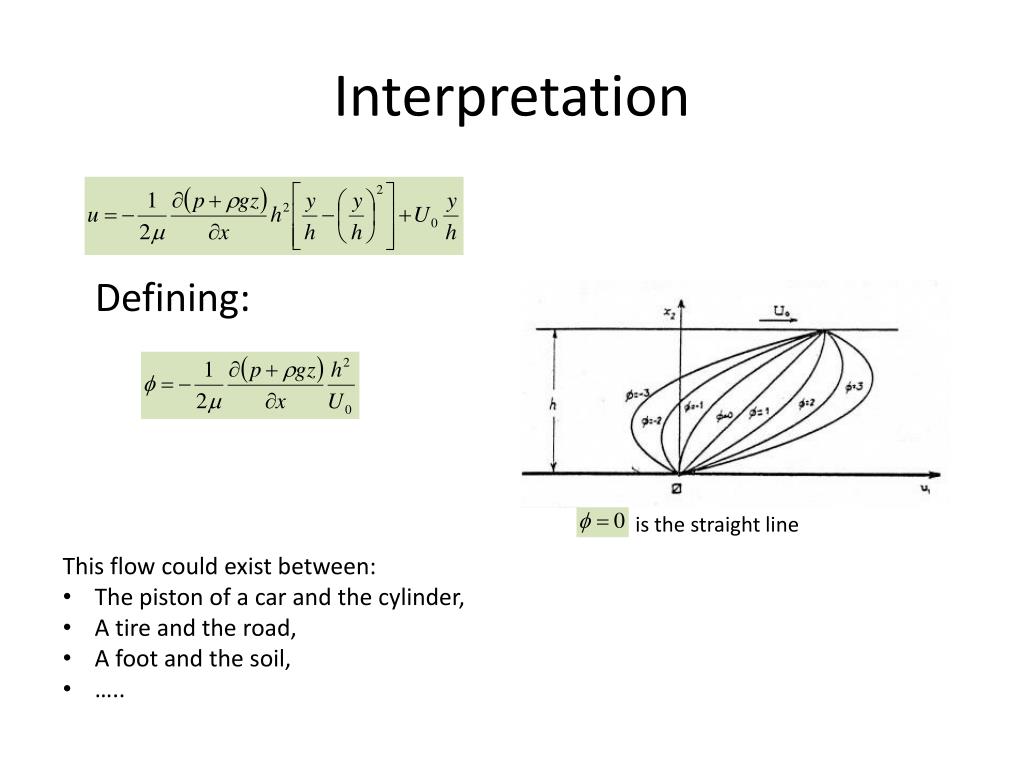

Interpretation

Interpretation

Defining:

is the straight line

  • This flow could exist between:

  • The piston of a car and the cylinder,

  • A tire and the road,

  • A foot and the soil,

  • …..

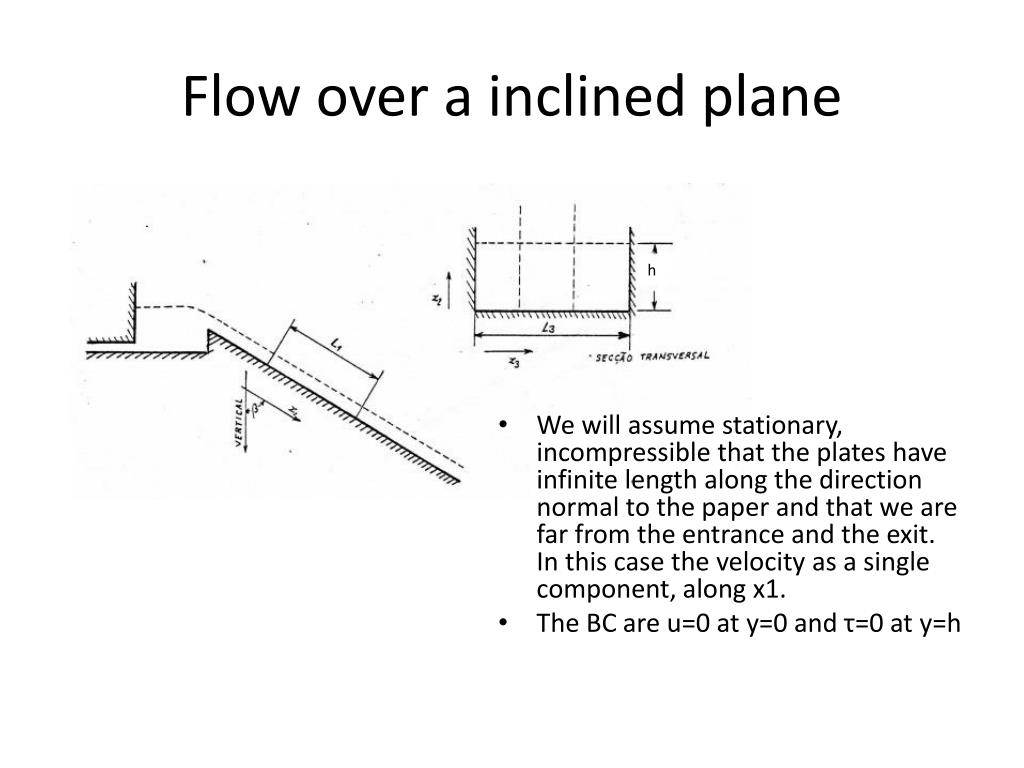

Flow over a inclined plane

Flow over a inclined plane

  • We will assume stationary, incompressible that the plates have infinite length along the direction normal to the paper and that we are far from the entrance and the exit. In this case the velocity as a single component, along x1.

  • The BC are u=0 at y=0 and τ=0 aty=h

h


Aula te rica 14

  • The continuity equation becomes:

  • The NS equation becomes:


Integrating along yy1

Integrating along yy

  • The BC are u=0 at y=0 and τ=0 at y=h

  • The velocity profile is a parabola and shear stress is a straight line

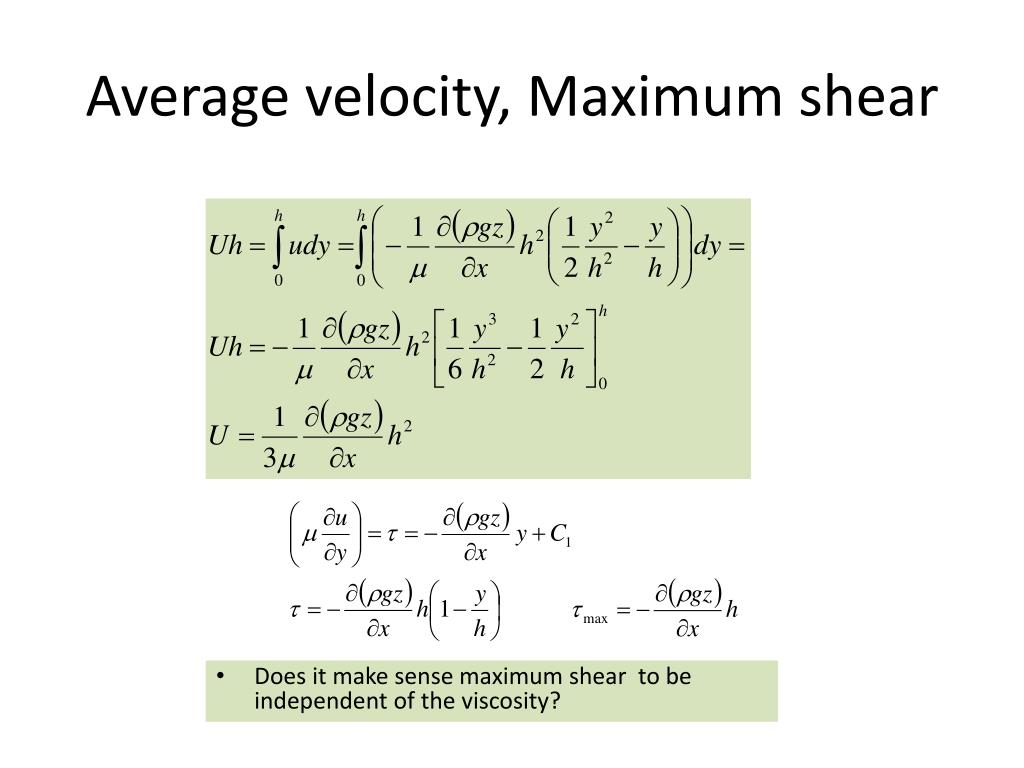

Average velocity maximum shear

Average velocity, Maximum shear

  • Does it make sense maximum shear to be independent of the viscosity?
