Me 4447 6405

ME 4447/6405

Microprocessor Control of Manufacturing Systems

and

Introduction to Mechatronics

Instructor: Professor Charles Ume

Interrupts and Resets


Reason for interrupts

You might want instructions executed immediately after internal request and/or request from peripheral devices when certain condition are met .

Interrupt provides way to temporarily suspend

current program execution in order to execute certain set of tasks.

Reason for Interrupts

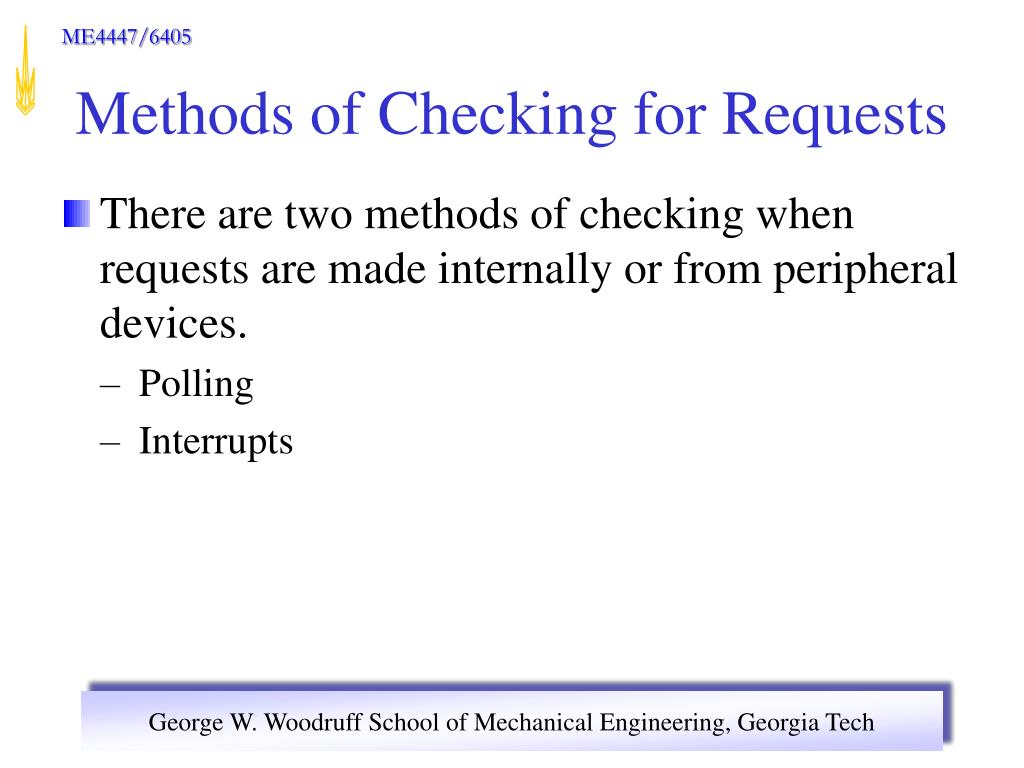

Methods of checking for requests

There are two methods of checking when requests are made internally or from peripheral devices.

Polling

Interrupts

Methods of Checking for Requests


Polling

An iterative approach which constantly checks devices for data

Inefficient method for checking when input data has come in because no other instructions can be executed during polling process

Polling


Interrupts

Interrupts

Communication between CPU and I/O devices can be established with issue of interrupt request

NOTE: Request can be issued at any time

CPU suspends execution of main program until instructions in Interrupt Service Routine (ISR) are completely executed

Returns to main program after ISR is completed


Types of interrupts

There are two types of interrupts.

Maskable

Non-Maskable

Types of Interrupts


Maskable interrupts

27 Maskable Interrupts

Two types of Masking

Local

Interrupt enable bit

Global

I-bit in CCR

Follows a default priority arrangement

Any one interrupt can be promoted to higher priority using HPRIO register

Maskable Interrupts

  • IRQ

  • Real-Time Interrupt

  • Standard Timer Channel 0

  • Standard Timer Channel 1

  • Standard Timer Channel 2

  • Standard Timer Channel 3

  • Standard Timer Channel 4

  • Standard Timer Channel 5

  • Standard Timer Channel 6

  • Standard Timer Channel 7

  • Standard Timer Overflow

  • Pulse Accumulator A Overflow

  • Pulse Accumulator Input Edge

  • SPI transfer Complete

  • SCI system

  • ATD

  • Port J

  • CRG PLL Lock

  • CRG Self Clock Mode

  • Flash

  • CAN Wakeup

  • CAN Errors

  • CAN Receive

  • CAN Transmit

  • Port P

  • PWM Emergency Shutdown

  • VREG LVI

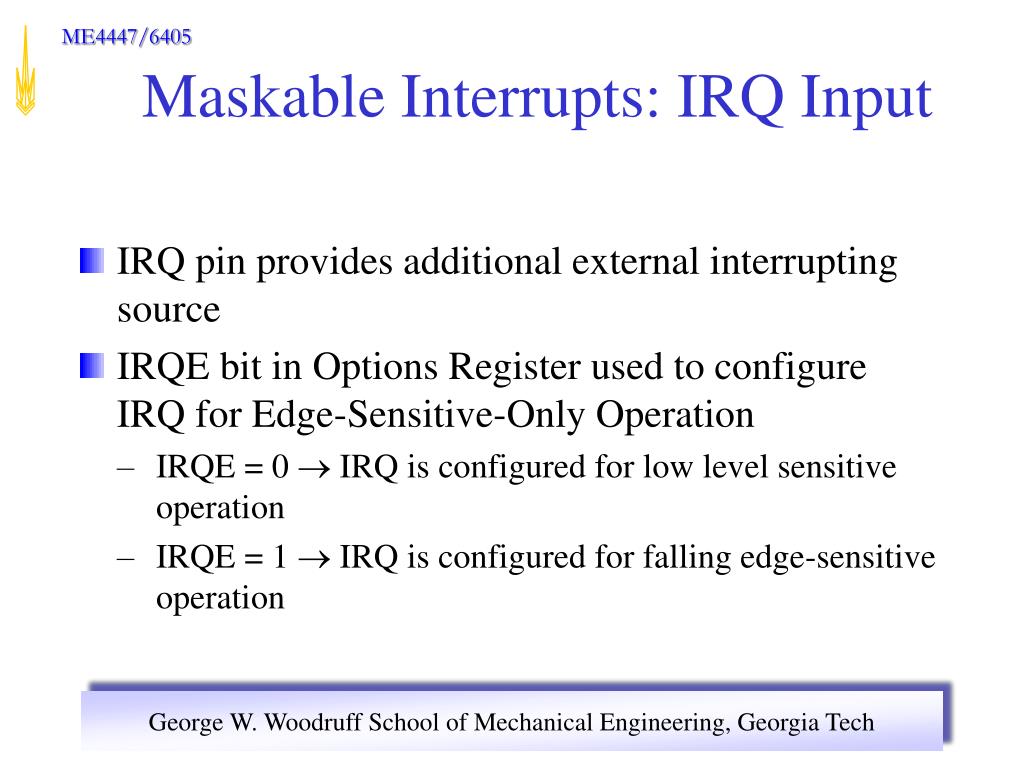

Maskable interrupts irq input

IRQ pin provides additional external interrupting source

IRQE bit in Options Register used to configure IRQ for Edge-Sensitive-Only Operation

IRQE = 0  IRQ is configured for low level sensitive operation

IRQE = 1  IRQ is configured for falling edge-sensitive operation

Maskable Interrupts: IRQ Input


Maskable interrupts peripheral subsystems

Interrupts from Internal Peripheral Subsystems

Flag bit, which is set after action takes place

Interrupt enable bit, which enables flag to generate interrupt service

Maskable Interrupts: Peripheral Subsystems


Interrupt priority maskable

Maskable Interrupts Priority

IRQ

Real-Time Interrupt

Standard Timer Channel 0

Standard Timer Channel 1

Standard Timer Channel 2

Standard Timer Channel 3

Standard Timer Channel 4

Standard Timer Channel 5

Standard Timer Channel 6

Standard Timer Channel 7

Standard Timer Overflow

Pulse Accumulator A Overflow

Pulse Accumulator Input Edge

SPI transfer Complete

SCI system

ATD

Port J

CRG PLL Lock

CRG Self Clock Mode

Flash

CAN Wakeup

CAN Errors

CAN Receive

CAN Transmit

Port P

PWM Emergency Shutdown

VREG LVI

Interrupt Priority: Maskable

Any can be assigned the highest maskable interrupt priority...


Hprio register for maskable interrupts

Used to elevate priority of any one maskable interrupt

Default is IRQ

Set by changing contents of HPRIO (Highest Priority Interrupt Register)

Can only be written when I-bit is set

HPRIO Register for Maskable Interrupts


Hprio register for maskable interrupts1

HPRIO Register for Maskable Interrupts

Address: $001F

  • PSEL[7:1] – Priority Select Bits

  • Selects one interrupts source to be elevated

  • Can only be written while I-bit in the CCR is set

  • Write the low byte of the maskable interrupt vector to HPRIO to elevate that maskable interrupt to the highest priority

  • Ex: writing $DE to HPRIO elevates the Standard Timer Overflow to highest priority (Standard Timer Overflow vector = $FFDE)


Non maskable interrupts

6 Non-Maskable Interrupts

Follows a default priority arrangement

Interrupts are not subject to global masking

Non-Maskable Interrupts

POR of RESET pin

Clock monitor reset

COP watchdog reset

Unimplemented instruction trap

Software interrupt (SWI)

XIRQ interrupt

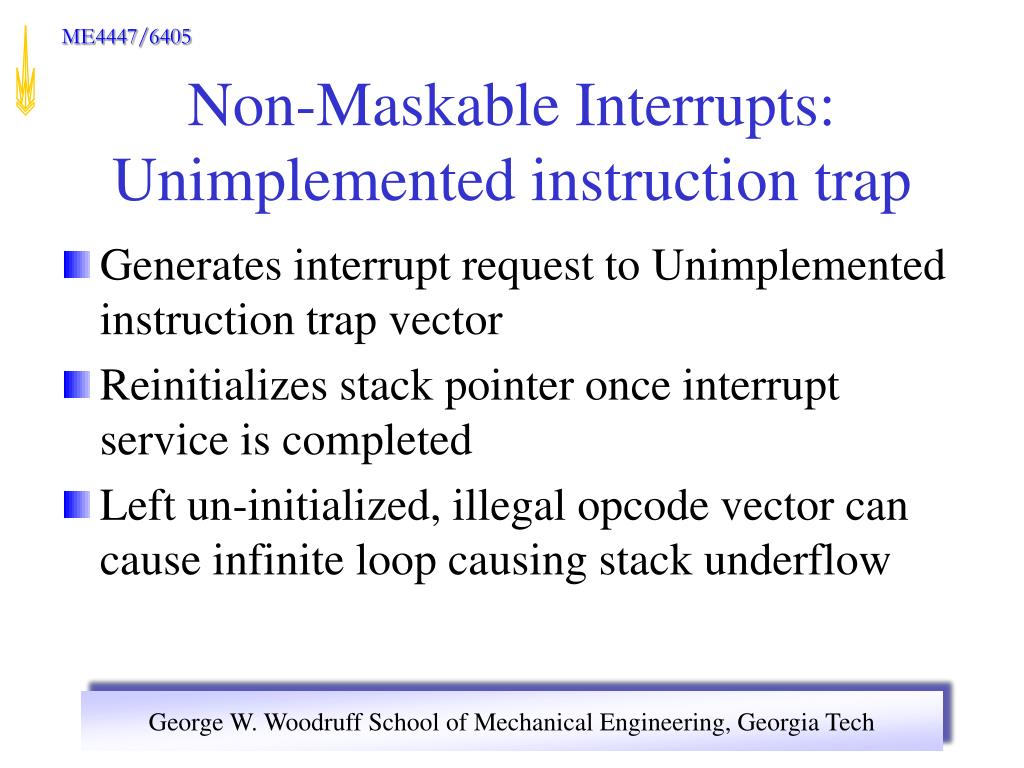

Non maskable interrupts unimplemented instruction trap

Generates interrupt request to Unimplemented instruction trap vector

Reinitializes stack pointer once interrupt service is completed

Left un-initialized, illegal opcode vector can cause infinite loop causing stack underflow

Non-Maskable Interrupts:Unimplemented instruction trap

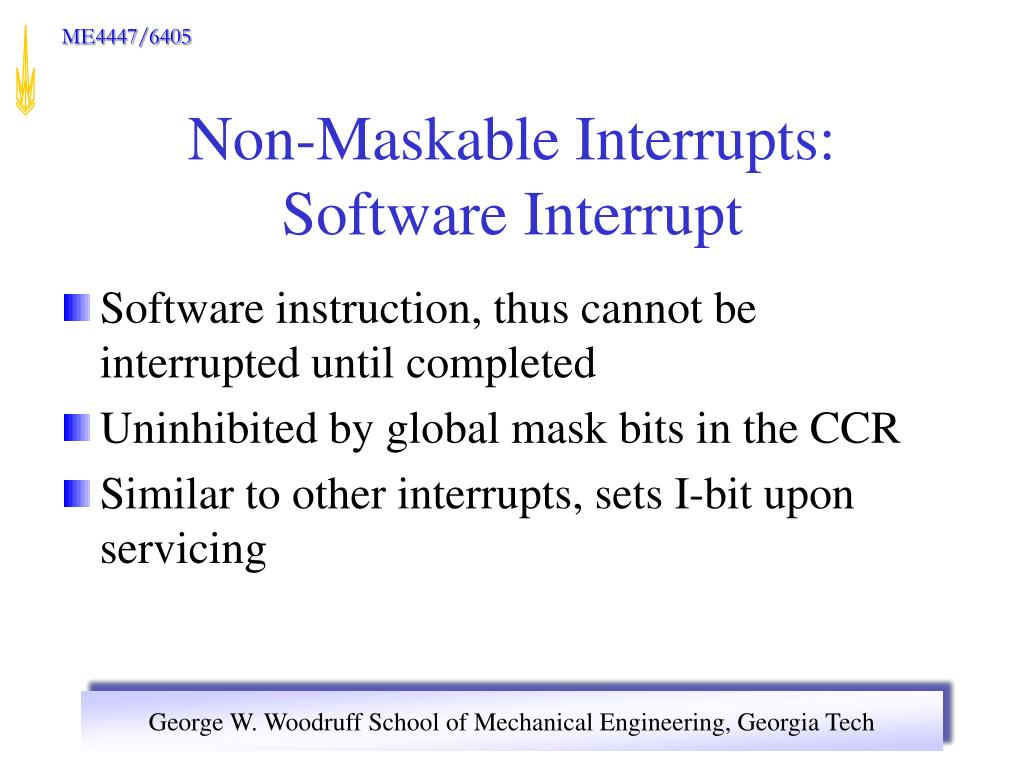

Non maskable interrupts software interrupt

Software instruction, thus cannot be interrupted until completed

Uninhibited by global mask bits in the CCR

Similar to other interrupts, sets I-bit upon servicing

Non-Maskable Interrupts: Software Interrupt


Non maskable interrupts xirq

Enabled by TAP instruction by clearing X-bit upon system initialization

After being cleared, software cannot set X-bit, thus XIRQ is non-maskable

Higher priority than any source maskable by I-bit

Both X and I bits are automatically set by Reset or recognition of XIRQ interrupt

RTI restores X and I bit to pre-interrupt states

Non-Maskable Interrupts: XIRQ


Stacking order when an interrupt occurs

Stacking Order when an Interrupt Occurs

Last value to be pulled from stack


Interrupt vectors

Each type of interrupt has associated vector addresses

Vector addresses change depending on whether MON12 is in use

With MON12 in use, user must use Monitor Interrupt Vector Table

Interrupt Vectors


Mon12 in use

In this case you must write the address of your Interrupt Service Routine to the vector address found in the Monitor Interrupt Vector Table

MON12 in Use

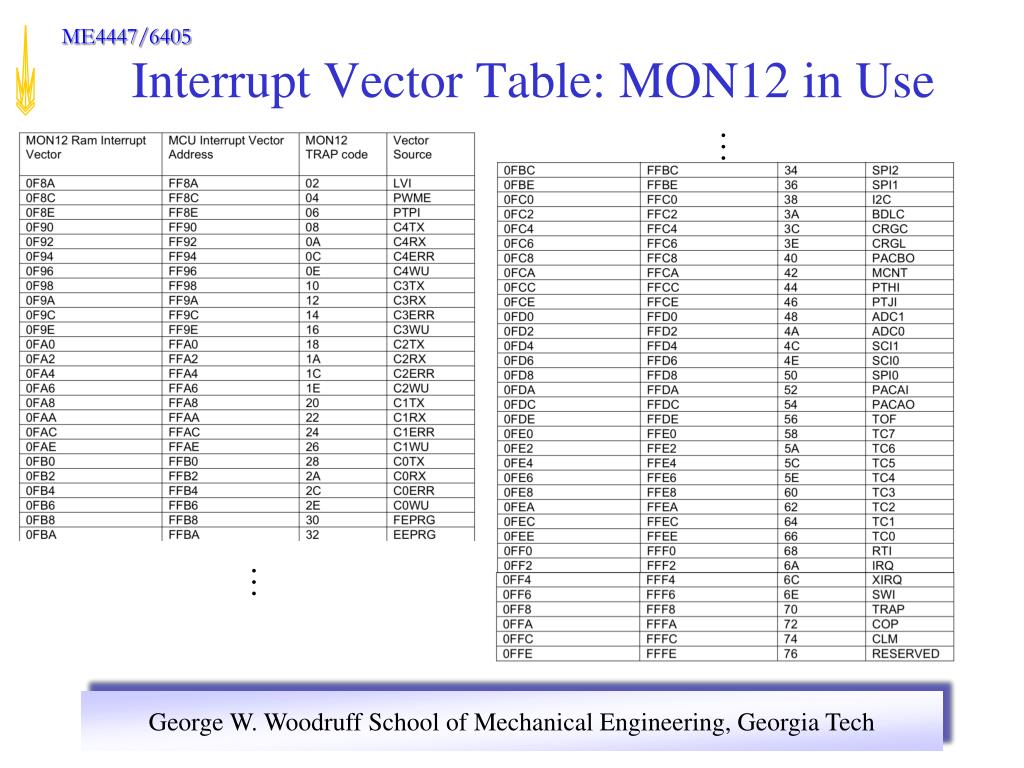

Interrupt vector table mon12 in use

Interrupt Vector Table: MON12 in Use


Mon12 not in use

Interrupt vector addresses are usually occupied by MON12

With MON12 not in use, starting ISR address must be programmed in standard vector address

MON12 Not in Use

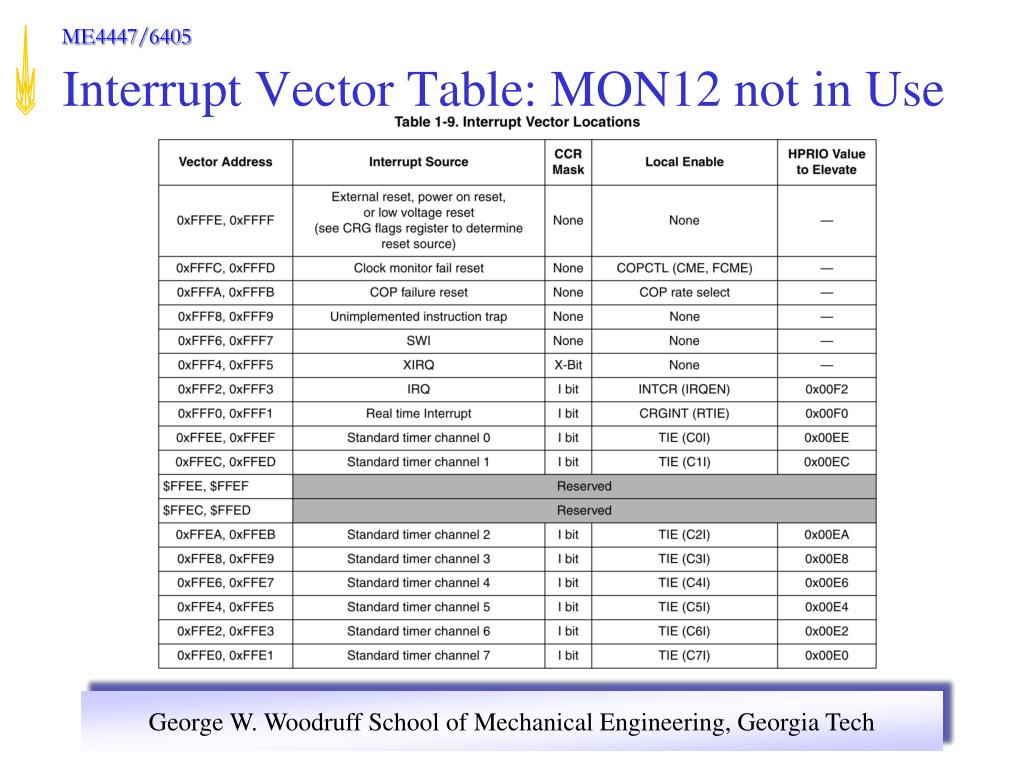

Interrupt vector table mon12 not in use

Interrupt Vector Table: MON12 not in Use


Interrupt flow

Interrupt Flow

Interrupt condition

is met

A

B

Global Masking

YES

Analyze Priority

ISR instruction

NO

Set (I) or (X)

to prohibit another

Interrupt

RTI

NO

Local Masking

YES

YES

NO

Clear I or X bit in

CCR

Complete Current

Instruction

Standard Interrupt

Table

Restore Registers

w/ org. Values

Store all registers

on the Stack

Load Address in

appropriate vector

Note: Local mask must be cleared prior to performing RTI

Continue

Program

A

B


Me 4447 6405

Elapsed Time Example

Write a routine to interrupt the MC9S12C32 after 10 msec of elapsed time

(Assume E= 1 Mhz, Prescaler = 1, MON12 in use)

ORG$1000

LDD#$FFFF/*Delays any TC3 compares*/

STDTC3H/*Set output compare to the longest time so that you would not have

output compare occurring when you are initializing*/

OR

SEI/*Set I-bit to prevent interrupt service during set-up*/

LDAA #BIT3HI /* BIT5HI = %0010000*/

STAATIOS/* Select TC3 as an output compare*/

STAATFLG1/* Clear TC3 Interrupt Flag*/

STAATIE/* Enable TC3 Interrupt */

LDAB#$C0

STAB TCTL2/* PT3 will be high for a successful compare */

LDX#TC3ISR/* TC3ISR = $2000, 2 bytes- beginning address of interrupt

service routine*/

STXTC3VEC/* TC3VEC= $0FE8, This will cause the high byte ($20) of the

service routine address to be stored in location $0FE8 and

the low byte ($00) to be stored in $0FE9 */

LDDTCNT/* TCNT=$0044 */

ADDD#DLYIOMS/*DLYIOMS = $2710 = 10000 */

STDTC3/* IF not done elsewhere */

CLI/* Clear I bit */


Me 4447 6405

Elapsed Time Example

Write a routine to interrupt the MC9S12C32 after 10 msec of elapsed time

(Assume E= 1 Mhz, Prescaler = 1, MON12 in use)

ORG$1000

LDD#$FFFF/*Delays any TC3 compares*/

STDTC3H/*Set output compare to the longest time so that you would not have

output compare occurring when you are initializing*/

OR

SEI/*Set I-bit to prevent interrupt service during set-up*/

LDAA #BIT3HI /* BIT3HI = %0003000*/

STAATIOS/* Select TC3 as an output compare*/

STAATFLG1/* Clear TC3 Interrupt Flag*/

STAATIE/* Enable TC3 Interrupt */

LDAB#$C0

STAB TCTL2/* PT3 will be high for a successful compare */

LDDTCNT/* TCNT=$0044 */

ADDD#DLYIOMS/*DLYIOMS = $2710 = 10000 */

STDTC3/* IF not done elsewhere */

CLI/* Clear I bit */

….

SWI

END

ORG $0FE8

FDB TC3ISR


Example timer overflow interrupt

TFLG2 EQU $004F *Timer Interrupt Flag 2

TSCR2 EQU $1024 *Timer Interrupt Mask 2

TOFISR EQU $1500 *ISR memory location

PROGRAM EQU $1000

STRING EQU $2000

OUTSTRG EQU $FF5E

VECTOR EQU $0FDE

ORG STRING

FCC 'TICK'

FCB $04

ORG PROGRAM

*Set I-bit to prevent interrupt service during set-up

SEI

Start timer, turn on TEN

LDAA #$80

STAA TSCR2 *TOF Interrupt Enabled

STAA TFLG2 *Clears TOF Interrupt Flag

LDX #TOVISR *Loads register X with #1500

*Stores content of register X to address Vector incremented

STX VECTOR

CLR $0001

CLI * Clears I-bit to allow servicing of interrupt

LOOP BRA LOOP

SWI *Software Interrupt

End

ORG TOVISR

LDAA $0001 * Loads address $0001 content

INCA *Increment by 1

STAA $0001 *Stores value back to address

CMPA #30 *Compares value to decimal 30

BNE A1

*Loads index register X with content of STRING

LDX #STRING

JSR OUTSTRG

CLR $0001 *Clear address

A1 LDAA #$80 *Loads binary 10000000

STAA TFLG2 *Clears local flag

RTI

Example: Timer Overflow Interrupt

Pre-interrupt service set-up


Resets

Forces the MCU to:

assume set of initial conditions

begin executing instructions at predetermined starting address.

Resets


Resets1

Like interrupts, resets share concept of vector fetching to force new starting point for further CPU operations.

In contrast to interrupts, resets stop completely execution of set of instructions. As well, they always rest MCU hardware.

Resets


Sources of resets

Power on Reset (POR)

External Reset (RESET)

Computer Operating Properly (COP) Reset

Clock Monitor Reset

Sources of Resets


Power on resets

Power-On Reset (POR)

Used only for power-up conditions to initialize MCU internal circuits.

Applying Vdd to MCU triggers POR circuit, initiates reset sequence, and starts internal timing circuit.

4064 clock cycle delay after oscillator becomes active, allows clock generator to stabilize.

Power-On Resets


External reset

System reset can also be forced by applying low level to RESET pin.

External source must hold pin low for more than 4 cycles.

If this happens, pin is further sampled 2 cycles after

Low level at sampling instant indicates that reset has been caused by external device.

External Reset

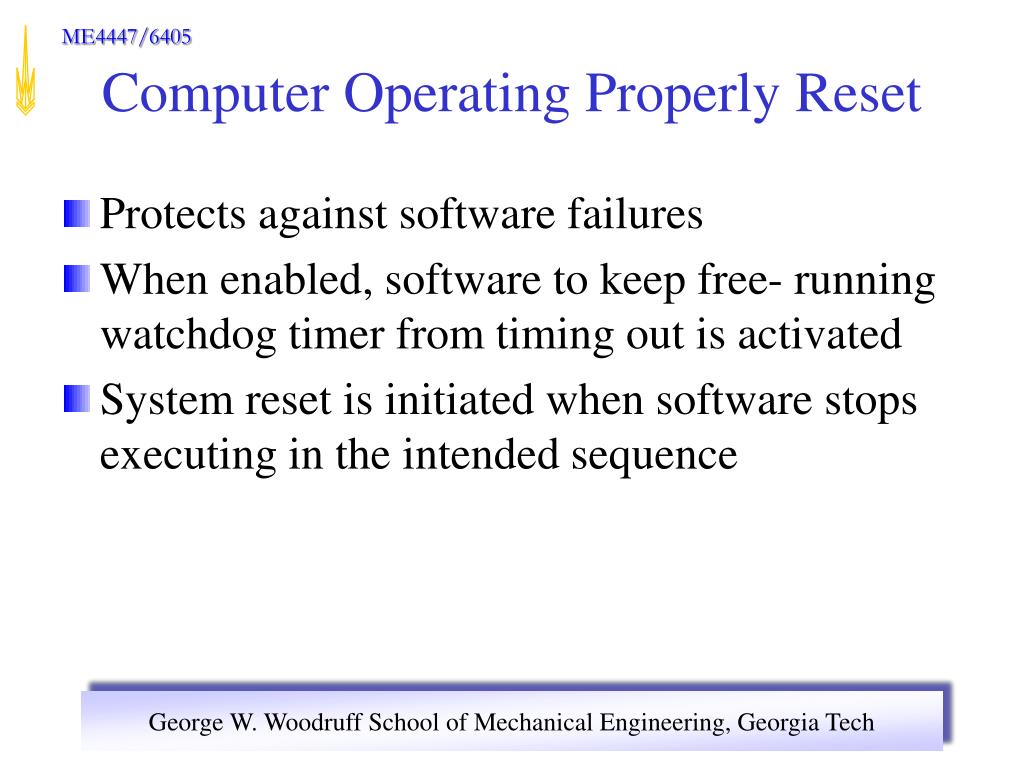

Computer operating properly reset

Protects against software failures

When enabled, software to keep free- running watchdog timer from timing out is activated

System reset is initiated when software stops executing in the intended sequence

Computer Operating Properly Reset


Cop reset continued

COP is enabled or disabled by setting NOCOP bit in CONFIG register.

To change status of COP system, contents of CONFIG register are changed and system reset is initiated.

COP timer rate is controlled in OPTION Register. The system E-clock is divided by 2^15 and further scaled by 1, 2 and 4.

COP Reset continued


Clock monitor reset

Clock Monitor Reset circuit is based on

internal resistor capacitor time delay.

If no MCU clock edges are detected within this

RC time delay, clock monitor, if set by

CME control bit, would generate system reset.

Clock Monitor Reset


How the mpu distinguishes between internal and external resets

MPU senses whether reset pin rises to logic 1 within

two E-clock cycles after internal device releases reset.

When reset condition is sensed, RESET pin is driven low by internal device for 4 E-clock cycles, then released. Two E-clock cycles later, it is sampled.

If pin is still held low, CPU assumes that external reset has occurred. If pin is high, it indicates that reset was internally initiated.

How the MPU Distinguishes between Internal and External Resets


Occurrence of reset affects

CPU

Memory Map

Timer

Real-time Interrupt

Pulse Accumulator

SPI

ADC

System

COP

SCI

Occurrence of Reset Affects


Process flow out of resets

When Reset is triggered

Vector fetch (Program counter loaded with contents of specified address)

S, X and I bits set in CCR

MCU hardware reset

Checks for interrupts

Process Flow out of Resets


Standby modes

Suspends CPU operation until reset or interrupt occurs

Used to reduce power consumption

Two standby modes:

WAIT

STOP

Standby Modes


Standby modes wait

Opcode (WAI)

Suspends CPU processing

CPU registers are stacked

On-chip crystal oscillator remains active

Exit WAIT mode through external IRQ, XIRQ, or any internally generated interrupts

Standby Modes: WAIT


Standby modes stop

If S-bit in the CCR is 0, CPU goes into stop mode

Else, opcode is treated as NOP

All clocks stopped  internal peripherals stopped

Retains data in Internal RAM if VDD is maintained

CPU state and I/O pin levels are static

Exit STOP mode through external interrupts, pending edge-triggered IRQ or RESET pin

Standby Modes: STOP


Standby modes stop1

Recovering through XIRQ

X-bit is clear  Returns to stacking sequence leading to normal XIRQ request

X-bit is set  Returns to instruction immediately following STOP instruction

Standby Modes: STOP


Questions

Questions???


  • Login
