Data flow pattern analysis of scientific applications

Data Flow Pattern Analysis of Scientific Applications

Michael Frumkin

Parallel Systems & Applications

Intel Corporation

May 6, 2005


Outline

Outline

  • Why Data Flow Pattern Analysis?

  • CFD Applications

  • The NAS Parallel Benchmarks

  • The NAS Grid Benchmarks

  • Trace File Analysis

  • Conclusions

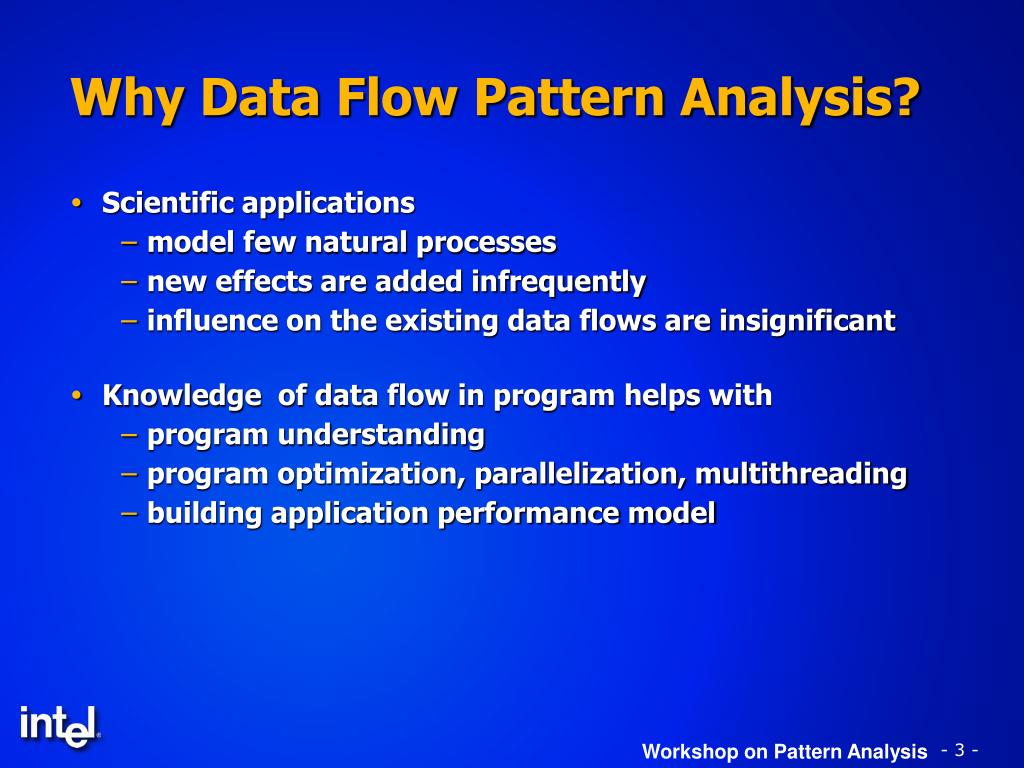

Why data flow pattern analysis

Why Data Flow Pattern Analysis?

  • Scientific applications

    • model few natural processes

    • new effects are added infrequently

    • influence on the existing data flows are insignificant

  • Knowledge of data flow in program helps with

    • program understanding

    • program optimization, parallelization, multithreading

    • building application performance model


Design of scientific applications

Design of Scientific Applications

  • Time represented as an outer loop

    • Iterations over time step

  • Space is represented by structured/unstructured grids

    • Important for understanding data locality

    • Data access patterns

    • Spatial parallelism

  • Physics is represented by an operator at each grid point

    • Data flow

    • Operator level of parallelism/dependence


Cfd data flow patterns

CFD Data Flow Patterns

  • Solve the Navier-Stokes equation

    K(ui+1)=Lui

    • u is five-dimensional vector

    • K is non-linear operator

  • Solver

  • RHS computation

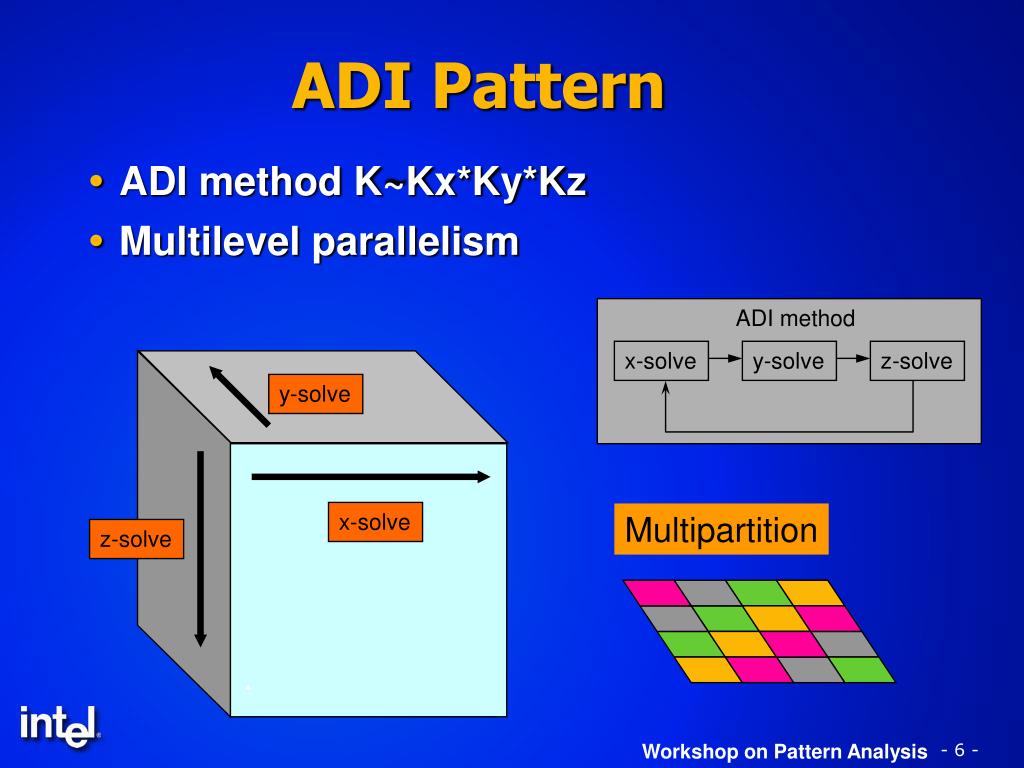

Adi pattern

ADI method

x-solve

y-solve

z-solve

ADI Pattern

  • ADI method K~Kx*Ky*Kz

  • Multilevel parallelism

y-solve

x-solve

Multipartition

z-solve


Bt communication

BT Communication

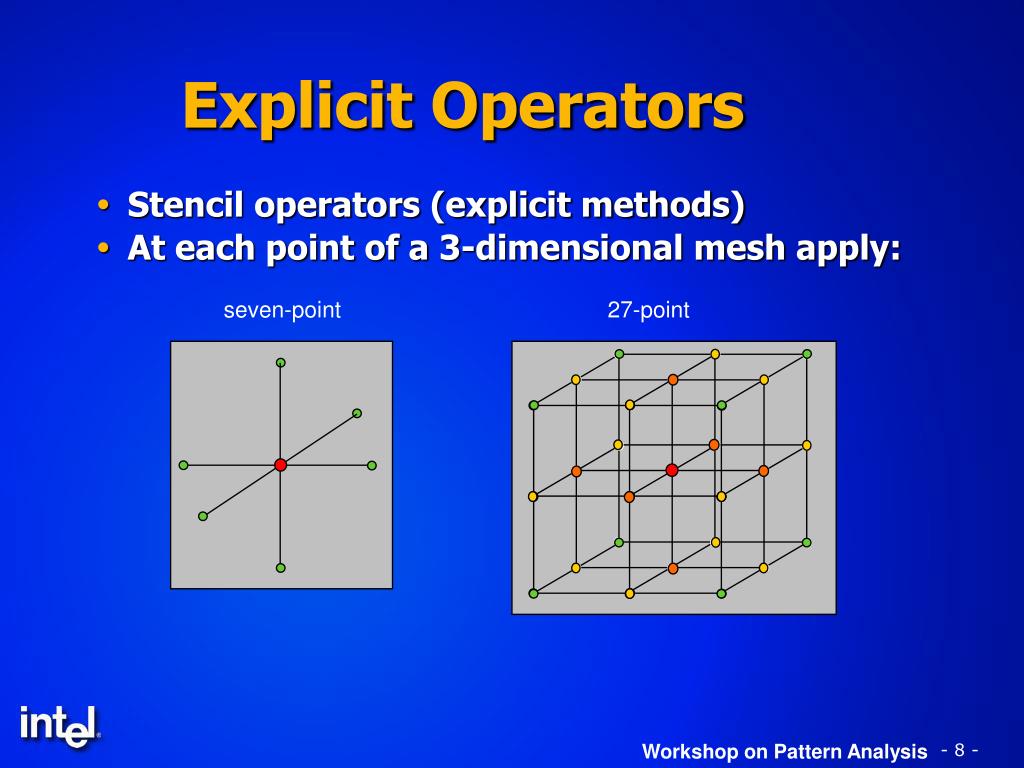

Explicit operators

Explicit Operators

  • Stencil operators (explicit methods)

  • At each point of a 3-dimensional mesh apply:

seven-point

27-point


Data flow pattern analysis of scientific applications

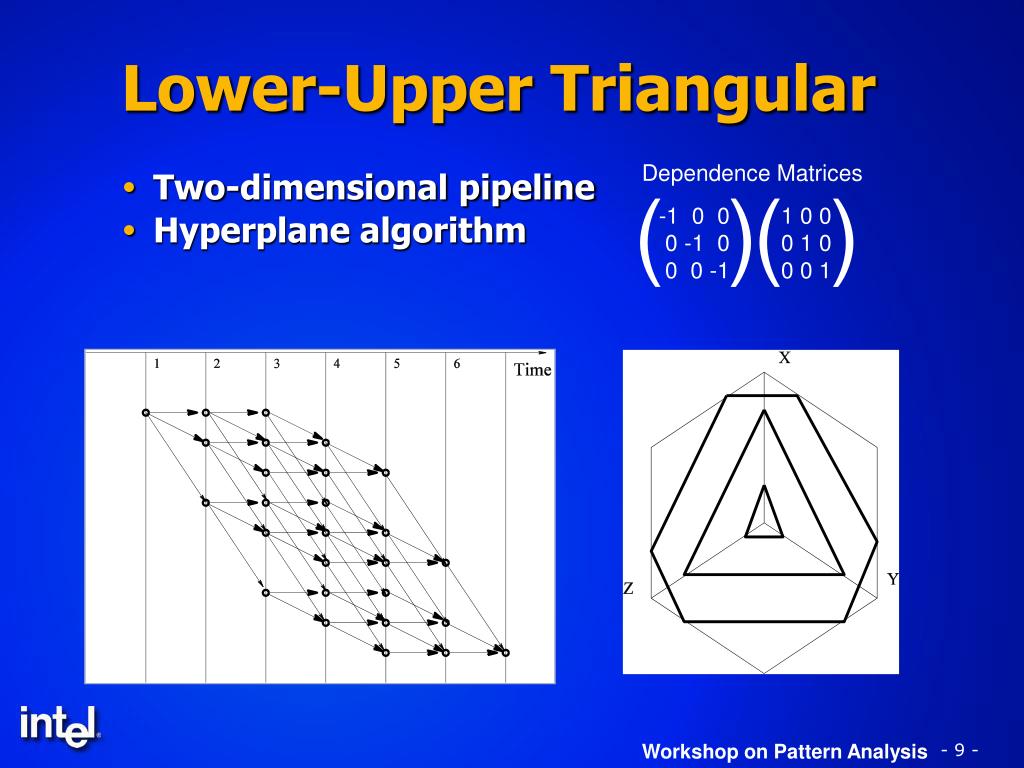

Lower-Upper Triangular

Dependence Matrices

(

)

(

)

  • Two-dimensional pipeline

  • Hyperplane algorithm

-1 0 0 1 0 0

0 -1 0 0 1 0

0 0 -1 0 0 1


Lu communication

LU Communication


Data flow pattern analysis of scientific applications

Multigrid V-Cycle

Interpolation & Smoothing

Projection

Interpolation & Smoothing

Projection

Projection

Interpolation & Smoothing

Interpolation & Smoothing

Projection

Smoothing


Mg communication

MG Communication

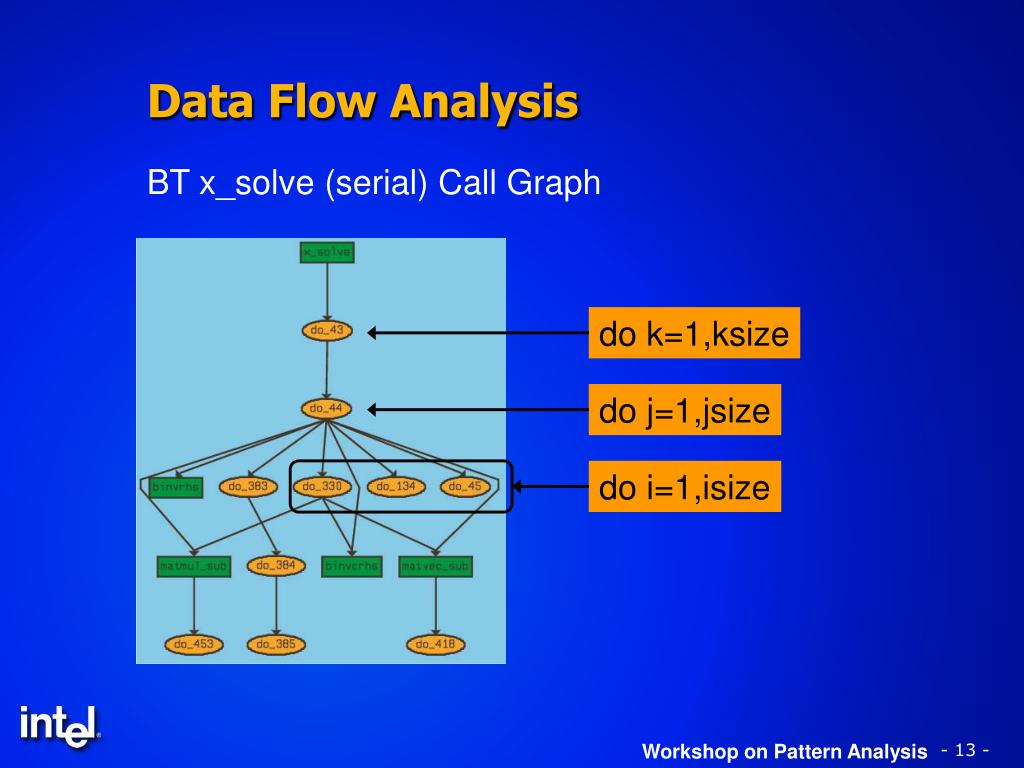

Bt x solve serial call graph

BT x_solve (serial) Call Graph

Data Flow Analysis

do k=1,ksize

do j=1,jsize

do i=1,isize

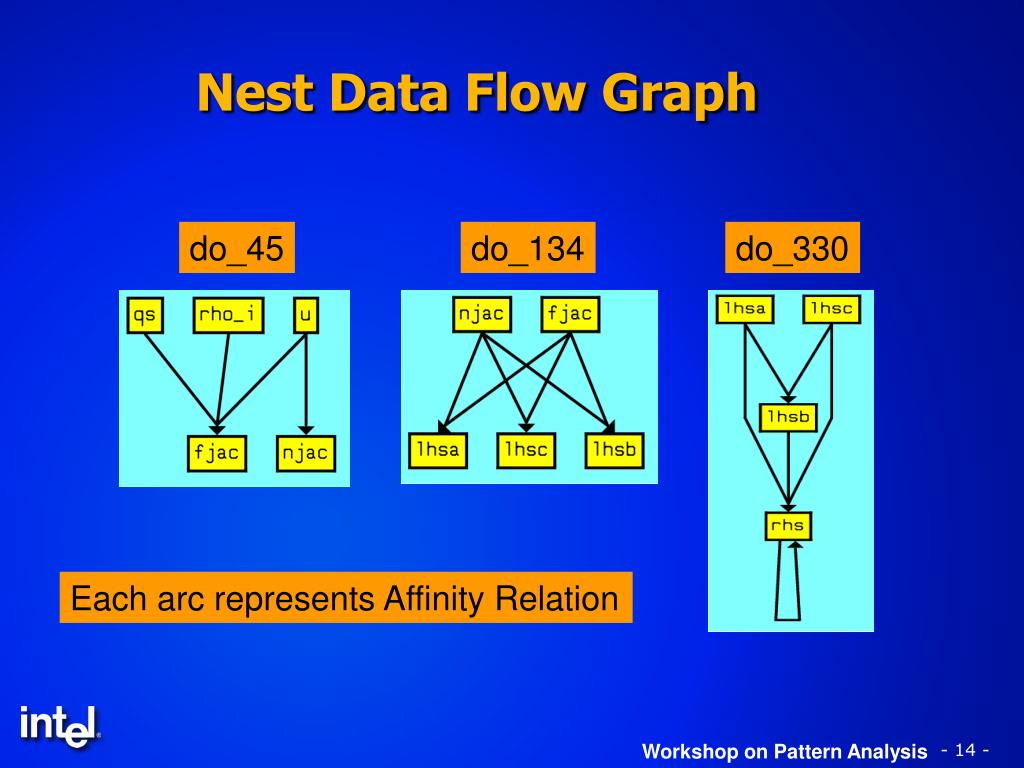

Nest data flow graph

Nest Data Flow Graph

do_45

do_134

do_330

Each arc represents Affinity Relation

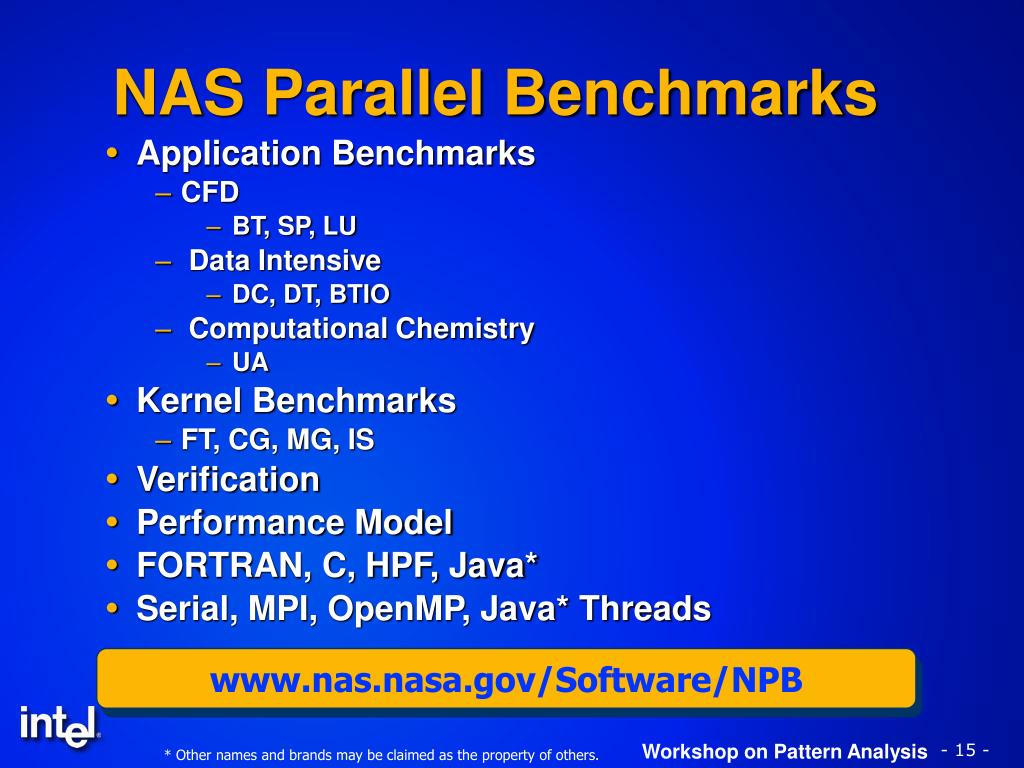

Nas parallel benchmarks

www.nas.nasa.gov/Software/NPB

NAS Parallel Benchmarks

  • Application Benchmarks

    • CFD

      • BT, SP, LU

    • Data Intensive

      • DC, DT, BTIO

    • Computational Chemistry

      • UA

  • Kernel Benchmarks

    • FT, CG, MG, IS

  • Verification

  • Performance Model

  • FORTRAN, C, HPF, Java*

  • Serial, MPI, OpenMP, Java* Threads

* Other names and brands may be claimed as the property of others.


Npb performance on altix

NPB Performance on Altix*

**

* Other names and brands may be claimed as the property of others.

** Performance tests and ratings are measured using specific computer systems and/or components and reflect the approximate performance of Intel products as measured by those tests.  Any difference in system hardware or software design or configuration may affect actual performance.  Buyers should consult other sources of information to evaluate the performance of systems or components they are considering purchasing.


Basic data flow patterns

Basic Data Flow Patterns

  • Shuffles

    • Sorting

    • FFT

    • Routing

  • Gather/Scatter

    • Conjugate Gradient

    • MD and FE codes

    • Sparse matrices

  • Transpose

    • FFT

    • Sorting

  • Tree

    • Parallel prefix, Reduction

    • Sorting

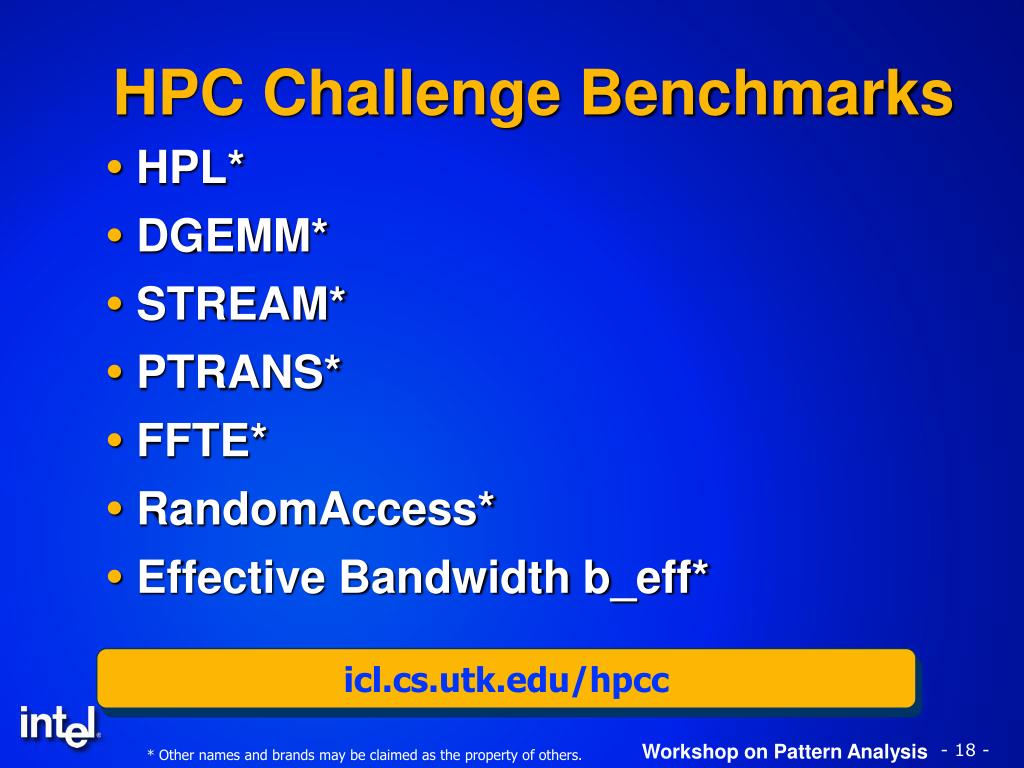

Hpc challenge benchmarks

icl.cs.utk.edu/hpcc

HPC Challenge Benchmarks

  • HPL*

  • DGEMM*

  • STREAM*

  • PTRANS*

  • FFTE*

  • RandomAccess*

  • Effective Bandwidth b_eff*

* Other names and brands may be claimed as the property of others.


Programming with directed graphs

Implemented in DT of NPB and in NGB

Programming With Directed Graphs

  • Arc

    • Arc* newArc(Node *tail, Node *head)

    • AttachArc(DGraph *dg)

    • deleArc(Arc *ar)

  • Node

    • newNode(char *name)

    • Node* AttachNode(DGraph *dg)

    • deleteNode(Node *nd)

  • DGraph

    • DGraph* newDGraph(char *name)

    • writeGraph(DGraph *dg, char* fname)

    • DGraph * readGraph(char* fname)

do_134


Directed graphs around

Directed Graphs Around

  • Parse trees

  • File Systems

  • Application task graphs

  • Device Schematics

Visualization and layout Tools

  • VCG tool

  • Edge tool

  • Tom Sawyer Software

  • Commercial tools


Cart3d

Task Graphs are rapidly growing

Cart3D*

  • Performs CFD analysis on complex geometries

  • Uses six executables

    • Intersect* – intersects geometry

    • Cubes* – produces Cartesian meshes

    • Reorder* – reorders meshes

    • Mgprep* – coarsens mesh

    • flowCart* – convergence acceleration

    • Clic* – analyzes the flow

  • Executables communicate via files

  • Returns relevant forces

    • Lift, Drag, Side Force

* Other names and brands may be claimed as the property of others.


The nas grid benchmarks

Mixed Bag (MB)

Launch

LU2

LU4

LU8

MG4

MG8

MG2

FT8

FT8

FT2

Report

#steps

Helical Chain (HC)

Launch

Embarrassingly Distributed (ED)

Visualization Pipeline (VP)

BT

SP

LU

Launch

Launch

BT

SP

LU

SP

SP

SP

SP

SP

SP

SP

SP

SP

BT

MG

FT

BT

SP

LU

BT

MG

Report

FT

BT

MG

FT

Report

Report

The NAS Grid Benchmarks

  • Reflect task level programming paradigm

  • Contain four patterns

    • Embarrassingly Distributed (ED)

    • Helical Chain (HC)

    • Visualization Pipeline (VP)

    • Mixed Bag (MB)

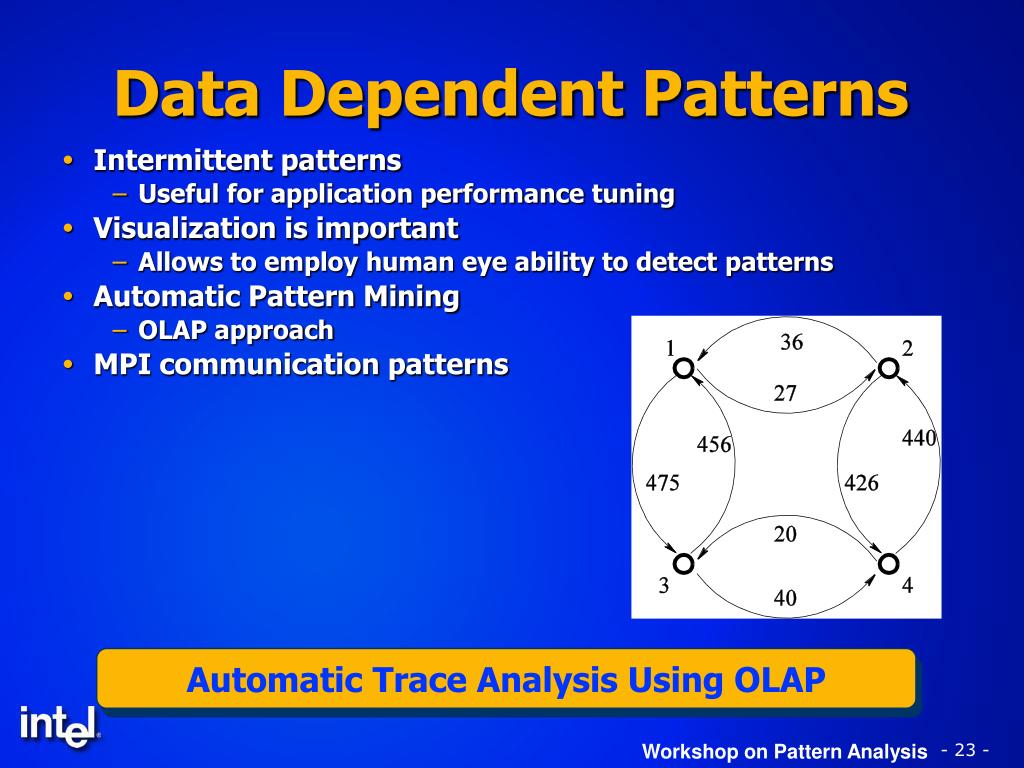

Data dependent patterns

Automatic Trace Analysis Using OLAP

Data Dependent Patterns

  • Intermittent patterns

    • Useful for application performance tuning

  • Visualization is important

    • Allows to employ human eye ability to detect patterns

  • Automatic Pattern Mining

    • OLAP approach

  • MPI communication patterns


Conclusions

Conclusions

Data Flow in Applications

  • Application Parallelization

  • Application Understanding

  • Application Mapping

  • Application Performance
