  1. & SL 523 SL 525 The ‘All-in-One’ Combination Locks

  2. ‘All-in-One’ Concept • Lock & input unit, no additional components • Lock includes • locking function • code management • time delays • time lock functions • in/outputs, e.g. to alarm centre

  3. SL 523 & SL 525 – ‘All-in-One’ Combination Locks Topics

  4. Easy to Use • Selectable display language • Comfortable navigation • Info key • Self-explaining operation

  5. Text Fields Iconographic Display –up to date at an eye‘s glance ... Time/ Date Time Lock Delay Time Code Functions Audit Misc. Lock Status Battery low AM/PM Format Warning

  6. Wide Range of Functionality Immediate time lock Shelve function Weekly locking per. Repeating holiday periods Large, comprehensive audit Time delay with confirmation window 4 level code hierarchy Holiday locking per. Programmable I/O‘s Duress time delay Code denial Dual mode

  7. Programming Programming Storage / Recall PC programmable Audit Programming

  8. EN 1300 Level B ECB·S VdS Class 2 IMP Class B CNPP a2p niveau B UL Type 1(pending) For safes of burglary resistance grade III (EN 1143-1, VdS 2450) Certified Security

  9. Lock Features • Intelligent motor bolt lock • Magic module: fits all applications • Dead bolt / spring bolt setting • Spring-load supported bolt • IR bolt detection • Easy installation & connection • Integrated I/O terminals

  10. Input Unit Features • Elegant design in two colours • High-resistant metal housing • Operating/programming unit • Large contrasted LCD • Two-level beeper • RS232 interface connector • Integr. battery compartment

  11. Unique Features • Spring-load supported bolt movement • Master code definable as ‘can open’ / ‘cannot open’ • Selectable code format ID/PIN or PIN/ID • Automatic DLST changeover • Opening counter

  12. SL 523 & SL 525 – ‘All-in-One’ Combination Locks Product Range

  13. Product Range 523 525

  14. Accessories • Programming software • Cable for audit log • Demonstration panels

  15. Audit Programming 523 or 525 – Functionality Adapted to Your Needs SL 523SL 525 Audit Programming • yellow <<<<Control Keys >>>> blue

  16. SL 523 & SL 525 – ‘All-in-One’ Combination Locks & FeaturesFunctions

  17. Portuguese Hungarian French Dutch Polish English Italian Spanish German Go Global ... Selectable display language

  18. Two-level high volume beeper Say it Loud ... • ‘Beep if open’ settable on/off

  19. Status Display • Number of openings • Battery level in % • Code format information (ID+PIN / PIN+ID)

  20. Code Format ID+ PIN PIN +ID 1 2 3 4 5 6 7 8 2-digit ID 6-digit PIN 3 4 5 6 7 8 1 2 6-digit PIN 2-digit ID

  21. Security Manager MASTER 00 Shift Managers MANAGER 10 MANAGER 20 Cashiers User Group 1 USER 11 USER 21 User Group 2 USER 12 USER 22 USER 13 USER 23 USER 14 USER 24 USER 15 USER 25 USER 16 USER 26 USER 17 USER 27 USER 18 USER 28 USER 19 USER 29 CIT Service COURIER 90 Code Structure

  22. MASTER 00 MANAGER 10 MANAGER 20 User Group 1 USER 11 USER 21 User Group 2 : : : : : : : : : : : : : : USER 19 USER 29 Code Denial

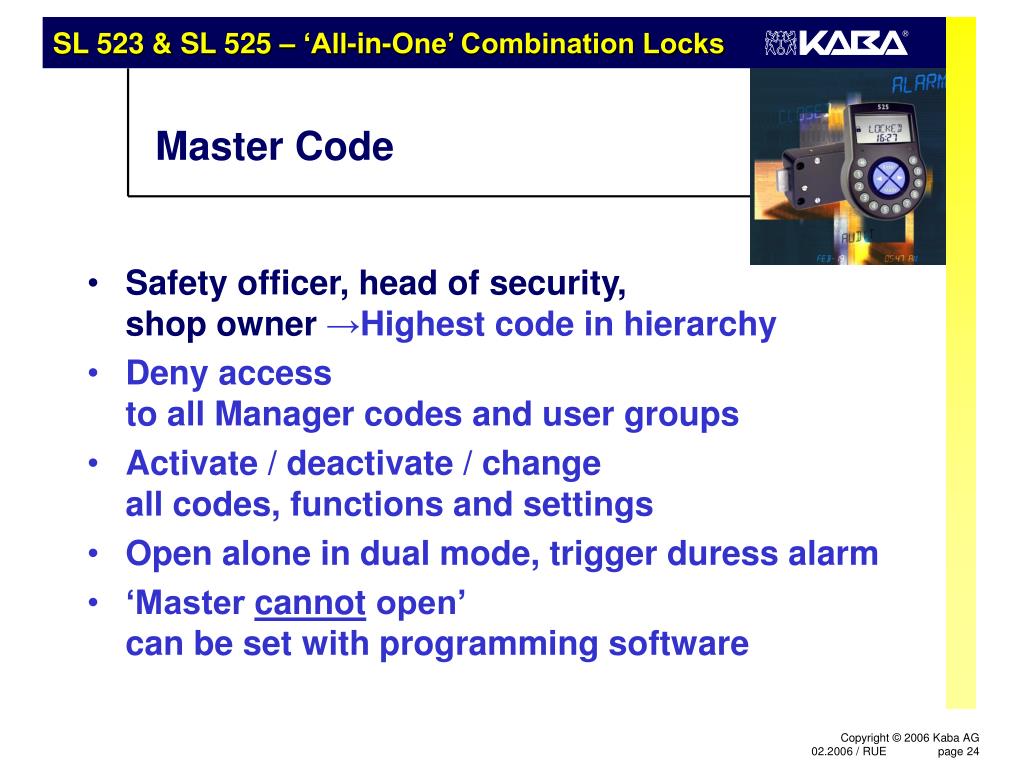

  23. Master Code • Safety officer, head of security, shop owner→Highest code in hierarchy • Deny access to all Manager codes and user groups • Activate / deactivate / change all codes, functions and settings • Open alone in dual mode, trigger duress alarm • ‘Master cannot open’ can be set with programming software

  24. Manager Codes • Head cashier, shift manager • 2 Manager codes (head of groups 1 and 2) • Subordinated to Master code • Modify all codes of the respective user group • Deny access to their user group • Activate immediate time lock • Change time delay and confirm. window • Change own code • Open, trigger duress alarm

  25. User Codes • Cashier, sales assistant • Up to 18 users • Subordinated to manager of respective group • Change own code • Open, trigger duress alarm

  26. Courier Code • Cash-in-transit (CIT) service provider, security guard, head of revision • Change own code • Trigger duress alarm • Open- by bypassing time delay- alone in dual mode

  27. Shelve Mode • Accessible with master code only • Resets or deletes ALL data Except: • Time / date • Audit • Opening counter

  28. Summer / Winter Time (DLST)

  29. SL 523 & SL 525 – ‘All-in-One’ Combination Locks Operating Functions

  30. Code Entry • Entry procedure • Concealed (dummy) code entry: • 001234582468532 .... 86496 ENTER

  31. 5 1 2 9 8 7 6 5 4 0 3 9 8 7 6 5 4 1 2 8 Duress Code • Precondition: duress function enabled • Add + 1 or – 1 to the PIN with ID+PIN with PIN+ID

  32. Closing the Lock with door contact: • upon door contact closing without door contact: • upon DEL key stroke • automatically after 6 sec

  33. Time Lock Functions • 16 Weekly locking period programs • 22 Holiday locking periods • Repeating holiday locking periods • Immediate locking (until end of next regular weekly locking period)

  34. SL 523 & SL 525 – ‘All-in-One’ Combination Locks Programming Software

  35. Programming Software • Fully PC programmable • One-shot configuration copy • File storage / recall • Audit evaluation

  36. Programmable Inputs • Time delay override1) • Remote disable2) • Controlled disable • Door contact 1)Standard setting input 2 for SL 523 2)Standard setting input 1 for SL 523 and SL 525

  37. Programmable Outputs

  38. Prevents opening of other safes if one is already open Controlled Disabling

  39. Printer or terminal program Programming software Audit

  40. SL 523 & SL 525 – ‘All-in-One’ Combination Locks Fields of Application

  41. Application Fields 1 • ATMs, CIT services • Small lock dimensions • Contact-triggered time delay override • Special Courier code • Adaptable code format • One-shot configuration

  42. Application Fields 2 • Banks, exchange offices, post offices • Certified high-security lock • Simple retrofitting • Input / outputs to alarm centre • Extended code hierarchy • Master can / cannot open • Adaptable code format

  43. Application Fields 3 • Fast food chains • High-resistant metal input unit • Manager / user groups for shift operation • Large number of user codes • Easy operation

  44. Application Fields 4 • Large department stores, shopping centres • Large number of user codes • Easy operation • Manager / user groups for shift operation • Master can / cannot open • Comprehensive audit trial

  45. Application Fields 5 • Museums, Embassies • Elegant design • Long battery life time • Easy operation • Opening counter

  46. Application Fields 6 • Jewellery stores • Elegant, remarkable design • Large contrasted display • Input / outputs for Alarm connection • Lock status surveillance • Opening counter

  47. SL 523 & SL 525 – ‘All-in-One’ Combination Locks Thank you for your attention ! ...and plenty of success with SL 523 & SL 525 !
